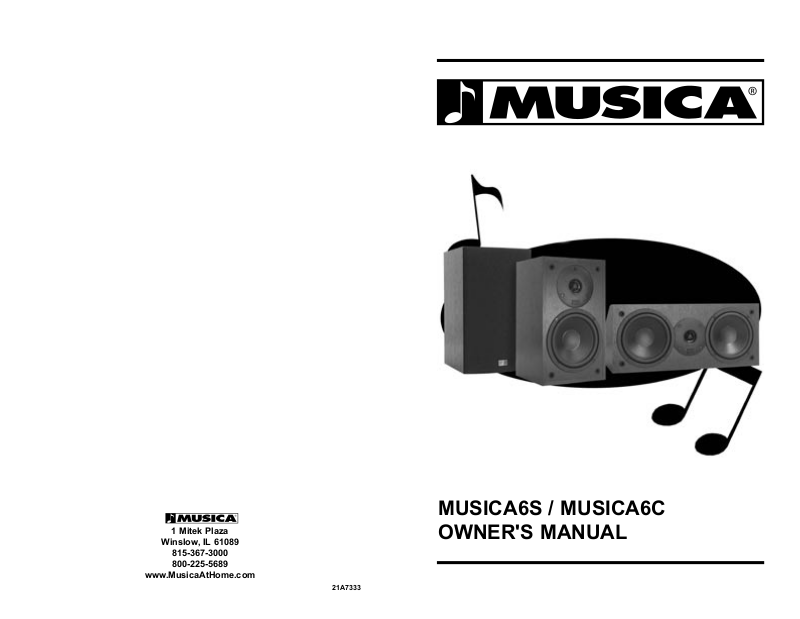

Musica 6C, 6S User Manual
MUSICA6S / MUSICA6C
1 Mitek Plaza
Winslow, IL 61089
815-367-3000
800-225-5689
www.MusicaAtHome.com
OWNER'S MANUAL
21A7333
INTRODUCTION
Congratulations on your purchase of MUSICA Loudspeakers. Your new speakers
represent the latest technologies in loudspeaker design and manufacturing. They
will provide outstanding performance and years of listening enjoyment. Please
take time to read through this manual thoroughly to insure you get maximum
performance out of your new loudspeakers.
FEATURES
• Video shielding for placement near a TV or monitor (MUSICA6C)
• 19mm dome tweeter
• Internally braced high density MDF cabinets
• Nickel-plated 5-way binding posts
• Black ash finish to blend in with any decor
• MUSICA 10 year limited warranty
SPEAKER PLACEMENT
MAIN LEFT AND RIGHT CHANNELS
MUSICA6S
All MUSICA Loudspeakers have been engineered to combine deep powerful bass
with crisp, natural high frequency performance. Because there are many factors
that affect loudspeaker performance, there is no universal rule for speaker location. Best results will be obtained with some experimentation using the following
guidelines.
MUSICA WARRANTY INFORMATION
All MUSICA In-Ceiling Speakers purchased in the United States from an
authorized MUSICA dealer are guaranteed against defects in material and workmanship for a period ten years from the date purchased by the end user, and limited to
the original retail purchaser of the product. Product found to be defective during that
period will be repaired or replaced by MUSICA at no charge. This warranty is void if
it is determined that unauthorized parties have attempted repairs or alterations of any
nature. Warranty does not extend to cosmetics or finish. Before presuming a defect
is present in the product, be certain that all related equipment and wiring is functioning properly. MUSICA disclaims any liability for other incurred damages resulting from
product defects. Any expenses incurred in the removal and reinstallation of product is
not covered by this warranty. MUSICA's total liability will not exceed the purchase price
of the product. If a defect is present, your authorized MUSICA dealer may be able to
effect repairs.
Proof of purchase is required when requesting service, so please
retain your sales receipt and take a moment to register your product on line at
www.MusicaAtHome.com.
To achieve the most realistic stereo image, position the speakers so that an
equilateral triangle is formed between the speakers and the listening position
(Figure 1). Turning the speakers slightly towards the listening position can
improve the image focus.
Bass loudness can be increased by moving the speakers closer to the rear wall.
This sometimes can degrade the stereo image. Use your judgement as to what
location best fits your preferences.
SURROUND LEFT AND RIGHT CHANNELS
MUSICA6S
If you are using the MUSICA6S for rear channel speakers in a home theater application they should be placed to the side and slightly behind the listening position
(Figure 1). If this is not practical, they can be placed on the rear wall to either
side of the listening position (Figure 2). For best results, the surround speakers
should be spaced equal distances from the listening position with the tweeters at
or above ear level.
