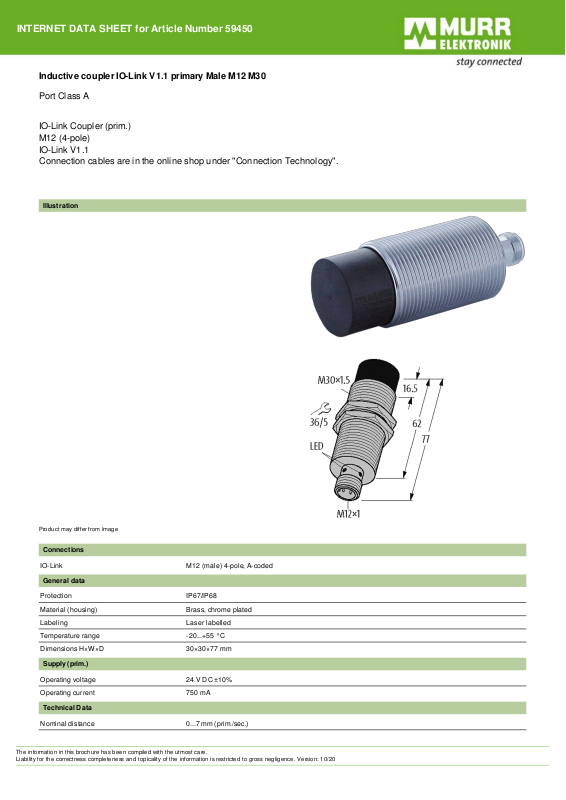

Murrelektronik 59450 Data Sheet

Inductive coupler IO-Link V1.1 primary Male M12 M30

Port Class A

IO-Link Coupler (prim.)
M12 (4-pole)
IO-Link V1.1
Connection cables are in the online shop under "Connection Technology".

Illustration

Connections

Produ ct may diffe r from Ima ge

IO-Link M12 (male) 4-pole, A-coded

General data

Protection IP67/IP68

Material (housing ) Brass, chrome plated

Labeling Laser labelled

Temperature range -20...+55 °C

Dimensions H×W×D 30×30×77 mm

Supply (prim.)

Operating voltage 24 V DC ±10%

Operating current 750 mA

Technical Data

Nominal distance 0...7 mm (prim./sec.)

INTERNET DATA SHEET for Article Number 59450

The information in th is broch ure has been compiled with the utmo st ca re.
Liab ility for th e co rrectne ss co mplete ne ss an d t opicality of the information is restricte d t o g ross neglige nce . V ersion: 10 /20

Standby power (coupled)

4 W

Standby power (uncoupled) 1 W

Short-circu it protection yes

Invers-polarity protection yes

Rotation 1250 rpm

IO-Link

Specification IO-Link V1.1

Operating modes COM2 (38.4 kbit/s)

Port Class A

Diagnostic

Communication status via LED

Diagnostic via LED yes

Commercial data

country of origin CZ

customs tariff numbe r 85389099

EAN 4048879677912

eClass 27242604

Packaging unit 1
