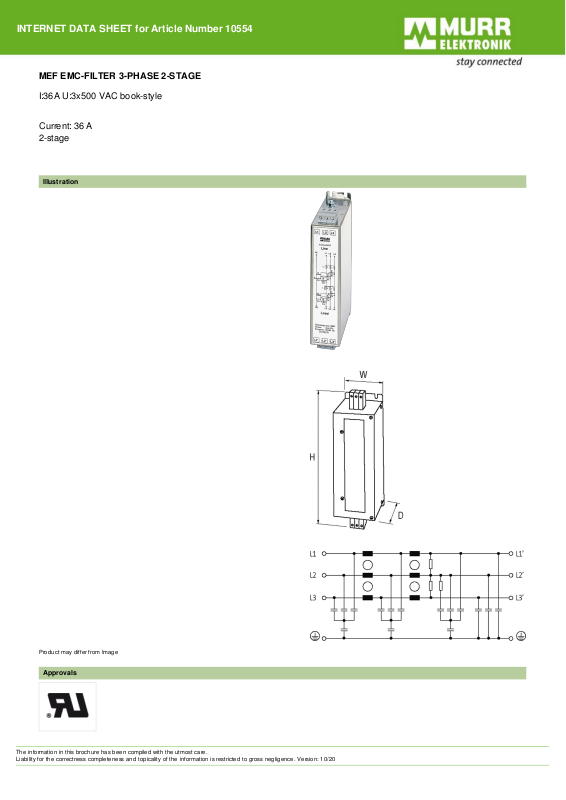

Murrelektronik 10554 Data Sheet

MEF EMC-FILTER 3-PHASE 2-STAGE

I:36A U:3x500 VAC book-style

Current: 36 A
2-stage

Illustration

Approvals

Produ ct may d iffer fro m Image

INTERNET DATA SHEET for Article Number 10554

The information in this broch ure h as b een compiled with th e u tmost ca re.
Liab ility for the correctn ess co mplete ness a nd topica lity of t he in formation is restricted to gross n eglige nce. Version : 10 /20

General data

Test isolatio n voltage 3.3 kV (L-N), 2 s; 3.1 kV (L-L), 2 s

Connection Screw connection, touch protected

Mounting method screw fixin g

Dimensions H×W×D 226×50×140 mm

Climatic category 25 /085/21 (EN 60068-1)

Technical Data

Operating voltage max. 3× 500 V AC

Operating frequency 50...60 Hz

Overload current 18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)

Consumption max. 15 mA (250 V AC)

Connection cross section 0.2...10 mm² single core (AWG 24...7); 0.2...6 mm² multiple core (AWG 24...9)

Description

Functional description

The 3-phase and 1-/2-stage EMC filters MEF 3/1-3/2 are used in the range 0.1...30 MHz and dampe n
interferences found in cabl es from the mains, supply units and control systems. They are suitable for TN-C­mains. The best results are obtained with short con

Commercial data

country of origin IT

customs tariff numbe r 85363030

EAN 4048879029131

eClass 27130806

Packaging unit 1
