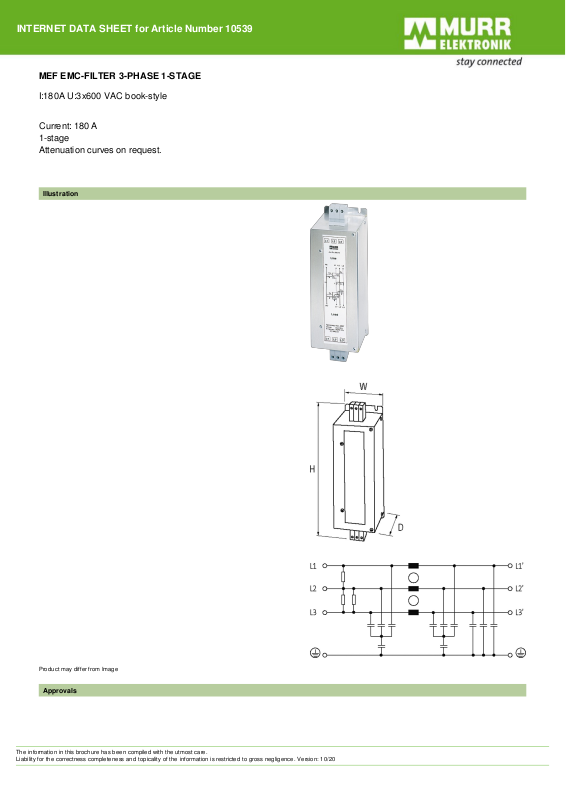

Murrelektronik 10539 Data Sheet

MEF EMC-FILTER 3-PHASE 1-STAGE

I:180A U:3x600 VAC book-style

Current: 180 A
1-stage
Attenuation curves on request.

Illustration

Approvals

Produ ct may d iffer fro m Image

INTERNET DATA SHEET for Article Number 10539

The information in this broch ure h as b een compiled with th e u tmost ca re.
Liab ility for the correctn ess co mplete ness a nd topica lity of t he in formation is restricted to gross n eglige nce. Version : 10 /20

General data

Climatic category 25/085/21 (EN 60068-1)

Test isolatio n voltage 3.3 kV (L-N), 2 s; 3.1 kV (L-L), 2 s

Connection Screw connection, touch protected

Mounting method screw fixing

Dimensions H×W×D 380×120×170 mm

Technical Data

Operating voltage max. 3× 600 V AC

Operating frequency 50...60 Hz

Overload current 18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)

Consumption max. 10 mA (250 V AC)

Connection cross section 25...95 mm² singl e core (AWG 3...0000); 35...95 mm² multip le core (AWG 2...0000)

Description

Functional description

The 3-phase and 1-/2-stage EMC filters MEF 3/1-3/2 are used in the range 0.1...30 MHz and dampe n
interferences found in cabl es from the mains, supply units and control systems. They are suitable for TN-C­mains. The best results are obtained with short con

Commercial data

country of origin IT

customs tariff numbe r 85363090

EAN 4048879029186

eClass 27130806

Packaging unit 1
