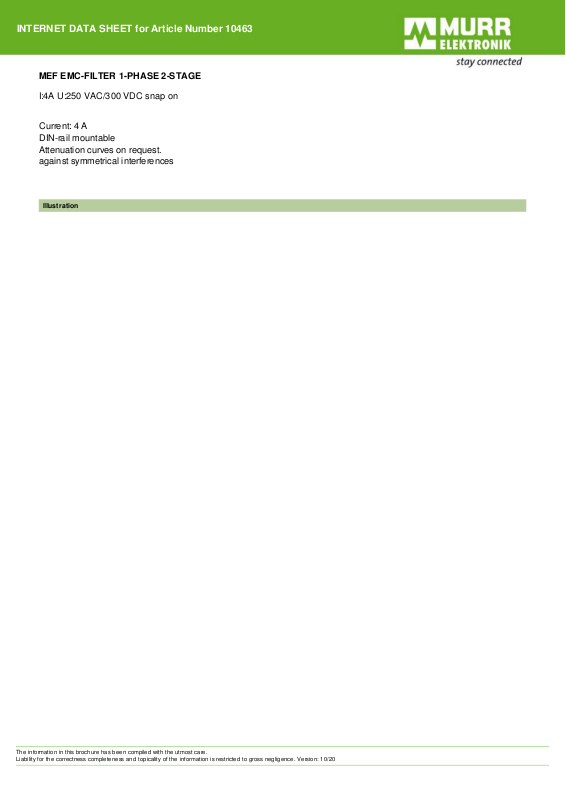

MEF EMC-FILTER 1-PHASE 2-STAGE
I:4A U:250 VAC/300 VDC snap on
Current: 4 A
DIN-rail mountable
Attenuation curves on request.
against symmetrical interferences

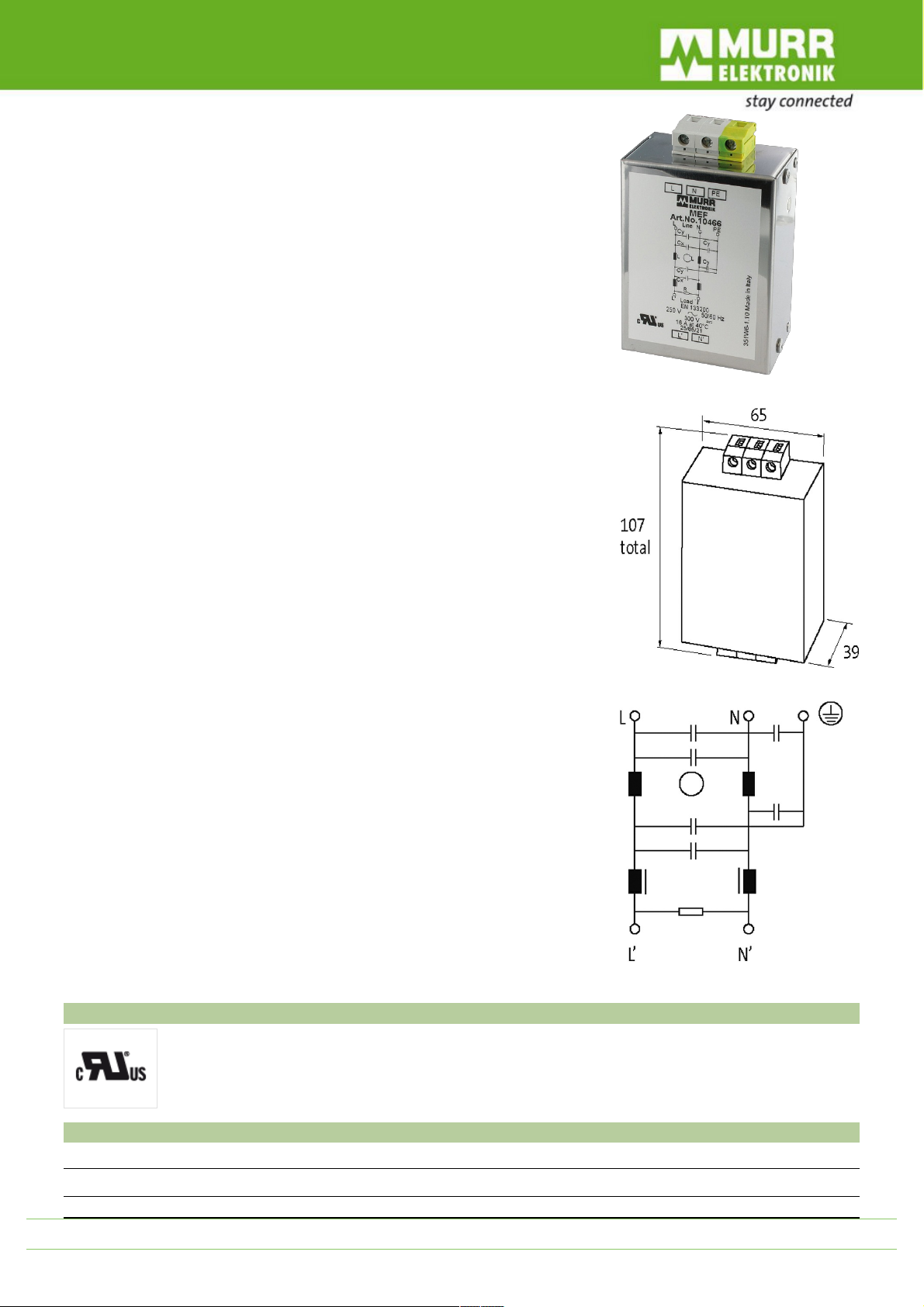

Illustration
INTERNET DATA SHEET for Article Number 10463
The information in this broch ure h as b een compiled with th e u tmost ca re.
Liab ility for the correctn ess co mplete ness a nd topica lity of t he in formation is restricted to gross n eglige nce. Version : 10 /20
Approvals
General data
Produ ct may d iffer fro m Image
Climatic category 25/085/21 (EN 60068-1)
Test isolatio n voltage
2.7 kV (L - N), 2 s; 2.1 kV (L - L), 2 s (EN 60939-2)
Connection Screw connection, touch protected
INTERNET DATA SHEET for Article Number 10463
The information in this broch ure h as b een compiled with th e u tmost ca re.
Liab ility for the correctn ess co mplete ness a nd topica lity of t he in formation is restricted to gross n eglige nce. Version : 10 /20
Mounting method DIN-rail mountable TH35 (EN 60715)
Dimensions H×W×D 107×65×39 mm
Technical Data
Operating voltage max. 250 V AC/300 V DC
Operating frequency 50...60 Hz
Consumption max. 5 mA (250 V AC)
Overload current 18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
Connection cross section 0.2...6 mm² single core (AWG 24...9); 0.2...4 mm² multiple core (AWG 24...11)
Description
Functional description
The single pha se 2-stage EMC filters MEF 1/2 are used in the rang e 0.1...30 MHz to suppress cable carried
interference on mains and control cables. The best filter performance is achieved by using short connection
wires (suggestion: earth connection < 10
Application
symmetrical interferen ces: units with high rep etitions of the switching processes, - switch mode P.S.U.s, phase angle controller, - supply of universal motors, - behind transformers
Commercial data
country of origin IT
customs tariff numbe r 85363010
EAN 4048879029353
eClass 27130806
Packaging unit 1
INTERNET DATA SHEET for Article Number 10463
The information in this broch ure h as b een compiled with th e u tmost ca re.
Liab ility for the correctn ess co mplete ness a nd topica lity of t he in formation is restricted to gross n eglige nce. Version : 10 /20
