INTERNET-DATASHEET of Art.-No. 85165
MCS-B Power supply 1-phase, primary switched IN: 100-265VAC OUT: 24V/10ADC
INPUT: 100...265 V AC
OUTPUT: 24 V DC
Current: 10 A
- stable output voltage, short-circuit and overload protected
- Wide voltage input
- touch protected (EN 60529) IP20
Vicarious picture
Approvals
Input
Voltage range 100...265 V AC
Input current 3.4 A (115 V AC); 2.2 A (230 V AC)
Inrush current after 1 ms <= 40 A
Primary fusing max. 16 A
Frequency 50/60 Hz
Output
Output voltage 24 V DC (SELV), +3/-1 %
Output current 10 A (+40 °C); 8 A (+55 °C)
83 % (115 V AC); 85 % (230 V AC)
Mains failure bridging >= 15 ms (115 V AC); >= 115 ms (230 V AC)
Ripple <= 20 mV rms
Spikes <= 100 mV p-p
Protection Short-circuit and overload protected
LED display LED (green) for output voltage
Parallel usage/serial usage no/yes (max. 2 units)
General data
Standards (EN 60950-1), (EN 61204-3), (EN 55011 A)
Mounting method DIN-rail mountable TH35 (EN 60715)
Relative humidity 5...95 %, no condensation
Temperature range 0...+40 °C, to +70 °C derating (storage temperature -25...+85 °C)
Dimensions H × W × D 128 x 68 x 165 mm
All data on this data sheet was compiled carefully.
Liability regarding correctness, completeness, and actuality is limited to gross negligence. Created: 06/12
Murrelektronik GmbH | Falkenstraße 3, D-71570 Oppenweiler | Fon +49 7191 47-0, Fax +49 7191 47-130 | [email protected] | www.murrelektronik.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 3
INTERNET-DATASHEET of Art.-No. 85165
Commercial data
Net weight 831
Net weight 831
Weight unit gram
Basic unit pc.
Customs tariff number 85044090
Unit (piece) 1
Limited value 1
Accessories Art.-No.
Accessory for MCS Plate for screw mounting 89514
All data on this data sheet was compiled carefully.
Liability regarding correctness, completeness, and actuality is limited to gross negligence. Created: 06/12
Murrelektronik GmbH | Falkenstraße 3, D-71570 Oppenweiler | Fon +49 7191 47-0, Fax +49 7191 47-130 | [email protected] | www.murrelektronik.com
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Page 4
INTERNET-DATASHEET of Art.-No. 85165

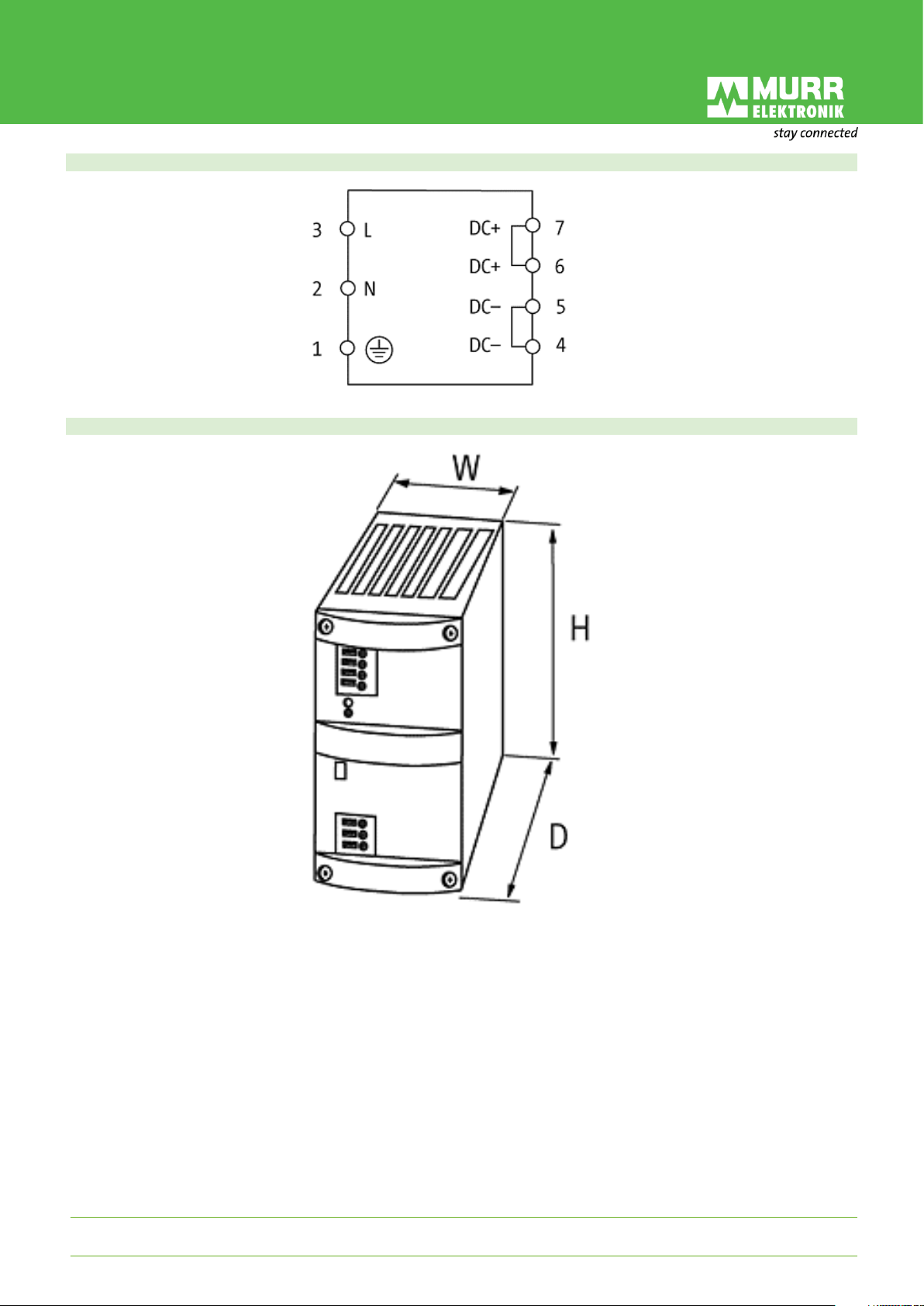

Circuit diagram
