Murray 22106X9A Owner’s Manual

Model

22106x9A

This InstructionBookcontainsinformationforseveralmodels.

Readandkeepthis bookforfuturereference.

This bookcontainsimportantinformationon

SAFETY,,ASSEMBLY,OPERATION,AND MAINTENANCE.

PRODUCTINFORMATION

Theownermust becertainthatall

the productinformation isincludedwiththe unit.

Thisinformationincludes
theINSTRUCTIONBOOKS,

the REPLACEMENTPARTSandtheWARRANTIES.
Thisinformationmustbe includedto makesurestatelaws

andotherlawsarefollowed.

RECORD THE FOLLOWING INFORMATION ABOUT YOUR UNIT,

THIS INFORMATION IS NECESSARY WHEN ORDERING PARTS

OR IN CASE OF LOSS OR THEFT.

WHEREPURCHASED:

DATEPURCHASB):Month .Day. Year

MODELNO.; DATEOFMANUFACTURE:

F-98524

BUILT IN THE

MURRAY, INC. TwoYearLimitedWarranty

Murray, Inc.warrants to the originalpurchaser that this unitshall be free from defects in ma-
terial and workmanship under normal use and service for a period of Two (2) Years from

the date of purchase; however, thiswarranty does not cover engines, accessories (such as
snow blowers, snow blades, grass baggers and plows), transmissions, batteries and Nor-

mal Wear Parts (except as noted below) or transaxles as the companies that manufacture

these items furnish their own warranties and provide service through their authorized field

service facilities. For additional information, see the warranties covering these particular
parts. If you are uncertain whether your unit contains or is equipped with one or more of

these parts,consultyour dealer priorto purchase.Subject tothe terms and conditionsnoted
in this Limited Warranty, we shall, at our option, repair or replace at no cost to the original

purchaser any part covered by this LimitedWarranty duringthe applicablewarranty period.

In the event the battery proves defective within ninety(90) days from the date of purchase,

we will replace it without charge. Ifthe battery provesdefective after(90) days butwithinone
hundred twenty (120) days from the date of purchase, we willreplace itfora charge of one

half (1/2) of the retail price of the battery in effect at the time of return.
Normal Wear Parts are defined as belts, blades, blade adapters, pneumatic tires, headlights

and seat covers. These parts are warranted to be free from defects in material and work-
manship as delivered with the product.Any claimfor repair or replacement of Normal Wear

Parts mustbe made withinthirty(30) daysof the date of purchase. No claims involvingdam-
age caused from material use, abuse or misuse will be honored.

This Murray, Inc. Two (2) Year Limited Warranty is your exclusive remedy; however, this
warranty isvoidor does notapply toany unit thathas been tamperedwith, altered, misused,

abused or used for rental or other commercial and/or professional(non-homeowner) uses.
Your warranty does not cover minor mechanical adjustmentswhich are not due to any de-
fect in material or workmanship. For assistance in making such adjustments, consult your

Instruction Book.

To make a claim under this Murray, Inc. Two (2) Year Limited Warranty, returnthe unit(or

ifauthorized in advance, the defective part) along with your proof of purchase to an Autho-
rized Service Center near you. To locate the nearest Authorized Service Center, call the
Central Parts Distributorfor your area shown inthe listprovidedwith your unitorcheck the
Yellow Page listings in your local telephone directory.If you return the entire unit, we will

repair the unit. If we authorize the return of the defective part only,we willeither replace or
repair the part. In the case of a defect in a transmissionor differential(as distinguishedfrom

a transaxle), the entire transmission or differential must be returned since they do not in-
clude user serviceable parts.

This Murray, Inc. Two (2) Year Limited Warranty gives you specific legal rights, and you

may also have other rightswhich vary from state to state. This Limited Warranty is given
in lieu of all other expressed and implied warranties including the implied warranty

of merchantability and warranty of fitness for a particular purpose. If you need addi-

tional informationon this written warranty or assistance in obtaining service, write or call:

MURRAY, INC.

Outdoor Power Equipment

Customer Service Department

P.O. Box 268

Brantwood, Tennessee 37027

1-800-251-8007

F-98524 2

OWNER'S INFORMATION

This instructionbook is wdtten for a person with some mechanical ability.Like most service books,

not all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can

follow with some mechanical ability. Read and follow these instructions before you use the unit.

Know your product: If you understand the unit and how the unit operates, you will get the best
performance. As you read this manual, compare the illustrationsto the unit. Learnthe locationand
the functionof the controls. To help prevent an accident, follow the operating instructionsand the
safety rules. Keep this manual for future reference.

IMPORTANT: Many units are not assembled and are sold in cartons. It is the responsibility of the
owner to make sure the assembly instructionsin this manual are exactly followed. Other units are
purchased in an assembled condition.On assembled units, it isthe responsibilityof the owner to
make sure the unit is correctly assembled. The owner must carefully check the unitaccordingto

the instructions in this manual before it is first used.

RESPONSIBILITY OF THE OWNER

The responsibility of the owner is to follow the instructions below.

1. Carefully read and follow the rules for safe operation.

2. Follow all the assembly and preparation instructions.

3. Inspect the unit.

4. Make sure that the operator of the unitknows how to correctly use all standard and accessory

equipment.

5. Operate the unit only with guards, shields,and othersafetyitems in place and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or approved replacement parts.

8. Complete all maintenance on the unit.

The engine exhaust from this product
contains chemicals known to the State

of California to cause cancer, birth
defects or other reproductive harm,

F-98524 3

IMPORTANT

Safe Operation Practices for Walk-Behind Mowers.

This cutting machine is capable of amputating hands and feet and throwingobjects. Failure to ob-

serve the following safety instructionscould result in serious injuryor death.
I. General Operation

1.

Read, understand, and follow all instruc-

tions on the machine and in the manual(s).

Be thoroughlyfamiliarwith the controls and
the proper use of the mower before starting.

2. Do not put hands or feet near or under rotat-
ing parts.Keep clear ofthe discharge open-

ing at all times.

3. Only allow responsible individuals, who are
familiar with the instructions, to operate the

mower.

4. Thoroughly inspect the mower and area
where the equipment is to be used. Clear

the area of objectssuch as rocks, toys,wire,
bones, sticksetc.,which could be pickedup

and thrown by the blade.

5. Be sure the area is clear of other people be-

fore mowing. Stop mower if anyone enters
the area.

6. Do not operate the mower when barefoot or

wearing open sandals. Always wear sub-
stantial foot wear.

7. Do notpull mower backwards unless abso-

lutely necessary. Lookdownand behind be-

fore and while moving backwards.

8. Do not operate the mower without proper
guards, plates, grass catcher or other safety

protective devices in place.

g.

See manufacturer's instructions for proper
operation and installation of accessories.

Only use accessories approved by the
manufacturer.

10. Stop the blade(s) when crossing gravel

drives, walks, or roads.

11. Stop the engine (motor) whenever you
leave the equipment, before cleaning the
mower or unclogging the chute.

12. Shut the engine (motor) offandwait untilthe
blade comes to complete stop before re-

moving grass catcher.

13. Mow only in daylight or good artificial light.

14. Do not operate the mower while under the
influence ofalcohol, drugs or other medica-

F-98524

tion which can cause drowsiness or affect
your ability to operate this machine safely.

15. Never operate mower in wet grass. Always
be sure ofyour footing; keep a firm hold on
the handle and walk; never run.

16. Disengage the self-propelled mechanism
or drive clutch on mowers so equipped be-
fore starting the engine (motor).

17. If the equipment should start to vibrate ab-
normally, stop the engine (motor) and check

immediately for the cause. Vibration is gen-
erally a warning of trouble such as a blade

that is damaged, a loose blade, or the en-
gine mounting bolts are loose.

18.

Always wear safety goggles or safety
glasses with side shields when operating

mower to protectyoureyes from foreignob-

jects which can be thrown from the unit.

19.

Plan your mowing pattern to avoid dis-
charge of material toward roads, sidewalks,

bystanders and the like.

20.

After striking a foreign object, stop the en-
gine. Remove the wire from the spark plug.

Inspect the blade and mower for damage. If
damaged, repair before startingand operat-
ing the mower.

21.

Keep any washout ports and other mower

housing service openings closed when

mowing.

II. Slope Operation
Slopes are a majorfactorrelated to slipandfall

accidents which can result in severe injury.All
slopes require extra caution, If you feel uneasy

on a slope, do not mow it.
DO:

Mow across the face of slopes; never up

and down. Do not mow excessively steep

slopes (maximum 15 degrees) or areas

where the ground is very rough. See the

=Guide" in the back of this manual to check

a slope. Exercise extreme caution when

changing direction on slopes.

Remove objects such as rocks, tree limbs,

etc.

Watch for holes, ruts, or bumps. Tall grass

can hide obstacles.

(Continued Following Page)

IMPORTANT

DO NOT:

Do not mow near drop-offs, ditches, or em-
bankments. The operator could lose footing

or balance.

Do not mow excessively steep slopes.

Do not mow on wet grass. Reduced footing

could cause slipping.

III. Children

Tragic accidentscan occur if the operator is not
alert to the presence of children. Children are
often attracted to the mower and the mowing
activity.Never assume that childrenwill remain
where you last saw them.

1. Keep children out of the mowing area and
under the watchful care of a responsible

adult. 8.

2. Be alert and tum mower oft ifchildrenenter

the area.

3. Before and while moving backwards, look

behind and down for small children.

4. Never allow children to operate the mower. 10.

5. Use extra carewhen approaching blind cor-

ners, shrubs, trees, or other objects that
may obscure vision.

IV. Service

"1. Use extra care in handlinggasoline and oth-

er fuels. They are flammable and vaporsare
explosive.

a. Use only an approved container.

4.

5.

6.

9.

11.

nect the spark plug wire, and keep the wire
away from the plug to prevent accidental
starting. Always wear eye protection when

you make adjustments or repairs.

Keep all nuts and bolts, especially blade at-
tachment bolts,tightand keep equipment in

good condition.

Never tamper with safety devices. Check

their proper operation regularly.

To reduce fire hazard, keep mower free of
grass, leaves, or other debris build-up.
Clean up oil or fuel spillage.Allow mower to
cool before storing.

.

Stop and inspectthe equipment ifyou stdke
an object. Repair, if necessary, before re-

starting.

Never attemptto make wheel height adjust-

ments while the engine (motor) is running.
Always disconnect electdc mowers (live op-

erated) before cleaning, repairing, or ad-

justing.

Grass catcher components are subject to
wear, damage, and deterioration, which

could expose moving parts or allow objects
to be thrown.Frequentlycheck components

and replace with manufacturer's recom-
mended parts, when necessary. For stor-
age, always make sure grass catcher is
empty.

Mower blades are sharp and can cut. Wrap
the blade(s) or wear gloves, and use extra
caution when servicing them.

b. Never remove gas cap or add fuel with

the engine running. Allow engine to cool

before refueling. Do not smoke.

c. Never refuel the machine indoors.

d. Never store the machine or fuel contain-

er inside where there is an open flame,
such as a water heater.

*2. Never run an engine indoors or inside a

closed area.

3. Never make adjustmentsor repairsto items
such as the height adjusters or grass catch-
er with the engine (motor) running. Discon-

*Asterisked items do not apply to electric mowers.

F-98524 5

12. Do not change the engine governor setting

or over-speed the engine.

13.

Frequently check the blade forwear or dam-
ages such as cracks and nicks.A blade that

isbentordamaged mustbe immediately re-
placed with a factory replacement blade.
For safety and good cutting performance,
replace the blade every two years. Fre-
quently check the blade boltand the engine

mounting bolts. Replace damaged bolts
and tighten loose bolts.

14. Use only original equipment or authorized

replacement parts.

SAFE MOWING GUIDE

Every person who uses power equipment
must learn the difference between proper and

improper use, safe and unsafe mowing prac-
tices. Read the next few pages carefully.
They can help you learn. Too often the mow-

er user is inexperienced, not properly in-
structed, or has not read the InstructionBook

and instructions on the unit before using itfor
the firsttime. This can result in unsafe use en-

dangering the operator, bystanders, and the
equipment. Another result can be a poor ap-
pearance of the area mowed.

Read this Instruction Book. Read the in-

structions on the unit. Operate the mower ac-

carding to the Safe Mowing Guide and other

safety rules and recommendations in this In-

structionBookand on the unit. Make sure any-
one who uses the unithas read the instructions

and has been told how to operate the mower
safely.

Your mower isdesigned to provide good ser-
vice and durability in normal residential cut-
Ung. If the mower is not propedy serviced and

maintained or used on unsuitable terrain or in
conditions not suitable for mowing, product

performance and safety will be reduced.
Proper attire isan important part of safe mow-

ing. Safety glasses protect the eyes from
thrown objects. Safety shoes with steel toes
can protecta foot from being cut by the blade.
Shirts and pants that cover the arms and legs
can stop or deflect a thrown object.

gency. Learn how to cut and how to keep con-
trolof the mower at all times.

Many mowers are started manually. When us-
ing a pul! start or rope start, place your feet
firmly and away frem the blade. Hold the rope

handle securely, but never wrap the rop,e
around your arm or fingers for a "better grip.

The mower isdesignedfor use by one person.
Always mow alone. Never carry passengers.

Carrying a passenger is dangerous for the
passenger and theoperator.A mower is notfor

amusement or for carrying objects.

Is thearea you are planningto mow wet?.Nev-
er cut a wet lawn. Cutting wet grass can cause

an accident. It can affect mower performance
and also cause problems with future lawn

growth and appearance. Wet grass is slippery

and might cause the operator to fall or the
mower to slip. Someone could be hurt by

touching the blade.Wet grasstends to clogthe

mower, causing poor discharge. Wet clippings
bunch up on the lawn retarding the growth of
grass. A wet mower can cause parts to rust

and reduce the useful life of the unit.

Practice using the mower before you actually
begin cutting grass. Select a large open level

area. Learn the location and function of the
controls and how they work. It is important that

the blade can be stopped quickly in an emer-

F-98524

When you look over the lawn, refresh your

memory about hard, immovable obstacles

such as pipes, stumps, and recks and avoid
them. They can cause damage to the mower
or an accident injuring the operator or a by-

stander. Take a litterbag along and walk over
the area to be cut. Pick up any stones, toys,

wire, bones, or other loose objects. These

items can damage the mower or they can be-
come dangerous flying objects if the mower

blade hits them. The blade of a power mower
travels very fast. It can throw rocks and other
objects with forceover longdistances. Objects
thrown by mowers can break windows, cause

SAFE MOWING GUIDE

bruises, or even put out an eye. Often the per-
son hurt bya thrownobject is a bystandersuch
as a child, another family member or a neigh-

bor. Keep people and pets completely away

from the mowing area. Direct the mower's dis-

charge away from areas where people can be.
Planning your mowing pattern has a double

benefit. Itcan reduce chances of an injuryand
make the clean up after mowing easier.

Are there ditches,
walls, or major in-

clines inthe area to be
cut?.Plan the mowing

pattern to avoid such
danger areas. In-
clines and rough ter-

rain must be mowed
carefully and some

areas must not be cut
with a mower at all.

With walk behind_

equipment, mow
across the incline so

that if you orthe mow-
er slip, you won't run

into each other.
Never mow slopes greater than 15 degrees.

See the =Guide" in the back of this Instruction

Book to check any slopes.
Ready to start cutting? Not yet. Be sure the

mower has been fullyassembled accordingto
directions in the Instruction Book. Even if as-

sembly was done by a lawn and garden shop
or the store where the unit was purchased, it
must be checked. Are all nuts, bolts and

screws tight?Does the engine have oil?These

items must be checked periodicallythroughout

the life of the mower.
Your mower has a gasoline engine. Gas is

dangerous. Store fuel only in a approved gas
container. Do not store large amounts of gas.
Put out all cigarettes, pipes and cigars before
working with gasoline. Store fuel and the mow-
er itselfin a well ventilatedarea away from any

possible source of ignitionsuch a pilot lighton
a furnace. If the mower istobe storedfor an ex-

tended time, remove the gas from the tank.
This minimizes the chance ofa fire and keeps

the tank clear of deposits and old gasoline,
thus improving mower performance. Move the
mower outside before adding gasoline. Use a
funnel and wipe up any spilledfuel beforestart-
ing. Remember, gasoline expands when

heated so leave some expansion room. Also,
most mower gas caps are vented to allowfor

expansion. Always use the propercap. People
are needlessly burned by fires, hurt in explo-

sions, mowers and other property are dam-
aged because of failure to follow basic safety

rules related to gasoline and fueling.
Never add gasolineto an enginethat isrunning

or that ishotfrom recent use, thiscan cause an
accident. Remove dry grass and other debris

from the mower. Keeping the mower clean will

F-98524

improve the performance, help the engine stay
cooler, extend the life of moving parts, and
minimize the danger offire. People get burned

working with and around their mowers for oth-
er reasons than fire and explosions. It takes
only a few secondsof operationfor the engine

and the muffler to become hot. Do not touch
these parts when the mower is running. Stop

the engine and let itcooldown before servicing
the mower. Remember, exhaust fumes can be

dangerous. Never operate the engine indoors
or in an enclosed area.

Getting a new mower can be a big event for a

family. Let family members satisfy their curios-

ity about the mower and at the same time, tell
them about its dangers. Remember, a mower
is not a toyand isnotfor useby childrenorany-
one lacking in age, strength or experience.

As with any power equipment,a mower can be
dangerous if not assembled, misused, or not

propedy maintained. The most important rule
is to always use goodjudgement and common

sense.

Your mower will cut thick grass and heavy

plant stems with ease. Fingers and toes are co
more resistant to the mower's blade. Many

people are injured because they =forgot" and
reached into the discharge chute. Always treat

_lour lawn mower as if the blade is rotating.

ever perform any service or try to make any
adjustment,except carburetor, while the en-
gine is running.

Use only accessories suited for your mower.
Use of improper accessories can reduce the

safety designed into both the mower and the

accessory, it can even damage the unit. Read
and follow the instructions which come with the

accessory and the mower.

SAFE MOWING GUIDE

Use only original equipment or approved sub- in the rain is nofun and it isdangerous. Always
stitutionsas service parts. If you need profes- seek shelter in an electrical storm. In extreme-

sional service, select a shop that is an ly dry mowing conditions, your safetyglasses
Authorized Service Center for your brand of can serve a dual purpose by protecting your

mower. Ifyou plan to service the unit yourself, eyes fromdustand thrownobjects, also a dust

follow directions in the Instruction Book. or pollen mask can be helpful.

As you mow, remember children and pets are
sometimes attracted to the activity. Be espe-

cially carefulwhen trimmingaround shrubbery
or when backing up. If at all possible, don't

mow when movingbackwards. It is dangerous
because vision is restricted. Also, blades are

designed to cut while the unit is moving for-

ward so cutting performance is reduced when

mowing in reverse.

Never leave the mower running and unat-

tended. Shut off the engine. Put the mower in

a position so that it can not roll. If the unit is
self-propelled, make sure the drive control is
disengaged.

When mowing, be aware of your condition and
the weather conditions. After mowing a long

time, you will be tired. This is the time when
reactions slow down, your attention wanders;
the time when you are wide open for an acci-
dent. Take a short break. If temperatures are

high, take precautions to avoid becoming de-
hydrated. If you are angry, tired, or unable to

give your full attention to mowing, if you have

been consuming alcohol, medicines, or drugs,
do not use your mower or any type of power
equipment.

If weather conditions become worse while you
are cutting, stop and finish later. Cutting grass

F-98524

Yourmower isequippedwitha number of safe-
ty features which are importantto the safety of
the operator and bystanders and must never

be altered or removed. If a safety feature be-

comes inoperable,lost,or damaged, it must be

repairedorreplaced beforethe mower is used.
Engine speed is a key to safe mowing and a

nice looking lawn. The maximum speed ofthe
engine on your mower has been set at the fac-
tory.Do not change the engine governor inany

way.
Select the maximum engine and ground speed

that is right for the terrain and the height of
grass. You get the best cutting and bagging

performance when using a grass catcher by
operating the engine at maximum speed. Nev-

er walk fast or runjustto get the job done soon-

er. On inclines, reduce ground speed and
exercise extreme care.

It is best to mow only during daylight hours;
however, if you mustmow inthe lateafternoon

or evening, make sure there is good artificial
light.
Your mower willrequire maintenance including

service and adjustments before and after use
as with any machine. The frequency of the
maintenance is generally based on hours of
use, however,the frequency can vary because
of mowing conditions. Check the Instruction

Book for more detailed instructions. Proper
maintenance protects your investment in the

mower and helps insure that it will function

safely and reliably.

Never attempt any
service (with the pos-
sible exceptionof car-

with the engine run-
ning. After turning the

buretor adjustment) /_

engine off, always
disconnect the spark

plu9 wire to prevent
accidental restarting

while the unitis being
serviced.

8

SAFE MOWING GUIDE

While mowing, if you hit a foreign object, stop
the engine. Remove the spark plugwire. Care-
fully and thoroughly inspect the mower for

damage. Make necessary repairs before re-
starting. Ifthe unitstarts to vibrate abnormally,

stop the engine immediately and check for the
cause. Vibration is generally a warning of
trouble. Keep all nuts, bolts, and screws tight.

The blade is the most dangerous part of the

mower and also the most important part in ob-

taining a nice lawn appearance. Check the

blade and the blade mounting hardware fre-
quently. Keep it tight. If the blade hits a solid
object, check it thoroughlyfor deformation or
cracks and replaca ifdamaged. For safety,re-
place the blade every twoyears. A sharp blade
reduces the work load on the engine and cuts
grass more cleanly,for a better looking cut with

lesswork.The blade isalways close to the out-

side ofthe mower housing. For best trimming

on side discharge mowers, cut with the left
side of the housingtoward the area that needs
trimming.

A useful accessory for your mower is a grass
catcher. There are grass catchers available for

most models. For best performance and safe-
ty, be sure the grass catcher is approved for

use with your mower. Assemble as directed
and follow operating and safety instructions

with the catcher and in the Instruction Book.

Before mounting, checking or emptying the

grass catcher, always turn the engine off. Re-
member to check the grass catcher before

each use for cracks, wear, or deterioration. Re-

place any part that is damaged with the man-
ufacturer's recommended replacement part

before using the grass catcher again.

Proper cutting technique is important if you

want your lawn to look good. Avoid the tempta-
tion to cut grass too short. Cutting grass too
short can kill the plant,cause grass toturn yel-

low, or make the lawn look brown and thatchy.
Use the lower cutting heights in cool months
when the grass is lush. Use the higher cutting
heights in extremely dry periods. Cuttingwith
a dull blade or low engine speed bruises,
shreds, and can uproot some grass making
the lawn lookdull and brown a few days after
cutting. Always put the throttle control in FAST

F-98524

position when mowing and bagging. When
bagging, slower ground speed will providethe

best results.
Change the mowing pattern slightlyeach time

you cut. If you always cut the same way, the

grass willdevelop a "set" and clippingswill ac-
cumulate more heavily in some areas more
than in others causing grass to get thinner in
those areas. Do not service your mower over
the grass. Spilled oilandgas can killthe grass.

In tall grass or very heavy grass, do not try to
cut itall at once. Raise the height of cut on the
first cuttingand lower itfor the next cuttingthe
same day or withina few days. Anotherway is
to cutonly part of the width of the mower and

adjust your ground speed (not the engine) to

move more slowly so the mower can clear it-

self as it moves forward.

When cutting with a walk behind mower, al-
ways push the unit. Do not pullit. Pushing the

unit keeps the operator behind the mower in
the =operator's zone" for better control. Push-

ing the unit also gives you a chance to see ex-
actly where and what you are mowing. There

will be times while you are mowing thatyou will
have to pull the mower backwards (such as

when the front of the mower has come up
against a wall or fence). If you must back up,

make sure your feet are inthe clear. Stand well
back from the mower, plant your feet firmly with

each step and back up being careful to look be-
hind you. Resume normal mowing as soon as
possible.

If your unit is self-propelled, remember that
the drive mechanism is not designed to do all

the work, but the unit can move without your
help. Always keep your hands on the handle
near the controls when the engine is running.
Remember too that the self-propelled mecha-

nism can be dangerous. Keep hands and feet

away from belts and chains. Always turn offthe

engine before attempting to remove anything
that becomes entangled in the self-propelled
system.

Remember, your mower is a useful tool, but it

can be dangerous. Follow the instructions in

this Instruction Book. Use the mower properly

and carefully and itwill give you many hours of

trouble free, accident free operations.

9

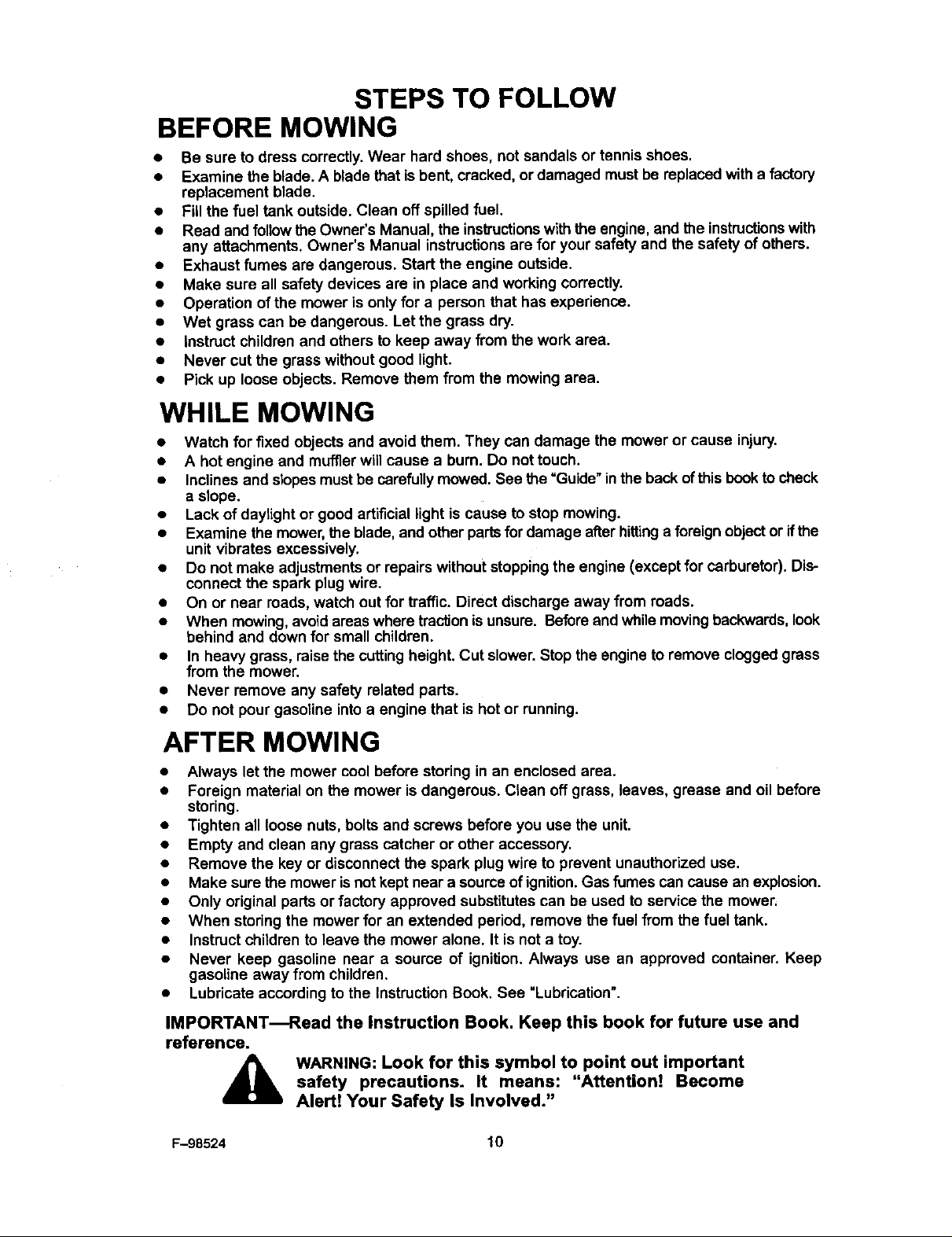

STEPS TO FOLLOW

BEFORE MOWING

• Be sure to dress correctly. Wear hard shoes, not sandals or tennis shoes.

• Examine the blade. A blade that is bent, cracked, or damaged must be replaced with a factory

replacement blade.

• Fill the fuel tank outside. Clean off spilled fuel.

• Read and followthe Owner's Manual, the instructionswiththe engine, and the instructionswith

any attachments. Owner's Manual instructionsare for your safety and the safety of others.

• Exhaust fumes are dangerous. Start the engine outside.

• Make sure all safety devices are in place and working correctly.

• Operation of the mower is only for a person that has experience.

• Wet grass can be dangerous. Let the grass dry.

• Instruct children and others to keep away from the work area.

• Never cut the grass without good light.

• Pick up loose objects. Remove them from the mowing area.

WHILE MOWING

• Watch for fixed objects and avoid them. They can damage the mower or cause injury.

• A hot engine and muffler will cause a burn. Do not touch.

• Inclines and slopesmustbe carefullymowed. See the =Guide" in the back ofthisbookto check

a slope.

• Lack of daylight or good artificial light is cause to stop mowing.

• Examine the mower,the blade, and other partsfor damage after hittinga foreignobjector ifthe

unit vibrates excessively.

• Do not make adjustments or repairs without stopping the engine (except for carburetor). Dis-

connect the spark plug wire.

• On or near reads, watch out for traffic. Direct discharge away from reads.

• When mowing,avoid areas where tractionis unsure. Before and while moving backwards, look
behind and down for small children.

• In heavy grass, raise the cuttingheight. Cut slower. Stop the engine to remove clogged grass

from the mower.

• Never remove any safety related parts.

• Do not pour gasoline intoa engine that is hot or running.

AFTER MOWING

• Always let the mower cool before storing in an enclosed area.

• Foreign material on the mower isdangerous. Clean off grass, leaves, grease and oil before

storing.

• Tighten all loose nuts, bolts and screws before you use the unit.

• Empty and clean any grass catcher or other accessory.

• Remove the key or disconnect the spark plug wire to prevent unauthorized use.

• Make sure the mower isnot kept near a source of ignition.Gas fumes can cause an explosion.

• Only original parts or factory approved substitutes can be used to service the mower.

• When storing the mower for an extended period, remove the fuel from the fuel tank.

• Instruct children to leave the mower alone. It is not a toy.

• Never keep gasoline near a source of ignition. Always use an approved container. Keep

gasoline away from children.

• Lubricate according to the InstructionBook. See "Lubrication".

IMPORTANT_ead the Instruction Book. Keep this book for future use and
reference.

safety precautions. It means: "Attention! Become

WARNING: Look for this symbol to point out important
Alert! Your Safety Is Involved."

F-98524 10

PREPARATION

UNPACKING INSTRUCTIONS

The mower was fully assembled at the factory.
When the mower was put in the carton, the

handle was put in the storage position. To put
the handle in the operating position, follow the

steps below.

1. Remove the mower from the carton.

Wingnut

Offset Hole

Lockinc

Tabs.

2, Put the lower handle inthe operating posi-

tion. Make sure the lower handle is be-
tween the locking tabs (Figure 1).

3. Put the upper handle in the operating
position. Tighten the wingnuts.

CAUTION: Be careful when you fold or
raise the handle. Do not damage the

cables. A cable that is bent will not work
correctly. Before you use the unit, re-

place a bent or damaged cable.

4. To attachthe recoil-start grip tothe rope

guide, twist the rope through the rope
guide mountedonthe dght side of the han-

dle (Figure 2).

NOTE: If you cannot attach the
recoil-start grip because the rope is too

short, hold the engine atop lever
against the handle. Slowly pull the
recoil-start grip.

Handle

Wir

HOWTOADJUSTTHEHANDLEHEIGHT

The lower handle has two assembly posi-
tions. A HIGH and a LOW position (Figure 3).

The HIGH position will raise the handle ap-
proximately four inches.

LOW

The mounting holes in the lower handle are
offset (Figure 1), To change the holeoffset, ro-
tate the lower handle. This will change the

F-98524

angle of the handle and make the heightof the
handle higher or lower (Figure 3).

1, Remove thecable ties that fasten the con-

trol cables to the lower handle (Figure 4).
The cable ties can be re-used. To remove

a cable tie, pullthe tab on the cable tie to
free the cable.

2. Remove the bolts and wingnuts that fas-

ten the upper handle to the lower handle.

3. Put the upper handle on the ground be-

hind the mower.
CAUTION: Do not bend the control

cables. A cable that is bent or damaged
must be replaced.

4.

Remove the wingnuts from the right and
left handle brackets (Figure 1).

5.

Remove the lower handle from the han-
dle brackets (Figure 1).

11

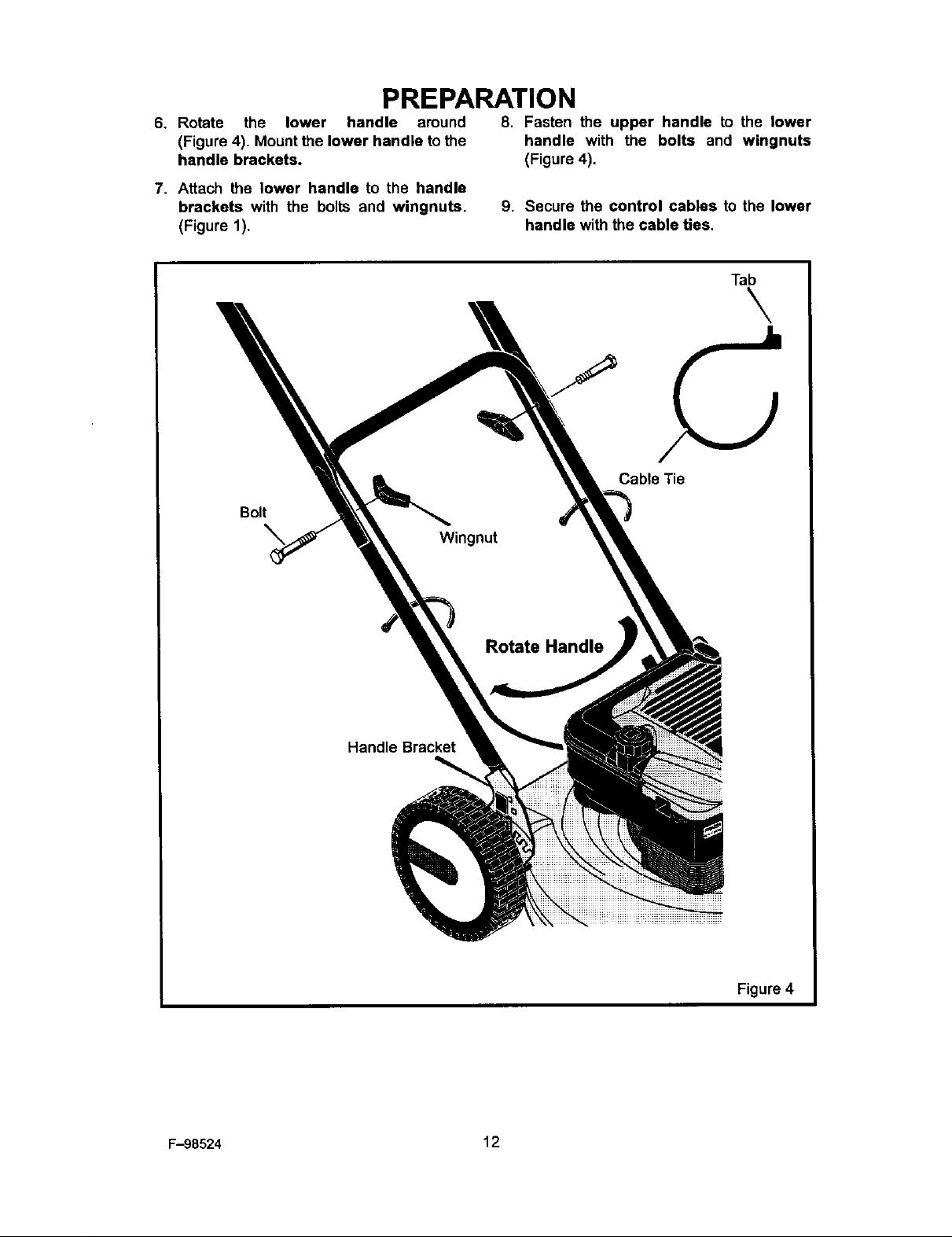

PREPARATION

6. Rotate the lower handle around 8. Fasten the upper handle to the lower
(Figure 4). Mount the lower handle to the handle with the bolts and wingnuts

handle brackets. (Figure 4).

7. Attach the lower handle to the handle
brackets with the bolts and wingnuts.

(Figure 1).

9. Secure the control cables to the lower
handle with the cable ties.

Tab

\

Cable Tie

Bolt

Handle Bracket

F-98524 12

Figure 4

PREPARATION

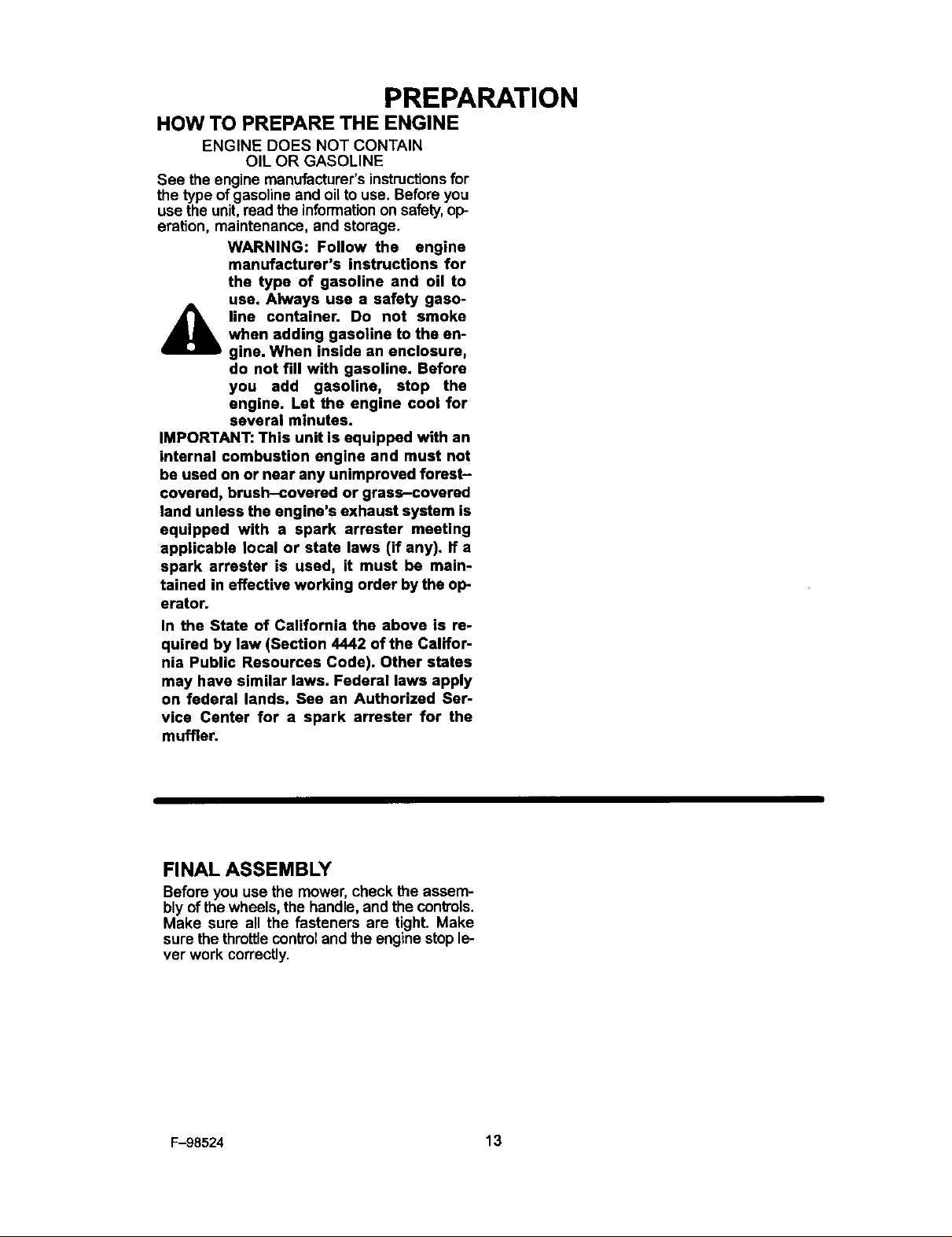

HOW TO PREPARE THE ENGINE

ENGINE DOES NOT CONTAIN

OIL OR GASOLINE

See the engine manufacturer's instructionsfor

the type of gasoline and oil to use. Before you

use the unit,road the informationonsafety,op-
eration, maintenance, and storage.

WARNING: Follow the engine

manufacturer's instructions for
the type of gasoline and oil to

use. Always usa a safety gaso-

,_ line container. Do not smoke

IMPORTANT: This unit is equipped with an
internal combustion engine and must not

be used on or near any unimproved forest-
covered, brush-covered or grass-covered
land unless the engine's exhaust system is
equipped with a spark arrester meeting

applicable local or state laws (if any). If a

spark arrester is used, it must be main-

tained in effective working order by the olP

eraton
In the State of California the above is re-

quired by law (Section 4442 of the CalIfor-
nia Public Resources Code). Other states
may have similar laws. Federal laws apply

on federal lands. See an Authorized Ser-
vice Center for a spark arrester for the

muffien

when adding gasoline to the en-
gine. When inside an enclosure,

do not fill with gasoline. Before
you add gasoline, stop the

engine. Let the engine cool for

several minutes.

FINAL ASSEMBLY

Before you use the mower, check the assem-
bly ofthe wheels, the handle, and the controls.
Make sure all the fasteners are tight. Make

sure the throttlecontrol and the engine stop le-
ver work correctly.

F-98524 13

OPERATION

ENGINE STOP LEVER

Release theengine stop lever and the engine
and the blade will automatically stop. To run
the engine, hold the engine stop lever in the
Operating position (Figure 5).

Before you start the engine, operate the en-

gine stop lever several times. Make sure the
cable moves easily.

Position

Engine Stop

Lever

Figure 5

HOW TO STOP THE ENGINE

To stop the engine, release the engine stop
lever. Disconnectthe wire from the spark plug

to prevent the engine from starting.
If the engine will not stop, hold a screwdriver

against the spark plugand against the engine
cooling fins. The spark will go to ground and

the engine will stop. Before you start the en-
gine, check the engine stop cable. Make sure
the engine stop cable isassembled correctly.

Before you operate the unit, replace a bent or

damaged engine stop cable.

HOW TO START ENGINE

WARNING: The blade will rotate

when the engine runs.

IMPORTANT: Before you start the engine,
operate the engine stop lever several
times. Make sure the engine stop cable
moves freely.

NOTE: The engine design does not include
a throRle control or an engine speed ad-

justment. The engine is set at the best

speed for cutting grass, bagging grass,
and for extended engine life.

1. Check the oil.

.

Fillthe fuel tank with regular unleaded
gasoline. Make sure the gasoline is clean.

Leaded gasoline will increase deposits
and shorten the life of the valves.

NOTE: Do not use gasohol or methanol. Do
not use premium unleaded gasoline.

F-98524

WARNING: Always use a safety
gasoline container. Do not smoke

tank. When inside an enclosure,
when adding gasoline to the fuel

do not add gasoline. Before you
add gasoline, stop the engine and
let the engine cool for several

minutes.

3. Make sure the spark plug wire is con-
nected to the spar:<plug.

4. The primer button ison thesideoftheen-
gine (Figure 6). Push the primer button.
Every time you push the primer button,

wait two seconds. For the number of times

required to push the primer button, see

the engine manufacturer's instructions.

NOTE: Do not use the primer button to

start a warm engine.

5. Stand behind the mower (Figure 7). Use
one hand to holdthe engine stop lever in

the operating position as shown. Use the
other hand to hold the recoil-start grip.

6. Rapidly pullthe recoil-start grip. Slowly

return the recoil-start grip.

7. If the engine does not start in 5 or 6 tries,
See the "Problem and Repair" Instruc-
tions.

Hold the engine

stop lever in the

operating postion.

Recoil-Start

Grip

14

ENGINE MAINTENANCE

MAINTENANCE

Use thefollowing maintenance sectionto keep
your unit in good operating condition. All the

maintenance information for the engine is in

the =Engine Instm_on Book'. Before you start
the engine, read this book.

WARNING: Before you make an

inspection, adjustment (except
carburetor), or repair, stop the
engine and disconnect the wire
from the spark plug.

ENGINE TIPPING

When you service the engine, inspect the

blade, or clean the underside of the mower
housing; make sure to always tip the engine

with the spark plug up (see Figure 8), TranS-

porting or tipping the engine with the spark
plug down will cause:

HOW TO CLEAN

THE MOWER HOUSING

Hard starting.
Engine smoking.
Spark plug fouling.
Oil or gas saturation of the air filter.

Figure 8

HOW TO ADJUST
THE HEIGHT OF CUT

WARNING: The blade will rotate
when the engine runs. Before

you clean the mower housing,
stop the engine and disconnect

the wire from the spark plug.

Grass and other debris can keep the mower

from working correctly.After you mow, clean
the mower housing as follows.

1. Stop the engine.

2. Disconnect the wire from the spark plug.

3. Clean the top and the bottomofthe mower

housing.

LUBRICATION

1. For maximum performance, lubricate the
wheels and all pivotpointswithengine oil
every 25 hours.

2. To lubricate the engine, refer to the =En-
gine Instruction Book".

NOTE: Do not lubricate the engine stop
cable. Lubricants will damage the cable
and prevent the cable from moving freely.

Replace the cable if bent or damaged.

F-98524

WARNING: The blade will rotate

,_ when the engine runs. Before

To change the heightof cut, move the position

of the adjuster arm at each wheel (Figure 9).
Make sure each adjuster arm is in the same
position so that the mower will cut level.

1. Disengage the adjuster arm.

2. Move the adjuster arm to another posi-

_f Figure 9

15

you change the height of cut,
stop the engine and disconnect
the wire from the spark plug.

tion.

Adjuster

_ Arm

MAINTENANCE

BLADE SERVICE

WARNING: Before you inspect
the blade or the blade adapter,

A isconnect the wire to the spark

Frequently check the blade for wear or darn-
age such as cracks. Frequently check the bolt
that holds the blade. Keep the bolttight.If the
blade hits an object, stop the engine. Discon-
nect the wire to the spark plug. Check the

blade adapter for damage. Check for a bent or
damaged blade, a badly worn blade, or other

damage. Before you operate the unit, dam-
aged parts must be replaced with factory re-

placement parts. For safety, replace the blade
every two years. Keep a sharp edge on the
blade. A blade that isnot sharp willcause the
ends of the grass to become brown. Remove

the blade as follows.

HOW TO REMOVE THE BLADE

A the blade, disconnect the wire to

1. Drain the fuel tank.

2. Lift the side of the mower that has the

3. Use a piece of wood to keep the blade

4. Remove the bolt that holds the blade.

plug. If the blade hits an object,

stop the engine. Disconnect the
wire to the spark plug. Check the

unit for damage.

WARNING: Before you remove

the spark plug. The blade has
sharp edges. When you hold the

blade, use gloves or cloth materi-
al to protect your hands.

muffler or spark plug.

from rotating.

5. Check the blade according to the "Blade
Service" instructions. Replace a badly

worn or damaged blade with a factory re-
placement blade.

6. Mount the blade with the curved edges to-
ward the housing. If the blade is upside
down, the blade will not cut correctly and

can cause an accident.

7. Fasten the blade with the original wash-
ers and bolt. Make sure the outside rims

of the Belleville washers are toward the
blade (Figure 10).

8. Tighten the bolt that holds the blade to a
torque of 30 foot pounds.

A WARNING: Always keep the bolt

that holds the blade tight. A loose

bolt or blade can cause an acci-

dent.

HOW TO SHARPEN THE BLADE

WARNING: Vibration Is the result

A If the blade is not correctly bal-

1. Sharpen the blade two times a year or ev-

2. If the blade ison the unit,do not sharpen.

3. Clean the blade with a brush, soap, and

4. Sharpen the blade with a file. Make sure

'Continued following page)

anced. A blade that is damaged

with cracks can break and cause

an accident.

ery 25 hours.

Remove the blade according to the in-
structionsin"How ToRemove The Blade'.

water. Check the blade. Look for cracks,
nicks, or other damage. Replace a blade
that is badlyworn, bent, or damaged with
a factory replacement blade.

you keep the onginalbeveled cuttingedge
(Figure 11).

F-98524

Belleville Washer

Flat Washer

Bolt Figure 10

Blade

File

Screwdriver Blade is balanced

when parallel to

the ground.

I I

I Ground I Figure 11

16

MAINTENANCE

5. Make sure the blade is balanced. Use a
screwdriver and holdthe blade parallelto

the ground as shown. A blade that is bal-

anced will stay parallelto the ground. If the
blade is not balanced, the heavy end will
rotate toward the ground. Sharpen the
heavy end untilthe blade is balanced.

6. A new blade will cut better than a badly

worn blade. Every two years replace the
old blade with a factory replacement J

blade.

CHECK THE LEVEL OF CUT

Test the unitin a small area. Ifthe heightof cut
is not level or ifthe cutgrassis not discharged,
the cause can be: (1) the blade isbent or dam-

aged, (2) the blade is not sharp, (3) a worn
blade, (4) or a broken blade adapter. Before

you use the unit, correct the problem.

Push in on

lower handle.

Figure 12

FOLDING HANDLE STORAGE

CAUTION: Be careful when you fold or
raise the handle. Do not damage the
cables. A cable that is bent will not work

correctly. Before you use the unit, replace a
bent or damaged cable.

How To Fold The Handle

1, Loosen the knobs that hold the upper part

of the handle to the lower part of the han-
dle. As you foldthe handle, make sure the

cables are not around the loosefasteners

and do not become damaged. Rotate the
upper part of the handle toward the back

ofthe unit(Figure 12).

2. Loosen the knobs on the lower handle

(Figure 13). Push in on the ends of the
lower handle, Move the endsof the lower

handle past the locking tabs.

3. Rotate the handle forward over the en-
gine. Make sure the cables are not dam-

aged.

HOW TO PREPARE THE MOWER
FOR STORAGE

WARNING: Do not remove gaao-

a fire, or while you smoke,
line while inside a building, near
Gasoline fumes can cause an

1. Drain the fuel tank.

2. Let the engine run untilit isoutof gasoline.

3. Drain the oil from the warm engine. Fillthe

F-98524

explosion or a fire.

engine crankcase with new oil.

Lower Handle

Locking

Tabs,

Knob_

Figure 13

How To Raise The Handle

1. Pull the handle back until the ends of the
lower handle lock into position.

2. Liftthe upper partof the handle intotheop-
erator's position. Tighten the fasteners

that hold the handle.

4. Remove the spark plug from the cylinder.

Pour one ounce of oil into the cylinder.

Slowly pull the recoil-start grip so that the

oil will protect the cylinder, install a new

spark plug in the cylinder.

5. Clean the dirt and debris from the cylinder
cooling fins and the engine housing.

6. Clean the bottom of the mower housing.

7. Completely clean the mower to protectthe

paint.

8. Put the unit in a building that has good ven-
tilation.

17

TROUBLE SHOOTING CHART

The Engine will not start.

1. Move the throttle control lever to the FAST or START position.

2. Make sure the fuel tank isfilled with clean gasoline. Do not use old gasoline.

3. On a cold engine, push the primer button (optional on some models) five times.

4. Make sure the wire for the spark plug isconnected to the spark plug.

5. Adjust the Carburetor. See the "Engine Instruction Book'.

6. There is too much gasoline in the engine cylinder. Remove and dry the spark plug. Put the
throttle control in the SLOW position. Pull the recoil-start grip several times. Install the spark
plug. Connect the wire to the spark plug. Start the engine.

7. The engine is difficultto start in heavy or high grass. Move the mower to a clean dry surface.

8. Make sure the engine stop lever is in the operating position.

9. Make sure the fuel valve is in the ON position. See the =Engine Instruction Book'.

10. On electdc start models, make sure the wiring harness is connected. Charge the battery.
The Engine will not stop.

1, Release the engine stop lever.
2, Check the engine stop cable. Replace the cable if bent or damaged.

The Engine performance is bad.

1. Check the height of cut settings. Raise the height of cut if the grass is high.

2. Check the bottom of the blade housing. Clean the blade housing of grass and other debris.

3. Check the wire to the spark plug. Make sure the wire isconnected.

4. Clean the engine coolingfins of grass and other debris.

5. Check the carburetor adjustments. See the "Engine InstructionBook'.

6. Check the spark plug gap. Sat the spark plug gap at 0.030".

7. Check the amount of oil in the engine. Fill with oil if necessary.

8. Check the engine air cleaner. See the "Engine InstructionBook".

9. The gasoline is bad. Drain and clean the fuel tank. Fill the fuel tank with clean gasoline.

10. Check the throttle control. Make sure the lever is not in the CHOKE position.

Excessive Vibration.

1. Remove the blade. Check the blade and balance if necessary. See the blade maintenance
instructions.

2. Check for a bent or broken blade. A DAMAGED BLADE IS DANGEROUS AND MUST BE
REPLACED.

3. Check the blade adapter. REPLACE A BROKEN BLADE ADAPTER.

4. If the vibration continues, take the mower to an Authorized Service Center.

The grass will not discharge correctly.

1. Clean the bottom of the mower housing.

2. Check for a badly worn blade. Remove and sharpen the blade. For safety, replace the blade
every two years with a factory replacement blade.

3. Move the throttle controllever to the FAST position.Check the speed of the engine according
to the "Engine Instruction Book".

The grass is not cut even.

I. Check the heightadjustmentat each wheel. The heightadjustment must be the same for each

wheel.

2. Make sure the blade is sharp.

3. Check for a bent or broken blade. A DAMAGED BLADE IS DANGEROUS AND MUST BE

REPLACED.

4. Check for a broken blade adapter. REPLACE A BROKEN BLADE ADAPTER.

F-98524 18

MODEL 22106x9A REPAIR PARTS

13

14

8

12

7

15

4

KEY

NO. DESCRIPTION

1 Handle, Upper (Black)

2 Handle, Lower(Black)
3 Bolt

4 Knob,Plastic

7 Locknut

F-98524 19

PART NO.
672666E701

71137E701

2x77

71294

15x116

KEY

NO. DESCRIPTION

8 EngineStopCable

12 Guide, Rope

13 EngineStop Lever

14 Bracket,StopLever

15 Fastener,Cable

PARTNO.
672560

71530

43653E700

43628 BC

71372

MODEL 22106x9A REPAIR PARTS

22

/

23 24

7

\

6

21

5

18

19

3

4

2

/

!

10

/

/

F-98524 20

11

5

MODEL 22106x9A REPAIR PARTS

KEY

NO. DESCRIPTION PART NO.

1 Engine :1:
2 Housing 776022
3 Height Adjuster, Left Rear 672637

4 Knob 71495

5 Wheel and Tire #

6 Locknut, Flange 15x84

7 Bolt, Carriage 2x81

9 Bolt, Engine 25x6

10 Nut 15x68

11 Height Adjuster, Left Front 672635
12 Washer, Belleville 17x137

13 Washer 17x124
14 Bolt, Hex lx142

15 Blade 42225E701
16 Adapter, Blade 71056

17 Height Adjuster, Right Front 672634

18 Height Adjuster, Right Rear 672636

19 Guard, Rear 672500
20 Screw 26x245

21 Deflector, Chute 672421

22 Push-On Cap 28x42

23 Pin, Pivot 215xll Z

24 Spring 166x5

- Book, Instruction F-98524

Parts are available from an Authorized Engine Service Center. See "Engines,
Gasoline" or "Gasoline Engines" in the yellow pages of the telephone directory.

# See the "Wheel And Tire Parts List" page.

F-98524 21

MODEL 22106x9A REPAIR PARTS

Look at the illustrations. Select the wheel and the tire you want and order

from the following chart.

A

B

E

WHEEL SIZE & TYPE

6-inchPlastic,White
7-inchPlastic,White

7-inchPlastic,UghtGray
7-inchPlastic,DarkGray

8-inchPlastic,White
8-inchPlastic,LightGray

8-inchPlastic,DarkGray
8-inchMetal,White

8-inchBallBearing,White
8-inchBallBearing,LightGray

8-inchBallBearing,DarkGray

N-inch, White
14~inch,LightGray

14~inch,DarkGray

14~inch,BallBeadng,White

14~in,BailBearing,UghtGray

14~in,BallBearing,DarkGray

F-98524

A

20104 .... 20271 42173 20105 43618

20104 .... 672080 672081 .... 672082

71598 .... 672060 71599 71600 71132

43273 .... 43414 .... 43274

........................ 672075 672077

B C D E F G H

42174
71148 20270 42172
71596 672086

71596 672085 ....................

43724

672087

71134

672073 672063

672074 71841

71902 672064

672076 672078

71841 71840

22

SLOPE GUIDE

SIGHT AND HOLD THIS GUIDE LEVEL WITH A VERTICAL TREE,

A CORNER OF A STRUCTURE, A POWER LINE POLE, OR A FENCE.

I

)Operate a walk-behind mower

across the face of slopes,
never up or down elopes.

I

mower

I

On s riding mower to determine if a slope is safe to mow: (1) disengage tho blade(s), (2) put the unit In reverse, end (3) try to back straight up the

elope. If you can bark up the slope It Is generally safe to mow. However, If you do not feel safe or If you are not completely sure, use this guide
end do not mow • alop.e that Is greater than 15 degrees. If the riding mower Is used with a pull-behind or rear mounted attachment,

do not operate the unit on • slops that Is greater than 10 degrees.

A lS degree elope Is s hill that increases in height at approximately 2.5 feet in 10 feet.
A 10 degree slope Is • hill that Increases In height at approximately 1.7 feet In 10 feet.

A se extreme care at all times, end avoid sudden turns or maneuvers. Follow other instructions In this manual for safety in mowing on

................................. _u__E'.#fo'u_£s_6P__D'E.................................

slopes. Operate a rldlng mower up or down slopes, never across the face of slopes. Operate a walk-behind mower across the face

of slopes, never up or down slopes. Use extra care when operating on or near slopes end obstructions.

up or down slopes, never
across the face of slopes.

03

_r

(o

o3

I

U-

HOW TO ORDER REPAIR PARTS

Onlyuseafactoryrepairpad,R.epakparts,exceptfor_ _gi_ orthet_ansm._do,n,.areavaila_,fr.orn_ s_re V_moe
theunitwaspurchased,a sent_ceseeprecornmeneeoeymes_ore,oranauroonzeoser_ceanoprounommeye,o

pagesofthetelephonedirectory,ffycucannotgetarepairpartors._. asdes.cdbecla_ve, _ _ _.e to_ Cen.b'al
PartsDistributorshownbelow.Whenyouorder,includethefollowingmrormarmn:UI L,omplereMooelr_umoer(.see

nameplate),(2) DateofManufacture,(3)CompletePartNumber,(4)Dascdptlen,(5)Quantity.
RepairpartsfortheengineorthetransmissionareavailablefTomthemanufacturer'sauthorizedservicecenterfound

intheyellowpagesofthetelephonedirectory.Seetheindividualengineor transmissionwarranties.

MURRAY,INC, LAWNMOWERCENTRALPARTSDISTRIBUTORS

BEBCO,INC. Arkansas (countiesClay, GULFCOASTENGINE,INC.
Sou_ Birmingham,AL. 35233

[phone]1-800-828-8094

Alabama,Florida,Georgia,

PuertoRico
BILLIOU'S,INC.

1343SouthMainSt.
Porterville,CA. 93257

t_X59)784-41021-877-245-5468

1-800-266-7337

Arizona,California,Hawaii,

Nevada

BROWN&WISER,INC.
9991S.W.AveryStreet

P.O.Box1109

Tualetin,OR. 97062

[phone]1-800-882-4782

Alaska, Idaho(countiesAda,

Adams,Bonewah,Boise,Bouner,
Boundry,Canyon,Clearwater,

EImore,Gem,Idaho,Kooten,
Latah,Lewis,NEZPerce,Owyee,

Payette,Ravalll,Shoshone,Valley,

Washington),Montana(counties

Fletheed,Lake,Lincoln,Mineral,
Missoulo,Ravaili,Sanders),

Oregon,Washington

CPT CANADAPOWER
TECHNOLOGYLIMITED

161WatlineAvenue
Mississauga,Ontario

L4Z-1P2
(905)890-69001-800-861-9559

13315-146Skeet
Edmonton,Alberta

T5L4,58

[phone]1-800-861-9559

234 MigneronSb'eet
VillaSt-Laurent,Quebec

H4T 1Y7

[phone]1-800-861-9559

Canada

CHILTONAIR COOLEDENGINE
3194th.Ave.South

P.O.Box150806
Nashville,TN. 37215
[phone] 1-800-621-6934

www.chiltencompanies.com

F-98524

Craighead,Cdttendan,Cross, 4202RussellDr.22212nd.Ave.
Greene,Jackson,Lawrence,Lee,

Mississippi,Monroe,Phillips,
Poinsett,Randolph,St.Francis,

Woodruff),Mlaelsslppl(counties

Deseta,Panola,Quitman,"rate,
Tunica),Missouri(counties

Dunkin,NewMaddd,Pemisoot),
Tennessee,Virginia(counties

Bland,Buchanan,Dickensen,Lee,

Russell,Scott,Smyth,Tazewell,

Washington,Wise)

ENGINESSOUTHWEST
1255NorthHearne

Shreveport,I.A. 71107

POBOX67

Shreveport,LA. 71161

[phone]1-800-388-6995

www.engmessw.com
Arkansas (exceptthesecounties:

Clay,Craig_ead,Cdttendan,Cross,
Greene,Hempstead,Howard,

Jackson,Lafayette,Lawrence,Lee,

LittleRiver,Miller,Mississippi,
Monroe,Nevada,Phillips,Pike,

Poinsett,Randolph,Sevler,St.
Francis,Woodruff)Louisiana,
Mississippi(exceptthese

counties:Dasota,Panola,Quitman
Tate,Tunica,)

FRANKEDWARDSCO.

3626 ParkwayBlvd.
WestValleyCity,UT 84120

}:/_X1)736-80601-800-318-0201

1-800-570-0491

Colorado,Idaho (counties
BannockBeadake,Bingham,

Blaine,Booneville,Butte,Camas,
Cadbou,Cassia,Custer,Franklin,

Fremont,Geeding,Jefferson,

Jerome,Lemhi,Lincoln,Madison,

Minidoka,Oneida,Power,Teton,

TwinFalls)Montana(ellcounties

exceptBrownandWiser),Utah,

Wyoming

GARDNER,INC.

1150ChesapeakeAve.
Columbus,OH. 43212

In614)488-79511-808-848-8946

diana,Kentucky,Mlcbigan

(exceptupperPeninsula),Ohio,
WesternPennsylvaniawithzip

codesupto andincluding16999,

WastVirginia

P.O.Box9724
CorpusChristi,TX. 78408
(512)088-69991-800-825-6999

Arkansas(countiesHempstead,

Howard,Lafayette,Ut_eRiver,
Miller,Nevada,Pike,Sevler)New

Mexico,Oklahoma,Texas,
Mexico

OSCARWILSON
ENGINE& PARTS

826LoneStarDr.
O'Fallon,MO. 63366

Iiiin314)978-13131-800-873-6722

ols (S.ofHwy.80),/owa,

Kansas,Missouri(allcounties
exceptDunkin,NowMadrid,

Pemmcot)Nebraska
R.B.I.CORPORATION

P.O.Box9318

Richmond,VA. 23227
_:8X04)550-22101-800-888-7149

1-800-947-1335

Conneollcut,Delaware,District

of Columbia,Maine,Maryland,

Massachusetts,NewHampshire,
NewJersey,NewYork,N.&S.

Carolina,Pennsylvaniazips
17000&up,RhodeIsland,

Vermont,Virginia(allcounties

exceptBland,Buchanan,

Dickenson,Lee,Russell,Scott,
Smyth,Tazewell,Washington,

Wise)

WISCONSINMAGNETO
4727N.TeutoniaAve.

Milwaukee,Wl. 53209

11414)445-28001-808-733-7388
Inols(N.ofHwy.80),Michigan

(upperPeninsula),Wisconsin
800McKinleySt.

Anoka,MN. 55303
[phone] 1-808-248-4016

Minnesota,North& South
Dakota
