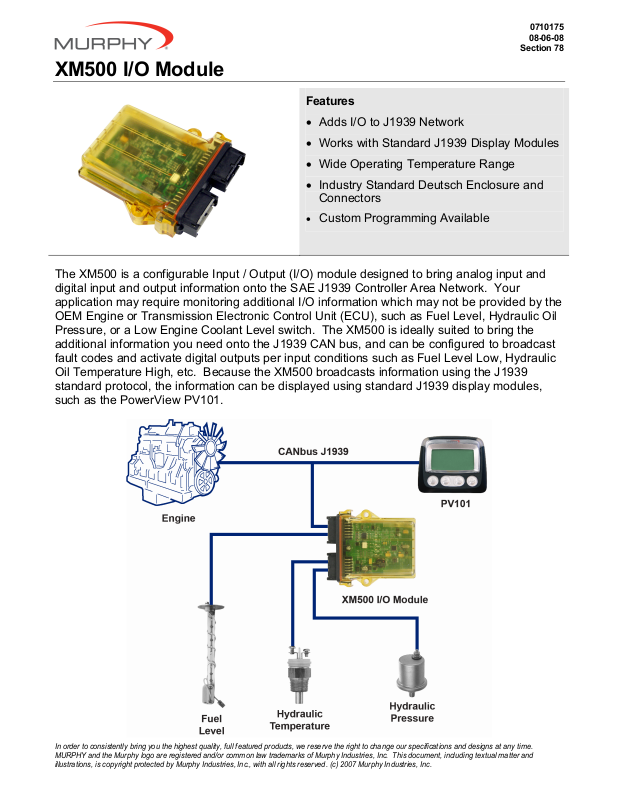

Murphy XM500 User Manual

0710175

08-06-08

Section 78

XM500 I/O Module

Features

• Adds I/O to J1939 Network

• Works with Standard J1939 Display Modules

• Wide Operating Temperature Range

• Industry Standard Deutsch Enclosure and

Connectors

• Custom Programming Available

The XM500 is a configurable Input / Output (I/O) module designed to bring analog input and
digital input and output information onto the SAE J1939 Controller Area Network. Your
application may require monitoring additional I/O information which may not be provided by the
OEM Engine or Transmission Electronic Control Unit (ECU), such as Fuel Level, Hydraulic Oil
Pressure, or a Low Engine Coolant Level switch. The XM500 is ideally suited to bring the
additional information you need onto the J1939 CAN bus, and can be configured to broadcast
fault codes and activate digital outputs per input conditions such as Fuel Level Low, Hydraulic
Oil Temperature High, etc. Because the XM500 broadcasts information using the J1939
standard protocol, the information can be displayed using standard J1939 display modules,
such as the PowerView PV101.

In order to consistently bring you the highest quality, full featured products, we reserve the right to change our specifications and designs at any time.
MURPHY and the Murphy logo are registered and/or common law trademarks of Murphy Industries, Inc. This document, including textual matter and
illustrations, is copyright protected by Murphy Industries, Inc., with all rights reserved. (c) 2007 Murphy Industries, Inc.

Specifications

Power Input: 8 to 32 VDC

Operating Temperature: -40 to 85°C (-40° to 185°F)
Digital Inputs: 4 – Ground or battery positive activation
Digital Outputs: 2 – Sinking (500 mA)

1

Thermocouple Input
Analog Inputs

2

: Type K

:

• 1 – battery supply voltage (dedicated)

• 7 – configurable as 0-5 VDC, 4-20 mA, or Murphy resistive

sender

3

Communication Ports: CAN J1939
LED Indicators:

• PWR - Power On

• COP - Computer Operating Properly

• CAN - CANbus Active

Product Weight: 10 ounces

Shipping Weight: 12 ounces

Shipping Dimensions: 4” x 6” x 2”

Speed Sensing input: 2 to 120 VAC RMS from 30 to 10,000 Hz.

1

When the thermocouple input is used, only 5 resistive, 4-20 mA, or 0-5 VDC, can be used instead of 7.

2

Analog inputs can be exchanged for digital inputs (battery ground activation only), for a total of ten digital inputs.

3

Other resistive senders can be supported. Contact FW Murphy’s Industrial Panel Division for programming charges.

Dimensions

How to Order

Model: XM500
Contact FW Murphy’s Industrial Panel Division for your custom application. Minimum order quantities apply.
Phone: [phone]
E-mail: [e-mail]

Warranty

may be viewed or printed by going to www.fwmurphy.com/support/warranty.htm

- A limited warranty on materials and workmanship is given with this FW Murphy product. A copy of the warranty
