Engine Throttle Controller
®
MURPHYMATIC®AT-67207
• Automatically adjusts
engine speed to meet
demands of: pressure,
level, load and temperature.
• Speed changes made slowly
and smoothly.
• Saves fuel, engine wear,
horsepower and labor.
• Perfect for warm-up and
cool-down on automated
systems.
AT-7231B
Revised 02-98
Catalog Section 40
(00-02-0099)
Description
The AT-67207 is a completely reliable heavy duty device
developed specifically to automatically control engine
speed to meet system demand. Low current, high torque,
solid state switching and electronic clutch make it ideal for
all automatic and semiautomatic engine systems. Used
with the appropriate Murphy SWICHGAGE®, near constant
pressure, level and load can be maintained. Check with our
engineers for help with other applications where speed
control can improve your system.
Applications
Pressure
• City Water Systems.
• Water Flood Injection.
• Sprinkler Lateral Changes.
• Make-up if a “Gang Pump” stops.
• Multiple Hose-reel Irrigation Systems.
Level
• Water or oil storage tanks.
• Waterflood tanks.
• Sewer disposal systems.
• Flood control catch basins.
Temperature
• Multi-engine cooling systems.
• Air conditioned chilled water systems.
Engine load
Empty or fill reservoirs with a lower horsepower engine—
fast when head is high—slow when head is low.
Fully adjustable stepper kit
Meters signal in adjustable pulses. Prevents surging on
critical applications.
Specifications
V oltage: 12 VDC or 24 VDC, positive or
negative ground (specify).
Current: 500 mA (1/2 amp).
T orque: 25 inch pounds.
Sealed limit switches: Factory adjusted, controls maxi-
mum travel.
Linkage adjustment on lever arm—5 holes:
Adjusts travel: 1-3/16 in. (30 mm); 1-11/16 in. (43 mm);
2 in. (51 mm); 2-1/4 in. (57 mm) approximately.

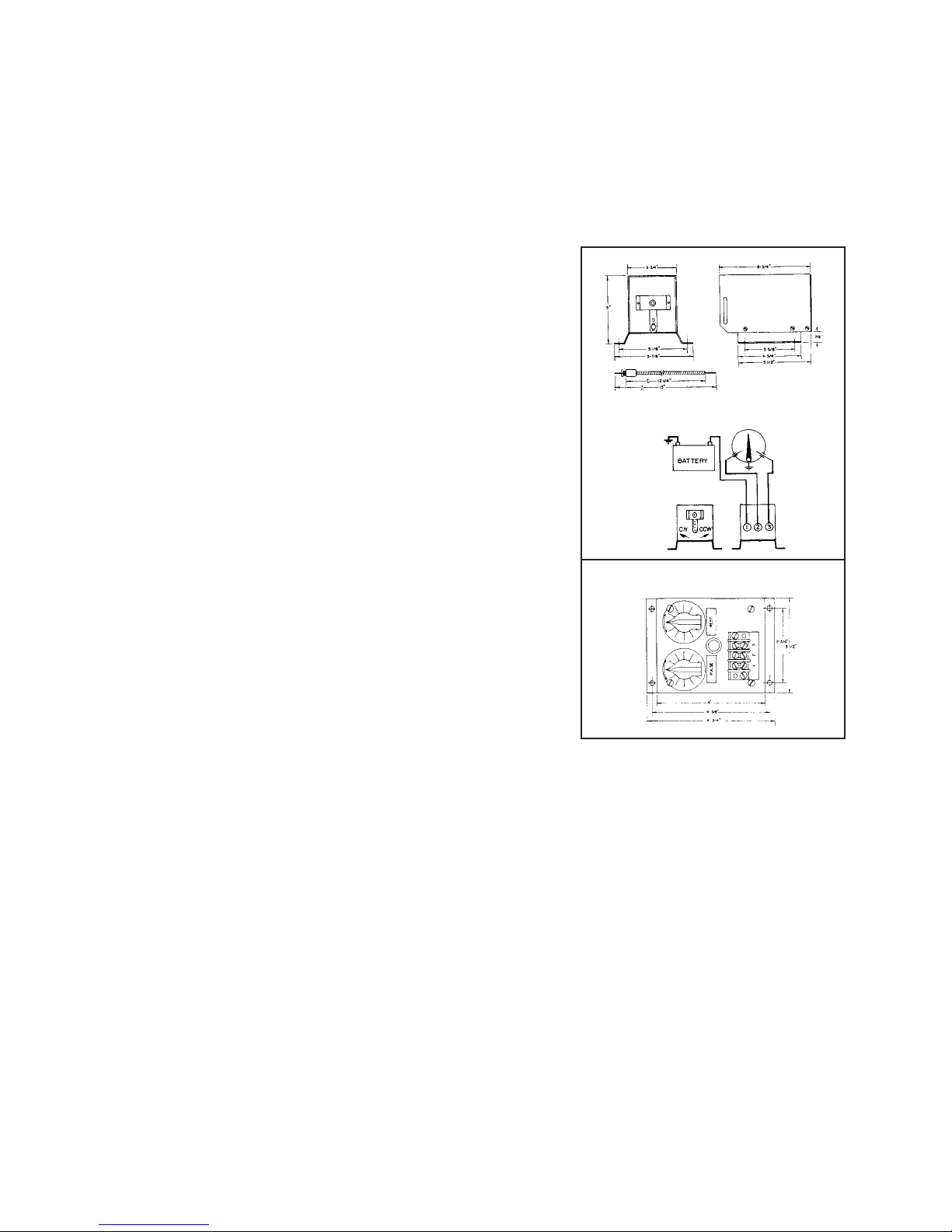

Overall Dimensions: 7 in. (178 mm) D x 6 in. (152 mm) W
x 5 in. (127 mm) H.
Net Weight: 5 lb. (2.27 kg)
AT-67207 — A MURPHY SWICHGAGE®* constantly monitors
pressure, level, temperature or load. Adjustable high and low
contacts on SWICHGAGE®are set slightly above and below
desired operating point. When demand changes, pointer touches
appropriate high or low contact and signals speed change.
AT-67207 controller responds only so long as contact is made —
Controller stops immediately when contacts separate. Slow,
smooth action prevents “hunting” or “surging” on normal applications. Stepper kit, listed below, is available for critical applications.
*Mercury tube or snap-action switches are not suitable for this type
control — AMurphy SWICHGAGE
®
or equal must be used.
Model STR-71204 is offered for applications where slight changes
in engine RPM make significant change is pressure, level, load, ect.
These conditions can be due to close differential requirements, constant speed, automated pumps and/or valves on same line and
where engine and pump are simply oversized for application. The
stepper kit is a solid state device that meters SWICHGAGE
®
signal
to controller in pulses. Both “on” and “off” time periods are inde-pendently adjustable to meet the most critical requirement.
Model STR-71204-N, 12/24 VDC. Negative Ground.
For more information, recommendations and quotations contact
our engineering dept.
The AT-67207 can enhance features of our SELECTRONIC
®
Micro-Controller units by allowing features such as:
1. Warm-up RPM Set point.
2. Minimum RPM Set point.
3. Maximum RPM Set point.
4. Preset Operating RPM Set point.
5. Auto Throttling To Match Flows (AS Needed in Flood Control
Applications).
6. Maintaining System Pressure (As Needed in Booster Station
Application).
7. Adjustable Rate Of Change In RPM (Allowing Fine Tuning Of
Overall System).
For more information, recommendations and quotations contact
our engineering dept.
AT-67207
STR-71204
