Murdock A152 8-BF4, A152408S-BF4 Maintance Manual

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A152.8-BF4 Series

Rounded Box Chilled Barrier Free Wall Mount Bi-Level

Drinking Fountain w/ Sensor Activated Bottle Filler

TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:

1.800.591.9360

Technical Assistance Fax: [phone]

NOTES TO INSTALLER:

1. Please leave this documentation with the owner of the fixture when finished.

2. Please read this entire booklet before beginning the installation.

3. Check your installation for compliance with plumbing, electrical and other applicable codes.

LIMITED WARRANTY - UNITED STATES & CANADA

Murdock warrants that every cooler, bottle filling station, packaged water chiller, fountain and accessory to be free
from defects in material and workmanship under normal use for one (1) year from date of install or eighteen (18)
months after the date of shipment from the factory, whichever comes first.

Murdock warrants the compressor and hermetically sealed refrigeration system, including cooling coil assembly
when part of the hermetically sealed refrigeration system, to be free from defects in material and workmanship
under normal use for an additional four (4) years from the end of the one (1) year period described above.

This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdock’s limited warranty is void.

LIMITED EXPORT WARRANTY - One year on parts only.

Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.

7020-949-001 Date: 07/18/18

COMPLIES WITH

Federal
Public Law
111-380
(No Lead)

Test rating conditions are
compliant with ARI 1010.

Member of

MURDOCK

15125 Proctor Ave.
City of Industry, CA

91746 U.S.A.

Phone [phone]

626-336-4561

Fax [phone]

www.murdockmfg.com

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

This fixture is intended to dispense water that has been lowered in temperature, but otherwise remains
unchanged by the materials in the drinking fountain. It is common for electrical equipment to be grounded to
water lines either within a structure or away from it. Every attempt should be made to prevent this kind of
grounding from generating electrical feedback into the drinking fountain creating electrolysis. Electrolysis will
cause a metallic taste or cause water metal content to increase.

A dielectric coupling must be used to connect the drinking fountain to the water supply. A nonmetallic coupler is
furnished with this water cooler to meet this requirement.

Prior to roughing in, consult with local, state, and federal codes for proper mounting height.

A152408S-BF4 Refrigerated Bi-Level Wall Mounted Drinking Fountain with Bottle Filler

32"

3

14

"

4

12"

DRINKING FOUNTAINS

IMPORTANT

NOTICE

DIMENSIONAL DRAWING

11

1

"

23"

2

3

8

"

8

3

1

8

Typ.

"

1

51

"

2

*33"

Finished

General Notes:

1. All dimensions are in inches
*2. Dimensions shown are for recommended adult height. Adjust vertical
dimensions as necessary to comply with federal, state, & local codes

3. Water line from chiller to fountain should be covered with sponge foam
rubber or ice water type insulation of adequate thickness

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 2 of 23

Floor

A152.8-BF4

6"

Member of

Revised: 07/18/18

10

1

1

"

4

3

"

4

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152408S-BF4 Refrigeratd Reverse Bi-Level Wall Mounted Drinking Fountain with Bottle Filler

32"

3

14

"

4

1

11

"

23"

2

DRINKING FOUNTAINS

3

1

"

8

Typ.

6"

51

3

8

"

8

1

"

2

1

1

"

4

*33"

Finished

Floor

General Notes:

1. All dimensions are in inches
*2. Dimensions shown are for recommended adult height. Adjust vertical
dimensions as necessary to comply with federal, state, & local codes

3. Water line from chiller to fountain should be covered with sponge foam
rubber or ice water type insulation of adequate thickness

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 3 of 32

A152.8-BF4

Member of

Revised: 07/18/18

10

3

"

4

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152408S-BF4 Refrigerated Wall Mounted Drinking Fountain Inlet & Outlet Rough-Ins

Note: There are no mounting changes to be made for -SO models.

DRINKING FOUNTAINS

**56

50

BLOCKOUT

1

"

4

1

30

"

4

BLOCKOUT

C

L

General Notes:

1. Dimension indicated with (**) is
for 33" drinking fountain
discharge height. if discharge
height differs, adjust accordingly.

2. Standard Bi-Level rough-ins
shown. For -RBL Reverse
Bi-Level, -RBL Mounting Frame

2

1

3

"

1

1

"

2

8"

2

rough-ins opposite.

4

3

3

TYP.

"

8

1

5
8

**35"

"

**38"

2

**29

16"

1-1/4" O.D. Drinking Fountain Waste Outlet

1

3/8" NCT Drinking Fountain Supply Inlet

2

Alternate 3/8" NCT Bottle Filler Supply Inlets

3

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 4 of 23

A152.8-BF4

4

5

TYP.

2"

Alternate 1-1/4" O.D. Bottle Filler Waste Outlet

Electrical Service Rough

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Prior to roughing in, consult with local, state, and federal codes for proper mounting height.

Notes:
1-Standard Bi-Level rough-ins shown. For -RBL Reverse Bi-Level, -RBL

Mounting Frame rough-ins opposite

2-Chiller installation is always on the right-hand side of the shelf

6

3

DRINKING FOUNTAINS

DIMENSIONAL DRAWING

1

5

30

16"

1

"

4

4

ANCHORING CLIP DETAIL

Anchoring Clip Detail

Installation Instructions:

A-Provide 30-1/4" wide x 50-1/2" tall wall opening at

appropriate height. Provide structural support around
inside of the opening for frame anchoring.

B-Carefully remove Bi-Level Mounting Frame 1 , chiller

mounting frame 2 , panel, anchoring clips 3 , and
screws 4 from packaging, preventing damage.

C-Center both frames within wall opening with side, top

and bottom lips overlapping outside the opening and up
against finished wall face. Set chiller shelve in place,
aligning anchoring holes with holes in frame bottom.
secure to wall through the sides, top and bottom using
hardware 5 by others, ensuring 16" centerline
dimensions left-to-right.

D-Install two anchoring clips 3 at bottom on outer sides

of chiller mounting frame 2 align holes in clips with
holes 6 in frame and use sheet metal screws 4
provided. See anchoring clip detail.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 5 of 23

A152.8-BF4

1

50

"

2

1

56

4

Member of

Revised: 07/18/18

"

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

IMPORTANT:

1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by others in
accordance with local codes.

2. Provide 4” minimum clear space in front of bottom trim panel and above in-wall chiller to allow for proper
ventilation.

3. Waste is 1-1/4” Outer Diameter. Chiller water inlet is 3/8” Outer Diameter copper tube. Chiller water outlet is
3/8” Outer Diameter copper tube. Drinking Fountain water inlet is 3/8” Outer Diameter copper tube. Bottle
Filler water inlet is 3/8” Outer Diameter copper tube. Water line by others from in-wall chiller to drinking
fountain must have adequate insulation.

4. Completely flush supply lines of all foreign debris before connecting to fixture. Water cooler designed to not
cause problems with taste, odor, color, or sediment. Optional Water Filter (WF1), is available should any of
these problems arise from the water supply.

5. Do NOT solder tubes inserted into the chiller, bottle filler or the fountain strainer as damage to the o-rings on
the push-in fittings may result.

6. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.

7. Power supply must be identical in voltage, cycle and phase to that specified on the chiller data plate. Refer to
submittal.

8. This unit must be grounded per the requirements of applicable electrical codes.

9. WARNING: Warranty is voided if installation is not made following current Murdock Mfg. installation
instructions and if components are assembled to the fixture that are not approved by Murdock Mfg.

10. Fixture operates within water pressure range of 174 kPa (25 psig) to 724 kPa (105 psig). Murdock Mfg. will
not warranty chiller damaged when connected to supply lines with flow pressure lower than 174 kPa (25
psig) or higher than 724 kPa (105 psig). A pressure regulator must be furnished by others on supply line if
inlet pressure is greater than 724 kPa (105 psig).

11. Due to cold waste water, Murdock Mfg. recommends that waste piping supplied by installer be insulated
appropriately to prevent excessive condensation.

12. Per UPC 609.10-All building water supply systems in which quick acting valves are installed shall be

provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the
valve. These pressure-absorbing devices shall be approved mechanical devices. Water pressure-absorbing
devices shall be installed as close as possible to the quick closing valve

DRINKING FOUNTAINS

PRIOR TO INSTALLATION:

1. Read all installation instructions carefully, before proceeding.

2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture and

all parts from damages and all parts that are bolted on.

3. Provide mounting surface, adequate to support the fixture and loads on the fixture.

4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe

and gravel drain well. (See rough-in details)

5. It is common for electrical equipment to be grounded to water lines either within a structure or away; otherwise,

remains unchanged by the materials in the water cooler. Every attempt should be made to prevent this kind of
grounding from generating feedback into the water cooler creating electrolysis. Electrolysis will cause a
metallic taste or cause water content to increase.

6. Electrical Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC

(National Electrical Code).

7. Completely flush water supply lines of all foreign debris, before connecting to the fixture.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 6 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAIN INSTALLATION:

1. Insert mounting frame into the rough-in block out and secure using 1/4”-20 UNC mounting hardware (Provided

by Others).

2. Place the Chiller Unit onto the basepan of the frame assembly.

3. Hang upper trim panel on mounting frame. Note: The included 1” brackets do not get used with this installation

and the plastic spacers are typically not required and can be discarded.

4. Install the four threaded studs into the Wall Mounting Frame

5. Remove the drinking fountain top by taking out the drain screw and lifting at the front while pulling forward.

Disconnect bubbler tube. Set top aside in a safe place where it will not be damaged. Place the screw in a
secure location where it will not be lost.

6. Slide Fixture over studs and secure with nuts and washers.

7. Assemble P-trap to drain adapter and then assemble to unit with Phillips head screws.

8. Make-up 1-1/4” outer diameter waste connection.

9. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to in-wall chiller and provide

connection from chiller to ‘the multi-line “Y” strainer assembly. From multi-line “Y” strainer assembly, connect to
drinking fountain bubbler.

10. Place drain gasket on drain adapter. Reconnect bubbler tube. Reassemble top to unit by engaging back clip

and securing with screw.

BOTTLE FILLER INSTALLATION:

1. With drinking fountain installed, connect water supply line from multi-line “Y” strainer assembly to bottle filler.

2. Loosen slip nuts to orientate P-trap to desired direction then tighten slip nuts and make up 1-1/4” O.D. waste

connection.

3. FOR -BF4 ONLY Make up power connections to the ground, neutral & hot within the electrical box.

NOTE: BEFORE PERFORMING STEP 4, REFER TO ELECTRICAL INSTALLATION.

4. Test for leaks and proper operation, and then install the bottle filler panel using the water filler bracket and

secure the bottle filler by tightening the screws under the bottle filler.

DRINKING FOUNTAINS

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 7 of 32

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAIN START UP:

1. Before connecting power supply, but after thoroughly flushing the supply line and connecting it to the cooler,
turn on building water supply and check all connections for leaks.

2. Air within the drinking fountain system or the structure supply piping will cause an irregular bubbler outlet
stream until purged out by incoming water. Covering the bubbler with a clean cup (or similar object) is
recommended when first activating drinking fountain to prevent excessive splashing.

3. Depress front push pad until steady water stream is achieved.

4. If water flow requires adjustment, insert a slotted narrow blade screwdriver in the hole centered on the
underside of the fixture in the knee clearance area up to the flow regulator. Turning clockwise will increase
flow and turning counterclockwise will decrease flow.

5. Recheck all water connections with water flowing through system.

6. With power still NOT connected, carefully manually rotate cooling fan to ensure proper clearance and free
fan action

7. Provide power to water chiller and make sure unit begins to function.

8. Assemble louvered bottom trim panel with screws provided to brackets on either side of wall mounting frame.

BOTTLE FILLER START UP:

1. Air within the bottle filler system or the structure supply piping will cause an irregular spout outlet stream until

purged out by incoming water. Press and hold pushbutton until steady water stream is achieved.

ŸSENSOR OPERATED: Hold container to be filled just below the sensor in the center of the filler spout

and then move the container upward and water flow will start automatically. When the container is
almost filled, lower the container below the sensor until the water stops flowing. (See label on the bottle
filler.

DRINKING FOUNTAINS

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 8 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

WATER TUBING CONNECTIONS:
NOTE: Insulation on all water tubes not shown (all PE water tubes are insulated).

DRINKING FOUNTAINS

PE Tubing

Fill
Spout

Solenoid Valve Outlet

Elbow w/ Flow Control

9-12VDC Solenoid Valve

Solenoid Valve
Inlet Fitting

PE Tubing

Thermal

Adjustment

Chiller Assembly Detail

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 9 of 32

A152.8-BF4

3-Way Divider
Assembly

3

" O.D. Copper Inlet

8

3

" O.D. Copper Outlet

8

Electrical
Knockout

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

OPTIONAL -WF1 WATER FILTER

Page for models with -WF1 Water Filter (A152.8-BF4-WF1)

Mount Filter Bracket to

Corner of Mounting

Frame

Out

1

6

3

4

7

2

In

Connect

1

" Tubings

4

to Drinking Fountains

Out

In

and Bottle Filler Valve

5

FILTER MOUNTING

DETAIL

(BACKVIEW)

ITEM PART NUM BER DESCRIPTION

1 0250-006-000 #10 x 5/8" Phillips Truss Head Screw

2 7014-035-199 Water Filter Bracket

3 0124-031-000 #8 x 3/8" Hex Washer Head Screw

4 1895-709-000 Elbow , 1/4" Push-In x 1/4" Stem

5 7012-311-000 WF1 Filter 1500 Gallon

6 2169-000-000 Tubing, 1/4" O.D. LLDPE, (Blue)

7 7012-055-000 Foam Pipe Insulation

WATER TUBING

DIAGRAM

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 10 of 23

A152.8-BF4

In

Out

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

OPTIONAL -WF1X2 DUAL WATER FILTERS

Page for models with -WF1X2 Dual Water Filters (A152.8-BF4-WF1X2)

2

8

FILTER MOUNTING

DETAIL

(BACKVIEW)

1

Mount Filter Bracket
to Corner of Mounting
Frame

4

5

6

1

" Outlet from WF1X2

4

1

" Supply from Y-Strainer

4

Out

In

3

Connect

1
4

to Drinking Fountains
and Bottle Filler Valve

" Tubings

In

Out

ITEM PART NUM BER DESCRIPTION

1 0250-006-000 #10 x 5/8" Phillips Truss Head Screw

2 7014-055-199 Bracket, Dual Filter Mount

3 0124-031-000 #8 x 3/8" Hex Washer Head Screw

4 1895-709-000 Elbow , 1/4" Push-In x 1/4" Stem

5 7012-311-000 WF1 Filter 1500 Gallon

6 2169-000-000 Tubing, 1/4" O.D. LLDPE, (Blue)

7 7012-055-000 Foam Pipe Insulation (Not Show n)

8 1895-710-000 Untion Tee, 1/4" Push-In

WATER TUBING

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 11 of 23

A152.8-BF4

DIAGRAM

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

OPTIONAL -WF1 WATER FILTER INSTALLATION

FILTER CARTRIDGE REPLACEMENT:

1. Remove panel assembly, this allows access to the

filter and the inlet valve (provided by others). Turn
valve knob 1/4 turn clockwise to close.

2. With the filter assembly secured on the unit, hold

the cap firmly, turn the replaceable cartridge filter
counterclockwise to remove.

3. Remove and replace the cartridge turning

clockwise to secure.

4. Turn inlet 1/4 turn knob 1/4 turn counterclockwise

to open and test for leaks and proper operation
before re-mounting panel assembly to fixture.

DRINKING FOUNTAINS

Water Inlet

Valve Open

Water Inlet

Valve Closed

Panel Assembly

Replacement
Cartridge

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 12 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

ELECTRICAL INSTALLATION:

NOTE: Plug in power is a standard feature.

1A. Plug-In Operation: Plug transformer provided into GFCI protected electrical service, used by the semi-

recessed bottle filler. Plug in transformer to power supply and connect to red sensor wire.

1B. For Reverse Bi-Level, unit will be reversed.

DRINKING FOUNTAINS

Blue Wire

Sensor

Red Wire

Plug-In Transformer

Junction Box
Provided

9-12VDC Solenoid
Valve

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 13 of 32

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

OPTIONAL -BCD BOTTLE COUNTER DISPLAY

See the following page for models with -BCD Bottle Counter Display (A132-BF4-BCD)

BOTTLE COUNTER ADJUSTING & RESETTING INSTRUCTIONS:

NOTE: Bottle Counter Has Multiple Functions

Reset/ Mode Button

• Counts refilled bottles, otherwise purchased

• Adjustable for Units with and without filters

• “REPLACEMENT FILTER” alert function

• Alert reset, when filter is replaced

Description

Illuminated LCD display, counts bottles, and has a filter replacement alert function

Bottle Counting Function

The software applies a flow volume of approximately 16.9 fl oz (volume in standard size plastic water
bottle) to each bottle counted. If the flow volume is less than 16.9 fl oz there will be no count but the
volume will accumulate, so that part way through the next cycle the total bottle count will change.

Illuminated LCD Display

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 14 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

OPTIONAL -BCD BOTTLE COUNTER DISPLAY

See the following page for models with -BCD Bottle Counter Display (A132-BF4-BCD)

FILTER REPLACEMENT FUNCTIONS:

NOTE: When the volume accumulates to 1500 gallons (recommended maximum filter flow volume) the

“REPLACE FILTER” alert will appear on the display every time the bottle filler is activated.

Counter Modes

Located on the back of the display you will find the reset button for the mode settings. The Reset/Mode
selection button is accessible by removing the bottle filler panel assembly, then locate the large hole in the
back of the display mounting bracket. Use your finger or nonconductive implement to depress the
Reset/Mode Selection Button.

!!!DO NOT USE SHARP OR METAL IMPLEMENTS!!!

With this reset button, you are able to indicate whether or not the unit has a filter or does not have a filter.
The reset button will also take away the “REPLACE FILTER” alert once the filter has been replaced.

Systems With or Without Filter

• Depress the Reset/Mode selection button for 6
Seconds, the number of seconds will count up on the
display.

• At the end of the 6 seconds, “FLTR YES” or “FLTR NO”
WILL APPEAR on the display.

• “FLTR YES” means that there is a filter in the system
and a “REPLACE FILTER” alert WILL APPEAR on the
display when the maximum filter flow volume is reached.

• “FLTR NO” means that there is no filter in the system
and a “REPLACE FILTER” alert WILL NOT APPEAR
on the display.

• Release button when the option required is on the
display (Filter Yes or No)

CLEARING “REPLACE FILTER” ALERT:

NOTE: This Function only applies if the system as a filter

• Replace old filter with new filter.

• Depress the Reset/Mode selection button for 2 SECONDS

• The “REPLACE FILTER” will no longer appear on the display

• Test by actuating the bottle filler, alert will not appear.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 15 of 23

A152.8-BF4

Reset/Mode Button

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

OPTIONAL -BCD BOTTLE COUNTER DISPLAY

See the following page for models with -BCD Bottle Counter Display (A132-BF4-BCD)

BOTTLE FILLER & BOTTLE COUNTER CONNECTIONS:

DRINKING FOUNTAINS

Bottle Count Display

Solenoid Valve

Sensor Connection

Solenoid

Connection

Power Supply Connection
(Black Cables)

Transformer

Sensor

Sensor Connection
(Black & Red Cables)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 16 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

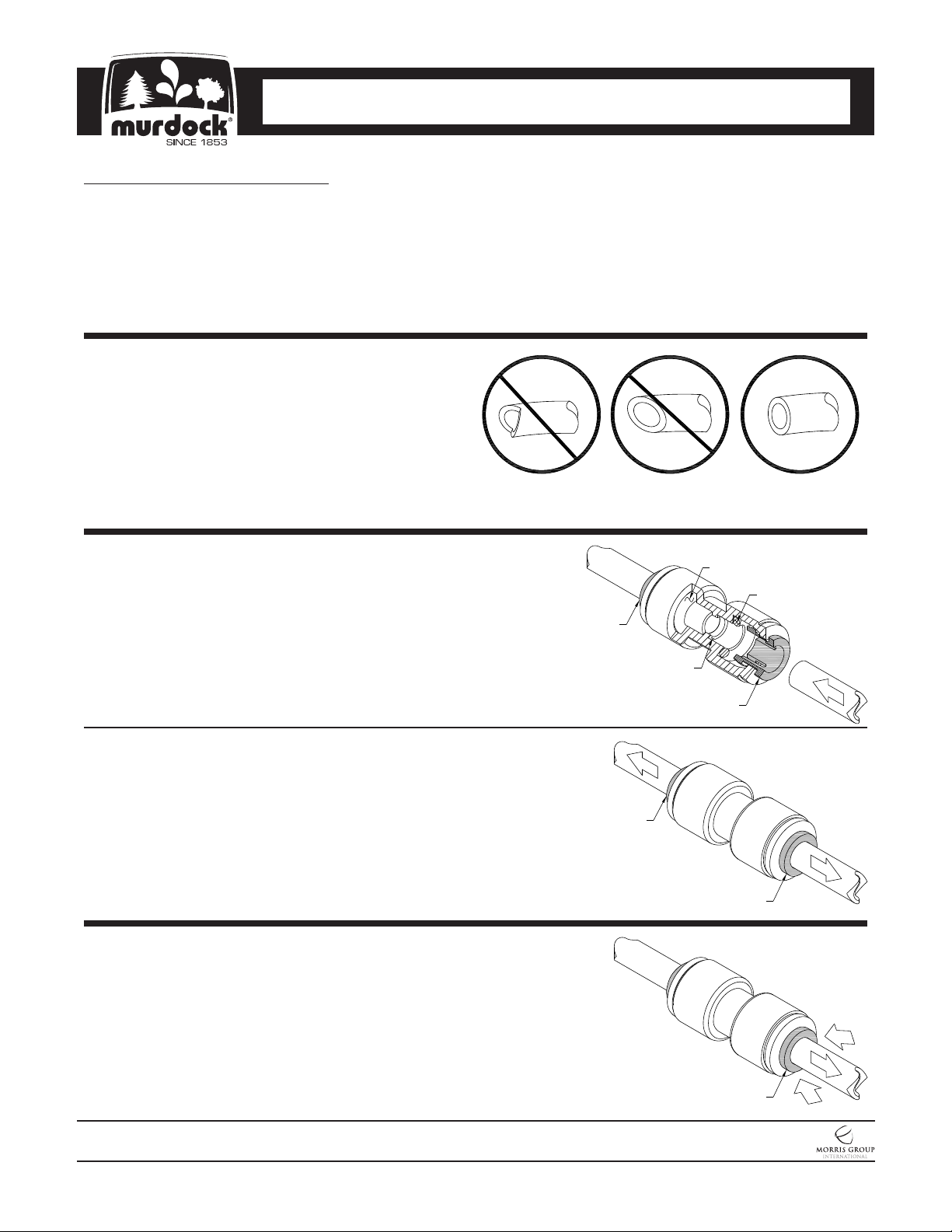

PUSH-IN FITTING INSTALLATION

NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR
TO INSTALLATION.

TO CUT TUBE:

Cut to fit length of 1/4” PE tubing and remove any
burrs or sharp edges. Ensure that the outside
diameter is free from score marks. Tube ends
should be square.

INSERTING THE TUBE:

1. Firmly and fully insert the tubing end into the

push-in fitting up to the tube stop located
approximately ½” deep.

2. Pull on the fitted tubing to ensure it is secure.

Tube should not come free from the fitting. Water
test the connection assembly prior to leaving the
site to ensure there are no leaks.

DISCONNECTING THE TUBE:

To disconnect the tube from the fitting ensure that
the water line is depressurized. Push collet square
towards the push-in fitting body and hold. While
holding the collet in, pull on the PE tubing to remove
from the push-in fitting.

O-RING

O-RING

COLLET

TUBE STOP

COLLET

COLLET

COLLET

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 17 of 23

A152.8-BF4

COLLET

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

TROUBLE SHOOTING:
IMPORTANT: BEFORE MAKING ANY OF THE REPAIRS LISTED, MAKE SURE THE
WATER CHILLER IS DISCONNECTED FROM THE ELECTRICAL SUPPLY AND THE
WATER SUPPLY VALVE IS SHUT OFF.

1. ADJUSTMENTS:

a. Cartridge – The water flow can be adjusted using a slotted narrow blade screwdriver and turning

clockwise to increase flow and counterclockwise to decrease flow.

b. Cold Water Thermostat – The water temperature can be adjusted using a slotted screwdriver and turning

clockwise to make colder and counterclockwise to make warmer.

c. Bubbler Stream - Bubbler can be rotated slightly to direct the stream backwards or forwards. Adjust the

stream to minimize splashing. Splashing may occur from bubbler stream if the unit is not level. Shim lower
mounting point, if necessary, to level chiller.

2. COMPRESSOR DOES NOT RUN:

a. Check the electrical supply for power and correct voltage. The incoming voltage must be within 10% of

the rated voltage on the serial nameplate.

b. If the cold thermostat capillary bulb loses its charge or becomes kinked, it will fail in the open position

causing a disruption of power to the compressor. Disconnect electrical supply to the water chiller and
using an ohm meter, check for continuity across the two electrical terminals on the thermostat. Install a
new thermostat if there is no continuity.

c. Check for loose wires within the compressor box. The incoming power leads must be connected to the

overload and relay.

d. If all components check positive for continuity, then test the wiring harness plug for continuity to see if

there is a broken wire within the wiring harness insulation.

3. COMPRESSOR RUNS - WATER IS WARM:

a. The most common cause for a water chiller to run without producing cold water is a loss of refrigerant.

The water chiller must be taken to a certified refrigerant technician for repairs.

b. Make sure the condenser fan motor is operative. The fan blade must turn freely to help remove the heat

of compression.

c. An incorrect refrigerant charge, restriction or defective compressor (not pumping) will also cause the

compressor to run without producing cold water. All these signs indicate a problem within the refrigeration
system and the water chiller must be checked by an authorized service company.

4. COMPRESSOR CYCLING ON OVERLOAD PROTECTOR:

a. A dirty condenser or a blocked fan will cause a high head pressure and frequent cycling of the overload

protector.
b. Check the incoming voltage to make sure it is within 10% of the serial nameplate rating.
c. A restriction or moisture in the system will also cause intermittent cycling. A certified refrigeration

mechanic should be contacted in this situation.
d. Change the overload or relay if defective.

5. NOISY OPERATION:

a. Check to make sure the fan blade is rotating freely.
b. Check the compressor mounting to make sure the pins and clips are not rattling. If the compressor

appears to be noisy internally, it must be replaced.

6. RESTRICTED OR NO WATER FLOW:

a. Ensure water supply service stop valve is fully open.
b. Verify minimum 20 psig supply line flow pressure.
c. Check for twists or kinks in outlet tubing.
d. Check the water inlet “Y” strainer. Sediment from the main supply can get trapped in the screen along

with installation materials such as pipe dope and flux. The screen should be cleaned and checked on a

regular basis and replace if needed.
e. The cartridge valve located in the water control assembly or bubbler can also become clogged with

foreign material. The cartridge valve can only be replaced and not repaired.
f. Check flow adjustment. See start up note #3.
g. Flow control in solenoid valve outlet elbow clogged remove & clean.
h. The water chiller may also develop a freezing condition in which the water will become frozen inside the

DRINKING FOUNTAINS

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 18 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

evaporator coil. This indicates a refrigeration problem or thermostat failure; in which, case the water
chiller needs to be checked by a qualified technician.

I. No power to transformer connections, loose or wires cut.

7. WATER DRIPS OR WILL NOT SHUT OFF:

a. Open fixture. Loosen nuts holding valve bracket assembly to bottom of fixture but, do not remove. Move

complete valve bracket assembly further back from the front push pad and tighten to lock in place.

b. Replace valve cartridge.

SENSOR TROUBLE SHOOTING:

8. IF LIGHT WITHIN SENSOR DOES NOT FLASH ONCE WHEN USER IS WITHIN RANGE:

a. Verify 120VAC input & 9VDC output transformer output 9VDC.
b. Replace defective transformer.
c. Transformer polarity crossed. Replace transformer, sensor may be damaged and also need replacement.
d. Sensor in “Security Mode” after 30 seconds of consistent detection. Remove source of detection and wait

30 seconds before checking.

e. Sensor is picking up a highly reflective surface. Eliminate cause of reflection and wait 30 seconds before

9. IF LIGHT WITHIN SENSOR LENS FLASHES ONCE WHEN THE USER IS WITHIN RANGE:

a. Repair bad connection from sensor to solenoid.
b. There is debris or scale in the solenoid assembly. Remove solenoid, pull out plunger and spring. Clean

c. There is debris or scale in the center or two holes in convolution of the water diaphragm. Remove and

checking.

with scale remover solution.

clean.

DRINKING FOUNTAINS

CLEANING & MAINTENANCE GUIDE:

1. Motors have lifetime lubrication and do not require scheduled maintenance.

2. Excess dirt or poor ventilation will cause the compressor overload protector to turn the compressor off and it

will cycle on and off with no cold water coming out of bubbler. Periodically clean with vacuum cleaner, air
hose or brush the condenser fins and cabinet ventilation louvers. In environments where dirt and dust is
more prevalent, clean more frequently.

3. Periodically remove fountain top and clean out in-line strainer.

4. Periodically remove access panel of cooler and clean out inline “Y’’ strainer

For Powder coated units: Units should be cleaned using a mild soap solution with a sponge or cotton cloth.

Wipe down surfaces then rinse with clean water.

For Stainless steel units:

1. To Remove water spots or rust spots, stainless steel cleaner/polish on a cloth is

recommended.

2. If there are stubborn spots or if you wish to treat a scratch, using synthetic abrasive general

purpose pads, such as Scotch-Brite™, are recommended.

3. Apply stainless steel cleaner/ polish to the synthetic abrasive pads and carefully rub the

panel with the grain.

4. DO NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will

void the Murdock warranty. DO NOT use abrasives on powder coated units.

5. Stainless steel should be kept clean at all times. If a coating of stainless steel cleaner/

polish is maintained, stainless steel surfaces will retain their new, clean, polished
appearance indefinitely.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 19 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

ITEM # PART NUMBER DESCRIPTION ITEM # PART NUMBER DESCRIPTION

1 7000-005-199 Drain Adapter 10 0308-009-000

Nylon Insert Locknut

2 0116-016-000

Phillips Truss Head Screw

11 0331-004-000 Flat Washer
3 7000-006-000 Flat Drain Adapter Gasket 12 7001-008-001 Valve Activation Assembly
4 7000-015-000 1-1/4" OD P-Trap 13 0341-100-000 Wire Clip
5 7000-021-001 "Y" Strainer 14 7000-100-199 Black Delrin Shaft
6 0152-010-000 #10-32 x 1/2" Hex Flat Head Screw 15 7000-004-000 Pus h Pad, #4 Finis h

7A 7000-012-001 Stainless Steel Bubbler Ass embly 16 7003-093-001 Flow Res trictor - Low-Flow Bubbler Only
7B 7000-099-002 Flexible Gray Bubbler Assembly 17 7001-021-001 Weldment, Basin, 18", #4 Finish

8 7000-060-000 Valve Cartridge 18 7001-022-001 Cabinet, 18", #4 Finish
9 7000-050-001 Valve As sembly

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

18” FOUNTAIN PARTS BREAKDOWN

6

DRINKING FOUNTAINS

18

7A

7B

5

4

3

2

1

NOTE:
** Flow Restrictor Only Available

With Low Flow Bubbler.

8

9

16

12

10

11

13

14

15

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 20 of 23

A152.8-BF4

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

ITEM # PART NUMBER DESCRIPTION ITEM # PART NUMBER DESCRIPTION

1 7000-005-199 Drain Adapter 10 0308-009-000

Nylon Insert Locknut

2 0116-016-000

Phillips Truss Head Screw

11 0331-004-000 Flat Washer
3 7000-006-000 Flat Drain Adapter Gasket 12 7001-008-001 Valve Activation Assembly
4 7000-015-000 1-1/4" OD P-Trap 13 0341-100-000 Wire Clip
5 7000-021-001 "Y" Strainer 14 7000-100-199 Black Delrin Shaft
6 0152-010-000 #10-32 x 1/2" Hex Flat Head Screw 15 7000-004-000 Pus h Pad, #4 Finis h

7A 7000-012-001 Stainless Steel Bubbler Ass embly 16 7003-093-001 Flow Res trictor - Low-Flow Bubbler Only
7B 7000-099-002 Flexible Gray Bubbler Assembly 17 7001-012-001 Weldment, Basin, 14", #4 Finis h

8 7000-060-000 Valve Cartridge 18 7001-011-001 Cabinet, 14", #4 Finish
9 7000-050-001 Valve As sembly

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

14” FOUNTAIN PARTS BREAKDOWN

DRINKING FOUNTAINS

NOTE:
** Flow Restrictor Only Available

With Low Flow Bubbler.

5

4

3

2

6

18

7A

7B

8

9

**16

12

10

11

13

1

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 21 of 23

A152.8-BF4

14

15

Member of

Revised: 07/18/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152.8-BF4-BCD SERIES BREAKDOWN

14

9

2

1

4

5

6

3

8

7

11

10

12

19

13

DRINKING FOUNTAINS

16

15

22

17

18

20

21

41

40

39

38

40

42

43

44

47

46

45

23

37A

24

25

26

28

27

29

31

32

33

34

35

30

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 22 of 23

A152.8-BF4

Member of

Revised: 07/18/18

37B

36

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A152.8-BF4-BCD SERIES BREAKDOWN

ITEM # PART NUMBER DESCRIPTION

1 0110-004-000 #8-3/4" Phillips Pan Head Screw
2 7014-034-199 Drain Tray, BF4
3 0124-031-000 #8-3/8" Hex Washer Head Screw
4 7000-006-000 Flat Drain Adapter Gasket
5 7003-186-199 1-1/4" x 2-3/4" Plastic Drain Tube
6 4970-265-000 1-1/2" x 1-1/4" P-Trap, White Poly
7 0302-004-000 #10-32 UNF Hex Nut Stainless Steel
8 0321-011-000 #10 Stainless Steel External Tooth Lockwas her
9 0710-730-001 9V Plug-In Trans form er

7014-110-001 Mount Frame Ass em bly R.H. Bottle Filler, W32
7014-041-001 Mount Frame Ass em bly L.H. Bottle Filler, W32-RBL

7013-133-001 LH, 9-12VDC Solenoid Op Valve As sembly
7013-134-001 RH, 9-12VDC Solenoid Op Valve As sembly (For RBL)

7014-062-199 Trim Panel, Bi-Level W32-BF, Upper, #4 Finish
7014-042-199 Trim Panel, RBL-BF, Upper, #4 Finish

NOTE:
Items with (*) are for
units with -BCD option

10

11 6502-070-000 #10-32 x 1/2" Slotted Pan Head Screw

12

13 7014-036-199 Solenoid Bracket
14 7000-021-001 Y Strainer Ass em bly, 1/4" NPT
15 0110-010-000 #6-32 x 1-1/4" Phillips Head Screw
16 0116-010-000 #10-32 x 1/2" Stainless Steel Truss Head Screw
17 7013-238-199 Y Strainer Clamp
18 7013-235-001 3-Way Divider Assembly, 1/4" x 1/4"
19 0112-021-000 #10-32 x 1/2" Stainless Steel Button Head Hex Screw
20 7013-231-199 3-Way Divider Bracket Assembly, 1/4" x 1/4"
21 0331-042-000 #6 Helical Spring Lock Was her
22 0302-011-000 #6-32 UNC Stainless Steel Hex Nut
23 7000-245-000 Back Panel Spacer
24 7014-150-001 Frame As s em bly, Chiller Mount, W32

25

26 1895-123-000 1/4" x 3/8" O.D. Tube Union Pus h-In
27 7008-010-001 Chiller Assembly
28 14" Drinking Fountain See Page 16 for Drinking Fountain Repair Parts
29 18" Drinking Fountian See Page 15 for Drinking Fountain Repair Parts
30 0124-056-000 #8 X 3/8 Phillip Stainless Steel Sheet Metal Screw
31 7014-033-199 Bottom Trim Panel, Bi-Lvl W32 w/ Chiller
32 0116-013-000 #10-32 x 3/4" Phillips Round Head Screw
33 7013-103-199 Mesh Screen
34 7013-114-001 Weldment, Screen Plate, BF
35 0302-005-000 1/4-20 UNC Stainless Steel Hex Nut
36 7013-032-000 Bottle Filler Graphic Plate, Murdock

37A 7014-020-003 Weldment, Panel, BF4-BCD

*37B 7014-019-003 Weldment, Panel, BF4, less BCD

38 0331-023-000 #8 Stainless Steel Flat Washer
39 6527-108-000 #8 Internal Tooth Lockwas her
40 0302-003-000 #8-32 Stainles s steel Hex Nut
41 7013-014-199 Nano Sensor Bracket
42 7013-019-199 Foam Tape
43 2563-380-001 Nano Sensor Ass em bly

44 7013-009-001 Nano Sensor Spacer Assembly
*45 7013-034-000 Nameplate, Outdoor Bottle Filler (Green)
*46 7014-022-001 BCD, Bottle Filler Counter Bracket Assembly
*47 0331-003-000 #8 Helical Spring Lock Was her

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-949-001
Page 23 of 23

A152.8-BF4

Member of

Revised: 07/18/18
