Murdock A152400F-BF4, A152400S-BF4, A152/FG-BF4, A152400F-FG-BF4, A152400S-FG-BF4 Maintance Manual

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A152/FG-BF4 Series

Rounded Box Barrier-Free Wall Mount Bi-Level Drinking

Fountain with Sensor Activated Bottle Filler

** U.S. DESIGN PATENT D545,607 (Bowl Design)

A152400F-BF4 / A152400S-BF4 / A152400F-FG-BF4 / A152400S-FG-BF4

TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:

1.800.591.9360

Technical Assistance Fax: [phone]

NOTES TO INSTALLER:

1. Please leave this documentation with the owner of the fixture when finished.

2. Please read this entire booklet before beginning the installation.

3. Check your installation for compliance with plumbing, electrical and other applicable codes.

LIMITED WARRANTY - UNITED STATES & CANADA

Murdock warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of install or for 18 months after the date of shipment from the factory,
whichever comes first. Murdock’s liability under this warranty shall be discharged solely by replacement or repair
of defective material, provided Murdock is notified in writing within one year from date of shipment, F.O.B.
Industry, California.

This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdock’s limited warranty is void.

LIMITED EXPORT WARRANTY - One year on parts only.

Murdock assumes no responsibility for use of void or
suspended data. © Copyright Murdock, City of
Industry, CA Member of Morris Group International.
Please visit www.murdockmfg.com for most
current specifications.

7020-951-001 Date: 02/02/18

COMPLIES WITH

Federal
Public Law
111-380
(No Lead)

Test rating conditions are
compliant with ARI 1010.

Member of

MURDOCK

15125 Proctor Ave.
City of Industry, CA

91746 U.S.A.

Phone [phone]

626-336-4561

Fax [phone]

www.murdockmfg.com

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

This fixture is intended to dispense water that has been lowered in temperature, but otherwise remains
unchanged by the materials in the drinking fountain. It is common for electrical equipment to be grounded to
water lines either within a structure or away from it. Every attempt should be made to prevent this kind of
grounding from generating electrical feedback into the drinking fountain creating electrolysis. Electrolysis will
cause a metallic taste or cause water metal content to increase.

ROUGHING-IN AND DIMENSIONAL DRAWING

Prior to roughing in, consult with local, state, and federal codes for proper mounting height.

A152/FG-BF4 Wall Mounted Drinking Fountain

Note: There are no mounting changes to be made for -SO models.

DRINKING FOUNTAINS

IMPORTANT

14

5
8

2

32

6"

"

10"

18

5

"

8

General Notes:

1. All dimensions are in inches
*2. Dimensions shown are for recommended adult

height. Adjust vertical dimensions as necessary
to comply with federal, state, & local codes.

7

"

8

1

"

2

12"

1

"

4

16"3

32"

14

3

"

4

11

1

"

2

23"

3

8

"

8

3

1

"

8

3

1

"

8

*33"

Finished
Floor

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel approach
installation, decrease height of installation by 3 inches. Provide clear floor space as required. Adjust vertical
dimensions as required to comply with federal, state, and local codes.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 2 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152-RBL-BF4 Refrigerated Reverse Bi-Level Wall Mounted Drinking Fountain with Bottle Filler

10"

5

18

"

8

16" 3

32"

3

14

"

4

DRINKING FOUNTAINS

6"

5

14

"

8

7

2

"

1
2

8

"

General Notes:

1. All dimensions are in inches
*2. Dimensions shown are for recommended adult

height. adjust vertical dimensions as necessary
to comply with federal, state, & local codes.

23"

11

1

"

2

12"

FINISHED
FLOOR

32

1

"

4

3

8

8

*33"

"

3

1

"

8

3

1

"

8

NOTES: Dimensions shown for Adult ADA compliant installation. For Child ADA compliant parallel
approach installation, decrease height of installation by 3 inches. Provide clear floor space as required.
Adjust vertical dimensions as required to comply with federal, state, and local codes.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 3 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152/FG-BF4 Refrigerated Wall Mounted Drinking Fountain Inlet & Outlet Rough-Ins

Note: There are no mounting changes to be made for -SO models.

2

DRINKING FOUNTAINS

General Notes:

1. Dimension indicated with (**) is

C

L

for 33" drinking fountain
discharge height. if discharge
height differs, adjust accordingly.

2. Standard Bi-Level rough-ins
shown. For -RBL Reverse
Bi-Level, -RBL Mounting Frame
rough-ins opposite.

1

**38"

1-1/4" O.D. Drinking Fountain Waste Outlet

1

3/8" NCT Drinking Fountain Supply Inlet

Alternate 3/8" NCT Bottle Filler Supply Inlets

3

8"

16"

Alternate 1-1/4" O.D. Bottle Filler Waste Outlet

4

Electrical Service Rough2

5

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 4 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Prior to roughing in, consult with local, state, and federal codes for proper mounting height.

Notes:
1-Standard Bi-Level rough-ins shown. For -RBL Reverse Bi-Level, -RBL

Mounting Frame rough-ins opposite

DRINKING FOUNTAINS

DIMENSIONAL DRAWING

1

2

30

16"

1

"

4

Finished

Floor

Installation Instructions:

A- Provide 30-1/4" wide x 31-1/8" tall wall opening at

appropriate height. Provide structure support around

inside of the opening for frame anchoring.

B- Carefully remove Bi-Level Mounting Frame 1 , and

panel from packaging, preventing damage.

C- Center frame within wall opening with side, top, and

bottom lips overlapping outside the opening and up
against finished wall face. Secure to wall through
the sides, top and bottom using hardware 2 by
others ensuring 16" centerline dimension
left-to-right.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 5 of 22

A152-BF4

1

31

"

8

1

56

"

4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

IMPORTANT:

1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by others in
accordance with local codes.

2. Waste is 1-1/4” Outer Diameter. Drinking Fountain water inlet is 3/8” Outer Diameter copper tube. Bottle
Filler water inlet is 3/8” Outer Diameter copper tube. Water line by others.

3. Completely flush supply lines of all foreign debris before connecting to fixture. Optional Water Filter (WF1), is
available should any problems with taste, odor, color, or sediment arise from the water supply.

4. Do NOT solder tubes inserted into the bottle filler or the fountain strainer as damage to the o-rings on the
push-in fittings may result.

5. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.

6. Provide electrical service to J-Box to power sensor and solenoid valve.

7. This unit must be grounded per the requirements of applicable electrical codes.

8. Fixture operates within water pressure range of 174 kPa (25 psig) to 724 kPa (105 psig). Murdock Mfg. will
not warranty chiller damaged when connected to supply lines with flow pressure lower that 174 kPa (25 psig)
or higher than 724 kPa (105 psig). A pressure regulator must be furnished by others on supply line if inlet
pressure is greater than 724 kPa (105 psig).

9. Per UPC 609.10-All building water supply systems in which quick acting valves are installed shall be

provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the
valve. These pressure-absorbing devices shall be approved mechanical devices. Water pressure-absorbing
devices shall be installed as close as possible to the quick closing valve.

PRIOR TO INSTALLATION:

1. Read all installation instructions carefully, before proceeding.

2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture
and all parts from damages and all parts that are bolted on.

3. Provide mounting surface, adequate to support the fixture and loads on the fixture.

4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe
and gravel drain well. (See rough-in details)

5. Electrical Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC
(National Electrical Code).

6. Completely flush water supply lines of all foreign debris, before connecting to the fixture.

DRINKING FOUNTAINS

A152-BF4 SERIES DRINKING FOUNTAIN INSTALLATION:

1. Insert Mounting Frame into the Rough-In Block Out and secure using 1/4”-20 UNC Mounting Hardware
(Provided by Others).

2. Hang Trim Panel on Mounting Frame. Note: The included 1” brackets do not get used with this installation
and the Plastic Spacers are typically not required and can be discarded.

3. Install the eight (8) Threaded Studs into the Wall Mounting Frame.

4. Remove the Drinking Fountain Top by unfastening the Drain Screw and lifting at the front while pulling
forward. Disconnect Tubing from Bubblers by unfastening Ferrule Nuts. Set Top aside in a safe place where
it will not be damaged. Place the Drain Screw in a secure location where it will not be lost.

5. Align Fixture Mounting Points with Studs and slide Fixture to finished wall. Anchor with Nuts and Washers
provided.

6. Assemble P-Trap to Drain Adapter and then Assemble to unit with Phillips Head Screws.

7. Make-up 1-1/4” outer diameter Waste Connection.

8. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to the 3-Way Divider
Assembly. From the 3-Way Divider Assembly, connect to 1/4” Nominal Copper Tube Inlets, Stops on
Supplies recommended. See Water Tubing Connections for visual.

9. Reconnect 1/4” OD Polyethylene Tube to Bubbler with Ferrule Nuts.

10. Test operation of Bubblers by depressing buttons and adjust the flow rate as required, see Water Tubing
connections for detail. Check all connections and Waste Piping for leaks. Correct if present.

11. Set Drain Gasket on Drain Adapter.

12. Re-install tops to unit by engaging the back clip and securing with Drain Screw.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 6 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152FG-BF4 DRINKING FOUNTAIN INSTALLATION:

1. Insert mounting frame into the rough-in block out and secure using 1/4”-20 UNC mounting hardware
(Provided by Others).

2. Hang Trim Panel on Mounting Frame. Note: The included 1” brackets do not get used with this installation
and the plastic spacers are typically not required and can be discarded.

3. Install the eight (8) threaded studs into the Wall Mounting Frame

4. Carefully remove Drinking Fountain Fixtures from packaging material and Bottom Access Panel to prevent
scratching or damage.

5. Inspect Fixture Housing to ensure all Tubing connections, Bubblers and Pushbuttons have not become loose
during shipping. Correct if necessary.

5. Align Fixture Mounting Points with Studs and slide Fixture to finished wall. Anchor with Nuts and Washers
provided.

6. Assemble P-Trap to Drain Adapter. Position Drain Gasket on Drain Adapter and mount Drain Adapter to
Drinking Fountain Basin with #10-32 x 1” Center Reject Drain Screw.

7. Make-up 1-1/4” outer diameter waste connection.

8. After thoroughly flushing the 3/8” outer diameter supply line, connect water supply to the 3-Way Divider
Assembly. From the 3-Way Divider Assembly, connect to 1/4” Nominal Copper Tube Inlets, Stops on
Supplies recommended. See Water Tubing Connections for visual.

9. Test operation of Bubblers by depressing buttons and adjust the flow rate as required, see Water Tubing
connections for detail. Check all connections and Waste Piping for leaks. Correct if present.

10. Install Bottom Access Panel to complete the installation.

DRINKING FOUNTAINS

BF3/BF4 BOTTLE FILLER INSTALLATION:

1. With Drinking Fountain installed, connect water supply line from 3-Way Divider Assembly to Bottle Filler.

2. Loosen Slip Nuts to orientate P-Trap to desired direction then tighten Slip Nuts and make up 1-1/4” O.D.
Waste Connection.

3A. FOR -BF3 ONLY Make up Air-Line Supply from Pneumatic Valve to Pushbutton.
3B. FOR -BF4 ONLY Make up power connections to the ground, neutral & hot within the electrical box.

NOTE: BEFORE PERFORMING STEP 4, REFER TO ELECTRICAL INSTALLATION.

4. Test for leaks and proper operation, and then install the Bottle Filler Panel using the Water Filler Bracket and
secure the Bottle Filler by tightening the Screws under the Bottle Filler.

DRINKING FOUNTAIN START UP:

1. Before connecting power supply, but after thoroughly flushing the supply line, turn on building water supply
and check all connections for leaks.

2. Air within the drinking fountain system or the structure supply piping will cause an irregular bubbler outlet
stream until purged out by incoming water. Covering the bubbler with a clean cup (or similar object) is
recommended when first activating drinking fountain to prevent excessive splashing. Depress front push pad
until steady water stream is achieved.

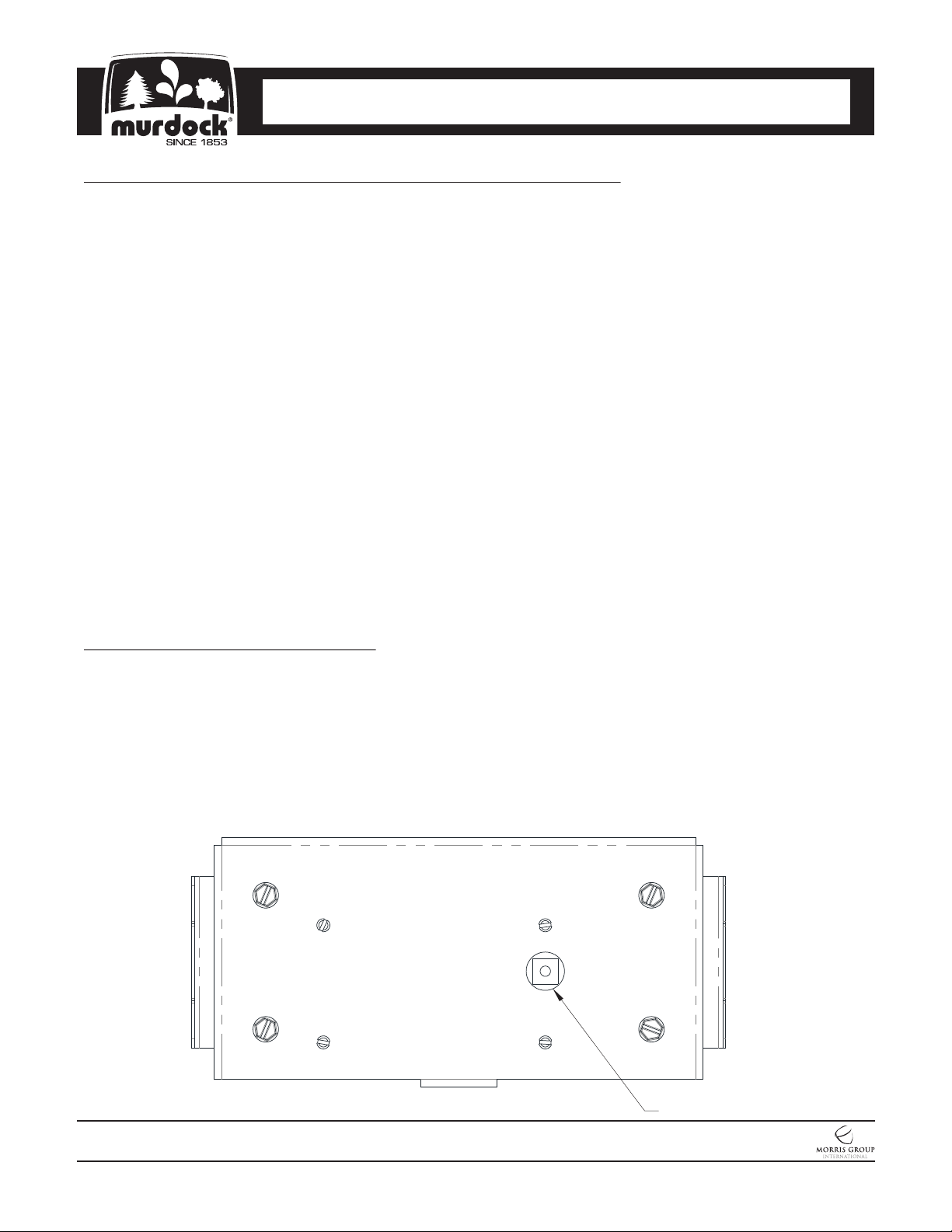

3. If water flow requires adjustment, insert a slotted narrow blade screwdriver in the hole centered on the
underside of the fixture in the knee clearance area up to the flow regulator. Turning clockwise will increase
flow and turning counterclockwise will decrease flow.

4. Recheck all water connections with water flowing through system.

BOTTLE FILLER START UP:

1. PUSHBUTTON OPERATED :Air within the Bottle Filler System or the structure supply piping will cause an
irregular spout outlet stream until purged out by incoming water. Press and hold Pushbutton until steady
water stream is achieved

2. SENSOR OPERATED: Hold container to be filled just below the Sensor in the center of the Filler Spout and
then move the container upward and water flow will start automatically. When the container is almost filled,
lower the container below the Sensor until the water stops flowing. (See label on the Bottle Filler.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 7 of 22

A152-BF4

Member of

Revised: 02/02/18

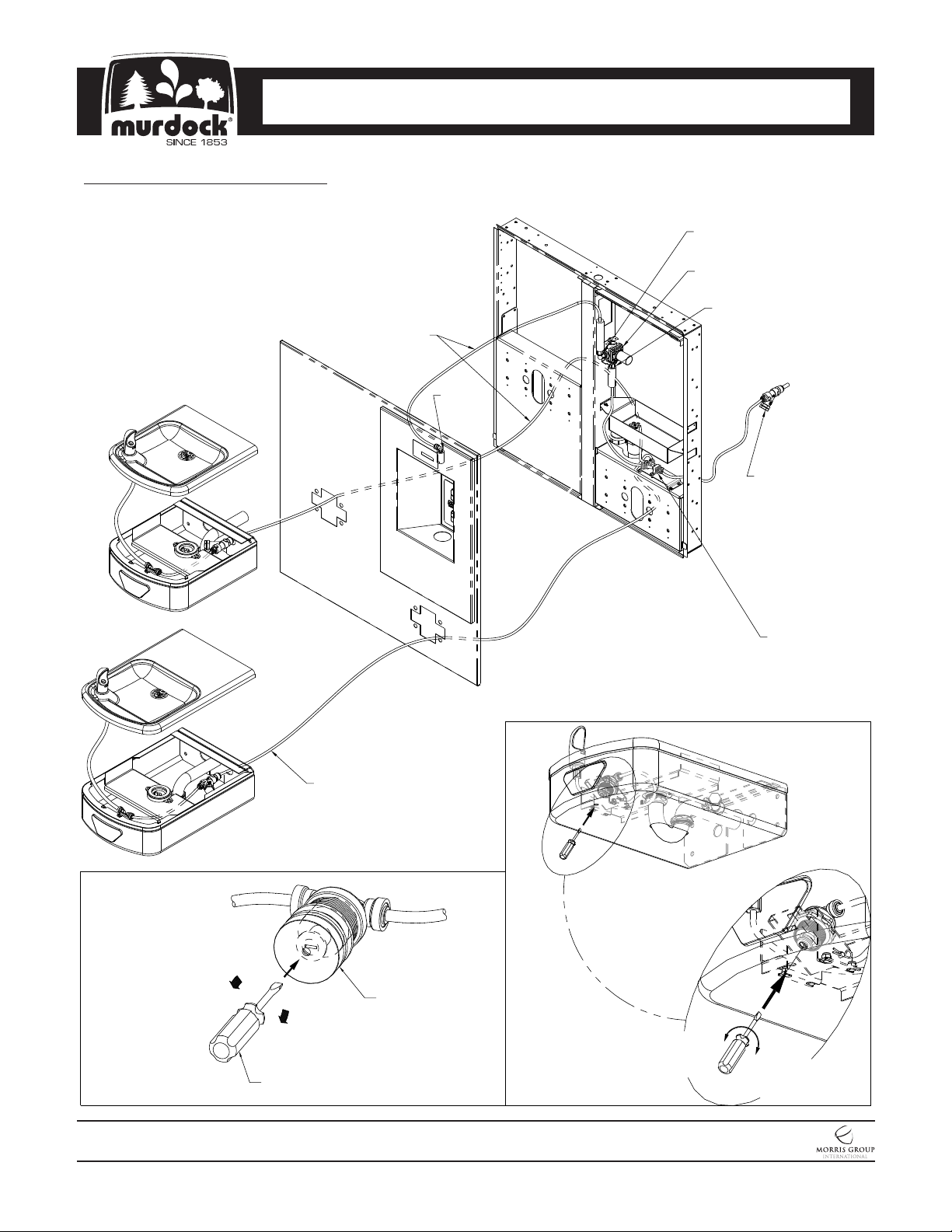

WATER TUBING CONNECTIONS:

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

Solenoid Valve Outlet

Elbow w/ Flow Control

9-12VDC Solenoid Valve

Solenoid Valve
Inlet Fitting

PE Tubing

Fill
Spout

Y-Strainer

PE Tubing

A152FG-BF4
Flow Rate Detail

Decrease

Flow

Increase
Flow

Flat Tip
Screwdriver

Pushbutton

A152-BF4

Flow Rate Detail

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 8 of 22

A152-BF4

Decrease

Flow

3-Way Divider
Assembly

Increase

Flow

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

7

7012-055-000

Foam Pipe Insulation

6

2169-000-000

Tubing, 1/4" O.D. LLDPE, (Blue)

5

7012-311-000

WF1 Filter 1500 Gallon

4

1895-709-000

Elbow, 1/4" Push-In x 1/4" Stem

3

0124-031-000

#8 x 3/8" Hex Washer Head Screw

2

7014-035-199

Water Filter Bracket

1

0250-006-000

#10 x 5/8" Phillips Truss Head Screw

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

OPTIONAL -WF1 WATER FILTER INSTALLATION

Page for models with -WF1 filter (A152-BF4-WF1 SERIES)

Mount Filter Bracket to

Corner of Mounting

Frame

DRINKING FOUNTAINS

Out

1

3

4

2

In

5

6

7

1

" Tubings

4

Out

In

Connect
to Drinking Fountains

and Bottle Filler Valve

FILTER MOUNTING

(BACKVIEW)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 9 of 22

DETAIL

A152-BF4

WATER TUBING

DIAGRAM

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

8

1895-710-000

Union Tee, 1/4" Push-In

7

7012-055-000

Foam Pipe Insulation (Not Shown)

6

2169-000-000

Tubing, 1/4" O.D. LLDPE, (Blue)

5

7012-311-000

WF1 Filter 1500 Gallon

4

1895-709-000

Elbow, 1/4" Push-In x 1/4" Stem

3

0124-031-000

#8 x 3/8" Hex Washer Head Screw

2

7014-055-199

Bracket, Dual Filter Mount

1

0250-006-000

#10 x 5/8" Phillips Truss Head Screw

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

OPTIONAL -WF3 DUAL WATER FILTER INSTALLATION

DRINKING FOUNTAINS

2

8

FILTER MOUNTING

DETAIL

(BACKVIEW)

1

Mount Filter Bracket
to Corner of Mounting
Frame

4

5

6

1

" Outlet from WF3

4

1

" Supply from Y-Strainer

4

Out

WATER TUBING

DIAGRAM

In

3

Connect
to Drinking Fountains

and Bottle Filler Valve

1
4

" Tubings

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 10 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

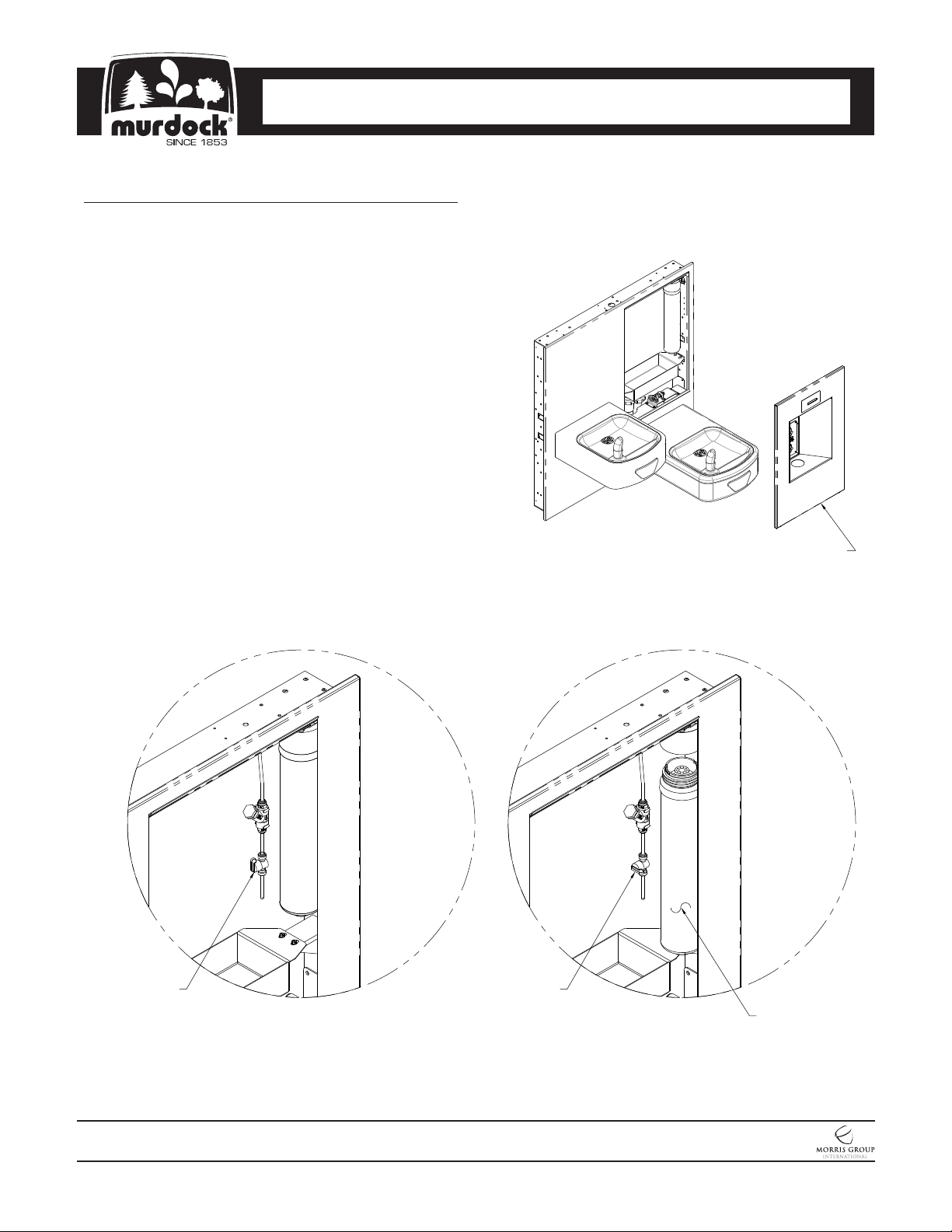

-WF1 WATER FILTER CARTRIDGE REPLACEMENT

1. Remove front panel, this allows access to the filter

and the inlet valve (provided by others). Turn inlet
valve knob 1/4 turn clockwise to close.

2. With the filter assembly secured on the unit, hold

the cap firmly, turn the replaceable cartridge filter
counterclockwise to remove.

3. Remove and replace the cartridge turning clockwise

to secure.

4. Turn inlet valve knob 1/4 turn counterclockwise to

open and test for leaks and proper operation before
installing bottom access panel back onto unit.

DRINKING FOUNTAINS

Panel Assembly

Water Inlet

Valve Open

Water Inlet

Valve Closed

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 11 of 22

A152-BF4

Replacement
Cartridge

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

ELECTRICAL INSTALLATION:

NOTE: Plug in power is a standard feature.

1A. Plug-In Operation: Plug transformer provided into GFCI protected electrical service, used by the semi-

recessed bottle filler. Plug in transformer to power supply and connect to red sensor wire.

Red Wire

DRINKING FOUNTAINS

Junction Box
Provided

Sensor

Plug-In Transformer

9-12VDC Solenoid
Valve

Blue Wire

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 12 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

-BCT BOTTLE COUNTER DISPLAY & SENSOR ELECTRICAL INSTALLATION:

Bottle Count Display

Solenoid Valve

Sensor Connection

Solenoid

Connection

Power Supply Connection
(Black Cables)

Transformer

Sensor

Sensor Connection
(Black & Red Cables)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 13 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

-BCD BOTTLE COUNTER DISPLAY ADJUSTING & RESETTING INSTRUCTIONS:

NOTE: Bottle Counter Has Multiple Functions

Reset/ Mode Button

• Counts refilled bottles, otherwise purchased

• Adjustable for Units with and without filters

• “REPLACEMENT FILTER” alert function

• Alert reset, when filter is replaced

Description

Illuminated LCD display, counts bottles, and has a filter replacement alert function

Bottle Counting Function

The software applies a flow volume of approximately 16.9 fl oz (volume in standard size plastic water
bottle) to each bottle counted. If the flow volume is less than 16.9 fl oz there will be no count but the
volume will accumulate, so that part way through the next cycle the total bottle count will change.

DRINKING FOUNTAINS

Illuminated LCD Display

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 14 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

-BCD BOTTLE COUNTER DISPLAY FILTER REPLACEMENT FUNCTIONS:

NOTE: When the volume accumulates to 1500 gallons (recommended maximum filter flow volume) the

“REPLACE FILTER” alert will appear on the display every time the bottle filler is activated.

Counter Modes

Located on the back of the display you will find the reset button for the mode settings. The Reset/Mode
selection button is accessible by removing the bottle filler panel assembly, then locate the large hole in the
back of the display mounting bracket. Use your finger or nonconductive implement to depress the
Reset/Mode Selection Button.

!!!DO NOT USE SHARP OR METAL IMPLEMENTS!!!

With this reset button, you are able to indicate whether or not the unit has a filter or does not have a filter.
The reset button will also take away the “REPLACE FILTER” alert once the filter has been replaced.

Systems With or Without Filter

• Depress the Reset/Mode selection button for 6
Seconds, the number of seconds will count up on the
display.

• At the end of the 6 seconds, “FLTR YES” or “FLTR NO”
WILL APPEAR on the display.

• “FLTR YES” means that there is a filter in the system
and a “REPLACE FILTER” alert WILL APPEAR on the
display when the maximum filter flow volume is reached.

• “FLTR NO” means that there is no filter in the system
and a “REPLACE FILTER” alert WILL NOT APPEAR
on the display.

• Release button when the option required is on the
display (Filter Yes or No)

CLEARING “REPLACE FILTER” ALERT:

NOTE: This Function only applies if the system has a filter

• Replace old filter with new filter.

• Depress the Reset/Mode selection button for 2 SECONDS

• The “REPLACE FILTER” will no longer appear on the display

• Test by actuating the bottle filler, alert will not appear.

DRINKING FOUNTAINS

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 15 of 22

A152-BF4

Reset/Mode Button

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

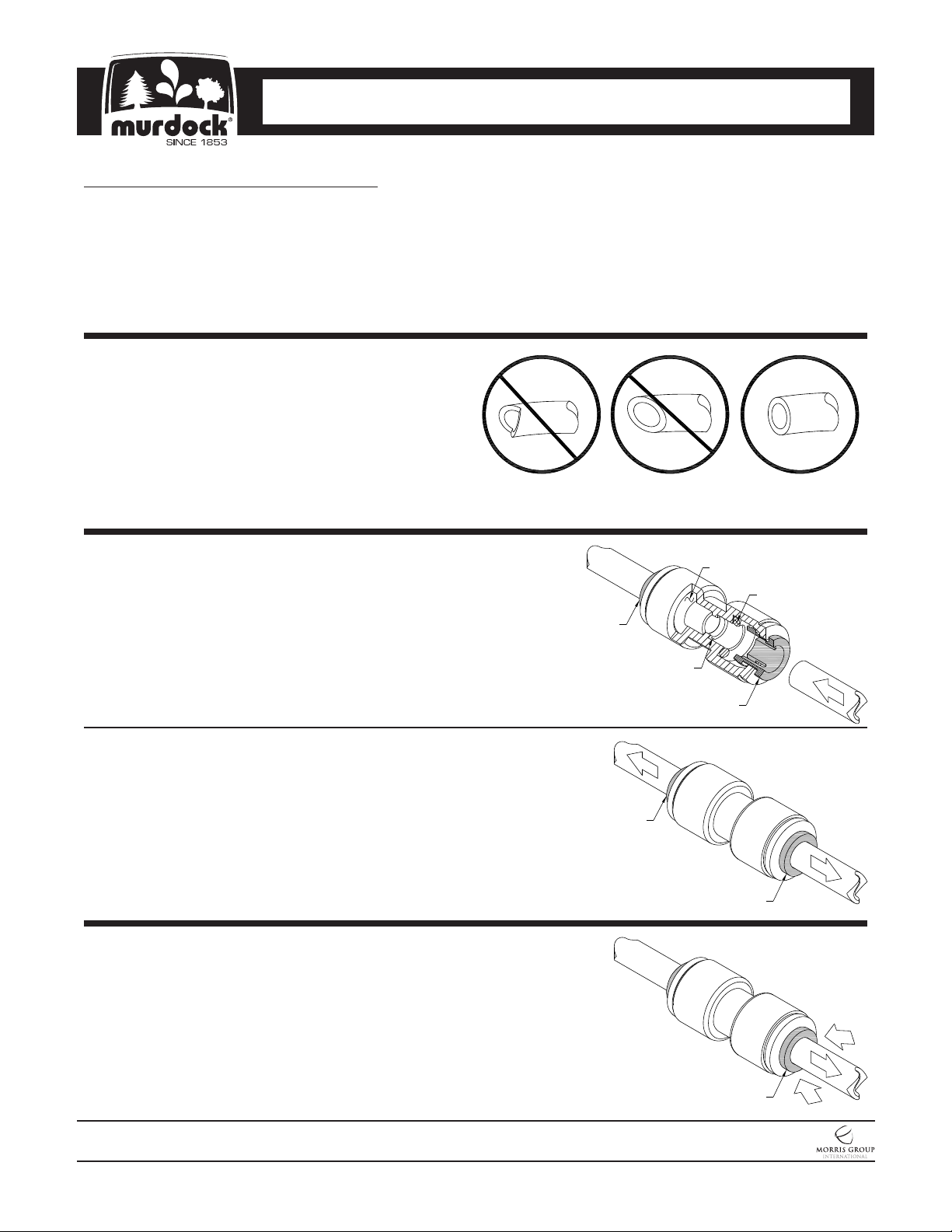

PUSH-IN FITTING INSTALLATION

NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR
TO INSTALLATION.

TO CUT TUBE:

Cut to fit length of 1/4” PE tubing and remove any
burrs or sharp edges. Ensure that the outside
diameter is free from score marks. Tube ends
should be square.

INSERTING THE TUBE:

1. Firmly and fully insert the tubing end into the

push-in fitting up to the tube stop located
approximately ½” deep.

2. Pull on the fitted tubing to ensure it is secure.

Tube should not come free from the fitting. Water
test the connection assembly prior to leaving the
site to ensure there are no leaks.

DISCONNECTING THE TUBE:

To disconnect the tube from the fitting ensure that
the water line is depressurized. Push collet square
towards the push-in fitting body and hold. While
holding the collet in, pull on the PE tubing to remove
from the push-in fitting.

O-RING

O-RING

COLLET

TUBE STOP

COLLET

COLLET

COLLET

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 16 of 22

A152-BF4

COLLET

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

TROUBLE SHOOTING:

1. ADJUSTMENTS:

a. Cartridge – The water flow can be adjusted using a slotted narrow blade screwdriver and turning

clockwise to increase flow and counterclockwise to decrease flow.

b. Cold Water Thermostat – The water temperature can be adjusted using a slotted screwdriver and turning

clockwise to make colder and counterclockwise to make warmer.

c. Bubbler Stream - Bubbler can be rotated slightly to direct the stream backwards or forwards. Adjust the

stream to minimize splashing. Splashing may occur from bubbler stream if the unit is not level. Shim lower
mounting point, if necessary, to level chiller.

2. RESTRICTED OR NO WATER FLOW:

a. Ensure water supply service stop valve is fully open.
b. Verify minimum 20 psig supply line flow pressure.
c. Check for twists or kinks in outlet tubing.
d. Check the water inlet “Y” strainer. Sediment from the main supply can get trapped in the screen along

with installation materials such as pipe dope and flux. The screen should be cleaned and checked on a
regular basis and replace if needed.

e. The cartridge valve located in the water control assembly or bubbler can also become clogged with

foreign material. The cartridge valve can only be replaced and not repaired.
f. Check flow adjustment. See start up note #3.
g. Flow control in solenoid valve outlet elbow clogged remove & clean.
h. No power to transformer connections, loose or wires cut.

3. WATER DRIPS OR WILL NOT SHUT OFF:

a. Open fixture. Loosen nuts holding valve bracket assembly to bottom of fixture but, do not remove. Move

complete valve bracket assembly further back from the front push pad and tighten to lock in place.
b. Replace valve cartridge.

SENSOR TROUBLE SHOOTING:

4. IF LIGHT WITHIN SENSOR DOES NOT FLASH ONCE WHEN USER IS WITHIN RANGE:

a. Verify 120VAC input & 9VDC output transformer output 9VDC.
b. Replace defective transformer.
c. Transformer polarity crossed. Replace transformer, sensor may be damaged and also need replacement.
d. Sensor in “Security Mode” after 30 seconds of consistent detection. Remove source of detection and wait

30 seconds before checking.
e. Sensor is picking up a highly reflective surface. Eliminate cause of reflection and wait 30 seconds before

checking.

5. IF LIGHT WITHIN SENSOR LENS FLASHES ONCE WHEN THE USER IS WITHIN RANGE:

a. Repair bad connection from sensor to solenoid.
b. There is debris or scale in the solenoid assembly. Remove solenoid, pull out plunger and spring. Clean

with scale remover solution.
c. There is debris or scale in the center or two holes in convolution of the water diaphragm. Remove and

clean.

DRINKING FOUNTAINS

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 17 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

3

7000-053-199

Jam Nut

2

7000-060-000

Flow Regulator Cartridge (0.5 GPM)

1

7000-050-001

Valve Cartridge Assembly

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

CLEANING & MAINTENANCE GUIDE:

1. Motors have lifetime lubrication and do not require scheduled maintenance.

2. Excess dirt or poor ventilation will cause the compressor overload protector to turn the compressor off and it
will cycle on and off with no cold water coming out of bubbler. Periodically clean with vacuum cleaner, air
hose or brush the condenser fins and cabinet ventilation louvers. In environments where dirt and dust is
more prevalent, clean more frequently.

3. Periodically remove fountain top and clean out in-line strainer.

4. Periodically remove access panel of cooler and clean out inline “Y’’ strainer

For Powder coated units: Units should be cleaned using a mild soap solution with a sponge or cotton cloth.

Wipe down surfaces then rinse with clean water.

For Stainless steel units:

1. To Remove water spots or rust spots, stainless steel cleaner/polish on a cloth is

recommended.

2. If there are stubborn spots or if you wish to treat a scratch, using synthetic abrasive general

purpose pads, such as Scotch-Brite™, are recommended.

3. Apply stainless steel cleaner/ polish to the synthetic abrasive pads and carefully rub the

panel with the grain.

4. DO NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will

void the Murdock warranty. DO NOT use abrasives on powder coated units.

5. Stainless steel should be kept clean at all times. If a coating of stainless steel cleaner/

polish is maintained, stainless steel surfaces will retain their new, clean, polished
appearance indefinitely.

DRINKING FOUNTAIN CARTRIDGE REPLACEMENT/ STRAINER MAINTENANCE

Note: Use the universal maintenance tool to perform the following:

1. Strainer plug must be removed before cartridge replacement and strainer maintenance (no need to turn the

water off at the angle stop). Some residual water will drain during plug removal.

2. Clean strainer as needed using clean water.

3. Cartridge replacement - insert diamond end of the universal tool into pushbutton, rotate 90 degrees and pull

firmly to remove the button. Remove cartridge retaining nut . Remove and replace cartridge. When replacing
cartridge be sure to align the inlet and outlet ports on the cartridge with the ports in the valve body.

—NOTE: STRAINER SCREEN MUST BE IN PLACE FOR WATER TO FLOW.

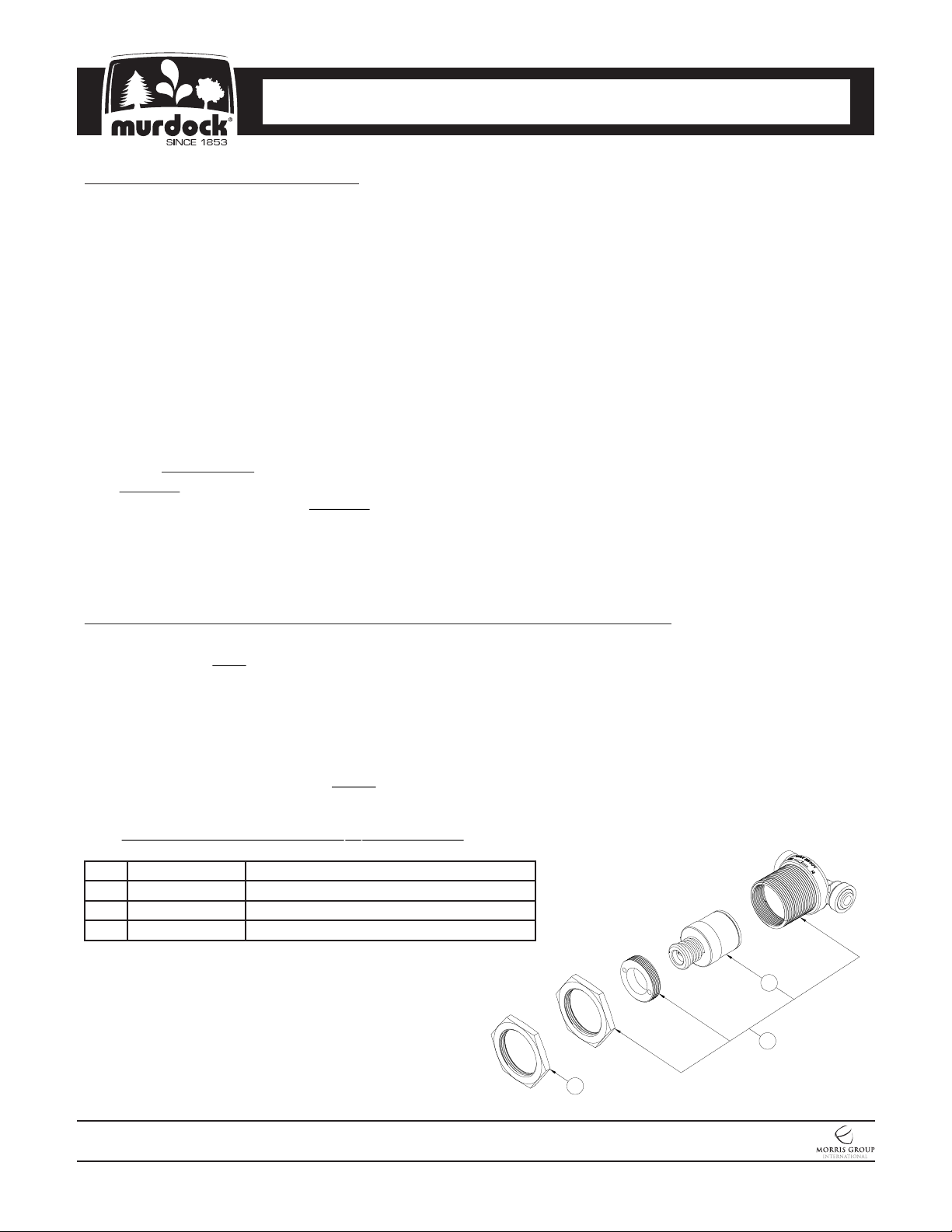

CARTRIDGE VALVE PARTS BREAKDOWN

2

1

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 18 of 22

A152-BF4

3

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

8

7000-060-000

Valve Cartridge

7B

7000-099-002

Flexible Bubbler Assembly

16

7003-093-001

Flow Restrictor (Flexible Bubbler Only)

7A

7000-012-001

Stainless Steel Bubbler

15

7000-004-000

Push Pad

6

0152-010-000

Center Reject Allen Flat Head Screw

14

7000-100-199

Black Delrin Shaft

5

7000-021-001

“Y” Strainer

13

0341-100-000

Wire Clip

4

7000-005-199

Drain Adapter

12

7001-008-001

Valve Activation Assembly

3

7000-006-000

Flat Drain Adapter Gasket

11

0331-004-000

Flat Washer

2

0116-016-000

Phillips Truss Head Screw

10

0308-009-000

Nylon Insert Locknut

1

7000-005-199

Drain Adapter

9

7000-050-000

Valve Assembly

ITEM

PART NUMBER

DESCRIPTION

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A152-BF4 DRINKING FOUNTAIN PARTS BREAKDOWN

6

7A

7B

5

4

3

2

1

NOTE:
** Flow Restrictor only available

with Low Flow Bubbler

16

8

9

**

12

10

11

13

14

15

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 19 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

1

0112-002-000

Center Reject Allen Button Head Screw

7A

7000-012-001

Stainless Steel Bubbler

2

7000-015-000

1-1/4” Reject Allen Button Head Screw

7B

7000-099-002

Flexible Bubbler Assembly

3

7000-021-001

“Y” Strainer

8

7000-068-001

Retaining Ring & Button Assembly

4

7000-005-199

Drain Adapter

9

7000-069-001

Valve Cartridge with Foam Washer

5

7000-006-000

Flat Drain Adapter Gasket

10

7000-065-001

Recessed Pushbutton Valve Assembly

6

0152-010-000

Center Reject Allen Flat Head Screw

11

7003-093-001

Flow Restrictor - Low-Flow Bubbler Only

ITEM

PART NUMBER

DESCRIPTION

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A152FG-BF4 DRINKING FOUNTAIN PARTS BREAKDOWN

NOTE:
** Flow Restrictor only available

with Low Flow Bubbler

6

7A

7B

5

4

3

2

11

**

8

10

9

1

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 20 of 22

A152-BF4

Member of

Revised: 02/02/18

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

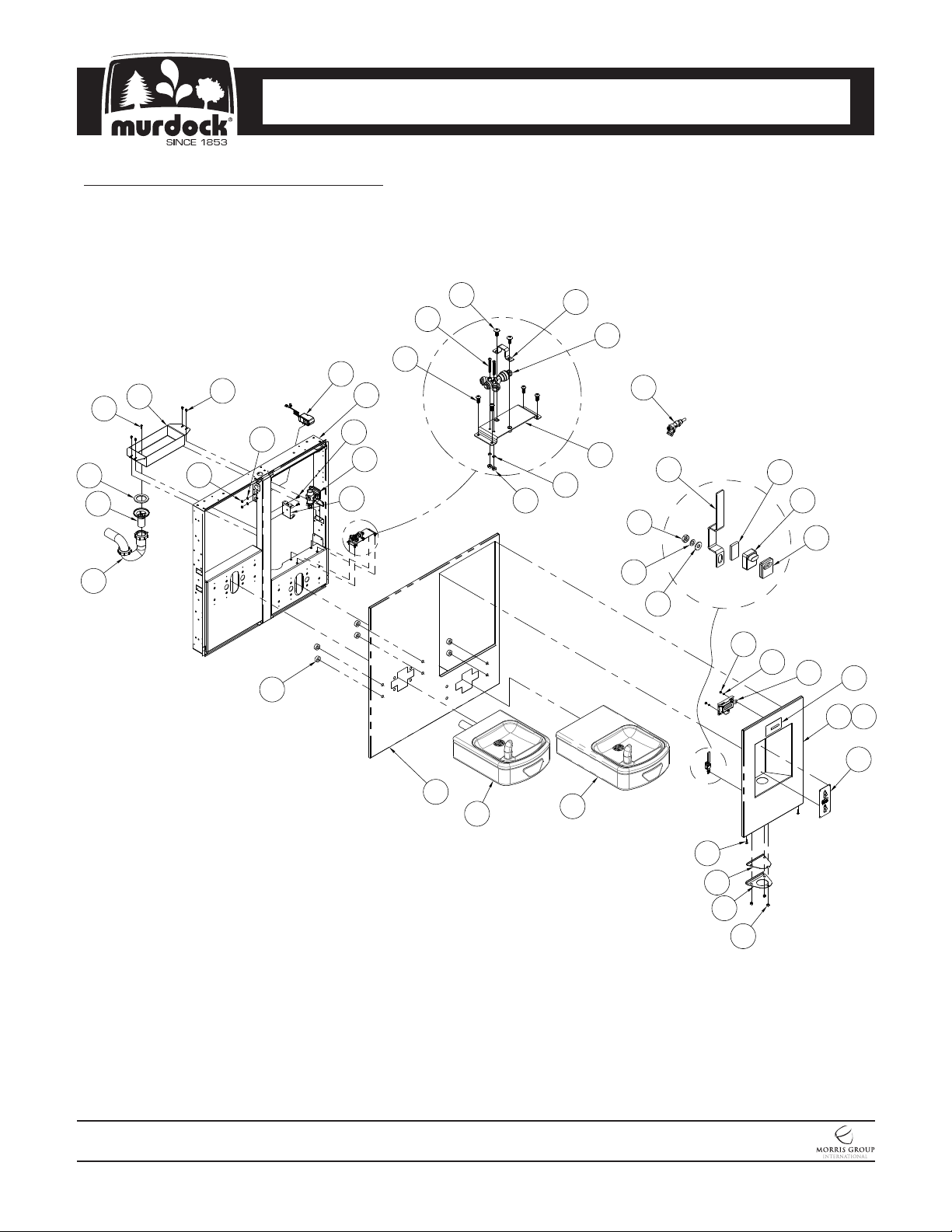

A152/FG-BF4 SERIES BREAKDOWN

DRINKING FOUNTAINS

16

15

9

2

1

3

4

5

6

8

7

22

11

13

14

10

12

21

20

17

19

18

37

42

36

38

35

36

39

34

33

40

32

31A

41

31B

23

24

25

26

27

28

29

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 21 of 22

A152-BF4

Member of

Revised: 02/02/18

30

CONTEMPORARY WATER COOLERS

42

7000-021-001

Y-Strainer Assembly, 1/4" NPT

*41

7013-034-000

Nameplate, Outdoor Bottle Filler (Green)

*40

7014-022-001

BCD, Bottle Filler Counter Bracket Assembly

*39

0331-003-000

#8 Helical Spring Lock Washer

38

0331-023-000

#8 Stainless Steel Flat Washer

37

6527-108-000

#8 Internal Tooth Lockwasher

36

0302-003-000

#8-32 Stainless steel Hex Nut

35

7013-014-199

Nano Sensor Bracket

34

7013-019-199

Foam Tape

33

2563-380-001

Nano Sensor Assembly

32

7013-009-001

Nano Sensor Spacer Assembly

*31B

7014-020-003

Weldment, Panel, BF4-BCD

31A

7014-019-003

Weldment, Panel, BF4, Less BCD

30

7013-032-000

Bottle Filler Graphic Plate, Murdock

29

0302-005-000

1/4-20 UNC Stainless Steel Hex Nut

28

7013-114-001

Screen Plate -BF4 Weldment

27

7013-103-199

Mesh Screen

26

0116-013-000

#10-32 x 3/4" Phillips Round Head Screw

25

Contact Factory

18" Drinking Fountain Assembly

24

Contact Factory

14" Drinking Fountain Assembly

23

7014-042-199

Trim Panel, Upper, RBL, w/ Rect. Fountains

7014-062-199

Trim Panel, Upper, Bl, w/ Rect. Fountains

22

7000-245-000

Back Panel Spacer

21

0302-011-000

#6-32 UNC Stainless Steel Hex Nut

20

0331-042-000

#6 Helical S/S Spring Lock Washer

19

7013-237-002

3-Way Divider Bracket Assembly, 1/4 x 1/4

18

7013-235-001

3-Way Divider Assembly, 1/4 x 1/4

17

7013-238-199

3-Way Divider Clamp, 1/4"

16

0116-010-000

#10-32 UNF x 1/2" S/S Phillips Truss Head Screw

15

0110-010-000

#6-32 X 1-1/4" Phillips Oval Head Screw

14

0112-021-000

#10-32 x 1/2" S/S Hex Button Head Screw

13

7014-036-199

Solenoid Bracket

12

7013-134-001

RH 9-12 VDC Solenoid OP Valve Assembly, RBL

7013-133-001

LH 9-12 VDC Solenoid OP Valve Assembly

11

6502-070-000

#10-32 x 1/2" Slotted Pan Head Screw

10

7014-041-001

Mount Frame Assembly L.H. Bottle Filler, W32-RBL

7014-110-001

Mount Frame Assembly R.H. Bottle Filler, W32

9

0710-730-001

9V Plug-In Transformer

8

0321-011-000

#10 S/S External Tooth Lockwasher

7

0302-004-000

#10-32 UNF Hex Nut Stainless Steel

6

0124-031-000

#8-3/8" Hex Washer Head Screw

5

4970-265-000

1-1/2" x 1-1/4" P-Trap, White Poly

4

7003-186-199

1-1/4" x 2-3/4" Plastic Drain Tube

3

7000-006-000

Flat Drain Adapter Gasket

2

7014-034-199

Drain Tray,-BF4

1

0110-004-000

#8-3/4" Phillips Pan Head Screw

ITEM

PART NUMBER

DESCRIPTION

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

A152/FG-BF4 SERIES BREAKDOWN

DRINKING FOUNTAINS

NOTE:
Items with (*) are
for units with -BCD
option only.

Repairs must be made with Murdock Manufacturing parts only. Please order through your local
representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com

7020-951-001
Page 22 of 22

A152-BF4

Member of

Revised: 02/02/18
