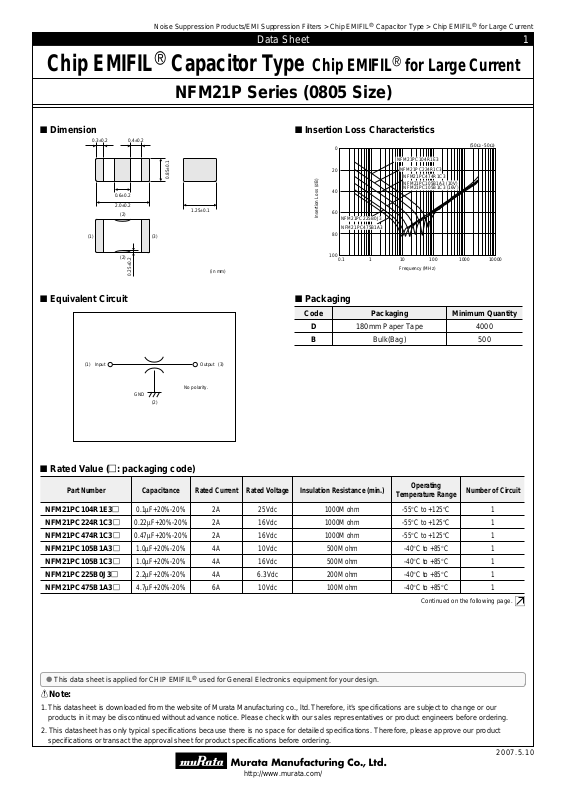

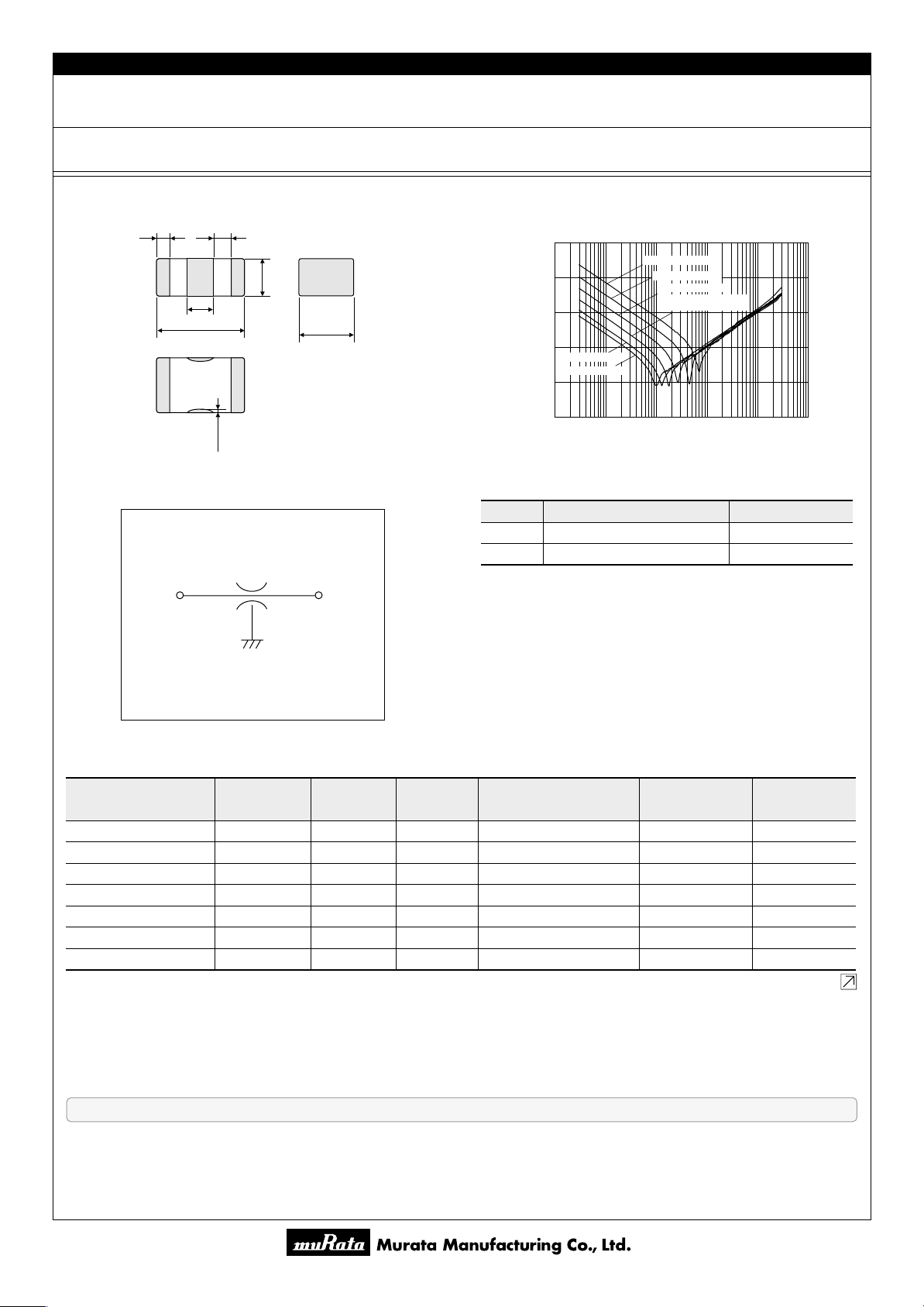

Page 1
Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Capacitor Type > Chip EMIFILr for Large Current
Data Sheet
1
Chip EMIFILr Capacitor Type Chip EMIFILr for Large Current
NFM21P Series (0805 Size)
■ Dimension ■ Insertion Loss Characteristics
0.3±0.2 0.4±0.2
0.6±0.2
2.0±0.2
(2)
(1) (3)
(2)
0.25±0.2
0.85±0.1
1.25±0.1
(in mm)
0
20
40
60
Insertion Loss (dB)
NFM21PC225B0J3
NFM21PC475B1A3
80
100
0.1 1 10
NFM21PC104R1E3
NFM21PC224R1C3
NFM21PC474R1C3
NFM21PC105B1A3 (10V)
NFM21PC105B1C3 (16V)
Frequency (MHz)
■ Equivalent Circuit ■ Packaging
Code Packaging Minimum Quantity
D 180mm Paper Tape 4000
B Bulk(Bag) 500
Input(1) Output (3)
GND
(2)
No polarity.
100
(50Ω - 50Ω)
1000 10000
■ Rated Value (p: packaging code)
Part Number Capacitance Rated Current Rated Voltage Insulation Resistance (min.)
NFM21PC104R1E3p
NFM21PC224R1C3p
NFM21PC474R1C3p
NFM21PC105B1A3p
NFM21PC105B1C3p
NFM21PC225B0J3p
NFM21PC475B1A3p
0.1µF+20%-20% 2A 25Vdc 1000M ohm -55°C to +125°C 1
0.22µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C 1
0.47µF+20%-20% 2A 16Vdc 1000M ohm -55°C to +125°C 1
1.0µF+20%-20% 4A 10Vdc 500M ohm -40°C to +85°C 1
1.0µF+20%-20% 4A 16Vdc 500M ohm -40°C to +85°C 1
2.2µF+20%-20% 4A 6.3Vdc 200M ohm -40°C to +85°C 1
4.7µF+20%-20% 6A 10Vdc 100M ohm -40°C to +85°C 1
o This data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
Operating
Temperature Range
Continued on the following page.
Number of Circuit
2007.5.10
http://www.murata.com/
Page 2
Noise Suppression Products/EMI Suppression Filters > Chip EMIFILr Capacitor Type > Chip EMIFILr for Large Current
Continued from the preceding page.
■ !Caution/Notice
!Caution (Rating)
Do not use products beyond the rated current and
rated voltage as this may create excessive heat
and deteriorate the insulation resistance.
Data Sheet
Notice
2
Solderability of Tin plating termination chip might be
deteriorated when low temperature soldering profile
where peak solder temperature is below the Tin melting
point is used. Please confirm the solderability of Tin
plating termination chip before use.
o This data sheet is applied for CHIP EMIFILr used for General Electronics equipment for your design.
!
Note:
1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our
products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.
2. This datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product
specifications or transact the approval sheet for product specifications before ordering.
http://www.murata.com/
2007.5.10
