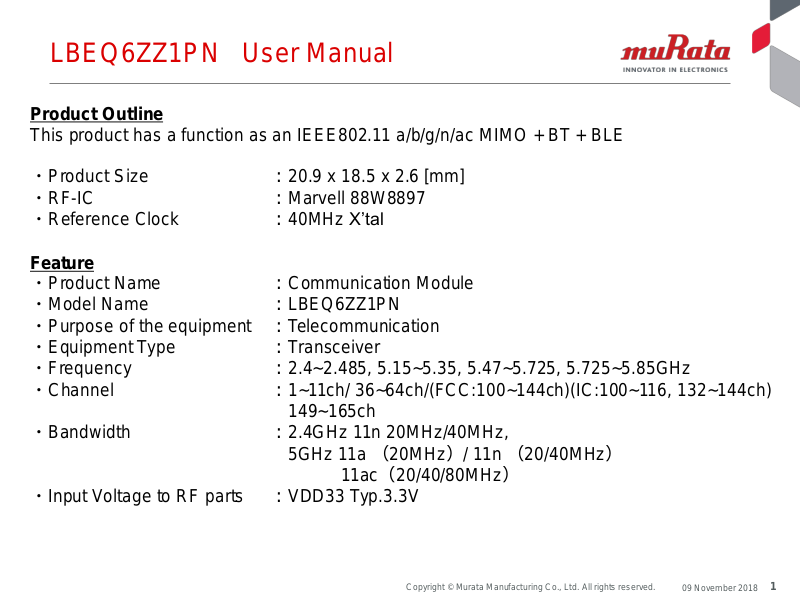

LBEQ6ZZ1PN User Manual
Product Outline
This product has a function as an IEEE802.11 a/b/g/n/ac MIMO + BT + BLE
・Product Size ：20.9 x 18.5 x 2.6 [mm]
・RF-IC ：Marvell 88W8897
・Reference Clock ：40MHz X’tal
Feature
・Product Name ：Communication Module
・Model Name ：LBEQ6ZZ1PN
・Purpose of the equipment ：Telecommunication
・Equipment Type ：Transceiver
・Frequency ：2.4~2.485, 5.15~5.35, 5.47~5.725, 5.725~5.85GHz
・Channel ：1~11ch/ 36~64ch/(FCC:100~144ch)(IC:100~116, 132~144ch)
149~165ch
・Bandwidth ：2.4GHz 11n 20MHz/40MHz,
5GHz 11a （20MHz）/ 11n （20/40MHz）
11ac（20/40/80MHz）
・Input Voltage to RF parts ：VDD33 Typ.3.3V
Page 2
2
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
09 November 2018
LBEQ6ZZ1PN User Manual
WLAN
STA
2.4GHz
11b/g/n
HT20
1ch
-11ch
5GHz
11a
HT20
W52/53/56/58
with ch144/142/138
There is Slave DFS test.
DFS(Device without Radar
detection capability)
No TPC
11n
HT20/40
11ac
VHT20/40/80
AP
2.4GHz
11b/g/n
HT20
1ch
-11ch
5GHz
11a
HT20
W52/58
No TPC
11n
HT20/40
11ac
VHT20/40/80
BT
BR /EDR / LE
Page 3
3
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
09 November 2018
LBEQ6ZZ1PN User Manual
FCC ID of this product is as follows.
FCC ID: VPYLB1PN
The OEM integrator has to be aware not to provide information to the
end user regarding how to install or remove this RF module in the
user’s manual of the end product which integrates this module. The
end user manual shall include all required regulatory
information/warming as shown in User manual.
Page 4
4
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
09 November 2018
Notice
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and
analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways
the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore,
the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device
automatically discontinue transmission in case of either absence of information to transmit or operational failure.
Frequency Tolerance: ± 20ppm
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter
module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further
transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-
product for any
additional compliance requirements required with this module installed
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation of the
device.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Page 5
5
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
09 November 2018
Notice
Contains Transmitter Module FCC ID:VPYLB1PN
Contains FCC ID: VPYLB1PN
or
●Please describe the following warning on the final product which contains this module.
※When the product is small, as for these words mentioned above, the posting to a manual is possible.
●Please describe the following warning to the manual.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired
operation of the device.
Page 6
6
Copyright © Murata Manufacturing Co., Ltd. All rights reserved.
09 November 2018
Notice
Note)
Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm.
Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.
●When installing it in a portable equipment.
It is necessary to take a SAR test with your set mounting this module.
Class II permissive change application is necessary using the SAR report.
Please contact Murata.
●When installing it in a mobile equipment. Please describe the following warning to the manual.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Compliance with FCC requirement 15.407(c)
Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and
analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways
the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, th
e
transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device
automatically discontinue transmission in case of either absence of information to transmit or operational failure.
Frequency Tolerance: ± 20ppm
