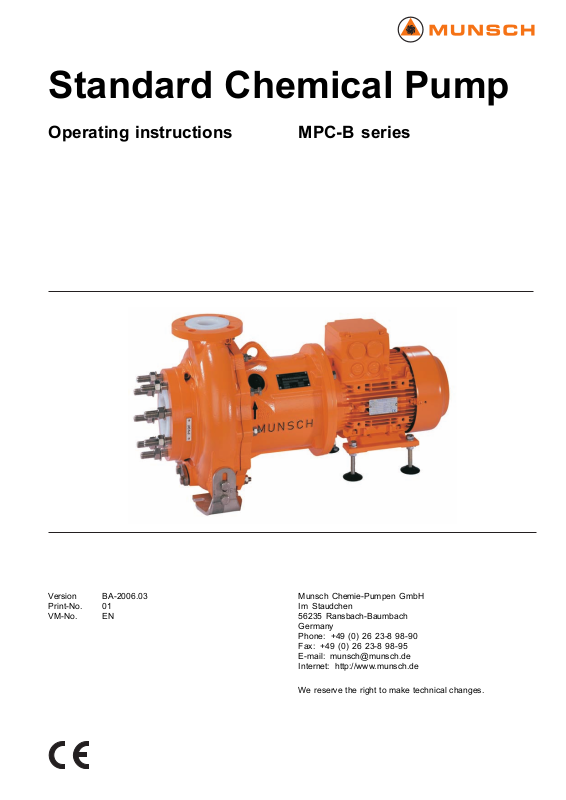

Standard Chemical Pump
Operating instructions MPC-B series
Version BA-2006.03
Print-No. 01
VM-No. EN
Munsch Chemie-Pumpen GmbH
Im Staudchen
56235 Ransbach-Baumbach
Germany
Phone: +49 (0) 26 23-8 98-90
Fax: +49 (0) 26 23-8 98-95
E-mail: munsch@munsch.de
Internet: http://www.munsch.de
We reserve the right to make technical changes.
Table of contents
Table of contents
1 About this document ............................... 4
1.1 Target groups ............................... .. 4
1.2 Other applicable documents ................ 4
1.3 Warnings and symbols ....................... 5
1.4 Technical terms ........ ....................... 5
2Security ............................... ............... 6
2.1 Intended use ........ .......................... 6
2.2 General safety instructions .................. 6
2.2.1 Product safety ................... ............. 6
2.2.2 Operator's obligations ........................ 7
2.2.3 Duties of the operating staff ................. 7
2.3 Special hazards .... .......................... 7
2.3.1 Potentially explosive areas ... ............... 7
2.3.2 Hazardous pumped liquids .................. 7
2.3.3 Magnetic field .................. ............... 7
3 Layout and function ...... .......................... 8
3.1 Labels ............ ............................. 8
3.1.1 Type plate ................... .................. 8
3.1.2 ATEX plate .................. .................. 8
3.1.3 Pump type code ................. ............. 8
3.2 Layout . ........................................ 9
4 Transport, storage and disposal .............. .... 10
4.1 Transport .................................... .. 10
4.1.1 Unpacking and inspection on delivery . . .... 10
4.1.2 Lifting ................ .......................... 10
4.2 Preservation ..................... ............. 11
4.3 Storage .. ..................................... 11
4.4 Disposal ..................... .................. 11
5 Setup and connection ................. ............. 12
5.1 Preparing the installation .................... 12
5.1.1 Checking the ambient conditions .... . . . . . .. 12
5.1.2 Preparing the installation site ............... 12
5.1.3 Preparing the foundation and setup
surface ................................. ....... 12
5.1.4 Preparing the pump ...................... .... 12
5.1.5 Installing the heat insulation . . . ..... . . . . . .... 12
5.2 Setup with foundation ........................ 13
5.2.1 Setting the pump group down on the
foundation .................................... 13
5.2.2 Fastening the pump group .................. 13
5.3 Setup without foundation .. .................. 14
5.4 Planning the pipes ........................... 14
5.4.1 Avoid impurities in t
5.4.2 Laying out support
connections ................................... 14
5.4.3 Specifying nomi
5.4.4 Determining pi
5.4.5 Optimising cr
changes ....................................... 15
he pipes .. ...............
sandflange
nal diameters ........... ....
pe lengths ....................
oss-section and direction
14
14
15
5.4.6 Providing safety and monitoring devices
(recommended) ................. ............. 15
5.5 Connecting the pipes ......... ............... 15
5.5.1 Installing auxiliary pipes ..................... 15
5.5.2 Installing the suction pipe .................... 16
5.5.3 Installing the pressure pipe .................. 16
5.5.4 Checking that the pipe connections are
stress-free ....................... ............. 16
5.6 Connecting the electrical system . . . . . ... . . . 16
5.6.1 Connecting the motor ........................ 16
5.6.2 Checking the direction of rotation . . . . ..... . . 16
6Operation ............................. ............... 17
6.1 Preparations for the initial start-up ..... . . . . . 17
6.1.1 Identifying the pump version ................ 17
6.1.2 Checking downtimes ......................... 17
6.1.3 Preparing auxiliary operating systems ...... 17
6.1.4 Filling and bleeding .......................... 17
6.1.5 Checking the direction of rotation . . . . ..... . . 17
6.2 Putting the pump into service ............... 18
6.2.1 Switching on the pump ...................... 18
6.2.2 Switching off the pump ....................... 19
6.3 Shut-down ....... ............................. 19
6.4 Restoring the pump to service .............. 20
6.5 Operating the stand-by pump ............. .. 20
7 Maintenance ....................... .................. 21
7.1 Inspections . .................................. 21
7.2 Maintenance .................................. 22
7.3 Dismounting ..... ............................. 23
7.3.1 Returning the pump to the manufac-
turer ........... ................................ 23
7.3.2 Preparing the dismounting .................. 24
7.3.3 Undoing connections (if available) . . ..... . . . 2 4
7.3.4 Pulling off the volute casing ................. 24
7.3.5 Dismounting the impeller, plain bearing
bracket and pump rotor ...................... 24
7.3.6 Dismounting the drive rotor .................. 26
7.4 Installing ................. ..................... 26
7.4.1 Preparing the installation .......... .......... 26
7.4.2 Installing the drive rotor .... .................. 26
7.4.3 Installing the plain bearing bracket . . . ...... 27
7.4.4 Fitting the pump in the installation ... ....... 27
7.5 Ordering spare parts ....... .................. 27
8 Disturbance recovery ............ .................. 28
9 Appendix ................................... .......... 31
9.1 Sectional drawing ....... ..................... 31
9.1.1 Part numbers and designations . ... . . . . . . ... 31
9.1.2 Overview sectional drawing .......... ....... 32
9.1.3 Variants ................................... .... 33
9.2 Technical spe
9.2.1 Ambient con
9.2.2 Noise pres
9.2.3 Tighteni
cifications .................. ....
ditions ...........................
sure level .. .......................
ng torques . ..........................
33
33
33
34
2 MPC-B series BA-2006.03 EN – 01
Table of contents
9.2.4 Cleaning agents ........... ................... 34
9.2.5 Socket loads according to ISO 5199 . . . . . .. 34
9.3 Spare parts for two ye ars of continuous
operation according to DIN 24296 . . . . ..... . 35
List of figures
Fig. 1 Type plate (example) ........................ 8
Fig. 2 ATEX plate (example) ........................ 8
Fig. 3 Pump type code (example) .................. 8
Fig. 4 MPC-B layout ................. ................ 9
Fig. 5 Fastening the lifting gear to the pump
group ............... ........................... 10
Fig. 6 Fastening th e lifting gear to the pump . . . ... 10
Fig. 8 Setup without foundation . ................... 14
Fig. 9 Straight pipe lengths in front of and behind
the pump (recommended) ........... ........ 15
Fig. 10 Undoing the flushing connector ............. 24
Fig. 11 Pulling off the volute casing ................. 24
Fig. 12 Undoing the impeller screw . ................ 24
Fig. 15 Dismounting the drive rotor .......... ........ 26
Fig. 16 Installing the plain bearing bracket ...... . . . 27
Fig. 17 MPC-B – overview sectional drawing . . ..... 32
Fig. 18 MPC-B – housing foot ............ ........... 32
Fig. 19 Emptying (optional) ..................... ..... 33
Fig. 20 Fluid connection (optional) .................. 33
Fig. 21 Socket loads at the pump ...... ............. 34
List of tables
Tab. 1 Target groups and their duties . . . . ..... . . . . . 4
Tab. 2 Other applicable documents and their
purpose ...... ................................. 4
Tab. 3 Warnings and consequences of
non-observance ................... ........... 5
Tab. 4 Symbols and their meaning .............. ... 5
Tab. 5 Technical terms and their meaning .... . . . . . 5
Tab. 6 Measures after long storage ti mes/
downtimes ... ................................. 12
Tab. 7 Measures to be taken if operation is
interrupted ......... ........................... 19
Tab. 8 Measures to be taken, dependin g on the
pumped liquid behaviour .................... 19
Tab. 9 Measures for return .......... ................ 23
Tab. 10 Fault/number assignment ................... 28
Tab. 11 Troubleshooting table ........................ 30
Tab. 12 Designation of components according t o part
numbers ...................................... 31
Tab. 13 Ambient conditions ........................... 33
Tab. 14 Noise pressure level ............ ............. 33
Tab. 15 Steel/cast pairings ........................... 34
Tab. 16 Socket head cap screw 914.1 -steel/steel
pairing ......................................... 34
Tab. 17 Cleaning agents .............. ................ 34
Tab. 18 Socket loads .................................. 34
Tab. 19 Socket loads – torques ................. ..... 34
Tab. 20 Spare parts for two years of continuous
operation ...................................... 35
EN – 01 BA-2006.03 MPC-B series 3
About this document
1 About this document
This manual
• Ispartofthepump
• Applies to all of the afore-mentioned series
• Describes safe and appropriate operation during all operating phases
1.1 Target g roups
Target group Duty
Operating c ompany
Qualified staff, fitter Read, observe and follow these instructions and the other
Tab. 1 Target groups and their dutie s
Keep this manual available where the installation is used, including
for later use.
Make sure the staff read and follow these instructions and the
other applicable documents, especially all safety instructions and
warnings.
Observe any additional rules and regulations referring to the
installation.
applicable documents, especially all safety instructions and
warnings.
1.2 Other applicab le documents
Document Purpose
ATEX additional instruc tions
Order data sheet Technical specificati ons, operating conditions
Setup drawing Setup dimensions, connection dimensions e tc.
Technical description
Sectional drawing Sectional drawing, part numbers, component designations
Supplier documentation Technical documentation for supplier parts
Spare parts list Ordering spare parts
Document of compliance Returning the pump to the manufacturer
Declaration of conformity Legal confirmation that the pump meets all requirements of the
Tab. 2 Other applicable documents and their purpose
Operation in potentially explosive areas
Technical specifications, operating limits
applicable EG guideline(s)
4 MPC-B series BA-2006.03 EN – 01
1.3 Warnings and symbols
About this document
Warning Risk level
Immediate acute risk Fatal or serious injury
DANGER
Potential acute risk Fatal or serious injury
WARNING
Potentially hazardous situation Minor bodily harm
CAUTION
Potentially hazardous situation Material damage
CAUTION
Tab. 3 Warnings and consequences of non-observance
Symbol
1. , 2. , ... Multiple step instructions
9
→
Meaning
Safety warning sign
Observe all information indicated by the safety warning si gn to
avoid injury or death.
Instruction
Requirement
Cross reference
Information, note
Consequences of non-observance
Tab. 4 Symbols and their meaning
1.4 Technical terms
Term Me aning
Flushing me dium
Auxiliary operating systems
Tab. 5 Technical terms and their meaning
Medium for flushing the pump plain bearing surfaces
Systems for operating the pump
EN – 01 BA-2006.03 MPC-B series 5
Security
2Security
The manufacturer does not accept any liability for damage resulting from non-observance of the entire documentation.
2.1 Intended use
• Only use the pump to pump the agreed pumped liquid
(→ order data sheet).
• Adhere to the operating limits and size-dependent minimum flow rate.
• Avoid dry running:
Initial damage, such as destructi on of plain bearings and
plastic parts, within a few seconds.
– Make sure the pump is never put into operation or oper-
ated without pumped liquid.
• Avoid cavitation:
– Fully open the suction-side fitting; do not use the fitting
to adjust the flow rate.
– Do not open the pressure-side fitting beyo nd the
agreed operating point.
• Avoid overheating:
– Do not operate the pump while the pressure-side fitting
is closed.
– Observe the minimum flow rate (→ order data sheet).
• To avoid damage to the motor:
– Do not open the pressure-side fitting beyo nd the
agreed operating point.
– Observe the number of permitted motor start-ups per
hour (→ manufacturer's specifications).
• Consult the manufacturer about any other use of the pump.
2.2 General safety instructions
Take note of the following instructions before carrying out
any work.
2.2.1 Product safety
The p ump has been constructed according to the latest technology and established technical safety rules. Nevertheless, a
potential risk to life and limb of the operator or to other persons
or damage to the pump and other property cannot be entirely
excluded.
• Only operate the pump if it is in perfect technical condition;
only use it as intended, staying aware of safety and risks,
and adhering to the instructions in this manual.
• Keep this manual and all other appl icable documents complete, legible and accessible to staff at all times.
• Refrain from any procedures that would endanger staff or
third parties.
• If a safety-relevant fault occurs, shut down the pump immediately and have the fault corrected by appropriate staff.
• In addition to the entire documentation for th e product,
always comply with statutory or other safety and accidentprevention regulations as well as with the applicable standards and guidelines in the country where the pump is
operated.
Avoiding common types of misuse (examples)
• Observe the ope rating limits of the pump regarding operating temperature, pressure, flow rate and speed (→ order
data sheet).
• The power uptake of the pump increases with increasing
density of the pumped liquid. To avoid any overload for the
pump and motor, do not exceed the permissible density
(→ order data sheet).
A lower density is allowed. Adapt the auxiliary systems
accordingly.
• Adhere to the limits for solids con tent and grit size when
pumping solids-carrying fluids (→ order data sheet, technical description).
• When using auxiliary operating systems:
– Ensure the flushing medium is compatible with the
product medium.
– Ensure there is a permanent supply of the respective
flushing medium.
6 MPC-B series BA-2006.03 EN – 01
Security
2.2.2 Operator's obligations
Safety-conscious operation
• Only operate the pump if it is in perfect technical condition;
only use it as intended, staying aware of safety and risks,
and adhering to the instructions in this manual.
• Ensure the following are observed and monitored:
– Adherence to intended use,
– Statutory or other safety and accident-prevention reg-
ulations
– Safety regulations governing the handling of hazard-
ous s ubstances
– Applicable standards and guidelines in the country
where the pump is operated
• Make protective equipment av ailable.
Staff qualifications
• Make sure all staff assigned with wo rk on the pump have
read and understood this manual and all other applicable
documents, especially the safety, maintenance and repair
instructions, before beginning with work.
• Organise responsibilities, who is in charge of any specific
duty and how staff i s supervised.
• Makesureallworkiscarriedout by specialist technicians
only:
– Fitting, repair and maintenance work
– Work on the electrical system
• Make sure trainee staff only work o n the pump under supervision of specialist technicians.
• Persons with implanted heart pacemakers
– Should stay away from the pump with magnetic cou-
pling and parts of the m agnetic coupling
– Should no t be allowed to perform any work with or on
magnetic parts
Safety devices
• Provide the following safety devices and verify their integrity:
– For hot, cold and moving parts: contact protection of
the pump provided by the customer
– If electrostatic charging is possible: fit appropriate
earthing.
Warranty
• Obtain the manufacturer's approval prior to carrying out
any modifications, repairs or alterations during the warranty
period.
• Only use original parts or parts that have been approved
by the manufacturer.
2.2.3 Duties of the operating staff
• Observe and keep legible all directions on the pump, e.g.
the arrow indicating the direction of rotation and the indication of fluid connections.
• Do not remove the protection against accidental contact for
hot, cold and moving parts during operation.
• Use protective equipment if necessary.
• Carry out work on the pump only while the pump is not
running.
• Isolate the motor from its supply voltage and keep it locked
in that state while carrying out any fitting or maintenance
work.
• Reinstall the safety devices on the pump according to regulations after comp letin g any work on the pump.
• Persons with implanted heart pacemaker:
– Should keep a minimum dista nce of 1 m away from the
pump with magnetic coupling or parts of the magnetic
coupling.
– Should no t be allowed to perform any work with or on
magnetic parts
2.3 Special hazards
2.3.1 Potentially explosive areas
•(→ ATEX additional instructions).
2.3.2 Hazardous pumped liquids
• Observe the safety regulations for handling hazardous substances when working with hazardous pumped liquids (e.g.
hot, flammable, explosive, poisonous or potentially harmful).
• Use protective equipment when carrying out any work on
the pump.
2.3.3 Magnetic field
The magnetic field of the magnetic coupling can destroy magnetically sensitive products, including:
• Heart pacemakers
• ID cards with magnetic strips
• Credit cards and cheque cards
• Electrical, electronic or fine mechanical equipment
(e. g. mechanical and digital watches, pocket calculators, hard drives)
EN – 01 BA-2006.03 MPC-B series 7
Layout and function
3 Layout and function
3.1 Labels
3.1.1 Type plate
MUNSCH Chemie-Pumpen GmbH
Typ
type
W.-Nr.
serial-no.
10
Lfrd.
impeller
9
8
7
Fig. 1 Type plate (example)
1Pumptype
2 Serial number
3 Year of construction
4 Pump head
5Density
6Torque
7 Speed
8 Power consumption
9Flowrate
10 Impeller diameter
D-56235 Ransbach-Baumbach
3
Q
P
n
m /h
kW
min
-1
Baujahr
year
3.1.3 Pump type code
MPC
50 - -32 200
1
1
2
3
H
M
m
kg/dm
Nm
4
3
5
6
2
3
4
Fig. 3 Pump type code (example)
1Series
2 Suction branch DN [mm]
3 Pressure joint DN [mm]
4 Nominal impeller diameter [mm]
3.1.2 ATEX plate
1
Fig. 2 ATEX plate (example)
1 Explosion protection mark
2 Reference to ATEX additional instructions
2
8 MPC-B series BA-2006.03 EN – 01
3.2 Layout
Layout and function
1
32 4
Fig. 4 MPC-B layout
1 Impeller
2 Housing armour
3 Volute casing
4 Motor
5 Drive shaft
6 Drive rotor
568 7
7 Pump rotor
8 Plain bearing bracket
EN – 01 BA-2006.03 MPC-B series 9
Transport, storage and disposal
4 Transport, storage and disposal
4.1 Transport
Weight specifications (→ individual order documentation)
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
4.1.1 Unpacking and inspection on delivery
1. Unpack the pump/group on de livery and check it for transport damage.
2. Report any transport damage to the manufacturer without
delay.
3. Dispose of packaging material according to local regulations.
4.1.2 Lifting
DANGER
Death or crushed limbs caused by falling loads!
Use lifting gear appropriate for the total weight to be lifted.
Fasten the lifting gear as shown in the illustrations below.
Do not stand under suspended loads.
Fig. 5 Fastening the lifting gear to the pump group
Fig. 6 Fastening the lifting gear to the pump
Lift the pump/group properly.
10 MPC-B series BA-2006.03 EN – 01
Transport, storage and disposal
4.2 Preservation
No preservati on required.
Do not preserve the pump.
4.3 Storage
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
CAUTION
Material damage due to inappropriate storage!
Store the pump properly.
1. Seal all openings with blank flanges, blind plugs or plastic
covers.
2. Make certain that the storage room meets the following
conditions:
–Dry
– Frost-free
– Vibration-free
3. Turn the motor shaft once a month.
4. Make sure the shaft and the bearing change their rotational
position in the process.
4.4 Disposal
Plastic parts can be conta minated by poisonous or radioactive pumped liquids to such an extent that cleaning is
insufficient.
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the p ump .
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
WARNING
Risk of poisoning and environmental damage caused by
pumped liquid or oil!
Use protective equipment when carrying out any work on
the pump.
Prior to the disposal of the pump:
– Collect any pumped liquid and oil or grease running
out and dispose of them separately according to local
regulations.
– Neutralise residues of pumped liquid in the pump.
Dismount plastic parts and dispose of them acco rding to
local regulations.
Dispose of the pump according to local regulations.
EN – 01 BA-2006.03 MPC-B series 11
Setup and connectio n
5 Setup and connection
For pumps in potentially explosive areas (→ ATEX additional instructions)
CAUTION
Material damage caused by dirt!
Do not remove the transport protection until immediately
before installing the pump.
Do not remove covers and transport and sealing covers
until just before connecting the pipes to the pump.
5.1 Preparing the installation
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
5.1.2 Preparing the installation site
Make sure the installation site meets the following conditions:
– Pump freely accessible from all sides
–Sufficient space for installation/removal of the pipes
and for maintena nce and repair work, especially for the
removal and installation of the pump and motor
– Pump not exposed to external vibrations (damage to
bearings)
– Frost protection
5.1.3 Preparing the foundation and setup surface
Setup o ptions:
– With concrete foundation
– With steel foundation frame
– Without foundation
Make sure the foundation and setup surface meet the following conditions:
–Level
– Clean (no oil, dust or other impurities)
– Capable of bearing the weight of the pump group and
all operating forces
– Stability of the pump group ensured
– With concrete foundation: standard concrete of
strength class B 25
5.1.4 Preparing the pump
Take the following measures after long storage times /
downtimes.
5.1.1 Checking the ambient conditions
1. Make sure the required ambient conditions are met
(→ 9.2.1 Ambient conditions, Page 33).
2. For installation sites > 1000 m above sea level, consult the
manufacturer.
Storage time/
Downtime
> 2 years Replace the motor
Tab. 6 Measures after long storage times/downtimes
5.1.5 Installing the heat insulation
Only necessary to maintain the temperature of the pumped
liquid
Measure
bearing if necessary
(→ operating
instructions of the motor
manufacturer).
Replace the elastomer
seals (O-rings, shaft seal
rings).
CAUTION
Damage caused by overheating!
Install the heat insulation only on the volute casing.
Install the heat insulation properly.
12 MPC-B series BA-2006.03 EN – 01
Setup and connection
5.2 Setup with foundation
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
CAUTION
Material damage due to base plate distortion!
Place the base plate on t he foundation and fasten it as
described in the fo llowing.
5.2.1 Setting the pump group down on the foundation
✔ Implements, tools and materials:
– Foundation bolts (→ setup drawing)
– Steel washers
– Mortar grout, non-shrinking
– Spirit level
1. Lift the pump group (→ 4.1 Transport, Page 10).
2. Hang the foundation bolts in th e fixation holes of the base
plate from below.
Observe the specifications of the manufacturer when using
chemical anchors.
3. Set the pump group down on the foundation, sinking the
foundation bolts into the prepared anchoring holes.
32 1 2
Fig. 7 Setup with foundation
4. Use steel washers to align the pump group to the height
and system dimensions as described in the following:
– Position one steel washer (2) to the left and right of
each foundation bolt (1).
– If the distance between the anchoring holes is greater
than 750 mm, position additional steel washer (3) at
the centre of each side of the base plate.
5. Make sure the base plate and steel washers are in full surface contact.
6. Use a machine spirit level to check the permissible height
deviation (1 mm/m) lengthwise and crosswise.
7. Repeat the procedure until the base plate is aligned correctly.
5.2.2 Fastening the pump group
The damping behaviour is improved by filling out the base
plate with mortar grout.
1. Fill the anchoring holes with mortar grout.
2. Once the mortar grout has set, screw the base plate
tight at th r ee po ints with th e specified tightening torque
(→ 9.2.3 Tightening torques, Page 34).
3. Before tightening the remaining screws, compensate any
unevenness of the fixation surface with metal shims next
to each screw.
4. Make sure the base plate is not distorted.
EN – 01 BA-2006.03 MPC-B series 13
Setup and connectio n
5.3 Setup without foundation
✔ Implements, tools and materials:
–Wrench
– Spirit level
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
1
1
1
1
2
3
4
5.4 Planning the pipes
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no m agnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
5.4.1 Avoid impurities in the pipes
CAUTION
Damage due to impurities in the pump!
Ensure no impurities enter the pump.
1. Clean all pipe sections and fittings prio r to assembly.
2. Ensure no flange gaskets are protruding inwards.
3. Remove any blank flanges, plugs, protective films and/or
protective paint from the flanges.
5.4.2 Laying out suppo rts and flange connections
CAUTION
Material damage due to excessive forces and torques of
the pipes on the pump!
Do not exceed the permissible limits (→ 9.2.5 Socket loads
according to ISO 5199, Page 34).
1. Calculate the pipe forces and take into account all operat-
Fig. 8 Setup without f oundation
1. Lift the pump group (→ 4.1.2 Lifting, Page 10).
2. Mount the four levelling feet (1) as illustrated.
3. Set down the pump group on the setup surface.
4. Adjust the he ight of the base plate with the levelling feet (1)
as illu strated above:
– Use the wrench to hold the hexagon head on the lev-
elling foot (4).
– Undo the hexagon nut (2).
– Adjust the hei ght by turning the hexagon nut (3).
– Tighten the hexagon nut (2) (→ 9.2.3 Tightening
torques, Page 34).
– Use a machine spirit level to check the permissible
height deviation (1 mm/m) lengthwise and crosswise.
– Repeat the procedure until the base plate is aligned
correctly.
14 MPC-B series BA-2006.03 EN – 01
ing c onditions:
–Cold/warm
–Empty/full
– Unpressurised/pressurised
– Position shifts of flanges
2. Ensure the pipe can slide freely in the supports and does
not seize up due to corrosion.
5.4.3 Specifying nominal diameters
Keep the flow resistance in the pipes as low as possible.
1. Specify suction pipe nomin al width ≥ suction flange nominal
width.
2. Specify pressure pipe nominal width ≥ pressure joint nominal width.
Setup and connection
5.4.4 Determining pipe lengths
D
C
A
Fig. 9 Straight pipe lengths in front of and behind
the pump (recommended)
A>5xDNs
BDNs
CDNd
D>5xDNd
Observe the recommended minim um values when installing the pump.
B
5.4.6 Providing safety and monitoring devices
(recommended)
Avoid impurities
1. Install a filter in the suction pipe.
2. To monitor the level of dirt, install a differential manometer
with a contact manometer.
Avoiding reverse operation
1. Install a non return valve between the pressure joint and
stop valve to ensure the medium do es not flow back after
thepumpisswitchedoff.
2. To allow bleeding, provide a bleeding connection between
the pressure joint and non return valve.
Make provisions for isolating and shutting off the pipes
For maintenance and repair work
Fit stop valves in the suction pipe and pressure pipe.
Enable measurements of the operating conditions
1. For pressure measurements, fit manometers in the suction
pipe and pressure pipe.
2. Provide for motor torque measurements.
3. Provide for pump temperature measurements.
Suction side: shorter pipes are allowed but can restrict the
hydraulic performance data.
Pressure side: shorter pipes are allowed but can result in
increased operating noises.
5.4.5 Optimising cross-section and direction changes
1. Avoid bends with radii smaller than 1.5 times the pipe diameter.
2. Avoid abrupt changes of cross-sections in the pip es.
5.5 Connecting the pipes
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the p ump .
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
5.5.1 Installing auxiliary pipes
Follow the manufacturers' specifications if any auxiliary
operating systems are available.
1. Install auxiliary pipes on auxiliary unions, ensuring stressfree and sealed connections (→ setup drawing).
2. To avoid air enclosures, install the pipes so that they
ascend to the pump.
EN – 01 BA-2006.03 MPC-B series 15
Setup and connectio n
5.5.2 Installing the suction pipe
1. Remove the transport and sealing covers from the pump.
2. To avoid air enclosures, install the pipes so that they
ascend to the pump.
3. Ensure no gaskets protrude inwards.
4. For suction operation: install a foot valve in the suction pipe
to prevent the pump and suction p ipe from running empty
during downtimes.
5.5.3 Installing the pressure pipe
1. Remove the transport and sealing covers from the pump.
2. Fit the pressure pipe .
3. Ensure no gaskets protrude inwards.
5.5.4 Checking that the pipe connections are stress-free
✔ Pipe installed and cooled down
1. Separate the connecting flange of the pipes from the pump.
2. Check whether the pipes are freely moveable in all directions within the range of expected expansions:
– Nominal width < 150 mm: by hand
– Nominal width > 150 mm: with a small lever
3. Make sure the flange surfaces are parallel.
4. Reconnect the connection flange of the pipes to the pump.
5.6 Connecting the electrical system
DANGER
Risk of fatal injury due to electric shock!
Have all electrical work carried out by qualified electricians
only.
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no m agnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
DANGER
Risk of fatal injury due to rotating parts!
When carrying out any fitting or maintenance work, isolate
the motor from its supply voltage and keep it locked in that
state.
5.6.1 Connecting the motor
Observe the specifications of the motor manufacturer.
1. Connect the motor according to the circuit diagram.
2. Ensure the electrical power does not pose any risks.
3. Install an EMERGENCY STOP switch.
5.6.2 Checking the direction of rotation
Only possible when putting the pump into service
(→ 6.2 Putting the pump into service, Page 18).
16 MPC-B series BA-2006.03 EN – 01
6 Operation
Operation
For pumps in potentially explosive areas (→ ATEX additional instructions)
6.1 Preparations for the initial start-up
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
6.1.1 Identifying the pump version
Identify the pump version (→ order data sheet).
Pump versions are for example the type of shaft seal or
auxiliary operating systems.
6.1.2 Checking downtimes
After a downtime of more than one year:
–(→ Table 6 Measures after long storage times/down-
times, Page 12).
6.1.4 Filling and bleeding
✔ Auxiliary operating systems ready for operation, if available
WARNING
Risk of injury and poisoning due to hazardous pumped
liquids!
Safely collect any leaking pumped liquid and dispose of it
in accordance with environm ental rules and requirements.
CAUTION
Damage caused by dry running!
Make sure the pump is filled properly.
1. Fillthepumpandsuctionpipewithpumpedliquid.
2. Open the suction-side fitting.
3. Open the pressure-side fitting.
4. If any auxiliary operating systems are available, open them
and che ck the flow rate.
5. Verify that all pipe connections are tight.
6.1.5 Checking the direction of rotation
DANGER
Risk of fatal injury due to rotating parts!
Use protective equipment when carrying out any work on
the pump.
Keep a sufficient d istance to rotating parts.
6.1.3 Preparing auxiliary operating systems
The manufacturer does not accept any liability for any d amage resulting from the installation or use of a t hird-party or
unapproved auxiliary o perating system.
Prepare the auxiliary operating systems, if available.
CAUTION
Material damage due to incorrect direction of rotation!
Make sure the motor's direction of rotation corresponds to
thearrowindicatingthedirectionofrotationofthepump.
1. Switch the motor on and immediately off again.
2. Check whether the motor's direction of rotation corresponds to the arrow indicating the direction of rotation of
the pump.
DANGER
Risk of fatal injury due to electric shock!
Have all electrical work carried out by qualified electricians only.
3. If the direction of rotation is different, replace two phases.
4. Reconnect the pump to the electrical power supply
EN – 01 BA-2006.03 MPC-B series 17
Operation
6.2 Putting the pump into service
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
6.2.1 Switching on the pump
✔ Pump installed properly and connected
✔ All connections stress-free and leak-free
✔ Auxiliary operating systems ready for operation, if available
✔ All safety devices fitted and tested for integrity
✔ The pump prepared, filled and bled properly
DANGER
Risk of injury due to running pump!
Do not touch the running pump.
Do not carry out any work on the running pump.
Allow the pump to cool down completely before starting any
work.
DANGER
Risk of injury and poisoning due to pumped liquid spraying out!
Use p rotective equipment when carrying out any work on
the pump.
CAUTION
Damage cause d by dry running!
Make sure the pump is filled properly.
CAUTION
Risk of cavitation when throttling the su ction flow rate!
Fully open the suction-side fitting; do not use the fitting to
adjust the flow rate.
Do not open the pressure-side fitting b eyond the operating
point.
CAUTION
Damage caused by overheating!
Do not operate the pump while the pressure-side fitting is
closed.
Observe the minimum flow rate (→ order data sheet).
1. Open the suction-side fitting.
2. Close the pressure-side fitting.
3. Switch on the motor and check that it is running smoothly.
4. As soon as the motor is running at nominal speed, open
the pressure-side fitting slowly until the operating point is
reached.
5. After the initial stress caused by pressure and operating
temperature, check whether the pump is not leaking.
18 MPC-B series BA-2006.03 EN – 01
Operation
6.2.2 Switching off the pump
✔ Pressure-side fitting closed (recommended)
WARNING
Risk of injury due to hot pump components!
Use protective equipment when carrying out any work on
the pump.
1. Switch off the motor.
2. Check all connecting screws and tighten them if necessary.
6.3 Shut-down
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
WARNING
Risk of injury and poisoning due to hazardous pumped
liquids!
Safely collect any leaking pumped liquid and dispose of it
in accordance with environm ental rules and requirements.
Take the following measures if operation is interrupted:
Pump is Measure
shut down for
a prolonged
period
emptied
dismounted Isolate the motor and secure it
put into storage Follow the storage instructions
Tab. 7 Measures to be taken if operation is interrupted
Behaviour of
pumped liquid
Solids
sedimenting
Solidifying/
freezing,
non-corrosive
Solidifying/
freezing,
corrosive
Remains liquid,
non-corrosive
Remains liquid,
corrosive
Tab. 8 Measures to be taken, depending on the
pumped liquid behaviour
Take measures according to
the pumped liquid (→ Ta ble
8 Measures to be taken,
depending on the pumped liquid
behaviour, Page 19).
Close the suction-side and
pressure-side fittings.
against being switched on by
unauthorised persons.
(→ 4.3 Storage, Page 11).
Duration of the interruption to
service (depending on process)
Short
Flush the
pump.
Heat up or
empty the
pump and
containers.
Heat up or
empty the
pump and
containers.
––
–
Long
Flush the
pump.
Empty the
pump and
containers.
Empty the
pump and
containers.
Preserve the
pump and
containers.
Empty the
pump and
containers.
Preserve the
pump and
containers.
EN – 01 BA-2006.03 MPC-B series 19
Operation
6.4 Restoring the pump to service
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
1. Intheeventofadowntimeofmorethanayear:
–(→ Table 6 Measures after long storage times/down-
times, Page 12).
2. Carry out all steps as for the initial start-up (→ 6.2 Putting
the pump into service, Page 18).
6.5 Operating the stand-by pump
✔ Stand-by pump filled and bled
Operate the stand-by pump at least once a week.
1. Open the suction-side fitting completely.
2. Open the pressure-side fittingtosuchanextentthatthe
stand-by pump reaches its ope rating temperature and the
heat is evenly distributed (→ 6.2.1 Switchin g on the pump,
Page 18).
20 MPC-B series BA-2006.03 EN – 01
7 Maintenance
Maintenance
For pumps in potentially explosive areas (→ ATEX additional instructions)
Trained service technicians are available for fitting and
repair work. Present a pumped material certificate (DIN
safety data sheet or document of compliance) upon
request.
7.1 Inspections
The inspection intervals depend on the load placed on the
pump.
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
2. For trouble-free operation, ensure the following :
– No dry running
–Noleaks
– No cavitation
– Suction-side gate valves open
– Unobstructed and clean filters
–Sufficient supply pressure
– No unusual running noises and vibrations
– No impermissible leaks at the shaft seal
– Proper functioning of the auxiliary operating systems
DANGER
Risk of injury due to running pump!
Do not touch the running pump.
Do not carry out any work on the running pump.
WARNING
Risk of injury and poisoning due to hazardous pumped
liquids!
Use protective equipment when carrying out any work on
the pump.
1. Check at appropriate intervals:
– Compliance with minimum flow rate
– Roller bearing temperature < 70 °C
– Normal operating conditions unchanged
EN – 01 BA-2006.03 MPC-B series 21
Maintenance
7.2 Maintenance
Service life of the antifriction bearings for operation within
the permissible operating range: > 2 years
Intermittent operation, high temperatures, lo w viscosity and
aggressive ambient and process conditions reduce the service life of antifriction bearings (→ operating instructions of
the motor manufacturer).
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
DANGER
Risk of injury due to running pump!
Do not touch the running pump.
Do not carry out any work on the running pump.
When carrying out any fitting or maintenance work, isolate
the motor from its supply voltage and keep it locked in that
state.
DANGER
Risk of fatal injury due to electric shock!
Have all electrical work carried out by qualified electricians
only.
WARNING
Risk of injury and poisoning due to hazardous or hot
pumped liquids!
Use protective equipment when carrying out any work on
the pump.
Allow the pump to cool down completely before performing
any work.
Make sure the pump is unpressurised.
Empty the pump, sa fely collect the pumped liquid and
dispose of it in accordance with environmental rule s and
requirements.
For maintenance work (→ operating in structions of the
motor manufacturer)
22 MPC-B series BA-2006.03 EN – 01
Maintenance
7.3 Dismounting
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one with a heart pacem aker performs any
work on the p ump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Make sure no parts of the magnetic coupling are able
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
DANGER
Risk of injury due to running pump!
Do not touch the running pump.
Do not carry out any work on the running pump.
When carrying out any fitting or maintenance work, isolate
the motor from its supply voltage and keep it locked in that
state.
DANGER
Risk of fatal injury due to electric shock!
Have all electrical work carried out by qualified electricians
only.
WARNING
Risk of injury and poisoning due to hazardous or hot
pumped liquids!
Use protective equipment when carrying out any work on
the pump.
Allow the pump to cool down completely before performing
any work.
Make sure the pump is unpressurised.
Empty the pump, safely collect the pumped liquid and
dispose of it in accordance with en vironmental rules and
requirements.
7.3.1 Returning the pump to the manufacturer
✔ Pump unpressurised
✔ Pump completely empty
✔ Electrical connections disconnected and motor secured
against being switched on again
✔ Pump cooled down
✔ Auxiliary operating systems shut down, unpressurised and
emptied
✔ Manometer lines, manometer and fixtures removed
1. Enclose a truthfully completed declaration of compliance
when returning pumps or components to the m anufacturer.
Order a document of comp liance from the manufacturer if
necessary.
2. Take necessary me asures, depending on the required
repair work as specified in the table below, when returning
thepumptothemanufacturer.
Repairs
At the customer's
premises
At the
manufacturer's
premises
At the
manufacturer's
premises for
warranty repairs
Tab. 9 Measures for return
Measure for return
Return the defective
component to the
manufacturer.
Flush the pump and
decontaminate it if has
been used for hazardous
pumped liquids.
Return the complete pump
group (not disassembled) to
the manufacturer.
Only with hazardous
pumped liquids: flush and
decontaminate the pump.
Return the complete pump
group (not disassembled) to
the manufacturer.
EN – 01 BA-2006.03 MPC-B series 23
Maintenance
7.3.2 Preparing the dismounting
✔ Pump unpressurised
✔ Pump completely empty, flushed and decontaminated
✔ Electrical connections disconnected and motor secured
against being switched on again
✔ Pump cooled down
✔ Auxiliary operating systems shut dow n, unpressurised and
emptied
✔ Manometer lines, manometer and fixtures removed
The pumps are constructed in process design as standard. T he plug-in unit can be r emoved without removing
the volute casing and pipes.
1. Observe the following for dismounting:
– Precisely mark the installation orientation and po sition
of all components prior to dismounting.
– Dismount the components con centrically without cant-
ing.
– Dismount the pump (→ sectional drawing).
2. Undo the fixation bolts on the housing feet 187.
3. Lift the pump out of the installation (→ 4.1.2 Lifting,
Page 10).
7.3.3 Undoing connections (if available)
Flushing connector
7.3.4 Pulling off the volute casing
155+
102
Fig. 11 Pulling off the volute casing
708.20
925
412.70
Fig. 10 Undoing the flushing connector
1. Undo the lock nut 925.
2. Undo and unscrew the fluid connection 708.20.
3. Remove the O-rings 412.70 from the fluid connection
708.20.
1. Undo the housing nuts.
2. Undo a nd pull off the housing armour 155 and volute casing
102 by screwing in the two jackscrews.
7.3.5 Dismounting the impeller, plain bearing
bracket and pump rotor
412.4
906
Fig. 12 Undoing the impeller screw
1. Undo the impeller screw 906 and O-ring 412.4 with the cir-
clip pliers and unscrew it.
24 MPC-B series BA-2006.03 EN – 01
Maintenance
230
339
859
146
Fig. 13 Lifting the plain bearing out of the intermediate lan-
tern
2. Screw the eye bolt in the tap hole for the impeller screw
906 andthreadinthecranecable.
3. Plain bearing bracket 339
– Lift it with the impeller 230 and pump rotor 859 out of
the intermediate lan tern 146 with a crane.
– Set it down with the pump rotor downwards.
4. Unscrew the eye bolt again.
510
400.11/412.16
412.81
529.1
859
314
339
230
412.69
314
400.10/412.1
938
914.1
Fig. 14 Dismounting the impeller, plain bearing bracket and
pump rotor
5. Unscrew the socket head cap screw 914.1 with Schnorr
spring washer 938.
6. Pull off the impeller 230 with thrust bearing 314.Usean
M12 jackscrew if necessary.
7. Remove and replace the O-ring 412.69.
8. Raise the plain bearing bracket 339. Take out and replace
the gaskets 400.10, 400.11 or O-rings 412.1, 412.16.
9. Press the bearing bush 545 with bearing seats 380 out of
the plain bearing bracket 339.
10. Pull the bearing sleeve 529.1 and thrust bearing 314 off the
pump ro tor 859.
11. Replace the O-ring 412.81.
12. Remove the can 820 and can insert 830.
EN – 01 BA-2006.03 MPC-B series 25
Maintenance
7.3.6 Dismounting the drive rotor
216
858
939.8
901.16
Fig. 15 Dismounting the drive rotor
1. Unscrew the hexagon screw 901.16.
2. Take out the spring ring 939.8.
3. Pull the hollow top shaft 216 with drive rotor 858 off the
motor shaft.
The drive rotor 858 and h ollow top shaft 216 must be balanced as a unit.
CAUTION
Material damage due to unbalance in the pump rotor!
Only undo the socket head cap screw 914.11 to replace
the drive rotor 858 or hollow top shaft 216.
7.4 Installing
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no m agnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
7.4.1 Preparing the installation
1. Observe the following for the installation:
– Replace worn out parts with original spare parts.
– Replace gaskets, inserting them in such a way that they
cannot rotate.
– Observe the specified tightening torques
(→ 9.2.3 Tightening torques, Page 34).
–Refit components concentrically without canting
according to the applied marks.
2. Clean all components (→ 9.2.4 Cleaning agents,
Page 34). but do not remove the applied marks.
3. Install the pump (→ sectional drawing).
Thepumpisinstalledinthereverseorderofthedismounting. The following sections show particular aspects to be
observed when installing the product.
4. If the drive rotor 858 or hollow top shaft 216 is to be
replaced:
– Undo the socket head cap screws 914.11.
– Remove the drive rotor 858.
7.4.2 Installing the drive rotor
✔ Drive shaft 213 installed
1. Place the spring ring 939.8 on the hollow top shaft 216.
The drive rotor 858 and h ollow top shaft 216 must be balanced as a unit.
CAUTION
Material damage due to unbalance in the pump rotor!
Only install the drive rotor 858 and hollow top shaft 216
if they have been balanced as a unit.
Do not change the initial position of the components
during the installation.
2. If the drive rotor 858 or hollow top shaft 216 have been
replaced:
– Place the drive rotor 858 on the hollow top shaft.
– Screw the socket head cap screws 914.11 tight.
3. Place the hollow top shaft 216 with drive rotor 858 on the
motor shaft.
4. Screw the hexagon screw 901.16 tight.
26 MPC-B series BA-2006.03 EN – 01
Maintenance
7.4.3 Installing the plain bearing bracket
✔ Drive rotor installed
✔ Impeller installed
560
146 161
Fig. 16 Installing the plain bearing bracket
1. Insert the bearing bush 545 in the bearing seat 380.
2. Press the bearing seat 380 with bearing bush 545 in the
plain bearing bracket 339. Make sure one of the grooves
of the bearing bush points towards the location hole for the
pin 560.
3. Insert the gaskets 400.10, 400.11 or O-rings 412.1, 412.16.
4. Insert the pin 560.7 and O-ring 412.81 inthepumprotor
859.
5. Push the bearing sleeve 529.1 onto the pump rotor 859.
Make sure the pin 560.7 snapsintoplaceinthegrooveof
the beari ng sleeve.
6. Push the plain bearing bracket 339 slowly onto the pump
rotor 859.
7. Push the impeller 230 onto the pump rotor 859.
8. Apply one drop of LOCTITE 243 onto the socket head cap
screw 914.1.
9. Screw the impeller 230 tight onto the pump rotor 859
with the socket head cap screw 914.1 and Schnorr spring
washer 938.
10. Insert the can 820 and can insert 830 in the intermediate
lantern146 .
11. Screw the eye bolt in the tap hole for the impeller screw
906 andthreadinthecranecable.
12. Insert the plain bearing bracket 339 with impeller and pump
rotor 859 in the intermediate lantern 146 with the crane.
Make sure the plain bearing bracket 339 snaps into place
on the pin 560.
13. Unscrew the eye bolt again.
14. Screw the impeller screw 906 and O-ring 412.4 tight with
the circlip pliers.
7.5 Ordering spare parts
For trouble-free replacement in case of a fault, we recommend keeping complete plug-in units or spare pumps available on site.
The application guidelines according to DIN 24296 recommend keeping a supply for two years of continuous use
(→ 9.3 Spare parts for two years of continuous operation
according to DIN 24296, Page 35).
Have the following information ready to hand when ordering spare parts (→ type plate):
– Short designation of the pump
– Serial number
– Year of construction
– Part number
– Designation
– Quantity
7.4.4 Fitting the pump in the installation
(→ 5 Setup and connection, Page 12).
EN – 01 BA-2006.03 MPC-B series 27
Disturbance recovery
8 Disturbance recovery
DANGER
Risk of fatal injury and material damage due to magnetic
field!
Make sure no-one w ith a heart pacemaker performs any
work on the pump.
Secure the workplace and cordon it off if necessary:
– Ensure staff with heart pacemakers keep a minimum
distance of 1 m.
– Make sure no magnetisable metal parts are able to be
attracted by the magnetic coupling of the pump.
– Makesurenopartsofthemagneticcouplingareable
to be attracted by magnetisable metal parts.
Keep magnetically sensitive objects at least 150 mm away
from the magnetic coupling.
For faults which are not specified in the following table or cannot be traced back to the specified causes, please consult the
manufacturer.
Possible faults are assigned a number in the table below. Use
this numb er to find the cause and remedy in the troubleshooting
table.
Fault Number
Pump not pumping 1
Pumpingrateinsufficient
Pumping rate too high 3
Pumping pressure too low 4
Pumping pressure too high
Pump running roughly 6
Antifriction bearing temperature too high
Pump le aking 8
Excessive motor power uptake 9
Tab. 10 Fault/number assignment
Fault number
12 3456
––– –––––
X
–
XX–X
–
X
–
X
–
X
––– –––––
–––––
X
–
–
X
7
–––
X
–––
X
89
2
5
7
Cause
Supply/Suction pipe and/or pressure pipe
closed by fitting
Supply/Suction pipe not fully opened
Supply/Suction pipe, pump or suction
strainer blocked or encrusted
Supply/Suction pipe cross-section too
narrow
Transport sealing cover not removed Remove the transport sealing cover.
Remedy
Open the fitting.
Open the fitting.
Clean the supply/suction pipe, pump
or suction strainer.
Increase the cross-section.
Remove encrustations from the suction
pipe.
Open the fitting completely.
Dismount the pump and check for
dry-running damage.
28 MPC-B series BA-2006.03 EN – 01
Disturbance recovery
Fault number
12 3456
–
X
X
XX–X
XX–X
–
–
–
–
XX
XX–X
XX–X
–
––
–
X
–
X
––––X–––
––––X–––
–
–
X
X
X
X
–
–
–
––
––
–
X
––––
X
–––––
X
XX
XX
–
–––––
–
X
–
X
XX–X
7
–––
X
–––
X
–––
X
–––
X
–––
–––
–––
X
–––
X
––
89
––X––X––
––X–
––X–
––––
X
XXX–X Motor speed too hig h
Cause
Suction head too large: NPSH
than NPSH
installation
pump
Supply/Suction pipe and pump not bled
properly or not filled up completely
Supply/Suction pipe contains air pockets
Air sucked in
Excessive amount of gas: pump cavitating
Temperature of pumped liquid too high:
pump cavitating
X
Viscosity or density of the pumped liquid
outside the specified range for the pump
Geodetic pump head and/or pipe flow
resistance too high
Pressure-side fitting not opened wide
enough
Pressure pipe blocked
Pump running in the wrong direction
Motor speed too low
Pump components worn out
X
Pressure-side fitting opened too wide
X
Geodetic pump head, pi pe flow
resistances and/or other resistances lower
than specified
Viscosity lower than expected
larger
Remedy
Increase the supply pressure.
Consult the manufacturer.
Fill the pump and/or pipes completely
and ble ed them.
Install fitting for bleeding.
Correct the pipe installation.
Seal the so urce of malfunction.
Consult the manufacturer.
Increase the supply pressure.
Lower the temperature.
Consult the manufacturer.
Consult the manufacturer.
Remove sediments from the pump
and/or pressure pipe.
Install a larger impeller and consult the
manufacturer.
Open the pressure-side fitting.
Clean the pressure pipe.
Swap any two phases at the motor.
Compare the required motor speed
with the specification on the pump type
plate. Replace the motor if necessary.
Increase the motor speed if speed
control is available.
Replace the worn out pump
components.
Throttle with pressure-side fitting.
Mill down the impeller. Consult the
manufacturer a nd adjust the impeller
diameter.
Throttle the flow rate with the
pressure-side fitting. Observe the
minimum flow rate.
Mill down the impeller. Consult the
manufacturer a nd adjust the impeller
diameter.
Mill down the impeller. Consult the
manufacturer a nd adjust the impeller
diameter.
Compare the required motor speed
with the specification on the pump type
plate. Replace the motor if necessary.
Reduce the motor speed if speed
control is available.
EN – 01 BA-2006.03 MPC-B series 29
Disturbance recovery
Fault number
12 3456
––X–
XX–X
–
–
X
X
XX
–
–
7
––
–––
X
–––
X
89
–––– ––X–
–––– ––X––
–––– –––X–
–––– –––X–
–––– –––X–
–– –– –X–
–
–
X
–
X
X
X X Pump distorted
––
Tab. 11 Troubleshooting table
Cause
X Impeller diameter too large
Impeller out of balance or clogged up
Hydraulic components of the pump dirty,
clotted or encrusted
X
Antifriction bearing in motor defective
Lubricant: too much, not enough or
unsuitable
Connecting screws not tightened properly
Faulty housing seal
Can seal defective
X Motor running on 2 phases
Remedy
Throttle the flow rate with the
pressure-side fitting. Observe the
minimum flow rate.
Mill down the impeller. Consult the
manufacturer and adjust the impeller
diameter.
Dismount the pump and check for
dry-running damage.
Clean the impeller.
Dismount the pump.
Clean the components.
Replace the antifriction bearing.
Reduce, top up or replace the lubricant.
Tighten the connecting screws.
Replace the housing seal.
Replace the can seal.
Check the pipes an d pump fastenings.
Check the fuse and replace it if
necessary.
Check the cable connections and
insulation.
30 MPC-B series BA-2006.03 EN – 01
9 Appendix
Appendix
9.1 Sectional drawing
9.1.1 Part numbers and designations
Part no. Designation
102 Volute casing
122 Blind cover
132 Intermediate piece
146 Intermediate lantern
155 Housing armour
167
183
187
216
230 Impeller
314 Thrust bearing
339 Plain bearing bracket
380 Bearing seat
400.xxx
412.xxx
529.xxx Bearing sleeve
545 Bearing bush
550.xxx Disc
554.xxx Washer
560.xxx Pin
708.20 Fluid connection
801 Flange motor
820
830
858 Drive rotor
859 Pump rotor
890 Base plate
901.xxx Hexagon screw
902.xxx
906 Impeller screw
914.xxx
920.xxx Nut
925 Lock nut
932.xxx
Cover insert
Support foo t
Housing foot
Hollow top shaft
Gasket
O-ring
Can
Can insert
Stud bolt
Socket head cap screw
Circlip
Part no. Designation
938
939.xxx
940.xxx Key
Tab. 12 Designation of components according
to part numbers
Schnorr spring washer
Spring ring
EN – 01 BA-2006.03 MPC-B series 31
Appendix
9.1.2 Overview sectional drawing
155 146560 560.5 859
102
400.11
412.16*
339
230
554.15
920.3
902.2
412.69
940.7
412.4
938
906
914.1
314
314 820830858
554.1 901.1
132
554.25
901.18
914.11
940.3
550.3
800
216
939.8
914.10
400.10
901.17 554.18122
Fig. 17 MPC-B – overview sectional drawing
* optional
412.1*
554.19
901.15
187
Fig. 18 MPC-B – housing foot
380920.5 902.3 529.1 545
901.16
412.81554.20
940.8
32 MPC-B series BA-2006.03 EN – 01
Appendix
9.1.3 Variants
167412.18
Fig. 19 Emptying (optional)
708.20
925
412.70
9.2 Technical specificatio ns
Further technical specifications (→ order data sheet).
9.2.1 Ambient conditions
Consult the manufacturer about operation under other
ambient c onditions.
Temperature [°C]
–20 to +40 ≤ 85 ≤ 100 ≤ 1000
Tab. 13 Ambient conditions
9.2.2 Noise pressure level
Measuring con ditions:
• Distancetopump:1m
• Operation: cavitation-free
• Motor: IEC standard motor
• Tolerance ±3 dB
Lower-noise motors are available if the expected noise values
exceed the permissible limits.
Relative humidity [%]
Long-term
Short-term
Setup level
above sea
level [m]
Fig. 20 Fluid connection (optional)
Nominal motor
power PM [kW]
1,5 58 58,5 63 64
2,2 60 60,5 66 67
3,0 62 62,5 68 69
4,0 63 63,5 69 70
5,5
7,5
11,0 68 68,5 74
15,0 69 69,5
18,5
Tab. 14 Noise pressure level
Noisepressurelevel[dB]forpump
with motor at speed [min
1450 1750 2900 3500
65 65,5 71 72
66 66,5 72 73
––
75
76
-1
]
75
76
77
EN – 01 BA-2006.03 MPC-B series 33
Appendix
9.2.3 Tightening torques
Tighten the screws crosswise with a torque wrench. The
following values apply to new screws and nuts.
Thread size Tightening torque [Nm]
M8 25
M10 35
M12 50
M16 80
Tab. 15 Steel/cast pairings
Thread size Tightening torque [Nm]
M10 45
Tab. 16 Socket head c ap screw 914.1 - steel/steel pairing
Screw plastic/plastic pa irings hand-tight, e.g. impeller
screw 906.
9.2.4 Cleaning agents
Application area
Foodstuffs and drinking
water sector
Cleaning agents
E.g. spirit, Ritzol 155,
strong alkalin e soap suds,
steam b last (for individual
components only)
Other
Benzine, wax solvents,
diesel, petrol, alkaline
cleaners
Tab. 17 Cleaning agents
9.2.5 Socket loads according to ISO 5199
F
z
M
Z
z
X
M
F
x
x
1
M
y
Y
F
y
Fig. 21 Socket loads at the pump
1 Pressure joint
diameter
DN [mm]
Fx [N] Fz [N]Nominal
Pull Push
Fy
[N]
∑ F
Pull Push
25 600 300 500 700 350 1100
32 800 400 700 900 450 1500
40 1100 550 900 1200 600 2000
50 1500 750 1300 1600 800 2500
65 1900 950 1600 2000 1000 3500
Tab. 18 Socket loads
Nominal diameter DN
[mm]
Mx
[Nm]My[Nm]Mz[Nm]
∑ M
[Nm]
25 900 600 800 1550
32 1200 800 700 1700
40 1300 900 1000 1850
50 1400 1000 1100 2000
65 1500 1100 1200 2150
Tab. 19 Socket loads – torques
[N]
34 MPC-B series BA-2006.03 EN – 01
9.3 Spare parts f or two years of
continuous operation according
to DIN 24296
Appendix
Part no. Part designation
1234
230Impeller 1111222
–
321.1Radialballbearing 1112223
321.2Radialballbearing 111222330%
400.xxx/
412.xxx
Tab. 20 Spare parts for two years of contin uous operation
Plainbearing,complete1112223
Housing seal / Can seal
1234568
Number of identical pumps (including spare pumps)
5
Set/Quantity of spare parts
6or7 8or9
10 or
more
20 %
30 %
30 %
100 %
EN – 01 BA-2006.03 MPC-B series 35
