Munsch MEK-32, MAK-32, MEK-36, MAK-48, MEK-48 Operating Instructions Manual

...

MUNSCH Kunststoff-Schweißtechnik GmbH Issue 12.2009/Rev. 02 Page 1/20

Operating Instructions

Type: MEK-32 / MAK-32 Serial No.: ______________

Article No.: ______________

These operating instructions contain important information to be observed for hand extruder operation and maintenance. It is therefore imperative that they be read and their contents fully understood by the operators before the hand extruder is placed in service.

Hand Extruder MEK-32 / MAK-32

Page 2/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

Scope of delivery:

Please check that the delivery is complete. The delivery comprises:

1 hand extruder 1 extruder stand 1 handle 1 welding shoe, machined 3 preheat nozzles 1 hot air hood

Contents

1 GENERAL......................................................................................................................................................................4

2 SAFETY..........................................................................................................................................................................4

2.1 I

DENTIFICATION OF INFORMATION IN THE OPERATING INSTRUCTIONS

.......................................................................5

2.2 P

ERSONNEL QUALIFICATION AND TRAINING

..............................................................................................................5

2.3 R

ISKS RESULTING FROM NON-OBSERVANCE OF THE SAFETY INSTRUCTIONS

..............................................................5

2.4 S

AFE WORKING PRACTICES

........................................................................................................................................5

2.5 S

AFETY INSTRUCTIONS FOR OPERATOR / OPERATING PERSONNEL

.............................................................................5

2.6 S

AFETY INSTRUCTIONS FOR MAINTENANCE, INSPECTION AND MOUNTING

.................................................................7

2.7 U

NAUTHORIZED MODIFICATIONS AND SPARE PARTS

..................................................................................................7

3 TRANSPORT AND STORAGE ...................................................................................................................................8

3.1 T

RANSPORT

...............................................................................................................................................................8

3.2 S

TORAGE

...................................................................................................................................................................8

3.3 R

ETURN TO MUNSCH

.................................................................................................................................................8

4 PRODUCT DESCRIPTION .........................................................................................................................................8

4.1 A

PPLICATION RANGE

.................................................................................................................................................8

4.2 G

ENERAL

...................................................................................................................................................................8

5 STARTUP AND SHUTOFF..........................................................................................................................................9

5.1 G

ENERAL

...................................................................................................................................................................9

5.2 P

REPARATION

............................................................................................................................................................9

5.3 S

TARTING THE HAND EXTRUDER

.............................................................................................................................10

5.4 W

ELDING WITH THE HAND EXTRUDER

.....................................................................................................................11

5.4.1 Introducing the welding rod............................................................................................................................11

5.4.2 Replacement and aging of welding rod...........................................................................................................11

5.4.3 Welding direction / rate ..................................................................................................................................11

5.4.4 Interruption of work........................................................................................................................................11

5.4.5 Shutoff ............................................................................................................................................................12

5.4.6 Transport/Storage............................................................................................................................................12

5.5 S

ET TEMPERATURES ON TEMPERATURE CONTROLLER

.............................................................................................12

5.5.1 Set temperatures..............................................................................................................................................12

6 MAINTENANCE/INSPECTION ...............................................................................................................................14

6.1 M

AINTENANCE/INSPECTION OF

MEK/MAK

HAND EXTRUDER

................................................................................14

6.2 D

ISMANTLING

..........................................................................................................................................................14

6.2.1 Overview of spare parts/attachments ..............................................................................................................14

7 MALFUNCTIONS, CAUSES AND REMEDIES......................................................................................................16

7.1 T

ROUBLE-SHOOTING

................................................................................................................................................16

7.2 F

AULT DIAGNOSIS

....................................................................................................................................................16

8 TECHNICAL DATA ...................................................................................................................................................18

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 3/20

EG-Konformitätserklärung des Herstellers

nach der EG-Maschinenrichtlinie 2006/42/EG Anhang II, Nr. 1 A

EC-Declaration of Conformity by the Manufacturer

as defined by machinery directive 2006/42/EC, Annex II, No. 1 A

MUNSCH Kunststoff-Schweißtechnik GmbH Im Staudchen D-56235 Ransbach-Baumbach Germany

Mr. Johann Dausenau, Kunststoffschweißtechnik GmbH, is authorised to compile the technical documentation.

We hereby declare that the hand extruders

Machine type: Hand extruder Hand extruder Type designation: MEK-32 MAK-32

are in accordance with all relevant provisions of the EC Machinery Directive.

The following harmonised standards (or parts of these standards) were applied:

DIN EN ISO 12100-1: 2004 DIN EN 13732-1: 2008 DIN EN ISO 12100-2: 2004

In addition, the hand extruders are in accordance with the following EC-directives, standards, codes and regulations:

EU Low-Voltage Directive 73/23/EC EU EMC Directive 89/336/EC EN 60204-1 (VDE 0113 Part 1): 2007 DIN EN 55014-1: 2007 EN 61029-1 (VDE 0740 Part 500): 2003 DIN EN 55014-2: 2009 VDE 0701 Part 1: 2008 VDE 0702 Part 1: 2003

This industrial tool complies with the aforesaid standards insofar as it is used at the contractually agreed conditions. The operator is responsible for this.

In the event of any modifications to the machine/unit or use not as intended, this declaration becomes invalid unless the manufacturer’s prior written approval has expressly been given.

Ransbach-Baumbach, 29.12.2009 Dipl.-Ing. Stefan Munsch Managing Director

Hand Extruder MEK-32 / MAK-32

Page 4/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

1 General

These operating instructions must always be available at the place of use of the hand extruder.

The objective of these operating instructions is to support operators in familiarizing themselves with the hand extruder and in using its functions for the intended service.

These operating instructions provide important information for the safe, workmanlike and economical operation of the hand extruder. Their observance helps avoid danger, minimize repair costs and downtimes, enhance reliability, and extend the service life of the hand extruder.

These operating instructions must be observed by all persons working with/on the hand extruder. Such work includes, for instance:

• operation,

• maintenance, inspection and repair

• transport.

The hand extruder may only be mounted, operated and maintained by trained personnel.

In addition to the operating instructions and the national and local accident prevention regulations applicable at the place of use, the acknowledged technical rules for safe and proper working practices must be observed.

These operating instructions provide basic information to be observed for operation and maintenance. For this reason, it is imperative that they be read by the specialist personnel/Operator prior to placing the hand extruder in service and that they always be available at the place of use. Apart from the general safety instructions under section “Safety“, also the special safety instructions given under the respective sub-sections must be adhered to.

Non-observance of the safety instructions may cause hazards to persons and the environment or damage to the hand extruder. Moreover, failure to observe the safety instructions may lead to the forfeiture of any damages.

Non-observance of the safety instructions may in

particular involve the following risks:

• failure of important hand extruder functions,

• hazards to persons due to electrical and

mechanical impacts including risk of burns,

• hazards to the environment due to vapour-phase hazardous substances,

• risk of fire.

2 Safety

Safe operation of the hand extruder presupposes that the instructions under section 1 – General – of these operating instructions are complied with. In no case must the limit values indicated be violated.

Intact and unaltered hand extruders conform to the applicable codes and standards and meet all regulatory limit values regarding EMC (electromagnetic discharges and interference immunity). For the country-specific limit values to be observed, the Operator should consult the local electric utility. Nevertheless, the hand extruders emit electromagnetic fields within the acceptable limits. Electromagnetic fields may interfere with the operation of vital electronic devices (e.g. cardiac pacemakers). Persons wearing a cardiac pacemaker should therefore consult their physician before using the machine.

Apart from the general safety instructions under section “Safety“, also the special safety instructions given under the respective sub-sections must be adhered to.

Any working practices posing a safety risk are prohibited.

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 5/20

2.3 Risks resulting from non-observance of the

safety instructions

Non-observance of the safety instructions may in particular involve the following risks:

• failure of important hand extruder functions,

• hazards to persons due to electrical and

mechanical impacts including risk of burns,

• hazards to the environment due to vapour-phase hazardous substances,

• risk of fire.

2.4 Safe working practices

The safety instructions given in these operating instructions, the applicable national accident prevention regulations and any existing in-company work instructions, operating and safety procedures issued by the Operator must be followed.

2.5 Safety instructions for Operator / operating

personnel

• Before placing the hand extruder in service, check the mains voltage and frequency against the data indicated on the type tag. The allowable tolerances are ± 5 % for voltage and/or ±2 % for frequency.

• According to VDE 0100 §55, the hand extruder must be operated via a residual current-operated circuit breaker or an isolating transformer.

• CAUTION During hand extruder operation (under load), a voltage of not less than 230 V1) must be available at the connector of the hand extruder.

• When using an extension cable, make sure to observe the minimum conductor cross-section. Use extension cables with protective conductor only.

Length

[m]

Minimum cross-section

[mm²]

up to 19 4.0 1)

20-50 6.0 1)

2.1 Identification of information in the operating instructions

In these operating instructions, safety instructions whose non-observance may cause hazards to persons are identified with

Hazard symbol according to DIN 4844 – W 9 for general hazards and with

Hazard symbol according to DIN 4844 – W 8 for electrical hazards. Safety instructions whose non-observance may

cause damage to the hand extruder and its functions are marked with

CAUTION

Instructions directly indicated on the hand extruder must be strictly followed and kept in a fully legible state.

2.2 Personnel qualification and training

The operating, maintenance and inspection personnel must possess appropriate qualification for the work to be performed. Functional and technical responsibilities and supervision of the operating

personnel must be clearly regulated by the Operator.

Where the personnel do not have the necessary skills and knowledge they must be trained and instructed (e.g. a DVS basic welder training in extrusion welding). A detailed instruction into hand extruder operation will be provided by the Manufacturer/Supplier on request. Furthermore, the Operator has to make sure that the contents of the operating instructions is fully understood by the operating personnel.

1) for 230 V AC

Hand Extruder MEK-32 / MAK-32

Page 6/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

• Extension cables must be certified for the specific

service conditions (e.g. outdoor service) and identified accordingly.

Always handle the connecting cable with care.

- Do not kink the connecting cable.

- Do not place any objects on the cable.

- Do not jam or squeeze the connecting cable, nor pull it over sharp edges.

- Protect the connecting cable from moisture.

• Do not touch the mains connector or

connecting cable with wet hands. Hold the cable always at the connector when plugging or unplugging it.

• CAUTION Power generator sets used for power

supply must be designed for the following rated output:

≥ 4 x rated output of hand extruder

• Never allow the hand extruder to come into

contact with water: Hazard to persons and equipment, short-circuit risk.

• CAUTION Never operate the hand extruder

without air supply; risk of hand extruder damage.

When using an external air source, make sure that the air supply line is adequately dimensioned.

• CAUTION The supply air must be clean, dry and

free from oil and water.

• The hand extruder must not be used in explosion hazard areas or flammable atmospheres.

Make sure that the hand extruder is firmly positioned during the extrusion welding job.

The connecting cable, welding rod and hose for external air supply, if applicable, must be freely movable and must not obstruct the operator or third parties in their work.

• Hold and touch the hand extruder only on the handles provided for this purpose.

- Do not touch bare metal parts (including hot air hood) either with or without gloves. These parts reach temperatures of up to 350 °C.

- Attachments may be damaged or impaired in their function if subjected to the full weight of the hand extruder.

- Bare metal parts must not come into contact with other items during the work or work breaks (e.g. cooling).

FIG. D02-0001

• Contact of combustible components with hot bare metal parts poses a risk of fire!

Do not use synthetic gloves!

D02-0001

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 7/20

• Do not direct the hot air jet of the hand extruder towards living beings or temperature-sensitive items.

Safety distance: 2 m radius

ILD

D02-0002

• Use suitable personal protection equipment for overhead work (e.g. hard hat, safety goggles, gloves, protective clothes …) to guard against falling items.

• During work breaks and after completion of the welding job, place the hand extruder on the rests supplied for this purpose.

CAUTION The hot air hood must be remounted.

Make sure that the hand extruder is firmly

positioned! Deposit the hand extruder in a dry location.

After completion of the welding job, cool the hand extruder to safe-to-touch temperature, using the air supply system.

• Do not operate, dismantle or carry out any modifications on the hand extruder, if

- the connecting cable or the mains connector is defective,

- safety devices are damaged,

- foreign matter or liquid has penetrated into the hand extruder,

- the unit does not work properly or there are unusual changes in its operating behaviour.

• Never allow the hand extruder to come into contact with water: Hazard to persons and equipment, short-circuit risk.

2.6 Safety instructions for maintenance, inspection and mounting

The Operator is responsible for ensuring that maintenance, inspection and mounting activities are performed by authorized and qualified personnel who are thoroughly familiar with the operating instructions.

• As a rule, the hand extruder must be shut off and

the connector unplugged before proceeding to any work on the unit. The shutoff procedure for the hand extruder described in the operating instructions must be strictly observed.

• Electrical hazards must be ruled out (for details,

see VDE guidelines and the standards of your local electric utility, for instance).

• VDE 0701 (IEC 335) prescribes the

measurement of the protective conductor resistance, insulation resistance and leakage current after each repair or modification to electrical equipment. Furthermore, a visual inspection of the unit and its connecting cable as well as voltage and current measurements and a function test must be carried out.

• Ensure the safe and environmentally compatible

disposal of media, auxiliary materials and replaced parts!

• Remount and reactivate all safety and protective

devices immediately on completion of the maintenance, inspection or repair work.

2.7 Unauthorized modifications and spare parts

Modifications or changes to the unit are only allowed after consultation with the Manufacturer. In the interest of safety, only original spare parts and accessories authorized by the Manufacturer should be used. The use of components other than the original spare parts may invalidate the Manufacturer’s liability for any resulting damage.

D02-0002

(

)

Hand Extruder MEK-32 / MAK-32

Page 8/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

3 Transport and Storage

3.1 Transport

• Before transport and storage, make

sure that the hand extruder has cooled down to safe-to-touch temperature.

• Hold and touch the hand extruder only on the handles provided for this purpose.

Do not touch bare metal parts (including the hot air hood) – whether with or without gloves before having made sure that they are safe to touch. These parts reach temperatures of up to 350 °C during operation.

D02-0001

• Always transport or store the hand extruder in such a way as to preclude any mechanical loads on the attachments.

If parts have been removed for transport purposes, mount and fasten them carefully before restarting the hand extruder!

Transport of the hand extruder in MUNSCH’s original shipping case is recommended.

3.2 Storage

• Store the hand extruder in a dry and frost-free place.

• Protect the hand extruder from unauthorized access.

• Special preservation is not required

3.3 Return to Munsch

Should it become necessary to return the hand

extruder to MUNSCH Kunststoff-Schweißtechnik GmbH, always use the original shipping case.

4 Product Description

4.1 Application range

The application range of the hand extruder is defined by the data on the type tag and the service limits indicated in these operating instructions.

CAUTION Operation of the hand extruder outside the service limits stated in these operating instructions is subject to the manufacturer’s prior approval.

4.2 General

Type MEK is a hand extruder with external air supply.

Type MAK is a hand extruder with integrated air supply (Autoair).

For both types of hand extruder, the following parameters can be freely selected:

welding rate,

hot air temperature,

melt temperature and throughput; the melt throughput can be controlled downward from the maximum value, firstly by using 3 mm instead of 4 mm welding rod and, secondly, by reducing the speed on the controller.

CAUTION Too low a speed will cause a risk of drive overheating!

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 9/20

Driven by a powerful electric motor (1), the welding rod (2) is fed into the extruder (3) and granulated by the extruder screw in the process. The screw forces the granulate into the extruder nozzle, melting it into a homogeneous, completely plastified mass. As the molten material exits the extruder nozzle, it is moulded by a welding shoe (4) to the geometry of the weld seam to be deposited.

Preheating of the base material to be joined is accomplished by a preheating nozzle (5) which is supplied from an integrated hot air unit (6). Air is supplied either from an external compressor or an on-board blower

Melt and preheat temperatures are controlled separately. The setpoint and momentary values are displayed concurrently.

The melt temperature must have reached the preset start interlock temperature for the startup timer to be activated. After the startup timer has timed out, the start interlock will be released and the extruder can be started.

The temperature-controlled start interlock prevents the drive from starting if there is still unmolten material in the extruder, thus precluding damage to the unit.

The output rate is variable so that the preheat temperature can be matched to the weld thickness.

5 Startup and Shutoff

5.1 General

Any working practices posing a safety risk are prohibited.

Before starting / shutting off the hand extruder, make

sure to carefully read the instructions under section “Safety”.

Only trained and qualified personnel may be assigned to the operation of the hand extruder.

5.2 Preparation

• Place the hand extruder on a firm support and secure it against toppling over.

• Mount hot air hood

• Position handle

Loosen handle (55) and move it to the ideal working position by pushing it back and forth. The handles of these extruder models can also be swivelled upward and downward, so that the machine can be operated by both right-handed and left-handed persons.

• Only for MEK hand extruder with external air supply:

Connect the hand extruder to the external air source using the hose coupling LW 13 / NM 7.2 provided for this purpose (quick connectdisconnect); set air rate to 300 l/min at 0.4 bar. A suitable controller with flow metering function is recommended for setting the air rate.

CAUTION The supply air must be clean, dry and free from oil and water.

Never connect an external air source to a MAK hand extruder.

Hand Extruder MEK-32 / MAK-32

Page 10/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

• Mount welding shoe

- Select the welding shoe required for the specific weld geometry or machine a welding shoe blank to the required geometry.

- Observe DVS 2207 Guideline, Part 4 for machining welding shoe blanks.

- Mount welding shoe to the hand extruder in the position required for welding. Observe welding direction! Tighten set screw (25).

• Mount preheat nozzle

- Select and mount the preheat nozzle (4) required for the specific weld geometry.

- Observe spacing A = 5 mm.

- Tighten the preheat nozzle using set screw (25.1).

Table: Preheat nozzle

Care must be taken to ensure that the preheat nozzle provides intensive and uniform preheating (melting) of the base material over the entire joint width at as low a hot air temperature as possible. For larger weld seam widths, a wider preheat nozzle is available as an accessory.

5.3 Starting the hand extruder

Observe section “Safety“.

• CAUTION Never operate the hand extruder without air supply. Otherwise the unit may suffer severe damage.

• CAUTION Before plugging in the mains connector, check that the drive unit is not set to continuous operation.

• CAUTION The hot air hood must be in place.

• CAUTION Start external air supply for MEK hand

extruder.

• CAUTION Plug in mains connector.

• CAUTION In the case of the MAK hand extruder

with integrated air supply, the blower must start automatically.

• CAUTION Once air exits the preheat nozzle (4), the heating systems for the air/melt temperatures may be activated.

• For the operation of the temperature controller, see section 5.5 “Set temperatures“. For temperature settings, see page 12.

• The hand extruder will reach its operating temperature after about 10 to 15 minutes.

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 11/20

• Hold and touch the hand extruder only on the handles provided for this purpose.

D02-0001

• CAUTION The melt temperature must have reached the preset start interlock temperature for the startup timer to be activated. After the startup timer has timed out, the start interlock will be released and the extruder can be started.

5.4 Welding with the hand extruder

Observe section “Safety” and the data sheet.

General

Welding is to be carried out in accordance with the guidelines of the German Association for Welding Technology (Deutscher Verband für Schweißtechnik DVS).

The parts to be joined and the welding rod must be clean and dry.

5.4.1 Introducing the welding rod

• CAUTION The hand extruder is provided with a bore for introducing the welding rod.

5.4.2 Replacement and aging of welding rod

• If the welding rod is to be replaced, make sure that any remaining rod in the hand extruder is completely removed.

• For this purpose, operate the preheated hand extruder with the new welding rod until clean new material discharges.

• The DVS guideline also recommends this procedure for hand extruders which have been out of service for prolonged periods while still being filled with welding rod.

• Ensure safe and environmentally compatible disposal of any waste generated.

5.4.3 Welding direction / rate

• The pressure of the discharging extrudate causes the welding shoe (and hence, the hand extruder) to move in welding direction.

• See DVS Guidelines for the welding rate.

D02-0026

5.4.4 Interruption of work

• Observe section “Safety“. Do not leave the hand extruder unattended. Make sure to maintain the air supply.

• When interrupting the welding job, switch off the drive unit and deposit the hand extruder as shown in the illustration below.

Hand Extruder MEK-32 / MAK-32

Page 12/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

5.4.5 Shutoff

Observe section “Safety”.

• After completion of the welding job, switch off the drive unit and deposit the hand extruder as shown in the illustration (see preceding section).

Do not leave the hand extruder unattended.

5.4.5.1 Hand extruder with integrated air supply, type MAK

• Press “return“ button once to switch off the

heating circuits.

• Maintain the air supply of the hand

extruder until the unit has completely cooled down!

• Pull mains connector.

5.4.5.2 Hand extruder with external air supply, type MEK

• Press “return“ button once to switch off the

heating circuits.

• Pull mains connector.

• Maintain the air supply of the hand

extruder until the unit has completely cooled down!

Never use water or another coolant to

accelerate the cooling process!

5.4.6 Transport/Storage

Make sure to observe the instructions under section “Transport/Storage“.

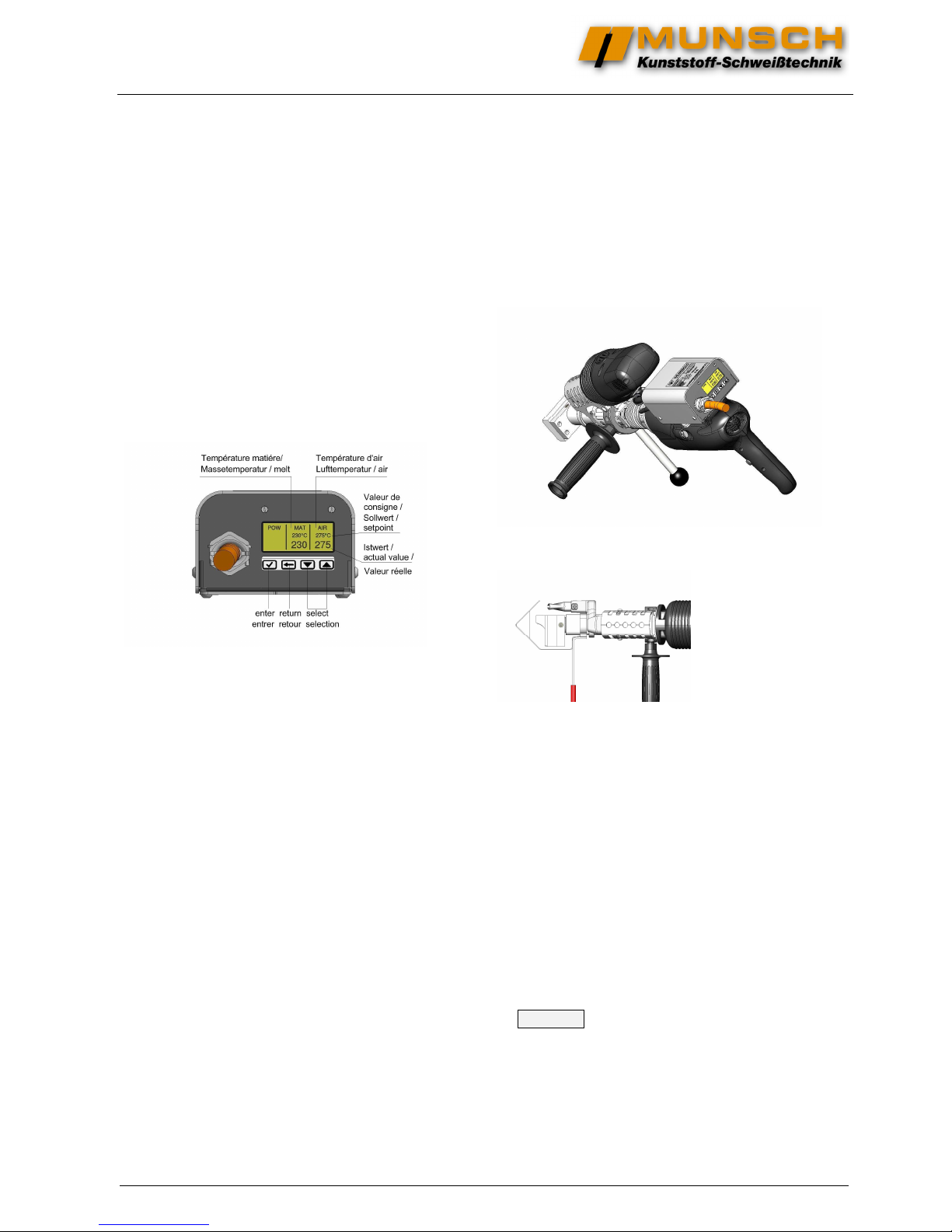

5.5 Set temperatures on temperature controller

The default settings for the melt and air temperatures of the MEK and MAK hand extruders are shown in the following temperature chart. (The values have been determined with the aid of reference materials.)

Temperature chart for MEK/MAK

Material Melt temperature Air temperature

PP 200 – 240 °C 250 – 300 °C PE 200 – 240 °C 250 – 300 °C PVDF 240 – 260 °C 280 – 350° C

If other temperatures are needed the corresponding settings can be made on the temperature controller.

5.5.1 Set temperatures

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 13/20

Hand Extruder MEK-32 / MAK-32

Page 14/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

6 Maintenance/Inspection

Pull mains connector before carrying out any

maintenance and repair work on the hand extruder.

Maintenance and repair work on electrical tools may only be carried out by qualified electricians.

The hand extruder together with the hot air hood must have cooled down to safe-to-touch temperature.

Observe the instructions under section “Safety“. Maintenance and repair work may only be carried

out by qualified personnel or by our service staff. To ensure the proper function of the hand extruder

over its entire service life for its intended service, we recommend:

to have all maintenance, inspection and mounting work carried out by authorized and qualified personnel who are familiar with the operating instructions,

to always shut off the unit before carrying out any work on it,

to remount and reactivate all safety and protective devices immediately after completion of the maintenance/repair work.

During maintenance and repair work, make sure that the hand extruder and its individual components are firmly positioned.

Any working practices posing a safety risk are prohibited.

Activities other than those described in this section may only be performed at the Manufacturer’s workshops!

6.1 Maintenance/inspection of MEK/MAK hand

extruder

• CAUTION After approx. 500 operating hours, the

hand extruder including drive unit must be thoroughly cleaned and inspected. This work may only be carried out at the manufacturer’s workshops.

• CAUTION Cables, switches, plug-in connections

must be inspected by qualified staff every three months (requirement according to VBG4); the inspection results must be documented!

6.2 Dismantling

Prior to dismantling the hand extruder, pull the mains connector.

The hand extruder must be at ambient temperature. Damaged mains connection cables must be

completely replaced. “Mended” cables pose a hazard to life and limb. Cable replacement is to be carried out by qualified electricians only.

The safety precautions described under sections “Safety“ and “Malfunctions, Causes and Remedies“ must be strictly adhered to.

6.2.1 Overview of spare parts/attachments When ordering spare parts, always indicate the

serial number of the extruder.

Make sure to use original spare parts only. For spare parts supply, contact MUNSCH Kunststoff-

Schweißtechnik GmbH.

Drive unit UX1 – Replace carbon brushes: Remove the 3 screws and pull off the cap. Remove

dirt / carbon dust using compressed air, for instance. Replace carbon brushes (2 x K04886) and screw the cap in place again.

--------------------------------------------------------------------- Extruder screw bearing:

K03701 = Axial bearing (replace) K03702 = Ball bearing (replace) K03703 = Circlip (replace, if necessary) K03704 = Seal ring (replace) K04080 = Spacer ring (replace, if necessary)

----------------------------------------------------------------------

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 15/20

----------------------------------------------------------------------------------------------------------------------------------------------------

Hand Extruder MEK-32 / MAK-32

Page 16/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

7 Malfunctions, Causes and Remedies

7.1 Trouble-shooting

The following table lists potential operating upsets of the hand extruder, possible causes and their remedies (fault diagnosis chart).

Should malfunctions occur which are not covered

here or which cannot be traced back to the cause stated, please contact MUNSCH KunststoffSchweißtechnik GmbH.

Malfunction Fault No.

Drive motor does not start 5, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 23 Drive motor switches off 5, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 23 No welding rod feed 1, 16, 17, 20 No extrudate conveyed out of welding shoe 1, 16 Extrudate output decreases during operation 1, 14, 16 No air supply 6, 7, 13 Integrated air supply without function 5, 22 No hot air 2, 3, 4, 5, 6, 18, 22 Hot air temperature below setpoint temperature 2, 3, 4, 8, 10, 18, 22, 14 Melt temperature below setpoint temperature 2, 3, 9, 11, 14 Extruder does not heat up 2, 3, 12, 22 Temperature above preset range 2, 3, 18, 19 Controller fault signal: E 2 Controller fault signal: OEAIR 2, 13, 22 Controller signal: OFF 9, 10, 11, 12 Control fluctuates 3, 13,19,12

7.2 Fault diagnosis

Fault

No.

Possible causes Remedies

Smaller or too small a welding rod diameter Use larger welding rod diameter, if necessary

Temperature sensor defective

Temperature controller defective

Air rate too high Reduce air rate to specified level3)

Cable connections defective Check cable connections1)

External air supply not connected3) Connect external air supply

External air supply without function3) Switch on external air supply

Check the external air supply system for malfunctions using the separate manual, or have it checked.

Hot air temperature below start interlock temperature

Allow hand extruder to heat up Air rate too high → reduce air rate 3)

1) Consult MUNSCH Kunststoff-Schweißtechnik GmbH

2) Only for MAK

3) Only for MEK

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 17/20

Fault

No.

Possible causes Remedies

Melt temperature below start interlock temperature

Allow hand extruder to heat up

Preheat time for hot air too short Allow hand extruder to heat up

Preheat time for melt too short Allow hand extruder to heat up

Heating cartridge defective

Air supply not constant

External air supply:

Check air supply unit3)

Integrated air supply:

Wrong rated voltage

Rated voltage >>>> permissible voltage

Check mains voltage

Rated voltage <<<< permissible voltage

Check mains voltage

Extension cable heats up

Unroll cable reel

Check cable cross-section (see also section “Safety“)

Extruder nozzle plugged with foreign matter Clean extruder.

Extruder nozzle – left-hand thread

Drive unit defective

Electronic control defective

Controller programming error

Welding rod feed Remove welding rod

Observe instructions in section “Maintenance“!

Observe instructions for operation!

Hot air unit defective

No mains voltage Check voltage supply

1) Consult MUNSCH Kunststoff-Schweißtechnik GmbH

2) Only for MAK

3) Only for MEK

Hand Extruder MEK-32 / MAK-32

Page 18/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

8 Technical Data

Type designation MEK MAK Welding materials

PP, PE, PVDF PP, PE, PVDF

Welding rate, approx.

32 = ∅ 3 mm: 1.8 kg/h PP/PE 32 = ∅ 4 mm: 3.2 kg/h PP/PE

Welding rod

Welding rod ∅ 3 and 4 mm Welding rod ∅ 3 and 4 mm

Application range 32 = Wall thicknesses 8-30 mm and

film/sheeting welds

32 = Wall thicknesses 8-30 mm and film/sheeting welds

Weight 32 = 7.6 kg 32 = 7.8 kg Drive

230 V AC with speed control 230 V AC with speed control

Extruder heating system 32 = 650 W / 230 V 32 = 650 W / 230 V Air preheater

2100 W / 230 V 2300 W / 230 V

Air supply

External air source Integrated air supply

Air rate

300 l/min at 0.4 bar ------------

Control of melt temperature

Temperature controller with concurrent momentary value and setpoint display

Control of air temperature

Temperature controller with concurrent momentary value and setpoint display

Cold start protection

Start temperature interlock and startup timer for melt and preheat air

MEK-32 / MAK-32 Issue 12.2009/Rev. 02 Page 19/20

Warranty Certificate

..............................................................................................................

Name and address of Purchaser

Type of unit: Hand extruder Type designation: Serial No.: P.O. No.:

Your warranty

MUNSCH Kunststoff-Schweißtechnik GmbH hereby warrants the unit to be free from defects in materials and workmanship from the date of its first acquisition. Should deficiencies resulting from defects in materials or workmanship be identified during the warranty period, the dealers will, in accordance with the following terms and conditions, repair the unit or, at their discretion, replace either the complete unit or the defective components without charging labour or material costs.

..............................................................................................................

Dealer’s stamp and signature

Hand Extruder MEK-32 / MAK-32

Page 20/20 Issue 12.2009/Rev. 02 MUNSCH Kunststoff-Schweißtechnik GmbH

Warranty

1 The Manufacturer warrants freedom from defects

in materials and workmanship and state-of-theart performance of the purchased article for a period of six (6) months from the date of delivery.

2 The Purchaser shall check the article delivered

for completeness and freedom from defects immediately after receipt.

3 The Purchaser shall be entitled to the making

good of defects and any resulting damage to other parts of the purchased article (remedial work). The procedure for claims under this warranty shall be as follows:

3.1 The Purchaser may assert claims under this

warranty either with his dealer or with a company authorized by the Manufacturer to provide services for the purchased article. The Purchaser shall give written notice of defects to the respective company promptly after such defects have been identified or shall have such defects registered by the respective company.

3.2 Defects shall be promptly remedied in

accordance with the technical requirements by either replacement or repair of the defective parts, the cost of the remedial work being for the account of the Manufacturer. Replaced parts shall become the property of the Manufacturer. If, as a result of the remedial work, additional maintenance measures are prescribed by the Manufacturer, the resulting costs including the costs of materials and lubricants shall be for the Manufacturer’s account.

3.3 For replacement parts installed within the scope

of the remedial work, a warranty will be provided under the purchase contract, the warranty period for such parts ending on expiry of the warranty period of the object purchased.

3.4 For the warranty to become effective, this

warranty certificate must be produced for each repair.

4 If the defect cannot be remedied or if the

Purchaser cannot be reasonably expected to accept any further attempts at making good the defect, the Purchaser may demand annulment (cancellation of the contract) or a price reduction (reduction of compensation) in lieu of remedial work. In such a case, the Purchaser shall not be

entitled to any replacement. 5 Manufacturer’s warranty obligations shall not be affected by a change in ownership of the purchased article.

6 Any damage incurred through the following acts

or omissions of Purchaser shall be expressly excluded from this warranty:

6.1 Purchaser’s failure to report a defect pursuant to subsection 3.1 or to promptly provide an opportunity to remedy the defect following Manufacturer’s request, or

6.2 improper handling or overload operation of the purchased article, or

6.3 prior repair, maintenance and servicing of the purchased article by a company not authorized by the Manufacturer, if the Purchaser can be reasonable expected to have known that such company was not authorized, or

6.4 the installation of parts into the purchased article without having obtained Manufacturer’s prior approval for such parts or the modification of the purchased article in a way not approved by the Manufacturer, or

6.5 Purchaser’s failure to observe the instructions

given in the user’s manual accompanying the purchased article (e.g. operation, maintenance and care), or

6.6 Purchaser having removed the serial number or made it illegible.

7 Natural wear and tear shall be expressly

excluded from this warranty.

8 Accidents, force majeure or other circumstances

beyond the control of the Manufacturer, in particular damage caused by lightning, overvoltage, water, fire, etc. shall be excluded from this warranty.

9 All rights under this warranty shall become null

and void on expiry of the warranty term pursuant to Section 1. For claims asserted within the warranty term but no settled by its expiry, the warranty shall remain effective until the respective defect has been remedied. The period of limitation shall be suspended for such claim.

MUNSCH Kunststoff-Schweißtechnik GmbH

Im Staudchen • D-56235 Ransbach-Baumbach P.O. Box 142 • D-56221 Ransbach-Baumbach Germany Phone: +49 (0) 26 23-8 98-80 Telefax: +49 (0) 26 23-8 98-85 Internet: http://www.munsch.de Email: munsch@munsch.de

Munsch MEK-32, MAK-32, MEK-36, MAK-48, MEK-48 Operating Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
