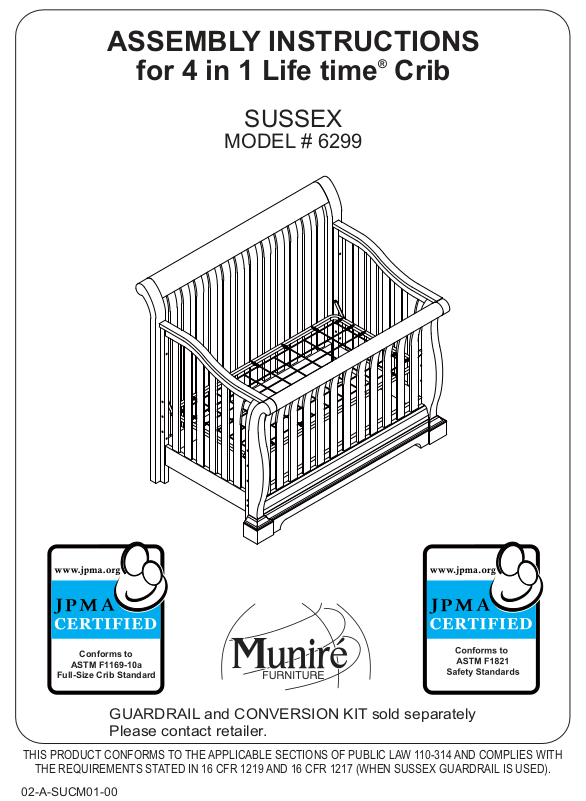

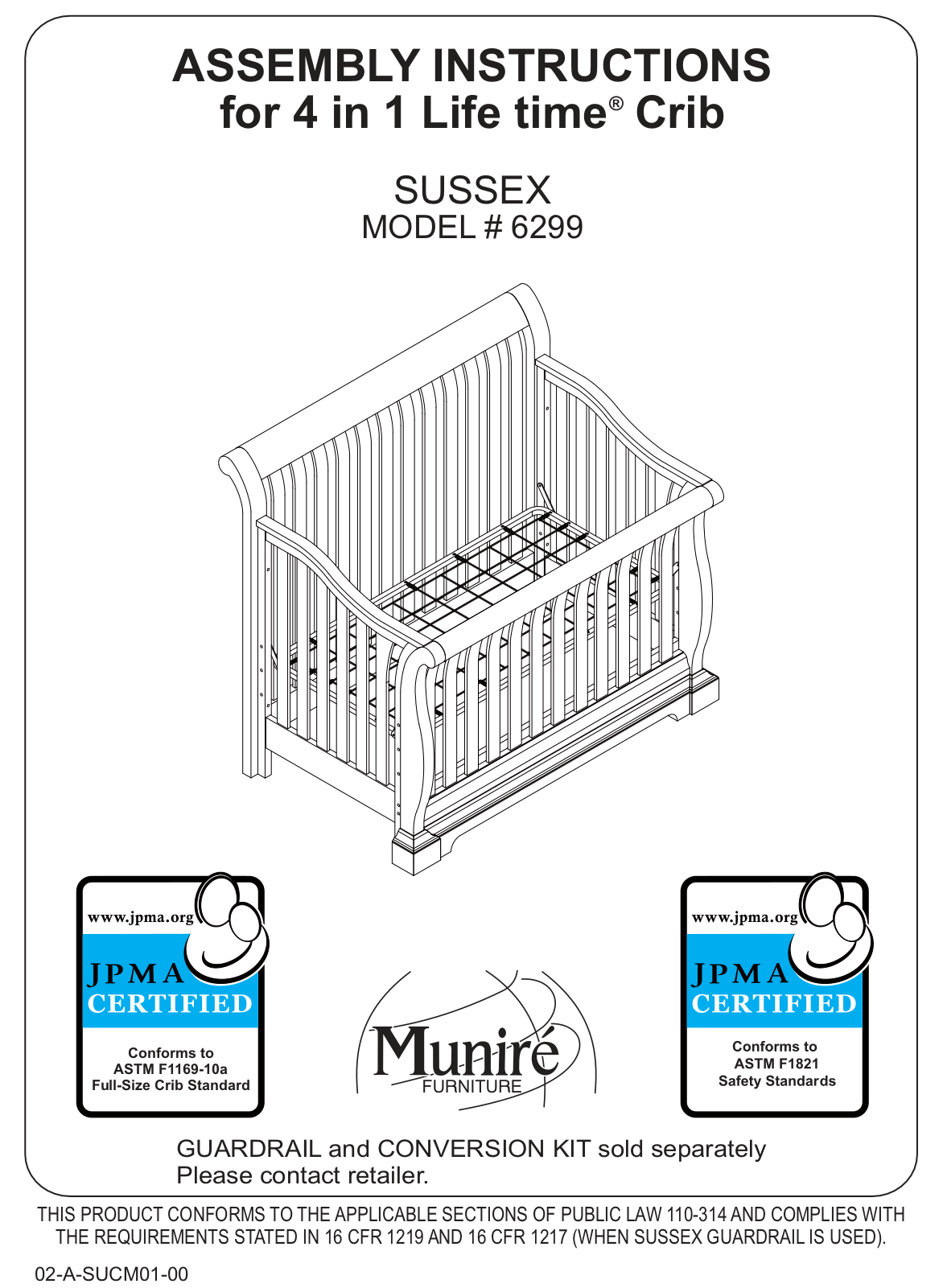

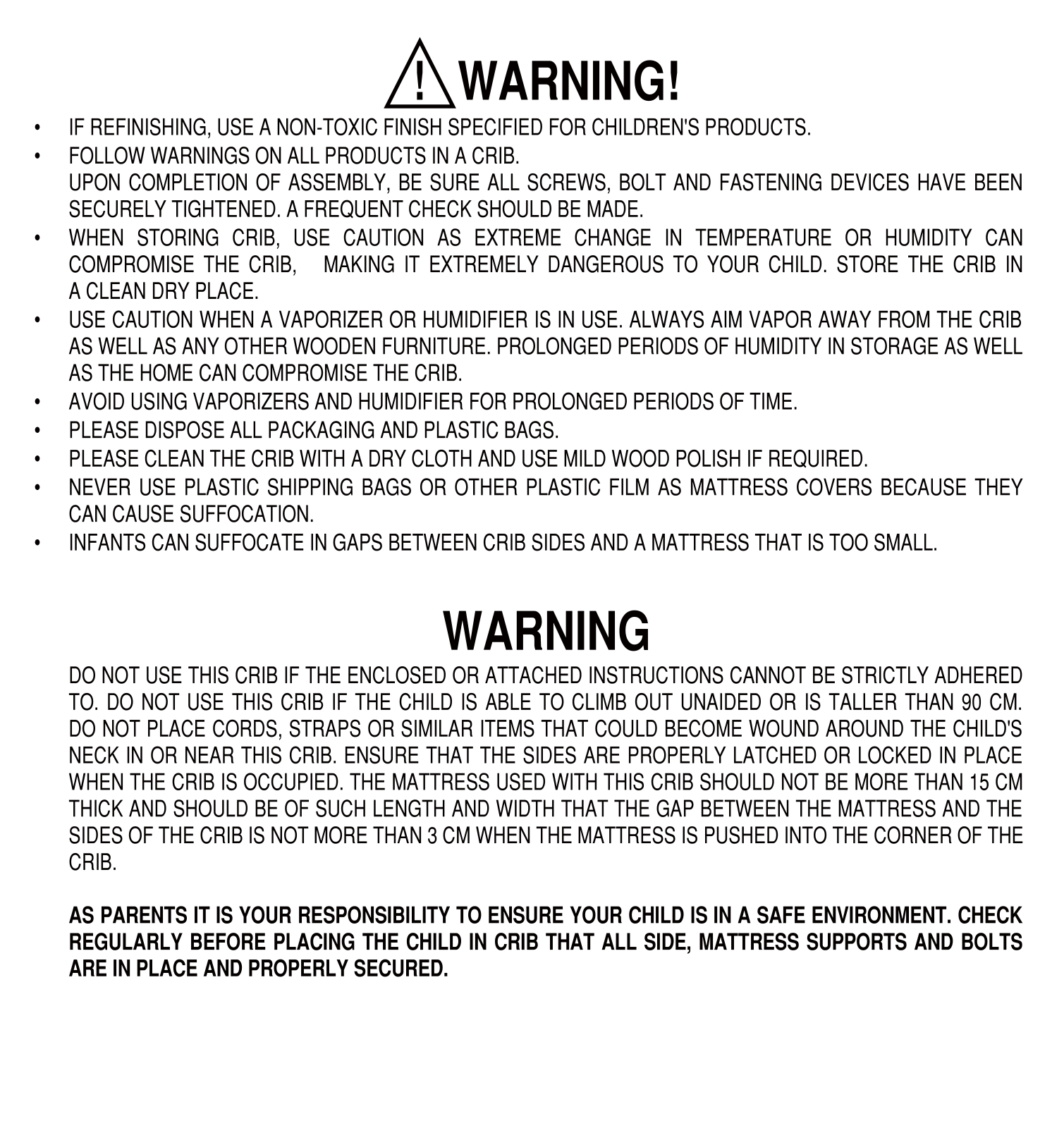

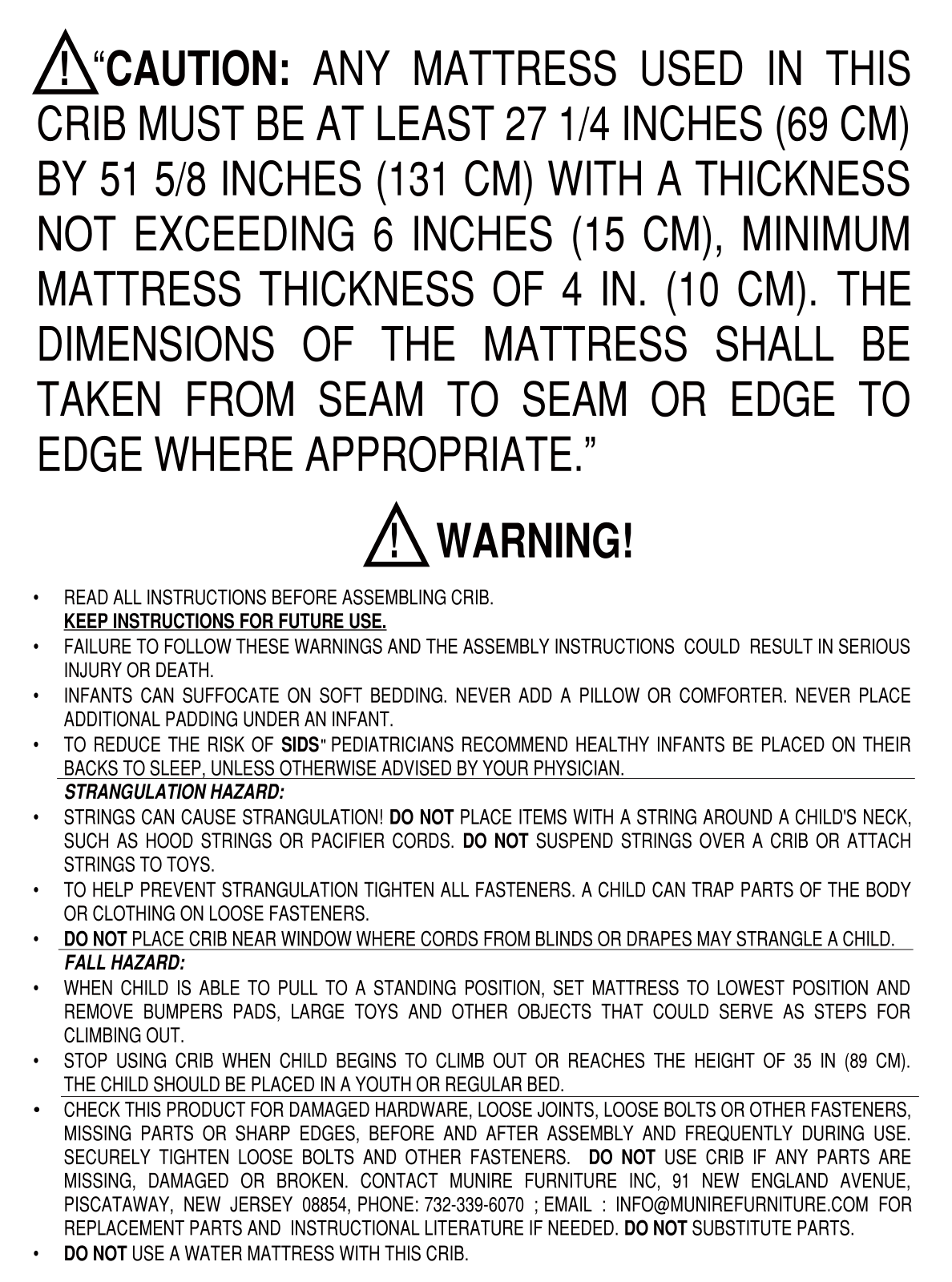

ASSEMBLY INSTRUCTIONS
®
for 4 in 1 Life time Crib
SUSSEX
MODEL # 6299
Conforms to
ASTM F1169-10a
Full-Size Crib Standard
GUARDRAIL and CONVERSION KIT sold separately
Please contact retailer.
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTIONS OF PUBLIC LAW 110-314 AND COMPLIES WITH
THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN SUSSEX GUARDRAIL IS USED).
02-A-SUCM01-00

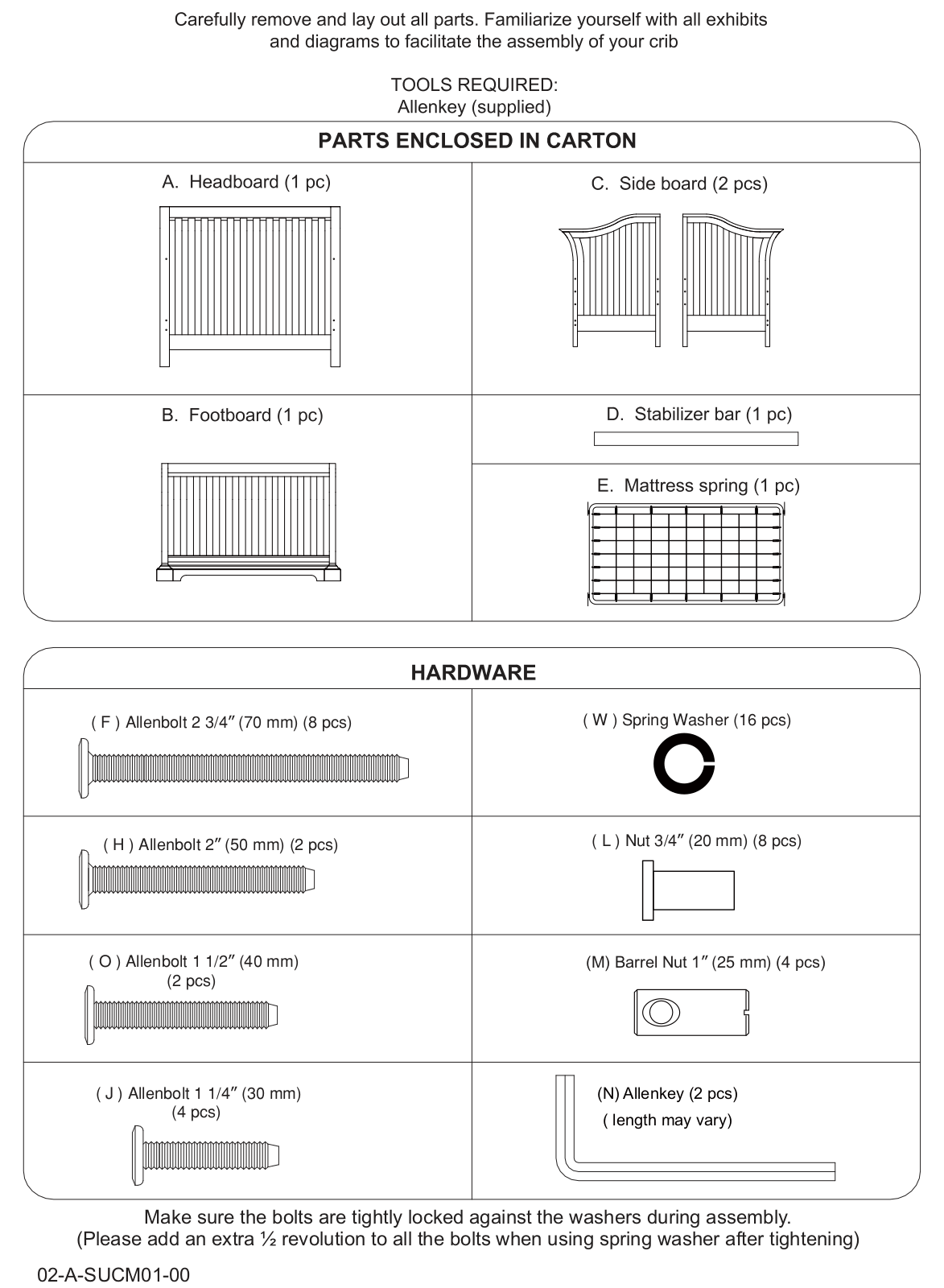

( F ) Allenbolt 2 3/4 (70 mm) (8 pcs)”
( W ) Spring Washer (16 pcs)
( H ) Allenbolt 2” (50 mm) (2 pcs)
( O ) Allenbolt 1 1/2” (40 mm)
(2 pcs)
( J ) Allenbolt 1 1/4 (30 mm)
(4 pcs)
”
( L ) Nut 3/4 (8 pcs)” (20 mm)
(M) Barrel Nut 1 (4 pcs)” (25 mm)
(N) Allenkey (2 pcs)
( length may vary)
Make sure the bolts are tightly locked against the washers during assembly.
(Please add an extra ½ revolution to all the bolts when using spring washer after tightening)
02-A-SUCM01-00
F. Allenbolt 2 3/4 (70 mm) (8 pcs)”
(N)
N
STEP 1.1
(F)
L. Nut 3/4 (20 mm) (4 pcs)”
INSIDE / INTÉRIEUR
W. Spring Washer (8 pcs)
M. Barrel Nut 1” (25 mm) (4 pcs)
FACE / AVANT
RIGHT / DROIT
INSIDE / INTÉRIEUR
(F)
(N)
(W)
(L)

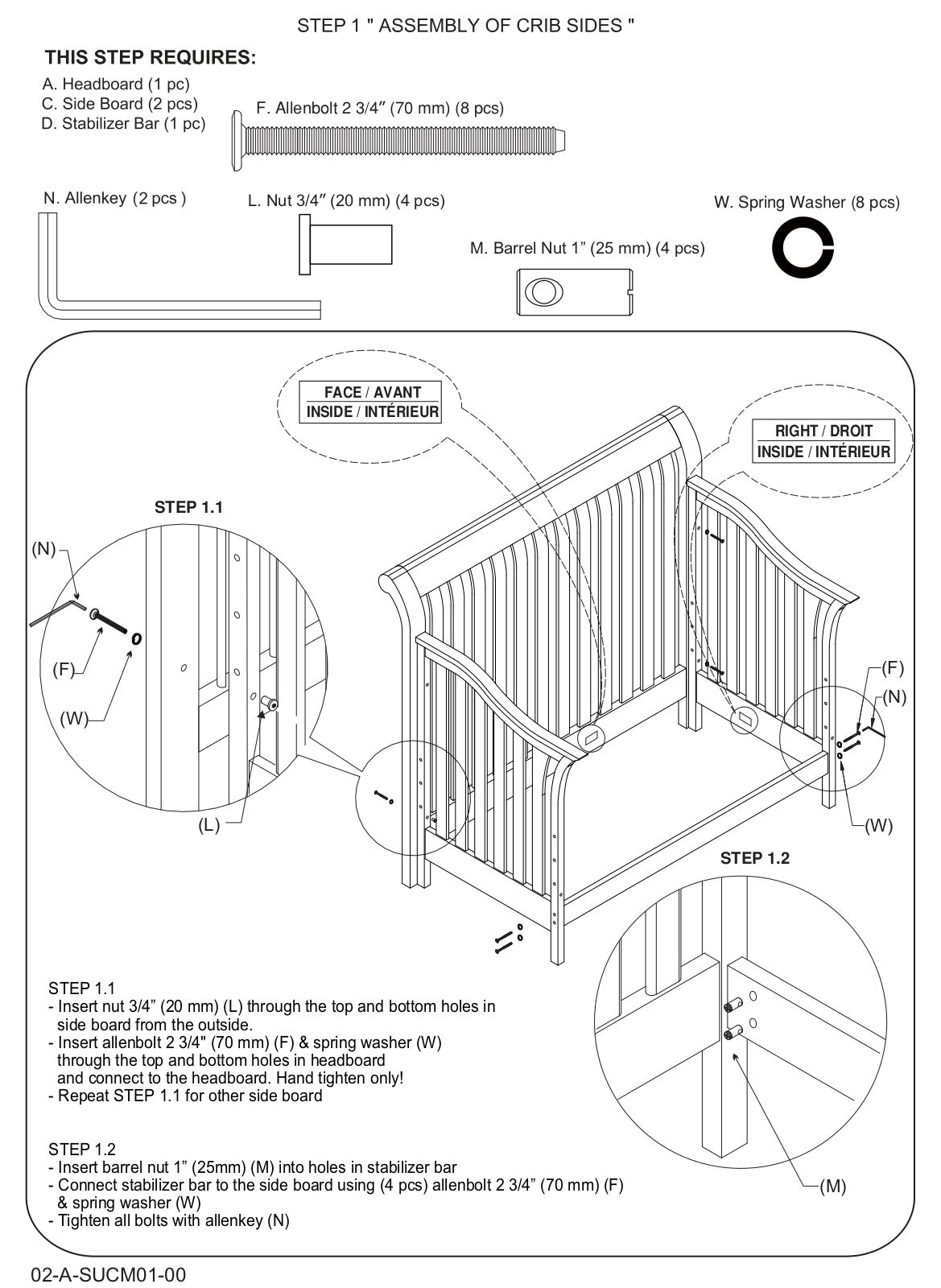

STEP 1.1
- Insert nut 3/4” (20 mm) (L) through the top and bottom holes in
side board from the outside.
- Insert allenbolt 2 3/4" (F) & spring washer (W)
(70 mm)
through the top and bottom holes in headboard
and connect to the headboard. Hand tighten only!
- Repeat STEP 1.1 for other side board
STEP 1.2
- Insert barrel nut 1” (25mm) (M) into holes in stabilizer bar
- Connect stabilizer bar to the side board using (4 pcs) allenbolt 2 3/4” (F)
(70 mm)
& spring washer (W)
- Tighten all bolts with allenkey (N)
02-A-SUCM01-00
(W)
STEP 1.2
(M)
2
N. Allenkey (2 pcs)
J. Allenbolt 1 1/4 (30 mm) (4 pcs)”
L. Nut 3/4 (20 mm) (4 pcs)”
W. Spring Washer (4 pcs)
FIG. 3
(W)
(J)
(N)
(L)
(W)
(J)
(N)

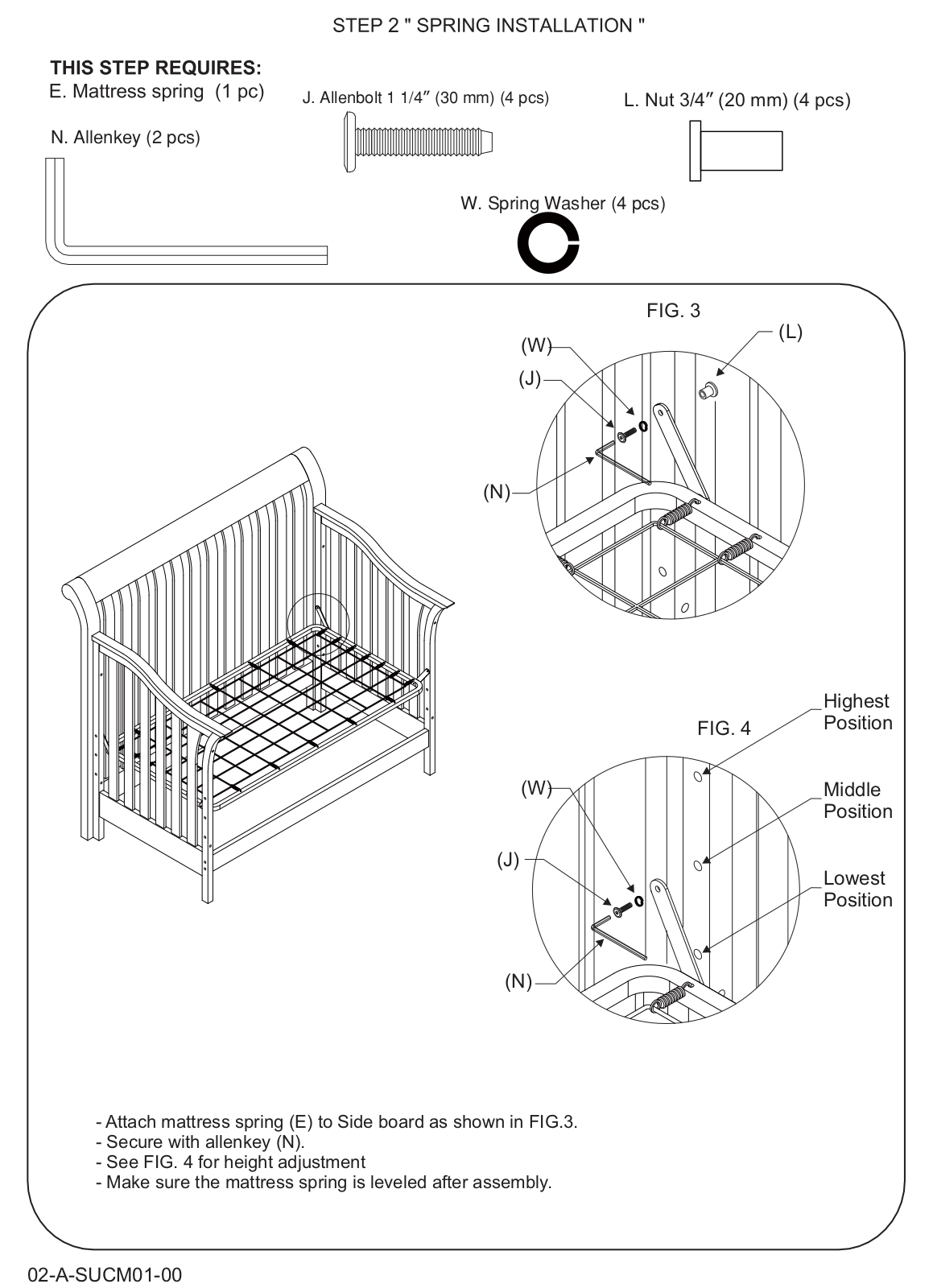

- Attach mattress spring (E) to Side board as shown in FIG.3.
- Secure with allenkey (N).
- See FIG. 4 for height adjustment
- Make sure the mattress spring is leveled after assembly.
FIG. 4
Highest
Position
Middle
Position
Lowest
Position
02-A-SUCM01-00
3
H. Allenbolt 2” (50 mm) (2 pcs)
N
W. Spring Washer (4 pcs)
O. Allenbolt 1 1/2” (40 mm) (2 pcs)
Inline
and have
FIG. 5
no gap
(O)
(W)
FIG. 6
(N)
(B)
(H)
(W)

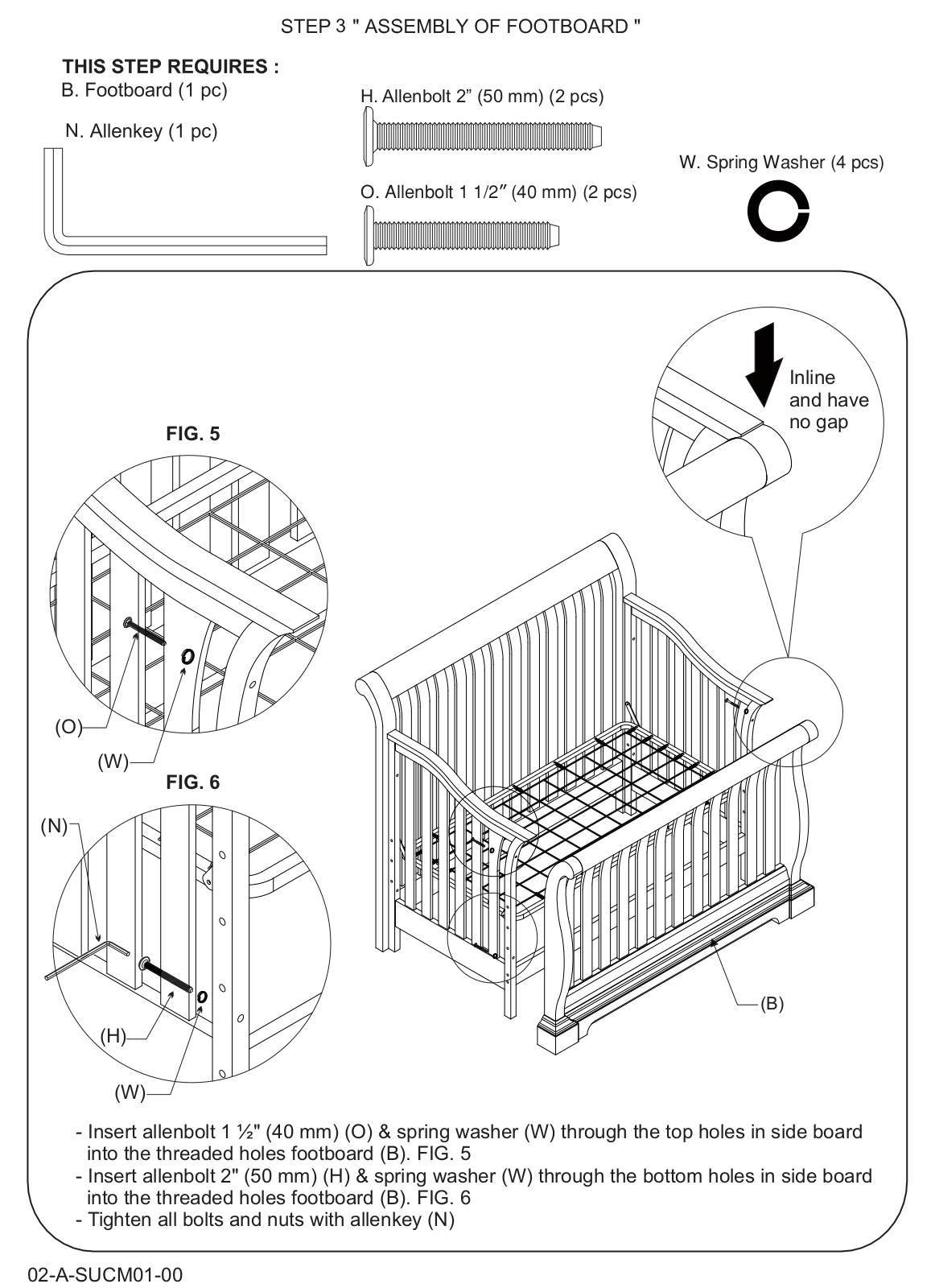

- Insert allenbolt 1 ½" (40 mm) (O) & spring washer (W) through the top holes in side board
into the threaded holes footboard (B). FIG. 5
- Insert allenbolt 2" (H) & spring washer (W) through the bottom holes in side board
into the threaded holes footboard (B).
(50 mm)
FIG. 6
- Tighten all bolts and nuts with allenkey (N)
02-A-SUCM01-00
"
- - -

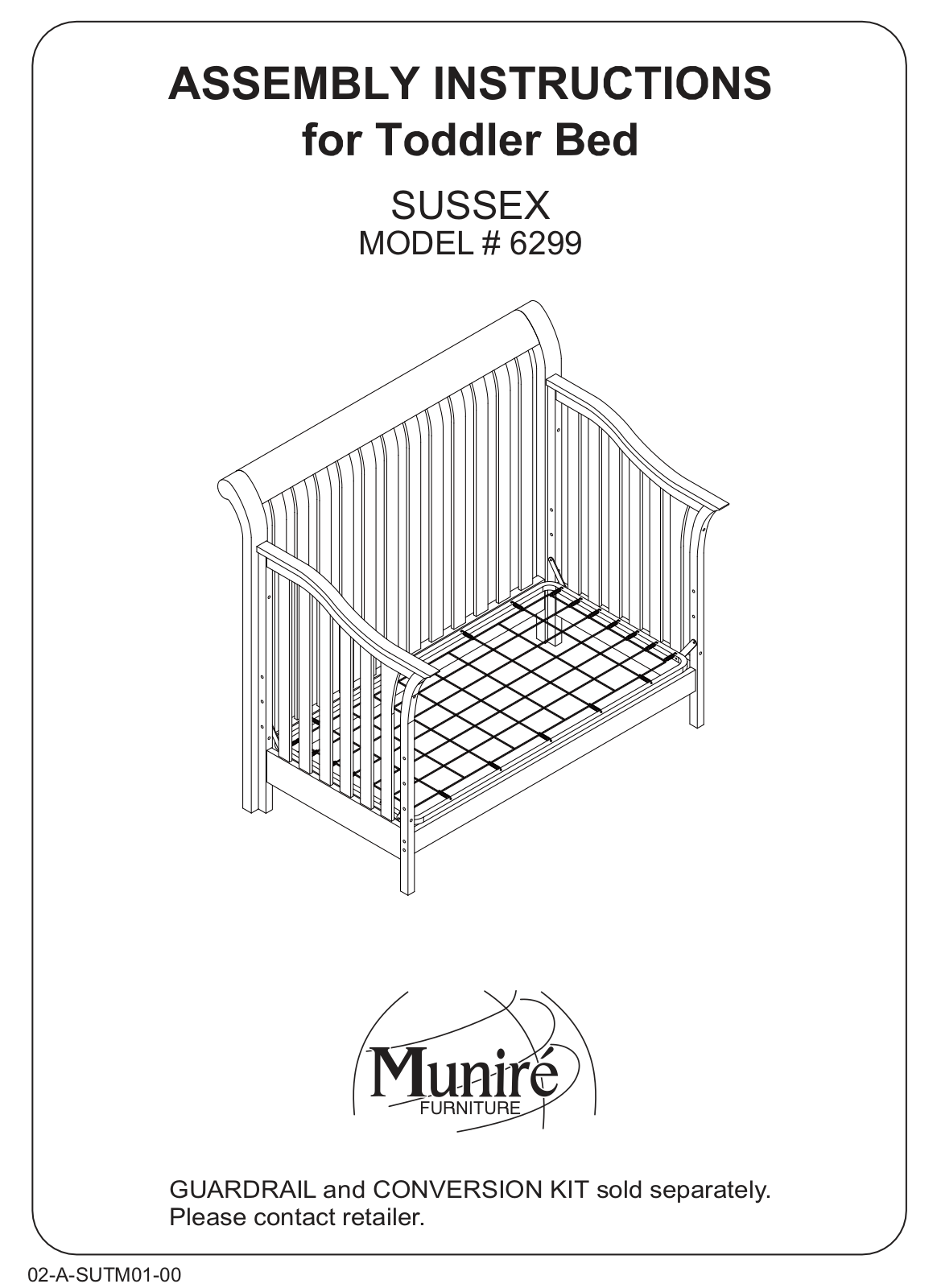

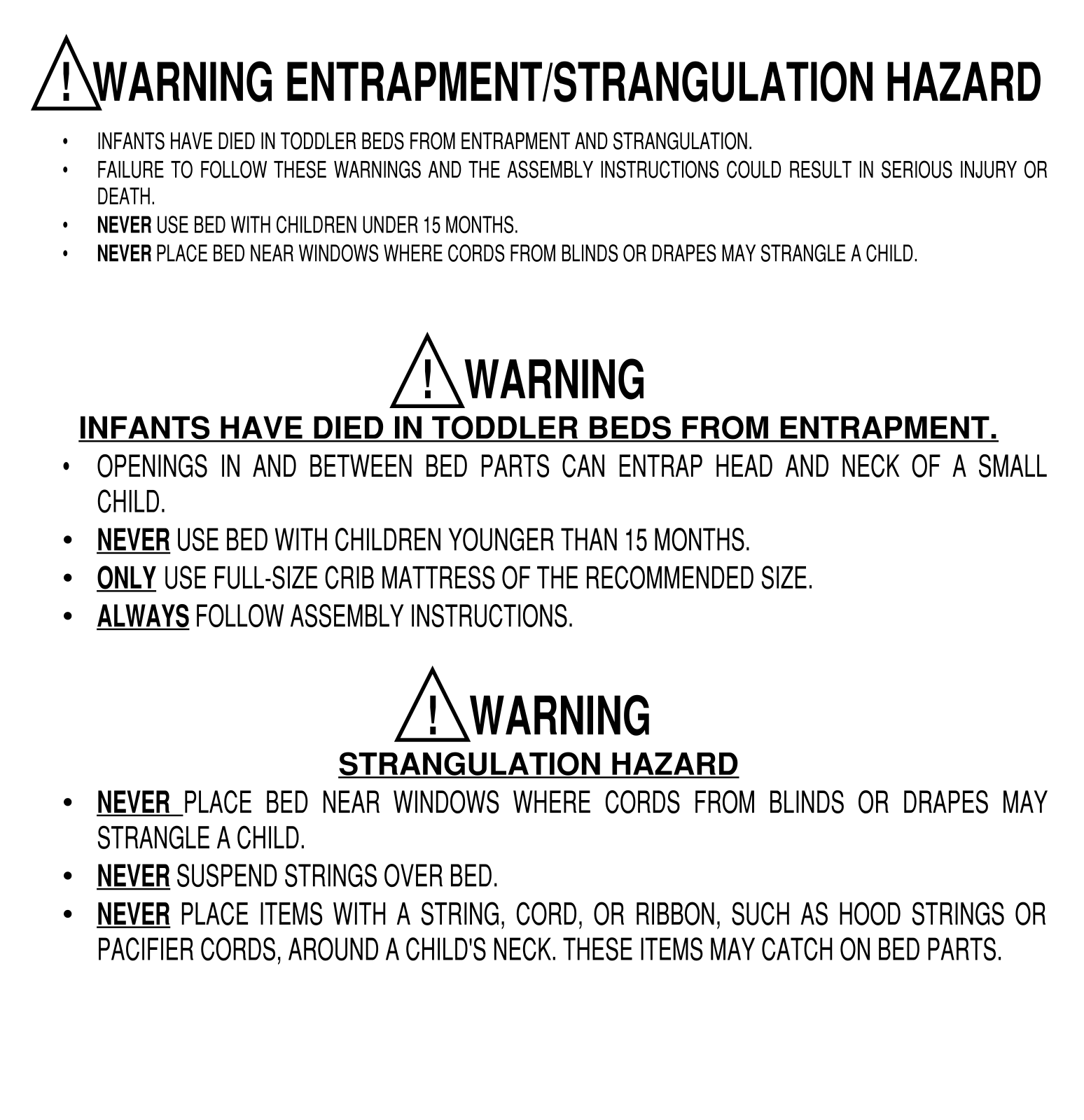

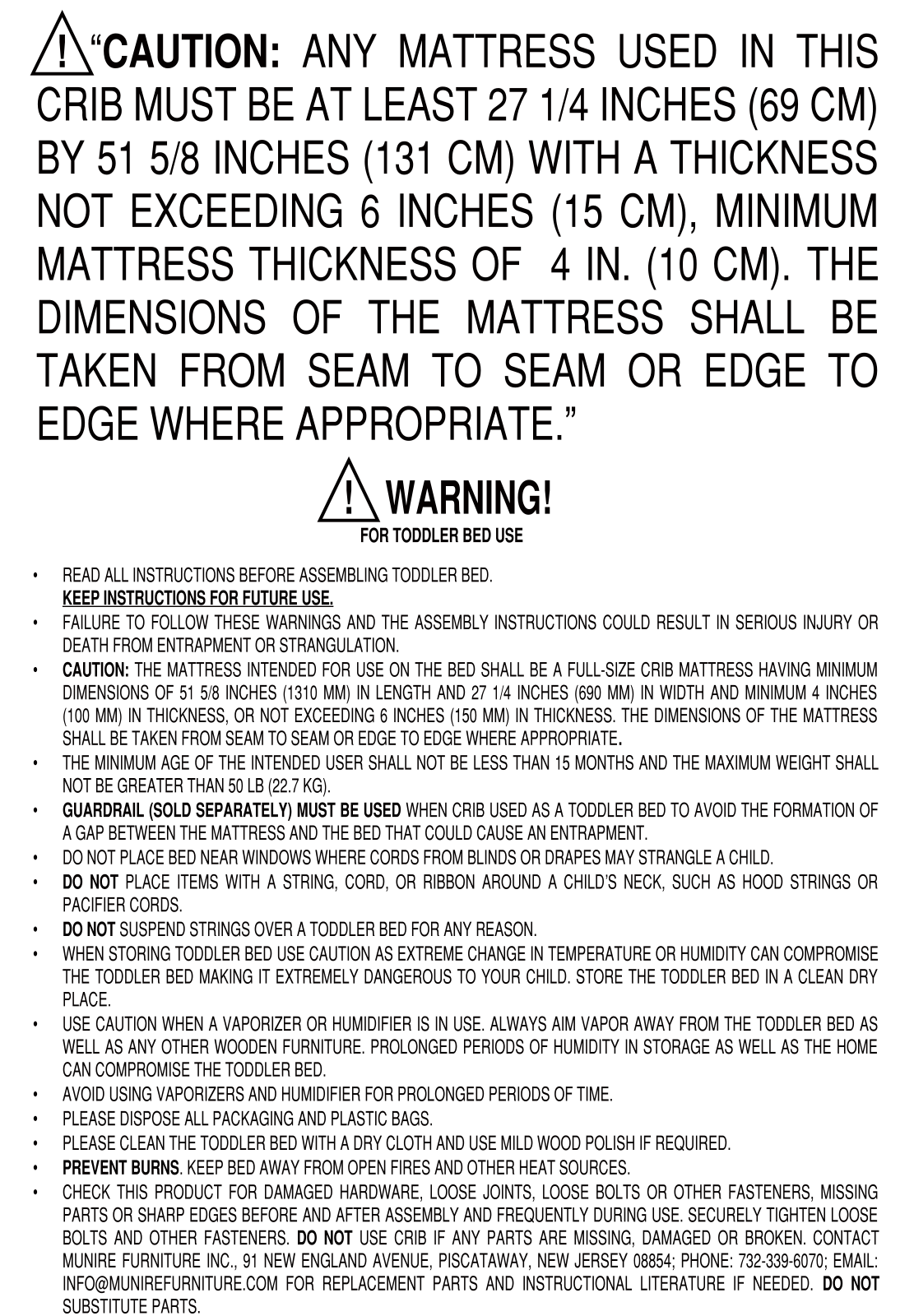

SUSSEX
MODEL # 6299
02-A-SUTM01-00
GUARDRAIL and CONVERSION KIT sold separately.
Please contact retailer.

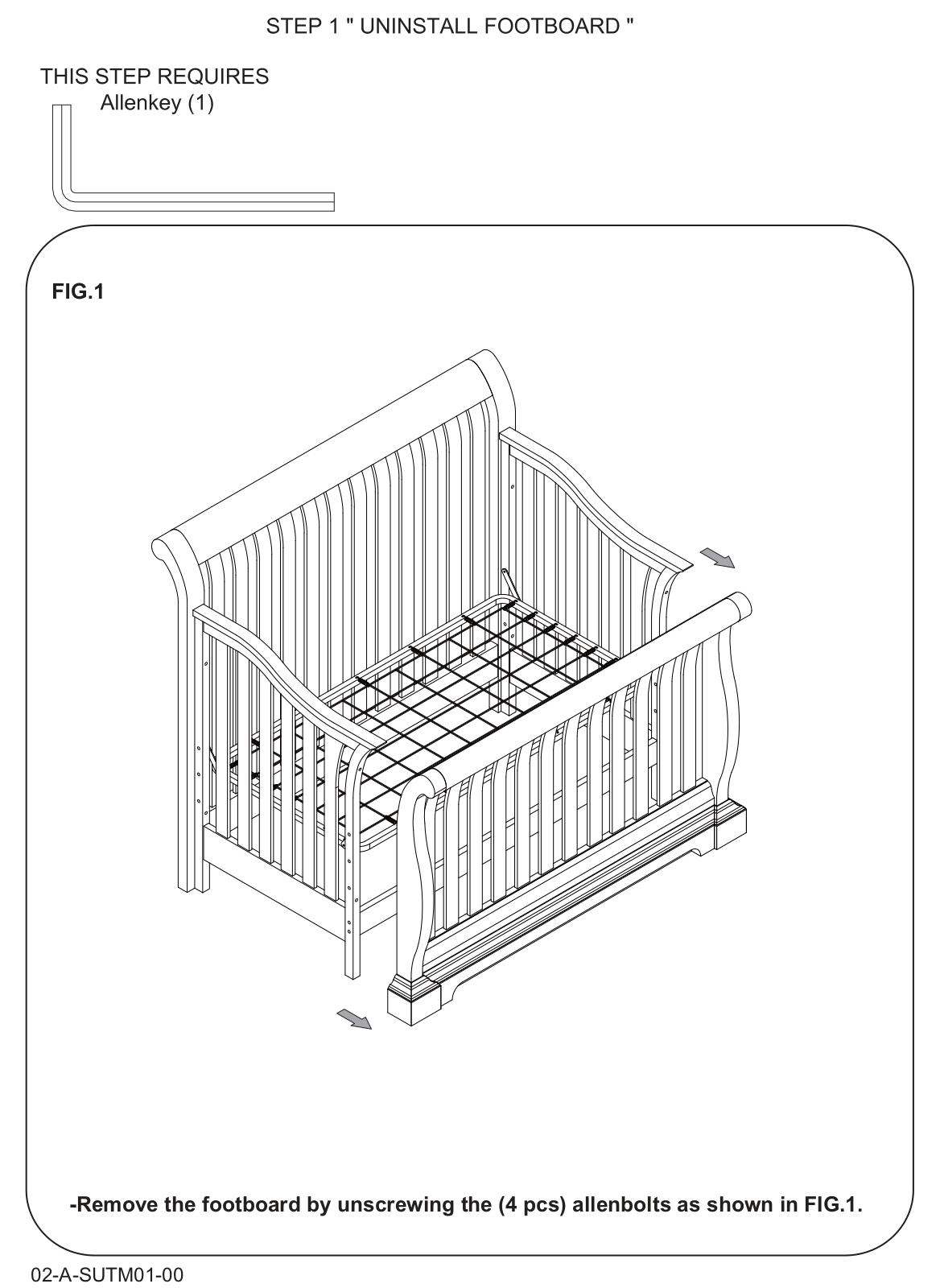

-Remove the footboard by unscrewing the (4 pcs) allenbolts as shown in FIG.1.
02-A-SUTM01-00
(N)
(2 pcs)
these hardware are included in the CRIB
J. Allenbolt 1 1/4 (30 mm) (4 pcs)”
L. Nut 3/4” (20 mm) ( 4 pcs )
W. Spring Washer (4 pcs)
(J)
(N)
(W)
(L)
Lowest
Position

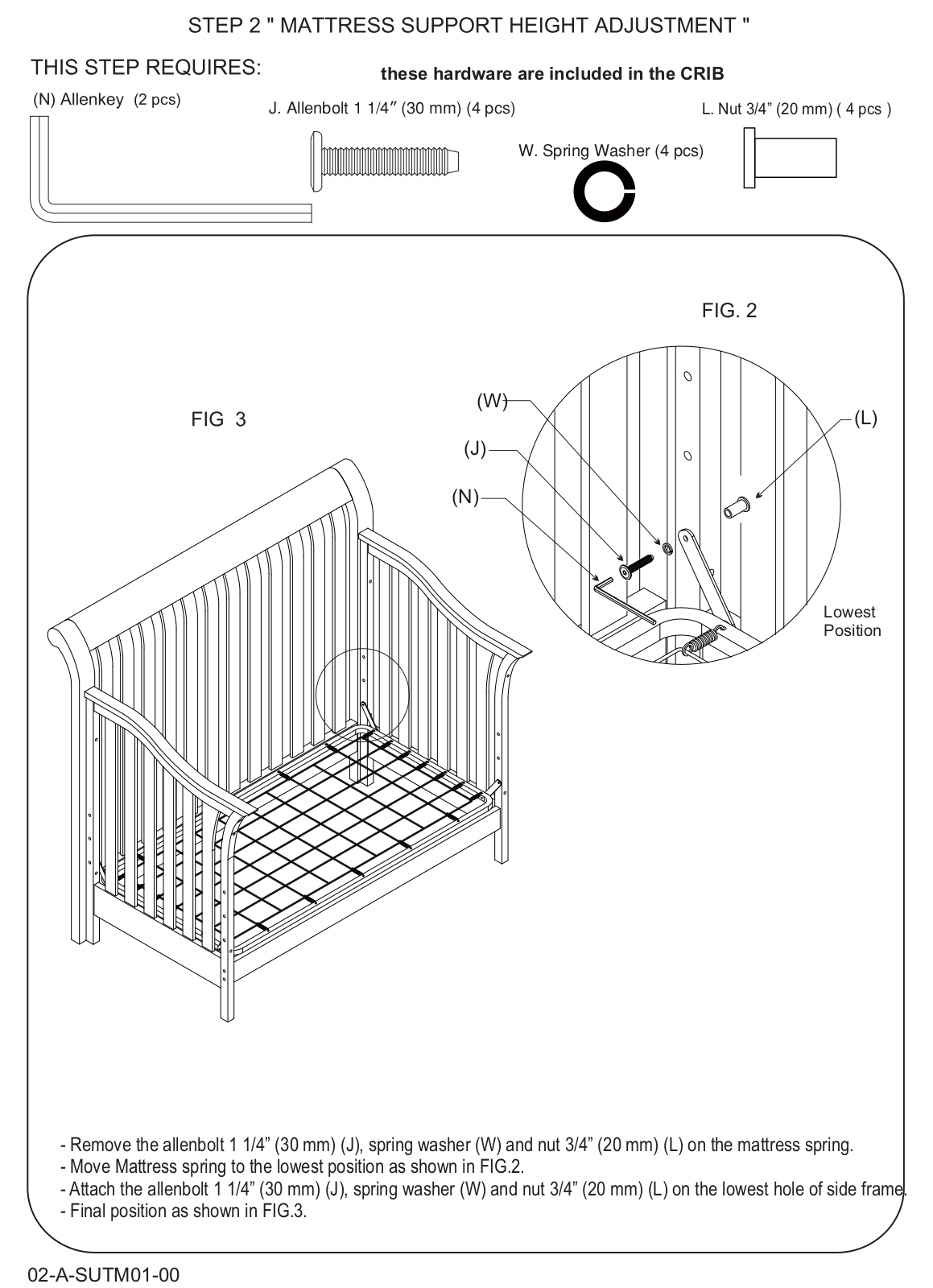

- Remove the allenbolt 1 1/4” (30 mm) (J), spring washer (W) and nut 3/4” (20 mm) (L) on the mattress spring.
- Move Mattress spring to the lowest position as shown in FIG.2.
- Attach the (J) and nut (L) on the lowest hole of side frame.
allenbolt 1 1/4” (30 mm) , spring washer (W) 3/4” (20 mm)
- Final position as shown in FIG.3.
02-A-SUTM01-00
