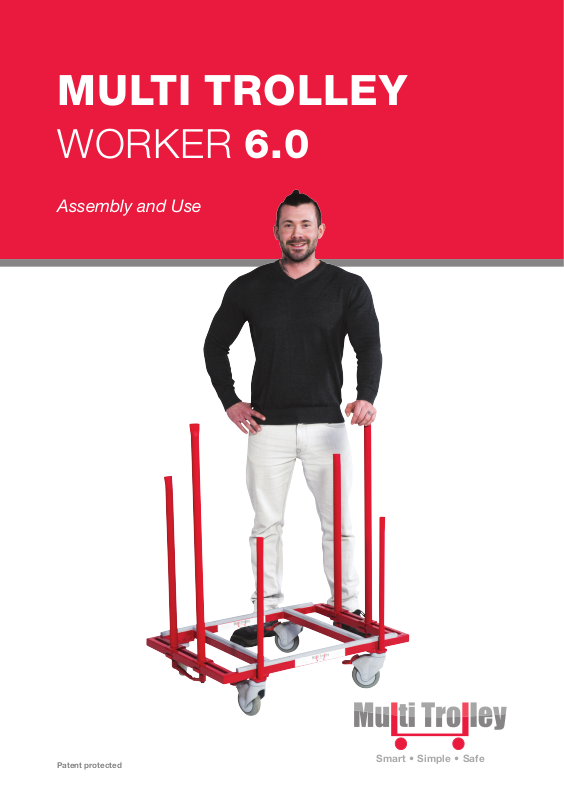

MULTI TROLLEY
WORKER 6.0
Assembly and Use
Patent protected
Smart • Simple • Safe
Contents
• 1x Frame with 4x locknut
• 4x Wheel
• 2x Fixed support poles 16.5"
• 2x Adjustable support posts 22"
• 2x Adjustable support posts 30"
• 4x Mounting brackets for adjustable
support posts
• 4x Adjustable handle
Assembly
For quick and easy assembly, follow these instructions:
Attach mounting plates
either side of frame.
Turn handle to adjust post.
Press button to adjust handle
positioning only.
Keep assembly and user manual for future reference.
Ensure these are properly
mounted and tightened.
Ensure locknut is screwed
securely before use
19mm wrench.
SMART • SIMPLE • SAFE
Use
Before use check mountings of wheels, fi xed support poles and adjustable support posts.
For secure use observe the following points below:
A B
Max. Load 250 kg / 550 lbs Higher objects increase risk of tipping,
550
lbs.
C D
Ensure the wheels are pointing downwards.
Lock the wheels before tipping of object.
ensure object is leaning against adjustable
support posts.
In narrow spaces be careful of trapping fi ngers.
90°
E
Ensure brakes are locked
before mounting on the object.
MULTI TROLLEY
WORKER 6.0
Technical Specifi cations
Height: 31"
Width: 20.5"
Adj
ustable posts: 30" and 22"
Fixed posts: 16.5"
Weight: 35 lbs
Keep assembly and user manual for future reference.
Applications
Recommended post length
Multi Trolley brand & products are patent-protected
MULTI TROLLEY
WORKER 6.0
Desk
Table
Conference table, large
Conference table, small
Bed
Bed, King Size
Sofa
Whiteboard, large
Whiteboard, small
Door
Panel
Folding table
Cabinet, bookshelf, etc.
* Replaces Fixed poles 16.5 in.
Fixed pole
16.5 inches
Adjustable post
22 inches
Adjustable post
30 inches
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓* ✓
✓* ✓
✓* ✓
No posts or poles required
Adjustable post
38 inches
SJF Material Handling Inc.
support@sjf.com | www.sjf.com
(320) 485-4974 or (800) 598-5532
MAJ 2018
