MULTI TROLLEY
STANDARD 6.0
Assembly and Use
Patent protected
Smart • Simple • Safe
Page 2
Contents
• 1x Frame with 4x locknut
• 4x Wheel
• 2x Fixed support poles 16.5"
• 2x Adjustable support posts 30"
• 2x Mounting brackets for adjustable
support posts with handle
Assembly
For quick and easy assembly, follow these instructions:
Attach mounting plates
either side of frame.
Tighten locknut with a 19
mm wrench.
Keep assembly and user manual for future reference.
Ensure these are properly
mounted and tightened.
Turn handle to adjust post.
Press button to adjust handle
positioning only.
Page 3
SMART • SIMPLE • SAFE
SMART • SIMPLE • SAFE
Use

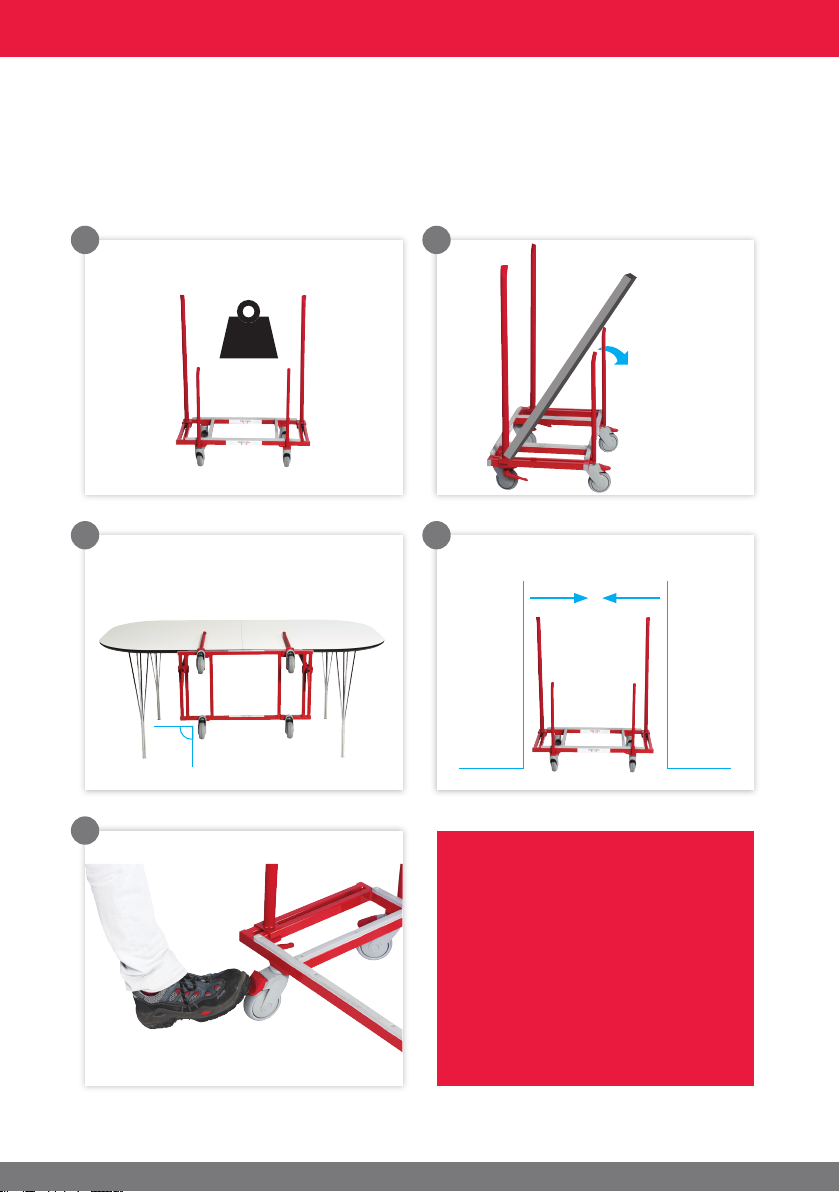

Before use check mountings of wheels, fi xed support poles and adjustable support posts.
For secure use observe the following points below:
A B
Max. Load 250 kg / 550 lbs
550
lbs.
Tall objects increase
the risk of tipping.
Lean against
adjustable posts.
C D
Ensure the wheels are pointing downwards.
Lock the wheels before tipping of object.
In narrow spaces be careful of trapping fi ngers.
90°
E
MULTI TROLLEY
STANDARD 6.0
Technical Specifi cations
Height: 31 inches
Width: 17 inches
Adjustable posts: 30 inches
Fixed posts: 17 inches
Weight: 26 lbs
Keep assembly and user manual for future reference.
Page 4
Applications
Recommended post length
Multi Trolley brand & products are patent-protected
MULTI TROLLEY
STANDARD 6.0
Desk
Table
Conference table, large
Conference table, small
Bed
Bed, King Size
Sofa
Whiteboard, large
Whiteboard, small
Door
Panel
Folding table
Cabinet, bookshelf, etc.
* Replaces Fixed poles 16.5 in.
Fixed pole
16.5 inches
Adjustable post
22 inches
Adjustable post
30 inches
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓ ✓
✓* ✓
✓* ✓
✓* ✓
No posts or poles required
Adjustable post
38 inches
SJF Material Handling Inc.
[email protected] | www.sjf.com
(320) 485-4974 or (800) 598-5532
MARS 2018
