MTIC – Indicator Controller
Four Actuation Delays:
Used to average out wave action and for other control functions.
Method of Operation:
The MultiTrode MTIC liquid level monitoring and control system was
developed to provide a solution for interfacing to building
management systems and town water/sewerage systems.
The system can directly control operation of pumps and provide level indication at the site, as well as at
up to four remote locations, using 0-10V DC or 4-20mA current loop.
Until the advent of this MultiTrode system, these facilities had not been economically practical for
hydraulic services in high-rise buildings.
MTIC Installation & Operation Manual
Revision 6.0
7 August 2013
MULTITRODE® and MULTISMART® are registered trademarks of MultiTrode Pty Ltd in Australia, USA, and Europe. PUMPVIEW® is a
registered trademark of MultiTrode Pty Ltd in the USA and Australia. Designs registered for the MultiSmart Pump Controller Remote and
Base Modules in Australia, USA, Europe and China. Patents pending in Australia, USA, and Europe.
©2013 MULTITRODE PTY LTD. THIS PUBLICATION IS PROTECTED BY COPYRIGHT. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY
PROCESS, ELECTRONIC OR OTHERWISE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MULTITRODE PTY LTD.
Page 4
MTIC Installation & Operation Manual
Page 4 of 18 MTIC Manual R6
WARNINGS AND CAUTIONS
Information to User
Please read through the manual so you will know how to operate and obtain maximum performance
from your product. After you have finished reading the manual, put it away in a safe place for future
reference.
WARNING:
Do not use this unit in environments that may contain flammable/explosive or
chemically aggressive gases or powders.
Page 5
MTIC Installation & Operation Manual
MTIC Manual R6 Page 5 of 18
Contents
1 Introduction .......................................................................................................................... 6
1.1 Front Panel .......................................................................................................................... 7
2 Function DIP Switches ........................................................................................................ 8
2.1 Timer & Sensitivity DIP Switches ......................................................................................... 8
2.2 Output Relay DIP Switches ................................................................................................. 9
2.3 Probe Inputs ........................................................................................................................ 9
2.4 Output Relays ...................................................................................................................... 9
2.5 Analog Output .................................................................................................................... 10
2.6 Power Supply Terminals & Ratings Label .......................................................................... 10
3 Installation & Power-Up ..................................................................................................... 10
4 Mounting ............................................................................................................................ 11
5 Electrical Connections ....................................................................................................... 12
5.1 Probe Inputs ...................................................................................................................... 12
5.2 Output Relays .................................................................................................................... 13
5.3 Analog Output .................................................................................................................... 13
5.4 Power Connection ............................................................................................................. 13
6 MTIC – Pump Station Schematic & Overview .................................................................. 14
7 MTIC – Installation Sheet No. 1 ........................................................................................ 16
7.1 Time Delay & Sensitivity Settings ...................................................................................... 16
8 MTIC – Installation Sheet No. 2 ........................................................................................ 17
Page 6
MTIC Installation & Operation Manual
Page 6 of 18 MTIC Manual R6
1 Introduction
WARNING:
Do not use this unit in environments that may contain flammable/explosive or
chemically aggressive gases or powders.
The MTIC is a conductive liquid level indicator and controller which continuously monitor liquid level in
order to control the operation of up to 10 appliances. It will work in the following modes:
Fill (Charge) mode: Filling a tank
Empty (Discharge) mode: Emptying a tank
In a standard installation, the liquid level is sensed via a MultiTrode multi-sensored probe. Individual
sensors can be used in installations, if desired. Ten output relays control pumps, valves and, in addition,
there are 4-20mA and 0-10V stepped analogue outputs for use with variable speed drives, chart
recorders etc.
A 4-way DIP switch on the rear panel provides for the setting of four sensitivities and four time delays. In
addition, a 10-way DIP switch allows for the setting of the relays as Normally Open or Normally Closed.
Page 7
MTIC Installation & Operation Manual
MTIC Manual R6 Page 7 of 18
1.1 Front Panel
POWER ON
1
2
3
4
5
6
7
8
9
10
LAG
STANDBY
LEAD
PUMP OFF
LO ALARM
HI ALARM
MU LT I TR O D E IN D IC ATO R CO N TR OL LE R
IC
MT
MT
IC

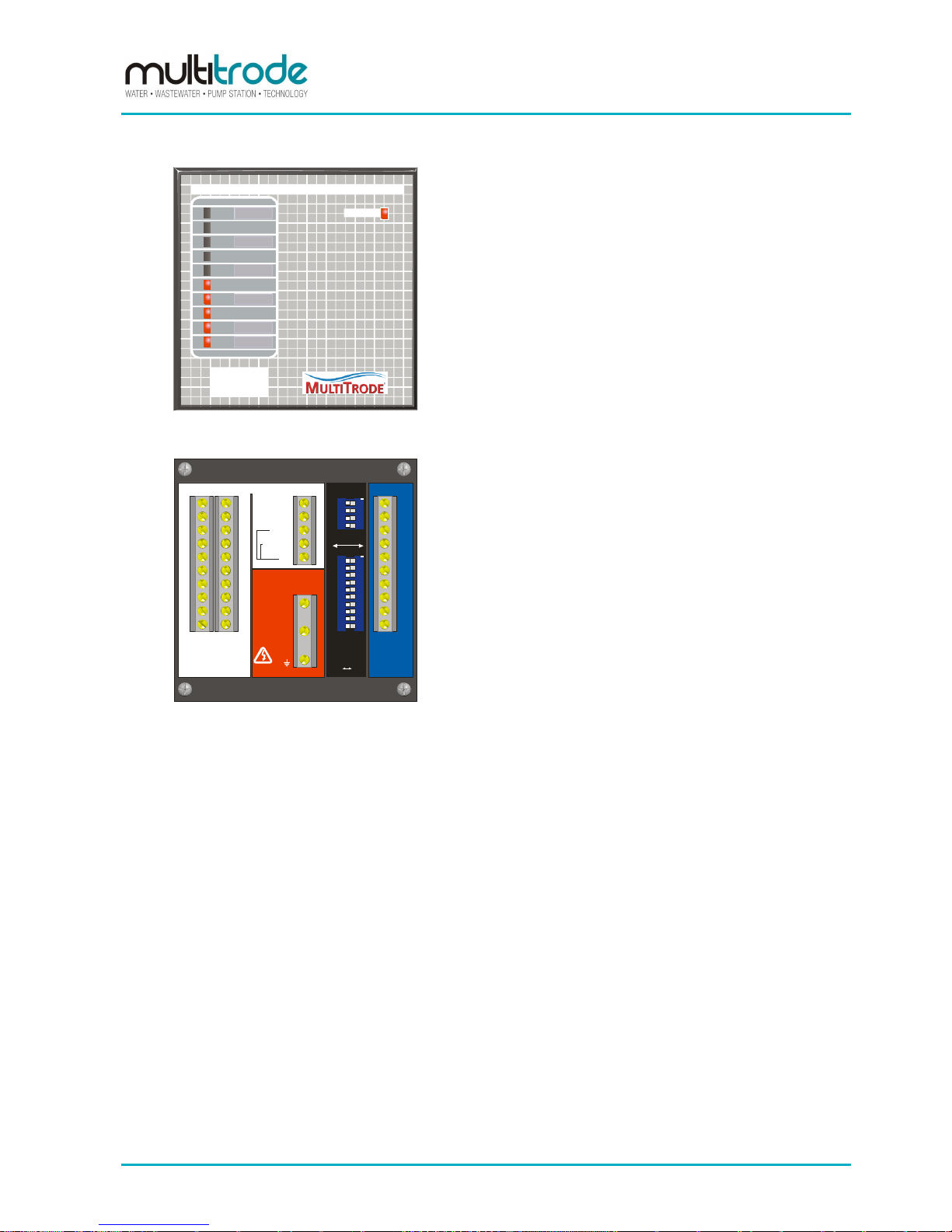

Figure 1 - MTIC Indicator Controller Front Panel
The MTIC has 11 LED’s. The bar graph on the lefthand side indicates level, whilst the green LED in the
upper right-hand corner indicates power availability.
There is a slot located next to the bar-graph, that is
used for the placement of labels to indicate at what
levels pumps and alarms operate. Up to 10 labels can
be placed here.
PROBE
INPUTS
MAINS POWER
OUTPUTS
A
N
E
240VAC
50/60Hz
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
+ 12V
-12
0-10V
4-20mA
0V
see fig #3
see fig #1
NO NC
SELECT
FUNCTION
A
B
C
D
1
2
3
4
5
6
7
8
9
10
see fig #2
1 2 3 4 5 6 7 8 9 1 0
ON
1 2 3 4
ON
see fig #1
MTIC
S/N: ___________
Figure 2 - MTIC Indicator Controller Back Panel
The MTIC rear panel (see Figure 2), contains the
terminals, as well as function DIP switches, used to
preset the unit's basic operations.
This section describes the function of each terminal
and DIP switch.
Page 8
MTIC Installation & Operation Manual
Page 8 of 18 MTIC Manual R6
2 Function DIP Switches
An important step in the commissioning of the controller is to preset the positions of the rear panel DIP
switches. This will set up the basic operation of the unit to match the installation. The following tables
show the switch functions.

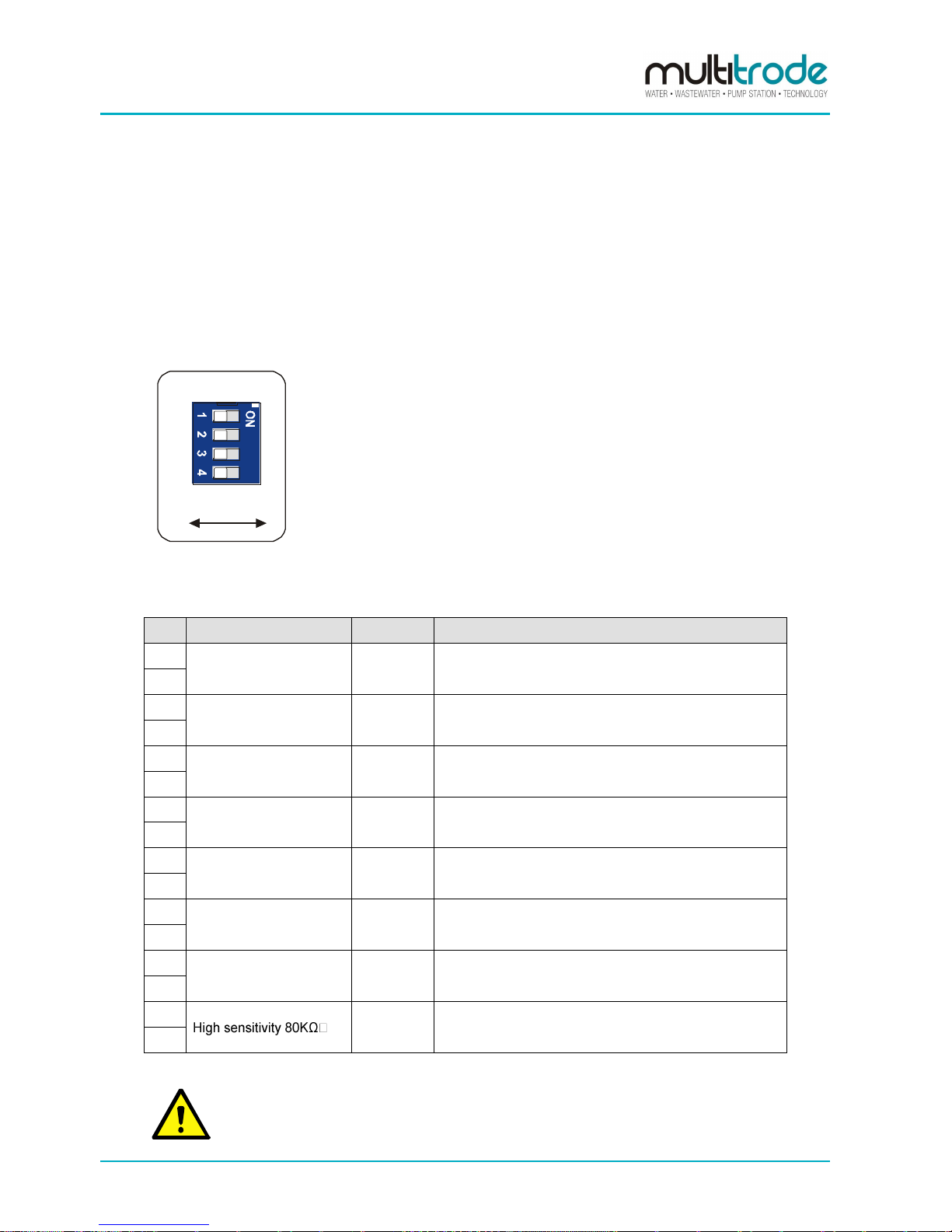

2.1 Timer & Sensitivity DIP Switches
This section of the back panel is black.
SELECT
FUNCTION
A
B
C
D
see fig #2
Figure 3 – The MTIC should be switched off prior to altering the DIP switch settings.
SW
Function
Position
Description
A
Timer
►
►
Instantaneous actuation when level reaches sensor.
B
A
Timer
►
◄
Time delay on actuation approx. 5 seconds.
B
A
Timer
◄
►
Time delay on actuation approx. 10 seconds.
B
A
Timer
◄
◄
Time delay on actuation approx. 15 seconds.
B
C
Extra low sensitivity 1KΩ
◄
◄
For concentrates such as acids, minerals, alkalis leaving
residue.
D
C
Normal low sensitivity
4KΩ
◄
►
Acids, alkalis, diluted brine, sea water.
D
C
Normal sensitivity 20KΩ
►
◄
Sullage, sewage effluent, town water.
D
C
►
►
Effluent and processes with oil contaminants, purified
water.
D
NOTE:
Conductance may vary from liquid type as described above. Adjust sensitivity as
required.
Page 9
MTIC Installation & Operation Manual
MTIC Manual R6 Page 9 of 18

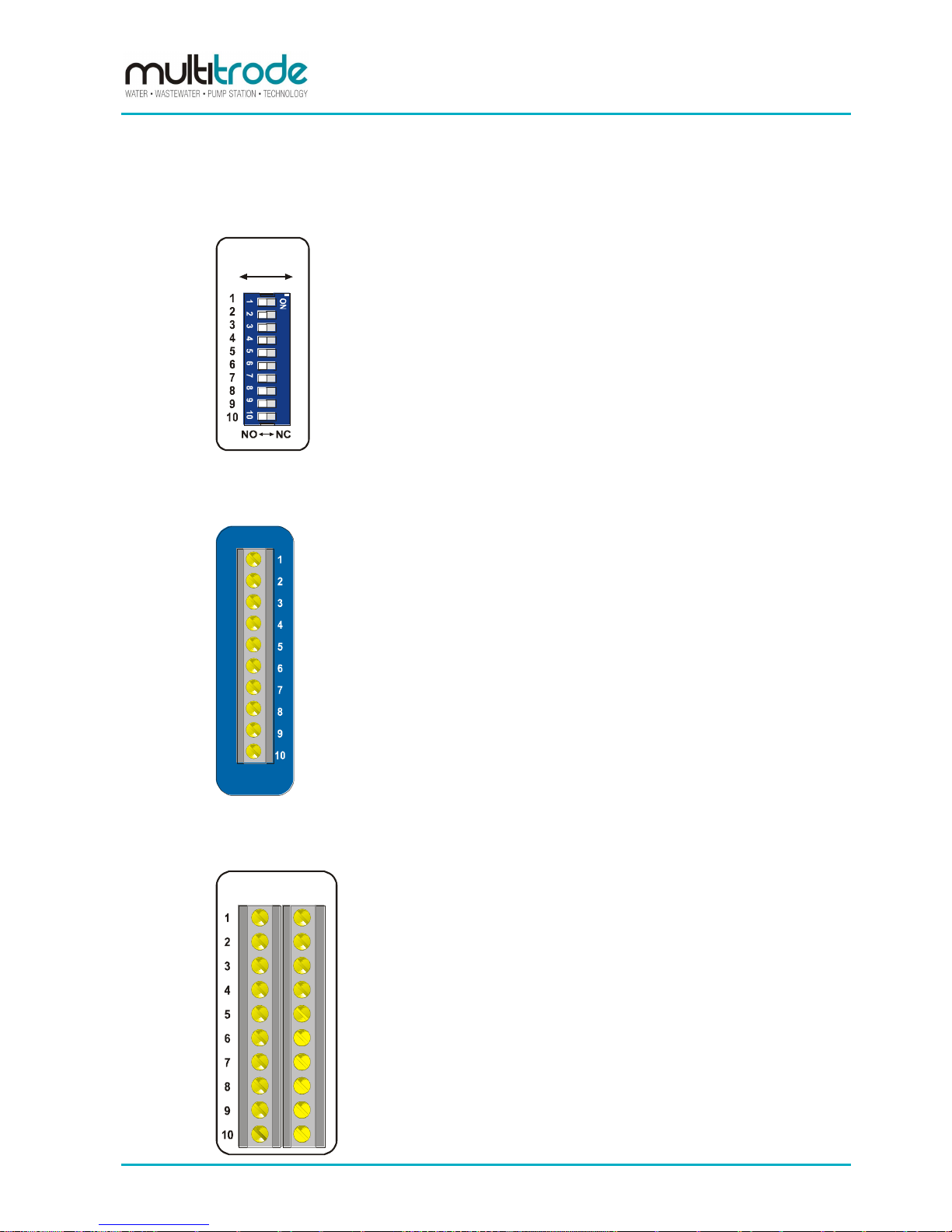

2.2 Output Relay DIP Switches
This section is black in colour on the rear panel.
SELECT
FUNCTION
see fig #1
Figure 4 – Output Relay DIP Switches
Setting a DIP switch to the left or right makes the corresponding output
relay act as a normally closed or normally open contact under the
following condition:
Power is supplied to the unit and no liquid covers the corresponding
sensor.
2.3 Probe Inputs
This section is blue in colour on the rear panel.
PROBE
INPUTS
see fig #3
Figure 5 – Probe Inputs
A MultiTrode probe would be the normal method of level detection.
Connection of ball floats is also accomplished via these terminals,
although this is not recommended for reliable level detection.
2.4 Output Relays
This section is white in colour on the rear panel.
OUTPUTS
see fig #1
Figure 6 – Output Relays
10 programmable contacts allow for the switching of contactors or other
equipment. Each relay is rated at 240VAC 5 Amp resistive or 2 Amp
inductive.
The operation of the devices is controlled by level switch points hardwired
to the appropriate output relay. This sets the levels at which the devices
activate and de-activate.
Page 10
MTIC Installation & Operation Manual
Page 10 of 18 MTIC Manual R6
2.5 Analog Output
This section is white in colour on the rear panel.
see fig #1
Figure 7 – Analog Output
The analogue outputs supply 4-20mA and 0-10V.
It must be noted that these outputs are non-isolated. Various
wiring configurations allow for 4-20mA loads up to 940 W.
CAUTION:
Under no circumstances connect 0 volts to mains earth.
2.6 Power Supply Terminals & Ratings Label
This section is red in colour on the rear panel.

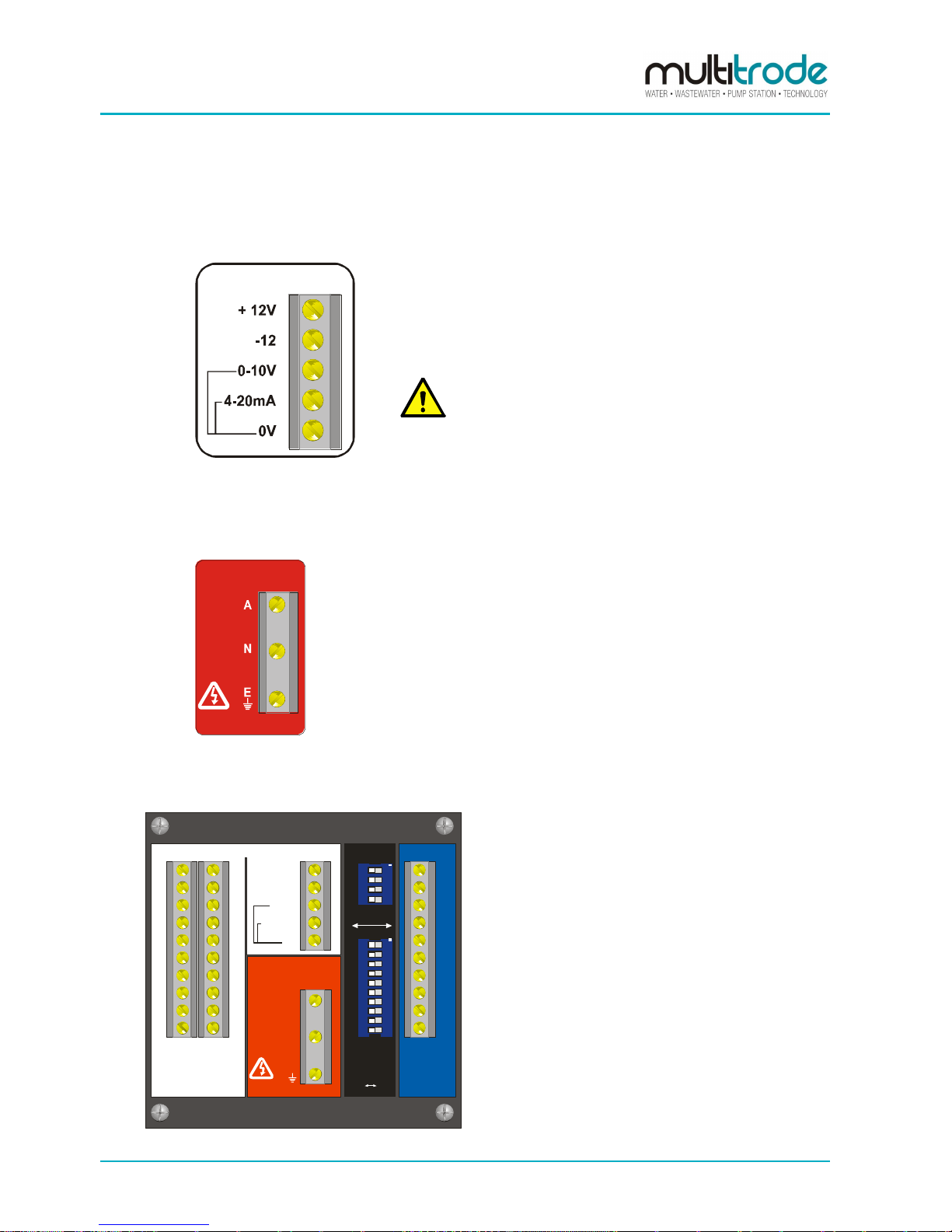

MAINS POWER
240VAC
50/60Hz
Figure 8 – Power Supply Terminals
A ratings label is located above the supply terminals and power
is supplied through these terminals.
Active, Neutral and Earth are connected to their respective
terminals as marked.
3 Installation & Power-Up
PROBE
INPUTS
MAINS POWER
OUTPUTS
A
N
E
240VAC
50/60Hz
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
+ 12V
-12
0-10V
4-20mA
0V
see fig #3
see fig #1
NO NC
SELECT
FUNCTION
A
B
C
D
1
2
3
4
5
6
7
8
9
10
see fig #2
1 2 3 4 5 6 7 8 9 10
ON
1 2 3 4
ON
see fig #1
MTIC
S/N: ___________
Figure 9 - MTIC Indicator Controller Back Panel
Before attempting to install the MTIC read this
section thoroughly.
Check the power rating label above the power input
terminals (see drawing below). Make sure that the
power supply configuration is compatible with the
installation being carried out.
Page 11
MTIC Installation & Operation Manual
MTIC Manual R6 Page 11 of 18
4 Mounting
Mount the MTIC into a 91.0mmx 91.0mm hole (see drawing). The clamp brackets will allow installation
into panels up to 8mm (absolute max.) thickness.
PANEL
CUT OUT
DEMENSIONS
PLAN ( TOP VIEW )
CUT OUT ELEVATION
( TOP VIEW )
92mm
120mm
92mm
91mm
8mm
97mm

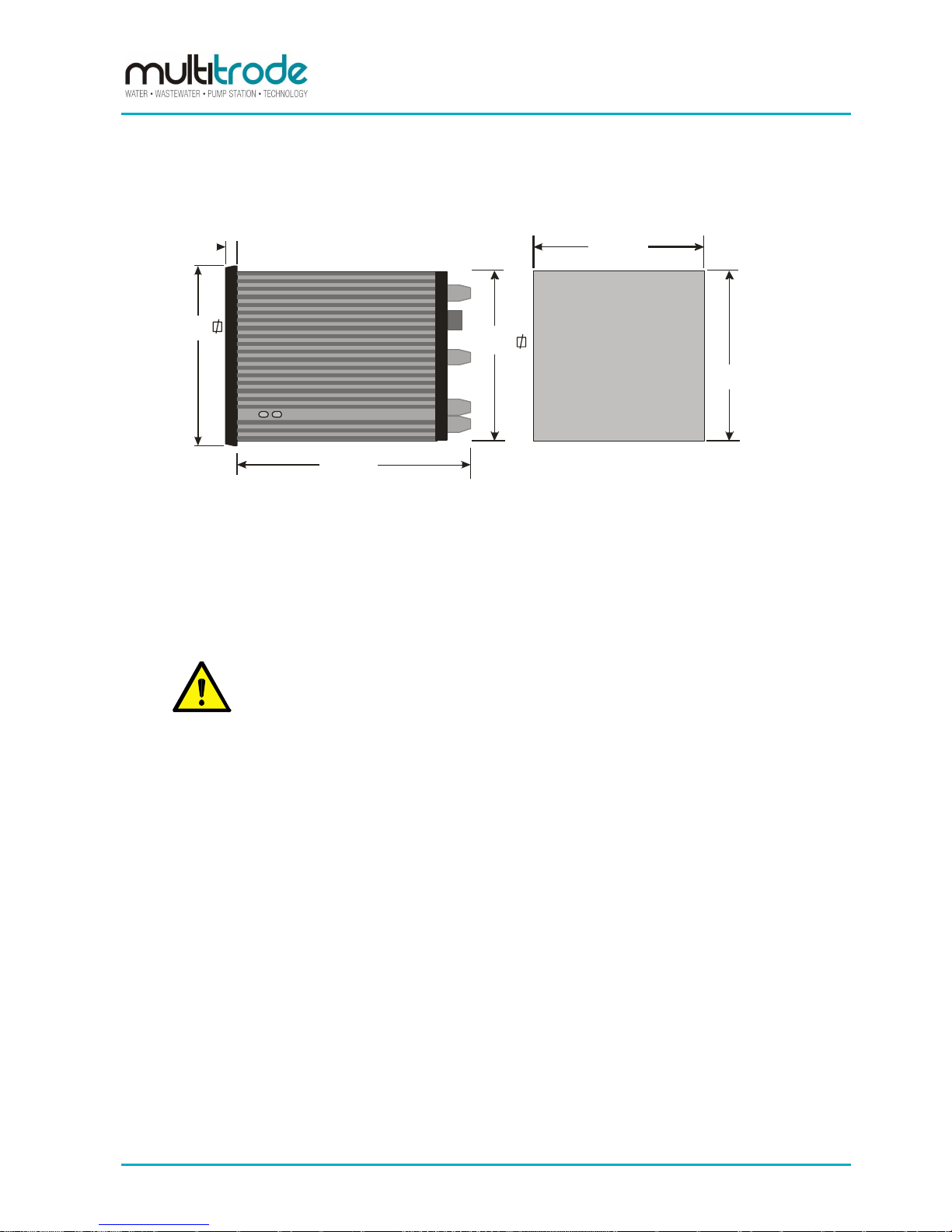

Figure 10 – Plan and elevation views of the MTIC
Slide the controller in from the front of the panel.
Insert the two clamp brackets into the double slots in the top and bottom of the case (see
drawing).
Tighten the screws sufficiently to hold unit.
NOTE:
Over-tightening will deform the clamps.
Page 12
MTIC Installation & Operation Manual
Page 12 of 18 MTIC Manual R6
5 Electrical Connections
General precautions
Electrical Hazard:
A certified electrician must supervise all electrical work. Comply with all local
codes and regulations.
Before starting work on the unit, make sure that the unit is isolated from the power
supply and cannot be energized.
Make sure that all unused conductors are insulated.
There is a risk of electrical shock or explosion if the electrical connections are not
correctly carried out or if there is fault or damage on the product.
Requirements
These general requirements apply for electrical installation:
The mains voltage and frequency must agree with the specifications for the product.
Circuit breakers must be installed between the main voltage line and this unit.
All fuses and circuit breakers must have the proper rating, and comply with local
regulations.
The cables must be in accordance with the local rules and regulations.
Cables
These are the requirements to follow when you install cables:
The cables must be in good condition, not have any sharp bends, and not be pinched.
The sheathing must not be damaged and must not have indentations or be embossed
(with markings, etc.) at the cable entry.
The minimum bending radius must not be below the accepted value.
Earthing (Grounding)
Electrical Hazard:
• You must earth (ground) all electrical equipment. This applies to the pump
equipment, the driver, and any monitoring equipment. Test the earth (ground) lead
to verify that it is connected correctly.
• If the power cable is jerked loose by mistake, the earth (ground) conductor should
be the last conductor to come loose from its terminal. Make sure that the earth
(ground) conductor is longer than the phase conductors. This applies to both ends
of the power cable.
5.1 Probe Inputs
This section is blue in colour on the rear panel.

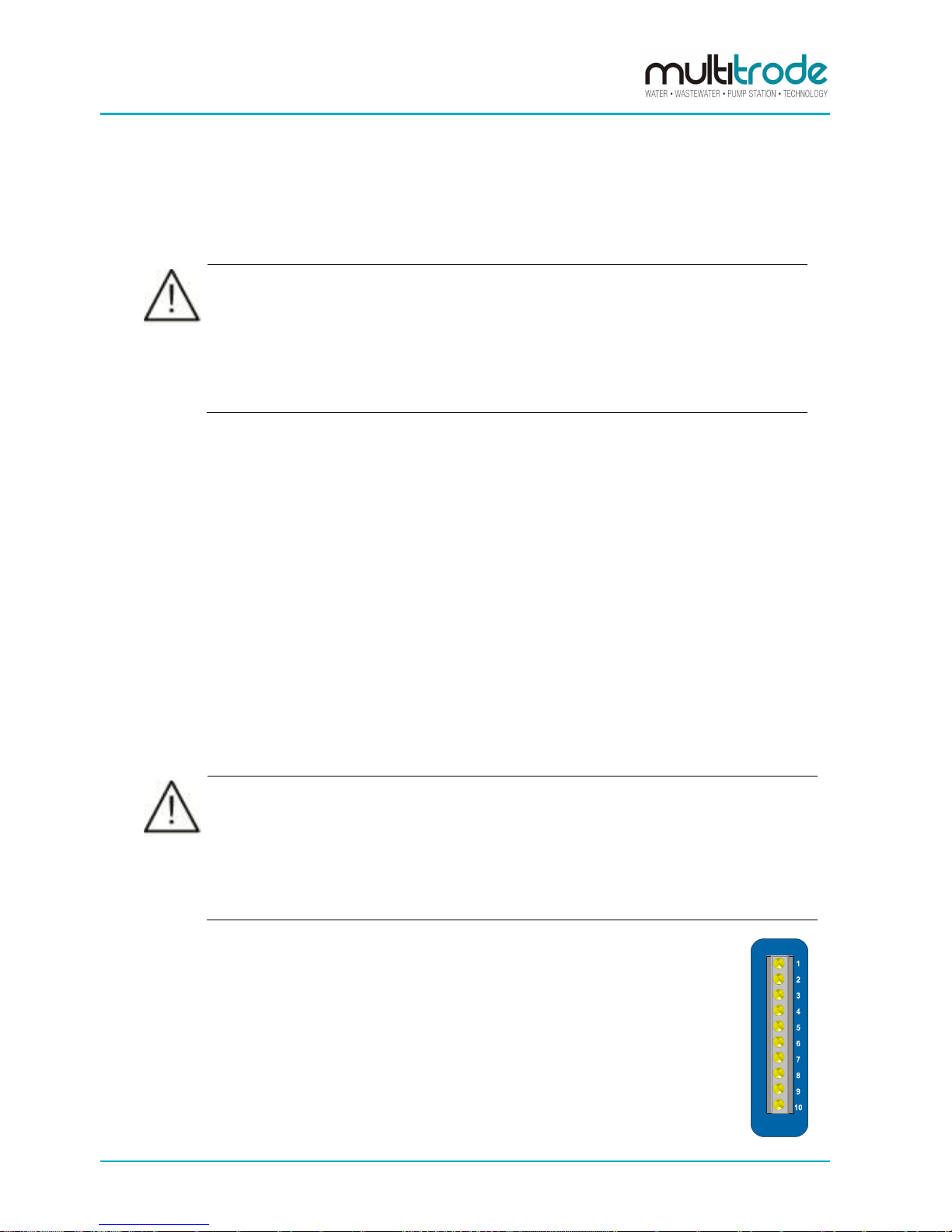

Connect the cables from the MultiTrode probe to the corresponding input terminals.
Figure 11 – Probe Inputs
PROBE
INPUTS
see fig #3
Page 13
MTIC Installation & Operation Manual
MTIC Manual R6 Page 13 of 18
5.2 Output Relays
All output relays should be protected by an 8 amp (max.) fuse.
There are 10 isolated relay outputs which can be selected N/O or N/C via
DIP switches 1 to 10. Select outputs which coincide with the desired level
on the probe where control is required. As the MTIC does not latch each
central point, this needs to be achieved using "hold in" contacts on the
contactor, as per following example:
Hi Alarm on at 1
Standby on at 2, off at 7
Duty 2 on at 4, off at 8
Duty 1 on at 6, off at 10

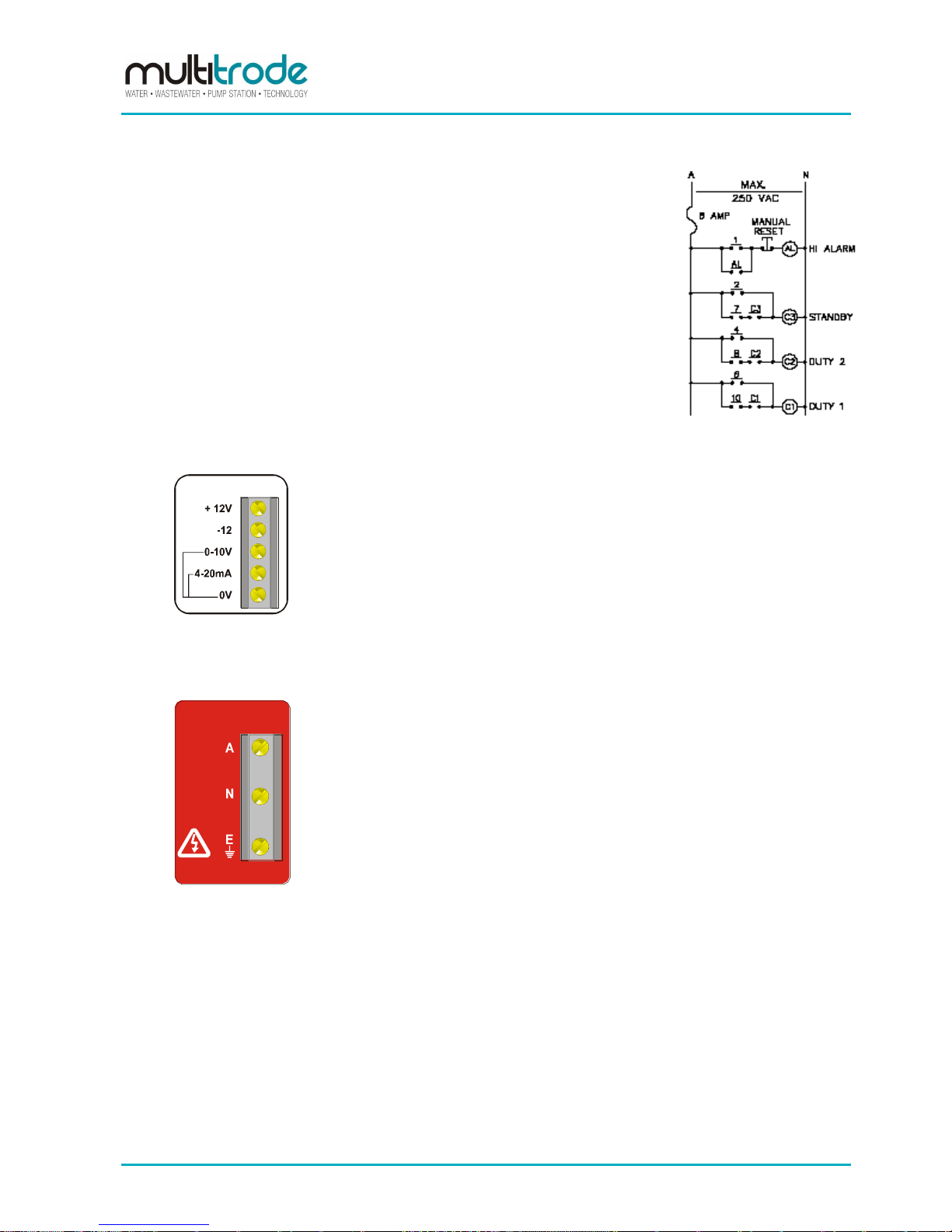

Figure 12 – Output Relays
5.3 Analog Output
This section is white in colour on the rear panel.
see fig #1
Figure 13 – Analog Output
As can be seen by the diagram the MTIC can drive into a
maximum 940W if connected as shown.
It should be noted that the analogue output is non-isolated and
in certain circumstances will require a loop isolator.
5.4 Power Connection
This section is red in colour on the rear panel.
MAINS POWER
240VAC
50/60Hz
Figure 14 – Power Connections
Prior to connecting the power to the controller, the following
checks should be performed:
1. Check the controller voltage rating to ensure compatibility.
2. Check that the function DIP switches have been set for the
correct defaults. Connect as follows:-
A = Active
N = Neutral
E = Earth
Page 14
MTIC Installation & Operation Manual
Page 14 of 18 MTIC Manual R6

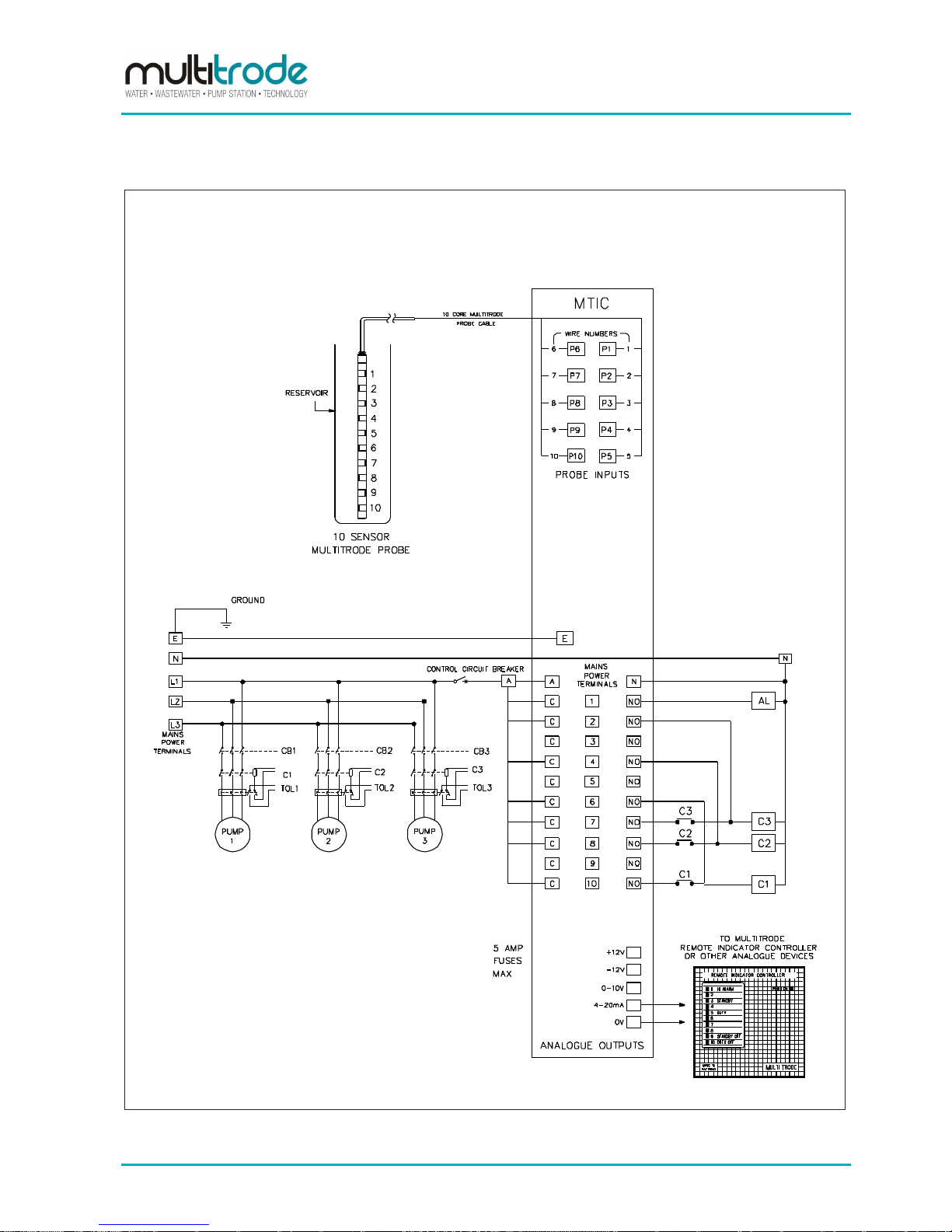

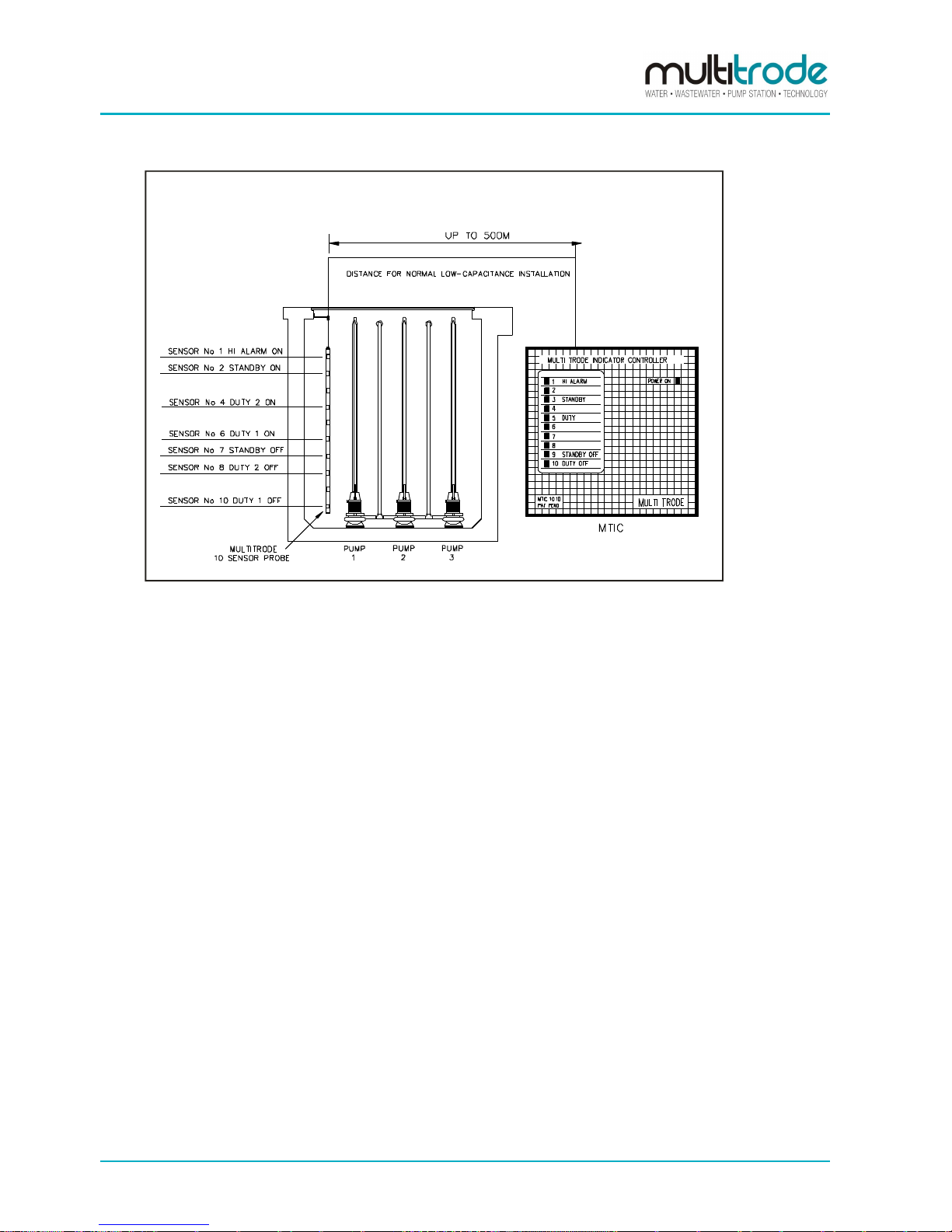

6 MTIC – Pump Station Schematic & Overview
MTIC STATION OVERVIEW
**
**
Figure 15 - MTIC Station Overview
Page 15
MTIC Installation & Operation Manual
MTIC Manual R6 Page 15 of 18
MTIC Schematic
Figure 16 - MTIC Schematic
Page 16
MTIC Installation & Operation Manual
Page 16 of 18 MTIC Manual R6

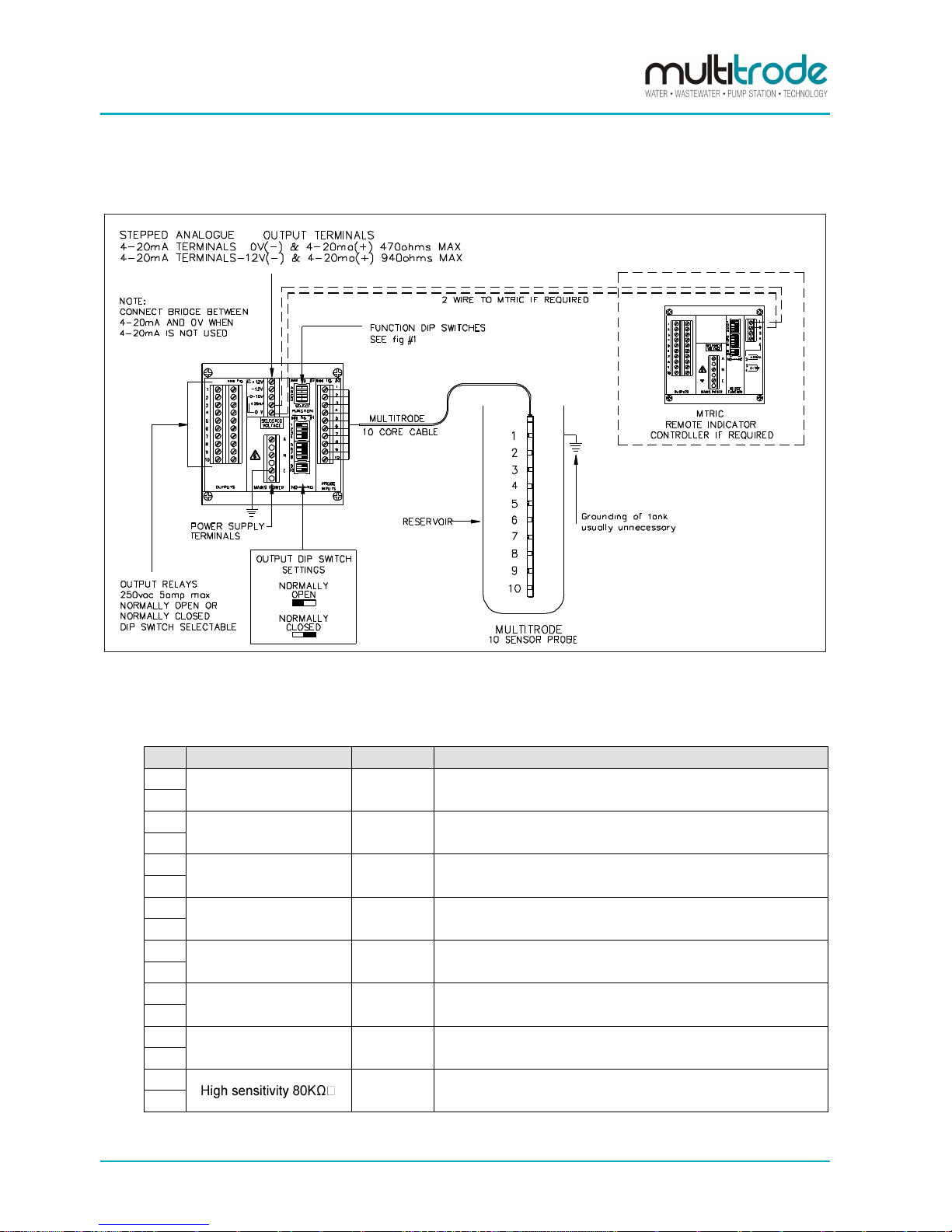

7 MTIC – Installation Sheet No. 1
Figure 17 - MTIC Layout
7.1 Time Delay & Sensitivity Settings
SW
Function
Position
Description
A
Timer
►
►
Instantaneous actuation when level reaches sensor.
B
A
Timer
►
◄
Time delay on actuation approx. 5 seconds.
B
A
Timer
◄
►
Time delay on actuation approx. 10 seconds.
B
A
Timer
◄
◄
Time delay on actuation approx. 15 seconds.
B
C
Extra low sensitivity 1KΩ
◄
◄
For concentrates such as acids, minerals, alkalis leaving
residue.
D
C
Normal low sensitivity
4KΩ
◄
►
Acids, alkalis, diluted brine, sea water.
D
C
Normal sensitivity 20KΩ
►
◄
Sullage, sewage effluent, town water.
D
C
►
►
Effluent and processes with oil contaminants, purified water.
D
Figure 18 – Dip Switch settings sensitivity and time delay.
Page 17
MTIC Installation & Operation Manual
MTIC Manual R6 Page 17 of 18
8 MTIC – Installation Sheet No. 2

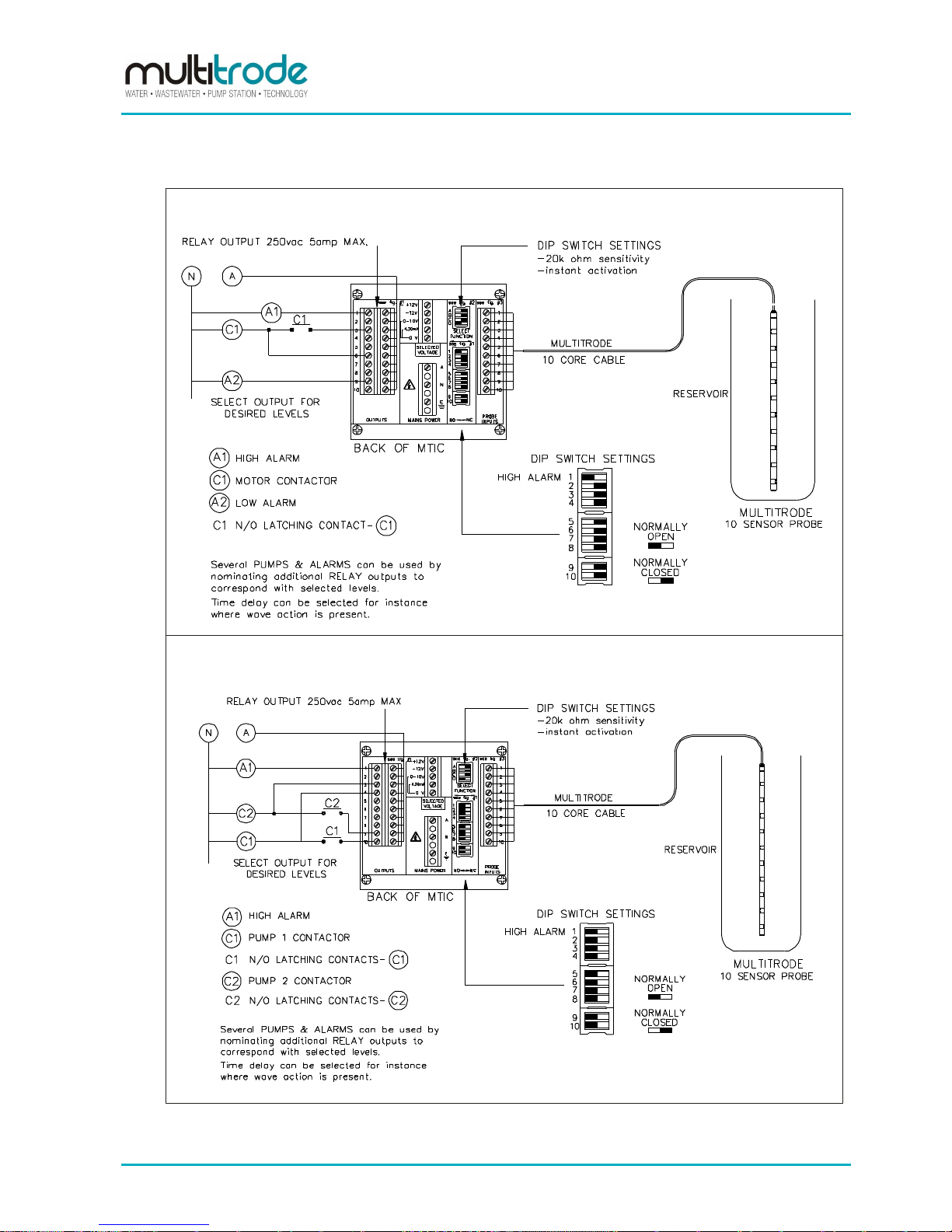

MTIC USED IN A FILL (CHARGE) APPLICATION
MTIC USED IN AN EMPTY (DISCHARGE) APPLICATION
Figure 19 - MTIC used in a Fill (Charge) and Empty (Discharge) (Discharge) Applications
Page 18
MTIC Installation & Operation Manual
Page 18 of 18 MTIC Manual R6
MultiTrode Pty Ltd—UK Operations
Ivybridge, Devon
Tel: +44 1752 547355
Fax: +44 1752 894615
E-mail:[email protected]
MultiTrode Pty Ltd—Head Office
Brisbane Technology Park
18 Brandl Street
PO Box 4633
Eight Mile Plains Qld 4113
Ph: +61 7 3340 7000
Fx: +61 7 3340 7077
E-mail: [email protected]
MultiTrode Inc—USA
Unit 3, 990 South Rogers Circle
Boca Raton Florida 33487
Tel: +1 561 994 8090
Fax: +1 561 994 6282
E-mail: [email protected]
Visit www.multitrode.com for the latest information
Loading...
