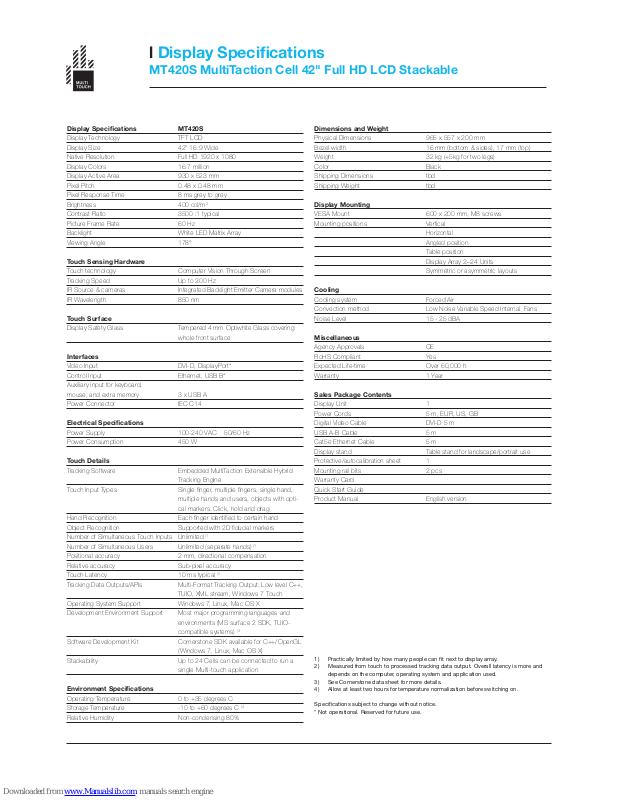

l Display Specifications
MT420S MultiTaction Cell 42" Full HD LCD Stackable
Display Specifications MT420S
Display Technology TFT LCD
Display Size 42’’ 16:9 Wide
Native Resolution Full HD 1920 x 1080
Display Colors 16.7 million
Display Active Area 930 x 523 mm
Pixel Pitch 0.48 x 0.48 mm
Pixel Response Time 8 ms grey to grey
Brightness 400 cd/m
2
Contrast Ratio 3500 :1 typical
Picture Frame Rate 60 Hz
Backlight White LED Matrix Array
Viewing Angle 178°
Touch Sensing Hardware
Touch technology Computer Vision Through Screen
Tracking Speed Up to 200 Hz
IR Source & cameras Integrated Backlight Emitter Camera modules
IR Wavelength 850 nm
Touch Surface
Display Safety Glass Tempered 4 mm Optiwhite Glass covering
whole front surface
Interfaces
Video Input DVI-D, DisplayPort*
Control Input Ethernet, USB B*
Auxiliary input for keyboard,
mouse, and extra memory 3 x USB A
Power Connector IEC C14
Electrical Specifications
Power Supply 100-240 VAC 50/60 Hz
Power Consumption 450 W
Touch Details
Tracking Software Embedded MultiTaction Extensible Hybrid
Tracking Engine
Touch Input Types Single finger, multiple fingers, single hand,
multiple hands and users, objects with opti-
cal markers. Click, hold and drag
Hand Recognition Each finger identified to certain hand
Object Recognition Supported with 2D fiducial markers
Number of Simultaneous Touch Inputs Unlimited
(1
Number of Simultaneous Users Unlimited (separate hands)
(1
Positional accuracy 2 mm, directional compensation
Relative accuracy Sub-pixel accuracy
Touch Latency 10 ms typical
(2
Tracking Data Outputs/APIs Multi-Format Tracking Output: Low level C++,
TUIO, XML stream, Windows 7 Touch
Operating System Support Windows 7, Linux, Mac OS X
Development Environment Support Most major programming languages and
environments (MS surface 2 SDK, TUIO-
compatible systems)
(3
Software Development Kit Cornerstone SDK available for C++/OpenGL
(Windows 7, Linux, Mac OS X)
Stackability Up to 24 Cells can be connected to run a
single Multi-touch application
Environment Specifications
Operating Temperature 0 to +35 degrees C
Storage Temperature -10 to +60 degrees C
(4
Relative Humidity Non-condensing 80%
Dimensions and Weight
Physical Dimensions 965 x 557 x 200 mm
Bezel width 16 mm (bottom & sides), 17 mm (top)
Weight 32 kg (+5kg for two legs)
Color Black
Shipping Dimensions tbd
Shipping Weight tbd
Display Mounting
VESA Mount 600 x 200 mm, M8 screws
Mounting positions Vertical
Horizontal
Angled position
Table position
Display Array 2–24 Units
Symmetric or asymmetric layouts
Cooling
Cooling system Forced Air
Convection method Low Noise Variable Speed Internal Fans
Noise Level 15 - 25 dBA
Miscellaneous
Agency Approvals CE
RoHS Compliant Yes
Expected Life-time Over 60,000 h
Warranty 1 Year
Sales Package Contents
Display Unit 1
Power Cords 5 m, EUR, US, GB
Digital Video Cable DVI-D 5 m
USB A-B Cable 5 m
Cat5e Ethernet Cable 5 m
Display stand Table stand for landscape/portrait use
Protective/autocalibration sheet 1
Mounting rail bits 2 pcs
Warranty Card
Quick Start Guide
Product Manual English version
1) Practically limited by how many people can fit next to display array.
2) Measured from touch to processed tracking data output. Overall latency is more and
depends on the computer, operating system and application used.
3) See Cornerstone data sheet for more details.
4) Allow at least two hours for temperature normalization before switching on.
Specifications subject to change without notice.
* Not operational. Reserved for future use.
Page 2
MultiTouch Ltd, Henry Fordin katu 6 B, 00150 Helsinki, Finland /// www.multitaction.com /// sales@multitouch.fi /// Tel. +358 45 630 8580
260413
l Dimensions
MT420S
Official MultiTaction® Cell video:
http://www.youtube.com/multitouchfi#p/a/u/0/7ve44jMgrvk
MultiTaction® Cell Technology video:
http://www.youtube.com/multitouchfi#p/a/u/1/kIwpc1PDQWY
965
557
200
116,5
5
39,5
600
200
481
372
40°
700
30°
0,100SCALE

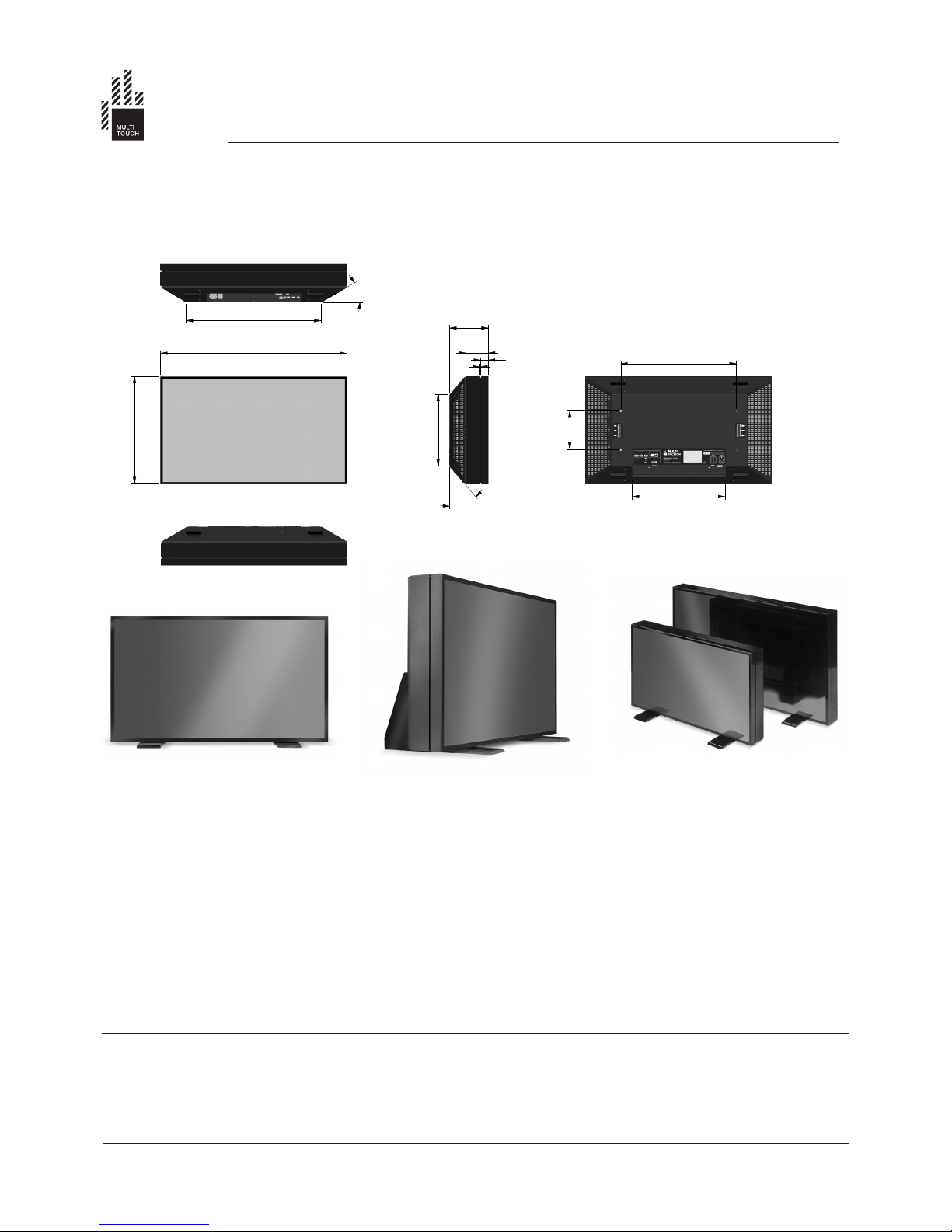

MT420S Dimensions
