Page 1

AMENDMENT INSTRUCTION NO. 236

AL2 TO TM1195 ISSUE 1

RPR 563/RPR 563K PAGING TRANSCEIVER

APRIL 1999

The attached amendment should be incorporated in the above Technical Manual as soon as possible.

In line with the company policy of continued technical advancement, changes to circuit diagrams and component layout diagrams are continually taking place. It is not company policy that the technical manual should cover all previous issues of products but only the latest design state. To this end, where an amendment changes either the circuit diagram or component layout diagram, it may be prudent to archive the previous diagrams, particularly if your product is of old design.

AFFECTED

PAGES

CHANGE

(iii)/(iv) AL2 amendments recorded. 1-7/1-8 New Rx frequency band and crystal information. 3-3/3-4 To add crystal frequency calculation for Band V. 3-7/3-8 Corrections to paragraphs 27 and 30.

5C-1/5C-2 Correction to part number for Test Probe.

6-1/6-2 Contents List updated. Addition of new frequency band. 6-3/6-4 Change to antenna information. 6-5/6-6 Component Change C306 (Band T). 6-7/6-8 Filter and inductor information for Band V.

6-9/6-10 Correction to part number for 560n inductor. 6-11/6-12 Adds R351 for Band V. 6-15/6-16 Para 24: Alternative part number for Gate Array.

Para 26: Adds Parts List for new Decoder PCB.

6-17/6-18 New pages with Parts List for new Decoder PCB.

7-1/7-2 Contents List updated.

AL2 to TM1195 Amendment Instruction No. 236

AFFECTED

PAGES

CHANGE

With the compliments of Multitone Electronics plc

PCN Nos. 4681, 4841, 4899, 5140, 5193

TPF003-02 [10/98]

Page 2

7-3/7-4 Figure 1: Change to L6.

7-7/7-8 Figure 3: Changes to R350/R351. 7-29/7-30 Adds Figure 14 (Decoder Circuit Diagram Sheet 1 of 2) 7-31/7-32 Adds Figure 15 (Decoder Circuit Diagram Sheet 2 of 2) 7-33/7-34 Adds Figure 16 (Decoder Component Location Sheet 1 of 2)

7-35 Adds Figure 17 (Decoder Component Location Sheet 2 of 2)

RPR 563

TM1195 Issue 1 Page (i)

TECHNICAL MANUAL

for

RADIO PAGING TRANSCEIVER

MODELS RPR 563/RPR 563K

Printed and Published in England

RPR 563

TM1195 Issue 1Page (ii)

COMPANY LIABILITY

The information in this manual has been carefully compiled and checked for technical accuracy. Multitone Electronics plc accept no liability for inaccuracies or errors. In line with the company policy of technical advancement, the information within this document may be changed. The user should ensure that the correct issue of the document is used. Comments or correspondence regarding this manual should be addressed to:

Multitone Electronics plc Technical Publications Kimbell Road Basingstoke Hampshire RG22 4AD England

ISSUE DATE

1 January 1997

RPR 563

TM1195 Issue 1 Page (iii)

CONTENTS

Page (i) Title Page Page (ii) Company Liability Page (iii) Contents Page (iv) Effective Page List Page (v) Safety Summary

Warning Page (vi) Caution Section 1 Introduction and Specification Section 2 Operating Instructions Section 3 Technical Description Section 4 Installation & Commissioning Section 5 Servicing Section 6 Spare Parts List Section 7 Diagrams

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page (iv)

EFFECTIVE PAGE LIST

Page No. Issue Page No. Issue Page No. Issue Page No. Issue

(I) 1 2A-3 1 5-17 1 6-9 1 AL2 (ii) 1 2A-4 1 5-18 1 6-10 1

(iii) 1 3-1 1 5-19 1 6-11 1 AL2 (iv) 1 AL2 3-2 1 5-20 1 6-12 1 AL1

(v) 1 3-3 1 5-21 1 6-13 1 AL1 (vi) 1 3-4 1 AL2 5-22 1 6-14 1

1-1 1 3-5 1 5-23 1 6-15 1 AL2 1-2 1 3-6 1 5-24 1 6-16 1 AL2

1-3 1 3-7 1 AL2 5-25 1 6-17 1 AL2 1-4 1 3-8 1 AL2 5-26 1 6-18 1 AL2

1-5 1 3-9 1 5-27 1 7-1 1 AL2 1-6 1 3-10 1 5-28 1 7-2 1 AL2

1-7 1 AL2 3-11 1 5-29 1 7-3/4 1 AL2 1-8 1 3-12 1 5-30 1 7-5/6 1

1-9 1 4-1 1 5A-1 1 7-7/8 1 AL2 1-10 1 4-2 1 5A-2 1 7-9/10 1

2-1 1 5-1 1 5B-1 1 7-11/12 1 2-2 1 5-2 1 5B-2 1 7-13/14 1

2-3 1 5-3 1 5C-1 1 7-15/16 1 2-4 1 5-4 1 5C-2 1 AL2 7-17/18 1

2-5 1 5-5 1 5D-1 1 7-19/20 1 2-6 1 5-6 1 5D-2 1 7-21/22 1

2-7 1 5-7 1 6-1 1 AL2 7-23/24 1 2-8 1 5-8 1 6-2 1 AL2 7-25/26 1 AL1

2-9 1 5-9 1 6-3 1 AL2 7-27 1 2-10 1 5-10 1 6-4 1

2-11 1 5-11 1 6-5 1 AL2 7-29/7-30 1 AL2 2-12 1 5-12 1 6-6 1 AL2 7-31/7-32 1 AL2

2-13 1 5-13 1 6-7 1 AL2 7-33/7-34 1 AL2 2-14 1 5-14 1 6-8 1 AL2 7-35 1 AL2

2A-1 1 5-15 1 2A-2 1 5-16 1

RPR 563

TM1195 Issue 1 Page (v)

THE TRANSCEIVER SHOULD NOT BE CARRIED INTO AREAS WHERE EXPLOSIVE GASES MAY BE PRESENT.

SAFETY SUMMARY

The following information applies to both operating and servicing personnel. General Warnings and Cautions will be found throughout the manual, where they apply, which refer to the applicable part of this summary.

WARNING statements identify conditions or practices that could result in personal injury or loss of life.

CAUTION statements identify conditions or practices that could result in equipment damage.

WARNING

RPR 563

TM1195 Issue 1Page (vi)

CAUTION

STATIC SENSITIVE DEVICES ARE USED WITHIN THIS EQUIPMENT. CARE MUST BE USED TO ENSURE DAMAGE TO THESE DEVICES IS NOT CAUSED BY HIGH LEVELS OF STATIC ELECTRICITY. SPARE BOARDS OR COMPONENTS SHOULD BE STORED IN ANTI-STATIC PACKAGING WHEN NOT INSTALLED IN THE EQUIPMENT.

PROTECT THE TRANSCEIVER FROM LIQUIDS, STRONG MAGNETIC FIELDS AND EXTREME TEMPERATURES. DO NOT LEAVE THE TRANSCEIVER EXPOSED TO STRONG SUNLIGHT. AREAS SUCH AS WINDOW LEDGES ARE TO BE AVOIDED.

RPR 563

TM1195 Issue 1 Page 1 - 1

SECTION 1

INTRODUCTION AND SPECIFICATION

CONTENTS:

1. ROLE STANDARD FEATURES

6. Liquid Crystal Display (LCD)

7. Acoustic and Visual Alerts

8. Message Storage

9. Message Length

10. Beep Code Alpha

11. Automatic Speech Switching

12. Battery Economy Circuit (BEC)

13. Display Direction Control

14. Engineering Mode OPTIONAL FEATURES

15. Permanent On

16. Alert Duration

17. Escalating Alert (Escalert)

18. Extended Alert

19. Group Call

20. Call Comparator

21. Time-of-Day

22. Mute Mode

23. Program Volume Levels

24. Battery Low Indication

25. Display Direction at Switch-On

26. Speech Timeout

27. Address Digits Displayed

28. Test Mode

29. System Number

30. System Retry Interval

31. Switch-On and Rack Message

RPR 563

TM1195 Issue 1Page 1 - 2

CONTENTS (Continued)

SPECIFICATION

32. Receiver

33. Transmitter

34. Signalling Formats

35. Power Supplies

36. Controls, Indicators, Alerts

37. Physical Characteristics

TABLE Page

1. DTMF Frequency Pairs 1 - 9

2. Battery Life 1 - 9

))))))))))))))))

ROLE

1. The Multitone RPR 563K radio paging transceiver comprises a UHF receiver and VHF transmitter, allowing paging and two-way speech facilities. The unit can receive alphanumeric paging messages and make paging, speech and telephone calls. The transceiver may be used in simplex or duplex (telephone) mode.

2. Paging and telephone calls are made via a DTMF keypad. A reduced keypad version of the transceiver, designated the RPR563 (which does not have a DTMF keypad) is available which is able to make limited telephone calls.

3. A choice of plug-in metal hydride battery packs are available to power the transceiver. All battery packs may be trickle or fast-charged via contacts in the base. Another set of contacts in the battery pack allow the transceiver to be programmed, and allow absence registration when used with absence/charging racks on Multitone paging systems.

4. Paging calls to the receiver are in Multitone Mk7 digital format which has a capacity of up to 10,000 individual address codes. Visual alert is by flashing LED and eight audible tone alert patterns (Beep Code) are available. Alphanumeric messages can be displayed on a 14-character dot matrix Liquid Crystal Display (LCD).

5. The transceiver is housed in a Bayblend case which provides a lightweight but strong construction. A pocket clip, holster and wrist strap lanyard are available as carrying devices.

RPR 563

TM1195 Issue 1 Page 1 - 3

STANDARD FEATURES

Liquid Crystal Display (LCD)

6. The LCD provides a visual display of up to 14 alphanumeric characters (longer

messages are displayed in 14 character blocks). A backlight provides enhanced LCD viewing under low light conditions.

Acoustic and Visual Alerts

7. A range of eight different audible tone alert codes (beep codes) are programmed as

standard. These alerts, when initiated, are accompanied by the illumination of an LED to provide visual indication of a paging call. Speech calls are indicated by ringing patterns which match the appropriate tone alert codes.

Message Storage

8. Up to five messages may be stored by the transceiver for review later. They are held

on a first in/first out basis.

Message Length

9. The maximum length of any received message is between 63 and 81 characters,

depending on whether beep code alpha and time stamp are in use.

Beep Code Alpha

10. Up to four beep codes may be reserved to trigger an associated alphanumeric

message; each message not exceeding 14 characters in length.

Automatic Speech Switching

11. Allows speech to follow automatically after an alert tone.

Battery Economy Circuit (BEC)

12. The radio channel is monitored periodically and when no activity is present the receiver

circuits are powered down, hence conserving energy and battery life.

RPR 563

TM1195 Issue 1Page 1 - 4

Display Direction Control

13. The direction of the display may be changed to suit the way in which the transceiver is carried.

Engineering Mode

14. May be used for reviewing programmed options in the transceiver. This feature is useful for when carrying out engineering work on the paging system.

OPTIONAL FEATURES

Permanent On

15. When a battery pack is fitted and the Permanent On option enabled, the transceiver cannot be switched off.

Alert Duration

16. This is the duration of the alert tone at normal volume level. Options are 8s, 16s, 32s, or continuous alert. This does not include the period of any `Silent' and/or `Quiet' beep(s) that may be programmed. When a speech call is received, the programmed option is overridden and the alert duration is reduced to 4s.

Escalating Alert (Escalert)

17. Defines the alert sequence, which is four seconds of silence (LED only), followed by four seconds of Quiet beep, and the remainder of the alert as Full beep.

Extended Alert

18. Extended Alert is an additional alert sequence which acts as a reminder if the original alert is not acknowledged. During Extended Alert, the LED flashes every two seconds, and every two minutes two pips are emitted unless the transceiver is in Mute Mode.

Group Call

19. Group Call is an option which allows the pager to be operated as part of a group (or team). If enabled, any call to the group will alert the user audibly. The Group size may be none, 10 or 100 as required.

RPR 563

TM1195 Issue 1 Page 1 - 5

Call Comparator

20. Prevents the transceiver from reacting to an identical message received within a pre-

determined period. Options are none, 30s, 120s, 300s or disabled.

Time-of-Day

21. When enabled, displays the time in hh:mm format. The transceiver uses an internal

clock which is synchronised by time information from the last valid Mk7 paging call.

Mute Mode

22. When Mute Mode is enabled, tone alert is suppressed when calls are received.

However, if a mute override beep code is received (triple pip or continuous pips), mute is ignored and the transceiver responds with audible and visual alerts.

Program Volume Levels

23. On RPR 563K transceivers, the volume levels for beep tone, ring tone, telephone

speech, pager speech and DTMF echo may be adjusted from the keypad.

Battery Low Indication

24. Visual and audible indication of low battery voltage indication are available as

programmable options.

Display Direction at Switch-On

25. Display direction may be changed for handheld or belt-worn operation. When the

transceiver is switched off, the current display direction is stored in EEPROM, unless the battery is low. The default display direction is correct for handheld operation.

Speech Timeout

26. The speech timeout duration may be set for 10s, 30s, 300s, or continuous. The default

is 300s.

Address Digits Displayed

27. At switch-on, the number of address digits displayed is programmable between two and

five digits. The default is five digits.

RPR 563

TM1195 Issue 1Page 1 - 6

Test Mode

28. This is for engineering use only. This feature limits the beep duration to one second and defeats the call comparator.

System Number

29. The System Number for the Mk7 Digital paging format may be set to 0, 1, 2, or 3. The default system number is 1.

System Retry Interval

30. The System Retry Interval may be set to 30s, 45s, 60s or 90s. The default is 30s.

Switch-On and Rack Message

31. A Switch-On message of up to 14 characters may be programmed. A Rack Message of up nine characters, which is displayed when the transceiver is inserted into an absence rack, may also be programmed. The default Switch-On message is "Multitone 560" and the default Rack message is "Absent".

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 1 - 7

SPECIFICATION

Receiver

32. The following parameters apply to the receiver section of the transceiver:

a) Frequency Range: 438 - 470MHz b) Frequency Bands: 438.000 - 438.999MHz

439.500 - 444.999MHz

Y: 445.000 - 452.999MHz X: 453.000 - 460.999MHz W: 461.000 - 470.000MHz

V: 439.000 - 439.499MHz c) Number of Channels: 1 d) Channel Spacing: 20kHz/25kHz e) Intermediate Frequencies: 45MHz and 455kHz. f) Crystal Frequencies:

1st oscillator (XL303) carrier frequency - 45MHz (Bands Z, Y, X, W) 9

1st oscillator (XL303) carrier frequency + 45MHz (Band V only) 9

2nd oscillator (XL302) 44.545MHz

g) Sensitivity (TEM Cell): -93dBm (-99dBm typical) TEM Cell

(6dB degradation allowed at extremes of

operating temperature range). h) Sensitivity (On-Body): 50µV/m (25µV/m typical) 8-position i) Adjacent Channel Selectivity: Better than 50dB (60dB typical) j) Co-Channel Rejection -12dB (-5dB typical) k) Spurious Response 45dB (55dB typical) l) Intermodulation Response: 45dB (55dB typical) 2-signal method.

RPR 563

TM1195 Issue 1Page 1 - 8

Transmitter

33. The following parameters apply to the transmitter section of the transceiver: a) Frequency Range: 138 - 174.100MHz b) Frequency Bands: Z: 138.000 - 140.499MHz

Y: 140.500 - 142.999MHz X: 143.000 - 146.999MHz W: 147.000 - 150.999MHz V: 151.000 - 154.999MHz

U: 155.000 - 158.999MHz T: 159.000 - 162.999MHz S: 163.000 - 166.999MHz R: 167.000 - 170.999MHz

Q: 171.000 - 174.100MHz c) Number of Channels: 1 d) Channel Spacing: 12.5kHz or 25kHz. e) Crystal Frequency: carrier frequency (MHz)

6 f) Frequency Stability: ±5ppm. g) Radiated Output Power: #20mW h) Adjacent Channel Power: 0.2µW at ±20kHz. i) Antenna: Ferrite Stub (standard).

Flexible Whip (optional). j) Deviation: ±2.25kHz (12.5kHz channel spacing)

±4.5kHz (25kHz channel spacing). k) Spurious Radiation: 0.25µW max (30-1000MHz)

1.0µW max (1.0-12.75GHz)

RPR 563

TM1195 Issue 1 Page 1 - 9

TONE FREQUENCY PAIRING

HIGH FREQUENCY GROUP (Hz)

1209 1336 1477 1633

LOW FREQUENCY GROUP (Hz)

697 1 2 3 A 770 4 5 6 B 852 7 8 9 C 941 * 0 # D

Table 1: DTMF Frequency Pairs

BATTERY

PACK

STANDBY

(NO TRAFFIC AND

CONTINUOUS ON)

USEAGE

PROFILE MODEL

(Tx TIME)

P566 120 HOURS 1 HOUR IN

12 HOUR SHIFT

P565 240 HOURS 2 HOURS IN

12 HOUR SHIFT

Table 2: Battery Life

Signalling Formats

34. The transceiver signalling parameters are as follows:

a) Tone Squelch Frequencies: 88.5, 103.5, 114.8, 127.3, 141.3, 151.4,

167.9Hz

b) Paging Code Format: Multitone Mk7 digital format (Manchester

encoded).

c) DTMF Frequency Pairs: see Table 1.

Power Supplies

35. The following re-chargeable battery packs are available for powering the transceiver:

a) Battery Type:

(I) 600mAH Battery Pack P566: 3.6V (nominal) Metal Hydride. (ii) 1200mAH Battery Pack P565: Metal Hydride re-chargeable pack

b) Battery Life (typical):

RPR 563

TM1195 Issue 1Page 1 - 10

Controls, Indicators, Alerts

36. The following controls, indicators and alerts are available: a) Controls: Keypad (15 keys on RPR 563K, 3 keys on

RPR 563). Press-to-Talk button. On/Cancel button.

b) Indicators: 14 character (7 x 5 dot matrix) Liquid

Crystal Display (LCD) with icon. Viewing area 33.1mm x 5.8mm.

Alert LED (red). Transmit LED (green). Keyboard backlight.

c) Audible Alert 78dB (82dB typical) SPL @ 30cm (full

volume).

Physical Characteristics

37. The following parameters apply to the physical characteristics of the transceiver: a) Temperature Range: -10EC to +55EC (Operational)

(LCD performance may be degraded below 0EC and above +45EC).

-20EC to +70EC (Storage) b) Environmental: Designed to meet IP52 c) Dimensions: Length: 159mm

Width: 58mm Depth: 27mm

Dimensions include 600mAH battery pack,

but exclude antenna and pocket clip. d) Weight: #269gm with 1200mAH Battery Pack e) Case Material: Bayblend in Storm Grey.

RPR 563

TM1195 Issue 1 Page 2 - 1

SECTION 2

OPERATING INSTRUCTIONS

CONTENTS:

1. CONTROLS AND INDICATORS

OPERATION

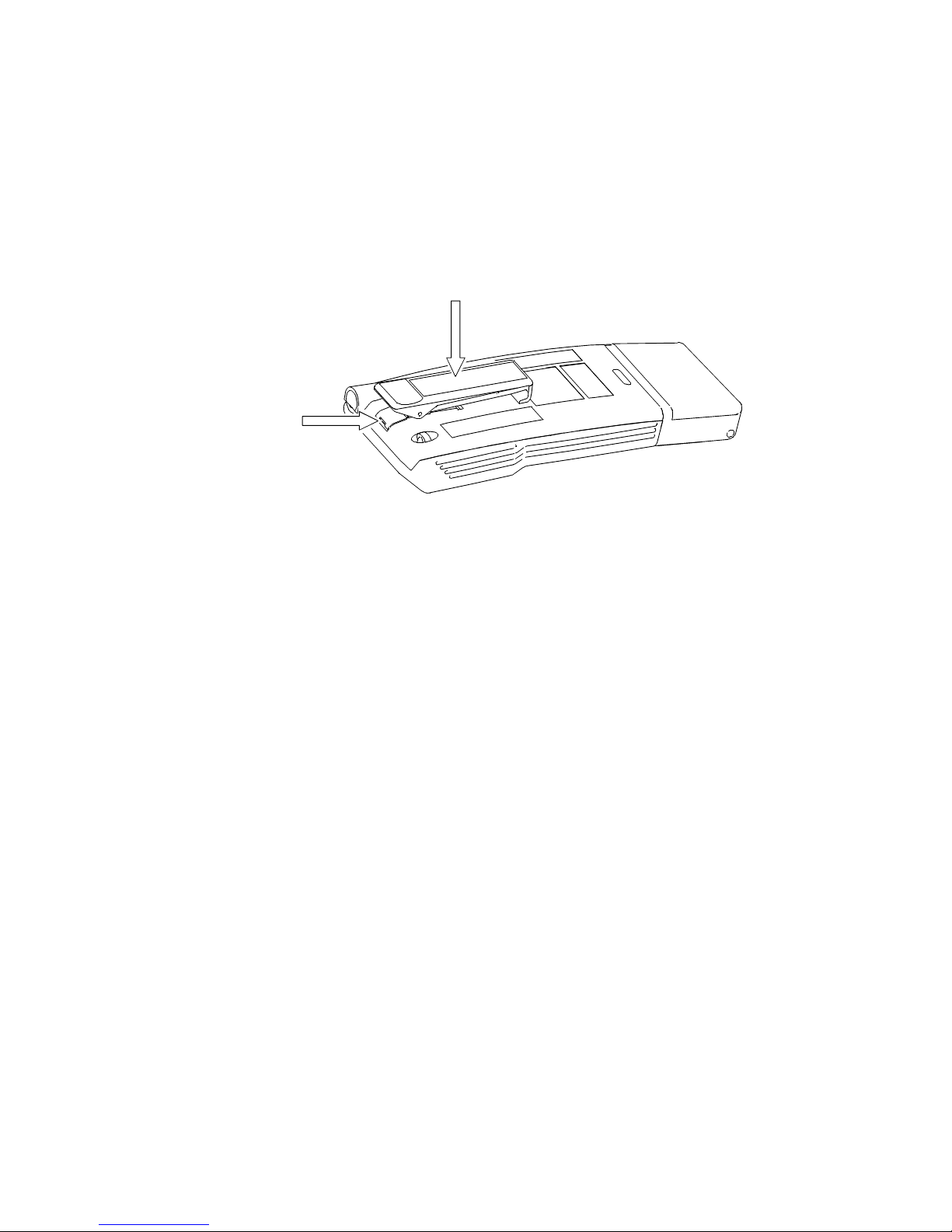

5. Fitting the Battery Pack

7. Switching On

9. Quiescent Mode

10. Receiving a Non-Speech Call

17. Receiving a Paging Speech Call

21. Receiving a Speech Call (Telephone Style)

23. Loud Speech (Simplex)

25. New Status

26. Cancelling Alerts

27. Escalating Alert

29. Extended Alert

30. Memory Replay

34. Making a Call (Telephone-Style Operation)

38. Making a Call to a Telephone (RPR 563K only)

39. Making a Call to Another Mobile (RPR 563K only)

42. Making a Call to a Manual Control Unit (RPR 563K only)

43. Terminating a Call

46. Program Volume Modes

48. RECHARGING THE BATTERY PACK

51. ABSENCE RACK REGISTRATION AND CHARGING

TABLES: Page

1. Message Display Formats 2 - 7

2. Beep Code and Alert Patterns 2 - 10

RPR 563

TM1195 Issue 1Page 2 - 2

THE TRANSCEIVER SHOULD NOT BE CARRIED INTO AREAS WHERE EXPLOSIVE GASES MAY BE PRESENT.

CAUTION

PROTECT THE TRANSCEIVER FROM LIQUIDS, STRONG MAGNETIC FIELDS AND EXTREME TEMPERATURES. DO NOT LEAVE THE TRANSCEIVER EXPOSED TO STRONG SUNLIGHT. AREAS SUCH AS WINDOW LEDGES ARE TO BE AVOIDED.

CONTENTS (Continued)

FIGURES: Page

1. Transceiver 2 - 3

2. DTMF Keypad and Function Keys 2 - 4

3. Fitting the Battery Pack 2 - 5

4. Switch On Sequence 2 - 6

ANNEXE:

A Engineering Mode

WARNING

TAG10665-2

RPR 563

TM1195 Issue 1 Page 2 - 3

KEY:

1. Microphone

2. Function Keys

3. Press-to-Talk Button

4. Cancel/On/Memory Button

5. Alert LED

6. Liquid Crystal Display

7. Tx LED

8. Loudspeaker

9. DTMF Keypad (RPR563K only)

10. Antenna

11. Wrist Strap Loop

12. Pocket Clip

13. Battery Pack Button

14. Battery Pack

Figure 1: Transceiver

CONTROLS AND INDICATORS

1. Controls and indicators for the transceiver are shown in Figure 2.

DTMF KEYPAD

(`K' VERSIONS ONLY)

FUNCTION KEYS

TAG10666-1

RPR 563

TM1195 Issue 1Page 2 - 4

Figure 2: DTMF Keypad and Function Keys

2. The following controls are found on both the full and reduced keypad versions of the transceiver:

PRESS-TO-TALK Used to manually key the transmitter on (paging calls only). ON/CANCEL/ Initially switches on the transceiver and then subsequently

MEMORY cancels incoming calls, or illuminates LCD and keypad (when RECALL no calls received). Recalls stored messages.

LINE Press button to request a line before dialling telephone or

paging code (or for direct connection on reduced keypad option). Pressing the button during a telephone call puts the transceiver into loud speech mode. Press the Shift key followed by for Emergency line request.

CLEAR/OFF/ Pressing during a speech call ends the call. Press the MUTE Shift key ( ) followed by to mute the transceiver.

Press Shift and hold down for three seconds to switch off transceiver.

SHIFT/REVERSE Press and hold to adjust speech volume ( ) during a call.

Used in conjunction with a second key initiates the alternative function for that key. Pressed twice during status interrogation reverses display.

3. In addition to the controls in paragraph 2, the full keypad version also has keys `0' to `9', `*' and `#'.

TAG10152-2

RPR 563

TM1195 Issue 1 Page 2 - 5

Figure 3: Fitting the Battery Pack

4. The transceiver has the following indicators:

a) LCD A 14-character alphanumeric display. This displays paging call

messages, and transceiver and system status messages. b) Tx KEY Lights when the transmitter is active. c) ALERT Lights when a paging call has been received.

OPERATION

Fitting the Battery Pack

5. Refer to Figure 3. Hold the battery against the transceiver as shown in Figure 3. Slide the battery pack onto the lower edge of the transceiver until it clicks into position.

6. Removal is a reversal of the above procedure, but press the battery button before releasing the battery pack.

QUIET TONE (2.73kHz) * ALERT LAMP

SHOW ALL LCD SEGMENTS RECEIVER ADDRESS

SWITCH-ON MESSAGE BACKLIGHTS

1 2 3 4 5 6 7 8

SECONDS

* QUIET TONE IS MODULATED IF BATTERY VOLTAGE IS LOW.

TAG10151-2

RPR 563

TM1195 Issue 1Page 2 - 6

Figure 4: Switch On Sequence

Switching On

7. Check that a fully-charged battery pack has been fitted. Press once. The transceiver will initiate its switch on sequence as shown in Figure 4.

8. The address display will depend on the number of address digits option. When the switch-on sequence has finished the transceiver enters the quiescent mode. If the EEPROM is faulty, then a series of `E's will be displayed.

Quiescent Mode

9. This is the transceiver's normal operating state, when no calls are being made or being received, no buttons are pressed and the backlights are off. The display shows the highest priority status, and, if enabled, Time-of-Day information (hh:mm) derived from the transceiver's internal clock.

Receiving a Non-Speech Call

10. When a call is received, the Alert LED will flash and, optionally, an audible alert tone will be generated. The alert tone will follow one of eight tone patterns which are summarised in Table 2. Press to cancel the alert and read the accompanying message.

TONE ONLY, NO MESSAGE, NO SPEECH

CALL TYPE

SPEECH ONLY BEEP CODE ALPHA, NO OFF-AIR

MESSAGE (WITH OR WITHOUT SPEECH) OFF-AIR MESSAGE AND BEEP CODE

ALPHA (WITH OR WITHOUT SPEECH)

12:00 4 ** 12:01 Call Ended **

12:02 Fire ** 12:03 Go to Room 26 **

T T

T T T

EXAMPLE

RPR 563

TM1195 Issue 1 Page 2 - 7

Table 1: Message Display Formats

11. The displayed message comprises combinations of the following elements:

Element Example

a) Time stamp + space 12:00 b) Beep Code (Tone Only message) 4 c) Speech call Speech d) Beep code alpha Fire e) Off-Air Message (Alpha) Please call reception f) Message Terminator ** or **?

12. Unless in test mode, all messages are in one of the formats shown in Table 1.

13. The terminator **? is used when the call contains any suspect characters, or is

terminated early because of corrupt data. Otherwise the terminator ** is used.

14. When the total message length is 14 characters or less, it is displayed for the duration

of the alert, if uncancelled. On cancelling the alert the message is displayed for a further 2.5 seconds.

15. When the total message length is greater than 14 characters, it scrolls through to the

end of the message at 1.25 second intervals, pausing for 2.5 seconds on the final screen. This process continues until the alert is cancelled. On cancelling the alert the message is displayed again from the beginning.

RPR 563

TM1195 Issue 1Page 2 - 8

16. The transceiver is able to receive new calls during an alert, although receiver sensitivity may be degraded. The new call takes over the previous call, which is placed in memory. Preceding calls have "new" status unless cancelled during the alert.

Receiving a Paging Speech Call

17. When a call is received, the Alert LED will flash and a telephone-style ringing tone will be audible for four seconds. Any alphanumeric message will be displayed as for a nonspeech call. The speech audio channel switches on immediately after the audible alert.

18. Press to cancel the alert and wait to hear the speech message. A further press of the button cancels speech. If is pressed again, before the speech timeout period expires, the speech channel may be re-opened.

19. The call is terminated by one of the following actions: a) pressing

b) pressing c) expiration of the transceiver speech timeout d) a Mk7 speech termination signal from the paging system.

20. If the speech call has been rejected by two presses of , any subsequent pressing of is assumed to be a new call request (see `Making a Call').

Receiving a Speech Call (Telephone Style)

21. Assuming a speech call has been received (as in paragraph 17) press to talk back. The transceiver will be switched into telephone mode and the speech audio level will drop to the programmed telephone speech level. The display direction will be set to read correctly for keyboard use. When the call ends, volume level and display direction will return to their default settings. Extended alert and new status are cancelled.

22. The call is terminated by pressing , the speech timeout, or by a Mk7 speech termination signal from the paging system. The transceiver will display the message "Call Ended".

RPR 563

TM1195 Issue 1 Page 2 - 9

Loud Speech (Simplex)

23. Under some circumstances telephone-style communication will not be possible,

e.g. noisy environment, wearing of protective headgear. The high volume levels required for listening would inhibit operation because of feedback. In this situation a PMR-style of operation is desirable.

24. To select loud speech, press twice (the message "Use PTT" is displayed). To

speak, depress the PTT key. Release the PTT switch after speaking, to listen to the other party. Subsequent presses of toggles the transceiver between telephone mode (the message "On" is displayed) and loud speech mode (message "Use PTT" is displayed).

New Status

25. Each call is automatically given new status when first received. New status is removed

by cancelling the alert or reviewing the call from memory. If the alert is left uncancelled then the prompt "x new messages" appears on the display showing the number of messages with new status (where x is a integer from 1 to 5). Each message must be viewed in full for new status to be removed.

Cancelling Alerts

26. Cancel the alert by pressing the button. The beep and LED alert cease but the

message is replayed from the beginning.

Escalating Alert

27. The escalating alert has three stages - the first two lasting 4 seconds each and the last

one 8s, 16s, 32s or continuous. The stages are as follows:

Stage 1: LED, flashing beep pattern. Stage 2: LED, low volume beep pattern. Stage 3: LED, full volume beep pattern.

28. The option for Escalating Alert is programmed into the EEPROM. However, the

escalating alert and the Mute mode are overridden by beep code 5 (triple pip) and beep code 8 (continuous pip). They cause the alert to be on full volume for the whole of the programmed alert duration.

CONTINUOUS BEEP

SINGLE BEEP

DOUBLE BEEP

TRIPLE BEEP

SINGLE PIP

DOUBLE PIP

TRIPLE PIP

CONTINUOUS PIP

SILENT ALERT

PIP/BEEP TONE ALERT PATTERN

BEEP CODE

RPR 563

TM1195 Issue 1Page 2 - 10

Table 2: Beep Code and Alert Patterns

* The escalating alert and the Mute mode are overridden by beep code 5

(triple pip) and beep code 8 (continuous pip). They cause the alert to be on full volume for the whole of the programmed alert time, or for four seconds if it is a speech call.

NOTE: Silent Alert is not currently supported by Access 3000 systems.

Extended Alert

29. If enabled and the call is not cancelled, the transceiver enters extended alert after the normal alert has finished. During extended alert, the LED flashes for 0.125s, every 2s. Two 0.125s pips (2s apart) are emitted every two minutes (unless in Mute mode). The pips are synchronised to the LED flashes.

RPR 563

TM1195 Issue 1 Page 2 - 11

Memory Replay

30. Incoming messages are automatically entered into the transceiver's memory store which

can accommodate up to five calls. To start the memory replay cycle, from the quiescent display, press the button twice. If in extended alert, press the key once only. The transceiver displays the header of the first message (or the phrase "no messages" if none exist). If no messages exist, the display returns to quiescent mode after 2 seconds.

31. New messages which have not been cancelled are displayed first. When all new

messages have been reviewed, the transceiver returns to quiescent mode. Once new status has been removed it is possible to view all the messages in the memory by pressing again.

32. The header refers to the first message screen and consists of a time stamp, plus the

initial part of the message (or the whole message if 14 characters or less). Press to step through each message header on the display. The most recent call is displayed

first and corresponds to the `1'.

33. The display automatically scrolls through messages at 1.25 second intervals until the

final screen is reached. The final screen terminates in ** (to denote the end of the message) and is displayed for 2.5 seconds. If all messages have been viewed the transceiver display returns to the quiescent condition.

Making a Call (Telephone-Style Operation)

34. The procedure for making a telephone-style call is as follows:

a) Press . The message "Please Wait" will be displayed. If the channel is clear

(i.e. the base station is not transmitting) then the transceiver sends its Talk code in DTMF. The transceiver then reverts to its quiescent state.

b) When the paging system is ready to service the call it sends a "Line Ready" call.

The transceiver rings, displays the message "Ready" and drops into telephone mode, i.e. the transceiver audio volume will be adjusted to telephone speech level. Dial tones from the paging system will normally be heard from the transceiver.

c) Enter the required dialling sequence.

35. If, after a predetermined interval, the paging system does not respond with a "Line

Ready" call, the transceiver sends its Talk code again, and repeats this process at the specified interval until a response is received from the paging system. If the key has been pressed and a Line Ready call is subsequently received, the transceiver still sends the Un-Talk code and reverts to its quiescent state.

36. The line request can be cancelled at any time by pressing .

RPR 563

TM1195 Issue 1Page 2 - 12

37. On reduced keypad versions, connection to the designated point is automatic once has been pressed.

Making a Call to a Telephone (RPR 563K only)

38. Once the dialling tone has been received, the telephone number may be dialled as if calling from another telephone.

Making a Call to Another Mobile (RPR 563K only)

39. The procedure for making a call to another mobile is as detailed in paragraph 34. If the call is to another paging receiver, then the user number and numeric message must be dialled when requested by the paging system.

40. A control message is sent by the paging system which sets the transceiver into simplex mode. The message "Use PTT" is displayed by the transceiver.

41. If the recipient is a non-speech paging receiver then the paging system clears down the originator when the message has been sent.

Making a Call to a Manual Control Unit (RPR 563K only)

42. Once the "Line Ready" call has been received, connection is made using designated MCU intercepts. The default intercept numbers are:

*0 to call several MCUs which have continuous talkback monitoring facilities

or:

*1 to *8 to call a designated MCU.

Terminating a Call

43. To terminate a call, press . The transceiver sends its Un-Talk code, displays the message "Call Ended" and reverts to quiescent state.

44. An internal speech timeout function will terminate a speech call if it has not been terminated manually. The paging system may also terminate the call but will warn the user with a tone a few seconds before termination.

RPR 563

TM1195 Issue 1 Page 2 - 13

45. If a team call is transmitted, the paging system will override and terminate the call

without prior warning. The transceiver that has been overridden will display the message "Call Override".

Program Volume Modes

46. Pressing followed by [1], followed by a DTMF key between 1 and 5 initiates the

setting for one of five transceiver volume modes, as follows:

Key Sequence Function Displayed Message

[1] [1] Beep Tone Volume Beep Volume [1] [2] Ring Volume Ring Volume [1] [3] Pager Speech Volume Belt Volume [1] [4] Telephone Speech Volume Ear Volume [1] [5] DTMF Volume DTMF Volume

47. To reduce the volume level for the selected mode, press [ ] repeatedly until the correct

level is attained. To increase the volume level, press [#] repeatedly until the correct level is attained. To store the new setting, press [1]. The new setting is also stored if no key presses are made for at least six seconds. On leaving this mode, the message "Volume Set" is displayed.

RECHARGING THE BATTERY PACK

48. If the battery pack voltage becomes too low during a transmission, the transceiver

sends the un-talk code at low volume and then keys down. A `low-battery' buzz is then generated if the option is enabled.

49. A discharged battery pack may be trickle-charged by inserting it into the pocket of a

P622 or P623 Trickle Charging Unit. Alternatively, the battery pack may be fastcharged by inserting it into the pocket of a P616 or P619 Personal Charging Station. Discharged battery packs may be re-charged with or without the transceiver attached.

50. Brand new battery packs normally require a few charge cycles before they settle into

their normal charging behaviour. New uncharged battery packs should be charged three or four times before initial use. This is achieved by taking the charged battery pack/transceiver out of the charging station and, once the LED charge indicator is extinguished, inserting it again.

RPR 563

TM1195 Issue 1Page 2 - 14

ABSENCE RACK REGISTRATION AND CHARGING

51. The transceiver contains a rack message which may be up to a maximum of nine characters in length. The factory programmed default rack message "Absent" may be changed by using Programming Unit P648 and programming software P648T, together with an IBM PC or compatible personal computer.

52. Insert the transceiver into a pocket within the rack. The transceiver's LED illuminates at half brightness when charging commences and the following rack message appears on the display when the transceiver recognises absence mode.

Absent or PROGRAMMED MESSAGE

53. The transceiver is interrogated by the system and if a user number is associated with the transceiver address the user number is displayed as follows:

Absent 1234 or PROGRAMMED MESSAGE 1234

54. If the interrogation is unsuccessful there are two possibilities: a) If there is no contact between paging system and transceiver, the following display

is shown:

Absent or PROGRAMMED MESSAGE

b) If there is no user number associated with the transceiver address the following

display is shown:

Absent ---- or PROGRAMMED MESSAGE ----

55. If the transceiver is switched off when inserted into the rack with a serviceable battery unit, the charge lamp will light but no absence registration will take place. If the battery unit is flat when inserted in the rack, the transceiver will switch on, the charge lamp illuminates and registers absent as normal.

56. If the transceiver is placed in the absence rack with a totally-discharged battery pack, one of the following situations will arise:

a) the charge LED will light, the absent or programmed message will be displayed. b) the charge LED will light, flashing `E's will be displayed. c) the charge LED will light, the transceiver will switch on and start its initialisation

routine.

RPR 563

TM1195 Issue 1 Page 2A - 1

ANNEXE A TO SECTION 2

ENGINEERING MODE

CONTENTS:

1. INTRODUCTION

2. ENGINEERING STATES

4. ENGINEERING MODE CHARACTERS

TABLES Page

1. Engineering States 2A-2

2. Conversion of HEX to Binary 2A-3

)))))))))))))))))))))))

INTRODUCTION

1. The Engineering Mode allows the user to check which options have been selected,

without having to use the programming equipment.

ENGINEERING STATES

2. Press the button during the first four seconds of the switch-on sequence. The first

Engineering State - E0 (bytes 0-3 of the EEPROM) is shown on the display. Subsequent presses of step through the remaining states to E10. The transceiver then exits from the Engineering Mode to display its programmable switch-on message if:

a) No further buttons are pressed for 32 seconds. b) The button is pressed at any time. c) The button is pressed during the final Engineering State (E10).

3. After the switch-on message the transceiver enters the quiescent mode. Refer to Table

1 for Engineering States.

POSITION: 1 2 3 4 5 6 7 8

HEX VALUE: 9 4 1 5 6 C 2 6

BINARY: 1001 0100 0001 0101 0110 1100 0010 0110

E0:94 15 6C 26

RPR 563

TM1195 Issue 1Page 2A - 2

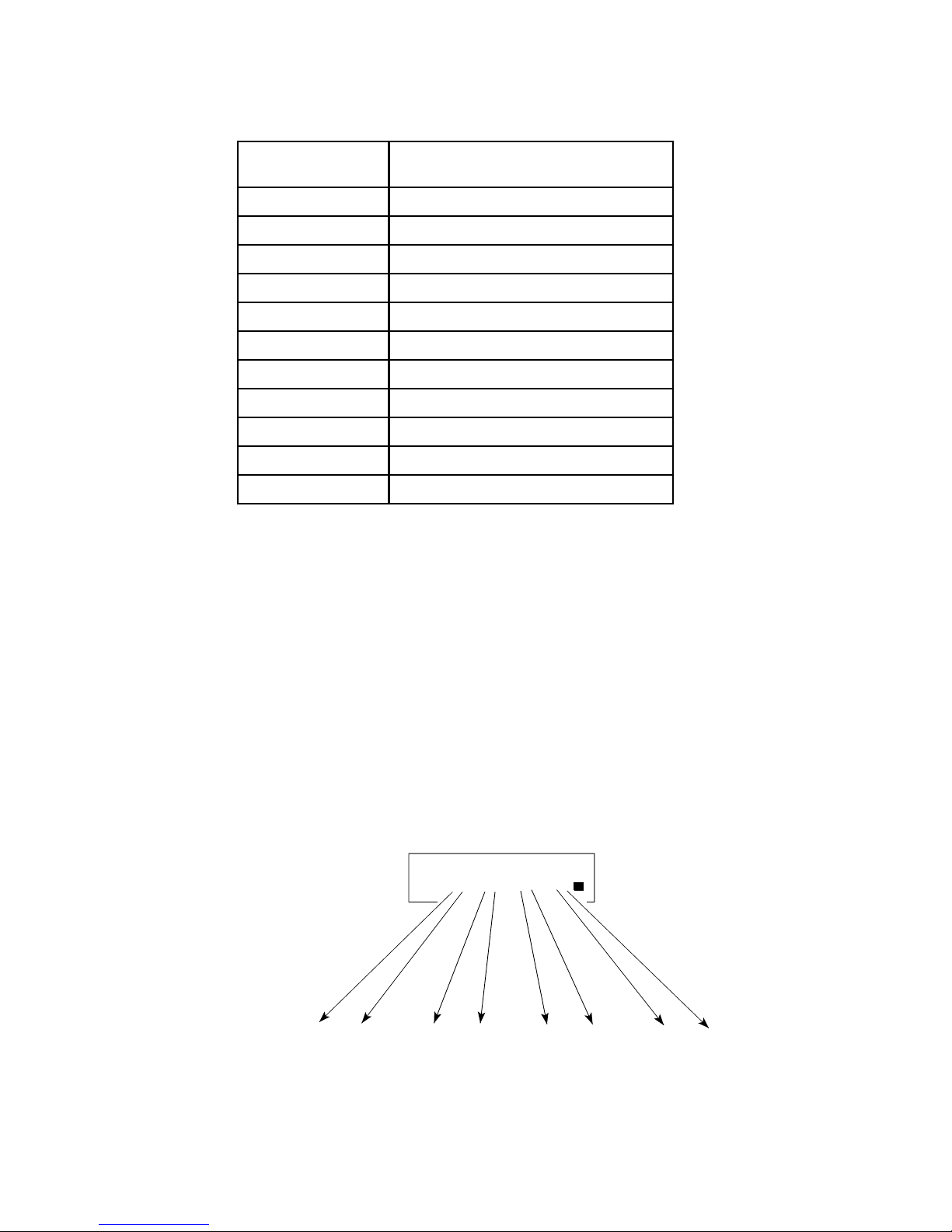

Table 1: Engineering States

ENGINEERING

STATE

DESCRIPTION

E0 Bytes 0-3 of EEPROM displayed E1 Bytes 4-7 of EEPROM displayed E2 Bytes 8-B of EEPROM displayed E3 Bytes C-F of EEPROM displayed E4 Lamp on and address displayed E5 Quiet tone E6 Normal tone E7 Out-of-range buzz E8 Vibrate E9 Speech channel open

E10 All segments displayed

ENGINEERING MODE CHARACTERS

4. Engineering States E0-E3 contain 16 hexadecimal numbers representing eight bit binary words stored in the EEPROM. Interpretation of the binary words relating to the first two screens indicate the options programmed into the transceiver.

5. To establish the option values programmed within the transceiver, convert each hexadecimal digit to its four bit binary number. A Hex-to-Binary chart is provided in Table 2. Look up the binary value against its corresponding byte number in paragraph 7.

6. The following is an example display from E0, which displays the Bytes 0-3 of the EEPROM (eight four-bit values), together with conversion to the appropriate binary values:

RPR 563

TM1195 Issue 1 Page 2A - 3

7. The programmed options for each hex character position can now be read by referring

to paragraph 9. For example, the binary value at character position 3 is 0001, identifying Display Mode as `On-Demand', and Alert Duration set to 8 seconds.

Table 2: Conversion of HEX to Binary

HEX BINARY HEX BINARY HEX BINARY HEX BINARY

0 0000 4 0100 8 1000 C 1100 1 0001 5 0101 9 1001 D 1101 2 0010 6 0110 A 1010 E 1110 3 0011 7 0111 B 1011 F 1111

8. The following list summarises the available programmed options for each character

position:

POS 1: FIXED POS 5: SPEECH

1001 Fixed Value 0--- Fixed

POS 2: LANGUAGE --00 No Speech Timeout 0000 English --10 30s Speech Timeout

0100 German --11 150s Speech Timeout 0110 Dutch

POS 3: DISPLAY MODE/

ALERT DURATION POS 6: LOW BATTERY WARNING/

0--- Fixed

-0-- Display: On Demand 0--- Audible Battery Warning Disabled

-1-- Display: Continuous 1--- Audible Battery Warning Enabled

--00 Alert: Continuous -0-- Visual Battery Warning Enabled

--01 Alert: 8s duration -1-- Visual Battery Warning Enabled

--10 Alert: 16s duration --00 Call Comparator: Disabled

--11 Alert: 32s duration --01 Call Comparator: 30s

POS 4: TEST MODE/EXTENDED

ALERT/ALERT START POINT

0--- Test Mode Disabled MUTE MODE/ PERMANENT ON 1--- Test Mode Enabled

-0-- Extended Alert Disabled 0--- OOR Audible Warning Disabled

-1-- Extended Alert Enabled 1--- OOR Audible Warning Enabled

--00 Alert Start: Lamp only -0-- OOR Visual Warning Disabled

--01 Alert Start: Quiet -1-- OOR Visual Warning Enabled

--10 Alert Start: Full --0- Mute Mode Disabled

-0-- Speech Disabled

-1-- Speech Enabled *

--01 10s Speech Timeout

* Speech is always enabled

CALL COMPARATOR

--10 Call Comparator: 120s

--11 Call Comparator: 300s

POS 7: OUT-OF-RANGE (OOR)/

--1- Mute Mode Enabled

---0 Permanent On Disabled

---1 Permanent On Enabled

POSITION: 9 10 11 12 13 14 15 16

HEX VALUE: 4 3 8 5 E 1 0 3

BINARY: 0100 0011 1000 0101 1110 0001 0000 0011

E1:43 85 E1 03

RPR 563

TM1195 Issue 1Page 2A - 4

POS 8: FIXED

0110 Fixed Value

POS 9: BEEP CODE FOR BEEP CODE POS 14: Mk7 CODE SYSTEM NUMBER

ALPHA (SLOT 2)

0100 Fixed Value --00 System No. 0

POS 10: BEEP CODE FOR BEEP CODE --11 System No. 3

ALPHA (SLOT 1)

0011 Fixed Value POS 15: FIXED

POS 11: BEEP CODE FOR BEEP CODE

ALPHA (SLOT 4)

1000 Fixed Value

POS 12: BEEP CODE FOR BEEP CODE --01 Three Address Digits

ALPHA (SLOT 3) --11 Five Address Digits

0101 Fixed Value

POS 13: TIME STAMP/TIME-OF-DAY

0--- Time Stamp for Message Disabled 1--- Time Stamp for Message Enabled

-0-- Time-of-Day Disabled

-1-- Time-of-Day Enabled

--10 Fixed Value

00-- Fixed Value

--01 System No. 1

--10 System No. 2

0000 Fixed Value

POS 16: DISPLAYED ADDRESS DIGITS

00-- Fixed Value

--00 Two Address Digits

RPR 563

TM1195 Issue 1 Page 3 - 1

SECTION 3

TECHNICAL DESCRIPTION

CONTENTS:

1. CIRCUIT SUMMARY

RADIO BOARD

7. Power Supplies

10. Receiver

18. Data Filter

19. Noise Squelch

24. Sub-Audio Tone Generator

25. Transmitter

DECODER BOARD

36. Power Supplies

40. Receiver Audio Stages

42. Microphone Audio Stages

43. Decoder

47. Gate Array (IC105)

50. BATTERY PACK

FIGURES: Page

1. Radio Board - Power Supply Distribution 3 - 3

2. Radio Board - Receiver Block Diagram 3 - 5

3. Radio Board - Transmitter Block Diagram 3 - 7

4. Decoder Board - Power Supply Distribution 3 - 9

5. Decoder Board - Block Diagram 3 - 11

RPR 563

TM1195 Issue 1Page 3 - 2

CIRCUIT SUMMARY

1. The transceiver comprises two printed circuit boards, the Radio Board and Decoder Board, which are connected directly to each other via a 14-way plug and socket. The Radio Board carries all the components for the transmitter and receiver with the exception of the microphone and loudspeaker circuits. Separate antennae are used for receive and transmit.

2. The receiver is of double superheterodyne design with intermediate frequencies of 45MHz and 455kHz. The RF, IF and demodulation circuits are accommodated on the Radio Board while the audio amplifier and control circuits are located on the Decoder Board.

3. Frequency modulation is employed in the transmitter. DTMF signalling is available in addition to speech. A choice of a ferrite stub or flexible whip antenna is available for the transmitter.

4. All decode and transceiver control circuits are accommodated on the Decoder Board. The LCD is mounted on a small PCB which is connected to the Decoder Board via two flexible connectors. A moulding inside the case front assembly holds the LCD at an angle of 45E to the Decoder Board.

5. Connections to the battery pack are made via eight spring fingers mounted on the edge of the Decoder Board. These make contact with metal strips on a small PCB fixed to the base of the case front. Contact is made with the battery pack when it is securely located on the transceiver body. In addition to the battery supply/charging circuits, there are connections for microphone audio and transceiver programming data lines.

6. A 600mAH or 1200mAH Metal-hydride plug-in battery pack may be fitted to the transceiver. Both sizes of battery pack have a nominal voltage of 3.6V and may be fast or trickle-charged. Each battery pack has a built-in microphone unit. Battery packs may be charged with or without the transceiver attached.

TxB+

SWB+/B+

TxKEY

BEC

MIC+

SPEECH3V

IC6

TR319

REG

TR44

TR23

BEC.EN

SQB+

SW3V

TxREG

TR20/IC1

1V REG

Tx DRIVERS

& PA

PL301

SK301

TR15/TR16

Tx SPEECH SUB-AUDIO

TAG10668-1

R338

R344

RPR 563

TM1195 Issue 1 Page 3 - 3

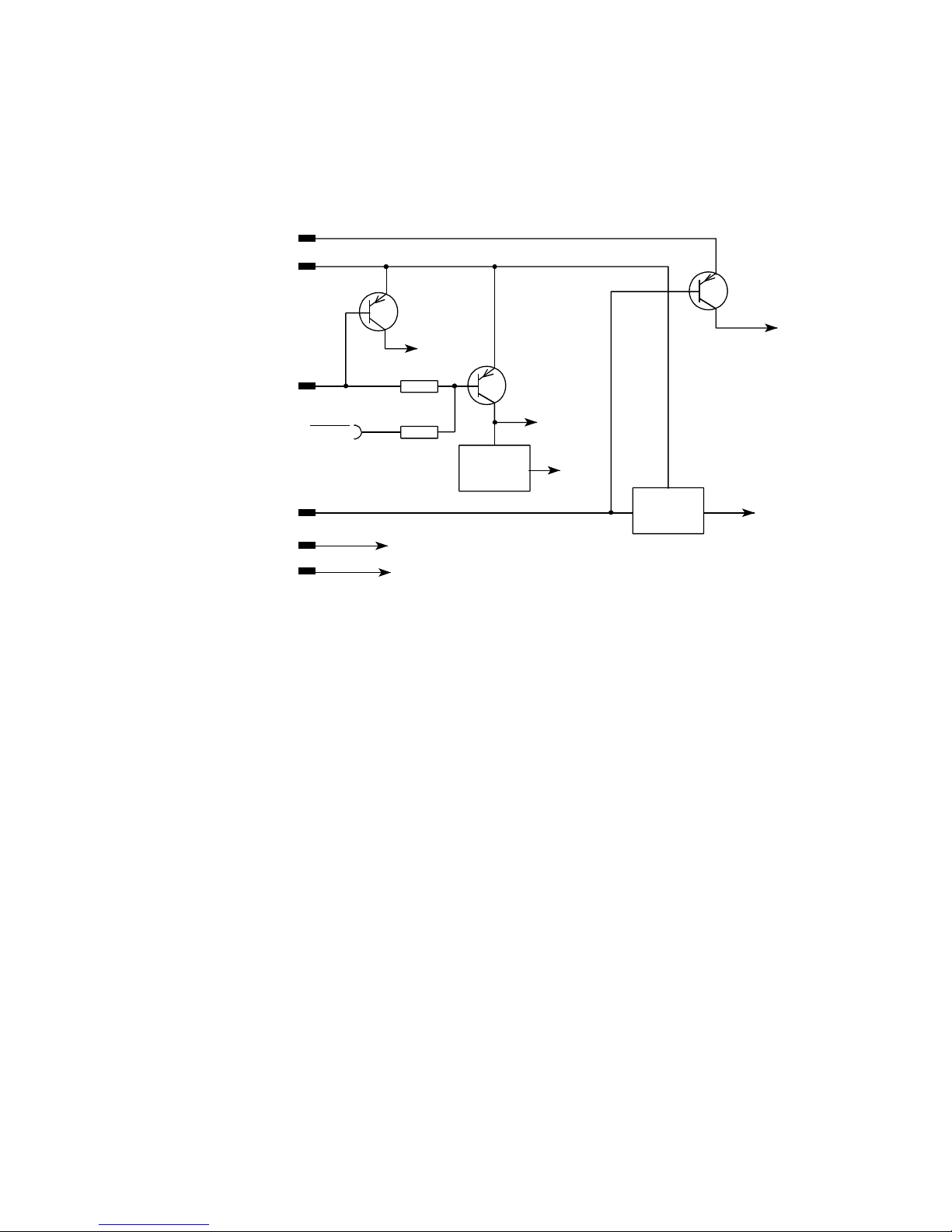

Figure 1: Radio Board - Power Supply Distribution

RADIO BOARD

Power Supplies

7. Battery Voltage (B+), TxB+, SPEECH3V and the +4.5V supply lines are derived from

the Decoder Board and are available at PL301.

8. Receiver IF Amplifier IC1 is gated on and off by the Battery Economy Circuit (BEC) line

from the Gate Array on the Decoder Board (via PL301 pin 12). This can be overridden for manual tests by taking /BEC.EN low. When gated on, TR23 conducts providing power to pin 20 of IC1, which drives an internal voltage regulator. This in turn is applied to TR20 to provide a 1V regulated supply rail which powers most of the receiver.

9. The transmitter oscillator and exciter circuits are powered from the TxREG line, an on-

board 2.5V regulated supply derived from IC6, which in turn is powered from the B+ line. The second driver, intermediate power amplifier and power amplifier are powered from the B+ supply which is gated via TR319 and the /TxKEY line.

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page 3 - 4

Receiver

10. A block diagram of the receiver is shown in Figure 2.

11. Receiver antenna AE302/303 is tuned by CV3, C411 and C134. A notch filter set at 160MHz is provided by C117, L102, C118, L101, to suppress carrier from the transmitter section. Signals from the antenna are fed to the RF amplifier TR35, and the resultant output at the collector is fed to helical filter FL7. FL7 provides a degree of selectivity before applying receiver channel signals to the first mixer TR30.

12. The local oscillator comprises TR34, XL10 and associated components. Frequency adjustment is by CV2. Local oscillator frequency is calculated as follows:

Bands Z, Y, X, W: fx =

carrier frequency - 45MHz

Band V only: fx =

carrier frequency + 45MHz

where fx is the crystal frequency in MHz.

13. The collector of TR34 is tuned to the third harmonic of XL10 by CV4 and L6. TR34 output is then tripled by TR33 and fed via helical filter FL8 to provide the correct injection frequency for the mixer TR30. The collector of TR30 is tuned to 45MHz by L4 and C114. The resultant 45MHz IF signal is passed by the crystal filter XL8, providing further selectivity.

14. The second oscillator runs at 44.545MHz and consists of TR31, XL11 and associated components. TR31 collector is tuned by L308 and C93. Output from TR31 emitter is fed to the second mixer TR32, where it mixes with XL8 output to form the 2nd IF of 455kHz. Resistor R360 on TR32 collector provides matching for the 455kHz ceramic filter FL3.

15. Output from FL3 is amplified by TR25 before application to the second 455kHz filter FL4. Output from FL4 is then applied to the first amplifier in IC1 before application to a third 455kHz filter FL2. The signal is then fed back into IC1 for further amplification and application to the internal quadrature discriminator. A 90E phase shift to the discriminator's second input is provided by ceramic discriminator FL1.

16. Demodulated audio is then output at pin 14 where it is split three ways thus: a) Received audio (RXAUDIO) b) Noise Squelch c) Data Filter

17. The received audio is fed through de-emphasis network R339, C83, and then to the high-pass filter TR29. This stage removes low frequency noise from the signal. From this point the audio signal is fed to the Decoder Board for further amplification and processing.

RPR 563

TM1195 Issue 1 Page 3 - 5

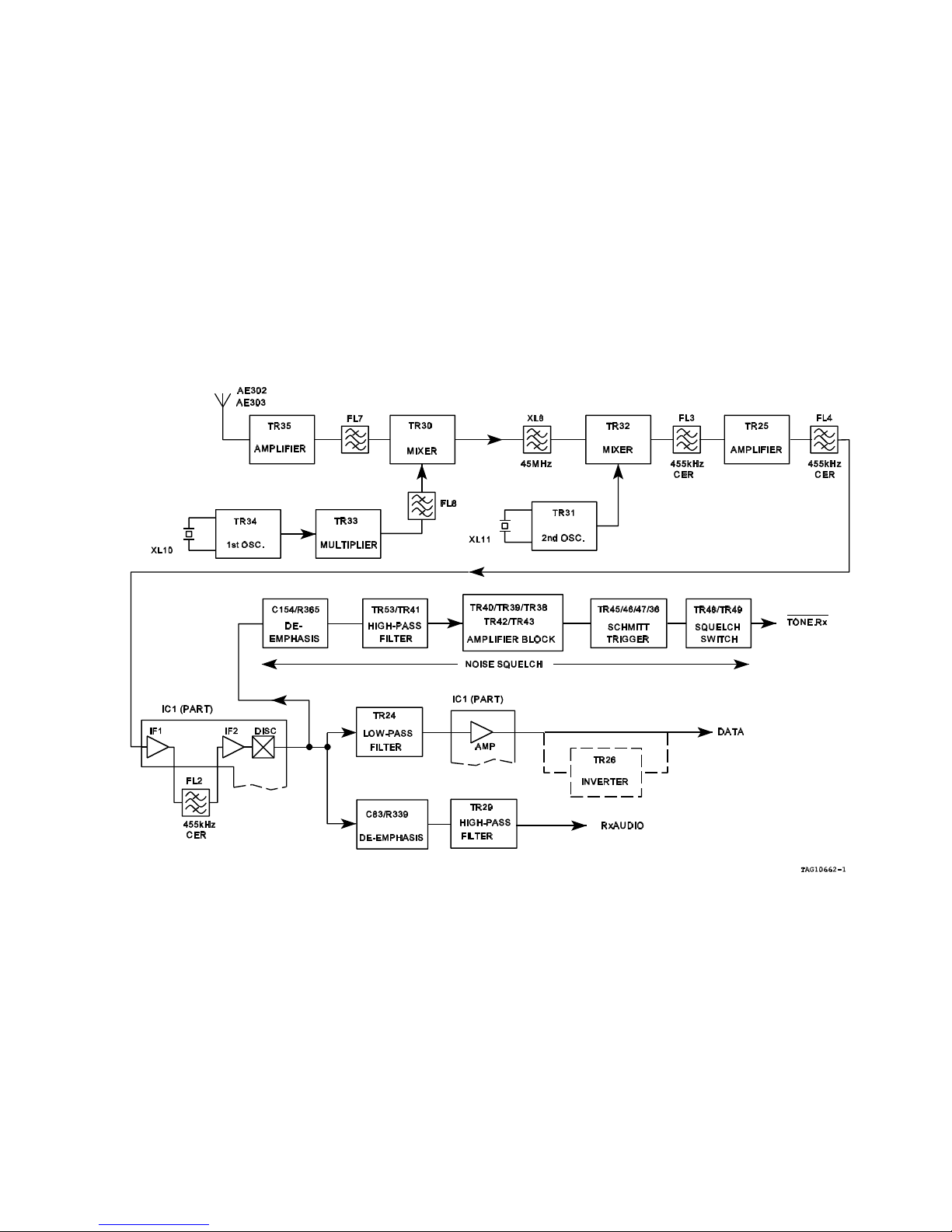

Figure 2: Radio Board - Receiver Block Diagram

RPR 563

TM1195 Issue 1Page 3 - 6

Data Filter

18. The data signal passes through low-pass filter Transistor TR24 which is controlled by the Battery Economy Circuit (BEC). The data signal is then fed to IC1 pin 15 where it is squared up and output at pin 16. This open collector output is then fed via TR26 to the Decoder Board. Data polarity can be changed by fitting R350 or R351; the default polarity is with R350 fitted.

Noise Squelch

19. Demodulated audio is applied to the de-emphasis network R365, C154 before application to high-pass filters TR53 and TR41. TR41 emitter output is then applied to amplifier chain TR40, TR39, TR38, TR42 and TR43. Temperature stability is provided by TR42. The signal at TR43 collector is passed via C166 where it is DC-shifted by D3 and then rectified by TR37, TR28, before application to Schmitt Trigger TR45, TR46, TR36, TR47.

20. Transistor TR46 base is sitting at approximately half-rail voltage. When there is no carrier present (i.e. high noise level) TR45 base will be high, switching TR36 on. The base of TR47 will be low, switching TR47 on, thus holding TR45 base high.

21. When carrier is present (i.e. no noise) TR45 base will be lower than TR46 base, pulling TR36 base low. TR36 will switch on, pulling TR47 base high, switching TR47 off, thus holding TR45 low.

22. The output of the Schmitt Trigger is at the collector of TR36. When TR36 is switched on (no carrier present), TR48 is switched on via R419, thus charging C85, switching TR49 on, and TR50 off. When TR36 is switched off (carrier present), TR48 is switched off, causing C85 to discharge. The discharge time is approximately 100ms and is determined by C85 and R420. Transistor TR49 is switched off once C85 has discharged, thus switching TR50 on.

23. The collector of TR50 collector (/TONE.Rx) is connected to the Decoder Board via PL301 pin 2.

Sub-Audio Tone Generator

24. The oscillator for the PLL (IC2) runs at the tone output frequency and is set by RV3. Tone output from IC2 is at pin 5. Filtering is provided by two low-pass filter stages TR51 and TR52. Output is applied to SK301 pin 9 for test purposes, and via potential divider R65/R64 to the modulator driver IC5.

OSCILLATOR/

DOUBLER/

AMPLIFIER

DRIVER

FL301

SAW

TR327

DRIVER

TR15/16

CLAMP

Tx TONE

MIC

SUMMING

AMPLIFIER

IC5a

DTMF

RV301

MOD GAIN

TR301 TR302 TR303

TR307

LOW-PASS

FILTER

AE301

TR18

TR22

LOW-PASS FILTERS

TR21,TR17,

TAG10661-1

TRIPLER

XL301

AMP

IC5b

IPA

TR306

BUFFER/

T303

T302

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 3 - 7

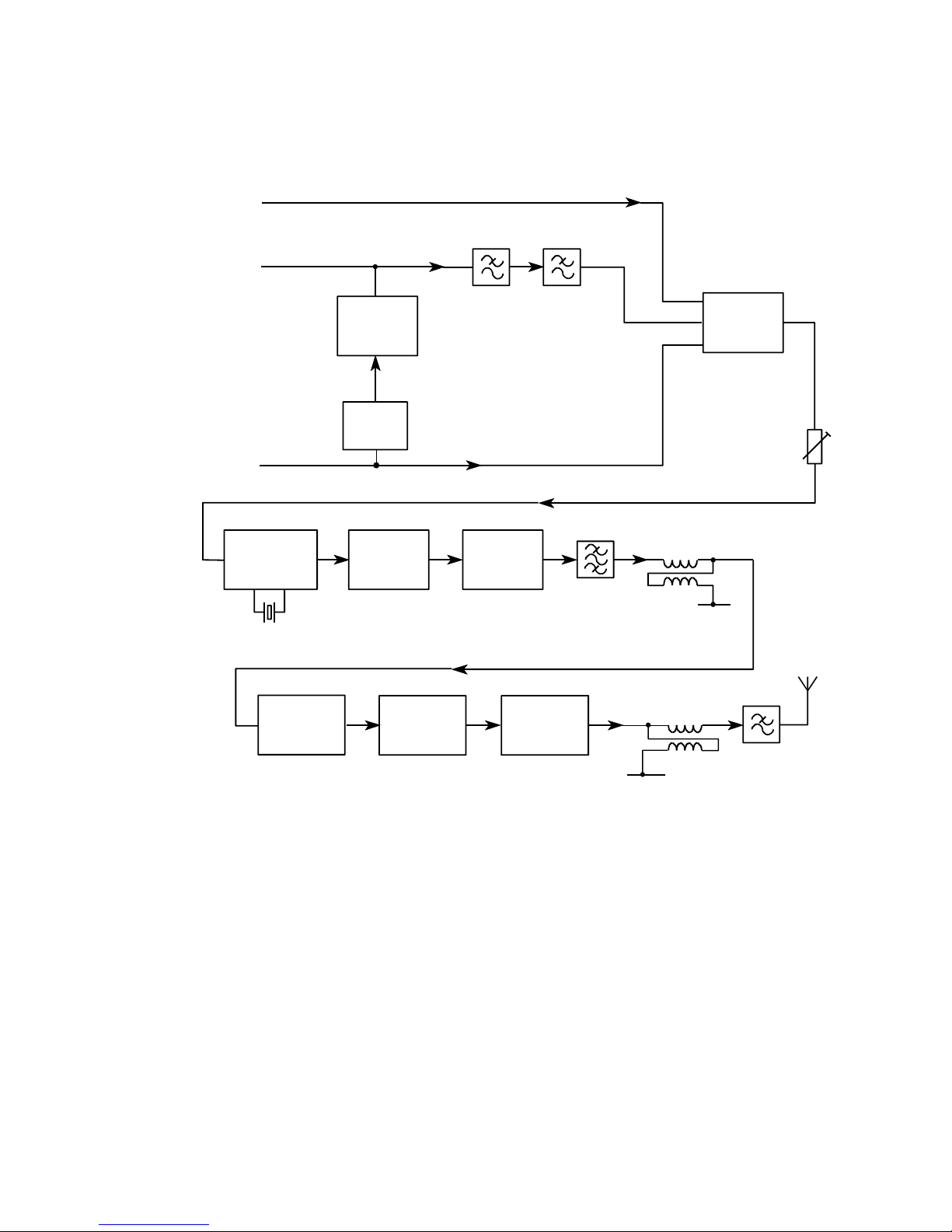

Figure 3: Radio Board - Transmitter Block Diagram

Transmitter

25. A block diagram of the transmitter is shown in Figure 3.

26. Amplified microphone speech from PL301 pin 8 is clamped by TR15/TR16 before

application to the two low-pass filters formed by TR17/TR18 and TR21/TR22. The filters limit the audio bandwidth to 3kHz. After filtering the signal is applied via R52 to IC5a.

27. The sub-audio tone derived from IC2 (see paragraph 24) is applied to IC5b via potential

divider R65/R64. When DTMF tones are generated by the Decoder Board, they are applied to IC5a via R37, R38 and R60. The tones are also applied to IC5b for amplification, rectified by D1 and C42, and applied to TR14, which mutes the speech circuits from the microphone. This allows DTMF tones to be transmitted without speech superimposed.

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page 3 - 8

28. IC5 acts as an amplifier and combiner for the speech, sub-audio tone and DTMF signals to be transmitted. Modulation is taken from RV301 wiper and applied to the transmitter modulator.

29. The transmitter oscillator is formed by TR301 using a series resonant crystal XL301. Frequency adjustment is provided by RV302. Audio for transmission is applied to varicap diode D301 which modulates the crystal oscillator frequency. XL301 frequency is determined by the following formula:

fx =

carrier frequency (MHz)

where fx is the crystal frequency in MHz.

30. The third harmonic is selected at TR301 collector via L301, C329 and C306. L303, C331, C308 and C310 provide further filtering and matching down to 50S output impedance. The output is fed via 3dB pad R320,324,325 to doubler/multiplier TR302. The 3dB pad reduces the interaction between the adjustments of RV302 and CV6. The output of this stage is tuned by L304 and CV6.

31. Output from TR302 collector is passed to TR303 which acts as a buffer/driver for SAW Filter FL301. A 9dB pad comprising R311, R312-313, R336, L331, C355 provides a good broadband match for FL301. FL301 removes unwanted frequency components before passing through matching components L334, C502 and application to transmission line transformer T303. Transformer T303 has a step-down ratio of 4:1, converting a 210S line impedance to a 52S line impedance.

32. To maintain a good broadband match, the signal from T303 passes through 3dB pad R389, R322, R319 before amplification by driver TR327. Transistor TR306 is an intermediate power amplifier, working in Class C, which drives power amplifier TR307 via an 8dB pad formed by R334, R321, R333. As the pad impedance is 50S, R335 may be removed for test purposes.

33. Output power at TR307 collector is approximately 50mW which is applied to transmission line transformer T302 which steps line impedance up from 13S to 50S. Components L346 and C345 provide matching to a five-element low-pass filter which removes unwanted harmonics. Capacitor C346 provides DC blocking.

34. Antenna matching is provided by L322, C140, L321, C139, R337, C187 and L325. Not all of these components are used on all bands, fitment of these components and their values are dependent upon frequency band. For example, resistor R337 provides an output load on bands where no antenna matching is required. Refer to Section 6 for banding information.

35. At the end of each transmission the Decoder takes the /TxKEY line high.

CONV.

TR101-6

VOLTAGE

+4.5V

SWB+

SPEECH3V

BEC

IC105 GATE

ARRAY

D101

TR102

/SP.EN

BATTERY

PACK

DECODER BOARD

TR110

TR122

IC101

µP

TR125

B+

PL101

SK101

B+

GND

CHARGE

TAG10791-1

FS102

D118/ D119

D120/

D121

TxB+ B+

RPR 563

TM1195 Issue 1 Page 3 - 9

Figure 4: Decoder Board - Power Supply Distribution

DECODER BOARD

Power Supplies

36. Battery voltage (B+) is supplied from the battery pack at PL101 pin 3 and is split into

two supplies, B+ and TxB+. TxB+ powers the Radio Board transmitter power amplifier only, via SK101 pin 13. B+ is used on both the Radio and Decoder Boards, the Radio Board connection being at SK101 pin 7. Protection against reverse-polarity connection is afforded by a surface-mounted fuse FS102 and diodes D118, D119.

37. The 4.5V voltage converter comprises PNP transistor TR105, T101 and associated

components as an oscillator running at between 20kHz and 100kHz. Converter output is rectified and smoothed by D104 and C121. The output level is fed back to current mirror control loop TR101-TR104 to bias the base of the oscillator. A constant 4.5V is thus maintained with accuracy and temperature performance defined predominately by the ratios of R105, R111 and R106.

38. When the Speech Enable line /SP.EN on IC101 goes low, TR122 is turned on,

supplying battery voltage (SPEECH3V) to the microphone and loudspeaker amplifier circuits. The SPEECH3V line is also made available to the Radio Board at SK101 pin 9.

39. A `Low Battery' indication is provided by IC103. When B+ drops to # 3V, the output of

IC103 applies a `low' to microprocessor IC101 at pin 44. If the BACKUPB+ line drops below 2.2V, IC104 signals a reset to the Gate Array at pin 5.

RPR 563

TM1195 Issue 1Page 3 - 10

Receiver Audio Stages

40. Receiver audio (RXAUDIO) from the Radio Board is applied to SK101 pin 3 and fed through the squelch gate transistor TR119 which is controlled by the decoder squelch output. If valid audio is received then the transistor conducts and the signal is passed to pin 7 of pre-amplifier IC106. Output from IC106 pin 1 is passed to D106, TR124 and TR117 which form an AGC circuit, and to IC107 which amplifies the signal to drive loudspeaker LS101. Amplifiers IC106 and IC107 operate only when SPEECH3V is present.

41. Control of loudspeaker volume is achieved by an electronically-controlled potentiometer comprising R171, and transistor-switched resistors R135, R137, R139 and R141. Transistors TR111-TR114 which provide the potentiometer switching, are controlled by microprocessor IC101.

Microphone Audio Stages

42. Audio from the microphone is fed via C137 to IC106 at pin 6. It is then amplified and fast AGC-limited by IC106, D105, TR120 and TR121 to give a maximum level of 1.2V peak-to-peak. Microphone audio is then output at SK101 pin 8 to the Radio Board.

Decoder

43. The decoder circuits comprise Gate Array IC105, microprocessor IC101, EEPROM IC102 and associated components.

44. Microprocessor IC101 carries out the decoding and control functions of the transceiver. Its functions include:

a) DTMF tone generation from a built-in encoder. Output is presented at pin 47. b) Scans the keypad to determine which key has been pressed. c) Drives the display module. d) Switches the LCD and keypad backlighting on and off. e) Controls the /TxKEY and /SQUELCH lines.

45. The LCD module is controlled directly from IC101. The icon is driven from IC101 via TR115, C119 and C118. Power to the display is provided via TR108 which is gated by IC101. Backlighting for the display and keypad is controlled by TR107 gated by IC101.

46. The clock oscillator is provided by crystal XL102 and internal components running at

3.589MHz. Receiver address and transceiver options are programmed in EEPROM IC102, which are read serially by the microprocessor at switch-on. IC102 is programmed by the microprocessor with data which is supplied from the programming unit P648 via the Absence Rack Data (ARDATA) contacts on the battery pack.

IC102

EEPROM

KEYPAD

LS101

IC107

AMPLIFIER

IC106

PRE-AMP

TR117,124

AGC

TR111-114 VOLUME SWITCH

SQUELCH

GATE

TR119

TONE.Rx

TxDTMF

BEEP

µP

IC101

IC105 GATE

ARRAY

S103

LCD101

MODULE

LCD

ARDATA

RxAUDIO

DATA

`A'

D0-D3

BEC

S101

CANCEL

TAG10790-1

SQUELCH

IC106

PRE-AMP

MIC+

TR120,121

AGC

TR126

PRE-AMP

TR122

SP.EN

MIC.SIG

SPEECH3V

RPR 563

TM1195 Issue 1 Page 3 - 11

Figure 5: Decoder Board - Block Diagram

Gate Array (IC105)

47. Gate Array IC105 is responsible for the following functions:

a) Detects operation of the Cancel button and passes the data to microprocessor

IC101. b) Resets IC101 under various conditions. c) Pre-conditions incoming data (detects preamble, etc.). d) Controls the Battery Economy Circuit (BEC) line. e) Generates the beep drive waveform. f) Drives the Alert LED D101 (D101 is also driven at reduced brightness via TR116

when the unit is on charge).

RPR 563

TM1195 Issue 1Page 3 - 12

48. The clock for the Gate Array is provided by the external oscillator formed by TR131, XL101 and associated components.

49. The receiver circuits are powered up for a brief interval once a second by BEC, so that IC105 can check for the presence of Mk7 preamble (256Hz square wave). If preamble is detected, the receiver remains powered up while IC105 acquires batch synchronisation. When synchronisation has been achieved, IC105 generates interrupts from its DTI output (pin 66) which are applied to the microprocessor INT4 input (pin 1) every 62.5ms (32 bit periods). After each interrupt the microprocessor collects the 32 data bits in nibbles (4-bit words) using the parallel data bus DA0-DA3.

BATTERY PACK

50. Contacts for charging and transceiver programming are provided on the battery pack. The contacts used for programming may also be used for absence registration on Multitone paging systems that provide that facility.

51. A thermistor is provided to allow fast charging circuits to sense battery temperature as a part of their control loop. A microphone is included in the battery pack.

RPR 563

TM1195 Issue 1 Page 4 - 1

SECTION 4

INSTALLATION AND COMMISSIONING

Any relevant information on the installation and commissioning procedures for the transceiver is contained within Section 2 of this manual.

RPR 563

TM1195 Issue 1Page 4 - 2

INTENTIONALLY BLANK

RPR 563

TM1195 Issue 1 Page 5 - 1

SECTION 5

SERVICING

CONTENTS:

1. ROUTINE MAINTENANCE

2. SERVICE POLICY

4. WORKSHOP PROVISIONS

TEST EQUIPMENT, TOOLS AND ANCILLARIES

5. Test Equipment

6. Tools and Ancillaries

DISASSEMBLY

7. Belt Clip Assembly

9. Removing the Antenna

10. Decasing the Transceiver

11. Removing the Display Module

12. Re-Assembly

FAULT FINDING

14. General

16. `Low Battery' Circuit Test

17. Decoder Faults

ALIGNMENT PROCEDURE

18. Preliminaries

19. Receiver Alignment

20. Transmitter Alignment

21. Sub-Audio Tone Frequency

PERFORMANCE CHECKS

22. Receiver Sensitivity Check

23. Transmitter Power Measurement

25. PROGRAMMING

RPR 563

TM1195 Issue 1Page 5 - 2

TABLES Page

1. Radio Board DC Levels (A) 5 - 16

2. Radio Board DC Levels (B) 5 - 17

3. Decoder Circuit Detailed Test Sequence 5 - 18

4. Decoder Board DC Levels 5 - 20

5. Microprocessor (IC101) Pin Connections 5 - 21

6. Gate Array (IC105) Pin Connections 5 - 22

FIGURES

1. Belt Clip Removal 5 - 5

2. Decasing the Transceiver 5 - 6

3. Exploded Diagram - Transceiver 5 - 7

4. Connections to SK301 5 - 8

5. Radio Board - Location of Test Points and Main Assemblies 5 - 10

6. General Fault Finding Guide (1 of 3) 5 - 11

7. General Fault Finding Guide (2 of 3) 5 - 12

8. General Fault Finding Guide (3 of 3) 5 - 13

9. Transmitter Fault Finding Guide 5 - 14

10. Telephone Mode Fault Finding Guide 5 - 15

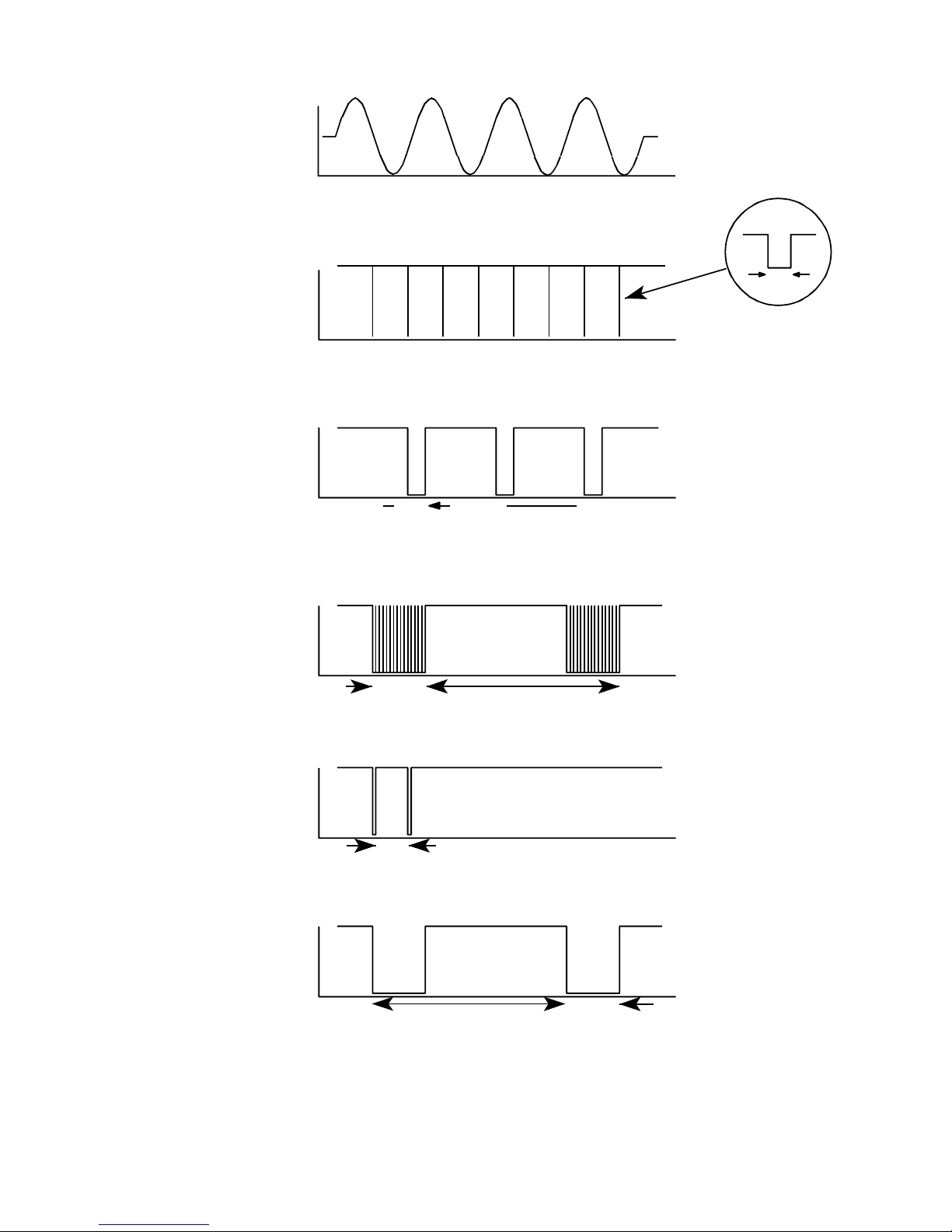

11. Decoder Voltages and Waveforms 5 - 19

12. Semiconductor Pin-Out Details 5 - 23

13. Receiver Alignment Connections 5 - 24

14. Radio Board - Alignment Diagram 5 - 25

15. Transmitter Alignment Connections 5 - 26

16. Test Probe and Test Link Details 5 - 27

17. Sub Audio Tone Frequency Test Connections 5 - 28

18. Receiver Sensitivity Test Circuit 5 - 29

ANNEXES:

A Engineering Test Mode B P648 Programming Unit C P665 Alignment Jig D Modified Case Back

CAUTION

STATIC SENSITIVE DEVICES ARE USED WITHIN THE TRANSCEIVER. CARE MUST BE USED TO ENSURE DAMAGE TO THESE DEVICES IS NOT CAUSED BY HIGH LEVELS OF STATIC ELECTRICITY.

RPR 563

TM1195 Issue 1 Page 5 - 3

ROUTINE MAINTENANCE

1. This is limited to battery replacement and surface cleaning of the outer case using a lint

free cloth moistened with soapy water. Spirit or other solvents should not be used as this may damage the case.

SERVICE POLICY

2. Repairs are only to be performed by qualified personnel in authorised workshops.

3. The transceiver is repairable to component level. The Display Module is a disposable

item. If any screening cans are removed for access to components, they must be refitted flush to the printed circuit board.

WORKSHOP PROVISIONS

4. Repair workshops must be free from hostile radio interference or otherwise equipped

with Faraday cages. Suitable equipment must be available to remove and replace the surface mount components which are used extensively within the transceiver.

TEST EQUIPMENT, TOOLS AND ANCILLARIES

Test Equipment

5. The following test equipment is required:

! IBM PC or compatible personal computer. ! P648 Programming Unit. ! P648T Programming Software, RPR 560 Series. ! P910/P911 Cable Assembly (PC to P645). ! P645 Test Encoder (including Power Supply). ! P645A Test Encoder Software (V04.00 or later). ! RF Signal Generator. ! Oscilloscope. ! RF Power Meter. * ! Millivoltmeter supplied with high impedance, low capacitance probe ! P665 Alignment Jig.

RPR 563

TM1195 Issue 1Page 5 - 4

! UHF Frequency Counter. ! AF Frequency Counter. ! SINAD Meter. ! AC Millivoltmeter. ! Modulation Meter. ! AF Signal Generator. ! Digital Multimeter. ! P800 TEM Cell.

* Equipment to have 50mW, 50S input

Tools and Ancillaries

6. The following tools and ancillaries are required:

! Power Supply Unit, 3.6V DC ! Trimming Tools ! 2.5mm Cross-point screwdriver ! 4mm A/F Spanner/Socket ! 9mm A/F Spanner ! Surface Mount Handling Tools ! Anti-Static Workstation (Part No. 0160-7888) ! Modified Case Back (refer to Section 5, Annexe C)

PSG10158-2

RPR 563

TM1195 Issue 1 Page 5 - 5

Figure 1: Belt Clip Removal

DISASSEMBLY

Belt Clip Assembly

7. Referring to Figure 1, apply pressure to the centre of the clip (marked `A') so that its

mounting spring sits proud of its recess, then use a 4mm wide blade (at position `B') to prise the spring away from the case.

8. To refit the clip, locate the lower end of the clip spring into the corresponding cut-out

in the case, then apply pressure to the centre of the clip, forcing the other end of the spring into its corresponding recess.

Removing the Antenna

9. To remove the antenna, unscrew it (anti-clockwise) from the case using a 9mm A/F

spanner. Retain the plastic washer.

Decasing the Transceiver

10. To decase the transceiver, refer to Figure 2 and carry out the following procedure:

a) Remove the antenna as detailed in paragraph 9. Note that failure to remove the

antenna prior to disassembly may result in damage to the PCB assembly or antenna.

b) Remove the battery pack by pressing the battery release button inwards and sliding

the battery pack away from the transceiver.

PSG10518-1

RPR 563

TM1195 Issue 1Page 5 - 6

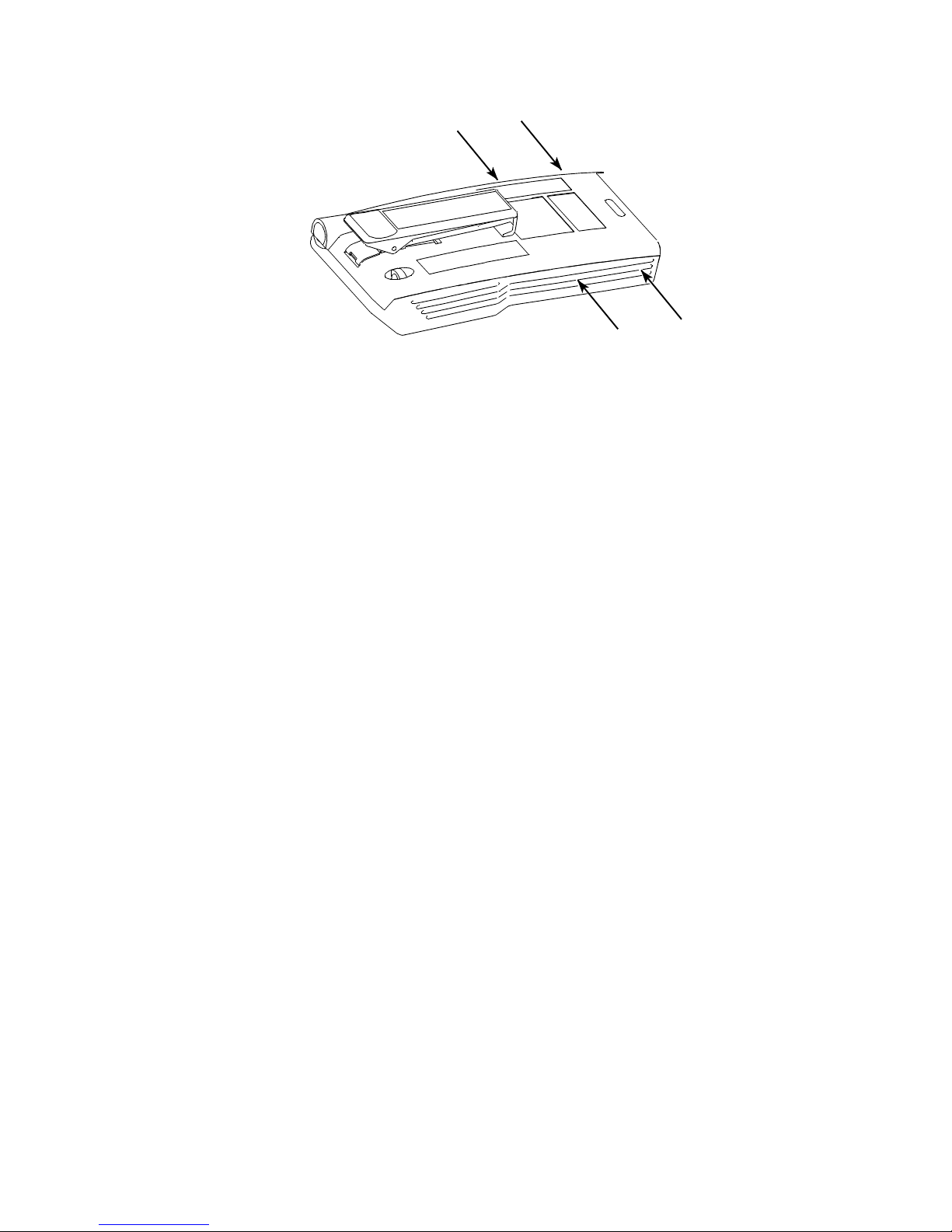

Figure 2: Decasing the Transceiver

c) With the transceiver held face downwards, squeeze the sides of the case at point

`C'. At the same time hook the first and second fingers of the other hand round the lip at the end of the case back, and then peel back. The case back will unclip itself from that end.

d) Squeeze the case sides with thumb and fore finger at points `D'. If the case back

does not come free, squeeze the case at either side of the speaker aperture: the case back will now hinge clear.

e) Undo the two screws securing the Radio Board and gently prise the board out from

the battery end with a blunt instrument.

f) Undo the six screws securing the Decoder Board to the case front. Take care not

to damage the loudspeaker wires when lifting the Decoder Board away. Note that on early models the two screws nearest the Display Module are longer.

g) To remove the Decoder Board completely, release the loudspeaker from its retainer

by undoing one or more of the screws securing the retainer to the case front. Lift out the Decoder Board with the loudspeaker.

h) If required, the Display module may be disconnected by unsoldering its ribbon cable

from the Decoder Board. Likewise the loudspeaker may be disconnected by unsoldering its wires from the Decoder Board.

TAG10667-1

RPR 563

TM1195 Issue 1 Page 5 - 7

KEY:

1. Case Front

2. Speaker

3. Retainer (Speaker)

4. Display Module

5. Case Rear

6. Antenna

7. Pocket Clip

8. Radio Board

9. Decoder Board

10. Battery Connector PCB

11. Keypad Membrane

12. Battery Pack

13. Microphone

Figure 3: Exploded Diagram - Transceiver

1 14

7 8

TAG10792-1

TxKEY (TP309) DATA

+4.5V

3 BEC.EN (TP305)

B+ (TP301)

SPEECH3V (TP306)

GROUND (TP302)

N/C

MIC+

AUDIOX (TP307)

Rx AUDIO

Tx.TONE (TP 308) TONE.Rx

CONNECTIONPIN

RPR 563

TM1195 Issue 1Page 5 - 8

Figure 4: Connections to SK301

Removing the Display Module

11. The procedure for removing the Display Module is as follows: a)Unclip the Interface moulding from the Display Module. b)Remove the two screws securing the moulding to the Decoder PCB. Remove the

moulding.

c)Unsolder the flexible interconnects from the Decoder PCB.

Re-assembly

12. Re-assembly is a reversal of the above procedure. To re-case the transceiver, insert the antenna end of the case back at an angle of 45E into the corresponding end of the case front. Ensure that the antenna end of the case back fits snugly into the case front. Lower the case back into position and snap the two halves together.

13. Ensure that the plastic washer is located correctly on the antenna prior to re-fitting the antenna.

FAULT FINDING

General

14. Connections to the transceiver can be made via the test socket SK301. Refer to Figure 4 for connection details.

RPR 563

TM1195 Issue 1 Page 5 - 9

15. The location of test points are shown in Figure 5.

`Low Battery' Circuit Test

16. The `Low Battery' option must be enabled in the EEPROM if operation of this circuit is

to be checked. The procedure for checking operation is as follows: a) Remove the case back and Radio Board. Connect the Radio Board to the Decoder

Board using the interconnect lead.

b) Connect a variable DC supply to the Decoder Board via the red and brown wires on

the interconnector. Set the power supply voltage to 2.6V DC.

c) Switch on. The transceiver should initiate its switch-on procedure. A `Low Battery'

warning buzz should sound instead of a beep, as follows: I) Quiet Tone (modulated by `Low Battery' buzz).

ii) Alert Lamp. iii) Show all LCD segments. iv) Display Receiver Address. v) Display Switch-on Message. vi) Display message `BAT'.

d) Press the Memory Recall button and check that the message `Low Battery' is

displayed. If the transceiver is called, the beep pattern changes to a buzz. e) Switch off the transceiver. Increase the power supply output to 3.2V DC. f) Switch on the transceiver and check that the normal switch-on sequence occurs.

(SPEECH3V)

(GND)

(Tx TONE)

(NOT USED)

(B+)

SK301

(BEC)

(AUDIOX)

(Tx KEY)

TAG10935-1

PA FILTER

SCREEN

EXCITER SCREEN

Rx ANTENNA (AE303)

ANTENNA CONTACT

ANTENNA GUIDE

TP306

TP302

TP308

TP303

TP301

TP305

TP307

TP309

RPR 563

TM1195 Issue 1Page 5 - 10

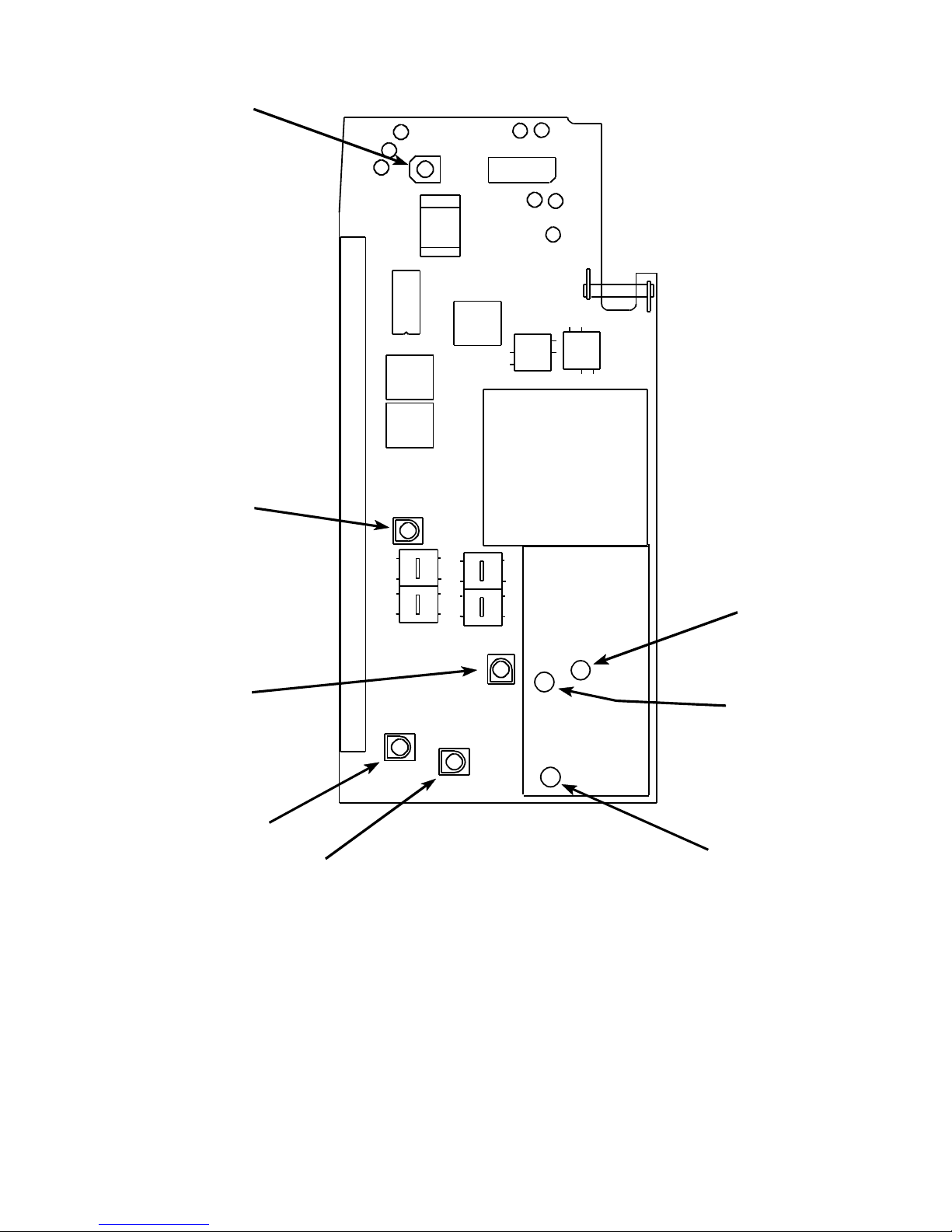

Figure 5: Radio Board - Location of Test Points and Main Assemblies

TRANSCEIVER SUSPECT

FIT NEW BATTERY PACK AND SWITCH ON.

ARE ALL LCD SEGMENTS VISIBLE DURING SWITCH-

IS DISPLAY BLANK OR FLASHING?

CORRUPTED EEPROM. REMOVE BATTERY,

FLASHINGBLANK

NO YES

DOES RED LED LIGHT DURING SWITCH-ON SEQUENCE?

ON SEQUENCE?

DOES RED LED LIGHT DURING SWITCH-ON SEQUENCE?

IS BEEP AUDIBLE AT SWITCH-ON?

DE-CASE AND CHECK BATTERY CONTACTS, BACKUPB+, VDD2,

IC105.

DE-CASE AND CHECK DISPLAY MODULE, +4.5V LINE, IC105 &

IC101.

DE-CASE AND CHECK DISPLAY MODULE, +4.5V LINE.

YES

YESNOYESNO

PLACE TxCEIVER IN P665 AND SEND CALL.

`B'

DE-CASE AND CHECK

D101, R117 & GATE ARRAY (IC105 PIN 14).

DECASE AND CHECK

TR117, TR124, IC107, LS101 & IC105.

DECASE AND CHECK IC105.

YES

TAG10930-1

PAUSE, RE-FIT BATTERY.

RPR 563

TM1195 Issue 1 Page 5 - 11

Figure 6: General Fault Finding Guide (1 of 3)

YES

>3dBm LOW

YES

`C'

`B'

* -70dBm CHANNEL FREQUENCY 1kHz TONE AT 3kHz DEVIATION.

RECEIVER O.K. CHECK

TRANSMITTER

CHECK TR20, TR23 & IC1.

DISABLE BEC BY

LEAD. IS 1V LINE OK?

INJECT MODULATED SIGNAL*.

AT SK301 PIN 7?

CHECK IF FL1 OR

IC1 ARE FAULTY

IS 455kHz PRESENT AT IC302 PIN 5?

IS DATA PRESENT AT

SK301 PIN 2?

RE-ALIGN Rx AND RE-TEST.

INJECT 455kHz SIGNAL AT 5µV TO FL3 INPUT. MODULATE WITH 1kHz TONE.

IS 1kHz PRESENT AT SK301 PIN 12?

CHECK IC1,

FL2, C82, C81.

CHECK FL4, TR25, IC1 AND

CHECK IC105

(GATE ARRAY).

CHECK DATA FILTER

AND LIMITER, TR29, TR27 AND IC1.

IS 455kHz PRESENT

AT IC1 PIN 1?

CHECK RF STAGES.

TAG10931-1

CHECK

SENSITIVTY.

REMOVE CASE BACK &

OR MISALIGNED.

ASSOCIATED COMPONENTS.

CONNECTING TEST

SEND CALL. IS CALL RECEIVED?

ANTENNA. FIT MODIFIED

IS 1kHz TONE PRESENT

CASE BACK & RE-FIT

BATTERY.

RPR 563

TM1195 Issue 1Page 5 - 12

Figure 7: General Fault Finding Guide (2 of 3)

`C'

INJECT 455kHz SIGNAL (1kHz MODULATION) AT C98/XL8. SET LEVEL TO -30dBm. IS 1kHz TONE PRESENT AT SK301 PIN12?

CHECK TR32.

INJECT 45MHz MODULATED SIGNAL AT TR30 COLLECTOR VIA 680 OHM RESISTOR. IS 1kHz

CHECK TR31, XL11, L305 XL8, L308, C104.

INJECT 45MHz MODULATED SIGNAL AT L1/FL7. IS TONE PRESENT AT SK301 PIN 12?

CHECK TR30.

APPLY MODULATED SIGNAL (AT CHANNEL FREQUENCY)

TO L1/FL7. IS TONE PRESENT AT SK301 PIN 12?

PRESENT AT SK301 PIN12?

L12, 6, 100, 8, FL8 & L2.

APPLY MODULATED SIGNAL (AT CHANNEL FREQUENCY)

TO C105. IS TONE PRESENT AT SK301 PIN 12?

CHECK FL7.

APPLY MODULATED SIGNAL (AT CHANNEL FREQUENCY)

TO C189. IS TONE PRESENT AT SK301 PIN 12?

CHECK TR35, L10, L5,

RE-ALIGN AND CHECK SENSITIVITY.

YES

TAG10932-1

PRESENT AT SK301 PIN12?

CHECK TR34, 33, XL10,

L11, L101-102.

RPR 563

TM1195 Issue 1 Page 5 - 13

Figure 8: General Fault Finding Guide (3 of 3)

CONNECT A FULLY-CHARGED BATTERY PACK.

AND FREQUENCY COUNTER VIA Tx O/P CONNECTOR TO P654. PUT TRANSCEIVER

KEY UP TRANSMITTER. IS RF POWER GREATER THAN 20mW?

CHECK TxKEY, TxREG, TxB+,XL301,TR301-303,

CHECK DC LEVELS OF TR327, TR306-7. CHECK L320, TxB+.

RE-ALIGN TRANSMITTER.

CHECK TR301, 302, 303

IS THE CARRIER FREQUENCY CORRECT?

ADJUST RV302, C350.

CONNECT MODULATION METER. APPLY 1kHz TONE. IS DEVIATION LEVEL CORRECT?

ADJUST RV301. CHECK

DISCONNECT OSCILLOSCOPE. CONNECT AF COUNTER TO

MOD METER. IS SUB-AUDIO TONE FREQUENCY CORRECT?

ADJUST RV3. CHECK

RE-ALIGN TRANSMITTER.

NONE

YES

TAG10933-1

REMOVE ANTENNA, CONNECT POWER METER

INTO ENGINEERING TEST MODE 4.

319, 327, 306-07, FL301.

REMOVE PA SCREEN, LIFT C326, CONNECT POWER METER

#20mW

TO R322. IS POWER LEVEL

TRANSMITTER SUSPECT

APPROX 0.5mW?

IF ADJUSTMENT FAILS, CHECK XL301, TR301 TR302.

TR17, 18, 21, 22, IC305.

CONNECT OSCILLOSCOPE TO MOD. METER OUTPUT. IS AUDIO WAVEFORM DISTORTED?

IS THE WAVEFORM AT RV301 DISTORTED?

CHECK IC5,

TR17-18, 21-22.

CHECK PROGRAMMED OPTIONS (USE P648T).

NO YES

YES

IC2, TR19, 51, 52.

RPR 563

TM1195 Issue 1Page 5 - 14

Figure 9: Transmitter Fault Finding Guide

PRESS GREEN BUTTON

FAULTY KEYPAD. CHECK IC101, PINS 28

CHECK DECODER CIRCUIT & IC101 CLOCK.

IS MESSAGE `PLEASE WAIT' DISPLAYED?

IS `LINE READY' TONE AUDIBLE RED LED LIT, OR ANY DISPLAY

IS SYSTEM DIALLING TONE RECEIVED?

CHECK PAGING SYSTEM

YESNO

YES

TAG10934-1

AND 32.

ARE DTMF TONES

YES

TELEPHONE MODE SUSPECT

CHECK DTMF TONES ARE CORRECT. CHECK SYSTEM IS RESPONDING

IS FUNCTIONING.

CALL VALID NUMBER. IS CALL RECEIVED?

TRANSCEIVER OK

DOES MESSAGE `PLEASE WAIT' APPEAR ON DISPLAY?

YES

SYSTEM BUSY. TRY AGAIN LATER.

ON CALL LOGGER.

YES

CHECK KEYPAD. CHECK DTMF TONES.

ICON VISIBLE?

GENERATED?

RPR 563

TM1195 Issue 1 Page 5 - 15

Figure 10: Telephone Mode Fault Finding Guide

RPR 563

TM1195 Issue 1Page 5 - 16

COMP COLL’TR BASE EMITTER REMARKS

TR14 0 0 0 Tx DTMF MIC DISABLE TR15 0 0 0 Tx MIC CLAMP TR16 0 0 0 Tx MIC CLAMP TR17 3.8 2.7 2.4 Tx MIC LOW-PASS FILTER TR18 3.8 2.4 1.9 Tx MIC LOW-PASS FILTER TR19 0.3 0.3 0 Tx TONE TR20 1.02 3.3 3.95 Rx SERIES REGULATOR 1V SUPPLY TR21 3.8 2.6 2.4 Tx MIC LOW-PASS FILTER TR22 3.8 2.4 1.9 Tx MIC LOW-PASS FILTER TR23 3.8 3.2 3.9 Rx SWITCHED BATTERY SW3V TR24 0 0.8 1.3 Rx DATA LOW-PASS FILTER TR25 0.7 0.65 0 Rx IF FILTER BUFFER AMPLIFIER TR26 DATA INVERT TR27 3.2 3.5 4 Rx DATA SWITCH POWER ENABLE TR28 0.38 0.43 0.015 Rx NOISE SQUELCH TR29 0.1 0.1 0.5 Rx AUDIO HIGH-PASS FILTER TR30 1.05 0.8 0 Rx 1st MIXER TR31 1.1 1.1 0.4 Rx SECOND OSCILLATOR TR32 0.7 0.7 0 Rx 2nd MIXER TR33 1 1 0.3 Rx RF OSCILLATOR AMPLIFIER TR34 1 1 0.3 Rx 1st LOCAL OSCILLATOR TR35 0.9 0.8 0 Rx RF AMPLIFIER TR36 0.5 0 0 SCHMITT TRIGGER NOISE SQUELCH TR37 0 0.47 0.43 NOISE SQUELCH RECTIFIER TR38 0.6 0.6 0.02 NOISE SQUELCH AMPLIFIER TR39 0.6 0.6 0.02 NOISE SQUELCH AMPLIFIER TR40 0.6 0.6 0.1 NOISE SQUELCH AMPLIFIER TR41 0.9 0.9 0.4 NOISE SQUELCH HIGH-PASS FILTER TR42 0 0.2 0.8 NOISE SQUELCH AMPLIFIER TR43 0.7 0.8 0.3 NOISE SQUELCH AMPLIFIER TR44 2.9 4 4 SWITCHED BATTERY

Table 1: Radio Board DC Levels (A)

RPR 563

TM1195 Issue 1 Page 5 - 17

COMP. COLLT'R BASE EMITTER REMARKS

TR45 0 0.8 1.2 SCHMITT TRIGGER NOISE SQUELCH TR46 1.1 0.6 1.2 SCHMITT TRIGGER NOISE SQUELCH TR47 1.1 0.6 1.1 SCHMITT TRIGGER NOISE SQUELCH TR48 3 2.4 2.8 Rx SQUELCH SWITCH TR49 0.08 0.53 0 Rx SQUELCH SWITCH TR50 3.4 0.9 0 Rx TONERx INVERTER TR51 3.05 2.96 2.7 Tx TONE TR52 3.8 2.96 2.7 Tx TONE TR53 0.9 0.9 0.3 NOISE SQUELCH HIGH-PASS FILTER

TR301 2.4 1.3 0.6 Tx OSCILLATOR/TRIPLER TR302 2.4 0.64 0.08 Tx DOUBLER/AMPLIFIER TR303 2.5 0.5 0 Tx BUFFER/DRIVER TR306 3.9 0 0 Tx IPA TR307 3.9 0 0 Tx PA TR319 3.9 3.15 3.9 SWITCHED Tx B+ TR327 3.9 3.15 3.9 Tx DRIVER

COMP VOLTAGE REMARKS

XL11 1.52 (CV1) 1.049 (C94)

XL301 0.992 L332/R349

Table 2: Radio Board DC Levels (B)

RPR 563

TM1195 Issue 1Page 5 - 18

STEP TEST POINT REMARKS

1 TR110(e) B+ 3.6V DC 2 TR110(c) SWB+ 3.6V DC 3 TR131(c) 1.64V DC 4 TR108(c) 4.5V 5.0V ±0.5V 5 IC101 PIN 33 BAKUPB+ 3.3V - 4.3V DC 6 IC106 PIN 2 SPEECH3V AUDIO CIRCUIT 3.6V 7 IC105 PIN 3 CLK GATE ARRAY CLOCK 32.768kHz 8 IC105 PIN 5 RESB 0 - 3.6V SWITCH ON

9 IC105 PIN 76 SCK INTERRUPT 120µs PULSE 10 IC105 PIN 68 TMI 120µs 9 EVERY 2s 11 IC105 PIN 67 SW1 SWITCH ACTIVITY 9 12 IC101 PIN 38 XL102 µP CLOCK (EVERY 60ms) 3.58MHz 13 IC105 PIN 26 E TRANSFERS DATA 9 14 IC105 PIN 9 BEC `0' ENABLES RADIO 15 IC105 PIN 42 TSF TONE `ON' ICON

NOTE: 9 = Falling edge of output signal.

Measurements are made with x10 oscilloscope probe.

Table 3: Decoder Circuit Detailed Test Sequence

Decoder Faults

17. If the Decoder PCB is suspect, proceed as follows: a) Remove the case back. b) Separate the two PCBs and connect them via the 14-way lead (supplied with the

P665).

c) Place the two PCBs on an anti-static mat. Connect a fully-charged battery pack and

switch on. d) With a x10 probe connected to the oscilloscope, measure points 1 to 15 in Table 3. e) Compare the resultant waveforms with those in Figure 11.

NOTE: It will be necessary to remove the Decoder PCB screen to gain access to

test points.

140Fs

100Fs

.8.4ms 125ms

200Fs

WHEN CANCEL IS PRESSED

1s 30ms

f = 32kHz

3V4

3V6

3V2

3V6

1V3

IC105 PIN 3 (CLOCK)

IC101 PIN 8 (SCK) (INTERRUPT)

IC105 PIN 68 (TMI)

IC101 PIN 38 (X2)

IC105 PIN 26 (E)

IC105 PIN 9 (BEC)

NOTE: WAVEFORMS ARE TAKEN IN BATTERY ECONOMY MODE UNLESS STATED OTHERWISE.

PSG10164-2

RPR 563

TM1195 Issue 1 Page 5 - 19

Figure 11: Decoder Voltages and Waveforms

RPR 563

TM1195 Issue 1Page 5 - 20

COMP. COLLT'R BASE EMITTER REMARKS

TR101 0.55 0.55 0.07 4.5V REGULATOR TR102 2.96 0.55 0 CURRENT MIRROR CONTROL TR103 3.25 2.96 3.52 CURRENT MIRROR CONTROL TR104 0.15 3.25 3.52 CURRENT MIRROR CONTROL TR105 0.06 3.06 3.52 4.5V OSCILLATOR TR106 2.90 1.54 0 4.5V OSCILLATOR ENABLE TR107 3.52 2.82 3.57 BACKLIGHT DRIVER TR108 4.94 4.35 4.95 DISPLAY VDD ENABLE TR109 3.58 0 0 RESET TR110 3.57 2.99 3.57 SWB+ ENABLE TR111 0 0.21 0

AUDIO VOLUME SWITCHING

TR112 0 0.21 0 TR113 0 0.21 0 TR114 0 0.21 0 TR115 - 0 0.17 TONE DETECT ICON DRIVE TR116 2.27 0 0 LED DRIVE `ON CHARGE' INDICATION TR117 0 0.02 0 AGC TR119 0 0 0.3 SQUELCH GATE TR120 3.57 0 0.024 MICROPHONE AGC LIMIT TR121 - 0.02 0 MICROPHONE AGC LIMIT TR122 3.57 3.6 3.53 SPEECH 3V ENABLE TR123 0 0.52 0 SPEECH DETECT TR124 3.57 0.02 0 AGC TR125 3.6 - 0 ABSENCE DETECT TR126 0.65 0.58 0 MICROPHONE PRE-AMP TR127 3.57 3.48 2.94 DECOUPLING

Table 4: Decoder Board DC Levels

RPR 563

TM1195 Issue 1 Page 5 - 21

PIN No. CCT REF DESCRIPTION

1 INT4 DATA INTERRUPT (INPUT) 2 PO1 EEPROM CLOCK OUTPUT 3 PO2 DATA OUT 4 PO3 DATA IN 5 P10 SYNC DETECT(INT0) (INPUT) 6 P11 SWITCH/TIMER INTERRUPT (INPUT) 7 P12 /TONE.Rx DETECT 8 P13 SAMPLING CLOCK INPUT

9 P20 E (DISPLAY DATA CLOCK) OUTPUT 10 P21 RS (DISPLAY REGISTER SELECT) OUTPUT 11 P22 PTT ENABLE:LOW DURING SPEECH (OUT) 12 P23 /LINE KEY TEST (OUTPUT) (TP103) 13 P30 /TX KEY (OUTPUT) 14 P31 /SQUELCH OUTPUT 15 P32 UNUSED 16 P33 /SPEECH ENABLE OUTPUT 17 P40 DB4 (DISPLAY) (N/CH OPEN DRAIN) 18 P41 DB5 (DISPLAY) (N/CH OPEN DRAIN) 19 P42 DB6 (DISPLAY) (N/CH OPEN DRAIN) 20 P43 DB7 (DISPLAY) (N/CH OPEN DRAIN) 21 P50 /DISPLAY POWER (N/CH OPEN DRAIN) 22 P51 SBY (N/CH OPEN DRAIN) 23 P52 /BACKLIGHT ON (N/CH OPEN DRAIN) 24 P53 EEPROM RESET LO6 HI (UNUSED) (N/CH OPEN DRAIN) 25 P60 SWITCH INPUT ROW 1 26 P61 SWITCH INPUT ROW 2 27 P62 SWITCH INPUT ROW 3 28 P63 SWITCH INPUT ROW 4 29 P70 SWITCH INPUT COL 1 30 P71 SWITCH INPUT COL 2 31 P72 SWITCH INPUT COL 3 32 P73 SWITCH INPUT COL 4 33 VDD VDD 34 XT1 SUB SYSTEM CLOCK OSCILLATOR (GROUNDED & UNUSED) 35 XT2 SUB SYSTEM CLOCK OSCILLATOR (NOT CONNECTED) 36 IC1 IC1 (CONNECTED TO VDD) 37 X1 OSCILLATOR INPUT 38 X2 OSCILLATOR OUTPUT 39 /RESET /RESET INPUT

40,100 VSS VSS

41 P80 SWITCH 1 INPUT 42 P81 UNUSED 43 P82 PREAMBLE DETECT INPUT 44 P83 LOW BATTERY INPUT 45 P90 UNUSED OUTPUT 46 P91 PTT PRESSED IN SIMPLEX (IN) 47 P92 DTMF OUT (TGO0) 48 P93 LONE WORKER IN/OUT (UNUSED) 49 AVSS ANALOGUE GROUND (UNUSED) 50 IC2 (GROUNDED & UNUSED)

Table 5: Microprocessor (IC101) Pin Connections

RPR 563

TM1195 Issue 1Page 5 - 22

PIN NAME DESCRIPTION

1 OSEN Oscillator cell enable 3 CLK Clock input: 512 baud = 32.768kHz, 1200 baud = 38.400kHz 5 RESB Reset input: 0 = reset 7 DIN Data input

9 BEC Radio enable: 0 = radio on, 1 = radio off 10 VDD1 Low voltage supply rail (0.9V - 1.5V) 11 VSS Ground 13 TON Beep drive: 0 = transducer on, 1 = transducer off 15 VIB Vibrate motor drive: 0 = motor on, 1 = motor off 17 OFF VDD enable: 0 = VDD on, 1 = VDD off 19 RSO Reset out: 0 = µP enabled, 1 = µP reset 21 LP2 LED enable 22 VSS Ground 25 CS Chip select: 0 = chip selected, 1 = chip deselected 26 E Data transfer clock: 9 = data transfer 27 RW Read/Write: 0 = write to chip, 1 = read from chip 28 RS Register select: 0 = data register, 1 = address/status 30 VSS Ground 31 VDD2 µP supply rail 35 DA0

Tri-state bi-directional buffer: bi-directional data bus DA3 = most significant bit DA0 = least significant bit

36 DA1 37 DA2 38 DA3 39 VSS Ground 42 TSF 128Hz output 50 VSS Ground 51 VDD1 Low voltage supply rail (0.9V - 1.5V) 53 ON On enable: 0 = switch on, 1 = quiescent mode 55 S1I `On'

Switch inputs: 0 = switch closed, 1 = switch open57 S2I `Off' 59 S3I `Mute' 62 VSS Ground 63 S10

Tri-state, switch outputs: 0 = switch closed, Z = switch open (Z = high impedance output)

64 S20 65 S30 66 DTI Tri-state, data interrupt: 9 = data interrupt 67 SWI Tri-state, switch output: 9 = switch operation 68 TMI Tri-state, timer interrupt: 9 = 2s elapsed 70 VSS Ground 71 VDD2 µP supply rail 72 SYN Tri-state, sync word detected: 0 = sync word present in data register 76 SCK Tri-state, sample clock: 9 = sample point of data bit 77 VSS Ground

78 QIN VDD 79 VSS Ground

NOTE: Z = high impedance output. 9 = falling edge of output signal.

Table 6: Gate Array (IC105) Pin Connections

BAV 99

BAT 74

B E

BCW33 BCW61C BCX17 BFR182

BFR520 NE02133-D

BFS17

BFG196

10 11

IF1 OUT

IF1 IN

IF2 IN

Vcc

PNP base 1V POT GND DATA OUT

DATA IN

QUADR LC IN

DISCR OUT

NC NC

DE-COUPLE DE-COUPLE

3 4

TK11325

TK10445M

4 5

OUTPUT1

-INPUT1 +INPUT1 +INPUT2

-INPUT2

OUTPUT2

TDA2822

GND

TAG10699-1

4 5

FILTER

OUTPUT

GND TIMCAP TIMRES

LPF INPUT

LM567

Vcc

4 5

BAKUPB+ TEST SCL SDA

24C16

GND

VOUT

VIN

GND

SCI7700YBA

NOT TO SCALE.

ALL DEVICES VIEWED FROM ABOVE.

UPD 65026

(IC101)

100

µP

NE85619

CONTROL

FILTER

GROUND

INPUT

OUTPUT

GROUND

KV1410

RPR 563

TM1195 Issue 1 Page 5 - 23

Figure 12: Semiconductor Pin-Out Details

SIGNAL

SINAD/

AC V/M

RPR 560

P665 ALIGNMENT

OSCILLOSCOPE

SK301

GENERATOR

1kHz MOD

TAG10793-1

JIG

AUDIO CONNECTOR

RPR 563

TM1195 Issue 1Page 5 - 24

Figure 13: Receiver Alignment Connections

ALIGNMENT PROCEDURE

Preliminaries

NOTE: For P655 Alignment Jig details, refer to Section 5, Annexe C.

18. Prior to alignment, carry out the following procedure: a) Remove the antenna and case back. Fit a fully-charged battery pack. It may be

advantageous to fit a modified case back (see Section 5, Annexe C for details) to provide extra support for the battery pack.

b) Enable receiver speech on the Radio Board by initiating Test Mode 3. Insert the

transceiver into the P665.

c) Connect the audio connector lead to SK301.

Receiver Alignment

19. The Receiver alignment procedure is as follows: a) Connect the test equipment to the P665 as shown in Figure 13.

RV3

CV1

CV3

CV2

CV4

CV6

RV301

RV302

TP306

TP302

TP308

TP303

TP301

SK301

TP305

TP307 TP309

TAG10798-1

RPR 563

TM1195 Issue 1 Page 5 - 25

Figure 14: Radio Board - Alignment Diagram

b) Connect the SINAD/AC Millivoltmeter to SK301 pin 12 and set to AC mV. c) Tune the RF signal generator to 455kHz, unmodulated output, and loosely-couple

over the receiver. Set the oscilloscope to DC coupling and 1kHz per division display movement. Set the oscilloscope trace to a convenient reference line on the display.

FREQUENCY

COUNTER

POWER

METER*

TEST PROBE

RPR 560

P665 ALIGNMENT JIG

TAG10795-1

MODULATION

METER

RPR 563

TM1195 Issue 1Page 5 - 26

Figure 15: Transmitter Alignment Connections

d) Tune the signal generator to 45MHz. Check that the DC displacement on the

oscilloscope is the same as in c).

e) Connect the RF signal generator to the BANC socket at the base of the P665.

Re-tune the signal generator to ±50Hz of the receiver carrier frequency at a level of -30dBm.

f) Adjusting CV2, ensure that the oscilloscope trace travels either side of the display

reference. Adjust CV2 so that the trace is set to the reference line on the oscilloscope display.

g) Select external modulation and ALC on the signal generator. Feed the Sinadder

output to the modulation input connector of the signal generator and set FM deviation to ±3kHz.

h) Reduce the output of the signal generator to give 12dB SINAD. Adjust CV4 for

maximum sensitivity, reducing signal generator output to maintain 12dB SINAD.

Transmitter Alignment

20. The transmitter alignment procedure is as follows: a) Connect the test equipment to the P665 as shown in Figure 15.

b) Fit a modified case back and fully-charged battery pack to the transceiver. c) Set the transceiver into permanent transmit by initiating Engineering Test Mode 4,

or by connecting SK301, pin 1 to pin 10 (Tx Key to 0V).

SK301

TEST PROBE

AUDIO

CONNECTOR

BNC

TEST PROBE

WRAP WIRE TIGHTLY AROUND PROBE AT LEAST THREE TIMES

SOLDER LINK

WIRE TO PAD

TAG10937-1

RPR 563

TM1195 Issue 1 Page 5 - 27

Figure 16: Test Probe and Test Link Details

d) Insert the transceiver into the P665 and screw the Test Probe into the jig. Connect

a wire to the test pad as shown in Figure 16 and wrap it at least three times round

the probe. e) Adjust RV302 obtain the correct transmitter carrier frequency (±50Hz). f) Adjust CV6 for a maximum power reading on the RF voltmeter or power meter (this

should be in the region of 50-80mW). g) Adjust RV301 to obtain a modulation meter reading of ±750Hz (25kHz channel

spacing) or ±400Hz (12.5kHz channel spacing) for the sub-audio tone.

SIGNAL

COUNTER

RPR 560

P665 ALIGNMENT JIG

SK301

GENERATOR

Tx TONE (13)

10dB

ATTENTUATOR

TAG10796-1

RPR 563

TM1195 Issue 1Page 5 - 28

Figure 17: Sub Audio Frequency Test Connections

Sub-Audio Tone Frequency

21. The procedure for adjusting the sub-audio tone frequency (tone squelch) is as follows: a) Connect the test equipment to the P665 as shown in Figure 17.

b) Tune the RF signal generator to the receiver channel frequency at a level of

-20dBm, with no modulation.

c) Make the following connections to SK301 (Test Socket):

I) Pin 13 (Tx Tone) to AF frequency counter. ii) Pin 4 to Pin 9 (SPEECH3V to B+) iii) Pin 3 to Pin 10 (/BEC.EN to 0V)

d) Adjust RV302 to give the required sub-audio tone frequency (±0.5Hz).

SIGNAL

RPR 560

P665 ALIGNMENT JIG

SK301

GENERATOR

TAG10797-1

P645

ENCODER

IBM PC

OR COMPATIBLE

RPR 563

TM1195 Issue 1 Page 5 - 29

Figure 18: Receiver Sensitivity Test Circuit

PERFORMANCE CHECKS

Receiver Sensitivity Check

22. To determine receiver sensitivity, carry out the following procedure:

a) Connect the test equipment to the P665 as shown in Figure 18.

NOTES:

1. The distance between the personal computer and the P665 must not be less than 2 metres.

2. Test results are dependent on a noise-free environment.

b) Tune the RF signal generator to the receiver channel frequency and adjust the

deviation level to ±4.5kHz. Adjust the carrier level to -85dBm.

c) Send test paging calls from the P645, increasing the RF signal generator output

level, if necessary, to obtain correctly received calls.

d) Reduce the RF carrier level in 1dB steps until the transceiver receives two calls (or

less) in five.

e) Increase the RF carrier level in 1dB steps until five consecutive calls are received.

An output level of -90dBm or better should be achieved.

RPR 563

TM1195 Issue 1Page 5 - 30

TRANSMITTER

BAND

STUB

ANTENNA

WHIP

ANTENNA

Z (138.000-140.999MHz) 0.07mW 0.19mW Y (140.500-142.999MHz) 0.09mW 0.24mW

X (143.000-146.999MHz) 0.13mW 0.38mW

W (147.000-150.999MHz) 0.20mW 0.61mW

V (151.000-154.999MHz) 0.25mW 0.85mW U (155.000-158.999MHz) 0.25mW 0.95mW

T (159.000-162.999MHz) 0.31mW 1.35mW S (163.000-166.999MHz) 0.40mW 1.9mW R (167.000-170.999MHz) 0.33mW 2.01mW Q (171.000-174.100MHz) 0.31mW 2.13mW

Table 7: Radiated Transmitter Power

Transmitter Power Measurement

23. The P665 alignment jig may be used to measure conducted transmitter power or radiated transmitter power.

24. To measure conducted power, proceed as follows: a) Set the transceiver into permanent transmit by initiating Engineering Test Mode 4,

or by connecting SK301, pin 1 to pin 10 (Tx Key to 0V).

b) Insert the transceiver into the P665 and screw the Test Probe into the jig. Connect

a suitable power meter to the BNC connector on the Test Probe. Connect a wire to the test pad as shown in Figure 16 and wrap it at least three times round the probe.

c) Check that the power meter reading is at least 50mW.

25. To measure radiated power, proceed as follows: a) Set the transceiver into permanent transmit by initiating Engineering Test Mode 4,

or by connecting SK301, pin 1 to pin 10 (Tx Key to 0V).

b) Stand the transceiver vertically into the recess on the top of the P665, with the

transceiver keypad facing the centre of the jig.

c) Connect a suitable power meter to the BNC socket on the P665. Check that the

radiated power level achieved is equal or better than that shown in Table 7.

PROGRAMMING

26. The transceiver contains an EEPROM which holds unique data, including the paging address. This data may be entered or changed by using the P648 Programming Unit and the P648T Programming Software. P648 operation is detailed in Section 5, Annexe B.

RPR 563

TM1195 Issue 1 Page 5A - 1

ANNEXE A TO SECTION 5

ENGINEERING TEST PROGRAM MODE

CONTENTS:

1. ENTERING TEST PROGRAM MODE

4. TEST MODE 1

9. TEST MODE 2

10. TEST MODE 3

11. TEST MODE 4

))))))))))))))))))))

ENTERING TEST PROGRAM MODE

1. Four test modes are available via an Engineering Test Program Mode. To enter the

Test Program mode, press , [9], [8], [7], [1] in order.

2. When the Engineering Program Mode has been accessed, the message `Programm'

will be displayed.

3. To exit the Engineering Program Mode, and also cancel test modes and return to

normal operation, press , [1], [0]. Switching off the transceiver also cancels program mode and all tests.

TEST MODE 1

4. Press , [1], [1] to select Test Mode 1. This puts the transceiver into short alert mode,

with escalert and extended alert suspended. If the PTT switch is pressed, the transmitter will key up. The call comparator does not operate in test mode. All other options are unaffected. When called, the transceiver emits a single 1.0s alert tone and the message `TEST' will be displayed for 1.25s. The time stamp (or M number) will also be displayed.

RPR 563

TM1195 Issue 1Page 5A - 2

5. If the call is to the transceiver's individual address, any speech and/or message is ignored and the transceiver will return to battery economy mode. If the call is to the AllCall address, all messages are ignored but the receiver speech circuits will be enabled for 2 to 4 seconds.

6. If the PTT switch is pressed, the transmitter will key up and the message `Test-Mode 1' displayed.

7. Test Mode 1 may also be enabled via the P648 programming unit. In this event the transceiver will record the number of calls it has received and store this in EEPROM when it is switched off or reset. The call counter will store numbers up to 255 (FFh) before resetting to zero. It is possible to interrogate the call counter using the P648T. Select `Edit Transceiver Details' and then select `Hex Display'. The call counter can be found at address 018. Programming `Test Mode' to 0 will reset the call counter to zero.

8. If Test Mode 1 is enabled by the P648T, rather than the transceiver keypad, pressing PTT will not key up the transmitter.

TEST MODE 2

9. Press , [1], [2] to select Test Mode 2. This puts the transceiver into short alert mode, with escalert, call comparator and extended alert suspended. The RIC is changed to 1-1501. Note that the original RIC is stored and reinstated on leaving test mode. When the transceiver is called, a single 1.0s alert tone is generated. The message `Test-Mode 2' will be displayed.

TEST MODE 3

10. Press , [1], [3] to select Test Mode 3. This puts the receiver into speech mode (i.e. audio on permanently with squelch circuits defeated). The receiver will stay in this mode until this test mode is defeated; all other functions are as normal. The message `Test-Mode 3' will be displayed.

TEST MODE 4

11. Press , [1], [4] to select Test Mode 4. This puts the transmitter into continuous speech mode. The transmitter will stay in this mode until this test mode is defeated; all other functions are as normal. The message `Test-Mode 4' will be displayed.

RPR 563

TM1195 Issue 1 Page 5B - 1

ANNEXE B TO SECTION 5

P648 PROGRAMMING UNIT

CONTENTS:

1. INTRODUCTION

2. EQUIPMENT

3. PROCEDURE

)))))))))))))))))))))))

INTRODUCTION

1. This Annexe describes how to program RPR 560-series transceivers using the P648

Programming Unit. The programming unit comprises a pocket into which the transceiver, complete with battery pack, is inserted. The pocket makes the relevant connections between the data contacts of the battery pack and a personal computer.

EQUIPMENT

2. The following equipment is required:

C P648 Programming Unit C P648T Programming Software C IBM PC or compatible personal computer

PROCEDURE

3. Perform the following procedure:

a) Connect the P648 Programming Unit into the serial port (COM1) of the PC. b) Fit a fully-charged battery pack. Switch on the transceiver and insert it into the

P648.

c) Read the `Readme' file contained with the P648T software. The `Readme' file

describes how to use the programming facility.

RPR 563

TM1195 Issue 1Page 5B - 2

INTENTIONALLY BLANK

RPR 563

TM1195 Issue 1 Page 5C - 1

ANNEXE C TO SECTION 5

P665 ALIGNMENT JIG

CONTENTS:

1. INTRODUCTION

2. LIST OF ACCESSORIES

FIGURE Page

1. P665 Alignment Jig 5C-2

)))))))))))))))))))))))

INTRODUCTION

1. The P665 Alignment Jig has been designed to facilitate alignment of RPR 560-series

transceivers. It allows accurate measurement of sensitivity, eliminating the need for verification in a TEM Cell.

2. The P665 consists of:

a) The alignment jig, comprising a receptacle for the transceiver with rear case

removed. An audio connection from SK301 is provided for receiver alignment,

and a BNC connector for injecting RF into the receiver. b) A Test Probe for measurement of frequency and output level of the transmitter. c) A double-ended 14-way Cable Assembly for interconnecting the radio to the

decoder board when fault-finding. d) A single-ended 14-way cable for connection to the test socket when fault finding,

this can be configured to the technician's requirements. e) Spacers, to allow secure location of the transceiver when fitted with battery packs

other than P565 (1200mAH version).

3. Refer to the alignment procedures within Section 5 for details on use of the P665.

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page 5C - 2

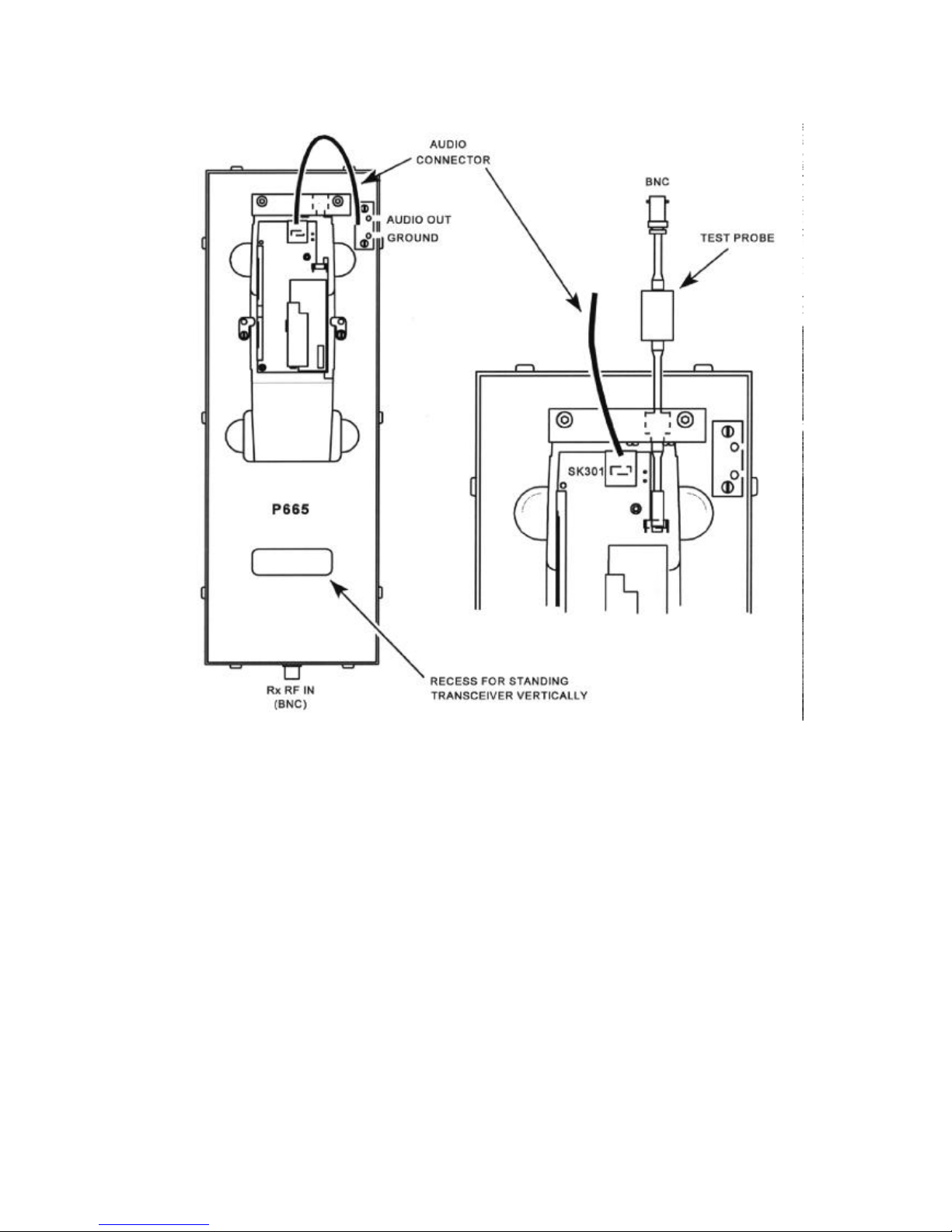

Figure 1: P665 Alignment Jig

LIST OF ACCESSORIES

4. The following accessories are provided with the Alignment Jig:

Description Part No.

Test Probe, VHF 0161-3926 Cable Assembly, Umbilical, 14-way, (Radio Board-Decoder Board) 0201-0655 Test Lead Assembly, 14-way, (1/Test Socket) 0201-0656

12mm

22mm

37mm

13mm

16mm

11mm

22mm

TAG10936-1

RPR 563

TM1195 Issue 1 Page 5D - 1

Figure 1: Modified Case Back Details

ANNEXE D TO SECTION 5

MODIFIED CASE BACK

INTRODUCTION

1. In order to locate the battery pack securely during alignment, it may be advantageous to fabricate a case back which allows access to tuning and test points. Refer to Figure 1.

CASE BACK

(SEE PARTS LIST)

1. CUT THE LOWER 22mm SECTION OFF A PLAIN CASE BACK ASSEMBLY. DISCARD THE UPPER SECTION.

2. REMOVE THE BATTERY PACK LOCK FROM THE LOWER SECTION.

3. DRILL THREE 6mm DIAMETER HOLES AT THE POSITIONS SHOWN BELOW.

LOWER SECTION

RPR 563

TM1195 Issue 1Page 5D - 2

INTENTIONALLY BLANK

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 1

SECTION 6

SPARE PARTS LIST

CONTENTS

FREQUENCY BAND INFORMATION

1.Receiver Bands

2.Transmitter Bands ASSEMBLIES

3.Modules

4.Battery Packs

5.Case Parts

6.Antennas

7.Labels RADIO BOARD COMPONENTS

8.Capacitors

9.Banded Capacitors (Rx)

10.Banded Capacitors (Tx)

11.Filters and Crystals

12.Banded Filters (Rx)

13.Banded Filters (Tx)

14.Inductors

15.Banded Inductors (Rx)

16.Banded Inductors (Tx)

17.Resistors

18.Banded Resistors (Rx)

19.Banded Resistors (Tx)

20.Semiconductors

21.Miscellaneous DECODER BOARD COMPONENTS

22.Capacitors

23.Resistors

24.Semiconductors

25.Miscellaneous DECODER BOARD COMPONENTS (0201-0874)

26.Capacitors

27.Resistors

28.Semiconductors

29.Miscellaneous

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page 6 - 2

CAUTION

STATIC SENSITIVE DEVICES ARE USED WITHIN THE TRANSCEIVER. CARE MUST BE USED TO ENSURE DAMAGE TO THESE DEVICES IS NOT CAUSED BY HIGH LEVELS OF STATIC ELECTRICITY.

FREQUENCY BAND INFORMATION

1. Receiver Bands

438.000 - 438.999MHz

Z (Band 32)

439.500 - 444.999MHz

Y (Band 33) 445.000 - 452.999MHz X (Band 34) 453.000 - 460.999MHz W (Band 35) 461.000 - 470.000MHz V (Band 36) 439.000 - 439.499MHz

2. Transmitter Bands Z (Band 1) 138.000 - 140.499MHz

Y (Band 2) 140.500 - 142.999MHz X (Band 3) 143.000 - 146.999MHz W (Band 4) 147.000 - 150.999MHz V (Band 5) 151.000 - 154.999MHz U (Band 6) 155.000 - 158.999MHz T (Band 7) 159.000 - 162.999MHz S (Band 8) 163.000 - 166.999MHz R (Band 9) 167.000 - 170.999MHz Q (Band 10) 171.000 - 174.100MHz

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 3

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

ASSEMBLIES

3. Modules

LCD101 DISPLAY MODULE 5206-0017

BATTERY INTERFACE PCB ASSEMBLY 0261-1858

4. Battery Packs

BATTERY, MEDIUM CAPACITY P566 BATTERY, HIGH CAPACITY P565

5. Case Parts

GRIPTITE CLIP 0201-0565 CASE FRONT 15-KEY 0361-2471 CASE FRONT 3-KEY 0361-2472 CASE BACK 0201-0651

6. Antennas

Z (138 - 140.499MHz) 0201-0875 Y (140.5 - 142.999MHz) 0201-0876 X (143 - 146.999MHz) 0201-0877

(YELLOW)

W (147 - 150.999MHz) 0201-0878 V (151 - 154.999MHz) 0201-0879

U (155 - 158.999MHz) 0201-0880 T (159 - 162.999MHz) 0201-0881

(BLUE)

S (163 - 166.999MHz) 0201-0882 R (167 - 170.999MHz) 0201-0883

Q (171 - 174.100MHz) 0201-0884

(RED)

FLEXIBLE WHIP, HIGH-GAIN (ALL BANDS) 5561-4289

7. Labels

LABEL, CLIP, 500-SERIES 2060-9811 SERIAL NUMBER LABEL 16300X17

RPR 563

TM1195 Issue 1Page 6 - 4

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

RADIO BOARD COMPONENTS

8. Capacitors

C35-36,53,59,86,90,98,101-103 127,143,146,150,163,189 CAP, CHIP 1n ±10% 50V 3327-0013

C37,58,83,84,85,144,148,162 CAP, CHIP 10n ±10% 50V 3327-0025 C38,49,70,92,96,97,110,111,

112,115,119,120,122,123,125, 131,137,138,154,173 CAP, CHIP 100p ±5% 50V 3326-0027

C39,54,62,68,88,121,124, C135,142,147,164,175 CAP, CHIP TANT 10µ ±10% 6.3V 3325-0001

C40,41,42,43,48,55,72,73,74, 75,76,77,78,79,80,81,82,87,99, 113,116,128,130,133,141,155,166, 172,174,179,180 CAP, CHIP 100n +80-20% 16V 3329-0013

C44,45,52,63,64,65,66,67, 91,100,126,129,132,145, 149,152,160,165,167,168, 170,182 CAP, CHIP 1µ -20/+80% 16V 3301-0277

C46,50,71,136 CAP, CHIP 330p ±5% 50V 3326-0033 C47,51 CAP, CHIP 82p ±5% 50V 3326-0026 C60 CAP, CHIP 3n9 ±10% 50V 3301-0107 C61 CAP, CHIP 15n ±10% 25V 3301-0140 C69 CAP, CHIP 68p ±5% 50V 3326-0025

C93 CAP, CHIP 5p6 ±0p5 50V 3326-0012 C94,95 CAP, CHIP 10p ±0p5 50V 3326-0015 C104 CAP, CHIP 8p2 ±0p5 50V 3326-0014 C105 CAP, CHIP 2p7 ±0p25 50V 3326-0008 C109 CAP, CHIP 33p ±5% 50V 3326-0021

C114 CAP, CHIP 12p ±5% 50V 3326-0016 C117,118 CAP, CHIP 15p ±5% 50V 3326-0017 C151,153,181,186 CAP, CHIP 1n5 1% 50V 3307-0006 C158,159,161 CAP, CHIP 220p ±5% 50V 3326-0031 C171,176,183 CAP, CHIP 3n9 1% 50V 3307-0011

C177,178,184,185 CAP, CHIP 470p ±5% 50V 3326-0035 C156,157 CAP, CHIP 1µ 20% 16V 3306-0020

C303,312,313,315,320,322,326, 333,340,341,346,351,353,356, 357,358,359,360,477 CAP, CHIP 1n ±10% 50V 3327-0013

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 5

ITEM/CIRCUIT REFERENCE DESCRIPTION PART No.

C304,309 CAP, CER 390p ±5% 50V 3326-0034 C316 CAP, CHIP 2p2 ±0p25 50v 3326-0007 C317 CAP, CHIP 100p ±5% 50v 3326-0027 C319,325 CAP, CHIP 10n ±10% 50V 3327-0025 C321 CAP, CHIP 2n2 ±10% 50V 3327-0017

C323,330,334,335,337 CAP, CHIP 1µ -20/+80% 16V 3301-0277 C324,348,354 CAP, CHIP 22p ±5% 50v 3326-0019 C327 CAP, CHIP 100n ±10% 25V 3301-0358 C336 CAP, CHIP 100n +80-20% 16V 3329-0013 C338 CAP, CHIP 1p ±0.25% 50V 3326-0003 C342-344 CAP, CHIP 3n9 ±10% 50V 3327-0020

C345,363 CAP, CHIP 27p ±5% 50v 3326-0020 C347 CAP, CHIP 33p ±5% 50v 3326-0021 C362 CAP, CHIP 5p6 ±0p5 50v 3326-0012 C364 CAP, CHIP 8p2 ±0p5 50v 3326-0014 C483 CAP, CHIP TANT 10µ ±10% 6.3V 3325-0001

CV2,3 CAP, VAR 3-10p 3502-0002 CV4 CAP, VAR 4.5-20p 3502-0003 CV6 CAP, TRIMMER 1p4-3p 3502-0009

9. Banded Capacitors (Rx)

CCT REF Z Y X W V

C106 6p8 6p8 6p8 6p8 6p8 C107,C108 15p 15p 15p 15p 15p C134 22p 18p 18p 18p 22p C411 3p3 3p3 3p3 3p3 3p3

DESCRIPTION PART No.

3p3 ±0p25 50V 3326-0009 6p8 ±0p5 50V 3326-0013 15p ±5% 50V 3326-0017 18p ±5% 50V 3326-0018 22p ±5% 50V 3326-0019

RPR 563

TM1195 Issue 1Page 6 - 6

10.Banded Capacitors (Tx)

BAND: Z Y X W V

C306 15p 15p 12p 12p 12p C308 27p 27p 22p 22p 18p C310 100p 100p 82p 82p 82p C311 1p2 1p2 N/F N/F N/F C314 22p 22p 22p 22p 18p C318 10p 10p 8p2 8p2 8p2 C328 12p 12p 10p 10p 10p C329 2p2 2p2 2p2 2p2 1p2 C331 N/F N/F 1p2 1p2 1p2 C332 N/F N/F N/F N/F N/F C352 15p 15p 15p 15p 10p C355 22p 22p 22p 22p 22p C361 270p 270p 270p 270p 270p C478 18p 18p 18p 18p 18p C502 15p 15p 15p 15p 15p

BAND: U T S R Q

C306 12p 12p 10p 8p2 8p2 C308 18p 18p 18p 12p 12p C310 82p 68p 68p 68p 68p C311 N/F N/F N/F N/F N/F C314 18p 15p 15p 12p 12p C318 8p2 8p2 8p2 6p8 6p8 C328 10p 10p 10p 10p 10p C329 1p2 1p2 1p2 2p2 2p2 C331 1p2 N/F N/F 2p2 2p2 C352 10p 5p6 5p6 5p6 5p6 C355 22p 22p 22p 22p 22p C361 270p 270p 270p 270p 270p C478 18p 18p 18p 18p 18p C502 15p 15p 15p 15p 15p

DESCRIPTION PART No. DESCRIPTION PART No. 1p2 ±0p25 50V 3326-0004 18pF ±5% 50V 3326-0018

2p2 ±0p25 50V 3326-0007 22p ±5% 50V 3326-0019 5p6 ±0p5 50V 3326-0012 27p ±5% 50V 3326-0020 6p8 ±0p5 50V 3326-0013 68p ±5% 50V 3326-0025 8p2 ±0p5 50V 3326-0014 82p ±5% 50V 3326-0026 10p ±0p5 50V 3326-0015 100p ±5% 50V 3326-0027 12p ±5% 50V 3326-0016 270p ±5% 50V 3326-0032 15p ±5% 50V 3326-0017

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 7

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

11. Filters and Crystals

FL2,3,4 FILTER CDBM455C7 4003-0003 XL8 FILTER, CRYSTAL, 45MHz 4001-0011

XL10 CRYSTAL, LOCAL OSCILLATOR, RECEIVER 3927-# XL11 CRYSTAL, 2nd OSCILLATOR, 44.545 MHz 3915-0011 XL301 CRYSTAL, TRANSMITTER OSCILLATOR 3938-#

# QUOTE CRYSTAL FREQUENCY TO SIX DECIMAL PLACES

12. Banded Filters (Rx)

BAND Z Y X W V

FL7 4614-0005 4614-0007 4614-0007 4614-0009 4614-0005 FL8 4614-0016 4614-0003 4614-0003 4614-0003 4614-0014

13. Banded Filters (Tx)

FL301 FILTER, (139MHz) BANDS Y-Z 4017-0008 FL301 FILTER, (147MHz) BANDS W-X 4017-0009 FL301 FILTER, (155MHz) BANDS U-V 4017-0010 FL301 FILTER, (163MHz) BANDS S-T 4017-0011 FL301 FILTER, (171MHz) BANDS Q-R 4017-0012

RPR 563

TM1195 Issue 1 AL2 (April 1999)Page 6 - 8

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

14.Inductors

L1,2 IND CHIP 27n ±5% 4103-0247 L4 INDUCTOR CHIP 1µ ±10% 4103-0083 L5 IND CHIP 68n ±5% 4103-0252 L8 CHIP IND 220n ±5% 4103-0262 L10,11 INDUCTOR CHIP 22n ±10% 4117-0014

L100 INDUCTOR CHIP 15n ±10% 4117-0012 L101,102 INDUCTOR CHIP 68n ±10% 4117-0020 L301,303 CHIP IND 220n ±5% 4103-0262 L305 IND CHIP 680n ±5% 4103-0274 L306,315 IND.CHIP 47n ±5% 4103-0250

L307,324 IND CHIP 560n ±5% 4103-0272 L308 IND.CHIP 1.5µ ±10% 4103-0231 L309 IND.CHIP 120n ±5% 4103-0256 L310 IND.CHIP 56n ±5% 4103-0251 L313 IND CHIP 100n ±5% 4103-0254

L319,341 IND. CHIP 4n7 ±5% 4103-0240 L320,340 IND.CHIP 84n ±10% 4116-0006 L323 IND CHIP 270n ±5% 4103-0264 L331,334 IND. CHIP 39n ±5% 4103-0249 L344 IND CHIP 1µ ±5% 4103-0278

L345 IND CHIP 18n ±5% 4103-0245 L346 IND CHIP 12n ±5% 4103-0243

15.Banded Inductors (Rx)

BAND Z Y X W V

L6 68n 68n 68n 68n 56n L12 680n 560n 560n 560n 470n

DESCRIPTION PART No.

56n ±5% 4103-0251 68n ±5% 4103-0252 470n ±5% 4103-0272 560n ±5% 4103-0272 680n ±5% 4103-0274

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 9

16. Banded Inductors (Tx)

CCT REF Z Y X W V

L304 560n 560n 560n 560n 560n L314 82n 82n 82n 82n 82n L318 47n 47n 47n 47n 47n L321 100n 100n 82n 47n 47n L322 82n 82n 56n 22n 27n L325 N/F N/F N/F N/F N/F

CCT REF U T S R Q

L304 560n 470n 470n 390n 390n L314 82n 82n 82n 68n 68n L318 47n 47n 47n 47n 47n L321 47n 47n N/F N/F N/F L322 27n 33n 82n N/F N/F L325 N/F N/F N/F N/F N/F

DESCRIPTION PART No.

27n ±5% 4103-0247 33n ±5% 4103-0248 47n ±5% 4103-0250 68n ±5% 4103-0252 82n ±5% 4103-0253 100n ±5% 4103-0254 390n ±5% 4103-0268 470n ±5% 4103-0270 560n ±5% 4103-0272

RPR 563

TM1195 Issue 1Page 6 - 10

ITEM/CIRCUIT REFERENCE DESCRIPTION PART No.

17. Resistors

R37 RES, CHIP 22k ±5% 3115-0106 R38,40,44,49,51,57,86,91,96 RES, CHIP 10k ±5% 3115-0098 R39,45,46,53,54 RES, CHIP 270k ±5% 3115-0132 R41,62,80 CHIP RES 10S ±5% 3115-0026 R42,52,59 RES, CHIP 1M ±5% 3115-0146

R43,47,48,55,56,83,87,92 RES, CHIP 100k ±5% 3115-0122 R50,58,61 RES, CHIP 33k ±5% 3115-0110 R60,89,90,94,95 RES, CHIP 560S ±5% 3115-0140 R63 RES, CHIP 560S ±5% 3115-0068 R64,65 RES, CHIP 6k8 ±5% 3115-0094

R66,71,82,88 RES, CHIP 100S ±5% 3115-0050 R67,79 RES, CHIP 2k2 ±5% 3115-0082 R68 RES, CHIP 120k ±5% 3115-0124 R69 RES, CHIP 1k ±5% 3115-0074 R70 RES, CHIP 56S ±5% 3115-0044

R72 RES, CHIP 47S ±5% 3115-0042 R74 RES, CHIP 680S ±5% 3115-0070 R75 RES, CHIP 820S ±5% 3115-0072 R78 RES, CHIP 8K2 ±5% 3115-0096 R84,85,98 RES, CHIP 390k ±5% 0603 3115-0136

R301,318 RES, CHIP 100k ±5% 3115-0122 R302 RES, CHIP 100S ±5% 3115-0050 R303,330,342 RES, CHIP 10k ±5% 3115-0098 R304,305,323 RES, CHIP 15k ±5% 3115-0102 R307,314,319,327,357,389 CHIP RES 10S ±5% 3115-0026

R308,312 RES, CHIP 220S ±5% 3115-0058 R309,331 RES, CHIP 1k ±5% 3115-0074 R311,313,315,356 RES, CHIP 470S ±5% 3115-0066 R316,358,360,396,427 RES, CHIP 1k5 ±5% 3115-0078 R320 RES, CHIP 18S ±5% 0603 3115-0032

R321,333 RES, CHIP 120S ±5% .0625W 3115-0052 R322 RES, CHIP 150S ±5% 3115-0054 R324,325,450 RES, CHIP 270S ±5% 3115-0060 R328 RES, CHIP 2k2 ±5% 3115-0082 R329 RES, CHIP 8k2 ±5% 3115-0096

R334 RES, CHIP 56S ±5% 3115-0044 R335,336,385 RES, CHIP 0S 3115-0001 R338,340,349,373,414 RES, CHIP 10k ±5% 3115-0098 R339,352,393 RES, CHIP 15k ±5% 3115-0102

R341,344,362,364,365 RES, CHIP 33k ±5% 3115-0110

RPR 563

TM1195 Issue 1 AL2 (April 1999) Page 6 - 11

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

Resistors (Continued)

R343,347,374,379,384,400, 406,410,411,415,416,418, 419,422-424 RES, CHIP 100k ±5% 3115-0122

R345,348 RES, CHIP 150k ±5% 3115-0126 R346 RES, CHIP 470k ±5% 3115-0138 R378,382,387,394,407,429 RES, CHIP 1k ±5% 3115-0074

R353,361 RES, CHIP 100S ±5% 3115-0050 R354,368 RES, CHIP 56S ±5% 3115-0044 R355,359 RES, CHIP 820S ±5% 3115-0072 R363 RES, CHIP 680S ±5% 3115-0070 R366,408 RES, CHIP 5k6 ±5% 3115-0092

R367 RES, CHIP 47S ±5% 3115-0042 R372,390,405,426 RES, CHIP 4k7 ±5% 3115-0090 R375,397 RES, CHIP 330S ±5% 3115-0062 R376 RES, CHIP 22k ±5% 3115-0106 R377,380,392,428 RES, CHIP 12k ±5% 3115-0100

R381,386,399,412 RES, CHIP 47k ±5% 3115-0114 R383,388,398 RES, CHIP 18k ±5% 3115-0104 R391 RES, CHIP 1k8 ±5% 3115-0080 R395 RES, CHIP 6k8 2% 0603 3118-0094

R401 RES, CHIP 3k9 ±5% 3115-0088 R402,404 RES, CHIP 270S ±5% 3115-0060 R403 RES, CHIP 2k7 ±5% 3115-0084 R409 RES, CHIP 68k ±5% 3115-0118 R413 RES, CHIP 39k ±5% 3115-0112

R417 RES, CHIP 820k ±5% 0603 3115-0144 R420 RES, CHIP 1M ±5% 3115-0146 R421 RES, CHIP 10M ±10% 0603 3116-0009

RV3 RES, CHIP VAR 1M 3210-0009 RV301,302 RES, TRIMMER CHIP 10k ±25% 3210-0003

18. Banded Resistors (Rx)

R73 (ALL BANDS) RES, CHIP 270S ±5% 3115-0060 R76 (ALL BANDS) RES, CHIP 1k2 ±5% 3115-0076 R77 (ALL BANDS) RES, CHIP 2k7 ±5% 3115-0084

R350 (BANDS Z, Y, W, Y) RES, CHIP 1k ±5% 3115-0074 R350 (BAND V ONLY) NOT FITTED R351 (BANDS Z, Y, W, Y) NOT FITTED R351 (BAND V ONLY) RES, CHIP 1k ±5% 3115-0074

RPR 563

TM1129 Issue 1 AL1 (June97)Page 6 - 12

ITEM/CIRCUIT REFERENCE

DESCRIPTION PART No.

19. Banded Resistors (Tx)

R337 (Z,Y,X,W,V,U,T) NOT FITTED R337 (S,R,Q) RES, CHIP 0S 3115-0001

20. Semiconductors

D1,3 DIODE, CHIP BAT 74 3710-0002 D301 DIODE VARICAP KV1410 3701-0031

IC1 IC.IF.CHIP TK10445MTL (RL) 3827-0001 IC2 IC LMC567CM SMD 3818-0009 IC5 IC TDA2822D SMD AMPLIFIER 3818-0008 IC6 IC VOLTAGE REG TK11325M 6004-0002

TR14-19,21,22,25,26,28,29, 36,38-41,43,49-53 TRANSISTOR BCW33 3602-0010

TR20 TRANSISTOR BCX17 3602-0026 TR23,24,27,37,42,44-48 TRANSISTOR BCW61C 3602-0018 TR30,31,32,33,34,35 TRANSISTOR NE85619 OR 2SC5006 3601-0013

TR301 TRANSISTOR NE85619/2SC5006 3601-0013 TR302,303,327 TRANS BFS 17 3602-0056 TR306 TRANS BFR520 3602-0045 TR307 TRANS BFG196 3602-0047 TR319 TRANSISTOR SMD FMMT717A 3602-0057

21. Miscellaneous

PL301 HEADER DUAL ROW POST, 14-WAY 4332-0001 SK301 HEADER DUAL ROW RECEPT,14-WAY 4449-0002 T302 RF TRANSFORMER 616DB-1086 5308-0003 T303 RF TRANSFORMER 616DB-1085 5308-0002

ANTENNA GUIDE, RPR560 0861-2481 ANTENNA CONTACT 7361-2315 ANTENNA SECTION 5561-2241 ANTENNA SECTION 5561-2272 MOUNTING PLATE (AE.GUIDE) 0961-3384

Multitone RPR 563, RPR 563K Amendment Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
