Multitek PowerSig M560-AT Operating Manual

PowerSig

MULTIFUNCTION

TRANSDUCER

M560-AT*

OPERATING MANUAL

CONTENTS

Update: M560 Version 4

1. INTRODUCTION

2. PROGRAMMING PARAMETERS

3. PROGRAMMING ANALOGUE OUTPUTS

4. PROGRAMMING MODBUS REGISTER
SEQUENCE.

5. RS485 COMMUNICATION

6. INSTALLATION

7. CONNECTION DIAGRAMS

8. SPECIFICATION

Revision 4

Date 20-10-2011

Multitek Ltd. Lancaster Way, Earls Colne Business Park,
Earls Colne, Colchester, Essex. CO6 2NS. England.
Tel. [phone] Fax. [phone]
E-MAIL: [e-mail]

WEB SITE: WWW.multitek-ltd.com

2

M560 Version 4 update:

RS485 response time decreased to better than 10ms.

Choice of four Endian settings for floating point transmission.

Modbus 3X Register Order functions changed to 65 and 66.

Relay functions changed to 103 and 104.

Substitute MultiView for all references to Monitor95 or System Monitor.

Manual Ammendments:
Page 45: Changed 3X Modbus registers to odd numbers.
Page 50: Changed 4X Modbus registers to odd numbers.

Additional 4X registers:
40083 (0x0052) RESET Import kW.h Register (WO)
40085 (0x0054) RESET Export kW.h Register (WO)
40087 (0x0056) RESET Import kVAr.h Register (WO)
40089 (0x0058) RESET Export kVAr.h Register (WO)
40091 (0x005A) RESET kVA.h Register (WO)
40093 (0x005C) RESET Import A.h Register (WO)

For more information go to: www.multitek-ltd.com

M560 V4 Modbus 4X registers

Modbus Register Name Mode

40001 (0x0000) SYSTEM VOLTAGE (R/W)
40003 (0x0002) SYSTEM CURRENT (R/W)
40005 (0x0004) SYSTEM TYPE (RO)
40007 (0x0006) SYSTEM POWER (RO)
40009 (0x0008) DEMAND PERIOD (R/W)
40011 (0x000A) DEMAND STATUS (RO)
40013 (0x000C) Factoryuse (ILLEGAL)
40015 (0x000E) Factoryuse (ILLEGAL)
40017 (0x0010) RESET ALL ENERGY REGISTERS (WO)
40019 (0x0012) RESET DEMANDS (WO)
40021 (0x0014) CALIBRATE INPUT (WO)
40023 (0x0016) SET NODE ADDRESS (WO)
40025 (0x0018) Analogue o/p1 assignment (M560) (R/W)
40027 (0x001A) Analogue o/p1 nominal (M560) (R/W)
40029 (0x001C) Analogue o/p1 zero (M560) (R/W)
40031 (0x001E) Analogue o/p2 assignment (M560) (R/W)
40033 (0x0020) Analogue o/p2 nominal (M560) (R/W)
40035 (0x0022) Analogue o/p2 zero (M560) (R/W)
40037 (0x0024) Analogue o/p3 assignment (M560) (R/W)
40039 (0x0026) Analogue o/p3 nominal (M560) (R/W)
40041 (0x0028) Analogue o/p3 zero (M560) (R/W)
40043 (0x002A) RELAY ASSIGNMENT (R/W)
40045 (0x002C) RELAY DIVISOR (R/W)
40047 (0x002E) RELAY PULSE WIDTH (R/W)
40049 (0x0030) RESET FLASH/EEPROM DATA (WO)
40051 (0x0032) I/P V1 GAIN FACTOR (R/W)
40053 (0x0034) I/P V2 GAIN FACTOR (R/W)
40055 (0x0036) I/P V3 GAIN FACTOR (R/W)
40057 (0x0038) I/P I1 GAIN FACTOR (R/W)
40059 (0x003A) I/P I2 GAIN FACTOR (R/W)
40061 (0x003C) I/P I3 GAIN FACTOR (R/W)
40063 (0x003E) Factoryuse (ILLEGAL)
40065 (0x0040) Factoryuse (ILLEGAL)
40067 (0x0042) Factoryuse (ILLEGAL)
40069 (0x0044) Factoryuse (ILLEGAL)
40071 (0x0046) SET PASSCODE (WO)
40073 (0x0048) CALIBRATION PASSCODE (WO)
40075 (0x004A) DtoA PASSCODE(M560) (WO)
40077 (0x004C) DtoA1 OVERRIDE(M560) (WO)
40079 (0x004E) DtoA2 OVERRIDE(M560) (WO)
40081 (0x0050) DtoA3 OVERRIDE(M560) (WO)
40083 (0x0052) RESET Import kW.h Register (WO)
40085 (0x0054) RESET Export kW.h Register (WO)
40087 (0x0056) RESET Import kVAr.h Register (WO)
40089 (0x0058) RESET Export kVAr.h Register (WO)
40091 (0x005A) RESET kVA.h Register (WO)
40093 (0x005C) RESET Import A.h Register (WO)
40095 (0x005E) Future use (R/W)
40097 (0x0060) Future use (R/W)
40099 (0x0062) Future use (R/W)
40101 (0x0064) LOCK ACIA SETTINGS (WO)

1.1 General

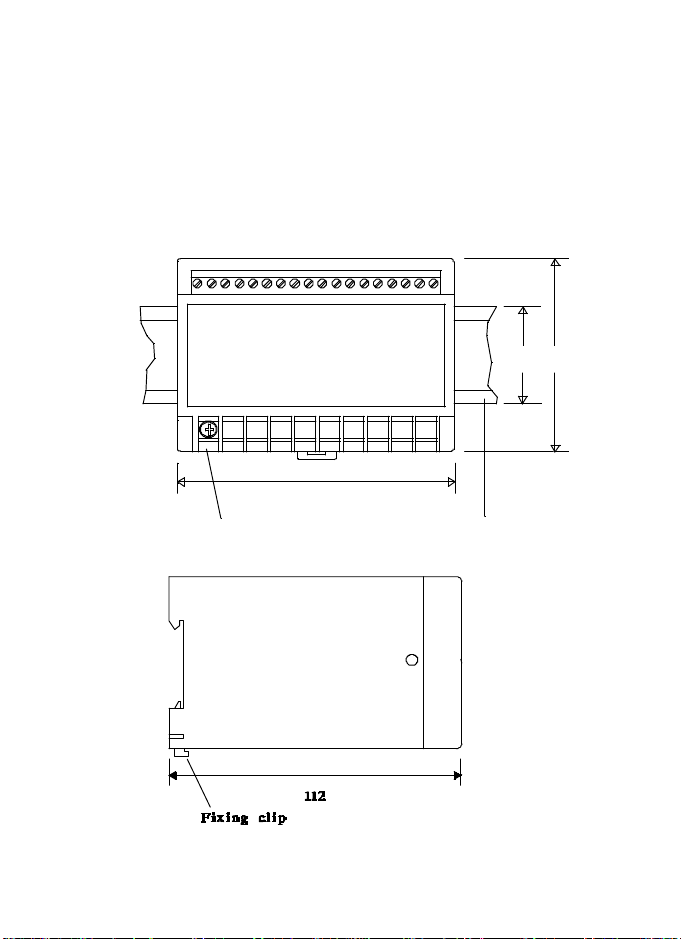

PowerSig M560 multifunction transducer is a complete
measuring system in a single 100mm Din rail mount case.
Measuring Phase Volts, Phase Current, Frequency, Active
Power, Reactive Power, Energy and Demand. The M560
provides up to 3 analogue outputs and the options of
RS485 modbus output and pulsed output.
Power Systems :-

Product code
1 Ph. M560-AT1
1 Ph. 3 Wire M560-AT1-3
3 Ph. 3W unbalanced load M560-AT4
3 Ph. 4W unbalanced load M560-AT9

The M560 units are fully programmed by the factory and
no further programming is necessary. If the RS485 option is
ordered, the user can reprogram parameters to individual
requirements, such as the voltage and current ratios, relay
output, demand times as well as assign different param­eters to the outputs. These programming operations are
covered in this manual.
The M560 uses a high speed microprocessor and analogue
to digital conversion circuitry. Each phase current and
voltage is measured continuously and all other parameters
are derived from these measurements in the software.
Voltage and current measurements are true RMS.

1.2 Parameters Measured

The M560 Measures the following parameters :
Phase Voltage (V), Phase Current (I), Frequency (Hz),

Active Power per phase (W), System Active Power (W),
Reactive Power per phase (VAr), System Reactive Power
(VAr), Apparent Power per phase (VA), System Apparent
Power (VA), Import Active Energy (W.h), Export Active
Energy (W.h), Import Reactive Energy (VAr.h),

3

Export Reactive Energy (VAr.h), Power Factor per phase
(P.F.), System Power Factor (P.F.), Amp Demand, Watt
Demand, V A Demand, Maximum Amp Demand,
Maximum Watt Demand, Maximum VA Demand.

1.2 Memory

All data including energy registers, current and voltage
ratios and the calibration data is stored in a non volatile
e2prom. In power down (power loss) conditions all the
information is retained. The e2prom requires no battery or
other circuitry to maintain the stored data.

1.3 Relay Output (optional)

The relay output provides a pulsed output corresponding to
consumption Watt hour import or export, VAr hour import
or export, A.h or VA.h consumption. The relay can be
assigned to any of these parameters (see programming
section 2.15.1).

The M560 automatically calculates the pulse rate and
whether the units are W.h, kW.h or MW.h (VAr.h, kVAr.h
or MVAr.h) etc from the nominal voltage and current
inputs.

The relay is a normally open contact.

Pulse widths can be programmed into the M560, between
20 msec and 200 msec in steps of 20 msec. (See section

2.15.2).

4

1.4 Communications (optional)

The M560 has the option of providing RS485 output of all
measured parameters.
The serial port option enables remote reading and
programming of the M560 via a host computer, laptop etc.
The RS485 uses the Modbus protocol allowing multi-drop
with up to 32 M560s connected in parallel. The RS485
Modbus protocol allows the M560 to be used with PC,
PLC, RTU, Data loggers and Scada programs.

Software is available for programming and displaying
parameters. Contact your local distributor for a free copy
or visit our website www.multitek-ltd.com

1.5 LED indicator

The red LED on the front of the M560 serves three
purposes:

LED continually illuminated means that the power supply
is o.k.

LED illuminated and flashing every 10 seconds means that
the power supply o.k. and the M560 is communicating
correctly.

LED illuminated and flashing every second and 2 flashes
every 10 seconds means that the power supply o.k. and
that unit is communicating correctly, but there is no input
measuring voltage signal.

5

2.0 PROGRAMMING

If the unit has not been provided with a communication
option this section is not relevant, please move to section 6
installation.

2.1 Using the M560 Software Monitor 95.
(M560 Software Monitor 95 can be obtained from your
Multitek distributor, or the Multitek website
www.Multitek-Ltd.com)

2.2 Open the Monitor95.exe file and the following screen
will be displayed.

The following functions displayed relate to the PC or
master node and are set by default to the following
settings, Response time = 300mS, Node = 1, Baud Rate =
9600, Parity = None. It may not be necessary to alter the
above settings but the communication port has to be
opened by clicking on start and following section 2.5.

6

2.3 Changing Response Time
ACTION : Click Response

Time Box.

COMMENTS :
Enter Value of response
time. Minimum value
300mSec.

2.4 Changing Node Number

ACTION : Click Node No.
Box.

COMMENTS :
Enter Node Number any
number between 1 & 247.

2.5 Opening communication port.
ACTION : Click Start

Button.

COMMENTS :

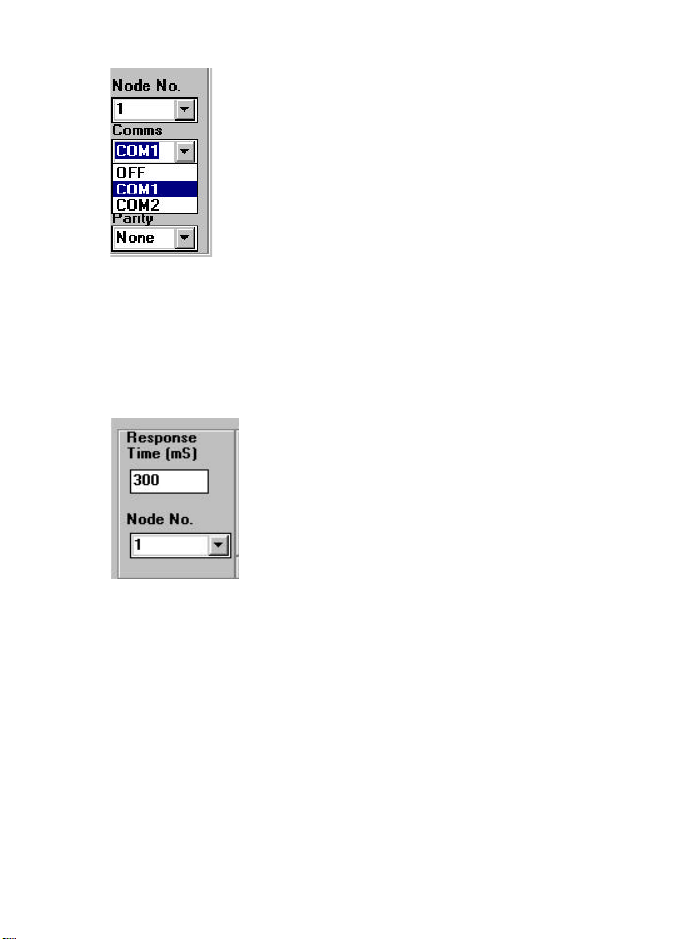

Port selection box appears,
see below.

ACTION : Click Port Box.

COMMENTS :
Chose the PC's
communication port click
on Com 1 or Com 2

7

2.6 Changing Baud Rate.

2.7 Changing Parity.

2.8 Starting Communication

ACTION : Click Baud Rate
Box.

COMMENTS :
Chose Baud Rate. Either
2400, 4800, 9600, 19200.

ACTION : Click Parity Box.

COMMENTS :
Choose Parity. Three
options Odd, Even or None.

ACTION : Once Comms
Port, Baud Rate and parity
are set, Click on O.K.
COMMENTS : If
Communication is working
message modbus OK
appears in Modbus box.

COMMENTS :
M560 and PC
communicating correctly.

COMMENTS :
M560 and PC not
communicating correctly.

8

Note if wording in Modbus box is "NO REPLY FROM
NODE". Check polarity connection of RS485 link at M560
and PC. Check that M560 has auxiliary power by checking
Red LED on front of M560. If LED continually
illuminated power supply o.k. If LED illuminated and
flashing every 10 seconds, power supply ok M560
communicating ok. If LED flashing every second there is no
measuring input voltage signal.

2.9 Displaying parameters being measured.

Once M560 is communicating with your PC you can now
monitor different readings.

ACTION : None

COMMENTS : The 6 boxes
show line to line voltage and
line to neutral voltage for
each phase. Note if unit is 3
phase 3 wire M560-CT4
V1,V2,V3 are the same as
VL1-2, VL2-L3, VL3-1.

ACTION : Click on
button.

COMMENTS : The next six
parameters being monitored
are displayed. e.g I1,I2,I3,
WSum, VA Sum, VAR Sum.

9

ACTION : Click on
button.

COMMENTS : This button
moves forward one
parameter, and displays this
parameter in the sixth box
e.g. PF Avg is now shown.

ACTION : Click on
button.

COMMENTS : This button
moves back one parameter.
e.g. now I1 is shown again.

Note: The buttons work as follows:
This button scrolls up one parameter.

This button scrolls up six parameters.

This button scrolls down one parameter.

This button scrolls down six parameters.

10

2.10 Stopping and pausing communication.

2.10.1 To pause communication.

ACTION : Click on Pause
button.

COMMENTS : The
communication pauses.

2.10.2 To restart communication.

ACTION : Click on Continue
button.

COMMENTS : The
communication restarts.

2.10.3 To stop communication.

ACTION : Click on Stop
button.

COMMENTS : The
communication stops.

ACTION : Click Start
button.
COMMENTS : Follow
instructions in section 2.8
i.e. click on O.K. button in
port set up box and
communication will start.

11

2.11 Starting timer.
The timer is real time clock provided by the Monitor
program. It is useful for checking Watt hour readings etc.

ACTION : Click Start
button.

COMMENTS : The timer
starts.

ACTION : Click Stop
button.

COMMENTS : The timer
stops and gives option of
resetting or continuing.

ACTION : Click Reset
button.

COMMENTS : The timer
resets to zero.

ACTION : Click Continue
button.

COMMENTS : The timer
continues to count,
displaying the total time
from when counter initially
started.

12

2.12 Security code. (General Pass Code)

To program different CT & VT ratios, demand times, etc.
the General Pass Code must be entered. The General Pass
Code is 080453. This is general pass code and is only
applicable to Multitek M560 software. Pass Codes
necessary for use with other software are listed in Section 4
page 45 of this manual.

2.12.1 Entering General Pass Code

ACTION : Click General
Pass Code Button

COMMENTS :
Enter value box is
displayed.

ACTION : Enter value

COMMENTS : Enter
security code 080453 and
click on OK button

13

2.13 Communications Lock.
Response Time, Node Number, Communication Port, Baud

Rate and Parity are dependant on the system and PC etc.
that is being used. When connected to an existing Modbus
network the M560 will automatically detect and configure
itself to the network's settings. These settings can be locked
into the EEPROM of the M560 to prevent unnecessary
hunting. For a more detailed explanation of this facility see
help file in the Monitor95 Software.

2.13.1 To Lock communications setting into the M560
EEPROM.

ACTION : Click Lock
Button.
COMMENTS :
M560 communication port
will be locked onto existing
network settings.

2.13.2 To Unlock M560 communications settings.
ACTION : Click Unlock

Button.

COMMENTS :
M560 communication port is
now unlocked.

14

2.14 Programming of nominal voltage and current inputs
and ratios.
The program allows the user to program the nominal
voltage and current inputs and ratios. Please note the ratios
can be changed as long as the secondary (the input to the
M560) stays as shown on the data label which is on the side
of the product. For example if the M560 had been set by the
factory to have a C.T. ratio 200/5A and the change required
was for the input C.T. ratio to be 500/5A this can be
achieved by program changes. But if the change required
was for a C.T. ratio 500/1A then the unit would have to be
returned to the factory or distributor to have the internal
C.T. changed from 5A to 1A. The same applies to the
voltage if the M560 input voltage is 110 Volts L.L then an
external voltage transformer ratio can be programmed as
long as the nominal input to the M560 stays at 110V L-L

For example if the input was originally programmed for

6.6kV/110 and a V.T. of 11kV was required then this change
could be achieved through software. (See example below)

2.14.1 Changing VT ratio.
ACTION : Click Voltage

Button.

COMMENTS : Enter Value
box is displayed.

ACTION : None

COMMENTS : M560 is
programmed for 6600V
(6.6kV)

15

ACTION : Enter value

COMMENTS : Enter
11000 (11kV). Click on
O.K.

2.14.2Changing CT ratio.

For example to change for 200/5A change to 400/5 :-

ACTION : Click Current
Button.

COMMENTS : Enter Value
box is displayed.

ACTION : None

COMMENTS : M560 is
programmed to 200/5A

ACTION : Enter Value

COMMENTS : Enter 400
(400 Amps). Click on OK

16

2.15 Pulsed Output (Pulsed output is an option. If the unit

does not have this option please proceed to section 2.16)
The M560 measures and displays W.h Import & Export,
VAr.h Import & Export, VA.h, A.h. Any of these parameters
can be assigned to the output relay to give pulses
corresponding to which ever parameter is selected.

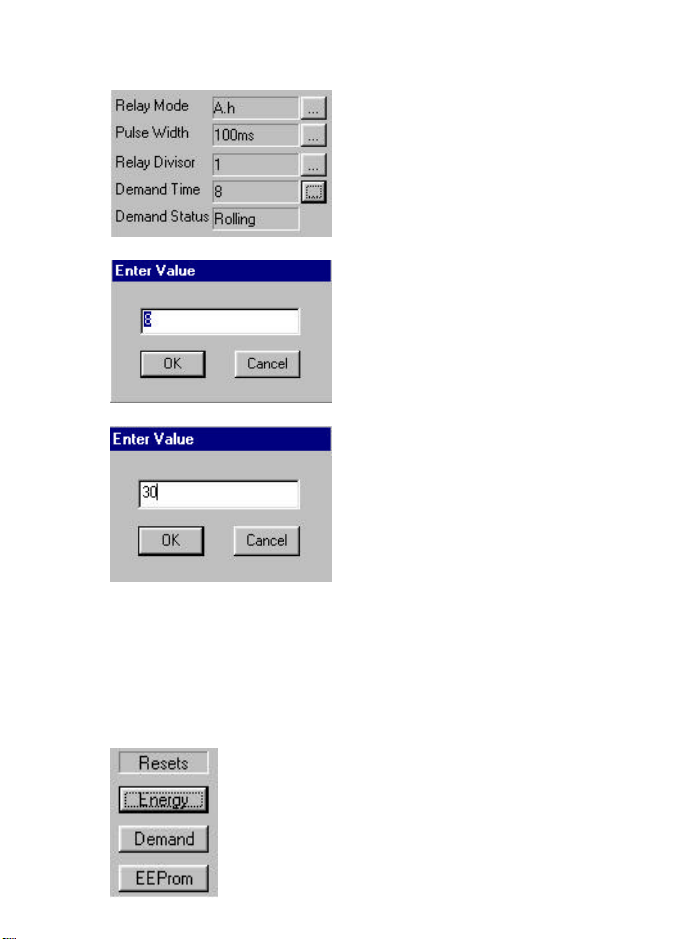

2.15.1 Selecting Parameter to be assigned to relay for

pulsed output.

ACTION : Click On Relay
Mode Button.

COMMENTS : Relay Mode
box is displayed.

ACTION : None

COMMENTS : Relay is
assigned W.h Import. (Watt
Hour Import)

ACTION : Select Parameter
to be assigned to relay
output.
COMMENTS : Using the up
and down cursor you can
scroll through the
parameters available. In this
example A.h (Ampere Hours
) has been selected, click on
OK Button.

17
