ADSL/VoIP Gateway User’s Guide
1
Comm
CommComm
Comm----Box
BoxBox
Box
ADSL/VOIP Gateway User’s Manual
ADSL/VoIP Gateway User’s Guide
2
Comm-Box
ADSL/VOIP Gateway
INSTALLATION & USER MANUAL
Thank you for choosing the Comm-Box ADSL/VOIP gateway. This
manual teaches the features of your gateway. So you may get the
best performance from your exchange for years without having any
trouble.
Please note that the product , its specification and the information appearing in this document are
subject to change by Multitek without notice
.
Multitek Elektronik San.Tic.Ltd.
www.multitek.com.tr
info@multitek.com.tr
Issue 1.2
COMM-BOX.DOC-1.2- 010107
ADSL/VoIP Gateway User’s Guide
3
Table of Contents
1 Introduction........................................................ 10
Features................................................................................ 10
Device Requirements ..........................................................10
Using this Document............................................................ 12
Notational conventions ................................................. 12
Typographical conventions ..........................................12
Special messages.........................................................12
Getting Support.................................................................... 12
2 Getting to know the device................................ 13
Parts Check.......................................................................... 13
Front Panel ........................................................................... 14
Rear Panel............................................................................14
3 Connecting your device..................................... 16
Connecting the Hardware....................................................16
Step 1. Connect the DSL cable and optional
telephone line ............................................................ 17
Step 2. Connect the Ethernet cable.............................17
Step 3. Attach the power connector ............................17
Step 4. Configure your Ethernet PCs.......................... 17
Step 5. Install a Wireless card and connect
Wireless PCs .............................................................17
Next step........................................................................18
4 Getting Started with the Web pages................. 19
Accessing the Web pages...................................................19
Web page menu overview................................................... 20
Commonly used buttons......................................................21
Help information ...................................................................22
Testing your Setup............................................................... 22
Default device settings......................................................... 23
5 Current Status ................................................... 24
Internet access settings.......................................................24
About Productname............................................................25
6 Firmware Update............................................... 26
About firmware versions...................................................... 26
ADSL/VoIP Gateway User’s Guide
4
Checking for firmware updates ...........................................26
Updating your firmware ....................................................... 28
Manually updating firmware................................................29
7 Health Check..................................................... 31
Running the Health Check ..................................................31
DSL Status page.................................................................. 33
8 Help.................................................................... 38
Using the Help page ............................................................ 38
About the Online User Guide ..............................................39
9 Addressing......................................................... 40
Changing the LAN IP address and subnet mask ..............40
10 Wireless Network .............................................. 42
Wireless Network First Time Settings Wizard....................43
Setting the Country.......................................................43
Select your Wireless Network Type ............................43
Set the Wireless Network Name..................................44
Select a Channel........................................................... 45
Configure Wireless Network Security..........................46
Configuring 64bit or 128bit encryption.........................47
Configuring WPA security ............................................48
Configure Wireless Address Authentication ............... 48
Configuring the wireless PC blacklist ..........................49
Configuring the wireless PC whitelist ..........................50
Confirm Wireless network changes.............................51
Wireless Network General Settings....................................52
Enabling/disabling wireless networking.......................53
Displaying details of Wireless PCs..............................53
11 Advanced Security ............................................ 55
Configuring NAT Security.................................................... 55
Assigning PC Names...........................................................56
Deleting PC Names ......................................................58
Configuring Internet applications ........................................ 58
Enabling Internet applications......................................58
Disabling Internet applications.....................................59
Configuring custom applications.........................................60
Creating custom applications.......................................60
ADSL/VoIP Gateway User’s Guide
5
Deleting custom applications .......................................62
12 Internet Access.................................................. 63
Types of Internet Access.....................................................63
Configuring Automatic Internet Access ..............................64
Configuring your PPP DSL connection ..............................65
Enabling MAC spoofing................................................68
Editing your existing MAC spoofing settings...............69
Configuring your DHCP DSL connection...........................70
Configuring your Internet Access manually ....................... 71
13 Password........................................................... 74
Setting your username and password................................74
Disabling password protection.....................................75
14 Reset to Defaults............................................... 76
Resetting to Defaults............................................................76
15 VoIP................................................................... 78
Voice Terminology ...............................................................79
Voice features.......................................................................79
Telephony data processing features .................................. 80

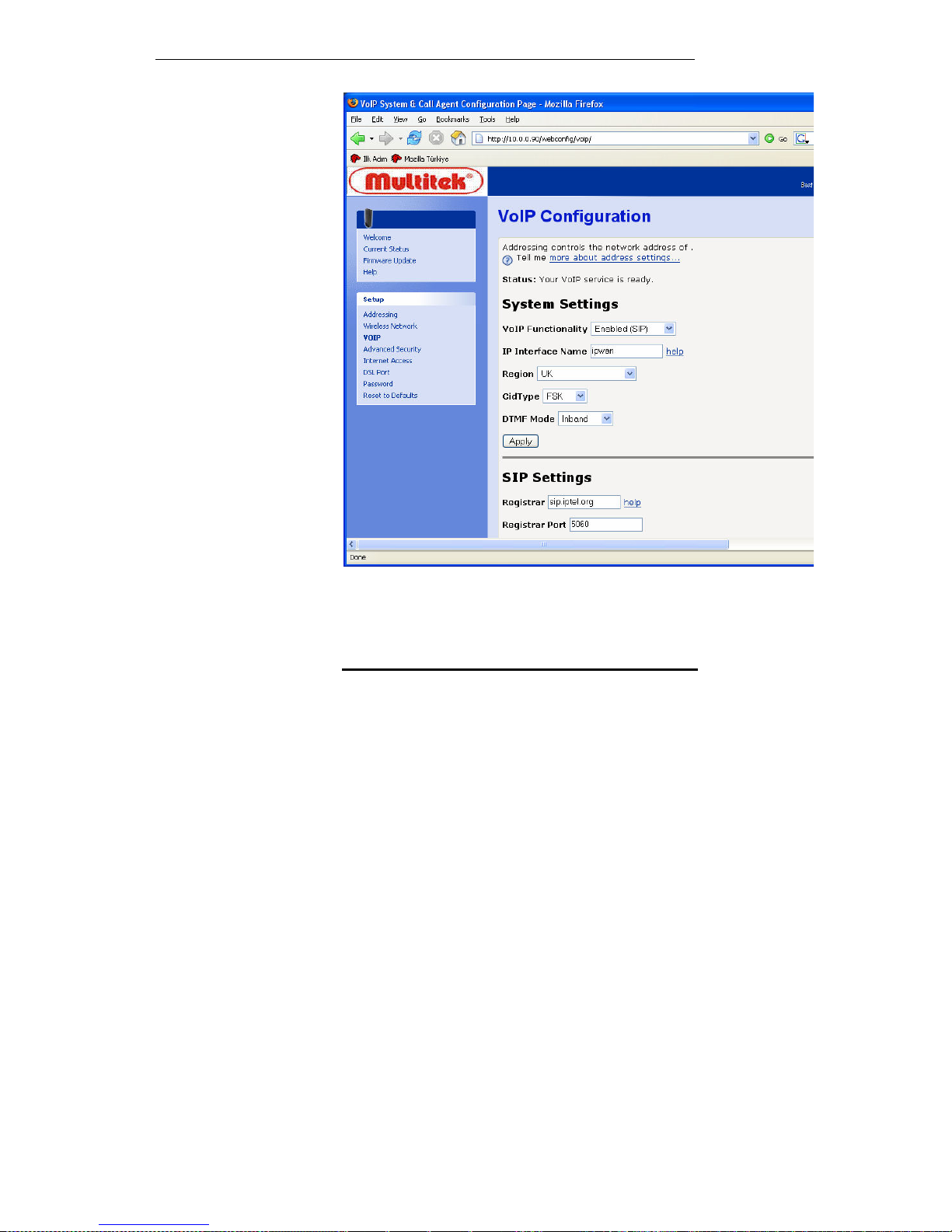

VoIP Configuration............................................................... 80
System Settings...................................................................81
SIP Settings..........................................................................82
Dialling Plan..........................................................................83
PSTN Calling Rules.............................................................85
Quality of Service (QoS) Settings .......................................86
Endpoints..............................................................................87
A Configuring your Computers............................. 88
Configuring Ethernet PCs....................................................88
Before you begin...........................................................88
Windows® XP PCs.......................................................88
Windows 2000 PCs...................................................... 89
Windows Me PCs ......................................................... 90
Windows 95, 98 PCs .................................................... 90
Windows NT 4.0 workstations ..................................... 91
Assigning static Internet information to your
PCs............................................................................. 92
Configuring Wireless PCs ...................................................95
Positioning the wireless PCs........................................ 95
ADSL/VoIP Gateway User’s Guide
6
Wireless PC cards and drivers..................................... 95
Configuring PC access to your Wireless device.........95
B IP Addresses, Network Masks, and
Subnets........................................................... 97
IP Addresses ........................................................................97
Structure of an IP address............................................97
Network classes............................................................98
Subnet masks.......................................................................98
C Troubleshooting............................................... 100
Troubleshooting Suggestions ...........................................100
Diagnosing Problem using IP Utilities...............................102
ping ..............................................................................102
nslookup ......................................................................102
D Advanced DSL port attributes......................... 104
E Glossary........................................................... 109
Index 117
ADSL/VoIP Gateway User’s Guide
7
Table of Figures
Figure 1:
ADSL/VoIP Gateway .................................................................................13
Figure 2:
Front Panel and LEDs...............................................................................14
Figure 3:
Rear Panel Connections ...........................................................................15
Figure 4:
Overview of Hardware Connections.........................................................17
Figure 5:
Login screen ...............................................................................................19
Figure 6:
The Welcome page.................................................................................... 20
Figure 7:
Current Status page...................................................................................24
Figure 8:
Firmware Update page..............................................................................27
Figure 9:
Checking for Updates… page................................................................... 27
Figure 10: No updates available page........................................................................27
Figure 11: Update Available page .............................................................................. 28
Figure 12: Downloading and installing update… page .............................................28
Figure 13: Update Installed page................................................................................29
Figure 14: Restarting page..........................................................................................29
Figure 15: Manual Update Installation section...........................................................29
Figure 16: Health Check page ....................................................................................31
Figure 17: Health Check: Running page ....................................................................31
Figure 18: Health Check: Complete with failures page.............................................32
Figure 19: Health Check: Complete with no failures page........................................32
Figure 20: Health Check page ....................................................................................33
Figure 21: Health Check: DSL Status page...............................................................33
Figure 22: DSL Port Basic Configuration page..........................................................34
Figure 23: Port A1 Advanced Configuration page (part 1)........................................35
Figure 24: Port A1 Advanced Configuration page (part 2)........................................36
Figure 25: Help page ............................................................................................... 38
Figure 26: Help – Close link ........................................................................................39
Figure 27: Addressing page........................................................................................40
Figure 28: Addressing: Setup page............................................................................40
Figure 29: Addressing: Confirm page.........................................................................41
Figure 30: Wireless Network page..............................................................................42
Figure 31: Wireless Network: Set Country page .......................................................43
Figure 32: Wireless Network: Wireless Network Type Selection page....................44
Figure 33: Wireless Network: Basic page ..................................................................44
Figure 34: Wireless Network: Channel Selection page............................................. 45
ADSL/VoIP Gateway User’s Guide
8
Figure 35: Wireless Network: Channel Selection (manual) page............................45
Figure 36: Wireless Network: Security page..............................................................46
Figure 37: Wireless Network: 128bit Network Key page........................................... 47
Figure 38: Wireless Network: Wi-Fi Protected Access page....................................48
Figure 39: Wireless Network: Address Authentication page ....................................48
Figure 40: Wireless Network: Address Authentication (blacklist) page.................... 49
Figure 41: Wireless Network: Address Authentication (blacklist) page.................... 49
Figure 42: Wireless Network: Address Authentication (blacklist) page.................... 50
Figure 43: Wireless Network: Address Authentication (whitelist) page.................... 50
Figure 44: Wireless Network: Address Authentication (whitelist) page.................... 51
Figure 45: Wireless Network: Address Authentication (whitelist
configuration) page.................................................................................... 51
Figure 46: Wireless Network: Confirm page..............................................................52
Figure 47: Wireless Network: General Settings section............................................ 52
Figure 48: Wireless Network: Enable/Disable page.................................................. 53
Figure 49: Wireless Network: Connected Wireless PCs page.................................54
Figure 50: Advanced Security page ...........................................................................57
Figure 51: Advanced Security: PC Names page.......................................................57
Figure 52: Advanced Security: Add PC Name page.................................................57
Figure 53: Advanced Security: Add PC Name page.................................................58
Figure 54: Advanced Security: Enabled Applications page......................................58
Figure 55: Advanced Security: Enable Application page..........................................59
Figure 56: Advanced Security: Confirm Application page ........................................ 59
Figure 57: Advanced Security: Disable Application page .........................................59
Figure 58: Advanced Security: Custom Applications page.......................................60
Figure 59: Advanced Security: Create Application page..........................................61
Figure 60: Advanced Security: Add Port page...........................................................61
Figure 61: Advanced Security: Confirm Custom Application page ..........................61
Figure 62: Advanced Security: Disable Application...................................................62
Figure 63: Internet Access page.................................................................................64
Figure 64: Internet Access: Types of Access page................................................... 64
Figure 65: Internet Access: Auto page ....................................................................... 64
Figure 66: Internet Access: Searching page..............................................................65
Figure 67: Internet Access: PPP Setup page............................................................65
Figure 68: Internet Access: Search Complete page .................................................65
Figure 69: Internet Access page.................................................................................66
Figure 70: Internet Access: Types of Access page................................................... 66
ADSL/VoIP Gateway User’s Guide
9
Figure 71: Internet Access: PPPoA page...................................................................67
Figure 72: Internet Access: VPI and VCI Setup page...............................................67
Figure 73: Internet Access: Confirm page..................................................................67
Figure 74: Internet Access: PPPoE page...................................................................68
Figure 75: Internet Access: MAC Spoofing page ......................................................69
Figure 76: Internet Access: MAC Spoofing Setup page ...........................................69
Figure 77: Internet Access: MAC Spoofing Confirm .................................................69
Figure 78: Internet Access page.................................................................................70
Figure 79: Internet Access: Types of Access page................................................... 70
Figure 80: Internet Access: VPI and VCI Setup page...............................................71
Figure 81: Internet Access: Confirm page..................................................................71
Figure 82: Internet Access page.................................................................................72
Figure 83: Internet Access: Types of Access page................................................... 72
Figure 84: Internet Access: Manual Setup page .......................................................72
Figure 85: Internet Access: VPI and VCI Setup page...............................................73
Figure 86: Internet Access: Confirm page..................................................................73
Figure 87: Password page .......................................................................................... 74
Figure 88: Password: Enable/Disable page...............................................................74
Figure 89: Password: Setup page .............................................................................. 75
Figure 90: Password: Confirm page...........................................................................75
Figure 91: Reset to Defaults page..............................................................................76
Figure 92: Resetting to Defaults… page ....................................................................76
Figure 93: Comm-Box System Interfaces.................................................................78
Figure 94: VOIP Page ............................................................................................... 81
Figure 95: Region page ...............................................................................................82
Figure 96: SIP Setting Page........................................................................................83
Figure 97: Dialling Plan ...............................................................................................83
Figure 98: Special Dialling Codes...............................................................................84
Figure 99: PSTN Calling Rule Pages......................................................................... 85
Figure 100: PSTN rules details .....................................................................................86
Figure 101: . Quality of Service.....................................................................................86
Figure 102: Endpoints ............................................................................................... 87
Figure 103: Edit Endpoints Detail .................................................................................87
Figure 104: Using the ping Utility ................................................................................102
Figure 105: Using the nslookup Utility........................................................................103
ADSL/VoIP Gateway User’s Guide
10
1
Introduction
Congratulations on becoming the owner of the Multitek Comm-
Box. You will now be able to access the Internet using your highspeed DSL connection.
This User Guide will show you how to connect your ADSL/VOIP
Gateway, and how to customize its configuration to get the most
out of your new product.
Features
The list below contains the main features of the device and may
be useful to users with knowledge of networking protocols. If you
are not an experienced user, the chapters throughout this guide
will provide you with enough information to get the most out of
your device.
Features include:
• Internal DSL modem for high-speed Internet access
• 10/100Base-T Ethernet router to provide Internet connectivity
to all computers on your LAN
• Wireless access via a wireless network card and wireless
security features
• Network address translation (NAT) functions to provide
security for your LAN
• Network configuration through DHCP Server and DHCP
Client
• Services including IP route and DNS configuration, RIP, and
IP and DSL performance monitoring
• User-friendly configuration program accessed via a web
browser
• SIP Privacy Support enables you to make anonymous
outgoing calls
• SIP Security Negotiation support allows a SIP entity to
negotiate the type of security it will be using
• SIP Message Waiting Indicator message waiting indication
support
• SIP TEL-URI Support provided for both local and global
forms of Tel-URIs
• 3 Way Conferencing enables the endpoint to initiate 3 party
conferencing
Device Requirements
In order to use the ADSL/VOIP Gateway, you must have the
following:
• DSL service up and running on your telephone line
ADSL/VoIP Gateway User’s Guide
11
• Instructions from your ISP on what type of Internet access
you will be using, and the addresses needed to set up
access
• One or more computers each containing an Ethernet card
(10Base-T/100Base-T network interface card (NIC)) and/or a
single computer / One or more computers with wireless
network cards
• For system configuration using the supplied web-based
program: a web browser such as Internet Explorer v4 or
later, or Netscape v4 or later. Note that version 4 of each
browser is the minimum version requirement – for optimum
display quality, use Internet Explorer v5, or Netscape v6.1
Note
You do not need to use a hub or switch in order to connect more
than one Ethernet PC to your device. Instead, you can connect
up to four Ethernet PCs directly to your device using the ports
labeled Ethernet on the rear panel.
ADSL/VoIP Gateway User’s Guide
12
Using this Document
Notational conventions
• Acronyms are defined the first time they appear in the text
and also in the glossary.
• For brevity, the Hata! Stil tanımlanmamış. is referred to as
“the device”.
• The term LAN refers to a group of Ethernet-connected
computers at one site.
• The term WLAN refers to a group of Wireless-connected
computers at one site.
Typographical conventions
• Italic text is used for items you select from menus and drop-
down lists and the names of displayed web pages.
• Bold text is used for text strings that you type when
prompted by the program, and to emphasize important
points.
Special messages
This document uses the following icons to draw your attention to
specific instructions or explanations.
Note
Provides clarifying or non-essential information on the current
topic.
Definition
Explains terms or acronyms that may be unfamiliar to many
readers. These terms are also included in the Glossary.
WARNING
Provides messages of high importance, including messages
relating to personal safety or system integrity.
Getting Support
Multitek Ltd.
e-mail : info@multitek.com.tr
Web :
www.multitek.com.tr
ADSL/VoIP Gateway User’s Guide
13
2
Getting to know the device
Parts Check
In addition to this document, your package should arrive
containing the following:
• ADSL/VOIP Gateway
• 12V/2A Power adapter and power cord
• Ethernet cable (2 meter long with two sides RJ45 jacks )
• Standard phone/DSL line cable(2 meter long with two sides
RJ11 jacks)
Figure 1: ADSL/VoIP Gateway
ADSL/VoIP Gateway User’s Guide
14
Front Panel
The front panel contains lights called Light Emitting Diodes
(LEDs) that indicate the status of the unit.
Figure 2: Front Panel LEDs
(from left to right in order)
Label Color Function
POWER red On: device is powered on
Off: device is powered off
INTERNET red On: Valid IP address obtained
Off: No IP address obtained
Blink: Valid IP packet being transferred
ADSL
green On: DSL link reaches showtime, which
means that your device has successfully
connected to your ISP’s DSL network.
Off: DSL link not in showtime, your device
has not successfully connected to your ISP’s
DSL network.
Blink: Data being transmitted
VOIP green On: VoIP connection is active
Off: No VoIP connection
Wi-Fi
green On: Wireless LAN link established
Off: No Wireless LAN link
Blink: Data being transmitted
LAN 4
(DMZ port)
green On: LAN link established and active
Off: No LAN link
LAN 3
green On: LAN link established and active
Off: No LAN link
LAN 2
green On: LAN link established and active
Off: No LAN link
LAN 1
green On: LAN link established and active
Off: No LAN link
Rear Panel
The rear panel contains the ports for the unit's data and power
connections.
ADSL/VoIP Gateway User’s Guide
15
Figure 3: Rear Panel Connections
Label Function
Power Connects to the supplied power cable
Ethernet 1-4 Connects the device via Ethernet to up to four PCs on
your LAN (default)
FXS1 – FXS2 Connects the telephones
ADSL/FXO Connects the device to a telephone port in the wall of
your home/office for DSL communication
ADSL/VoIP Gateway User’s Guide
16
3
Connecting your device
This chapter provides basic instructions for connecting the
ADSL/VoIP Gateway to a computer or LAN and to the Internet.
In addition to configuring the device, you need to configure the
Internet properties of your computer(s).. For more details, see
the following sections:
• Configuring Ethernet PCs on page 88
• Configuring Wireless PCs on page 95
This chapter assumes that you have already established a DSL
service with your Internet service provider (ISP). These
instructions provide a basic configuration that should be
compatible with your home or small office network setup. Refer
to the subsequent chapters for additional configuration
instructions.
Connecting the Hardware
This section describes how to connect the device to the wall
phone port, the power outlet and your computer(s) or network.
WARNING
Before you begin, turn the power off for all devices. These
include your computer(s), your LAN hub/switch (if applicable),
and the ADSL/VoIP Gateway.
The diagram below illustrates the hardware connections. The
layout of the ports on your device may vary from the layout
shown. Refer to the steps that follow for specific instructions.
ADSL/VoIP Gateway User’s Guide
17
ADSL/Ethernet Bridge/Router
Power
FXS
ADSL
FXO
1
Telephone
Wall
phone
port
AC adapter
Wireless PCs
5
Ethernet Ports
Networked Computers
4
Telephone
FXS
Figure 4: Overview of Hardware Connections
Step 1. Connect the DSL cable and optional telephone line
Connect one end of the provided phone cable to the port
labeled DSL on the rear panel of the device. Connect the other
end to your wall phone port.
Step 2. Connect the Ethernet cable
Connect either a LAN hub or up to four single Ethernet
computers directly to the device via Ethernet cable(s).
Note that the cables do not need to be crossover cables.
Step 3. Attach the power connector
Connect the AC power adapter to the Power connector on the
back of the device and plug the adapter into a wall outlet or
power strip. Turn on and boot up your computer(s) and any LAN
devices such as hubs or switches.
Step 4. Configure your Ethernet PCs
You must also configure the Internet properties on your
Ethernet PCs. See Configuring Ethernet PCs on page 88.
Step 5. Connect Wireless PCs
Only include this step if your product supports the use of
wireless.
Your device provides a wireless network card for a Wireless
LAN connection (see Front Panel LEDs).
ADSL/VoIP Gateway User’s Guide
18
You must configure your Wireless computer(s) in order to
access your device. For complete instructions, see Configuring
Wireless PCs on page 42.
Next step
After setting up and configuring the device and PCs, you can
log on to the device by following the instructions in Getting
Started with the Web pages on page 19. The chapter includes a
section called Testing your Setup on page 22, which enables
you to verify that the device is working properly.
ADSL/VoIP Gateway User’s Guide
19
4
Getting Started with the Web pages
The DSL Modem includes a series of Web pages that provide
an interface to the software installed on the device. It enables
you to configure the device settings to meet the needs of your
network. You can access it through your web browser from any
PC connected to the device via
the LAN or WLAN
Accessing the Web pages
To access the Web pages, you need the following:
• A PC or laptop connected to the LAN or WLAN port on the
device.
1. A web browser installed on the PC. The minimum browser
version requirement is Internet Explorer v4 or Netscape v4.
For the best display quality, use latest version of Internet
Explorer, Netscape or Mozilla Firefox.From any of the LAN
computers, launch your web browser, type the following
URL in the web address (or location) box, and press [Enter]
on your keyboard:
http://192.168.1.1
A login screen is displayed:
Figure 5: Login screen
2. Enter your user name and password. The first time you log
into the program, use these defaults:
User Name: admin
Password: admin
Note
You can change the password at any time or you can configure
your device so that you do not need to enter a password. See
Password on page 74.
3. Click OK. The Welcome page is displayed:
ADSL/VoIP Gateway User’s Guide
20
Figure 6: The Welcome page
This is the first page displayed each time you log in to the Web
pages (see Accessing the Web pages on page 19). This page
contains links to the following pages:
• Addressing; links to the Addressing page that controls your
device’s network address. See Addressing on page 40.
• Internet Access; links to the Internet Access page that
controls how your device connects to the Internet. See
Internet Access on page 63.
• Wireless Network; links to the Wireless Network page that
controls how your wireless PCs connect to your device. See
Wireless Network on page 42.
Note
If you receive an error message or the Welcome page is not
displayed, see Troubleshooting Suggestions on page 100.
Web page menu overview
The web pages provide information that allows you to configure
your device. These pages are listed in the menu on the lefthand side of the screen. Click on an individual menu entry to
display a page.
Notice that the menu is split
into two separate lists. The
first list contains entries that
display general information
about the device including
links to the pages that you
are most likely to want to
ADSL/VoIP Gateway User’s Guide
21
use:
• Welcome; see Accessing the Web pages on page 19
• Current Status; see Current Status on page 24
• Firmware Update; see Check for Updates on page 26
• Health Check; see Health Check on page 31
• Help; see Help on page 38
The Setup list contains
entries that allow you to
change the default settings
on your device using a
series of Web pages. If you
are a typical user, you will
not need to make significant
changes to the default
configuration.
• Addressing; see Addressing on page 40
• Wireless Network; see Wireless Network on page 42
• Advanced Security; see Security on page 55
• Internet Access; see Internet Access on page 63
• Password; see Password on page 74
• Reset to Defaults; see Reset to Defaults on page 76
Commonly used buttons
The following buttons are used throughout the web pages:
Button Function
You may need to configure the default
settings on more than one Web page.
Click on this button once you have
changed the configuration on your
current page and are ready to move
on to the next.
This button appears on every
configuration page. Click on this
button if at any time you decide that
you do not want to change the existing
settings.
This button appears on the final page
of a series of configuration pages.
Click on this button to confirm that you
are happy with the changes that you
have made and want to save them.
Radio buttons – these appear on
many configuration pages. You will be
asked to select one radio button from
the selection of two or more available.
You cannot select more than one
radio button at a time.
The following terms are used throughout this guide in
association with these buttons:
• Click – point the mouse arrow over the button, menu entry
or link on the screen and click the left mouse button. This
performs an action, such as displaying a new page.
ADSL/VoIP Gateway User’s Guide
22
• Select – usually used when describing which radio button to
select from a list, or which entry to select from a drop-down
list. Point the mouse arrow over the entry and left-click to
select it. This does not perform an action – you will also be
required to click on a button, menu entry or link in order to
proceed.
Help information
In addition to these buttons, you will also see the
information icon throughout the Web pages. The information
icon is followed by a link (called a hyperlink) to another web
page. Click on the hyperlink to display further information about
a specific configuration setting. For example, at the Current
Status page, clicking on the following hyperlink:
displays further information about the details displayed on the
Current Status page.
If you want to display an index of the Help information available
for all web pages, see Help on page 38.
Testing your Setup
Once you have connected your hardware and configured your
PCs, any computer on your LAN should be able to use the
device’s DSL connection to access the Internet.
To test the connection, turn on the device, wait for 30 seconds
and then verify that the LEDs are illuminated as follows:
Table 1. LED Indicators
LED Behavior
Power
Solid red to indicate that the device is turned on. If this light
is not on, check the power cable attachment.
Internet
Flashing on/off while data is being transferred. Solid red
when a valid IP address has been assigned to the device
by the ISP.
W-LAN
LINK/Act
Solid green to indicate that the Wireless LAN connection is
operational.
LINK/Act LAN
Flashing on/off while the device is booting. After about 1015 seconds, solid green to indicate that the device can
communicate with your LAN.
LINK/Act DSL
Flashing on/off while data is being transmitted. Solid green
to indicate that the device has successfully established a
connection with your ISP.
LINK/Act DSL
Flashing when the device is sending or receiving data from
the Internet. It may be unlit, flashing, or appear solid
depending on the current activity.
If the LEDs illuminate as expected, test your Internet connection
from a LAN computer. To do this, open your web browser, and
type the URL of any external website (such as
http://www.multitek.com.tr ). The LED labeled LINK/Act DSL
should blink rapidly and then appear solid as the device
connects to the site.
ADSL/VoIP Gateway User’s Guide
23
If the LEDs do not illuminate as expected, you may need to
configure your Internet access settings using the information
provided by your ISP. For details, see Internet Access on page
63. If the LEDs still do not illuminate as expected or the web
page is not displayed, see Troubleshooting Suggestions on
page 100 or contact your ISP for assistance.
Default device settings
In addition to handling the DSL connection to your ISP, the
ADSL/VoIP Gateway can provide a variety of services to your
network. The device is preconfigured with default settings for
use with a typical home or small office network.
The table below lists some of the most important default
settings; these and other features are described fully in the
subsequent chapters. If you are familiar with network
configuration, review these settings to verify that they meet the
needs of your network. Follow the instructions to change them if
necessary. If you are unfamiliar with these settings, try using the
device without modification, or contact your ISP for assistance.
WARNING
We strongly recommend that you contact your ISP prior to
changing the default configuration.
Option Default Setting Explanation/Instructions
DSL Port IP
Address
Unnumbered interface:
192.168.1.1
Subnet mask:
255.255.255.255
This is the temporary public IP address of the WAN
port on the device. It is an unnumbered interface that
is replaced as soon as your ISP assigns a ‘real’ IP
address. See
Internet Access
on page 63.
LAN Port
IP Address
Assigned static IP address:
192.168.1.1
Subnet mask:
255.255.255.0
This is the IP address of the LAN port on the device.
The LAN port connects the device to your Ethernet
network. Typically, you will not need to change this
address. See
Addressing
on page 40.
DHCP (Dynamic
Host Configuration
Protocol)
DHCP server enabled with the
following pool of addresses:
192.168.1.2
through
192.168.1.20
The
Hata! Stil tanımlanmamış.
maintains a pool of
private IP addresses for dynamic assignment to your
LAN computers. To use this service, you must have
set up your computers to accept IP information
dynamically, as described in
Configuring Ethernet
PCs
on page 89.
NAT (Network
Address Translation)
NAT enabled Your computers’ private IP addresses (see DHCP
above) will be translated to your public IP address
whenever the PCs access the Internet. See
Security
on page 55.
ADSL/VoIP Gateway User’s Guide
24
5
Current Status
The Current Status page displays useful information about the
setup of your device, including:
• details of the device’s Internet access settings
• version information about your device
To display this page:
From the left-hand menu, click on Current Status. The following
page is displayed:
Figure 7: Current Status page
The information displayed on this page is explained in detail in
the following sections.
Internet access settings
This section displays details of the settings that allow your
device to access the Internet. These details include:
IP address and
subnet mask:
The IP address and subnet mask
assigned to your WAN interface. This
address is used temporarily until your
ISP assigns a real IP address (via DHCP
or PPP – see Internet Access on page
63).
Default gateway: The address of the ISP server through
which your Internet connection will be
routed.
DNS servers: The Domain Name System (DNS)
servers used by your ISP to map domain
names to IP addresses.
Your ISP assigns all of these settings. In most cases, you will
not need to make changes to these settings in order for your
ADSL/VoIP Gateway User’s Guide
25
Internet connection to work. If your ISP does ask you to change
any of these settings, follow the instructions for manually
configuring your device in Internet Access on page 63.
About Productname
This section displays details of your device’s hardware and
firmware versions. If you need to contact your ISP’s support
team, they may need to know which hardware/firmware
versions you are using in order to answer your query.
Your hardware version details contain information about the
make and model of your device and its exact hardware
components.
Your firmware version details contain information about the
software program running on your device. From time to time,
Multitek may update or add new features to this firmware. They
then make the latest updated version available to you via the
Internet. For details of how to update your firmware, see Check
for Updates on page 26.
ADSL/VoIP Gateway User’s Guide
26
6
Firmware Update
The Firmware Update page allows you to:
• check if an updated firmware version is available from . See
Checking for firmware updates on page 26.
• download an updated firmware version and install it on your
device. See Updating your firmware on page 28.
• manually download the latest firmware version from ’s
website and manually update your firmware. See Manually
updating firmware on page 29.
About firmware versions
Firmware is a software program. It is stored as read-only
memory on your device. Multitek is continually improving this
firmware by adding new features to it, and these features are
saved in later versions of the firmware.
Your device can check whether there are later firmware
versions available. If there is a later version, you can download
it via the Internet and install it on your device.
Note
If there is a firmware update available you are strongly advised to
install it on your device to ensure that you take full advantage of
any new feature developments.
In order to check and download firmware, your device must be
attached to the Internet. To check this, see Testing your Setup
on page 22.
Checking for firmware updates
1. From the left-hand menu, click on Firmware Update. The
following page is displayed:
ADSL/VoIP Gateway User’s Guide
27
Figure 8: Firmware Update page
2. Click Check for Updates>. The Checking for Updates…
page is displayed:
Figure 9: Checking for Updates… page
3. This page tells you that a check for updates is in progress.
Once the check is complete, the page displayed depends
on whether updates are available or not.
• If there are no firmware updates available the
following page is displayed:
Figure 10: No updates available page
This confirms that you are already using the latest
firmware version and there are no updates available.
• If there are firmware updates available, the following
page is displayed:
ADSL/VoIP Gateway User’s Guide
28
Figure 11: Update Available page
The page includes a summary of the firmware update,
and a link to the release notes.
For instructions on updating your firmware, see Updating
your firmware on page 28.
Updating your firmware
This section assumes that you have already carried out one of
the following:
• followed the instructions in Checking for firmware updates
on page 26.
• followed the instructions on manually updating firmware in
Manually updating firmware on page 29.
If the Updates Available page has confirmed that a firmware
update is available, follow the instructions below.
1. From the Update Available page, click Update Now>. The
Checking for Updates… page is displayed. Once the device
has connected to the firmware update site, the following
page is displayed:
Figure 12: Downloading and installing update… page
2. The page tells you that the firmware update is currently
being downloaded and installed on your device.
ADSL/VoIP Gateway User’s Guide
29
Once installation is complete, the following page is
displayed:
Figure 13: Update Installed page
3. You must restart your device in order to make the device
aware that a new firmware version has been installed. To
do this, click Restart Productname. The following page is
displayed:
Figure 14: Restarting page
The page tells you that your device is currently being
restarted. Once complete, the Current Status page is
displayed. See the Current Status on page 24.
Manually updating firmware
You can manually download the latest firmware version from ’s
website to your PC’s file directory. Click on the Multitek link.
www.multitekarge.com
Once you have downloaded the latest firmware version to your
PC, you can manually select and install it as follows:
1. Click on the Browse… button.
Figure 15: Manual Update Installation section
(Note that if you are using certain browsers (such as Opera
7) the Browse button is labeled Choose.)
Use the Choose file box to navigate to the relevant directory
where the firmware version is saved.
ADSL/VoIP Gateway User’s Guide
30
2. Once you have selected the file to be installed, click Open.
The file’s directory path is displayed in the Update file: text
box.
3. Click Update Now>. The device checks that the selected
file contains an updated version of firmware. Now follow the
instructions from Checking for firmware updates, step 3 on
page 27.
ADSL/VoIP Gateway User’s Guide
31
7
Health Check
This page allows you to run a health check to test whether the
Internet connection on your device is working properly. The
health check runs a number of tests in order to diagnose any
‘health’ problems with your device’s Internet access.
If you need to contact your ISP’s support team, they may ask
you to run the Health Check and describe the results to them.
This page also provides you with a link to the DSL Status page,
which displays detailed information about your DSL connection.
See the DSL Status page on page 33.
Running the Health Check
1. From the left-hand menu, click on Health Check. The
following page is displayed:
Figure 16: Health Check page
This page asks you to ensure that your device is connected
to your phone line. See Step 1. Connect the DSL cable and
optional telephone on page 17.
2. Click on Perform Health Check>. The following page
confirms that the health check is currently running:
Figure 17: Health Check: Running page
The Health Check may take up to three minutes to
complete.
3. Once the health check has finished running, the Health
Check: Complete page is displayed. The most important
details displayed on this page are the Result, Test and
Diagnostic information:
ADSL/VoIP Gateway User’s Guide
32
• Result; tells you the overall result of the health check
• Test; if the Health Check fails, this tells you which test
caused the failure. The first failed test stops the Health
Check completely – no other tests are run after the
failed test. If the Health Check is successfully
completed, ‘User Diagnostics complete’ is displayed.
• Diagnostic; if the Health Check fails, this provides
technical information about the likely cause of a Health
Check failure. If a failure occurs, you will need to give
this information to your ISP’s support team. If the Health
Check is successfully completed, no diagnostic
information is displayed.
For example, if you run the Health Check on your device
when the DSL port is not connected, the following
information may be displayed:
Figure 18: Health Check: Complete with failures page
This page tells you that the result failed. The test that
caused the health check to fail was the physical connection
test. The diagnostic information displays details about the
failure that you can pass on to your ISP support team.
This page also contains links to the Current Status and
Internet Access pages. It may be worth checking the
settings on these pages if the health check failed.
If you want to run the health check again, click on the
Health Check page link at the bottom of this page, or from
the left-hand Setup menu, click on Health Check. The
Health Check page is displayed (see Health Check page on
page 31).
If your device successfully passes the health check, the
following page is displayed:
Figure 19: Health Check: Complete with no failures page
ADSL/VoIP Gateway User’s Guide
33
DSL Status page
1. From the left-hand menu, click on Health Check. The
following page is displayed:
Figure 20: Health Check page
2. Click on DSL Status. The following page is displayed:
Figure 21: Health Check: DSL Status page
This page displays useful information about the status of your
DSL connection, including:
• Operational mode; the current connected mode. Possible
values displayed are:
• Inactive (not connected)
• Unknown (unrecognized mode)
ADSL/VoIP Gateway User’s Guide
34
• Name of the standard compliance used by the
connection (for example, G.Dmt).
• State; the current state of the device. Possible values
displayed are:
• Idle (not connected or attempting to connect)
• Handshake (hunting for a remote modem)
• Training (remote modem has been found)
• Showtime (connected to the remote modem)
• Trained transmit/receive bit rate; the transmit and receive
rates of the device (in bits per second).
3. Click on the DSL port configuration… link at the top of the
Health Check: DSL Status page. The following page is
displayed: (The DSL port is called port A1.)
Figure 22: DSL Port Basic Configuration page
In addition to information about the status of your DSL
connection (also displayed on the Health Check: DSL
Status page), this page displays the current attribute
settings for your DSL port and allows you to configure these
settings. The DSL port is called port A1.
Note
You should only edit your DSL port configuration if your ISP has
told you to do so and/or you are experienced in DSL attribute
configuration. For details of the attributes and options displayed,
see Advanced DSL port attributes on page 104.
4. Once you have configured DSL port attributes, click on
Apply. The page is refreshed and the device is updated with
your DSL configuration changes. Clicking on Reset before
you have clicked on Apply will reset attribute values to their
previous settings.
ADSL/VoIP Gateway User’s Guide
35
5. You can also display and configure advanced DSL port
attributes. At the top of the Port A1 Configuration page, click
on the View advanced configuration… The page displayed
contains the advanced attributes shown on the following
two pages.
Figure 23: Port A1 Advanced Configuration page (part 1)
ADSL/VoIP Gateway User’s Guide
36
Figure 24: Port A1 Advanced Configuration page (part 2)
ADSL/VoIP Gateway User’s Guide
37
6. Once you have configured advanced DSL port attributes,
click on Apply. The page is refreshed and the device is
updated with your DSL configuration changes. Clicking on
Reset before you have clicked on Apply will reset attribute
values to their previous settings.
For details of the advanced DSL port attributes displayed, see
Advanced DSL port attributes on page 104.
ADSL/VoIP Gateway User’s Guide
38
8
Help
The Help page displays an index of the help information that
corresponds with each web page.
You can click on the
information icon on any web page in
order to display further information about a specific topic on a
specific page. However, you may prefer to display the Help text
index in order to navigate through Help topics more easily.
Using the Help page
1. From the left-hand menu, click on Help. The Help page is
displayed:
Figure 25: Help page
Notice that the Help headings match the menu headings
listed in the left-hand menu.
2. Each heading is a link to another help page. Click on a
heading to display information about a specific page in a
new window. For example, clicking on Current Status
displays the Help: Current Status page. The same page is
displayed by clicking on the information icon from the
Current Status page itself.
3. The new window that displays the help pages contains the
following left-hand menu:
ADSL/VoIP Gateway User’s Guide
39
Figure 26: Help – Close link
To close the new window, click on close.
About the Online User Guide
Although this guide can be printed for easy reference, it has
also been prepared for viewing online through a web browser.
To view the online version of this guide, from the Help index
page, click on the Online User Guide link. The online version of
this guide is displayed.
ADSL/VoIP Gateway User’s Guide
40
9
Addressing
The Addressing page displays information about your LAN IP
address and allows you to change the address and subnet
mask assigned to your device.
Note
You should only change the addressing details if your ISP asks
you to, or if you are familiar with network configuration. In most
cases, you will not need to make any changes to this
configuration.
Changing the LAN IP address and subnet mask
1. From the left-hand Setup menu, click on Addressing. The
following page is displayed:
Figure 27: Addressing page
This page displays the current IP address and subnet mask
assigned to your device. The default LAN IP configuration is
IP address 192.168.1.1, subnet mask 255.255.255.0.
2. Click on Change Productname Address settings here…
The following page is displayed:
Figure 28: Addressing: Setup page
3. Click in the IP Address and Subnet Mask boxes and type
the new address details.
Note
Your LAN PCs must remain on the same subnet as your device
(that is, the subnet and subnet masks must be the same) For
more information about IP addresses and subnets, see IP
Addresses on page 97. If necessary, reconfigure the LAN PCs so
that their IP addresses place them in the same subnet as the new
device IP address. See Configuring Ethernet PCs on page 88.
ADSL/VoIP Gateway User’s Guide
41
4. Click Next>. The following page is displayed:
Figure 29: Addressing: Confirm page
5. This page displays the new IP address and subnet mask
and asks you to confirm whether these are correct. Click
Confirm Changes. The Addressing page is displayed,
confirming your new LAN address settings.
Note
If you change the LAN IP address of the device while connected
through your Web browser, you will be disconnected. You must
open a new connection by entering your new LAN IP address as
the URL. See Accessing the Web pages on page 19.
ADSL/VoIP Gateway User’s Guide
42
10
Wireless Network
This chapter assumes that you have already set up your
Wireless PCs and installed a compatible Wireless card on your
device. See Configuring Wireless PCs on page 96.
The Wireless Network page allows you to configure the
Wireless features of your device. To access the Wireless
Network page:
From the left-hand Setup menu, click on Wireless Network. The
following page is displayed:
Figure 30: Wireless Network page
The settings on this page are split into two sections:
• First Time Settings; contains a hyperlink wizard that takes
you through a sequence of pages, with each page
corresponding to a specific wireless network setting. You
should only need to change all of these settings once; i.e.,
when you initially setup your wireless network. See the
Wireless Network First Time Settings Wizard on page 43.
This section also displays the country that the wireless
network is set to operate in and the type of wireless network
used.
• General Settings; contains details of the current wireless
configuration and hyperlinks relating to individual wireless
network settings previously configured by completing the
First Time Settings wizard. This allows you to make
changes to specific wireless settings without going through
the entire wizard. See Wireless Network General Settings
on page 52.
ADSL/VoIP Gateway User’s Guide
43
Wireless Network First Time Settings Wizard
This section describes how to follow the wireless network
wizard in order to configure your wireless network settings for
the first time. The wizard sequence allows you to configure each
of the following Wireless settings in order:
• The country that your network is operating in
• The specification standard used by the wireless network
• The wireless network name
• The wireless network channel
• Wireless network security
• Wireless network address authentication
Note
Each page of the wizard contains a Cancel button. Click on this if
you want to exit the wizard at any time.
Setting the Country
1. From the First Time Settings section of the Wireless
Network page, click Change your wireless first time settings
here… The first page of the wizard is displayed:
Figure 31: Wireless Network: Set Country page
The number of valid wireless network frequencies varies
from country to country and you need to identify which
country you are operating the device in to ensure that your
network will transmit on the correct frequency.
2. From the Country drop-down list, select the appropriate
country. Click on the Confirm Changes> button to apply
configuration changes and move on to the next page in the
wizard sequence, which allows you to Select your Wireless
Network Type.
Select your Wireless Network Type
The following page allows you to select the Institute of Electrical
and Electronics Engineers (IEEE) specification supported by
your network:
ADSL/VoIP Gateway User’s Guide
44
Figure 32: Wireless Network: Wireless Network Type Selection
page
Each specification transmits at a certain speed (measured in
Mbits per second) over a specific frequency. The frequency
indicates the range at which wireless traffic can be transmitted
or received between the device and the wireless PC(s).
Supported specifications are:
• 802.11B only – provides slower rates at a longer range than
802.11G (11 Mbps in the 2.4 GHz band)
• 802.11G only – provides faster rates at a shorter range than
802.11B (20+ Mbps in the 2.4 GHz band)
• 802.11B/G – supports both of the above specifications, but
802.11G rates will be slower than they are in a G-only
network
To select a network type, click on a single radio button. Click on
the Confirm Changes> button to apply configuration changes
and move on to the next page in the wizard sequence, which
allows you to Set the Wireless Network Name.
Set the Wireless Network Name
The following page allows you to set the name of your wireless
network:
Figure 33: Wireless Network: Basic page
Your device and all of the wireless PCs in your wireless LAN
share the same wireless network name. This name (commonly
known as the Service Set Identifier (SSID) distinguishes your
Wireless network from any other(s) that may be in use nearby. It
also ensures that only those PCs configured with the same
name as the one set on your device can obtain access to it.
By default, the network name starts with GSV_ and ends with
the last six digits of your device’s MAC address. For security
reasons, we recommend that you replace the default network
name with a unique value of your own.
ADSL/VoIP Gateway User’s Guide
45
To do this:
1. Click in the Network Name (SSID) box and type a new
name. The name can be any combination of numbers
and/or letters with a maximum length of 32 characters.
2. Click Next>.
If you are following the First Time Settings wizard, the next page
in the wizard sequence is displayed, which allows you to Select
a Channel.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
Select a Channel
The following page allows you to select a network channel:
Figure 34: Wireless Network: Channel Selection page
Your device and all of the wireless PCs in your wireless LAN
must share the same channel number. Each channel
represents a regulatory channel frequency (MHz). Some
countries may regulate the use of certain channel frequencies.
Your ISP determines which channels are available and whether
you should allow automatic or manual channel selection.
To configure channel selection, choose one of the following
options:
• If you want the device to automatically select the best
channel for your network, click on the Allow MyDslModem
to select channel option and then click Next>.
• If you want to manually select a channel, click on the Select
a channel manually option and then click Next>. The
following page is displayed:
Figure 35: Wireless Network: Channel Selection (manual) page
Select a suitable channel (as advised by your ISP) from the
Channel drop-down list and then click Next>.
ADSL/VoIP Gateway User’s Guide
46
If you are following the First Time Settings wizard, the next page
in the wizard sequence is displayed, which allows you to
Configure Wireless Network Security.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
Configure Wireless Network Security
The following page allows you to configure wireless security:
Figure 36: Wireless Network: Security page
You can protect your wireless data from potential
eavesdroppers by encrypting wireless data transmissions. An
eavesdropper might set up a compatible wireless adapter within
range of your device and attempt to access your network. Data
encryption is the translation of data into a form that cannot be
easily understood by unauthorized users.
There are two methods of wireless security to choose from:
• Wired Equivalent Privacy (WEP); data is encrypted into
blocks of either 64 bits length or 128 bits length. The
encrypted data can only be sent and received by users with
access to a private network key. Each PC on your wireless
network must be manually configured with the same key as
your device in order to allow wireless encrypted data
transmissions. Eavesdroppers cannot access your network
if they do not know your private key. WEP is considered to
be a low security option.
• Wi-Fi Protected Access (WPA); provides a stronger data
encryption method (called Temporal Key Integrity Protocol
(TKIP)). It runs in a special, easy-to-set-up home mode
called Pre-Shared Key (PSK) that allows you to manually
enter a pass phrase on all the devices in your wireless
network. WPA data encryption is based on a WPA master
key. The master key is derived from the pass phrase and
the network name (SSID) of the device.
To configure security, choose one of the following options:
• If you do not want to use Wireless Network security, click
the Off radio button and then click Next>. Off is the default
setting, but you are strongly recommended to use
wireless network security on your device.
ADSL/VoIP Gateway User’s Guide
47
If you are following the First Time Settings wizard, the next
page in the wizard sequence is displayed, which allows you
to Configure Wireless Address Authentication.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the
Wireless Network page.
• If you want to use WEP 64bit data encryption, click on the
64bit encryption on the wireless network radio button and
then click Next>. Now follow the instructions in Configuring
64bit or 128bit encryption on page 47.
• If you want to use WEP 128bit data encryption, click on the
128bit encryption on the wireless network radio button and
then click Next>. Now follow the instructions in Configuring
64bit or 128bit encryption on page 47.
• If you want to use WPA, click on the Wi-Fi Protected
Access (WPA) on the wireless network radio button and
then click Next>. Now follow the instructions in Configuring
WPA security on page 48.
Configuring 64bit or 128bit encryption
The example set in this section is for 128bit encryption, however
the outline also applies to 64bit encryption.
1. Once you have selected your WEP encryption method and
then clicked Next>, the following page is displayed:
Figure 37: Wireless Network: 128bit Network Key page
2. Click in the Key box and type a unique 26-character hex
network key, such as A6F34B2CE5D68BE90A6F34B2CE.
Note
Hexadecimal or ‘hex’ numbers each have a value of 0 to 9 or A to
F. Each number represents four bits of binary data.
Note that if you selected 64bit, you will need to type a
unique 10-character hex network key.
3. Click Next>.
If you are following the First Time Settings wizard, the next page
in the wizard sequence is displayed, which allows you to
Configure Wireless Address Authentication.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
ADSL/VoIP Gateway User’s Guide
48
Configuring WPA security
1. Once you have selected WPA and then clicked Next>, the
following page is displayed:
Figure 38: Wireless Network: Wi-Fi Protected Access page
2. Type a unique pass phrase in the Pass phrase text box.
Your pass phrase should be at least 20 characters long in
order to deter potential intruders.
3. Once you have typed a pass phrase, click Next>.
If you are following the First Time Settings wizard, the next page
in the wizard sequence is displayed, which allows you to
Configure Wireless Address Authentication.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
Configure Wireless Address Authentication
The following page allows you to configure which wireless PCs
can access the device:
Figure 39: Wireless Network: Address Authentication page
By default, any wireless PC that is configured with your
network’s SSID and channel number can connect to your
device. You may want to increase the security of your wireless
network by creating one of the following lists of wireless PCs:
• a wireless PC blacklist; PCs on this list cannot access the
device, but all other wireless PCs can.
• a wireless PC whitelist; PCs on this list can access the
device, but all other wireless PCs cannot.
The Wireless PCs added to either list are identified by their
unique MAC address. This is made up of six pairs of characters,
ADSL/VoIP Gateway User’s Guide
49
with each character either a number between 0 and 9, or a letter
between A and F. For example, 00:20:2b:80:2f:30.
To configure which wireless PCs can access your device,
choose one of the following options:
• If you want any wireless PCs to have access to your device,
click on the Allow any wireless PCs to connect radio button.
Click Next>.
If you are following the First Time Settings wizard, the final
page in the wizard sequence is displayed, which allows you
to Confirm Wireless network changes.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
changes button to apply changes and return to the Wireless
Network page.
• If you want to create a blacklist of PCs that cannot access
your device, click on the Allow all wireless PCs to connect
except those I specify radio button and then click Next>.
Now follow the instructions in Configuring the wireless PC
blacklist on page 49.
• If you want to create a whitelist of PCs that can access your
device, click on the Only allow the wireless PCs I specify to
connect radio button and then click Next>. Now follow the
instructions in Configuring the wireless PC whitelist on page
50.
Configuring the wireless PC blacklist
1. Once you have selected Allow all wireless PCs to connect
except those I specify radio button and then clicked Next>,
the following page is displayed:
Figure 40: Wireless Network: Address Authentication (blacklist)
page
2. To add a network PC to the blacklist, click Add an address
here… The following page is displayed:
Figure 41: Wireless Network: Address Authentication (blacklist)
page
ADSL/VoIP Gateway User’s Guide
50
3. Click in each box and type each character pair of the MAC
address for the PC you want to blacklist. Click Next>. The
following page is displayed, containing details of the MAC
address that you have just added:
Figure 42: Wireless Network: Address Authentication (blacklist)
page
4. This page allows you to configure the addresses on the
blacklist:
• If you want to add another MAC address to the
blacklist, click Add an address here… and repeat the
instructions described in step 3.
• If you want to remove a MAC address from the
blacklist, click Remove an address here… At the
displayed page, select the MAC address that you want
to remove from the drop-down list.
5. Click Next>.
If you are following the First Time Settings wizard, the final page
in the wizard sequence is displayed, which allows you to
Confirm Wireless network changes.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
Configuring the wireless PC whitelist
1. Once you have selected Only allow the wireless PCs I
specify to connect radio button and then clicked Next>, the
following page is displayed:
Figure 43: Wireless Network: Address Authentication (whitelist)
page
2. To add a network PC to the whitelist, click Add an address
here… The following page is displayed:
ADSL/VoIP Gateway User’s Guide
51
Figure 44: Wireless Network: Address Authentication (whitelist)
page
3. Click in each box and type each character pair of the MAC
address for the PC you want to whitelist. Click Next>. The
following page is displayed, containing details of the MAC
address that you have just added:
Figure 45: Wireless Network: Address Authentication (whitelist
configuration) page
4. This page allows you to configure the addresses on the
whitelist:
• If you want to add another MAC address to the
whitelist, click Add an address here… and repeat the
instructions described in step 3.
• If you want to remove a MAC address from the
whitelist, click Remove an address here… At the
displayed page, select the MAC address that you want
to remove from the drop-down list.
5. Click Next>.
If you are following the First Time Settings wizard, the final page
in the wizard sequence is displayed, which allows you to
Confirm Wireless network changes.
If you have accessed this page from the General Settings
section of the Wireless Network page, click on the Confirm
Changes button to apply changes and return to the Wireless
Network page.
Confirm Wireless network changes
Once you have configured Wireless Address Authentication and
clicked on Next>, the following page is displayed:
ADSL/VoIP Gateway User’s Guide
52
Figure 46: Wireless Network: Confirm page
This page confirms the configuration changes made to each
page in the wizard. If you are happy with these settings, click on
the Confirm Changes button. Configuration changes are applied
to the device and the Wireless Network page is displayed.
Once you have completed the First Time Settings wizard, you
can edit specific wireless settings using the hyperlinks displayed
in the General Settings section of the Wireless Network page.
See Wireless Network General Settings on page 52.
Wireless Network General Settings
The General Settings section of the Wireless Network page
displays details of the device’s current wireless configuration.
For example:
Figure 47: Wireless Network: General Settings section
The hyperlinks in this section allow you to:
• Enable/disable wireless networking; see Enabling/disabling
wireless networking on page 53.
ADSL/VoIP Gateway User’s Guide
53
• Change the channel currently in use; click Change your
wireless channel here… and follow the instructions in
Select a Channel on page 45.
• Change the network name (SSID); click Change your
wireless network name here… and follow the instructions in
Set the Wireless Network Name on page 44.
• Configure wireless security; click Change Wireless Security
settings here… and follow the instruction in Configure
Wireless Network Security on page 46.
• Configure address authentication; click Change which
wireless PCs are allowed to connect here… and follow the
instructions in Configure Wireless Address Authentication
on page 48.
• Display information about the wireless PCs connected to
the device; see Displaying details of Wireless PCs on page
53.
Enabling/disabling wireless networking
Note
Once you have completed the First Time Settings wizard,
wireless networking is enabled on the device by default.
At the Wireless Network page, click on Enable or disable the
wireless network here… The following page is displayed:
Figure 48: Wireless Network: Enable/Disable page
Choose whether to enable or disable wireless networking:
• To enable the network, click on the Enable radio button and
then click Next>. This takes you through a subset of the
First Time Setting wizard, starting with the page that allows
you to configure the current Wireless Network Name.
Follow the instructions starting from Set the Wireless
Network Name on page 44.
• To disable the network, click on the Disable radio button
and then click Next>. The next page confirms the disabled
state of the wireless network. If you are happy with this
configuration, click on Confirm Changes. The Wireless
Network page is displayed.
Displaying details of Wireless PCs
At the Wireless Network page, click on View details of
connected wireless PCs… The following page is displayed:
ADSL/VoIP Gateway User’s Guide
54
Figure 49: Wireless Network: Connected Wireless PCs page
This page displays the MAC address of the PC currently
connected to your device, together with the signal strength. The
signal strength is the measure of radio frequency (RF) energy
detected by the device on a specific channel. Signal strength
may vary depending on the position of the PC(s) in relation to
the device.
To return to Wireless Network page, click on Return to the
wireless status page.
ADSL/VoIP Gateway User’s Guide
55
11
Advanced Security
Your device has built in advanced Security features that protect
your network by blocking unwanted traffic from the Internet.
If you simply want to connect from your local network to the
Internet, you do not need to make any changes to the default
Security configuration. You only need to edit the configuration if
you wish to do one or both of the following:
• allow Internet users to browse the user pages on your local
network (for example, by providing an FTP or HTTP server)
• play certain games which require accessibility from the
Internet
This chapter describes how to configure Security to suit the
needs of your network.
By default, the IP addresses of your LAN PCs are hidden from
the Internet. All data sent from your LAN PCs to a PC on the
Internet appears to come from the IP address of your device.
(To display your device’s IP address, see Current Status on
page 24.) In this way, details about your LAN PCs remain
private. This security feature is called Network Address
Translation (NAT).
Configuring NAT Security
Certain network games, chat or file sharing software do not
work with your default NAT setting. Your device knows the port,
protocol and trigger information needed to allow access to the
common applications listed below, but by default, access to
them is disabled.
Application TCP
port
number
UDP
port
number
Trigger
required?
E-mail 110, 25 N/A false
News 119 N/A false
MSN Messenger 1863 N/A false
Yahoo! Instant Messenger
5050
5055
5100
N/A false
AOL Instant Messenger 5190 N/A false
Internet Relay Chat (IRC) 194 194 false
1720 N/A true
N/A 1719 true
Netmeeting (h323)
1731
522
N/A false
Real Audio
544
7070
544
6770
false
ADSL/VoIP Gateway User’s Guide
56
Application TCP
port
number
UDP
port
number
Trigger
required?
Ping
N/A
(ICMP)
N/A
(ICMP)
false
Web connections (HTTP,
HTTPS)
80, 443 N/A false
51210 N/A true
DialPad
N/A
51200
51201
true
FTP 21 N/A false
Telnet 23 N/A false
Secure shell (SSH) 22 N/A false
Windows Media Services 1755 1755 false
Gnutella 6346 N/A false
Kazaa 1214 N/A false
Windows Terminal Server 3389 N/A false
DNS N/A 53 false
PPTP 1723 1723 false
Internet Key Exchange N/A 500 false
LDAP 389 N/A false
GRE
N/A
(GRE)
N/A
(GRE)
false
Databeam (T.120) 1503 N/A false
You can enable access to a common application from a specific
PC on your network. For more information, see Configuring
Internet applications on page 58.
If you want to allow access to an application that is not included
on the above list of common applications, you can create and
enable a custom application. For more information, see
Configuring custom applications on page 60.
Before you can configure your default NAT settings, you must
assign a unique name to each of the PCs on your network. See
Assigning PC Names on page 56.
Assigning PC Names
You must assign a name to each of the PCs on your network
before you can enable access to common applications or create
custom ones. This allows you to refer to PCs by name instead
of IP address.
1. From the left-hand Setup menu, click on Security. The
following page is displayed:
ADSL/VoIP Gateway User’s Guide
57
Figure 50: Advanced Security page
2. Click on Configure named PCs here… The following page
is displayed:
Figure 51: Advanced Security: PC Names page
3. This page displays the names previously assigned to PCs
on your network. To assign a name to an unnamed PC,
click Add a new PC name here… The following page is
displayed:
Figure 52: Advanced Security: Add PC Name page
4. Type a unique, meaningful name in the PC name text box,
then type the IP address of the PC that you want to assign
this name to. Click Next>. The following page is displayed:
ADSL/VoIP Gateway User’s Guide
58
Figure 53: Advanced Security: Add PC Name page
5. If you are happy with the name that you have assigned to
the IP address, click Confirm Changes. The Advanced
Security: PC Names page is displayed.
Once you have assigned PC names, you can enable Internet
access to applications (see Configuring Internet applications on
page 58) and create custom applications (see Configuring
custom applications on page 60).
Deleting PC Names
To delete an assigned PC name:
1. From the Advanced Security: PC Names page, click on
Remove a PC name here…
2. Select the PC name that you wish to remove, and then click
Next>.
3. At the Advanced Security: Confirm PC Name page, click
Confirm Changes. The Advanced Security: PC Names
page is displayed. Details of the deleted PC name have
been removed.
Configuring Internet applications
This section assumes that you have already assigned names to
the PCs on your network as described in Assigning PC Names
on page 56.
You can enable/disable a specific Internet application in order to
allow/block access to it via an individual PC.
Enabling Internet applications
1. From the left-hand Setup menu, click on Advanced
Security. At the displayed page, click on Configure Internet
applications here… The following page is displayed:
Figure 54: Advanced Security: Enabled Applications page
This page displays details about applications that are
currently enabled. By default, all Internet applications are
disabled.
ADSL/VoIP Gateway User’s Guide
59
2. Click on Enable an application here… The following page is
displayed:
Figure 55: Advanced Security: Enable Application page
3. This page allows you to select which application you wish to
enable for a specific PC. The Application name drop-down
list contains the following:
• the common applications that your device knows about
(see Configuring Internet applications on page 58).
• any custom applications that you have manually
configured (see Configuring custom applications on
page 60).
Select the application and the PC that you want to enable
access to and then click Next>. The following page is
displayed:
Figure 56: Advanced Security: Confirm Application page
4. If you are happy with your application configuration, click
Confirm Changes. The Advanced Security: Enabled
Applications page is displayed, containing a list of currently
enabled applications.
Disabling Internet applications
1. From the Advanced Security: Enabled Applications page,
click on Disable an application here. The following page is
displayed:
Figure 57: Advanced Security: Disable Application page
ADSL/VoIP Gateway User’s Guide
60
2. Select the application that you want to disable from the
Application name drop down list, and then click Next>. At
the Advanced Security: Confirm Application page, click on
Confirm Changes. The Advanced Security: Enabled
Applications page is displayed. Details about the disabled
application have been removed.
Configuring custom applications
If you want to enable access to an application that does not
appear on your device’s default list of common applications (see
Configuring Internet applications on page 58) you can create a
custom application.
In order to create a custom application, you must know:
1. the protocol used by the application (e.g., TCP, UDP and
so on)
2. the primary port or range of ports used by the application
3. whether the application requires a trigger, and if so, the
secondary port or range of ports used by the application
4. the address translation type used by the trigger
Your application provider or games manufacturer should
provide you with these details.
Creating custom applications
In this example configuration, a custom application called
network game using TCP port 5555 is created.
1. From the left-hand Setup menu, click on Security. At the
Advanced Security page, click on Create and configure
custom applications here… The following page is
displayed:
Figure 58: Advanced Security: Custom Applications page
This page displays details of previously created custom
applications. By default, no custom applications exist. Click
Add a custom application here… The following page is
displayed:
ADSL/VoIP Gateway User’s Guide
61
Figure 59: Advanced Security: Create Application page
2. Type a unique name for your custom application, and select
the transport protocol from the Transport drop-down list.
Click Next>. The following page is displayed:
Figure 60: Advanced Security: Add Port page
3. Type a port range by entering the start and end of the range
in the two boxes provided. If you want to use a single port,
enter the port number in the first box and leave the second
box blank.
Note
You must ensure that the single port or range specified does not
overlap with a port or range for an existing common or custom
application. Check the common port ranges listed in Configuring
NAT Security on page 55.
Select the address translation type from the drop down list.
This controls the translation of binary IP addresses in the
payload of a packet (the part containing data). Click Next>.
The following page is displayed:
Figure 61: Advanced Security: Confirm Custom Application page
ADSL/VoIP Gateway User’s Guide
62
4. This page confirms your custom application configuration. If
you are happy with the details displayed, click Confirm
Changes. The Advanced Security: Custom Applications
page is displayed, containing details of the custom
application that you have just created.
In order to access your custom application, you must first
enable it. See Configuring Internet applications on page 58.
Deleting custom applications
1. From the Advanced Security: Custom Applications page,
click on Delete a custom application here... The following
page is displayed:
Figure 62: Advanced Security: Disable Application
2. Select the application that you want to delete from the
Application name drop down list and then click Next>. At
the Advanced Security: Confirm Application page, click on
Confirm Changes. The Advanced Security: Custom
Applications page is displayed. Details about the deleted
application have been removed.
ADSL/VoIP Gateway User’s Guide
63
12
Internet Access
This chapter describes how to configure the way that your
device connects to the Internet. Your ISP determines what type
of Internet access you should use and provides you with any
information that you need in order to configure the Internet
access to your device.
Your device needs the following address information in order to
access the Internet:
IP address and
subnet mask:
The IP address and subnet mask
assigned to your WAN interface.
Default gateway: The gateway address that identifies the
ISP server through which your Internet
connection will be routed.
DNS servers: The Dynamic Name System (DNS)
servers used by your ISP to dynamically
assign addresses to each of the
computers attached to your LAN.
In most cases, you will not need to configure your device with
these addresses because your ISP is likely to use an Internet
access type which automatically assigns addresses to your
device. For more information, see Types of Internet Access on
page 63.
Types of Internet Access
The types of Internet access available are as follows:
• Automatic Internet access – your device scans the Internet
via the DSL connection in order to find a link to the ISP’s
Internet service. The IP addresses required to access your
ISP’s Internet service are automatically configured.
• PPP Internet access – your device uses a Point to Point
Protocol (PPP) to carry data between your ISP and your
computer. To use PPP Internet access, you must enter a
PPP login username and password the first time to log
on. The IP addresses required to access your ISP’s
Internet service are automatically configured.
Your device supports two types of PPP – PPPoE (over
Ethernet) and PPPoA (over ATM).
• DHCP – your ISP uses a protocol called Dynamic Host
Configuration Protocol (DHCP) to assign addresses and
manage your device. The device is automatically assigned
the IP addresses that it needs to access the Internet.
• Manual – you manually assign the addresses that your
device needs in order to access the Internet. Your ISP
should provide you with the necessary addresses.
ADSL/VoIP Gateway User’s Guide
64
Configuring Automatic Internet Access
Your device can automatically search for a link to your ISP’s
Internet service. If your ISP tells you to use this connection
method, follow the instructions below.
1. From the left-hand Setup menu, click on Internet Access.
The following page is displayed:
Figure 63: Internet Access page
This page displays information about your current Internet
access configuration.
2. Click on Change the Internet Access setting here… The
following page is displayed:
Figure 64: Internet Access: Types of Access page
3. Select Auto and click Next>. The following page is
displayed:
Figure 65: Internet Access: Auto page
4. This page displays a warning that once a new connection is
automatically detected, it will replace your existing Internet
Access configuration. If you are happy with this, click Next>.
ADSL/VoIP Gateway User’s Guide
65
The following message confirms that your device is
automatically searching for a link to the Internet:
Figure 66: Internet Access: Searching page
5. Once the search is complete, a page is displayed
confirming which type of Internet connection has been
detected. For example, the following page is displayed if the
device has detected a PPP connection:
Figure 67: Internet Access: PPP Setup page
6. Enter the PPP username and password provided by your
ISP. Type them in the relevant boxes, and then click Next>.
The following page is displayed:
Figure 68: Internet Access: Search Complete page
7. This page confirms the Internet Access settings that have
been detected. Click on the hyperlink to the Internet Access
page to display details of your automatically configured
Internet connection.
Configuring your PPP DSL connection
If your ISP’s Internet service uses PPPoA or PPPoE you need
to set up a PPP login account. The first time that you login to the
Internet, your ISP will ask you to enter a username and
password so they can check that you are a legitimate,
registered Internet service user. Your device stores these
authentication details, so you will not have to enter this
username and password every time you login.
ADSL/VoIP Gateway User’s Guide
66
Your ISP may also tell you to set unique path and circuit
numbers (called VPI and VCI) in order to connect your device to
the ISP’s Internet service. In most cases, your device will use
default settings, so you may not need to enter these values.
Note
Your ISP will provide you with the login details and VPI/VCI
values necessary to set up a PPP login account.
If your ISP wants you to connect to the Internet using PPP,
follow the instructions below.
1. From the left-hand Setup menu, click on Internet Access.
The following page is displayed:
Figure 69: Internet Access page
This page displays information about your current Internet
access configuration.
2. Click on Change the Internet Access setting here… The
following page is displayed:
Figure 70: Internet Access: Types of Access page
3. Select either PPPoA or PPPoE, depending on which PPP
type your ISP wants you to use. In this example, PPPoA is
selected, but the instructions for PPPoE are identical. Click
Next>. The following page is displayed:
ADSL/VoIP Gateway User’s Guide
67
Figure 71: Internet Access: PPPoA page
4. Enter the PPP username and password provided by your
ISP. Type them in the relevant boxes, and then click Next>.
The following page is displayed:
Figure 72: Internet Access: VPI and VCI Setup page
5. Click on the VCI and VPI setting determined by your ISP:
• Fixed (default) - click on this if your ISP tells you to use
default VPI and VCI setting. This is the most common
setup.
• Manual – click on this if your ISP has provided you with
specific VPI and VCI settings. Click Next>. At the next
page, type the provided VPI and VCI settings in the
relevant boxes.
6. Click Next>. The following page is displayed:
Figure 73: Internet Access: Confirm page
This page confirms your PPP settings. If you selected the
Manual option at step 5, the VPI and VCI values that you
entered are also displayed on this page.
7. If you are happy with your settings, click Confirm Changes.
The Internet Access page is displayed.
ADSL/VoIP Gateway User’s Guide
68
If you have configured PPPoE Internet access, notice that an
extra configuration option called MAC Spoofing appears on this
page:
Figure 74: Internet Access: PPPoE page
MAC spoofing allows you to set the Media Access Control
(MAC) address of your device. See Enabling MAC spoofing on
page 10 for more details.
Enabling MAC spoofing
Note
You should only enable MAC spoofing if your ISP has requested
that you do so. In most cases, you will not need to do this.
Your ISP identifies your modem by its unique hardware number
or Media Access Control (MAC) address. If you are using
PPPoE Internet access, your ISP may want you to spoof the
identity of a different device. You can spoof the MAC address of
another device by replacing your device’s existing MAC address
with another device’s address. Your ISP will provide you with
the replacement MAC address.
Note
You can only configure MAC spoofing if you are using PPPoE
Internet access. This option is not available for PPPoA.
If your ISP instructs you to change your device’s default MAC
address, follow the instructions below:
1. From the Internet Access page, click Enable or disable
MAC Spoofing here… The following page is displayed:
ADSL/VoIP Gateway User’s Guide
69
Figure 75: Internet Access: MAC Spoofing page
2. Select Enabled then click Next>. The following page is
displayed:
Figure 76: Internet Access: MAC Spoofing Setup page
3. The MAC address is made up of six pairs of characters.
Each character can be either a number between 0 and 9, or
a letter between A and F. For example, 00:20:2b:80:2f:30.
Click in each box and type each character pair of the MAC
address provided by your ISP.
4. Click Next>. The following page is displayed:
Figure 77: Internet Access: MAC Spoofing Confirm
This page confirms your MAC spoofing settings. If you are
happy with these settings, click Confirm Changes. The
Internet Access page is displayed, and your MAC spoofing
configuration is complete.
Editing your existing MAC spoofing settings
If you want to change the spoof MAC address used by your
device, follow the instructions in Enabling MAC spoofing on
page 68, but replace the existing address with a new one at
step 3.
If you do not want to use MAC spoofing, follow the instructions
in Enabling MAC spoofing on page 68, but select Disabled at
step 2.
ADSL/VoIP Gateway User’s Guide
70
Configuring your DHCP DSL connection
If your ISP uses a DHCP DSL connection, your ISP may tell you
to set unique path and circuit numbers (called VPI and VCI) in
order to connect your device to the ISP’s Internet service. In
most cases, your device will use default settings, so you may
not need to enter these values.
Note
Your ISP will provide you with the VPI/VCI values necessary to
setup a DHCP DSL connection.
1. From the left-hand Setup menu, click on Internet Access.
The following page is displayed:
Figure 78: Internet Access page
This page displays information about your current Internet
access configuration.
2. Click on Change the Internet Access setting here… The
following page is displayed:
Figure 79: Internet Access: Types of Access page
3. Select DHCP then click Next>. The following page is
displayed:
ADSL/VoIP Gateway User’s Guide
71
Figure 80: Internet Access: VPI and VCI Setup page
4. At this page, click on the VCI and VPI setting determined by
your ISP:
• Fixed (default) - click on this if your ISP tells you to use
default VPI and VCI setting. This is the most common
setup.
• Manual – click on this if your ISP has provided you with
specific VPI and VCI settings. Click Next>. At the next
page, type the provided VPI and VCI settings in the
relevant boxes.
5. Click Next>. The following page is displayed:
Figure 81: Internet Access: Confirm page
This page confirms your DHCP settings. If you selected the
Manual option at step 4, the VPI and VCI values that you
entered are also displayed on this page.
6. If you are happy with your settings, click Confirm Changes.
The Internet Access page is displayed and your
configuration is complete.
Configuring your Internet Access manually
If your ISP tells you to configure your Internet access manually,
they must provide you with the following information:
• The WAN IP address and subnet mask for your device
• The Internet Gateway address
• The primary and secondary DNS addresses
Note
You should only change the Internet Access details if your ISP
asks you to, or if you are familiar with network configuration. In
most cases, you will not need to make any changes to this
configuration.
1. From the left-hand Setup menu, click on Internet Access.
The following page is displayed:
ADSL/VoIP Gateway User’s Guide
72
Figure 82: Internet Access page
This page displays information about your current Internet
access configuration.
2. Click on Change the Internet Access setting here… The
following page is displayed:
Figure 83: Internet Access: Types of Access page
3. Select Manual then click Next>. The following page is
displayed:
Figure 84: Internet Access: Manual Setup page
4. Click in each box and type the relevant address information
provided by your ISP. Click Next>. The following page is
displayed:
ADSL/VoIP Gateway User’s Guide
73
Figure 85: Internet Access: VPI and VCI Setup page
5. At this page, click on the VCI and VPI setting determined by
your ISP:
• Fixed (default) - click on this if your ISP tells you to use
default VPI and VCI settings. This is the most common
setup.
• Manual – click on this if your ISP has provided you with
specific VPI and VCI settings. Click Next>. At the next
page, type the provided VPI and VCI settings in the
relevant boxes.
6. Click Next>. The following page is displayed:
Figure 86: Internet Access: Confirm page
This page confirms the address settings that you have
manually configured (the values displayed above are for
example purposes only). If you selected the Manual option
at step 5, the VPI and VCI values that you entered are also
displayed on this page.
7. If you are happy with your settings, click Confirm Changes.
The Internet Access page is displayed and your
configuration is complete.
ADSL/VoIP Gateway User’s Guide
74
13
Password
You can restrict access to your device’s web pages using
password protection. With password protection enabled, users
must enter a username and password before gaining access to
the web pages.
By default, password protection is enabled on your device, and
the username and password set are as follows:
Username: admin
Password: admin
For more information, see Accessing the Web pages on page
19.
Setting your username and password
Note
Non-authorized users may try to access your system by guessing
your username and password. We recommend that you change
the default username and password to your own unique settings.
To set your own username and password:
1. From the left-hand Setup menu, click on Password. The
following page is displayed:
Figure 87: Password page
This page displays the current status of password
protection.
2. Click on Change Password settings here… The following
page is displayed:
Figure 88: Password: Enable/Disable page
ADSL/VoIP Gateway User’s Guide
75
3. This page allows you to enable or disable password
protection. Protection is already enabled by default. Click
Next>. The following page is displayed:
Figure 89: Password: Setup page
4. This page displays the current username and password
settings. Type your own unique username and password in
the relevant boxes. They can be any combination of letters
or numbers with a maximum of 20 characters. The default
setting uses admin for both the username and password.
We recommend that you do not set the same character
combination for both username and password.
5. Click Next>. The following page is displayed:
Figure 90: Password: Confirm page
6. This page confirms that password protection is enabled and
displays the username that will be required in order to
access the web pages. If you are happy with these settings,
click Confirm Changes. The Enter Network Password login
box is displayed. You need to login to the web pages using
your new username and password. For details of how to do
this, see Accessing the Web pages on page 19.
Disabling password protection
If you do not want to use password protection, follow the
instructions in Setting your username and password on page 74
and at step 3, select Disable and then click Next>.
ADSL/VoIP Gateway User’s Guide
76
14
Reset to Defaults
This page allows you to reset your device to its default factory
settings.
The configuration settings of your device are stored in a
configuration file. When you set up your device and access the
web pages for the very first time, the configuration file contains
a default factory configuration. This configuration has been set
by Multitek for you, and contains the basic settings that you can
use without having to make extensive changes to the
configuration.
If you do make changes to the default configuration but then
wish to revert back to the original factory configuration, you can
do so by resetting the device to factory defaults.
Resetting to Defaults
Note
If you reset your device to factory defaults, all previous
configuration changes that you have made are overwritten by the
factory default configuration.
1. From the left-hand Setup menu, click on Reset to Defaults.
The following page is displayed:
Figure 91: Reset to Defaults page
2. This page reminds you that resetting to factory defaults
cannot be undone – any changes that you have made to
the basic settings will be replaced. If you are happy with
this, click in the Confirm box to tick it, then click Reset to
Defaults. The following page is displayed:
Figure 92: Resetting to Defaults… page
This page confirms that the device is currently resetting to
factory defaults. Once the reset is complete, the Current
Status page is displayed. See Current Status on page 24.
ADSL/VoIP Gateway User’s Guide
77
Note
Resetting to defaults also resets the username and password to
their default settings. If you previously changed the username and
password by following the instructions in Password on page 74,
the Enter Current Password login box will be displayed.
Once you have entered the default settings (admin, admin) and
clicked OK, the Current Status page is displayed.
ADSL/VoIP Gateway User’s Guide
78
15
VoIP
VoIP enables telephone calls to be made over an IP network.
This enables DSL Service providers to sell telephone services
over DSL to customers without the expense of providing any
extra physical connections to the consumer, or network
infrastructure in addition to their existing IP network.The DSL
Service provider can build VoIP functionality into their DSL
Modem product to create a Voice-IAD (Integrated Access
Device) system. The Voice-IAD system would typically offer
connections for the DSL line, Ethernet and/or Wireless LAN,
together with one or more analog telephone sockets to enable
the user to make telephone calls over the IP network or over the
PSTN. The decision on whether to route the call over the
telephone network or the PSTN would depend on the number
dialled and the status of the Internet connection. This feature is
known as Call Routing . The following diagram illustrates the
interfaces that would be provided on a typical Comm-Box
system:
Figure 93: Comm-Box System Interfaces
The DSL/FXO interface refers to a single connector with a
POTS filter supporting connection of DSL and PSTN to the
system. In practice, the filter may be external and an additional
FXO socket provided. FXS refers to the low-cost phone ports
(digitally connected on the board to VoIP or PSTN).
ADSL/VoIP Gateway User’s Guide
79
The product provides Internet access using DSL for the LAN
and Wireless LAN computers. The phones connected to the
Voice-IAD system are standard analog phones that are identical
to the other telephones connected to the Home telephone
wiring system. The phones can use DTMF or Pulse dialling to
make either PSTN or VoIP calls. The Voice-IAD system will
route or receive calls over PSTN or VoIP depending on the
dialed telephone number or the way in which an incoming call is
received. In cases where the VoIP call agent cannot be
reached, the DSL line is down or there is no power - calls will
always be routed to the PSTN via a Failsafe relay (hence the
phones will be electrically connected to the PSTN). QoS
(Quality of Service) is also used to ensure voice calls are placed
at a higher priority than data traffic routed between the
LAN/WLAN and DSL interface.
Voice Terminology
Before beginning an overview ,several Voice and telephony
terms must be understood.
FXS
Telephones, fax machines, and modems are examples of
telephony devices. These devices typically connect (via
telephone lines) to RJ11-jack Foreign Exchange Station (FXS)
interfaces on telephony hardware. The FXS interface provides
battery, signaling and an audio connection for the devices.
FXO
An FXO interface is the Foreign Exchange Office interface
which connects to a PSTN Exchange.
Codec
Audio data from the FXS port or FXO port is sampled via an
analog-to-digital converter, and audio data to the FXS port is
generated via a digital-to-analog converter. These functions are
integrated into a single circuit, the codec (short for coderdecoder, since typically, codecs encode/decode audio samples
using 8-bit or 16-bit PCM encoding). Codec integrated circuits
may handle bidirectional audio data on single or multiple FXS
ports, or FXO ports. The codec produces a constant stream of
audio data in a Time Division Multiplexed (TDM) fashion, which
places the audio data from each port into time slots. The TDM
transmission is synchronized into ‘frames’ of audio data by
aligning with the codec's ‘frame sync’ signal. An FXS port's time
slot is referred to as an ‘audio channel.’
In a typical VoIP system the Codec is a separate chip but it is
more accurate to view the codec as an integral component of
the overall integrated circuit functionality.
Voice features
The main Voice features supported in the Voice software
release are listed below:
ADSL/VoIP Gateway User’s Guide
80
• VoIP with PSTN switching for up to two FXS ports for handling
VoIP calls and PSTN calls based on the number dialled and the
IP/DSL connection status.
• Soft Relay support to handle connections between the FXS
and FXO ports.
• Hard ‘Failsafe’ Relay to switch FXS ports directly to the FXO
port in the event of a power failure or loss of Internet
connectivity.
• Health Monitor to monitor the state of the IP/DSL connection
and indicate this status to onboard LEDs and control the
Failsafe relay.
Telephony data processing features
The main telephony data processing functions supported in the
Voice software release are listed below:
• Voice codec support:
• G.711 (A-Law and µ−Law),
• G.726 (32kb) and
• G.729ab
The codecs can be dynamically changed during a call.
• Echo cancellation (G.168, 32ms echo-tail (configurable))
• Silence suppression (Voice Activity Detection (VAD)) and
Comfort Noise Generation (CNG).
• Dynamic Packet Loss Compensation.
• Configurable Adaptive Jitter buffer.
• Telephony timing synchronization with Time Division
Multiplexed (TDM) audio data.
• Fax and Modem tone detection.
• DTMF generation and detection.
• Highly configurable and versatile Tone generator for call
progress tones and special information tones.
VoIP Configuration
Your device can automatically search for a link to your VoIP
service provider. If your VoIP service provider tells you to use
this connection method, follow the instructions below.
1. From the left-hand Setup menu, click on VOIP. The following
page is displayed:
ADSL/VoIP Gateway User’s Guide
81
Figure 94: VOIP Page
System Settings
2. Voip Functionality: Select SIP as VoIP protocol.
3. Select Region to define your country region. It is shown in
Figure 95
4. CidType (Caller Id Type) is chosen FSK or DMTF. This
option is defined by your VoIP telephony service provider.
5. DTMF Mode is chosen Inband or RFC2833.
6. Click apply to execute new values.
ADSL/VoIP Gateway User’s Guide
82
Figure 95: Region page
SIP Settings
SIP setting page is shown in Figure 96.
7. Registrar, Proxy, Outbound Server and User Domain are
filled with their web address name ( as sip.XXXX.org )
which are obtained from your telephony service provider.
Their port numbers and their transport protocols (TCP or
UDP) are also defined according to the telephony operator
information.
8. Silence Suppression ( voice activation ) and echo
cancellations can be enable or disable, separately.
9. Click to Apply to execute the editing values.
ADSL/VoIP Gateway User’s Guide
83
Figure 96: SIP Setting Page
Dialling Plan
Figure 97: Dialling Plan
ADSL/VoIP Gateway User’s Guide
84
SIP Calling Digitmap is a regular expression string which
defines a pattern of digits which will be recognised by the
system as a valid phone number. The digit map can be used to
specify not only the number of digits required to make a valid
phone number but also the range of digits and special
characters which can be entered and timeout values after the
digits have been dialled. For example, here is an example of a
digit map:
([1-8]xxx|#xxxxxx|*xx)
This digit map defines a valid phone number as being one of
the following:
• Any digit between 1and 8 followed by any three numbers.
• A ‘#’ symbol followed by any six numbers
• A ‘*’ symbol followed by any two numbers
The Digitmap can also be extended to include special call
codes such as speed dialling or last number redial. An ‘S’ at the
end of a section of a digit map defines a special call code. For
example, in the digit map:
(xxxx|##S)
This digitmap defines a special call code such that if ‘##’ is
dialled the last number dialled from the phone will be redialled.
Other options are shown in Figure 98.
Figure 98: Special Dialling Codes
Another example is helpful to recognize digitmap
ADSL/VoIP Gateway User’s Guide
85
(x.T|##S|*[268]xS|*74x.#S|x#S|*90x.#S)
The above digitmap sets the following characteristics for the SIP
phones:
• x.T - any number of digits followed by a timeout to dial the
digits. This is not a special call
code.
• ##S - Last number redial.
• *[268]xS - is a compound entry which matches the following
codes:
• *20 - Set DND (Do-Not-Disturb) ON
• *80 - Set DND (Do-Not-Disturb) OFF
• *69 - Return the last missed call
All other numbers which are also matched by this entry will
return an error if entered. For example, entering *82 will
generate an error.
• *74x.#S - Speed dial 8 setting.
• x#S - Speed dial call.
• *90x.#S - SIP blind transfer.
PSTN Calling Rules
PSTN rules can determined in the same page as shown in
Figure 97. This facility enables you to configure ‘VoIP with
PSTN switching’ on your system. Using this values the user
can define a range of dial plans which specify the numbers
which are connected to the PSTN. If the number dialled
matches a number defined in the dial plan, then the number is
routed to the PSTN.
Create a new PSTN rules opens new windows as shown in
Figure 99.
Figure 99: PSTN Calling Rule Pages
ADSL/VoIP Gateway User’s Guide
86
The following table gives the range of values for each option
which can be specified with this command and a default value
(if applicable):
Figure 100: PSTN rules details
Quality of Service (QoS) Settings
QoS (Quality of Service) is used to ensure voice calls are at a
higher priority than traffic routed between the LAN/WLAN and
DSL interface.
Figure 101: . Quality of Service
The voice software generates packets with the transmit priority
of the data buffer set to 7 (the default, best effort, priority is 0).
ADSL/VoIP Gateway User’s Guide
87
Endpoints
Two POTS telephones can be connected for VoIP calls. Their
numbers, which are given by your Telecom Operator, have to
be defined as endpoints. Edit buttons as shown in Figure 102
are used. If it is clicked, the edit page will be appeared as in
Figure 103.
Figure 102:
Endpoints
Figure 103:
Edit Endpoints Detail
Endpoint Name, Display Name and Password Box have to be
filled correctly, then Apply button should be clicked.
ADSL/VoIP Gateway User’s Guide Configuring your Computers
88
A
Configuring your Computers
This appendix provides instructions for configuring the Internet
settings on your computers to work with the Hata! Stil
tanımlanmamış..
Configuring Ethernet PCs
Before you begin
By default, the Hata! Stil tanımlanmamış. automatically assigns
the required Internet settings to your PCs. You need to configure
the PCs to accept this information when it is assigned.
Note
10. In some cases, you may
want to assign Internet
information manually to some
or all of your computers
rather than allow the Hata!
Stil tanımlanmamış. to do
so. See
Assigning static Internet information to your PCs on page 92 for
instructions.
• If you have connected your LAN PCs via Ethernet to the
Hata! Stil tanımlanmamış., follow the instructions that
correspond to the operating system installed on your PC:
• Windows® XP PCs on page 89
• Windows 2000 PCs on page 90
• Windows Me PCs on page 91
• Windows 95, 98 PCs on page 91
• Windows NT 4.0 workstations on page 91
• If you want to allow Wireless PCs to access your device,
follow the instructions in Configuring Wireless PCs on page
96.
Windows® XP PCs
1. In the Windows task bar, click the Start button, and then click
Control Panel.
2. Double-click the Network Connections icon.
3. In the LAN or High-Speed Internet window, right-click on the
icon corresponding to your network interface card (NIC) and
select Properties. (Often, this icon is labeled Local Area
Connection).
The Local Area Connection dialog box is displayed with a list
of currently installed network items.
Biçimlendirilmiş: Madde
Đşaretleri ve Numaralandırma
ADSL/VoIP Gateway User’s Guide Configuring your Computers
89
4. Ensure that the check box to the left of the item labeled
Internet Protocol TCP/IP is checked and click Properties.
5. In the Internet Protocol (TCP/IP) Properties dialog box, click
the radio button labeled Obtain an IP address automatically.
Also click the radio button labeled Obtain DNS server
address automatically.
6. Click OK twice to confirm your changes, and then close the
Control Panel.
Windows 2000 PCs
First, check for the IP protocol and, if necessary, install it:
1. In the Windows task bar, click the Start button, point to
Settings, and then click Control Panel.
2. Double-click the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click
the Local Area Connection icon, and then select Properties.
The Local Area Connection Properties dialog box is
displayed with a list of currently installed network
components. If the list includes Internet Protocol (TCP/IP),
then the protocol has already been enabled. Skip to step 10.
4. If Internet Protocol (TCP/IP) does not display as an installed
component, click Install…
5. In the Select Network Component Type dialog box, select
Protocol, and then click Add…
6. Select Internet Protocol (TCP/IP) in the Network Protocols
list, and then click OK.
You may be prompted to install files from your Windows
2000 installation CD or other media. Follow the instructions
to install the files.
7. If prompted, click OK to restart your computer with the new
settings.
Next, configure the PCs to accept IP information assigned by the
Hata! Stil tanımlanmamış.:
8. In the Control Panel, double-click the Network and Dial-up
Connections icon.
9. In the Network and Dial-up Connections window, right-click
the Local Area Connection icon, and then select Properties.
10. In the Local Area Connection Properties dialog box, select
Internet Protocol (TCP/IP), and then click Properties.
11. In the Internet Protocol (TCP/IP) Properties dialog box, click
the radio button labeled Obtain an IP address automatically.
Also click the radio button labeled Obtain DNS server
address automatically.
12. Click OK twice to confirm and save your changes, and then
close the Control Panel.
ADSL/VoIP Gateway User’s Guide Configuring your Computers
90
Windows Me PCs
1. In the Windows task bar, click the Start button, point to
Settings, and then click Control Panel.
2. Double-click the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click
the Network icon, and then select Properties.
The Network Properties dialog box displays with a list of
currently installed network components. If the list includes
Internet Protocol (TCP/IP), then the protocol has already
been enabled. Skip to step 11.
4. If Internet Protocol (TCP/IP) does not display as an installed
component, click Add…
5. In the Select Network Component Type dialog box, select
Protocol, and then click Add…
6. Select Microsoft in the Manufacturers box.
7. Select Internet Protocol (TCP/IP) in the Network Protocols
list, and then click OK.
You may be prompted to install files from your Windows Me
installation CD or other media. Follow the instructions to
install the files.
8. If prompted, click OK to restart your computer with the new
settings.
Next, configure the PCs to accept IP information assigned by the
Hata! Stil tanımlanmamış.:
9. In the Control Panel, double-click the Network and Dial-up
Connections icon.
10. In Network and Dial-up Connections window, right-click the
Network icon, and then select Properties.
11. In the Network Properties dialog box, select TCP/IP, and
then click Properties.
12. In the TCP/IP Settings dialog box, click the radio button
labeled Server assigned IP address. Also click the radio
button labeled Server assigned name server address.
13. Click OK twice to confirm and save your changes, and then
close the Control Panel.
Windows 95, 98 PCs
First, check for the IP protocol and, if necessary, install it:
1. In the Windows task bar, click the Start button, point to
Settings, and then click Control Panel.
2. Double-click the Network icon.
The Network dialog box displays with a list of currently
installed network components. If the list includes TCP/IP,
and then the protocol has already been enabled. Skip to step
9.
ADSL/VoIP Gateway User’s Guide Configuring your Computers
91
3. If TCP/IP does not display as an installed component, click
Add…
The Select Network Component Type dialog box displays.
4. Select Protocol, and then click Add…
The Select Network Protocol dialog box displays.
5. Click on Microsoft in the Manufacturers list box, and then
click TCP/IP in the Network Protocols list box.
6. Click OK to return to the Network dialog box, and then click
OK again.
You may be prompted to install files from your Windows
95/98 installation CD. Follow the instructions to install the
files.
7. Click OK to restart the PC and complete the TCP/IP
installation.
Next, configure the PCs to accept IP information assigned by the
Hata! Stil tanımlanmamış.:
8. Open the Control Panel window, and then click the Network
icon.
9. Select the network component labeled TCP/IP, and then
click Properties.
If you have multiple TCP/IP listings, select the listing
associated with your network card or adapter.
10. In the TCP/IP Properties dialog box, click the IP Address tab.
11. Click the radio button labeled Obtain an IP address
automatically.
12. Click the DNS Configuration tab, and then click the radio
button labeled Obtain an IP address automatically.
13. Click OK twice to confirm and save your changes.
You will be prompted to restart Windows.
14. Click Yes.
Windows NT 4.0 workstations
First, check for the IP protocol and, if necessary, install it:
1. In the Windows NT task bar, click the Start button, point to
Settings, and then click Control Panel.
2. In the Control Panel window, double click the Network icon.
3. In the Network dialog box, click the Protocols tab.
The Protocols tab displays a list of currently installed network
protocols. If the list includes TCP/IP, then the protocol has
already been enabled. Skip to step 9.
4. If TCP/IP does not display as an installed component, click
Add…
5. In the Select Network Protocol dialog box, select TCP/IP,
and then click OK.
ADSL/VoIP Gateway User’s Guide Configuring your Computers
92
You may be prompted to install files from your Windows NT
installation CD or other media. Follow the instructions to
install the files.
After all files are installed, a window displays to inform you
that a TCP/IP service called DHCP can be set up to
dynamically assign IP information.
6. Click Yes to continue, and then click OK if prompted to
restart your computer.
Next, configure the PCs to accept IP information assigned by the
Hata! Stil tanımlanmamış.:
7. Open the Control Panel window, and then double-click the
Network icon.
8. In the Network dialog box, click the Protocols tab.
9. In the Protocols tab, select TCP/IP, and then click Properties.
10. In the Microsoft TCP/IP Properties dialog box, click the radio
button labeled Obtain an IP address from a DHCP server.
11. Click OK twice to confirm and save your changes, and then
close the Control Panel.
Assigning static Internet information to your PCs
If you are a typical user, you will not need to assign static Internet
information to your LAN PCs because your ISP automatically
assigns this information for you.
In some cases however, you may want to assign Internet
information to some or all of your PCs directly (often called
“statically”), rather than allowing the Hata! Stil tanımlanmamış.
to assign it. This option may be desirable (but not required) if:
• You have obtained one or more public IP addresses that you
want to always associate with specific computers (for
example, if you are using a computer as a public web
server).
• You maintain different subnets on your LAN (subnets are
described in Appendix B).
Before you begin, you must have the following information
available:
• The IP address and subnet mask of each PC
• The IP address of the default gateway for your LAN. In most
cases, this is the address assigned to the LAN port on the
Hata! Stil tanımlanmamış.. By default, the LAN port is
assigned the IP address 192.168.1.1. (You can change this
number or another number can be assigned by your ISP.
See Addressing on page 40 for more information.)
• The IP address of your ISP’s Domain Name System (DNS)
server.
On each PC to which you want to assign static information, follow
the instructions on pages 93 through 96 relating only to checking
for and/or installing the IP protocol. Once it is installed, continue
ADSL/VoIP Gateway User’s Guide Configuring your Computers
93
to follow the instructions for displaying each of the Internet
Protocol (TCP/IP) properties. Instead of enabling dynamic
assignment of the IP addresses for the computer, DNS server
and default gateway, click the radio buttons that enable you to
enter the information manually.
Note
Your PCs must have IP addresses that place them in the same
subnet as the Hata! Stil tanımlanmamış.’s LAN port. If you
manually assign IP information to all your LAN PCs, you can follow
the instructions in Addressing on page 40 to change the LAN port IP
address accordingly.
ADSL/VoIP Gateway User’s Guide Configuring your Computers
94
ADSL/VoIP Gateway User’s Guide Configuring your Computers
95
Configuring Wireless PCs
You need to configure the operating system installed on your
Wireless PCs using the same procedure described for Configuring
Ethernet PCs on page 89.
Positioning the wireless PCs
The wireless network cards used determine the maximum distance
between your wireless PCs and your device. Guidelines on
positioning the hardware components of your wireless network
should be provided by your network card provider.
Wireless PC cards and drivers
Each PC on your wireless LAN must be fitted with a wireless
access card. You must also install the corresponding driver files for
your particular wireless card on your PC. You should receive driver
files and instructions on how to install them together with your
wireless card.
Configuring PC access to your Wireless device
Before you start configuring your Wireless PC, you must ensure that
you have:
• A Wireless access card for each of the PCs
• Corresponding wireless access card driver software files
The configuration steps below will vary depending on both the
operating system and wireless card installed on the PC. These
steps provide a basic outline, however you should refer to the
documentation provided with your wireless access card for specific
instructions.
To configure your Wireless PCs:
1. Install the wireless access card.
2. Install the wireless driver software files.
3. Configure the following wireless parameters on each of the
wireless PCs:
a. Set the adapter to use infrastructure mode. This
configures the PCs to access each other and the
Internet via the device.
b. Configure the SSID and channel to match the SSID
and channel previously configured on the device (see
Set the Wireless Network Name on page 44 and
Select a Channel on page 45).
Your wireless network can now communicate with the Internet via
the device.
ADSL/VoIP Gateway User’s Guide IP Addresses, Network Masks, and Subnets
97
B
IP Addresses, Network Masks, and
Subnets
IP Addresses
Note
This section refers only to IP addresses for IPv4 (version 4 of the
Internet Protocol). IPv6 addresses are not covered.
This section assumes basic knowledge of binary numbers, bits,
and bytes.
IP addresses, the Internet's version of telephone numbers, are used
to identify individual nodes (computers or devices) on the Internet.
Every IP address contains four numbers, each from 0 to 255 and
separated by dots (periods), e.g. 20.56.0.211. These numbers are
called, from left to right, field1, field2, field3, and field4.
This style of writing IP addresses as decimal numbers separated by
dots is called dotted decimal notation. The IP address 20.56.0.211
is read "twenty dot fifty-six dot zero dot two-eleven."
Structure of an IP address
IP addresses have a hierarchical design similar to that of telephone
numbers. For example, a 7-digit telephone number starts with a 3digit prefix that identifies a group of thousands of telephone lines,
and ends with four digits that identify one specific line in that group.
Similarly, IP addresses contain two kinds of information:
• Network ID
Identifies a particular network within the Internet or intranet
• Host ID
Identifies a particular computer or device on the network
The first part of every IP address contains the network ID, and the
rest of the address contains the host ID. The length of the network
ID depends on the network's class (see following section). The table
below shows the structure of an IP address.
Field1 Field2 Field3 Field4
Class A Network ID Host ID
Class B Network ID Host ID
Class C Network ID Host ID
Here are some examples of valid IP addresses:
Class A: 10.30.6.125 (network = 10, host = 30.6.125)
Class B: 129.88.16.49 (network = 129.88, host = 16.49)
Class C: 192.60.201.11 (network = 192.60.201, host = 11)
ADSL/VoIP Gateway User’s Guide IP Addresses, Network Masks, and Subnets
98
Network classes
The three commonly used network classes are A, B, and C. (There
is also a class D but it has a special use beyond the scope of this
discussion.) These classes have different uses and characteristics.
Class A networks are the Internet's largest networks, each with
room for over 16 million hosts. Up to 126 of these huge networks
can exist, for a total of over 2 billion hosts. Because of their huge
size, these networks are used for WANs and by organizations at the
infrastructure level of the Internet, such as your ISP.
Class B networks are smaller but still quite large, each able to hold
over 65,000 hosts. There can be up to 16,384 class B networks in
existence. A class B network might be appropriate for a large
organization such as a business or government agency.
Class C networks are the smallest, only able to hold 254 hosts at
most, but the total possible number of class C networks exceeds 2
million (2,097,152 to be exact). LANs connected to the Internet are
usually class C networks.
Some important notes regarding IP addresses:
• The class can be determined easily from field1:
field1 = 1-126: Class A
field1 = 128-191: Class B
field1 = 192-223: Class C
(field1 values not shown are reserved for special uses)
• A host ID can have any value except all fields set to 0 or all
fields set to 255, as those values are reserved for special uses.
Subnet masks
Definition
mask
A mask looks like a regular IP address, but contains a pattern of
bits that tells what parts of an IP address are the network ID and
what parts are the host ID: bits set to 1 mean "this bit is part of the
network ID" and bits set to 0 mean "this bit is part of the host ID."
Subnet masks are used to define subnets (what you get after
dividing a network into smaller pieces). A subnet's network ID is
created by "borrowing" one or more bits from the host ID portion of
the address. The subnet mask identifies these host ID bits.
For example, consider a class C network 192.168.1. To split this
into two subnets, you would use the subnet mask:
255.255.255.128
It's easier to see what's happening if we write this in binary:
11111111. 11111111. 11111111.10000000
As with any class C address, all of the bits in field1 through field3
are part of the network ID, but note how the mask specifies that the
first bit in field4 is also included. Since this extra bit has only two
values (0 and 1), this means there are two subnets. Each subnet
uses the remaining 7 bits in field4 for its host IDs, which range from
1 to 126 hosts (instead of the usual 0 to 255 for a class C address).
ADSL/VoIP Gateway User’s Guide IP Addresses, Network Masks, and Subnets
99
Similarly, to split a class C network into four subnets, the mask is:
255.255.255.192 or 11111111. 11111111. 11111111.11000000
The two extra bits in field4 can have four values (00, 01, 10, 11), so
there are four subnets. Each subnet uses the remaining six bits in
field4 for its host IDs, ranging from 1 to 62.
Note
Sometimes a subnet mask does not specify any additional
network ID bits, and thus no subnets. Such a mask is called a
default subnet mask. These masks are:
Class A: 255.0.0.0
Class B: 255.255.0.0
Class C: 255.255.255.0
These are called default because they are used when a network is
initially configured, at which time it has no subnets.
ADSL/VoIP Gateway User’s Guide Troubleshooting
100
C
Troubleshooting
This appendix suggests solutions for problems you may encounter
in installing or using the Hata! Stil tanımlanmamış., and provides
instructions for using several IP utilities to diagnose problems.
Contact Customer Support if these suggestions do not resolve the
problem.
Troubleshooting Suggestions
Problem Troubleshooting Suggestion
LEDs
Power LED does not
illuminate after
product is turned on.
Verify that you are using the power cable
provided with the device and that it is securely
connected to the Hata! Stil tanımlanmamış.
and a wall socket/power strip.
Internet LED does not
illuminate after phone
cable is attached.
Verify that a standard telephone cable (called
an RJ-11 cable) like the one provided is
securely connected to the DSL port and your
wall phone port. Allow about 30 seconds for
the device to negotiate a connection with your
ISP.
LINK LAN LED does
not illuminate after
Ethernet cable is
attached.
Verify that the Ethernet cable is securely
connected to your LAN hub or PC and to the
Hata! Stil tanımlanmamış.. Make sure the PC
and/or hub is turned on.
Verify that your cable is sufficient for your
network requirements. A 100 Mbit/sec network
(10BaseTx) should use cables labeled CAT 5.
A 10Mbit/sec network may tolerate lower
quality cables.
Internet Access
My PC cannot access
the Internet
Run a health check on your device. See Health
Check on page 31.
Use the ping utility (discussed in the following
section) to check whether your PC can
communicate with the device’s LAN IP address
(by default 192.168.1.1). If it cannot, check the
Ethernet cabling.
If you statically assigned a private IP address
to the computer, (not a registered public
address), verify the following:
• Check that the gateway IP address on
the computer is your public IP
address (see Current Status on page
10 for instructions on viewing the IP
information.) If it is not, correct the
address or configure the PC to
receive IP information automatically.
• Verify with your ISP that the DNS
server specified for the PC is valid.
Correct the address or configure the
PC to receive this information
automatically.
