Chapter 1 – Introduction and Description
1 – Introduction and Description
Welcome to the world of Internet security. Your Multi-Tech SOHO RouteFinder VPN
Internet security appliance, Model RF550VPN, is ideal for the small branch office or
telecommuter who needs secure access to the corporate LAN.
In addition to providing a WAN Ethernet port for DSL or cable broadband Internet
access, it offers both LAN-to-LAN and client-to-LAN connectivity. The SOHO
RouteFinder supports up to 5 IPSec tunnels and provides 3DES encryption with 700K
bps throughput.
RouteFinder Documentation
The Quick Start Guide
The Quick Start Guide is a shorter version of this User Guide. It is included in printed
form with your RF550VPN. Both guides are intended to be used by systems
administrators and network managers. They provide the necessary information for a
qualified person to unpack, cable, and configure the device for proper operation.
The User Guide
The User Guide can be installed from the CD by clicking Install Manuals on the
Installation screen or downloading the file from our Web site at:
http://www.multitech.com
Save or Print the User Guide
Once the User Guide is displayed on screen using Adobe Acrobat Reader, you can
save the .pdf file to your system or print a copy.
Setup Examples and Other Helpful Documents
There are five reference documents to help you setup and use your RF550VPN. These
reference guides are located on the CD that accompanies your RouteFinder and also
on the Multi-Tech Web site. Check the Multi-Tech Web site occasionally as other
documents may be added in the future.
Adobe Acrobat Reader
Adobe Acrobat Reader is a free program for viewing PDF formatted documents. It can
be installed from the CD (click on Install Manuals and select Install Adobe Acrobat
Reader).
1
Multi-Tech Systems, Inc. RF550VPN Quick Start Guide
RF550VPN Front Panel
Link
ACT
100
10
FDX
COL
1234
Serial
Data DCD
WAN
Link RXD TXD
PWR
LEDs
Link ACT
100/10
FDX COL
Serial Data
Serial DCD
WAN Link
WAN RXD
WAN TXD
PWR
Description
Lights when the LAN client is correctly connected to the
Ethernet port. Blinks when there is activity on the Ethernet port.
Lights when the LAN client is connected at 100MB.
Off when the LAN client is connected at 10MB.
Lights when the LAN client is connected as full duplex.
Off when the LAN client is connected as half duplex. Blinks
when there are collisions on the network.
Blinks when the Serial async port is receiving or transmitting
data.
Lights when the Serial async port is connected to a remote
site.
Lights when connection to the 10BaseT WAN is established.
Lights when the WAN port is receiving data.
Lights when the WAN port is transmitting data.
Lights when power is being supplied to the router.
2
RF550VPN Back Panel
5VDC
Chapter 1 – Introduction and Description
Power 5VDC
10 BT WAN
(10Base-T)
Serial
Reset
Ports 1 - 4
WAN
Serial
Reset
1234
The power port connects the AC power adapter.
The WAN port connects the xDSL modem or cable modem.
The Serial port connects a standard modem (optional).
The Reset button resets the router to factory defaults. Press and
hold button until the serial LEDs blink. Then release the reset
button. Do not press it again - you will clear the current data.
There are 4 LAN ports. You can connect to PCs, FTP servers,
printers, or other devices you want to put on your network.
3
Multi-Tech Systems, Inc. RF550VPN Quick Start Guide
2 – Installation
Safety Warnings
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in a wet location unless the jack is specifically
designed for wet locations.
3. This product is to be used with UL and cUL listed computers.
4. Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
5. Avoid using a telephone during an electrical storm. There may be a remote risk of
electrical shock from lightening.
7. Do not use the telephone to report a gas leak in the vicinity of the leak.
8. To reduce the risk of fire, use only No. 26 AWG or larger Telecommunications line
cord.
System Requirements
· Microsoft Internet Explorer 4.0+ or Netscape Navigator 4.0+
· One computer with an installed 10Mbps, 100Mbps or 10/100Mbps Ethernet card
· One Modem or ISDN TA (if a dialup backup connection is needed)
· One RJ-45 xDSL/Cable Internet connection
· TCP/IP protocol installed
· UTP network Cable with a RJ-45 connection
Unpacking Your RouteFinder
· The RF550VPN shipping box contains the following items:
· The RouteFinder RF550VPN
· System CD
· Power Supply
· This Quick Start Guide
If any of the items is missing or damaged, please contact Multi-Tech Systems, Inc.
4
Chapter 2 – Installation
Cabling Your RouteFinder
Cabling your RouteFinder requires making the appropriate connections to PCs, Cable
or xDSL modem, analog modem or ISDN TA (optional), AC power and the router. After
your device is properly cabled, you will need to complete your configuration by following
the instructions provided in the following chapter.
1. Turn the power off on all network devices (PCs, cable modems, DSL modems,
analog modems, ISDN TAs, and the router).
2. Plug one end of a cable into the Ethernet port and other into one of the 4 LAN ports.
(If you have more than one PC, connect the others in the same way to the other LAN
ports).
3. If using an analog modem, connect it to the RF550VPN’s serial port.
4. Connect a network cable from the DSL modem or cable modem to the WAN port.
5. Connect the provided power supply cable to the 5VDC power port on the back of the
router. Plug the other end of the power supply into an AC power outlet as shown.
You are ready to configure your router and network PCs.
5
Multi-Tech Systems, Inc. RF550VPN Quick Start Guide
3 – Configuring the PC
You must establish TCP/IP communication on each PC (make sure a Network Card or
Adapter has been installed into each PC).
If Your Operating System Is Windows 98/Me:
Note: The following procedures are based on Windows 98. Procedures may differ
slightly in Windows Me. For Windows 98, check to see that you have installed the
Windows 98 patch dated August 1998.
1. Click Start | Settings | Control Panel.
2. Double-click the Network icon.
3. On the Configuration tab, select the TCP/IP protocol line associated with your
network card/adapter.
4. If the TCP/IP protocol line associated with your network card/adapter is listed,
proceed to Step 5. If not listed, see the User Guide, Appendix B, for installation
directions.

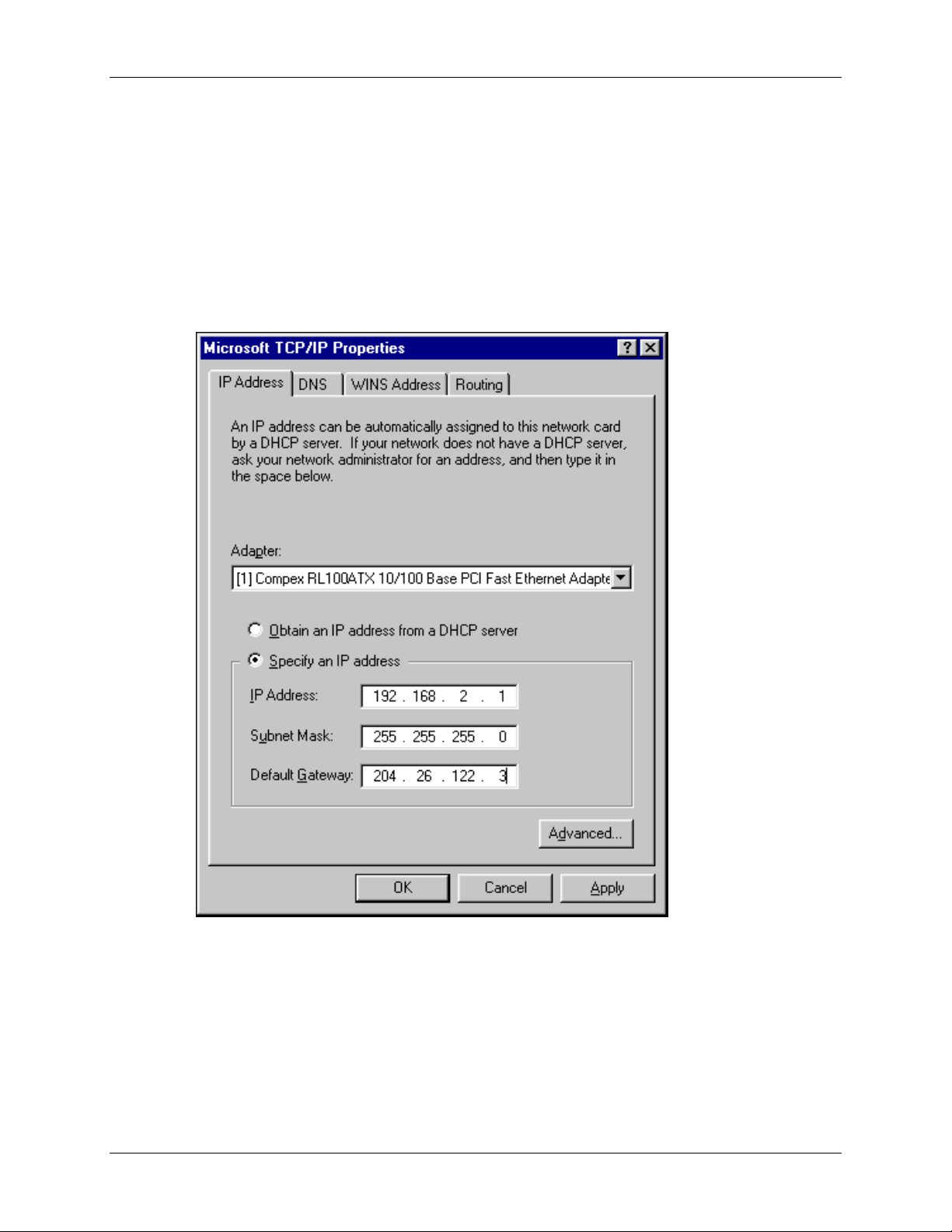

5. Then click the Properties button.
6
