Multi-Tech Systems MT4X56USB User Manual

Four USB V.90 Modems
MultiModemUSB
Model MT4X56USB
User Guide
User Guide
88310952 Revision C
MultiModemUSB (Model MT4X56USB)
This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved.
Copyright © 1999, by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.
Record of Revisions
Revision Description
B Manual released. All pages at revision B. (3/26/99)
C Updated driver install procedures and added driver installation procedure in Windows 2000 (3/7/00) operating systems. All pages at revision C.
Patents
This Product is covered by one or more of the following U.S. Patent Numbers: 5.301.274; 5.309.562;
5.355.365; 5.355.653; 5.452.289; 5.453.986. Other Patents Pending.
Trademarks
MultiModemUSB, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech Systems, Inc. IBM is a trademark of International Business Machines Corporation.
MNP and Microcom Network Protocol are trademarks of Microcom, Inc. K56flex is a registered trademark of Rockwell International Corporation and Lucent Technologies Corporation. Microsoft, Windows, Windows 95, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Notice
Though these modems are capable of 56 Kbps download performance, line impairments, public telephone infrastructure and other external technological factors currently prevent maximum 56 Kbps connections.
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View , Minnesota 55112
(763) 785-3500 or (800) 328-9717
Fax 763-785-9874
Tech Support (800) 972-2439
Internet Address: http://www.multitech.com
Contents
Chapter 1 - Introduction and Description
Introduction .......................................................................................................................................................6
Features ............................................................................................................................................................6
T echnical Specifications....................................................................................................................................7
Preview of this Guide ........................................................................................................................................7
Related Documentation.....................................................................................................................................8
Front Panel........................................................................................................................................................9
Modem Ports (Ports 1, 2, 3, and 4).............................................................................................................9
Hub .............................................................................................................................................................9
System........................................................................................................................................................9
Back Panel ...................................................................................................................................................... 10
Chapter 2 - Installation
Unpacking ....................................................................................................................................................... 12
Safety Warning Telecom .................................................................................................................................12
Cabling your MT4X56USB .............................................................................................................................. 13
Chapter 3 - Software Loading and Configuration
Introduction .....................................................................................................................................................16
System USB Support ...................................................................................................................................... 16
Loading your Driver Software..........................................................................................................................16
MT4X56USB Drivers for Windows 98.......................................................................................................16
MT4X56USB Drivers for Windows 95.......................................................................................................19
MT4X56USB Drivers for Windows NT 4.0 ................................................................................................ 21
MT4X56USB Drivers for Windows 2000...................................................................................................23
Installing Y our V.90 Modems ........................................................................................................................... 27
Installing Y our V .90 Modems (Windows 2000) ................................................................................................31
Windows 95/98 Configuration Utility................................................................................................................34
Windows NT 4.0/2000 Configuration Utility .....................................................................................................36
Chapter 4 - AT Commands, S-Registers and Result Codes
Introduction .....................................................................................................................................................40
S-Registers .....................................................................................................................................................49
Result Codes...................................................................................................................................................51
Chapter 5 - Remote Configuration
Introduction .....................................................................................................................................................54
Remote Configuration Procedure....................................................................................................................54
Setup ........................................................................................................................................................54
Chapter 6 - Troubleshooting
Introduction .....................................................................................................................................................58
None of the Indicators Light ...................................................................................................................... 58
The Modem Does Not Respond to Commands ........................................................................................ 58
The Modem Dials But Cannot Connect ....................................................................................................58
The Modem Disconnects While Online.....................................................................................................59
The Modem Cannot Connect When Answering........................................................................................60
The Modem Doesn’t Work with Caller ID..................................................................................................60
Fax and Data Software Can’t Run at the Same Time ............................................................................... 60
Loopback Tests ...............................................................................................................................................60
Local Analog Loopback Test (V.54 Loop 3)...............................................................................................61
Remote Digital Loopback Test (V.54 Loop 2) ............................................................................................ 62
Local Digital Loopback Test (V.54 Loop 2) ................................................................................................ 63
Windows 95/98 Troubleshooting .....................................................................................................................64
Determining Why USB Support Is Not Present ........................................................................................64
Installing Microsoft USB Support ..............................................................................................................64
Chapter 7 - Upgrade Procedure
Introduction .....................................................................................................................................................66
Upgrade Overview ..........................................................................................................................................66
Step 1: Identify the MT4X56USB Firmware .............................................................................................. 66
Step 2: Identify the Current Firmware Version..........................................................................................66
Step 3: Download the Upgrade File ..........................................................................................................67
Step 4: Extract the Upgrade Files.............................................................................................................67
Step 5: Clear Your Stored Paramenters ...................................................................................................67
Step 6: Upgrade the Modem’s Firmware ..................................................................................................68
Step 7: Restore Your Parameters .............................................................................................................68
Chapter 8 - Service, Warranty and Tech Support
Introduction .....................................................................................................................................................70
Software User License Agreement................................................................................................ ..................70
Limited Warranty .............................................................................................................................................71
On-line Warranty Registration...................................................................................................................71
Tech Support ...................................................................................................................................................71
Recording MT4X56USB Information.........................................................................................................71
Contacting Tech Support via E-mail..........................................................................................................72
Service ............................................................................................................................................................ 72
Appendices
Appendix A - Regulatory Information...............................................................................................................74
Class B Statement ....................................................................................................................................74
FCC Part 68 Telecom................................................................................................................................75
FAX Branding Statement ..........................................................................................................................76
Canadian Limitations Notice: ....................................................................................................................76
EMC, Safety and Terminal Directive Compliance .................................................................................. ...77
Commission Decision "CTR21" ................................................................................................................77
New Zealand Telecom Warning Notice .....................................................................................................77
Appendix B - V.90 Support ..............................................................................................................................78
Introduction ...............................................................................................................................................78
V .90 Troubleshooting ................................................................................................................................78
Glossary of Terms Index
Four USB V.90 Modems

Chapter 1 - Introduction and Description

MultiModemUSB User Guide
RD
TD CD TRTR
Port 1
RD
TD CD TRTR
Port 2
RD
TD CD TRTR
Port 3
RD
TD CD TRTR
Port 4

Introduction

The MultiModemUSB, model MT4X56USB, is a Universal Serial Bus (USB) Concentrator that
contains four full-featured V.90 modems and a USB port which allows additional MultiModemUSBs to
be daisy-chained together. These features allow any system running Windows 95/98, Windows NT
4.0, or Windows 2000 and equipped with a USB port to quickly and easily add modems four at a
time, using MultiModemUSBs, without opening the case. The modems can be used for virtually any
existing datacomm application including Remote Access Service, dial-out, Internet proxy services,
business Internet services, or multiple-modem client communications.
Using Microsoft or other third-party software, users on the same network as the USB host can share
modems, gain Internet access, and double or even triple bandwidth by using more than one modem
simultaneously with Multi-Link PPP bonding. The MT4X56USB includes a complete set of Internet
business applications. The four dual-mode 56 Kbps modems support the new ITU V.90 standard and
offer backward compatibility with K56flex. They support Class 1 and Class 2 fax, MNP 3 or 4 and
V.42 error correction, along with MNP 5 and V .42bis data compression. Complete data and fax
softwar e plus a large compilation of Internet applications are included on a CD ROM from TUCOWS.
The CD includes client/server software for email, web hosting, FTP servers, news servers/clients,
and web browsers.
The MT4X56USB modem concentrator is designed to operate efficiently in V.90 communication links,
address the needs of newer datacomm applications and preserve the investment users have in
legacy systems. Each modem is equipped with remote configuration to configure modems anywhere
in the network, flash memory for firmware upgrades, DTMF tone detection, and three-number storage
for automatic dialing.

Features

Four built-in V.90/56 Kbps modems
USB interface for easy installation
Hot-swappable with other USB devices without restarting or reconfiguring your PC
Operating support for Windows 95, Windows 98, Windows NT 4.0, and Windows 2000.
Supports Class 1 and Class 2 faxing at 14.4 Kbps
Supports U.S Caller ID reporting
Allows administrators to set up and configure remote concentrators
A small footprint and stackable design
Stores up to three phone numbers
Supports Plug-and-Play operation under Windows 95, Windows 98, and Windows 2000
RD Port 1
TD CD
®
RD
RD Port 2
TD CD
Port 3
TD CD
RD Port 4
Figure 1-1. MT4X56USB
Four USB V.90 Modems
TD CD
Hub
System
Includes data communications, fax, voice, TUCOWS Top 100 Internet applications CD-ROM
Upgrades easily with built-in flash memory
Full-service, two-year warranty
MT4X56USB6

Technical Specifications

The MT4X56USB conforms to the following specifications.
USB Ports
Interface: USB T ype A and Type B
Speed: up to 12 Mbs
Modems
Ports: 4
Data Rates and Standards: 56 Kbps downloading from V.90/K56flex servers; V.90/K56flex, enhanced V .34, V.32bis, and V.22bis
Error Correction: V.42
Data Compression: MNP Class 5; V.42bis
Fax Rate and Standards: 14.4 Kbps; V.17, Group 3, Class 1 and Class 2
Power
External power supply, 110V AC or 240V AC, 47-63 Hz
Connectors
Four RJ-11 telephone connectors (PORT 1 - PORT 4)
Chapter 1 - Introduction and Description
One USB type B (upstream) connector
One USB type A (downstream) connector
Operating System Requirements
Processor and RAM: Pentium Class with minimum 16 MBS RAM recommended
Operating System: Windows 95 (OSR2), Windows 98, Windows NT 4.0, and Windows 2000
Physical Description
4.3” width by 1.1” height by 5.8” depth; 2.0 lbs
10.8 cm width by 2.9 cm height by 14.8 cm depth; 0.9 kg
Environmental Requirements
Ambient temperature: 32° F to 104° F (0° C to 40° C)
Relative humidity: 0 to 95% non-condensing

Preview of this Guide

This guide describes the MT4X56USB and explains how to install and configure the unit. The information contained in each chapter is as follows:
Chapter 1 - Introduction and Description
This chapter describes the MT4X56USB including features, technical specifications and a description of the front panel indicators and back panel connectors.
Chapter 2 - Installation
This chapter provides information on unpacking and cabling your MT4X56USB.
MT4X56USB 7
MultiModemUSB User Guide
Chapter 3 - Software Loading and Configuration
This chapter provides the necessary information to verify if your system supports USB and describes the process for installing the appropriate device drivers.
Chapter 4 - AT Commands, S-Registers and Result Codes
This chapter describes the commands used to control the operation of your modem.
Chapter 5 - Remote Configuration and Management
This chapter provides procedures for changing the configuration of a remote MT4X56USB anywhere in your network from one location.
Chapter 6 - Troubleshooting
This chapter discusses possible reasons for why your MT4X56USB may not work and provides corrective actions that can be taken to remedy the problem.
Chapter 7 - Upgrade Procedure
This chapter provides procedures for upgrading the MT4X56USB firmware stored in flash memory .
Chapter 8 - Service, Warranty and Tech Support
This chapter provides instructions on getting service for your MT4X56USB at the factory , a statement of limited warranty , information about our Internet presence, and space for recording information about your MT4X56USB prior to calling Multi-Tech’s Technical Support.
Appendix A - Regulatory Information
This appendix provides the regulatory information for the MT4X56USB modem.
Appendix B - V.90 Support
This appendix provides information required for V .90 support.

Related Documentation

The complete documentation package for the MT4X56USB includes this User Guide and a Quick Start Guide. The printed version of the Quick Start Guide, shipped with the unit, provides the necessary information for a qualified person to unpack, cable, and install the driver software for proper operation. Copies of the following guides are provided on the Manuals disk that ships with each MT4X56USB, and you can always find the latest version of these guides at Multi-Tech’s Web site.
At the Multi-Tech Home Page (http://www.multitech.com), click Support, then Manuals, then MT4X56USB and you will find the following guide listed by title:
MT4X56USB User Guide
MT4X56USB8

Front Panel

The front panel has four groups of LEDs that provide the status of the four port connections, plus a LED that provides the status of Hub activity and and a LED that provides the status of System activity.
Figure 1-2. Front Panel

Modem Ports (Ports 1, 2, 3, and 4)

Modem LEDs are Green and indicate the following:
RD The Receive Data indicator blinks when the modem is receiving data. TD The Transmit Data indicator blinks when the modem is transmitting data. CD The Carrier Detect indicator is lit when the modem detects a carrier signal. TR The Terminal Ready is lit when the modem is communicating with the peripheral.
Chapter 1 - Introduction and Description
Hub
Hub status LEDs indicate the following:
Green A steady Green light indicates that the downstream (Type A) is powered on. Off If the Hub LED is Off, it indicates that there is something wrong with the hub (drivers

System

System status LEDs indicate the following:
Red A steady Red light signifies a loss of USB communication with the host. If the loss is due
Amber Signifies serial port activity . Yellow This LED may blink on and off during software installation until installation is complete. Green A steady Green signifies that the serial ports have been successfully set up and the
aren’t loaded correctly or the downstream device may have caused an overcurrent condition).
Note: If the MT4X56USB is powered on but the USB cable is not attached, the Hub LED will be Off. When the USB cable is attached, the LED turns Green.
to unplugging the unit, it will begin blinking Red (before turning steady Green) when it is reconnected. A steady Red light also indicates a problem with the drivers (fixed by reinstalling the drivers). A blinking Red light occurs during software installation and will continue to blink Red until installation completes.
MT4X56USB is operating normally .
MT4X56USB 9
MultiModemUSB User Guide

Back Panel

The cable connections for the MT4X56USB are made at the back panel. Three groups of cables are used; four ports for RJ-11 modem connections, two types of USB connections, and a power connection. The cable connections are shown in Figure 1-3 and defined in the following groups.
Port 1 Port 2
Port 3
Figure 1-3. Back Panel
RJ-ll Modem Connector
The four RJ-1 1 modem connectors connect the MT4X56USB to computers or network servers.
USB Type A (Upstream) Connector
The USB T ype A (Upstream) connector connects the MT4X56USB to devices where the external cable is permanently attached (e.g., input hubs or other MT4X56USBs).
USB Type B (Downstream) Connector
The USB T ype B (Downstream) connector connects the MT4X56USB to devices where the external cable is detachable (e.g., peripherals such as computers, printers, scanners, modems, or output hubs, etc.).
Power Connector
The power is supplied by a UL Listed Direct Plug-In Power Unit marked “Class 2” and rated 5V DC/5A, 100-240V, 47-63Hz if used in the U.S. and Canada; or, a power supply with similar rating and approved by your local safety code if it is used elsewhere.
Port 4
USB - A
USB - B
POWER
MT4X56USB10
Four USB V.90 Modems

Chapter 2 - Installation

MultiModemUSB User Guide
RD
TD CD TRTR
Port 1
RD
TD CD TRTR
Port 2
RD
TD CD TRTR
Port 3
RD
TD CD TRTR
Port 4

Unpacking

The shipping box contains the MT4X56USB, four RJ-1 1 cables, one USB cable, an external power supply and cable, your Quick Start Guide, and three disks (i.e., three disks for the MT4X56USB driver software and one disk for the MT4X56USB User Guide). Inspect the contents for signs of any shipping damage. If damage is observed, do not power up the unit; contact Multi-Tech’s Technical Support for advice (refer to Chapter 8). If no damage is observed, place the MT4X56USB in its final location and perform the cabling procedure.
Four USB V.90 Modems
Quick Start Guide
RD Port 1
®
RD
RD
TD CD
TD CD
Port 2
Port 3
Four USB V.90 Modems
TD CD
RD Port 4
Hub
TD CD
System
MADE IN U.S.A
Figure 2-1. Unpacking

Safety Warning Telecom

1. Never install telephone wiring during a lightning storm.
2. Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations.
3. This product is to be used with UL and cUL listed computers.
4. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
5. Use caution when installing or modifying telephone lines.
6. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lightning.
7. Do not use the telephone to report a gas leak in the vicinity of the leak.
8. To reduce the risk of fire, use only 26 A WG or larger telecommunication line cord.
MADE IN U.S.A
MT4X56USB12

Cabling your MT4X56USB

RD
TD CD TRTR
Port 1
RD
TD CD TRTR
Port 2
RD
TD CD TRTR
Port 3
RD
TD CD TRTR
Port 4
Cabling your MT4X56USB involves making the proper cable and power connections. Figure 2-2 shows the back panel connectors and the associated cable connections. To connect the cables to your MT4X56USB, do the following.
1. Connect the power supply to the MT4X56USB and a live AC outlet. To do this, insert the coaxial
plug into the connector marked POWER on the back of the MT4X56USB and plug the AC power input plug into a live AC outlet.
2. Connect one end of the RJ-1 1 cable to Port 1 on the back of the MT4X56USB. Connect the other
end to the line jack which provides access to the public phone system. Repeat step 2 for up to four connections (Port 1 - Port 4).
3. Use the provided MT4X56USB cable to make either an “Upstream” or a “Downstream”
Connection. Upstream Connection: connect the flat (4-pin) end of the MT4X56USB cable to the connector
marked USB - A on the back of your MT4X56USB. Connect the “D-shaped” end to the “Upstream” device (Hub input or additional MT4X56USBs).
Downstream Connection: connect the flat (4-pin) end of the MT4X56USB cable to the “Downstream” device (USB-supported peripheral such as a computer, printer, scanner, modem, or output Hub). Connect the “D-shaped” end to the connector marked USB - B on the back of your MT4X56USB.
Chapter 2 - Installation
CAUTION: Do NOT plug the “D-shaped” end of the USB cable into the USB-B port on the back
of your MT4X56USB at this time.
Port 1 Port 2
Port Connections
PSTN (Public Switched Telephone Network) Connections
Port 3
Port 4
USB - A
USB - B
POWER
Power Connection
“Downstream Connection” Peripherals such as computers, printers, scanners, modems, or hubs
®
RD
TD CD
RD
TD CD
Port 2
Port 1
Four USB V.90 Modems
RD
TD CD
RD
TD CD
Port 3
Port 4
Hub
System
“Upstream Connection” Hubs (Input) or additional MT4X56USBs
Figure 2-2. Back Panel Connections
MT4X56USB 13
MultiModemUSB User Guide
MT4X56USB14
Four USB V.90 Modems

Chapter 3 - Software Loading and Configuration

MultiModemUSB User Guide

Introduction

MT4X56USB software installation consists of verifying that your system supports USB and then installing the appropriate device drivers. Multitech provides the driver software on two diskettes. Disk 1 contains the driver software for Windows 98/95, Disk 2 contains the driver software for Windows NT
4.0, and Disk 3 contains the driver software for Windows 2000.

System USB Support

Before loading the software you must verify that your system supports USB. If you are using Windows 98, which fully supports USB, proceed to “Loading Your Driver Software.” If
you are using Windows NT, proceed to “MT4X56USB Drivers for Windows NT” and if you are using Windows 2000, proceed to “MT4X56USB Drivers for Windows 2000”. If you are using Windows 95 OSR2.1 or above, please do the following to determine if your system supports USB:
1) Insert MT4X56USB Driver Disk 1 into drive A.
2) In the START menu, select Run.
3) Type a:\usbready. One of two USB System Checker dialog boxes will be displayed. If your system supports USB, the dialog reads “This system DOES have support for USB.” To
continue installation, go to “Loading Your Software” . If your system does not support USB, the dialog will read, “This system DOES NOT currently
support USB!” Proceed to “Determining Why Support Is Not Present” in the section on Installing the Windows 95 Drivers.

Loading your Driver Software

The installation procedures are divided into four separate sections: MT4X56USB Drivers for Windows 98, MT4X56USB Drivers for Windows 95, MT4X56USB Drivers for Windows NT, and MT4X56USB Drivers for Windows 2000.

MT4X56USB Drivers for Windows 98

This section details the process for loading the software.
1. Power up your Windows 98 system.
2. Ensure that the appropriate USB cable connection has been made to the peripheral (refer to the “Cabling Your MT4X56USB” section).
3. Connect the D-shaped end of the USB cable to the MT4X56USB’s USB-B port now .
4. Windows detects the MT4X56USB and displays the Add New Hardware Wizard dialog box.
5. Insert the MT4X56USB Driver Disk 1 into drive A and click Next > to proceed.
MT4X56USB16
Chapter 3 - Software Loading and Configuration
6. The Add New Hardware Wizard dialog box displays the message “What do you want Windows
to do?”.
Ensure that the default is enabled (Search for the best driver for your device.) and click Next >.
7. The Add New Hardware Wizard dialog box displays the message “Windows will search for new
drivers . . .”
Click (check) the box next to “Floppy disk drives” and then click Next >.
8. Windows locates the driver files on the disk and displays the Add New Hardware Wizard dialog
box.
Click Next >.
MT4X56USB 17
MultiModemUSB User Guide
9. The driver files are copied to your Windows System directory.
10. Once the files have been copied to your PC, the Add New Hardware Wizard dialog box is displayed and indicates that Windows has finished installing the software for your hardware device.
Click Finish. Several screens are displayed indicating that all software drivers have been successfully installed. Installation is complete when no more screens appear.
1 1. To install the modems, go to the “Installing Your V.90 Modems” section.
Uninstalling MultiModemUSB in Windows 98

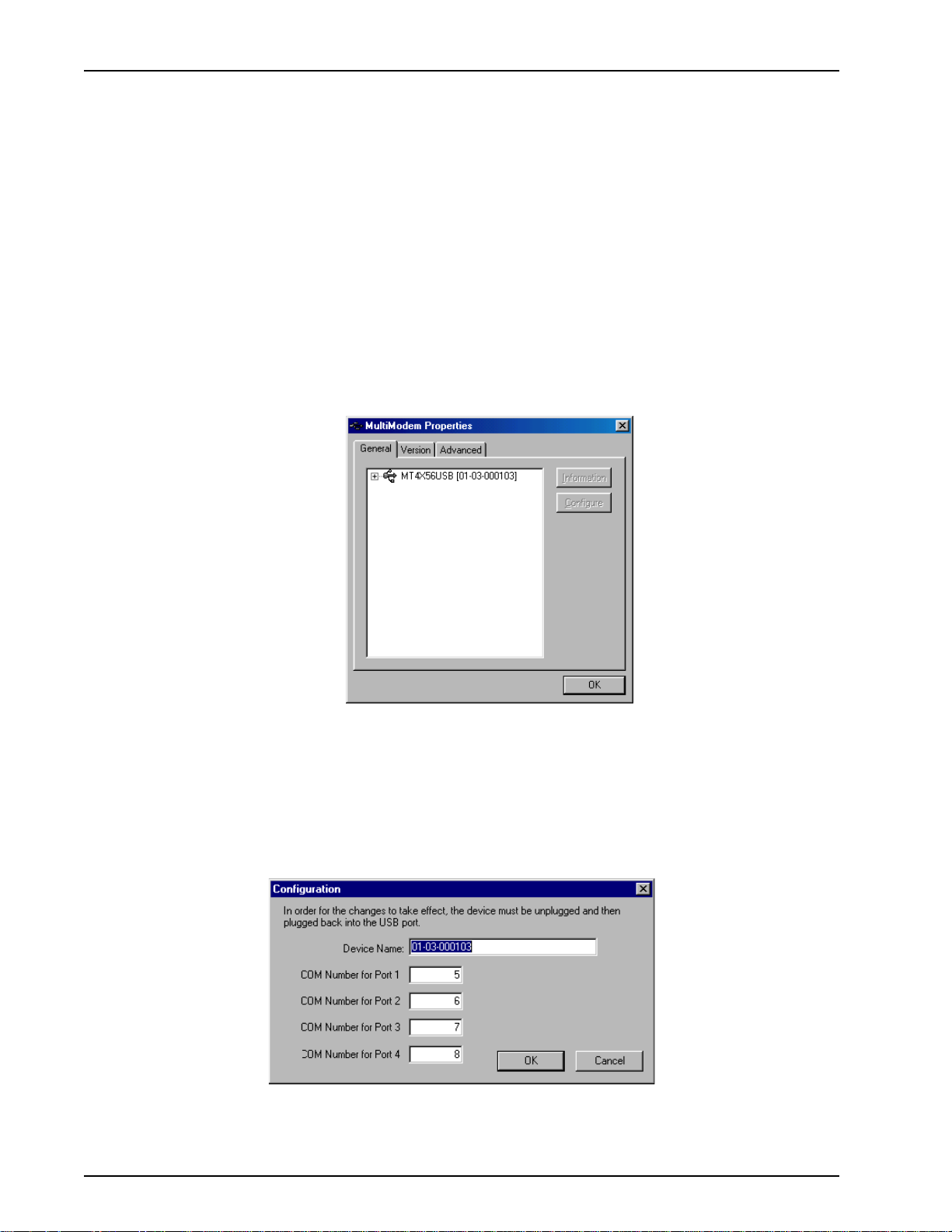

1. Double-click the edgeport.exe file in your Windows System directory. The MultiModem Properties dialog box is displayed.
2. Select the Advanced tab.
3. Click the Uninstall button. The drivers will be removed from your computer.
MT4X56USB18

MT4X56USB Drivers for Windows 95

This section details the process for loading the software. For Windows 95, only version OSR2.1, Revision C, offers support for USB peripherals. If you are unsure that your Windows 95 system supports USB, refer to the “System USB Support” section at the beginning of this chapter.
1. Power up your Windows 95 system.
2. Ensure that the appropriate USB cable connection has been made to the periperal (Refer to the
“Cabling Your MT4X56USB” section).
3. Connect the “D-shaped” end to the USB-B port on the back of the MT4X56USB now.
4. Windows detects the MT4X56USB and displays the Update Device Driver Wizard dialog box.
Note: If the Update Device Driver Wizard dialog box does not appear, refer to “Windows 95/98 Troubleshooting” in Chapter 6 of the online User Guide.
Chapter 3 - Software Loading and Configuration
Click Next > to proceed.
5. Windows searches for unknown devices. For each unknown device found, the Update Device
Driver Wizard dialog box is displayed. Continue to click Finish until the Update Device Driver Wizard dialog box displays the “MultiTech USB MT4X56USB V .90 Fax/Modem” message.
Click Finish to continue with the installation.
MT4X56USB 19
MultiModemUSB User Guide
6. The Insert Disk dialog box is displayed.
Insert MT4X56USB Driver Disk 1 into drive A and click OK.
7. The Copying Files… dialog box is displayed.
Type A: in the “Copy files from” field and click OK. The driver files will be copied to your system.
8. Several screens are displayed indicating that ports are being assigned. Installation is complete when the last dialog box disappears.
9. To install the modems, go to the “Installing Your V .90 Modems” section.
Uninstalling MultiModemUSB in Windows 95
1. Double-click the edgeport.exe file in your Windows System directory . The MultiModem Properties dialog box is displayed.
2. Select the Advanced tab.
3. Click the Uninstall button. The drivers will be removed from your computer.
MT4X56USB20

MT4X56USB Drivers for Windows NT 4.0

Because NT 4.0 does not support USB, Multi-Tech provides a USB stack that will be installed along with the necessary drivers. To do this, you must have have NT Service Pack 3.00 or higher and an account that has administrative privileges.
Note: “Plug-and-Play” operations are not supported in an NT 4.0 (or earlier) operating system.
1. Ensure that power to the MT4X56USB is on but that the USB cable remains disconnected.
2. Insert the MT4X56USB Disk 2 into drive A.
3. Click Start | Run.
4. Type A:\setup and click OK.
5. The install program prompts you to make certain you have NT Service Pack 3.00 or higher. Click Yes to continue.
6. The MultiModemUSB Drivers Install dialog box displays.
Chapter 3 - Software Loading and Configuration
Click Next >.
7. The Read Multi-Tech Software License agreement screen is displayed. Read carefully . If you accept the terms of the agreement, click Yes.
8. The Release Notes screen is displayed (Release Notes can also be found after installation in the Start menu under Programs | Multi-T ech USB Utilities).
Click Next >.
MT4X56USB 21
MultiModemUSB User Guide
9. After the program files have been copied to your hard drive, the Information dialog box is displayed indicating that the drivers have been successfully installed.
Connect the USB cable to the MT4X56USB and click OK.
10. Remove the disk from the floppy drive.
1 1. Reboot your system.
Note: The System LED should be blinking green indicating that the driver software was successfully installed.
12. Once the reboot is completed, the Modem Properties dialog box is displayed. To install the modems, refer to the “Installing Your V .90 Modems” section.
Uninstalling MultiModemUSB in Windows NT 4.0
1. From the Start menu, select Settings and then Control Panel.
2. Select Add/Remove Programs.
3. In the Add/Remove Programs Properties dialog box, select MultiModemUSB Drivers and click
Add/Remove ...
4. Confirm file deletion by clicking Yes, then wait as the drivers are removed from your computer.
MT4X56USB22

MT4X56USB Drivers for Windows 2000

This section provides the procedure for loading MT4X56USB driver software in a Windows 2000 operating system.
Note: “Plug-and-Play” operations are supported in a Windows 2000 operating system.
1. Power up your Windows 2000 system.
2. Ensure that the appropriate USB cable connection has been made to the peripheral (refer to the
“Cabling Your MT4X56USB” section) and that the MT4X56USB is powered on.
3. Connect the D-shaped end of the USB cable to the USB-B port on the back of the MT4X56USB
now.
4. Windows 2000 detects the MT4X56USB and displays the Found New Hardware Wizard dialog
box.
Chapter 3 - Software Loading and Configuration
Insert the MT4X56USB Driver Disk 3 into drive A and click Next > to proceed.
5. The Found New Hardware Wizard dialog box displays the message “Install Hardware Device
Drivers.”
Ensure that the default is enabled “Search for the best driver for your device (recommended)” and
click Next >.
MT4X56USB 23
MultiModemUSB User Guide
6. The Found New Hardware Wizard dialog box displays the message “Locate Driver Files.”
Click (check) the box next to “Floppy disk drives” and then click Next >.
7. Windows locates the driver files on the disk and displays the Add New Hardware Wizard dialog box.
Click Next >.
8. Microsoft displays the Digital Signature Not Found dialog box. Click Yes to continue.
9. The driver files are copied to your Windows System directory.
10. Once the files have been copied to your PC, the Found New Hardware Wizard dialog box is displayed and indicates that Windows has completed installing the software for your MT4X56USB V .90 Fax/Modem.
Click Finish.
MT4X56USB24
Chapter 3 - Software Loading and Configuration
11. The Found New Hardware Wizard dialog box is displayed. It initiates a second search to create
the new COM ports. Follow the instructions on the screen.
Click Next >.
12. The Found New Hardware Wizard dialog box displays the message “Install Hardware Device
Drivers.”
Ensure that the default “Search for the best driver for your device (recommended)” is selected, then click Next >.
13. The Found New Hardware Wizard dialog box is displayed with the message “Locate Driver
Files.”
Click the box for “Floppy disk drives” and click Next >.
MT4X56USB 25
MultiModemUSB User Guide
14. The Found New Hardware Wizard dialog box is displayed with the message “Driver Files Search Results.”
Click Next >.
15. The Found New Hardware Wizard dialog box is displayed with the message “Windows has finished installing the software for this device.”
Click Finish. Several screens are displayed indicating that all software drivers have been successfully
installed. Installation is complete when no more screens appear.
16. To install the modems, go to the “Installing Your V .90 Modems (Windows 2000)” section.
Uninstalling MultiModemUSB in Windows 2000
1. From the Start menu, select Settings and then Control Panel.
2. Select Add/Remove Hardware.
3. Follow the on-line instructions until the Devices window is displayed. Select the appropriate entries to be deleted and click Next >.
4. The Uninstall Device dialog box is diplayed asking you if you are sure that you want to uninstall this device. Click Yes and then Next >.
MT4X56USB26

Installing Your V.90 Modems

After the software drivers are installed, you will need to install your V.90 modems. The installation procedures are identical for Windows 95 and Windows 98. The procedure for Windows NT is more involved and differences will be noted below . The procedures for installing your V.90 modems in Windows 2000 are sufficiently different to require a separate installation section.
CAUTION: For space considerations, the graphics displayed below are Windows NT 4.0 dialog boxes. Any major differences with Windows 95/98 dialog boxes will be noted.
1. Click Start | Settings | Control Panel | Modems.
2. The Modems Properties dialog box is displayed.
Note: Windows 95/98 provides a Diagnostics tab option.
Chapter 3 - Software Loading and Configuration
From the General tab, click the Add button.
MT4X56USB 27
MultiModemUSB User Guide
3. The Install New Modem dialog box is displayed indicating that Windows NT ( or just “Windows” for Windows 95/98) will now try to detect your modem.
READ CAREFULLY!
For Windows 95/98 operating systems, ensure that the “Don’t detect my modem; I will select
it” option is NOT enabled (the check box is clear) and click Next >. The modems are automatically detected. Several screens are displayed, then the Verify Modem dialog box is displayed. Go to step 7.
For Windows NT operating systems, ensure that the “Don’t detect my modem; I will select it”
option is enabled (the check box is checked) and click Next >. Continue with step 4.
4. For Windows NT installations, the Install New Modem dialog box is displayed - Manufacturer and Model options.
Select MultiTech Systems and MultiModem MT4X56USB, then click Next >.
MT4X56USB28
Chapter 3 - Software Loading and Configuration
5. The Install New Modem dialog box is displayed identifying the modem you had selected.
Enable the “Selected ports” option and highlight the Communications ports required (e.g., COM5, COM6, COM7, and COM8), then click Next >.
6. The program installs the modems and prompts you to reboot your system and then displays the
Install New Modem dialog box.
Click Finish. Go to Step 9.
7. For Windows 95/98 installs, the Verify Modem dialog box is displayed indicating that the modem
was found.
Click Next > for each of the four modems. Note: For first time installation, the application may display a Location Information dialog box.
Fill out the necessary phone information and click Next >.
MT4X56USB 29
Loading...
+ 67 hidden pages
