Introduction

This guide shows you how to set up your MultiMobile USB unit. For
detailed information, product specifications, troubleshooting tips, and
more, see the User Guide on your MultiMobile CD.

The MultiMobile USB unit is compatible with Windows Vista, XP, 2003,
and 2000. Several Linux kernels are also supported but installation
procedures for them are described in the User Guide.

Safety Warnings

• Use this product only with UL- and CUL-listed computers.

• To reduce the risk of fire, use only UL-listed 26 AWG (.41mm) or

larger telephone wiring.

• Never install telephone wiring during a lightning storm.

• Never install a telephone jack in a wet location unless the jack is

specifically designed for wet locations.

• Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

• Avoid using a telephone during an electrical storm; there is a risk of

electrical shock from lightning.

• Do not use a telephone in the vicinity of a gas leak.

Package Contents

• One MultiMobileUSB

• One RJ11 telephone cable

• One printed Quick Start Guide (this manual)

• One product CD which contains the MT9234MU driver software,

Global Wizard, and product documentation.

MultiMobile USB Quick Start Guide

4 .

Modem Installation

Connect Modem to PC and Phone Line

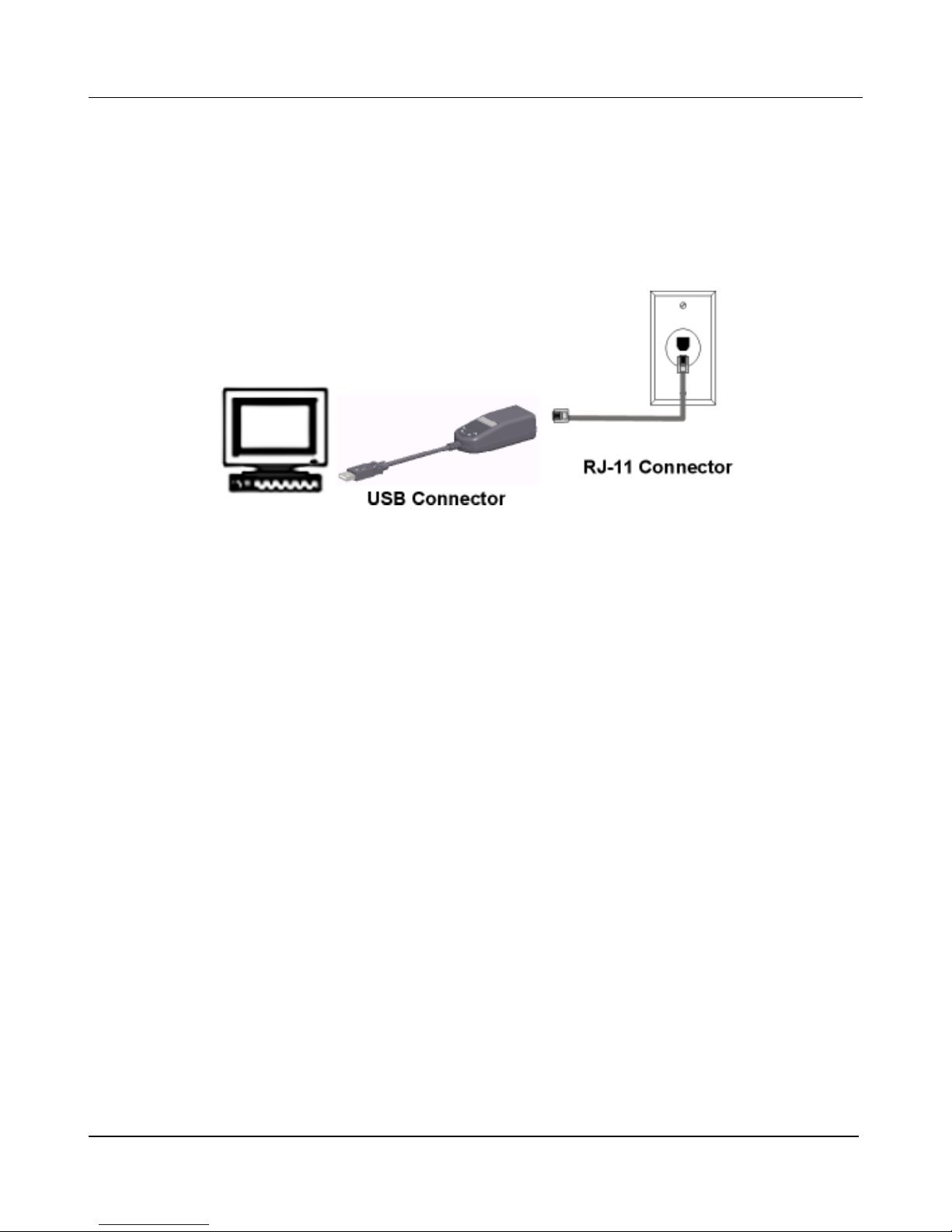

Turn on your computer. Place the modem in a convenient location and
connect it to a USB port on your computer. Then connect the phone
cable between the modem and a wall jack.

Note: The Federal Communications Commission (FCC) and

Industry Canada impose certain restrictions on equipment
connected to public telephone systems. See Appendix A of

the User Guide for more information.

Installing the Modem Driver

Compatibility: This MultiMobile MT9234MU is compatible with Windows
Operating Systems Vista, XP, 2003, 2000, and Linux.

Windows: Place the MultiMobile MT9234MU CD into the PC’s CD-ROM
drive and plug the USB cable into the PC. The Add New Hardware
Wizard will display. Please follow the installation prompts.

For detailed driver installation directions, see the User Guide.
Linux: Under the Linux directory on the product CD, you will find the

Linux driver and a Readme file. Refer to the Readme file for the correct
driver file and installation guide for your distribution/version of Linux

Note: If your model did not include a CD, you can do wnload the drivers
from the Multi-Tech Web site.

MultiMobile USB Quick Start Guide

5

Configure the Modem for Your Country

Different countries have different requirements for how modems must
function. Therefore, before you use your modem, you must configur e it
to match the defaults of the country in which you are using it. For
Windows Vista, XP, 2003, and 2000, you can configure the MT9234MU
either manually using AT commands or with the Global Wizard. For
Linux, AT commands must be used. Both methods are described below.

Using Global Wizard to Configure Your Modem

The Global Wizard configuration utility is recommended for computers
running Windows Vista, XP, 2003, and 2000.

1. Insert the MultiMobileUSB system CD into the CD-ROM drive.
The Autorun dialog box appears.

2. Click Initial Setup and Country Selection.

3. Choose either:

• Run Global Wizard from CD. This will not load the wizard

onto your hard drive, or

• Install Global Wizard on the HD. This will install the wizard

onto your hard drive for future use.

4. The Global Wizard dialog box appears. Click Next.

5. The Wizard searches for your modem and identifies it. Click Next.

6. Select the country in which the modem will be used. Click Next.

7. Review your choice of country. If it is correct, click Next to
configure the modem.

8. When Global Wizard announces that the parameters have been

set, click Finish to exit.

MultiMobile USB Quick Start Guide

6 .

Using AT Commands to Configure Your Modem

Non-Windows users can configure the modem using AT commands.
You must enter these commands in your communication program’s
terminal window.

1. Run your favorite communication program and open the
program’s terminal window.

2. To configure the modem for a specific country:
Type AT%T19,0,nn (where nn is the country code in hexadecimal
format).
Press ENTER.
The message OK displays.

3. To verify the change:
Type ATI9.
Press ENTER.
The country code is displayed in decimal format, as in this
example:

Country AT command

(hexadecimal)

Country code
(decimal)

Euro/NAM AT%T19,0,34 (default) 52

The complete list of country codes can be found on the Multi-Tech

Web site at

http://www.multitech.com/GlobalModem/config.

MultiMobile USB Quick Start Guide

7
