Multitech Multimobile MT10100ZL-X/E User Manual

Model MT10100ZLX/E

Owners Manual

MultiMobile

TM

Model # MT10100ZLX/E

P/N 82071601

This publication may not be reproduced, in whole or in part,
without prior expressed written permission from Multi-Tech

Systems, Inc. All rights reserved.

Copyright © 1997 by Multi Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties
with respect to the content hereof and specifically disclaims any
implied warranties of merchantability or fitness for any particular
purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right
to revise this publication and to make changes from time to time
in the content hereof without obligation of Multi-Tech Systems,
Inc. to notify any person or organization of such revisions or
changes.

Record of Revisions

Revision Description

B Documented additional Troubleshooting
(12/8/97) information in Chapter 4; minor technical,

editorial and format changes made
throughout this manual.

TRADEMARKS

Trademarks of Multi-Tech Systems, Inc. are as follows:
MultiMobile, Multi-Tech, and the Multi-Tech logo. All other
trademarks are owned by their respective companies.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

[phone] or [phone]

U. S. FAX [phone]

Fax-Back Service 612-717-5888

Technical Support [phone]
BBS [phone] or [phone]
Internet Address: http://www.multitech.com

Technical Writer: mark@ multitech.com

Contents

3-MultiMobile

Contents

Chapter 1 - Introduction and Description ............5

About This Manual ................................................. 5

About This Product ................................................6

Network Interface Specifications .......................... 6

System Requirements .............................................7

Ship Kit Contents....................................................8

Chapter 2 - Installation .......................................... 9

Chapter 3 - Software Installation........................12

Novell NetWare ..................................................... 12

Menu Installation..................................................13

Manual Driver Installation ..................................14

Novell Client Installation ..................................... 14

MS LAN Manager ................................................16

Packet Driver ........................................................18

Windows for Workgroups 3.11 ...........................18

Windows NT 3.51.................................................. 22

Windows NT 4.0.................................................... 22

Windows 95 Installation....................................... 23

Artisoft Lantastic 6.0 Installation ....................... 24

IBM OS/2 Warp ....................................................24

NOTES FOR NDIS DRIVER ..............................28

NOTES FOR PACKET DRIVER ....................... 29

NOTES FOR WINDOWS FOR WORKGROUPS

DRIVER ................................................................29

Chapter 4 - Troubleshooting ................................ 31

Introduction ..........................................................31

Chapter 5 - Service ............................................... 40

Limited Warranty ................................................. 40

Software User License Agreement....................... 41

Tech Support ......................................................... 43

Recording MT10100ZLX/E Information .......... 43

Contents

4-MultiMobile

Service ....................................................................44

About the Multi-Tech BBS................................... 45

How to Use the Multi-Tech BBS ..........................45

About CompuServe/Internet ............................... 46

About the Multi-Tech Fax-Back System .............47

Appendix A - Regulatory Agency Information ..48

Index ......................................................................55

Introduction/Description

5-MultiMobile

Chapter 1 - Introduction and Description

About This Manual

This manual explains how to install and use your Fast
Ethernet PC Card, model MT10100ZLX/E from Multi­Tech Systems. This manual is divided into 5 chapters
and one appendix. The information contained in each
chapter and appendix is as follows:

Chapter 1 - Introduction and Description

Chapter 1 begins with a short product introduction and
description; followed by a guide (which you are now
reading) to the use of this manual; and ends with a sec­tion on technical specifications.

Chapter 2 - Hardware Installation

This chapter provides you with procedures for making
the physical connections attaching the MT10100ZLX/
E to portable computers, as well as this components
LED descriptions which can help verify proper opera­tion and report operating status.

Chapter 3 - Software Installation

Chapter 3 contains information on PCMCIA setup,
manual installation of PCMCIA Software, and infor­mation about supported drivers.

Chapter 4 - Troubleshooting Your
MT10100ZLX/E

Chapter 4 provides tips and advice if you think your
Fast Ethernet PC Card isnt working correctly.

Chapter 5 - Service/Warranty/Tech Support

Chapter 5 provides service and product warranty in­formation.

Appendix

Appendix A - Regulatory Information

Introduction/Description

6-MultiMobile

About This Product

The MT10100ZLX/E is a credit-card-sized Type II
PCMCIA card that complies with the PCMCIA 2.1 and
JEIDA 4.1 standards and works with computers incor­porating a compatible interface.

Connectivity to your Local Area Network (LAN) is ac­complished when using an RJ-45 network cable con­nection, and installing software and drivers respective
to your LAN environment.

Network Interface Specifications

Operating Environment:

• Novell Netware 3.x, 4.x

• Microsoft LAN Manager

• Packet Driver Applications

• Microsoft Windows for Workgroups 3.11

• Microsoft Windows 3.1

• Microsoft Windows NT 3.51, NT 4.0

• Windows 95

• Lantastic 6.0

• IBM OS/2 Warp Version 3

Features:

• Compatible with most notebook, laptop and portable

computers

• Compatible with Card and Socket Services

• Easy to install and use

• Card is hot swappable

• NE2000 compatible

• 10Mbps Ethernet: IEEE 802.3 standard 10BaseT

baseband CSMA/CD local area network

•100Mbps Ethernet: IEEE 802.3 standard 100Base-TX

baseband CSMA/CD local area network

Introduction/Description

7-MultiMobile

•Auto-negotiation between all four operation modes

•PCMCIA 2.0/2.1 and PC Card Standard compliant

Type II PC Card

Dimensions:

•3.37 x 2.128 x 0.197 (86mm x 54mm x 5.0mm);

•30gw in weight

Power Requirements:

•Normal Operation: +5V DC, 250mA max

•Sleep Mode: +5V DC, 50mA max

Diagnostics:

•LEDs: Link Integrity, Power / Activity, 10/100Mbps

Environment Ranges:

•Operating:32°F to 149°F (0°C to 65°C)

•Storage: -4°F to 158°F (0°C to 70°C)

•Humidity:10% - 90%, noncondensing

Certifications:

•FCC, Part 15, Class B

•CE Mark (EN55022,ClassB, EN50082-1)

System Requirements

• An IBM compatible notebook computer with

386SX or faster processor

• Drivers and utilities provided with this product

• PCMCIA release 2.1 compliant Card Services and

Socket Services

• 100Base-TX Fast Ethernet or 10BaseT Ethernet

connectivity to your local area network

Introduction/Description

8-MultiMobile

Ship Kit Contents

Your MT10100ZLX/E is shipped from the factory with
the following:

• Fast Ethernet PC Card Adapter

• Media coupler with single RJ-45 connector for

10BASE-T and 100BASE-TX network

• 3.5 driver diskette

• Users Manual (this manual)

• Plastic protection case for base PC Card

Hardware Installation

9-MultiMobile

Chapter 2 - Installation

This chapter describes how to install the dual speed
Fast Ethernet PC Card into your notebook computer
and connect it to the network. The PC Card can con­nect to either 100Mbps Fast Ethernet or 10Mbps
Ethernet over unshielded twisted pair (UTP) cable; and
can automatically sense and operate at either speed with­out having to be manually reconfigured.

Please refer to Software Installation in Chapter 3 for
installing network drivers using menu driven installa­tion utilities.

*: hardware installation must occur before driver in­stallation is attempted.

Installing The MT10100ZLX/E

1. Insert the MT10100ZLX/E into the computers
PCMCIA slot with the 68-pin connector facing the
PCMCIA slot and the label facing up.

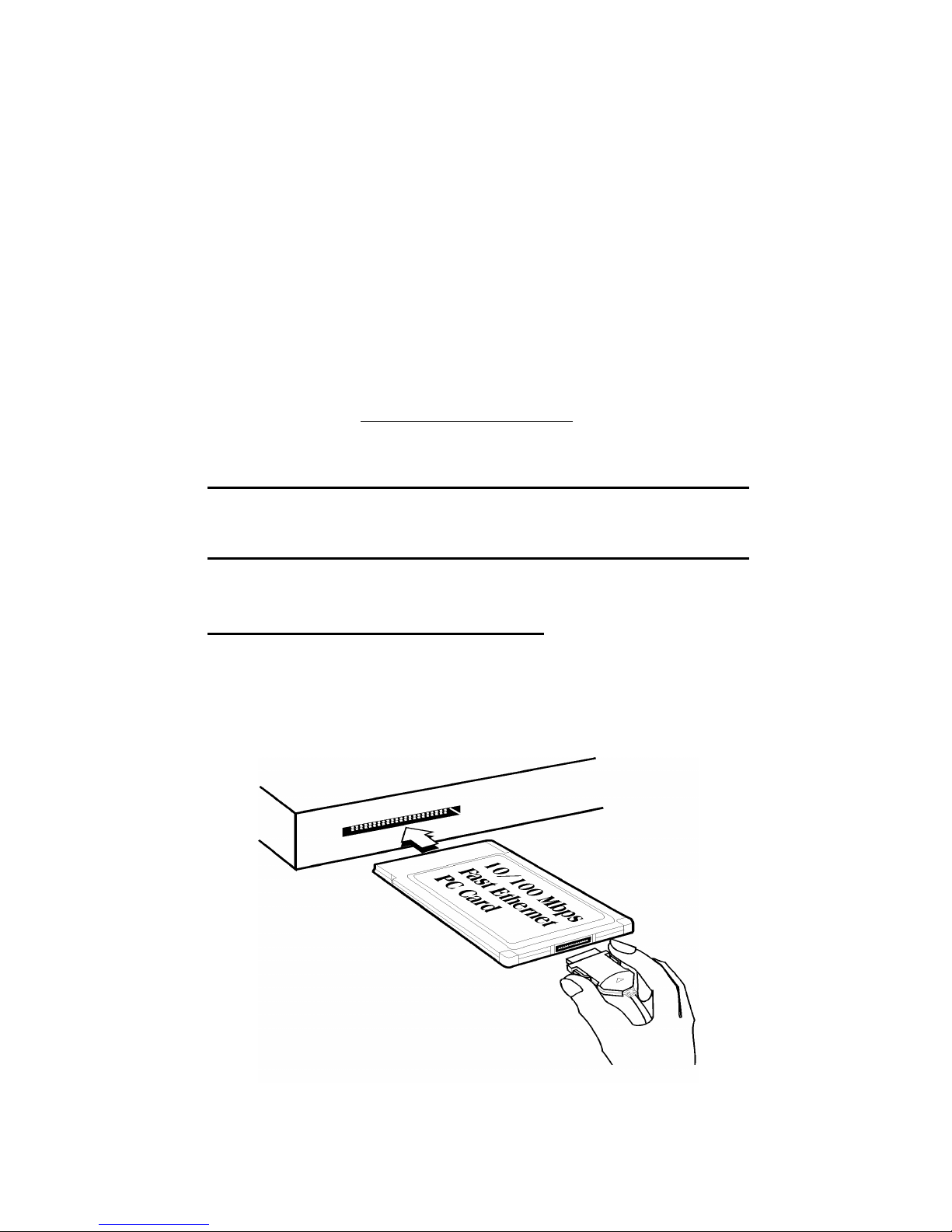

Figure 2-1. PC Card Installation

Hardware Installation

10-MultiMobile

2. Plug the 15 pin connector into the 15 pin socket of
the PC card. On the other end of the 15-pin cable,
leave the RJ-45 network cable exposed until the
LAN connection is made; hardware installation is
now complete. The MT10100ZLX/E is powered di­rectly from the PC.

3. Connect the MT10100ZLX/E to the network (LAN)
using the bundled RJ-45 (8-pin) plug.

For operation in a 100Mbps (100Base-TX) Ethernet
network, a Category 5 unshielded twisted pair (UTP)
cable should be used to connect between media cou­pler and 100Mbps hub or switch.
For operation in a 10Mbps (10Base-T) Ethernet net­work, a Category 3, 4 or 5 UTP cable could be used to
connect between the media coupler and a 10Mbps hub
or switch. Speak to your Network Administrator for
more details.

*: Removal of the MT10100ZLX/E from a notebook
computer is contingent upon notebook computer design.
Please refer to PC Card removal instruction specific to
your notebook computer.

LED Functions

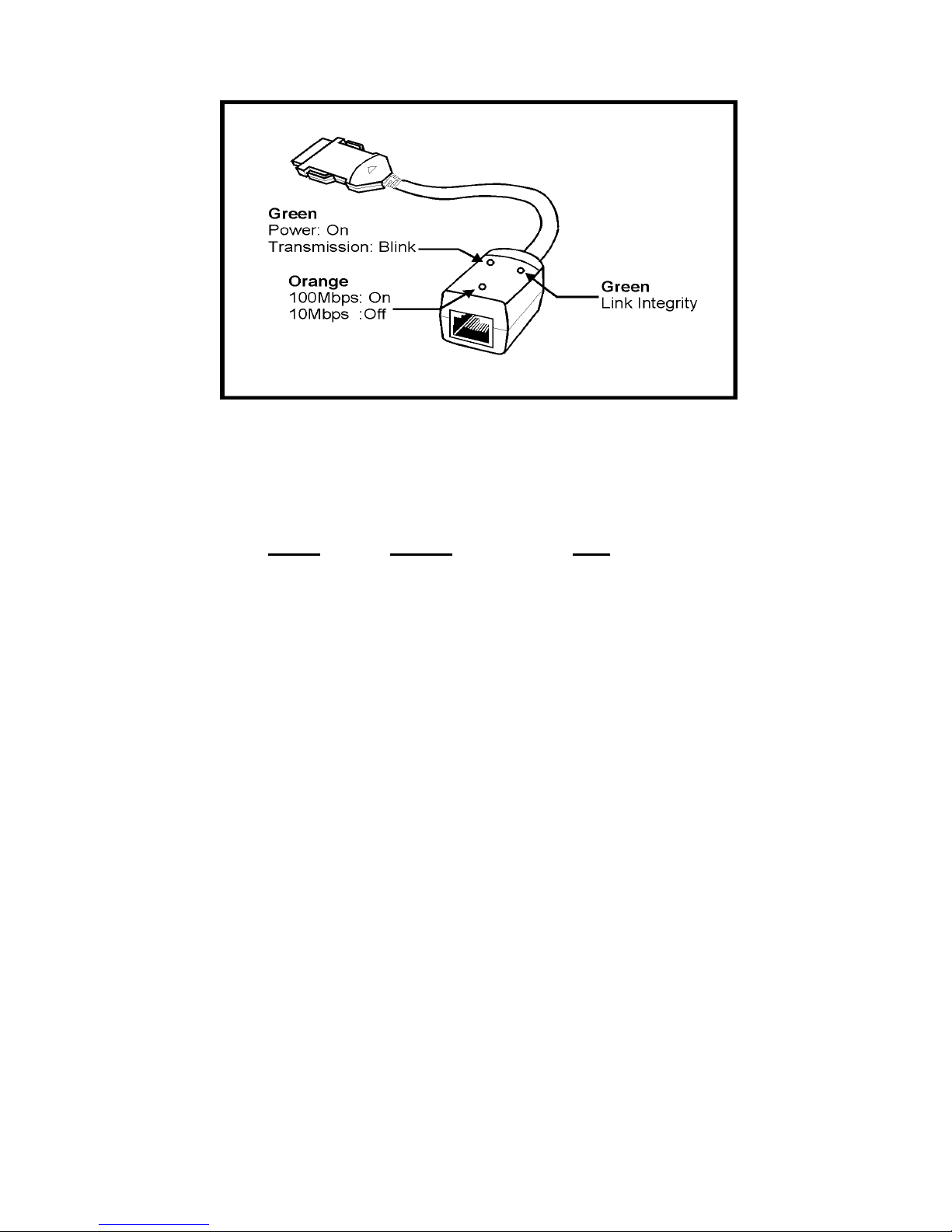

The MT10100ZLX/E has three LEDs (Figure 2-2) that
report Ethernet Link and Network status.

Hardware Installation

11-MultiMobile

Figure 2-2. LED Functions

LED Color ON

POWER Green ON:Power is on

Blinking:
Transmission
Active

10/100 Orange ON:100Mbps

Transmission
Active
OFF:10Mbps
Transmission
Active

LINK Green ON:Link

Integrity
Established
OFF:Link
Integrity Failed

Software Installation

12-MultiMobile

CHAPTER 3 - SOFTWARE

INSTALLATION

1. Insert the Driver diskette into the floppy drive and
set the current drive to the floppy drive.

2. Run INSTALL to install the drivers (such as ODI
or NDIS 2.x or Packet Drivers) onto the target disk.
The NOS selection screen is displayed:

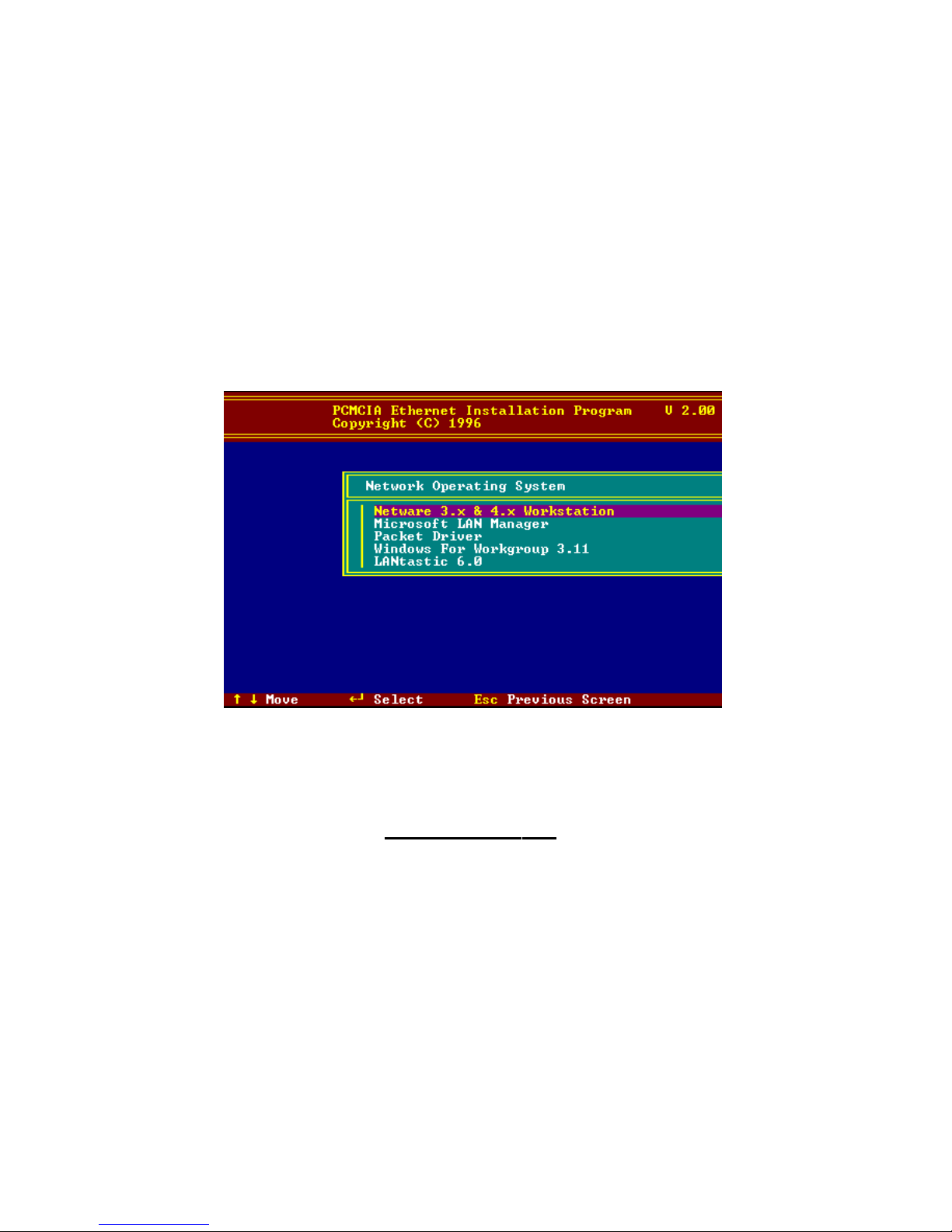

Figure 3-1. NOS Selection Screen

Novell NetWare

There are two methods to install the NetWare client
ODI driver: Menu Installation and NetWare 3.12 or

4.x Client Installation.

Software Installation

13-MultiMobile

Menu Installation

1.Run INSTALL.EXE from the root directory of driver

diskette.

2.Select NetWare 3.x and 4.x Workstation item from

the Installation menu.

3.If current settings are acceptable, select Start Instal-

lation and go to step 5. Otherwise, select Modify
Parameters to make setting changes.

4. Move the cursor to highlight the settings you want

to change and press Enter to select an appropriate
value. When the configurations are set, press En-
ter on the OK field to exit the screen. The Installa-
tion program copies related files from the Drivers
diskette to the destination directory and modifies
the AUTOEXEC.BAT and NET.CFG files as
specified. The installation is complete.

5. Reboot the computer to make the NetWare connec­tions. The Driver Installation screen is displayed:

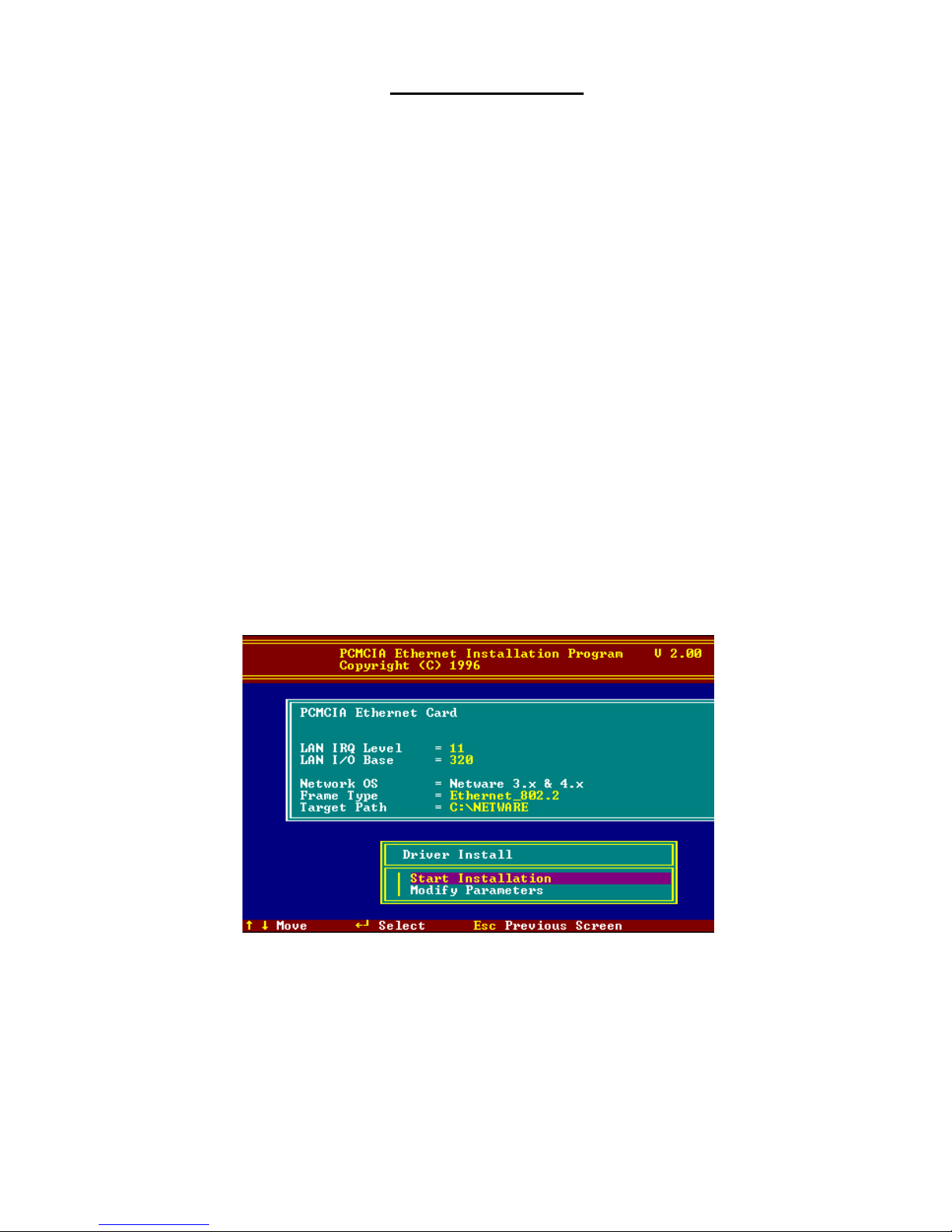

Figure 3-2. Driver Installation Screen

Software Installation

14-MultiMobile

Manual Driver Installation

If you wish to install the ODI driver manually, perform
the following:

1.Copy the files LE100ODI.COM and NET.CFG from
the path \NETWARE and the file LANEN.EXE
from the path \ENABLER in the driver diskette into
the NetWare client directory containing Novells
LSL.COM, IPXODI.COM and NETx.COM files.

2.Use a text editor to edit the NET.CFG file for setting
the Frame Type. On the NetWare server, the Frame
Type default is 802.3 for NetWare 3.11, and 802.2
for NetWare 3.12 and 4.x. The Frame Type set in
NET.CFG must match Frame Type set at the
NetWare server, or the client will not attach to the
server.

3.Follow Novells instructions on using ODI programs.
You can substitute the LE100ODI.COM whenever
a reference is made to the Hardware Specific
Module.

4.A typical ODI workstation startup batch file includes:

>LANEN /IRQ=dd /IOP=xxx Card Enabler
>LSL ;Link Support Layer Module provided by

Novell
>LE100ODI ;Hardware Specific Module
>IPXODI ;IPX Protocol Stack Module provided by

Novell
>NETx ;Shell Support Module provided by Novell
>LOGIN

Novell Client Installation

1. Run the NetWare Client Install V1.21 software.
Either:
a. get the four Client disks from the network

Software Installation

15-MultiMobile

administrator, or

b. run the \NWCLIENT\INSTALL.EXE used in

a previous Installation.

2. Answer Ye s .

The program then modifies your AUTOEXEC.BAT
and CONFIG.SYS files accordingly and creates
backup copies. The following message appears:
Install support for MS Windows? (Y/N): .

3. Answer accordingly and provide a path if necessary.
The program displays the following:

Configure your workstation for backup by a
NetWare server running software such as
BACKUP? (Y/N): No

4. Answer accordingly and provide a path if necessary.

5. Select a driver for your network board.

6. From the driver list, select Other Drivers.

7. Go to the Insert the Driver Disk dialog box and
specify the path where the ODI driver and INS files
reside. For example: C:\ODI.DOS.

8. Press Enter and select the target ODI driver.

9. Specify the drivers optional settings.

10. Press F10 to save to new configuration.

11. Highlight Install press here and press Enter to
install. The program copies the necessary files for
NetWare Client.

12. Continue the installation procedure to completion.
On completion, a new NET.CFG file is created in
your DOS directory. Typically, this file contains
the following lines:

Link Driver LE100ODI
#FRAME Ethernet_802.3
FRAME Ethernet_802.2

13.Copy the file LANEN.EXE from the directory
\ENABLER in the driver diskette to NetWare Cli­ent directory.

14.Use a text editor to edit the STARTNET.BAT. Add
a running LANDEN command at the beginning of

Software Installation

16-MultiMobile

the file. STARTNET.BAT for the ODI workstation
performs as the following

LANEN /IOP=nnn /IRQ=n

Card Enabler

SET NWLANGUAGE=ENGLISH

Set NetWare 4.X to English
language

LSL Link Support Layer Module

provided by Novell
LE100ODI Hardware Specific Module
IPXODI IPX Protocol Stack Module provided by

Novell
VLM DOS Support Module provided by Novell
F: Change to connected device
LOGIN xxx Login to file server as user xxx

15.Run STARTNET to access the Novell
network.

MS LAN Manager

1.View the README.TXT on the installation diskette
in the \NDIS2 directory. Before installing the driv­ers, ensure that the Microsoft LAN Manager has
been installed in the target path. The installation
program will check and modify the
PROTOCOL.INI file for LAN Manager.

2.Run INSTALL.EXE from root directory of driver dis-
kette.

3.Select Microsoft LAN Manager item on the menu
screen.

4.If current settings are acceptable, select Start

Installation and go to step 6. Otherwise, select
Modify Parameters to make setting changes.

5.Move cursor to each field you wish to change and
press Enter to select an appropriate value. When
the selections are set, press Enter on the OK field

Software Installation

17-MultiMobile

to exit the screen and go back to step 4.

6.The Installation program copies related files from the
driver diskette to the destination directory and modi­fies CONFIG.SYS and PROTOCOL.INI under
users agreement.

7. Reboot the computer to load driver and start LAN
Manager in batch.

8. Highlight Start Installation and press Enter to start
the LAN Manager in batch mode.

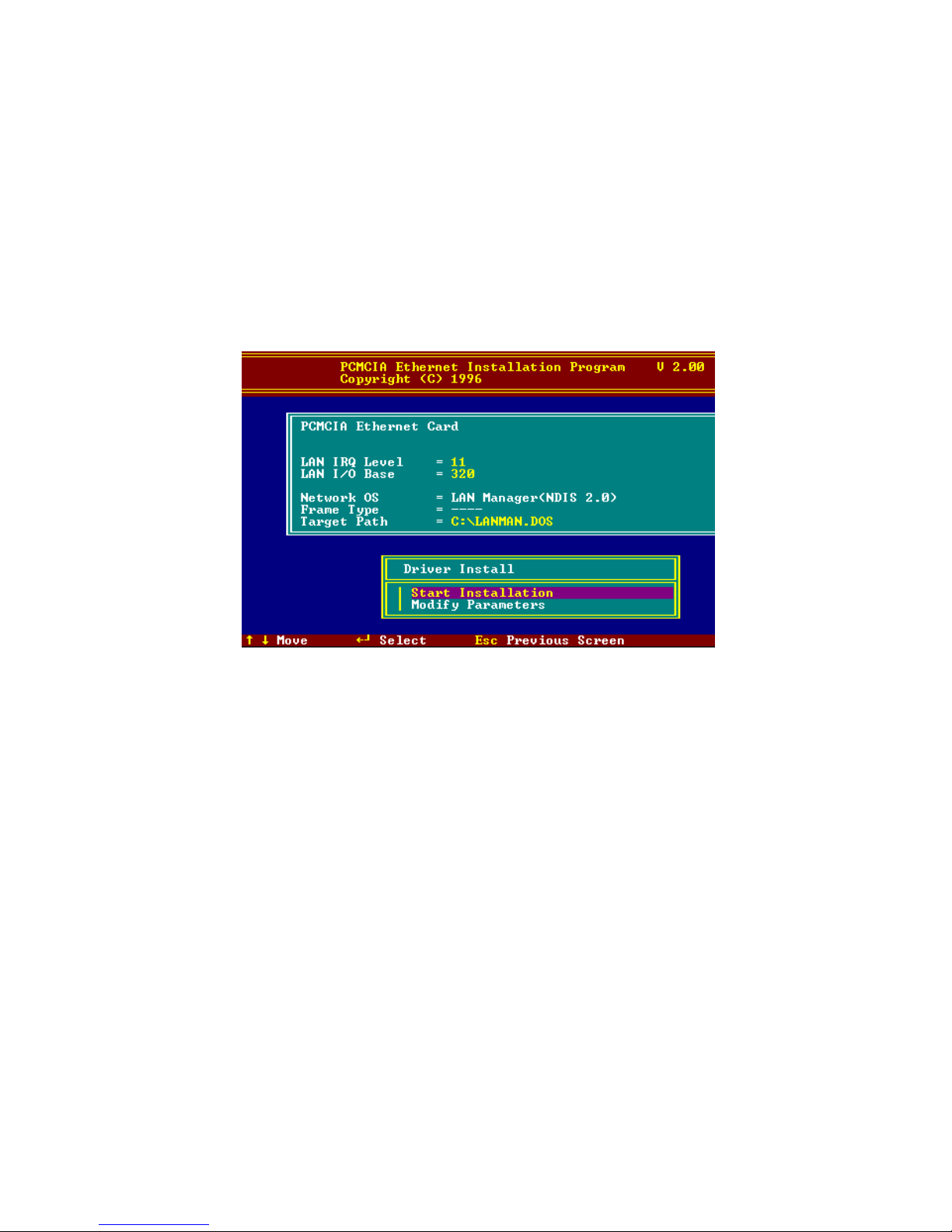

Figure 3-3. Microsoft LAN Manager

Installation Screen
Example of PROTOCOL.INI: used by LAN
Manager

[PROTMAN]

DRIVERNAME = PROTMAN$
DYNAMIC = YES
PRIORITY = NETBEUI

[NETBEUI_XIF]

Drivername = netbeui$
SESSIONS = 6
NCBS = 12
BINDINGS = LE100NDS_NIF
LANABASE = 0

Software Installation

18-MultiMobile

[LE100NDS_NIF]

; protocol.ini session for LAN driver.
IOADDRESS = 0x320
INTERRUPT = 11
DRIVERNAME = LE100NDS$

Packet Driver

1.Run INSTALL.EXE from root directory of driver dis­kette.

2.Select Packet Driver item on the Menu screen.

3.If current settings are acceptable, select Start

Installation and go to step 5. Otherwise, select
Modify Parameters to make setting changes.

4. Move the cursor to the field you want to change and
press Enter to select a new value. When the con-
figuration is set, press Enter on the OK field to
exit the screen and go back to step 3. The Installa­tion program copies related files from the Drivers
diskette to the destination directory and modifies
the AUTOEXEC.BAT file as defined.

5. Reboot the computer to load the selected driver.

Windows for Workgroups 3.11

NDIS3 Driver for Workgroups

1.Run Windows for Workgroups and click the Network
Setup icon in the Network group.

2.In the Network Settings dialog box, click the Net­works... button to select the network operating sys­tem.

3.In the Networks dialog box, check the radio button
before Install Microsoft Windows Network and No
Additional Network. Press OK to go back to the
Network Settings screen.

Software Installation

19-MultiMobile

4.Click the Drivers... button to select network driver.

5.In the Network Drivers dialog box, press the Add
Adapter... button to enter Add Network Adapter
dialog box. Select Unlisted or Updated Network
Adapter and press OK.

6.Windows prompts a Install Driver dialog box. At this
time, place the driver diskette into floppy drive and
press OK.

7.Select the Enhanced mode NDIS3 for.... string and

press OK.

8.Follow Windows instructions to complete the instal­lation and exit Windows

9.Run INSTALL.EXE from root directory of driver dis-
kette.

10.Select Windows for Workgroup in the Network
Operating System screen.

11.If current settings are acceptable, select Start In-

stallation and go to step 13. Otherwise, select
Modify Parameters to make setting changes.

12.Move cursor to focus on the setting(s) you want to
change and press Enter to select a new value. When
the configuration is accepted, press Enter on the
OK field to exit the screen and go back to step 11.

13.Select NDIS Server (LAN Manager,...) as the net-
work server you wish to attach and press the Enter
key. The Installation program starts to copy related
files to the destination directory and modifies
AUTOEXEC.BAT under users agreement.

14.Reboot the computer to have the selected driver take
effect.

NDIS2 Driver for Workgroups

1.Run Windows for Workgroups and click the Network
Setup icon in the Network group.

2.In the Network Settings dialog box, click the Net­works... button to select the network operating sys­tem.

3.In the Networks dialog box, check the radio button

Software Installation

20-MultiMobile

before Install Microsoft Windows Network and No
Additional Network. Press OK to go back the

Network Settings screen.

4.Click the Drivers... button to select network driver.

5.In the Network Drivers dialog box, press the Add
Adapter... button to enter Add Network Adapter
dialog box. Select Unlisted or Updated Network
Adapter and press OK.

6.Windows will prompt a Install Driver dialog box. In
this time, put the driver diskette into floppy drive
and press OK.

7.Select the Real mode NDIS2 for.... string and press

OK.

8.Follow Windows instructions to complete the instal­lation and exit Windows.

9.Run INSTALL.EXE from root directory of driver dis-
kette.

10.Select Windows for Workgroups in Network Op-
erating System screen.

11.If current settings are acceptable, select Start

Installation and go to step 13. Otherwise, select
Modify Parameters to make setting changes.

12.Move cursor to focus on the setting you wish to
change and press Enter to select a new value. When
the configuration is set, press Enter on the OK field
to exit the screen and go back to step 11.

13.Select NDIS Server (LAN Manager,...) as the net-
work server you wish to attach and press Enter. The
Installation program starts to copy related files to
the destination directory and modifies
AUTOEXEC.BAT under users agreement.

14.Reboot the computer to have the selected driver take
effect.

ODI Driver for Workgroups

1.Run Windows for Workgroups and click the
Network Setup icon in the Network group.

2.In the Network Setup dialog box, click the

Software Installation

21-MultiMobile

Networks... button to select the network operating
system.

3.In the Networks dialog box, check Install Microsoft

Windows Network and Others,

thereafer select Novell NetWare (Workstation Shell,

3.X) or Novell NetWare (Workstation 4.0 and
above) and press OK to enter the screen of

PXODI.COM and LSL.COM

4. Press OK to go back the Network Setup screen.

5.Click on the Drivers... button to select network

driver.

6.In the Network Drivers dialog box, press Add
Adapter... button to enter Add Network Adapter
dialog box. Select Unlisted or Updated Network
Adapter and press OK.

7.Windows will prompt a Install Driver dialog box. At
this time, put the driver diskette into floppy drive
and press OK.

8.Select the NetWare ODI Driver .... string and press

OK.

9.Follow Windows instructions to complete the instal­lation and exit Windows.

10.Run INSTALL.EXE from the root directory of
driver diskette.

11.Select Windows for Workgroups in the Network
Operating System screen.

12.If current settings are acceptable, select Start

Installation and go to step 13. Otherwise, select
Modify Parameters to make setting changes.

13.Move cursor to the setting you wish to change and
press Enter to select a new value. When the con-
figuration is set, press Enter on the OK field to
exit the screen and go back to step 11.

14.Select Novell NetWare Server as the network server
you wish to attach and press Enter. Installation cop­ies related files to the destination directory and
modifies AUTOEXEC.BAT and NET.CFG under
users agreement.

Software Installation

22-MultiMobile

15.Reboot the computer to have the selected driver take
effect.

Windows NT 3.51

1.In the Main Group of NT 3.51, open Control Panel
and click on the Network icon.

2.In the Network Settings dialog box, push Add
Adapter... button. The Add Network Adapter dia­log box will appear.

3.Choose Others requires disk from manufacturer from
the network adapter card list and press Continue..

4.When Windows NT prompts for manufacturer disk,
insert driver diskette and press OK until the Net-
work Setting Change dialog box appears.

5.Reboot the computer to have the card take effect.

Windows NT 4.0

1.Insert the Fast Ethernet PC Card into any one of the
available PC Card Slots in system.

2.Power up Windows NT 4.0.

3.Open My Computer.

4.Open Control Panel.

5.Run the Network.

6.Select Adapters page.

7.Press Add to add network adapter.

8.Press Have Disk button.

9.Insert the driver disk into drive A:.

10.Specify the path to  A:\ and press OK.

11.A dialog box will appear to adjust the
drivers settings. The resources assignment to the
adapter must be unique in the system.

12.Press OK when all setting are completed.

13.Press Close to complete network setting.

Software Installation

23-MultiMobile

Windows 95 Installation

1. We assume that the PCMCIA Chipset drivers are
loaded and functioning. The System Icon in the Con­trol Panel can report on its functionality. Any ques­tions on this layer must be taken up with the
computers manufacturer.

2.Insert the PC Card into the slot. In New Hardware

Found dialog box, select Driver from disk provided
by hardware manufacturer.

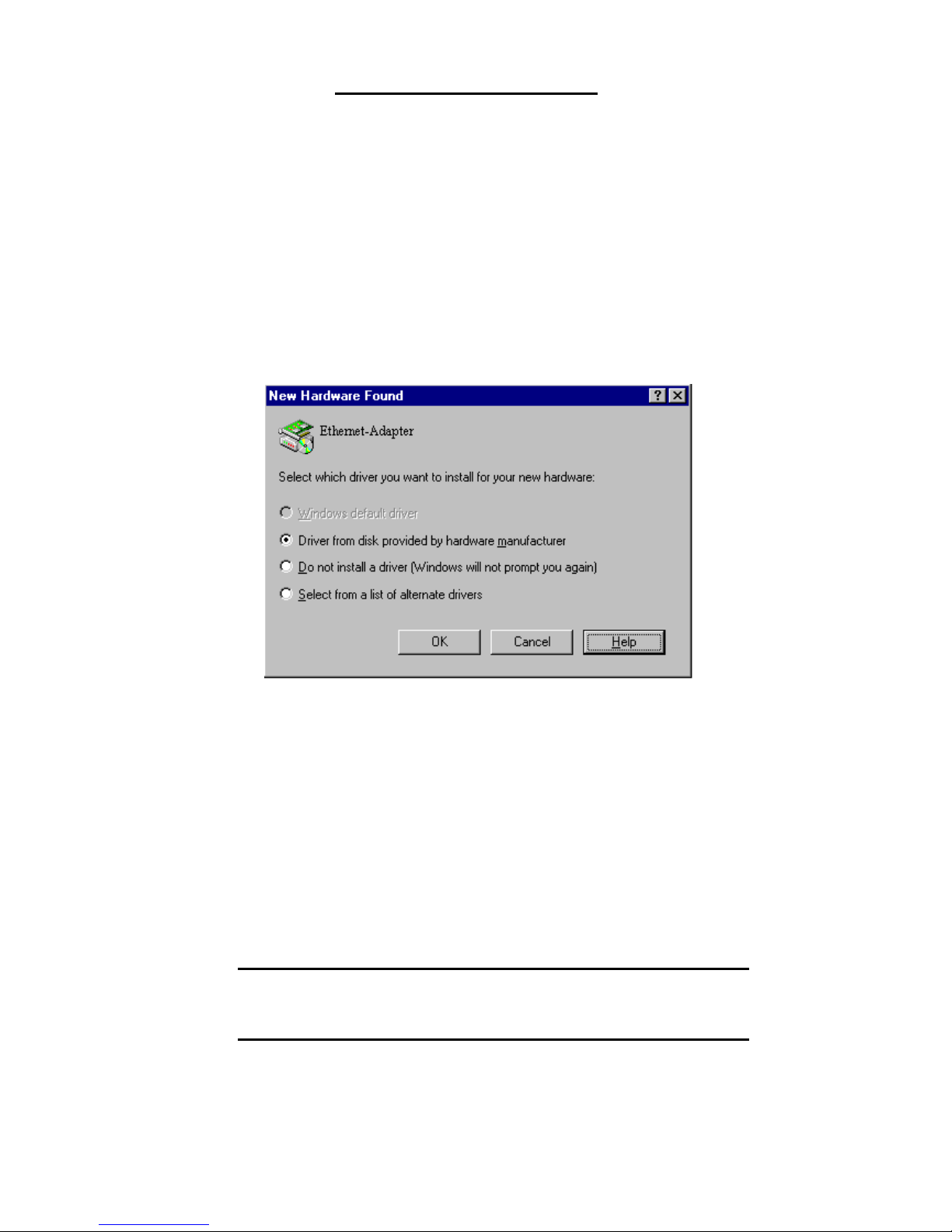

Figure 3-4. Windows 95 Driver

Installation Screen

3. Type the full path (e.g., A:\) and insert the Instal­lation disk.

4.For first time installation, click the Network icon in
Control Panel to add Protocols, Client and Service
if needed.

5.Reboot the computer; the card is now fully functional.

*: Should driver installation procedure fail, refer to
Chapter 4 Troubleshooting.

Software Installation

24-MultiMobile

Artisoft Lantastic 6.0 Installation

1.Install LANTASTIC 6.0 first.

2.Run INSTALL.EXE from root directory of driver dis-

kette.

3.Select LANTASTIC 6.0 in Network Operating Sys-

tem screen.

4.If current settings are acceptable, select Start Instal-

lation and go to step 6. Otherwise, select Modify
Parameters to change settings.

5.Move cursor to highlight each field you want to

change and press Enter to select a new value. When
the configuration is set, press Enter on the OK field
to exit the screen, and go back the step 4.

6.The Installation program starts to copy the related

files from the diskette to the destination directory
and modifies CONFIG.SYS, PROTOCOL.INI, and
STARTNET.BAT under users agreement.

7. Reboot the computer to have the selected driver
take effect.

IBM OS/2 Warp

NDIS2 Driver for OS2 Warp

Before driver installation, ensure that the PCMCIA is
installed and working properly. If the PCMCIA Ser­vice of OS/2 Warp has been enabled, go directly to
section B (Install NDIS2 driver for IBM LAN Server

4.0) for driver installation. If not, go to section A

(Enable PCMCIA Service of OS/2 Warp) to install the
PCMCIA Service.

Section A
Enable PCMCIA Service of OS/2 Warp

1.In the OS/2 Desktop group, double-click on the
OS/2 System icon.

Software Installation

25-MultiMobile

2.Double-click on the System Setup icon.

3.Double-click on the Selective Install icon.

4.Select the PCMCIA Support button.

5.Select PCMCIA system.
For example : select IBM ThinkPad 750

6.Click OK.

7.Click Install

8.Select the source drive and directory
For Example D:\OS2IMAGE

9.Click Install

10.Click OK

Section B
Install NDIS2 driver for IBM LAN Server 4.0

1.In the OS/2 Desktop group, double-click on the

MPTS icon.

2.Click on the Configure button.

3.Select the LAN adapters and protocols option.

4.Click on the Configure button.

5.Select the Other adapters ... option.

6.Insert the driver diskette and type the driver
path:

A:\OS2\NDIS2

Click on the OK button.

7.Select PCMCIA Ethernet Adapter, and then click on
the Add button.

8.Select IBM OS/2 NETBIOS, and then click on the
Add button.

9.Click OK.

10.Click Close.

11.Click Exit.

12.Shutdown and restart your system.

ODI Driver for IBM OS/2 Warp

Before driver installation, ensure that the PCMCIA is
installed and working properly. If the PCMCIA Ser­vice of OS/2 Warp has been enabled, go directly to
section B (Install NetWare Request) for driver instal-

Software Installation

26-MultiMobile

lation. If not, go to section A (Enable PCMCIA Ser­vice of OS/2 Warp) to install the PCMCIA Service.

A. Enable PCMCIA Service of OS/2 Warp

1.In the OS/2 Desktop group, double-click on the

OS/2 System icon.

2.Double-click on the System Setup icon.

3.Double-click on the Selective Install icon.

4.Select the PCMCIA Support button.

5.Select PCMCIA system.
For example: select IBM ThinkPad 750

6.Click OK.

7.Click Install

8.Select the source drive and directory
For Example D:\OS2IMAGE

9.Click Install

10.Click OK

B. Install NetWare Request

1.Insert diskette labeled WSOS2_1 to diskette drive
A:

2.Change current drive to A:

3.Run INSTALL.EXE

4.Select Installation

5.Select Requester on workstation...

6.Set Target Directory

Assume C:\NETWARE

7.Click OK

8.Select Edit CONFIG.SYS and Copy All Files...

9.Click OK

10.Insert diskette labeled WSDRV_1 and Click OK

11.Select NE2000.SYS driver

12.Click the Continue button

13.Insert diskette labeled WSOS2_1 and Click OK

14.Click the Continue button

15.Select the SPX Support for OS/2 Sessions

Software Installation

27-MultiMobile

16.Click the Save button

17.Click OK

18.Click the Copy button

19.Insert diskette labeled WSOS2_2 and Click OK

20.Insert diskette labeled WSOS2_3 and Click OK

21.Insert diskette labeled OS2UTIL1 and Click OK

22.Insert diskette labeled WSDRV_1 and Click OK

23.Insert diskette labeled OS2DOC_1 and Click OK

24.Insert Fast Ethernet PC Card Ethernet Adapter driver
diskette

25.Close Installation window to exit install

26.Copy following driver to C:\NETWARE
directory

COPY A:\OS2\ODI\LE100ODI.SYS
C:\NETWARE
COPY A:\OS2\ODI\LANEN.OS2
C:\NETWARE

27.EDIT C:\CONFIG.SYS file

28.Delete DEVICE=C:\NETWARE\NE2000.SYS

For Example

REM  ODI-Driver Files BEGIN 
REM DEVICE=C:\NETWARE\NE2000.SYS
REM  ODI-Driver Files END 

29.Add

DEVICE=C:\NETWARE\LANEN.OS2

and DEVICE=C:\NETWARE\LE100ODI.SYS
For Example

REM  ODI-Driver Files BEGIN 
DEVICE=C:\NETWARE\LANEN.OS2
DEVICE=C:\NETWARE\LE100ODI.SYS
REM  ODI-Driver Files END 

30.Save C:\CONFIG.SYS

31.Shutdown and restart your system.

Software Installation

28-MultiMobile

NOTES FOR NDIS DRIVER

The following are examples of partial CONFIG.SYS
file and AUTOEXEC.BAT for loading SystemSoft
Card Services and NDIS2 driver:

Examples of partial CONFIG.SYS file:

DEVICE=C:\CARDSOFT\SS365SL.EXE
DEVICE=C:\CARDSOFT\CS.EXE
DEVICE=C:\CARDSOFT\CSALLOC.EXE

C:\CARDSOFT\CSALLOC.INI
DEVICE=C:\CARDSOFT\CARDID.EXE
device=c:\lanman.dos\drivers\ethernet\le100\lanen.exe
device=c:\lanman.dos\drivers\protman.dos /I:c:\lanman.dos
device=c:\lanman.dos\drivers\ethernet\le100\le100nds.dos

Examples of partial AUTOEXEC.BAT file:

SET PATH=C:\LANMAN.DOS\NETPROG;%PATH%
NET START WORKSTATION
LOAD NETBEUI

The Ethernet function configuration information for the
DOS NDIS driver is contained in the PROTOCOL.INI
file. The section of the PROTOCOL.INI file that con­tains configuration information for this card must be­gin with [LE100NDS2_NIF]. The valid entries in the
file are listed below:

[LE100NDS2_NIF]
DRIVERNAME - LE100NDS$

this line must always be present

IOADDRESS - value

where value is one of 32 bytes boundary from 0x200 to 0x3e0.

The leading 0x for the hex notation is required.
To have Card Services select the address base
from its pool of available address then use a
value of 0.

Software Installation

29-MultiMobile

INTERRUPT - value

where values is one of the following interrupts:

3, 4, 5, 7, 9, 10, 11, 12, 15.

To have Card Services select an available
interrupt resource then place a value of 0 at this
location.

NOTES FOR PACKET DRIVER

The following are examples of partial CONFIG.SYS
file for loading SystemSoft Card Services and Packet
Driver:

Examples of partial CONFIG.SYS file:

DEVICE=C:\CARDSOFT\SS365SL.EXE
DEVICE=C:\CARDSOFT\CS.EXE
DEVICE=C:\CARDSOFT\CSALLOC.EXE

C:\CARDSOFT\CSALLOC.INI

DEVICE=C:\CARDSOFT\CARDID.EXE
device=c:\tcpip\lanen.exe
device=c:\tcpip\le100pd.sys

NOTES FOR WINDOWS FOR
WORKGROUPS DRIVER

The following are examples of partial CONFIG.SYS
file and AUTOEXEC.BAT for loading SystemSoft

Card Services and drivers for Windows for
Workgroups:

Examples of partial CONFIG.SYS file:

DEVICE=C:\CARDSOFT\SS365SL.EXE
DEVICE=C:\CARDSOFT\CS.EXE
DEVICE=C:\CARDSOFT\CSALLOC.EXE

C:\CARDSOFT\CSALLOC.INI

Software Installation

30-MultiMobile

DEVICE=C:\CARDSOFT\CARDID.EXE
device=c:\wfw311\lanen.exe
DEVICE=C:\WFW311\IFSHLP.SYS

Examples of partial AUTOEXEC.BAT file:

C:\WFW311\NET START

Troubleshooting

31-MultiMobile

Chapter 4 - Troubleshooting

Introduction

This chapter provides a number of examples of Ques­tions (Q:), Causes (C:), and Answers (A:). If your

Ethernet PC card is not working properly, look up the
solution here; if unsuccessful, call Tech Support (see
Chapter 5).

Q:The Card Service does not enable my card. When

I run LANEN, the error message displays Fail to
enable PC card. Why?

C:No memory space to map the attribute memory of

PCMCIA card.

A:If memory management software e.g. EMM386 has

been installed, you have to reserve some area in up­per memory (C000:0  EFFF:F) for attribute
memory of PCMCIA card while enabling the card.
Example: Device=C:\DOS\EMM386.EXE RAM
X=D000-D3FF. Reserve D000 - D3FF for attribute
memory.

Q:How do I know the FAST Ethernet PC card is

enabled?

A:1.If the Card Service is installed, you will hear a beep

when card is inserted.

2.Run LANEN /CHK to check if the card is en­abled. The resources allocated for the card are
shown at the last line of the display message.

 IO=xxx IRQ=nn Slot=nn

Troubleshooting

32-MultiMobile

Q:How do you enable the FAST Ethernet PC card?
A:1.The Fast Ethernet PC Card can be enabled by the

Card Service installed in the laptop directly. The
drivers associated with the card in the driver dis­kette can be run over Card Service directly.

2.In case the Card Service cannot enable the

PCMCIA card, you can run LANEN to enable it.

Q:How do you make the card work under

Systemsoft Card Service?

A:1.Copy across the LE100.CLB file.

Copy FROM

A:\PCMCIA\CARDSOFT\LE100.CLB

TO

C:\CARDSOFT\LE100.CLB

Contingent upon where the Cardsoft is saved.

2.Edit the CARDID.INI file and add the library

LE100.CLB.
Edit C:\CARDSOFT\CARDID.INI

Find the section which starts [Libraries], and
add the line
CardLib=le100.clb

before any other CardLib= lines.
When the card is inserted it will beep. Use
CARDINFO /V to check if the card has been con­figured correctly.

3.If the card cannot work properly, you may edit
CARDID.INI again to change the resources allo­cation.
In the [Common] section you may find the follow­ing strings:
Lan1Port=300
Lan1IRQ=5
Lan1MemoryBase1=D0

Troubleshooting

33-MultiMobile

Lan1MemoryBase2=D4
Lan2Port=320
Lan2IRQ=11
Lan2MemoryBase1=D8
Lan2MemoryBase2=DC

You may change the Lan1Port or Lan1IRQ to another

value (e.g. Lan1Port=320, Lan1IRQ=11) to request
Cardsoft allocate the resources you wanted.

4.If the resources cannot allocate properly, you may
run \CARDSOFT\CONFIG

or edit \CARDSOFT\CSALLOC.INI directly to set
the system resources available for allocation. The file
content of CSALLOC.INI are listed as below:

# The available resources described by the MEM=,

IO=, and IRQ= lines

# It may have been altered by the xINCLUDE and/

or xEXCLUDE lines below!

# The MEM=, IO= and IRQ= lines are provided

for Read-Only purposes.

#
MEM=D000-DFFF
IO=100-3F7
IRQ=5,7,9-C,E-F
#
# *** Resource modifications should be made below

this line. ***

#
RIO=170-177,370-377
MEMEXCLUDE=C000-CFFF,E000-EFFF
IOEXCLUDE=3F8-3FF,2F8-2FF
IRQEXCLUDE=3-4,6,13-14

You may edit the file to guide the Cardsoft which
resources are available in your computer.

Troubleshooting

34-MultiMobile

Q:How do you make the card work under Phoenix
Socket/Card Service?

A:Add a card to PCM. Once the card is added, you

may use PCM to modify the resources requested for
the card.

1.Insert the MT10100ZLX/E into the computers
PCMCIA slot with the 68-pin connector facing
the PCMCIA slot and the label facing up and slide
the card into the slot.

2.Execute PCM.EXE supported by Phoenix PCM.

3.Select the socket by the PageUp, Page Down
keys.

4.Choose Configure item by ALT-C.

5.Choose Add Card to List item and Enter for first
time or choose Edit Config Parameters for fur­ther edition.

6.Set the I/O range and IRQ for the card.

7.Press Enter key and then save the configuration.

8.Exit PCM.EXE by pressing Alt-V and selecting
Exit item.

9.Reboot

Q:How do you make the card work under Award

Socket/Card Service?

A:You need to run the PC Card Control for Windows

program under Windows. If you do not have Win­dows, edit the CARDWARE.INI file as indicated be­low. Before running PC Card Control for Windows,
make sure the PC Card is inserted into one of your
PCs sockets.

1.Run PC Card Control for Windowsfrom the
Cardware sub-directory.

2.Press OK until you get to the main menu.

3.Select the Cards option and choose Edit.

4.Select right Socket and press Enter
If you already have a device in the Defined box

Troubleshooting

35-MultiMobile

called LE100, go to step (11).

5.Select New Device under the Defined devices
box.

6.Edit the new device to be named LE100.

7.Select IO range 1 Base (Hex) = 320, Length = 32
(16 bit).

8.Do not alter MEM range 1 or 2.

9.Select IRQ level 11. Select OK to make changes.

10.On the Edit card screen, highlight the LE100
device in the defined devices box.

11.Transfer the LE100 to the Associated box with
the Include command.

12.Select OK to complete editing and return to Main
screen.

13.If the LE100 card is not graphically depicted,
choose Card and Reconfigure the socket which
contains the LE100 card.

If you still have problems with CARDWARE soft­ware try to replace your CARDWARE.INI file with
the one supplied on the Ethernet Adapter Drivers
Disk.
In DOS mode, you may use PCCARD /D or
DOSCARD /D command to check the resources al­located for the card.

Q:How can the ODI driver run successfully but fail

to login to the Netware server?

C:Frame type incompatible with server or Interrupt

mismatch.

A:1.The default frame type for Netware 3.11 is 802.3

but changed to 802.2 in Netware 4.x and 3.12. You
may check the content of NET.CFG to see if the
frame type is acceptable to the server. If the frame

Troubleshooting

36-MultiMobile

type is not acceptable, edit NET.CFG to change
the frame type at the client site or add the frame
type that can be accepted at server site.

Q:What to do should your Driver installation fail?

A:1.Insert the MultiMobile PC Card into any one avail-

able PC Card Slot in your computer. The BIOS
detects Plug and Play NIC. Place the Driver dis­kette into the computers floppy drive and Click
NEXT.

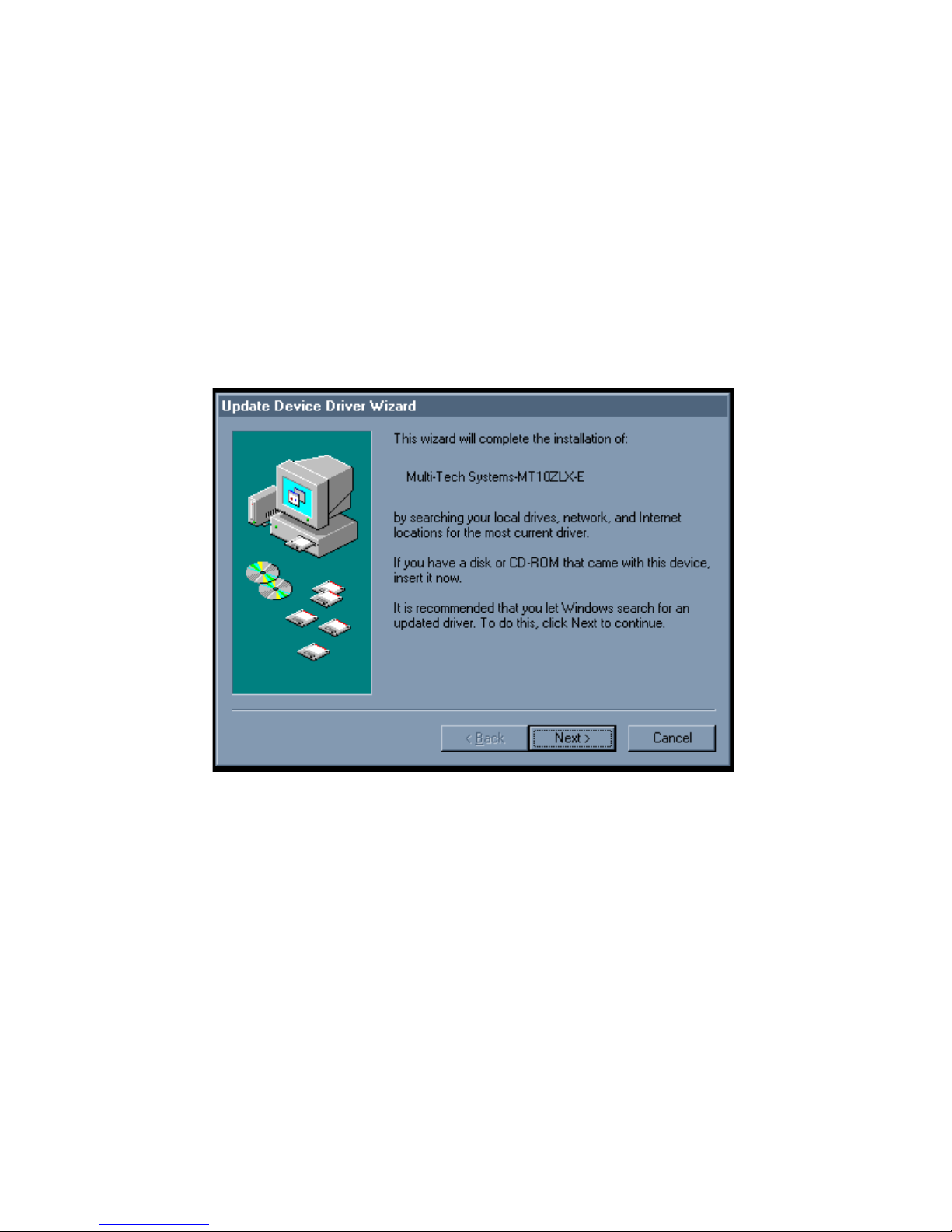

Figure 4-1. Update Driver Installation

Display

2. A dialog box appears indicating the recognition of
an updated driver on the floppy disk. Click on
OTHER LOCATION. Do not select FINISH.

Troubleshooting

37-MultiMobile

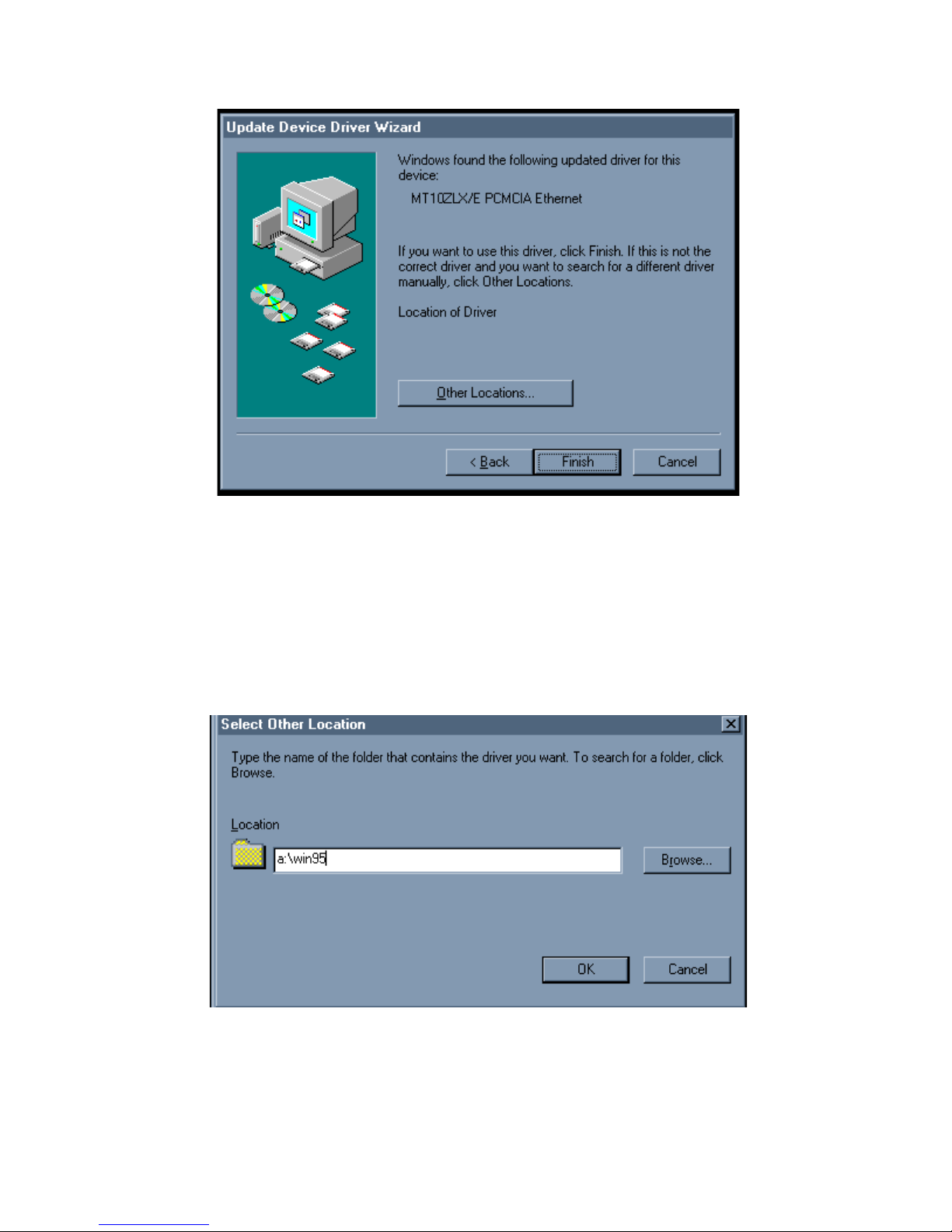

Figure 4-1a. Update Driver Installation

Display

3. Keystroke in your corresponding operating system
(e.g., a:\Win95), or

Figure 4-2. Select Drivers Operating System

Troubleshooting

38-MultiMobile

3a. Click on BROWSE where other subdirectories ex-

ist, and other operating systems can be chosen.

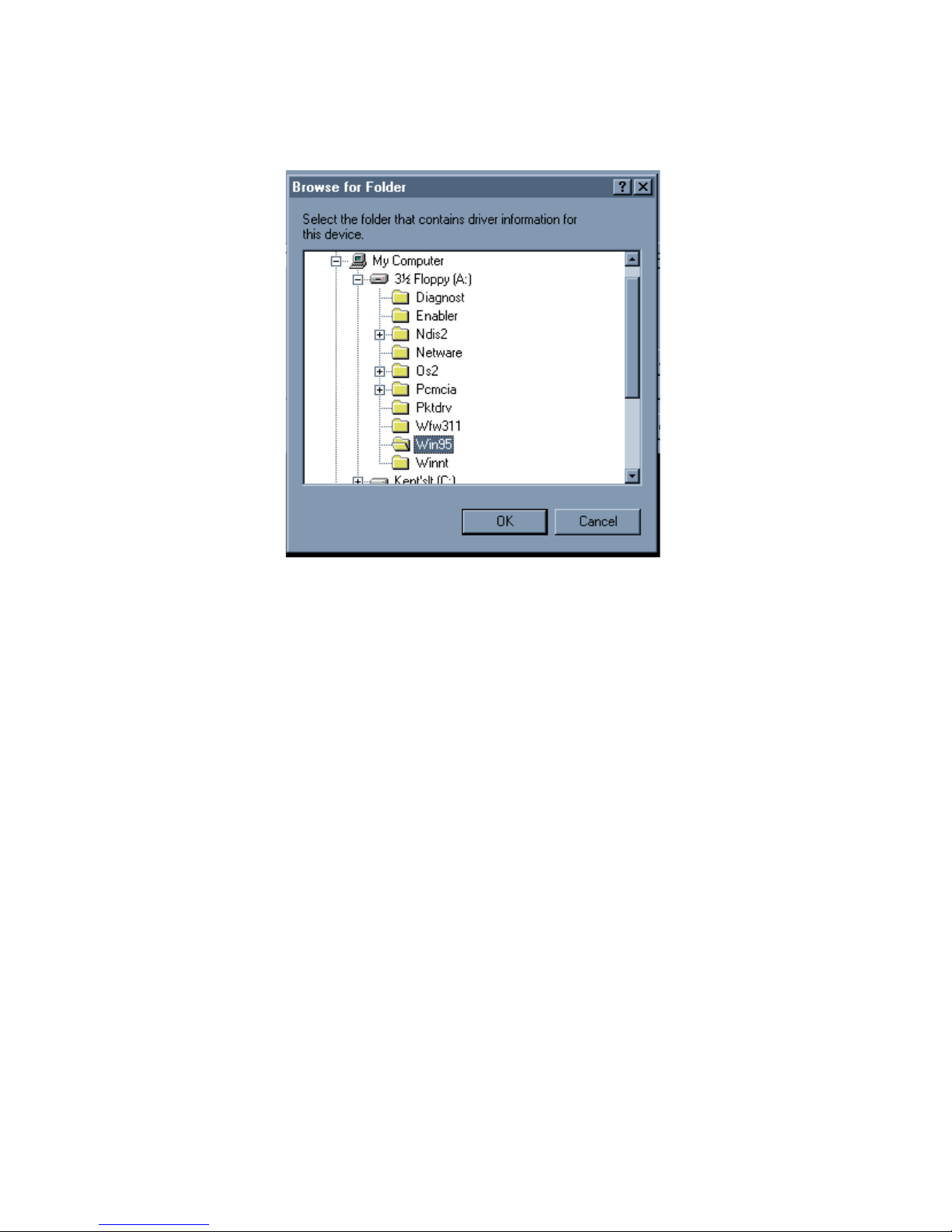

Figure 4-2a. Browse for Drivers Operating

System

4. Upon choosing your corresponding operating sys­tem, Click FINISH to install the driver.

Troubleshooting

39-MultiMobile

Figure 4-3. Driver Installation Completion

Service

40-MultiMobile

Chapter 5 - Service

This chapter begins with the terms of your
MT10100ZLX/Es warranty. Read carefully the next
section, Tech Support, if you have questions or prob­lems with your MT10100ZLX/E. It includes telephone
numbers and an explanation of how to send in your
MT10100ZLX/E should you require service. The final
sections explain how to use our bulletin board service
(BBS), and get support through CompuServe, the
Internet and the Multi-Tech Fax-Back System.

Limited Warranty

Multi-Tech Systems, Inc. (MTS) warrants that its
products will be free from defects in material or work­manship for a period of five years from the date of pur­chase, or if proof of purchase is not provided, five years
from date of shipment. MTS MAKES NO OTHER
WARRANTY, EXPRESSED OR IMPLIED, AND ALL
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE HEREBY DISCLAIMED. This warranty does
not apply to any products which have been damaged
by lightning storms, water, or power surges or which
have been neglected, altered, abused, used for a pur­pose other than the one for which they were manufac­tured, repaired by the customer or any party without
MTSs written authorization, or used in any manner
inconsistent with MTSs instructions.
MTSs entire obligation under this warranty shall be
limited (at MTSs option) to repair or replacement of
any products which prove to be defective within the
warranty period, or, at MTSs option, issuance of a re­fund of the purchase price. Defective products must be
returned by Customer to MTSs factory transportation
prepaid.

Service

41-MultiMobile

MTS WILL NOT BE LIABLE FOR CONSEQUEN­TIAL DAMAGES AND UNDER NO CIRCUM­STANCES WILL ITS LIABILITY EXCEED THE
PURCHASE PRICE FOR DEFECTIVE PRODUCTS.

Software User License Agreement

The MT10100ZLX/E software is licensed by Multi­Tech Systems, Inc. to the original end-user purchaser
of the product, hereafter referred to as licensee. The
License includes the distribution diskette, other accom­panying programs, and the documentation.

The MT10100ZLX/E software, hereafter referred to
as software, consists of the computer program files
included on the original distribution diskette.
Licensee agrees that by purchase and/or use of the Soft­ware, he hereby accepts and agrees to the terms of this
License Agreement.

In consideration of mutual covenants contained herein,
and other good and valuable considerations, the receipt
and sufficiency of which is acknowledged, Multi-Tech
Systems, Inc. does hereby grant to the Licensee a non­transferable and non-exclusive license to use the Soft­ware and accompanying documentation, on the follow­ing conditions and terms:

The Software is furnished to the Licensee for execu­tion and use on a single computer system only and may
be copied (with the inclusion of the Multi-Tech Sys­tems, Inc. copyright notice) only for use on that com­puter system.

Service

42-MultiMobile

The Licensee hereby agrees not to provide or other­wise make available any portion of this software in any
form to any third party without the prior express writ­ten approval of Multi-Tech Systems, Inc.

Licensee is hereby informed that this software contains
confidential, proprietary and valuable trade secrets de­veloped by or licensed to Multi-Tech Systems, Inc. and
agrees that sole ownership shall remain with Multi-Tech
Systems, Inc.

The Software is copyrighted. Except as provided herein,
the Software and documentation supplied under this
agreement may not be copied, reproduced, published,
licensed, sub-licensed, distributed, transferred, or made
available in any form, in whole or in part, to others
without expressed written permission of Multi-Tech
Systems, Inc. Copies of the software may be made to
replace worn or deteriorated copy for archive or emer­gency back-up procedures.

Licensee agrees to implement sufficient security mea­sures to protect Multi-Tech Systems, Inc. proprietary
interests and not to allow the use, copying or transfer
by any means, other than in accordance with this agree­ment.

Licensee agrees that any breach of this agreement will
be damaging to Multi-Tech Systems, Inc.

Service

43-MultiMobile

Tech Support

Multi-Tech has an excellent staff of technical support
personnel available to help you get the most out of your
Multi-Tech product. If you have any questions about
the operation of your Multi-Tech MT10100ZLX/E,
please call 1-800-972-2439. The software version num­bers are printed on the diskette labels. Before calling
Tech Support, please check your cables to ensure they
are connected properly; then note the status of your
MT10100ZLX/E including status indicators, screen
messages, problems with a specific application, etc.

On-line Warranty Registration

To register your Multi-Tech product on-line, click on
the following link:

http://www.multitech.com/support/register.htm

Service

44-MultiMobile

Service

If your tech support specialist decides that service is
required, you may send your MT10100ZLX/E to our
factory (freight prepaid). Return shipping charges will
be paid by Multi-Tech Systems (with North America).
Include the following with your MT10100ZLX/E:

· A description of the problem.

· Return billing and return shipping addresses.

· Contact name and phone number.

· Check or purchase order number for payment

if the MT10100ZLX/E is out of warranty. (The stan­dard repair charge for this MT10100ZLX/E is $95. This
price is valid at the time of this publication, but could
change in the future. Check with your technical sup­port specialist.)

· If possible, note the name of the technical support

specialist with whom you spoke.
If you need to inquire about the status of the returned
product, be prepared to provide the serial number of
the product sent.
Send MT10100ZLX/Es to the following address:

Multi-Tech Systems, Inc.

2205 Woodale Drive
Mounds View, MN 55112
Attn.: Service or Repairs

Service

45-MultiMobile

About the Multi-Tech BBS

Multi-Tech Systems maintains a bulletin board system
(BBS) for its customers. The information available via
the BBS includes new product information, product
upgrade data, problem-solving tips, and a message ser­vice you can use to request additional information. The
phone number for the Multi-Tech BBS is (612) 785­3702 or [phone] (USA and Canada).
The BBS can be accessed by any asynchronous mo­dem operating at speeds of 1200 bps to 33,600 bps at a
setting of 8 bits word length, no parity, and 1 stop bit
(8-N-1).

How to Use the Multi-Tech BBS

To use Multi-Techs BBS, perform the following steps.

1. Set your communications program to 8-N-1, and to
emulate ANSI (with MultiExpress software, press
ALT+Z and choose ANSI).

2. Dial our BBS at 1-800-392-2432 (USA and Canada)
or 612-785-3702 (international).

3. At the prompts, type your first name, last name, and
password; then press RETURN. If you are a first­time caller, after you press RETURN, the BBS will
ask if your name is spelled correctly. If you answer
yes, our questionnaire will be displayed. You can
use our BBS on your first call.

4. There are four BBS areas: the Main Menu, the Files
Menu, Bulletins (from the Main Menu), and the
Message Menu. All bulletins are menu-driven. To
read the bulletins, enter the number of the bulletin
you wish to read.

5. Files Menu: From the Main Menu, type F to dis­play the Files Menu. If you want a list of directo­ries, type L (list directory) and then type L again
for a list of all directories. If you do not type the

Service

46-MultiMobile

second L, you will list all of the files on the BBS.
At the list of directories, select the number of the
directory required. A list of files and a description
for each of the files will be displayed. Select a file
that you would like to download. If you already
know the file name, type D at the Files Menu to
download the selected file(s). Type V to view a text
file.

6. At the Message Menu, you can leave a message to
the sysop (you cannot read messages at this point).
The BBS will tell you if you have a personal mes­sage (mail). At the prompt Would you like to read it
now?, type R for read now. You must read your
message(s) when you first access the BBS.

About CompuServe/Internet

In addition to the BBS, Multi-Tech provides support
through CompuServes Modem Vendor Forum (GO
MODEMVEN) under GO MULTITECH. You can
download manuals, Help files, drivers, ARA and
Microsoft Mail scripts, and product descriptions from
Multi-Techs forum library. Please refer to your
CompuServe documentation for special operating pro­cedures.
Multi-Tech is a commercial user on the Internet, and
we retrieve messages from our customers on a peri­odic basis. If you prefer to receive technical support
via the Internet, please address your message to

[e-mail].

Multi-Tech also has a home page on the World Wide
Web. The address is: http://www.multitech.com.

Service

47-MultiMobile

About the Multi-Tech Fax-Back System

Multi-Techs fax-back system provides 24-hour access
to sales/marketing and technical literature.
Dial [phone], follow the voice prompts, and
enter the document number for either the Sales and
Marketing catalog or the Technical Support cata­log of available documents. For convenience, have your
fax number handy: _________________________.

From the Sales and Marketing catalog, you can request
to have newsletters, white papers, press releases, bro­chures, and other marketing literature faxed to you.
From the Technical Support catalog, you may request
basic modem operation information and troubleshoot­ing guides. With either catalog, simply enter the appli­cable FB Doc. # of the literature you wish to receive
from the left column of the catalog.

Regulations

48-MultiMobile

APPENDIX A - REGULATORY AGENCY INFORMA-

TION

FCC REGULATORY STATEMENTS
Consumer Instructions

1. This equipment complies with part 68 of the

Federal Communications Commission Rules. On the
outside surface of this equipment is a label that
contains, among other information, the FCC registra­tion number and ringer equivalence number (REN).
If requested, this information must be provided to the
telephone company.

2. As indicated below, the suitable jack (Universal

Service Order Code connecting arrangement) for this
equipment is shown. If applicable, the facility
interface codes (FIC) and service order codes (SOC)
are shown.

3. An FCC-compliant telephone and modular plug is

provided with this equipment. This equipment is
designed to be connected to the telephone network or
premises wiring using a compatible modular jack
which is Part 68 compliant. See installation instruc­tions for details.

4. The ringer equivalence number (REN) is used to

determine the quantity of devices not ringing in
response to an incoming call. In most, but not all
areas, the sum of the RENs should not exceed five
(5.0). To be certain of the number of devices tat may
be connected to the line, as determined by the total
RENs, contact the telephone company to determine
the maximum REN for the calling area.

5. If this equipment causes harm to the telephone

network, the telephone company will notify you in
advance that temporary discontinuance of service
may be required. But if advance notice is not
practical, the telephone company will notify the
customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC
if you believe it is necessary.

Regulations

49-MultiMobile

6. The telephone company may make changes in its

facilities, equipment, operations, or procedures that
could affect the operation of the equipment. If this
happens, the telephone company will provide
advance notice in order for you to make necessary
modifications in order to maintain uninterrupted
service.

7. If trouble is experienced with this equipment (the
model of which is indicated below) please contact
Multi-Tech Systems, Inc. at the address shown below
for details of how to have repairs made. If the
equipment is causing harm to the network, the
telephone company may request you to remove the
equipment from the network until the problem is
resolved.

8. No repairs are to be made by you. Repairs are to
be made only by Multi-Tech Systems or its licensees.
Unauthorized repairs void registration and warranty.

9. This equipment cannot be used on public coin
service provided by the telephone company. Connec­tion to Party Line Service is subject to state tariffs.
(Contact the state public utility commission, public
service commission or corporation commission for
information.)

10. If so required, this equipment is hearing-aid
compatible.

11. The telephone Consumer Protection Act of 1991
makes it unlawful for any person to use a computer
or other electronic device, including fax machines, to
send any message unless such message clearly
contains in a margin at the top or bottom of each
page or on the first page of the transmission, the date
and time is sent and an identification of the business
or other entity, or individual sending the message and
the telephone number of the sending machine or such
business, other entity, or individual.

Regulations

50-MultiMobile

In order to program this information into your fax
machine please refer to the installation instructions.

Manufacturer: Multi-Tech Systems, Inc.
Trade Name: MultiMobile

Model Number: MT10100ZLX/E
FCC Registration #:

Modular Jack (USOC): RJ45
Service Center in USA: Multi-Tech Systems, Inc.

2205 Woodale Drive
Mounds View, MN 55112
Phone: [phone]
Fax: [phone]

NOTE: This equipment has been tested and found to be
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a residen­tial installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and
used in accordance with the instruction manual, may cause
harmful interference to radio communications. However
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one
or more of the following measures:

Regulations

51-MultiMobile

Reorient or relocate the receiving antenna

Increase the separation between the equipment and
receiver.

Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician
for help.

Regulations

52-MultiMobile

This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference that may
cause undesired operation.

Warning: Changes or modifications to this unit not
expressly approved by the party responsible for compli­ance could void the users authority to operate the
equipment.

Canadian Limitations Notice

Notice: The ringer equivalence number (REN)

assigned to each terminal device provides an
indication of the maximum number of terminals
allowed to be connected to a telephone interface.
The termination of a interface may consist of any
combination of devices subject only to the require­ment that the sum of the ringer equivalence numbers
of all the devices does not exceed 5.

Notice: The Industry Canada label identifies certifi­cated equipment. This certification means that the
equipment meets certain telecommunications
network protective, operational and safety require­ments. The Industry Canada does not guarantee the
equipment will operate to the users satisfaction.
Before installing this equipment, users should ensure
that it is permissible to be connected to the facilities
of the local telecommunications company. The
equipment must also be installed using an acceptable
method of connection. The customer should be aware
that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be made by an
authorized Canadian maintenance facility designated
by the supplier. Any repairs or alterations made by

Regulations

53-MultiMobile

the user to this equipment, or equipment malfunc­tions, may give the telecommunications company
cause to request the user to disconnect the equip­ment.
Users should ensure for their own protection that the
electrical ground connections of the power utility,
telephone lines and internal metallic water pipe
system, if present, are connected together. This
precaution may be particularly important in rural
areas.
Caution: Users should not attempt to make such
connections themselves, but should contact the
appropriate electric inspection authority, or electri­cian, as appropriate.

Regulations

54-MultiMobile

EMC, Safety, and Terminal Directive

Compliance

The CE mark is affixed to this Multi-Tech product to
confirm compliance with the following European Com­munity Directives:
Council Directive 89/336/EEC of 3 May 1989 on the
approximation of the laws of Member States relating
to electromagnetic compatibility;
and
Council Directive 73/23/EEC of 19 February 1973 on
the harmonization of the laws of Member States relat­ing to electrical equipment designed for use within cer­tain voltage limits;
and
Council Directive 91/263/EEC of 29 April 1991 on the
approximation of the laws of the Member States con­cerning telecommunications terminal equipment, in­cluding the mutual recognition of their conformity.
each amended by
Council Directive 93/68/EEC of 22 July 1993 on the
harmonization of CE marking requirements.

Index

55-MultiMobile

Index

A

About This Manual ................................................. 5

About This Product................................................. 6

Artisoft Lantastic 6.0 Installation ......................... 24

Award Socket/Card Service .................................. 34

B

Browse for Drivers Operating System................. 38

Bulletin board systems ............................................45

C

Canadian Limitations Notice ................................ 52

Certifications .......................................................... 7

Comprehensive Driver Notes ............................... 12

CompuServe/Internet ............................................ 46

Consumer Instructions .......................................... 48

D

Diagnostics ............................................................. 7

Dimensions ............................................................. 7

Driver Installation Screen ..................................... 13

Driver Installtion ............................................ 37, 39

E

Enviroments Ranges ............................................... 7

Index

56-MultiMobile

F

FCC Regulatory Statements .................................. 48

Features................................................................... 6

I

IBM OS/2 Warp .................................................... 24

Installation ....................................................... 9, 12

Installing Card(s) ............................................. 9, 10

Introduction and Description ............................ 5, 31

L

LED Functions ...................................................... 11

M

Manual Driver Installation .................................... 14

Menu Installation .................................................. 13

Microsoft LAN Manager Installation Screen ....... 17

MS LAN Manager ................................................ 16

Multi-Tech BBS.................................................... 45

Multi-Tech Fax-Back System ............................... 47

Multi-Tech's BBS ................................................. 45

N

NDIS DRIVER ..................................................... 28

NDIS2 driver for IBM LAN Server 4.0 ............... 25

NDIS2 Driver for OS2 Warp ................................ 24

NDIS2 Driver for Workgroups ............................. 19

NDIS3 Driver for Workgroups ............................. 18

NetWare Request .................................................. 26

Network Interface Specifications............................. 6

NOS Selection Screen ...................................... 9, 12

Novell Client Installation ....................................... 14

Index

57-MultiMobile

O

ODI Driver for IBM OS/2 Warp ........................... 25

ODI Driver for Workgroups ................................. 20

ODI Driver/Netware server .................................. 35

On-line Warranty Registration .............................. 43

Operating Environment ........................................... 6

P

PACKET DRIVER ......................................... 18, 29

PC Card Installation................................................ 9

PCMCIA Service of OS/2 Warp .................... 24, 26

Phoenix Socket/Card Service ............................. 34

Power Requirements ................................................ 7

S

Service .................................................................. 40

Ship Kit Contents.................................................... 8

SOFTWARE INSTALLATION ............................ 12

System Requirements .............................................. 7

Systemsoft Card Service ........................................ 32

T

Technical support ............................. 43, 44, 45, 46

Troubleshooting .................................................... 31

U

Update Driver Installtion ......................................36

W

Warranty 40, 44

Windows 95 Driver Installation Screen ......................

........................................... 23, 36, 37, 38, 39

Index

58-MultiMobile

Windows for Workgroups 3.11 ............................. 18

WINDOWS FOR WORKGROUPS DRIVER ...... 29

Windows NT 3.51................................................. 22

Windows NT 4.0.................................................... 22
