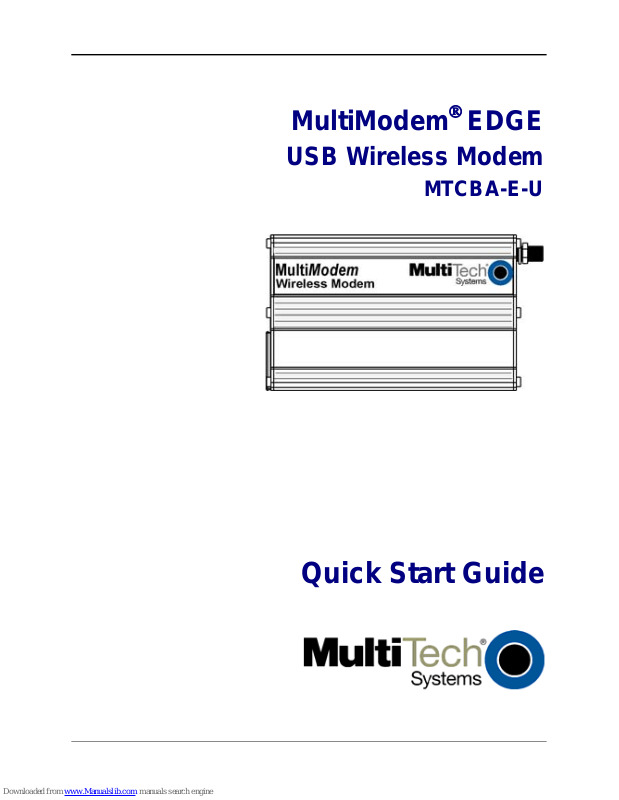

MultiModem® EDGE

USB Wireless Modem

MTCBA-E-U

Quick Start Guide

MultiModem EDGE USB Wireless Modem

2 Multi-Tech Systems, Inc. Quick Start Guide

Quick Start

MultiModem® EDGE
USB Wireless Modem
MTCBA-E-U-F4
82100341L, Revision I

Copyright

This publication may not be reproduced, in whole or in part, without prior
expressed written permission from Multi-Tech Systems, Inc. All rights reserved.

Copyright © 2006-08 by Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranties of merchantability
or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc.
reserves the right to revise this publication and to make changes from time to time
in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any
person or organization of such revisions or changes. Check Multi-Tech’s Web site
or product CD for current versions of our product documentation.

Record of Revisions
Revision Date Description

G 04/24/07 Updated the Technical Support contact list. Removed the

Multi-Tech Certified National Activation Agent statement.

H 10/08/07 Removed PhoneTools. Updated Package Contents. The

PN for this revision does not follow in sequence because
the next number (82100060L) was assigned to another
product.

I 02/27/08 Add Vista Operating System support.

Trademarks

Registered trademarks of Multi-Tech Systems, Inc. include MultiModem, the Multi­Tech logo, and Multi-Tech. All products or technologies are the trademarks or
registered trademarks of their respective holders.

Technical Support
Country By Email By Phone

Europe, Middle East, Africa [e-mail]

+(44) 118 959 7774

U.S., Canada, all others [e-mail]

[phone] or

[phone]

World Headquarters

Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, Minnesota 55112
[phone] or [phone]
Fax [phone]
Internet Address: http://www.multitech.com

MultiModem EDGE USB Wireless Modem

Multi-Tech Systems, Inc. Quick Start Guide 3

Introduction

This guide shows you how to set up your Multi-Tech wireless
MultiModem. For detailed information, product specifications,
troubleshooting tips, and more, see the User Guide, available on the
MultiModem CD accompanying your wireless modem.

General Safety

The modem is designed for and intended to be used in fixed and mobile
applications. “Fixed” means that the device is physically secured at one
location and is not able to be easily moved to another location. In a
“Mobile” application, the device may be moved regularly from one
location to another.

Caution: Maintain a separation distance of at least 20 cm (8 inches)

between the transmitter’s antenna and the body of the user or nearby
persons. The modem is not designed for, nor intended to be, used in
applications within 20 cm (8 inches) of the body of the user.

RF Interference Issues

Avoid possible radio frequency (RF) interference by carefully following
the safety guidelines below.

• Switch OFF the MultiModem when in an aircraft. The use of cellular

telephones in aircraft is illegal. It may endanger the operation of the
aircraft and/or disrupt the cellular network. Failure to observe this
instruction may lead to suspension or denial of cellular services to
the offender, legal action, or both.

• Switch OFF the MultiModem in the vicinity of gasoline or diesel-fuel

pumps or before filling a vehicle with fuel.

• Switch OFF the MultiModem in hospitals and any other place where

medical equipment may be in use.

• Respect restrictions on the use of radio equipment in fuel depots,

chemical plants, or in areas of blasting operations.

• There may be a hazard associated with the operation of your

MultiModem in the vicinity of inadequately protected personal
medical devices such as hearing aids and pacemakers. Consult the
manufacturers of the medical device to determine if it is adequately
protected.
