Page 1

MULTI-TASKER™

MANUAL PART NUMBER: 400-0095-004

MT109-100

8-IN, 1-OUT STEREO AUDIO SWITCHER

CARD FOR MULTI-TASKER™

USER’S GUIDE

Page 2

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS.............. 2

GENERAL......................................................... 2

CLEANING........................................................ 2

FCC / CE NOTICE............................................. 2

ABOUT YOUR MT109-100..................................3

TECHNICAL SPECIFICATIONS ......................... 3

DESCRIPTION OF MT109-100 ........................... 4

APPLICATION DIAGRAM.................................... 5

DIAGRAM 1: TYPICAL CONFIGURATION........ 5

DIAGRAM 2: INTERNAL VIEW......................... 6

DIAGRAM 3: JUMPER SETTINGS.................... 7

MULTI-TASKER™

DIAGRAM 4: 15 IN, 1 OUT SWITCHER............ 8

INSTALLING YOUR MT109-100.......................... 9

OPERATION........................................................ 9

RS-232 CONTROL............................................ 9

DESCRIPTION OF COMMANDS.................... 10

MENU MODE.................................................. 17

TROUBLESHOOTING GUIDE........................... 21

LED IS NOT LIT .............................................. 21

LED IS BLINKING RED...................................22

NO SOUND..................................................... 22

SOUND DISTORTION..................................... 22

SOUND LEVEL IS LOW..................................22

ALTINEX POLICY.............................................. 23

LIMITED WARRANTY/RETURN POLICY....... 23

CONTACT INFORMATION.............................. 23

Page 3

MULTI-TASKER™

PRECAUTIONS / SAFETY WARNINGS 1

Please read this manual carefully before using your MT109-100. Keep this manual handy for future reference. These safety instructions are to ensure the long life of your MT109-100 and to prevent fire and shock hazard. Please read them carefully and heed all warnings.

1.1 GENERAL

• Qualified ALTINEX service personnel, or their

authorized representatives must perform all service.

• To prevent fire or shock, do not expose this unit

to rain or moisture. Do not place the MT109-100 in direct sunlight, near heaters or heat radiating appliances, or near any liquid. Exposure to direct sunlight, smoke, or steam can harm internal components.

• Handle the MT109-100 carefully. Dropping or

jarring can damage the card.

• Do not pull the cables that are attached to the

MT109-100.

• Insert the card carefully into the slots of the

Multi-Tasker™ without bending any edges.

• When removing a card, pull it halfway through

to avoid damage to internal cables. If an expansion card is being removed, please make sure that the Main card to which it is attached is also pulled out simultaneously.

1.3 CLEANING

1.4 FCC / CE NOTICE

• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

• Any changes or modifications to the unit not expressly approved by ALTINEX, Inc. could void the user’s authority to operate the equipment.

• Clean only the connector area with a dry cloth. Never use strong detergents or solvents, such as alcohol or thinner. Do not use a wet cloth or water to clean the card. Do not clean or touch any component or PCB.

Page 4

MULTI-TASKER™

ABOUT YOUR MT109-100 2

MT109-100

8-in 1-out Stereo Audio Switcher Card

The MT109-100 is a Stereo Audio Switcher Card designed for use with the MultiTasker™. When installed in the Basic Enclosure (MT100-100), this card allows the connection of six stereo audio sources to a single receiving device, such as a cassette recorder, mixer, and/or amplifier for sound reinforcement.

Inputs are selected via easy-to-use ASCII commands from a control system or computer connected to the RS-232 port of the MultiTasker™ Basic Enclosure. While the MT109-100 can accept only unbalanced audio inputs, the output can be wired for either balanced or unbalanced audio.

The MT109-100 is primarily designed to utilize the inputs and output offered on the connector panel. However, it also offers a "hidden" feature that enables access to the MultiTasker signal bus. The signal bus spans the width of the MultiTasker Basic Enclosure along the back plane of the unit. Through RS-232 control, the MT109-100 can send or receive stereo audio signals to or from this bus, from any of the applicable cards in the enclosure.

This feature can be used in a variety of ways to expand the capabilities of the card. For example, two MT109-100 cards can be installed in the MultiTasker and the output of one can be routed to an input of the other, creating a 15-input 1-output switcher. Note that the signal bus handles only one stereo audio signal path at a time.

TECHNICAL SPECIFICATIONS 3

FEATURES/DESCRIPTION MT109-100 GENERAL Inputs

Input Connectors

Outputs

Local Monitor Output Connector Compatibility Stereo or Mono Audio

Table 1. MT109-100 General

MECHANICAL MT109-100

Basic Enclosure Slots Required Weight 1.0 lb (0.45 kg) Connector Panel Black T° Operating 10°C-40°C T° Maximum 0 to 50°C Humidity 90% non-condensing MTBF (calc.) 55,000 hrs

Table 2. MT109-100 Mechanical

ELECTRICAL MT109-100 Input Signals

Max Level 0 dBu Impedance 10k Ohms

Audio Throughput

Gain Frequency Response

Noise Floor -100 dB @ 20 kHz CMRR >80 dB, 10 Hz to 20 kHz

Output Signals

Level 1V p-p Impedance Low – drives 600 Ohms Gain 0 dB

Power

Power from MT100-100 MT109-100 20mA20mA25mA22

+6V -6V +13V -13V

Table 3. MT109-100 Electrical

(8) 3.5mm stereo

audio jack

(1) 5-pin Terminal

Block

One

0 dB unbalanced,

6dB balanced

10 Hz to 20 kHz

(+/- 0.05 dB)

Power Consumption

0.85 watts

Page 5

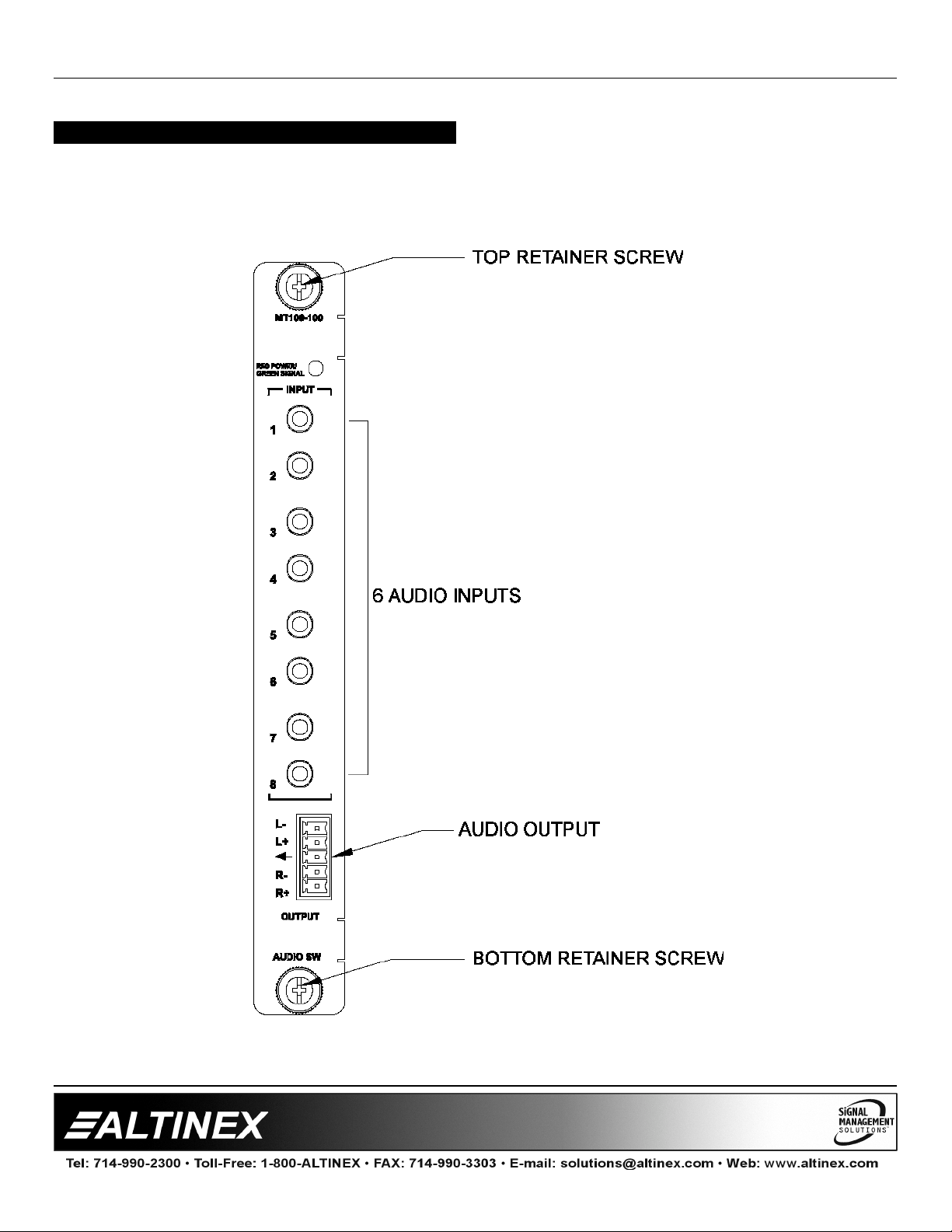

DESCRIPTION OF MT109-100 4

MULTI-TASKER™

Page 6

APPLICATION DIAGRAM 5

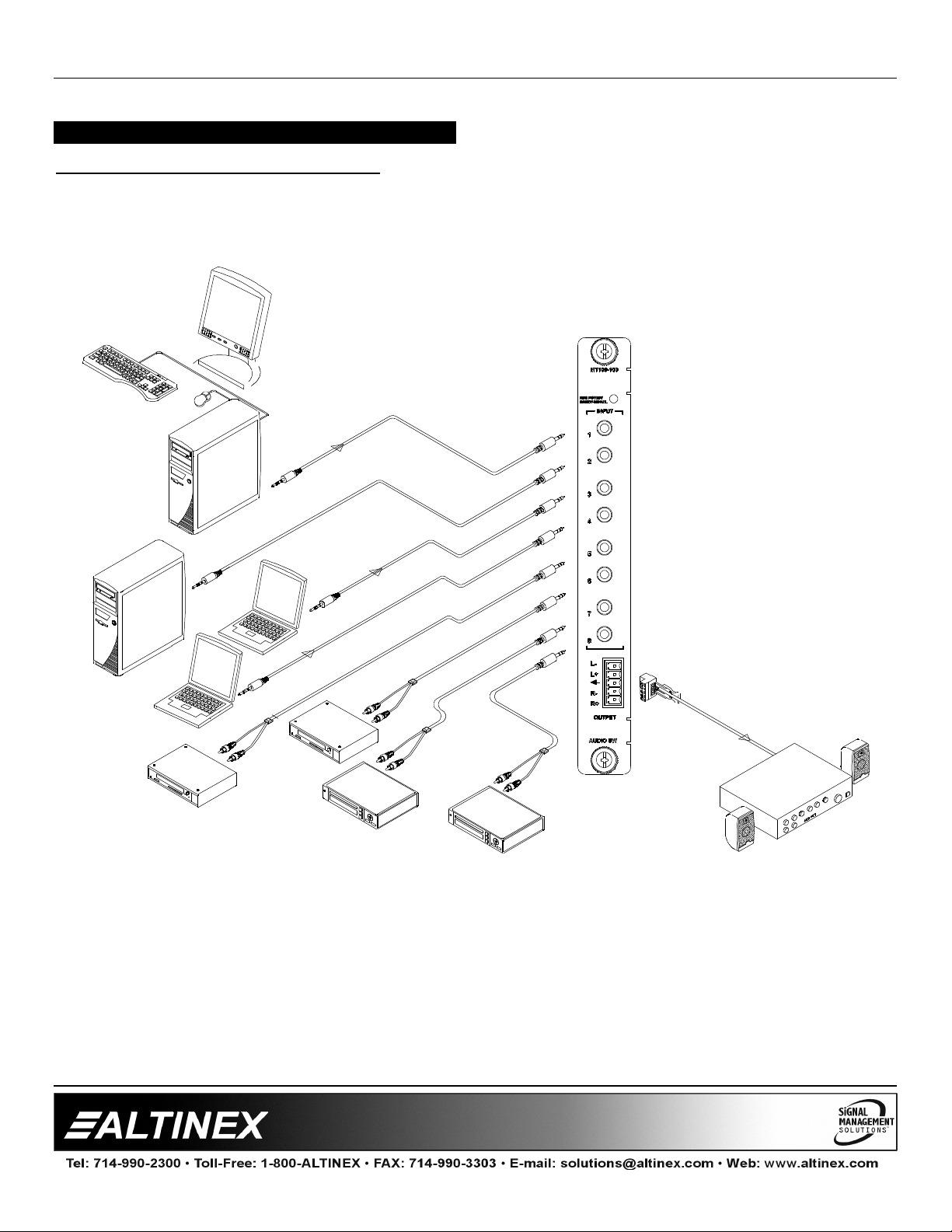

DIAGRAM 1: TYPICAL CONFIGURATION

MULTI-TASKER™

MT109-100

Page 7

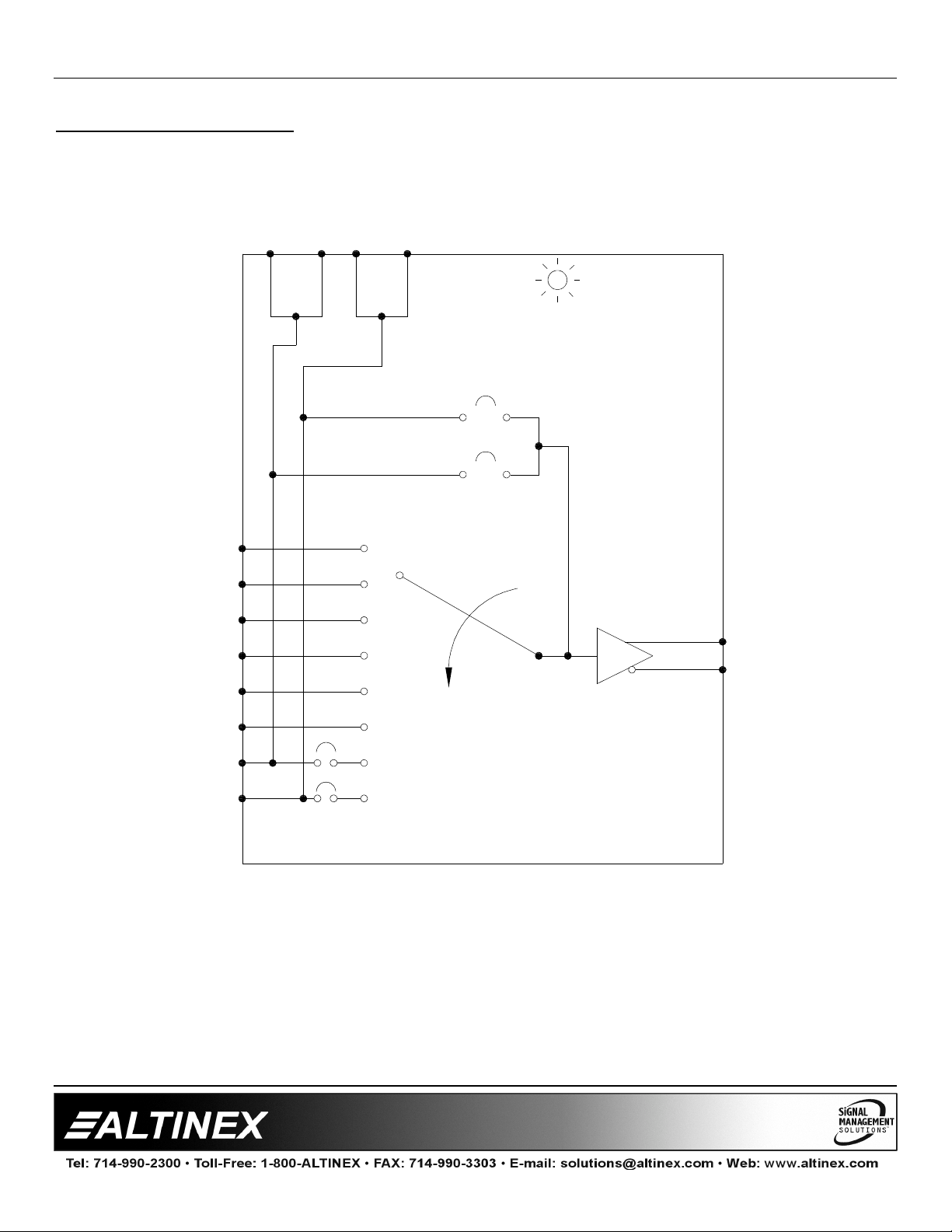

DIAGRAM 2: INTERNAL VIEW

AUDIO

MULTI-TASKER™

INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5

EXP 1

EXP 2 EXP 4

EXP 3

POWER

OUT

INPUT 6 INPUT 7 INPUT 8

Page 8

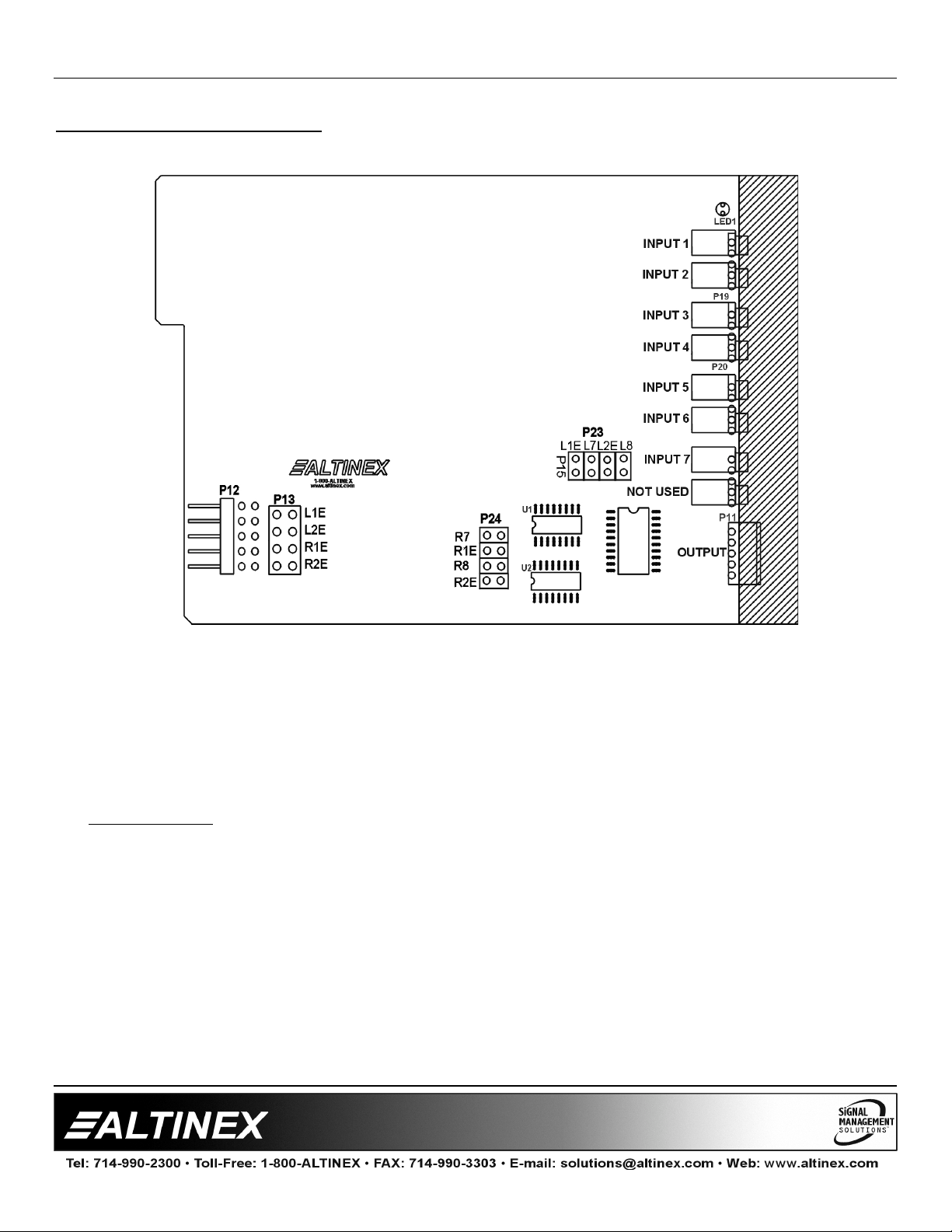

DIAGRAM 3: JUMPER SETTINGS

MULTI-TASKER™

The MT109-100 has 8 external inputs with 1 internal input and 1 output. The internal input is from the Expansion card through a 10-pin ribbon cable, which is connected between P12 of the Expansion card and P12 of the Master card. The 4 external inputs are configured as inputs 1 thru 8.

The 1 internal input is configured as input 7 or input 8. Only one of two internal inputs is used at a time and it depends on how the jumpers on the Expansion are set.

Setting Jumpers:

1) As an Expansion card: set P13 as port 7 (L1E and R1E) or port 8 (L2E and R2E)

2) As a Master card: set jumpers on P23 and P24 as described below. If the Expansion card's jumpers on P13 are set on L1E and R1E, the Master card must select internal

input 7 on P23 (L1E) and P24 (R1E). If the Expansion card's jumpers on P13 are set on L2E and R2E, the Master card must select internal

input 8 on P23 (L2E) and P24 (R2E). Note: The MT109-100 configuration is 8-in, 1-out stereo audio switcher. For a 15-in, 1-out switcher

configuration, use two MT109-100 cards. One as a Master card and the other as an Expansion card. (See page 9.)

Page 9

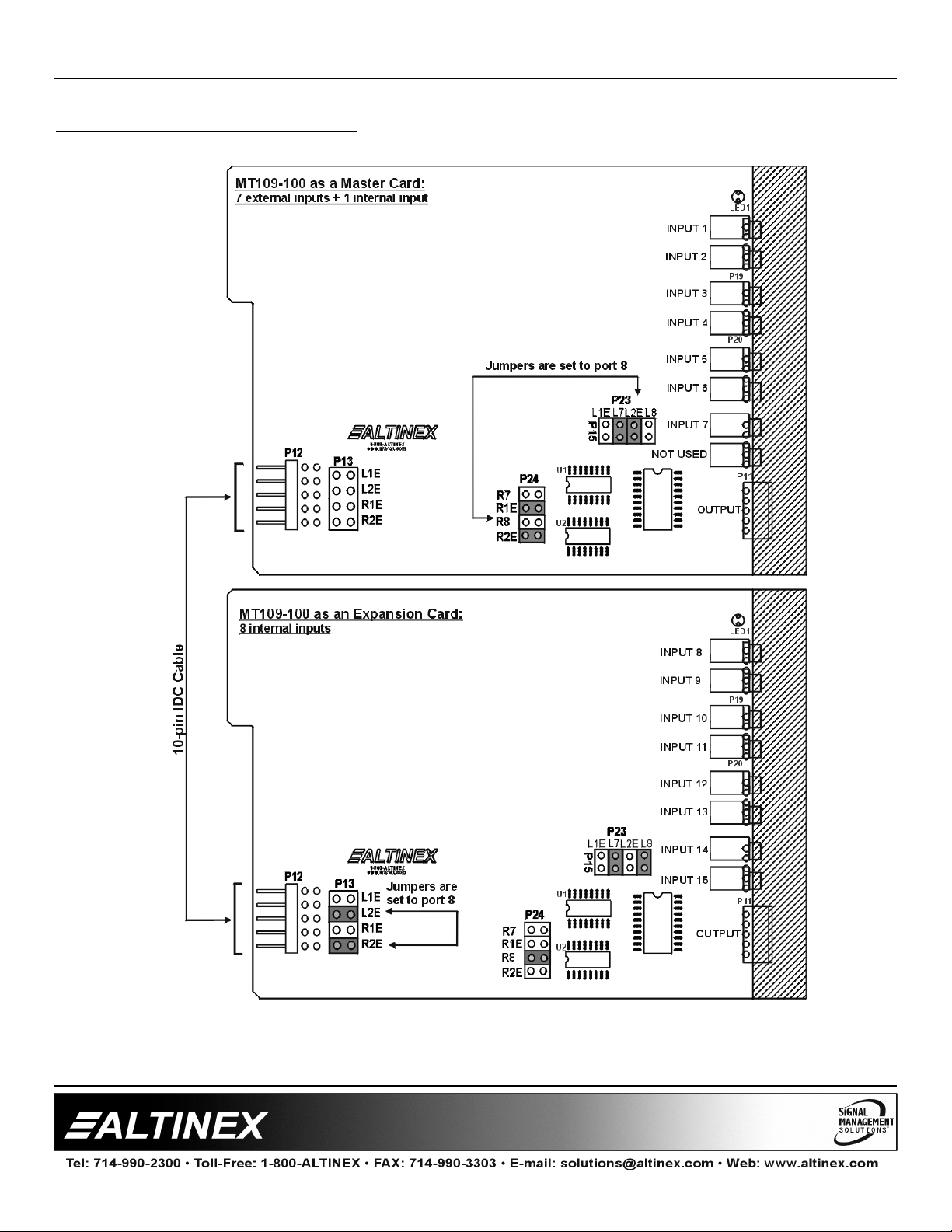

DIAGRAM 4: 15 IN, 1 OUT SWITCHER

MULTI-TASKER™

Page 10

MULTI-TASKER™

INSTALLING YOUR MT109-100 6

Step 1. Determine how the MT109-100 is going

to be configured. The MT109-100 is configured as an 8-in

1-out Stereo Audio Switcher. It may be configured as a system with 15-in, 1-out using two MT109-100 cards. One card is configured as a Master card and the other is configured as an Expansion card.

In Application Diagram, DIAGRAM 4, on page 8, the Master card is set to accept 7 external inputs, 1 internal input and 1 output. The Expansion card has 8 external inputs (inputs 8 thru15). For RS-232 commands, the 8 external inputs of the Expansion card must still be configured as inputs 1 thru 8.

For example, if the master card is at slot 1 and the Expansion card is at slot 2, to select inputs 1 thru 4, use the following commands to select different inputs:

To select input 1: [ON1C1]

2: [ON2C1] 3: [ON3C1] 4: [ON4C1] 5: [ON5C1] 6: [ON6C1] 7: [ON7C1]

To select input 8: [ON8C1] [ON1C2]

9: [ON8C1] [ON2C2] 10: [ON8C1] [ON3C2] 11: [ON8C1] [ON4C2] 12: [ON8C1] [ON5C2] 13: [ON8C1] [ON6C2] 14: [ON8C1] [ON7C2] 15: [ON8C1] [ON8C2]

Step 2. Slide the MT109-100 into an available

slot in the Multi-Tasker™ Basic Enclosure in order to connect to the bus. Make sure that the MT109-100 card fits into place. Secure the card to the Multi-Tasker™ by tightening the retainer screws located on the top and bottom of the card.

Step 3. The LED on the card panel will turn red

indicating that the card is in full operation. A green LED indicates that a signal is present. An LED that is blinking red indicates that the card is experiencing a problem. If the LED is blinking, see Troubleshooting Guide in section 8.

Step 4. Connect audio cables from the audio

source to the input connector of the MT109-100. Connect the output connectors of the MT109-100 to the audio equipment through an audio cable.

Step 5. Starting from the left, identify the slot

number where the MT109-100 card is plugged into the Enclosure and note that it is for RS-232 control.

OPERATION 7

7.1 RS-232 CONTROL

When used in the Multi-Tasker™ Enclosure, the MT109-100 has many advanced remote control capabilities, which are accessible through standard RS-232 communication. The actual controlling can be accomplished through a computer control system or any other device capable of sending RS-232 commands.

7.1.1 RS-232 INTERFACE

The RS-232 commands, for the MT109-100, are in a simple ASCII character format.

1. Square brackets “[ ]” are part of the command.

2. Use uppercase letters for all commands.

After processing a command, an OK or ER will be returned as feedback if "F" is included at the end of a command string.

Commands ending in "S" will be saved into memory. Commands not ending in "S" will still be executed but will not be restored when the system is reset or powered OFF then ON.

Page 11

MULTI-TASKER™

7.2 DESCRIPTION OF COMMANDS

Each command consists of three parts: Function, Card ID, and Unit ID.

[ Function , Card ID , Unit ID ]

Example: [VERC3U2] VER = Function

C3 = Card ID U2 = Unit ID

For Function, see a detailed explanation under each command description.

The Card ID is an assigned value. It is equal to the enclosure slot number in which the card is installed. The value can range from 1 to 4, 1 to 8, or 1 to 19 depending on the enclosure.

Card ID 0 (C0) is used for the controller. See the MT100-100 User’s Guide for details.

Changing the position of a card will significantly affect the commands recorded on software definitions or third party control systems.

The Unit ID has a value from 0 to 9. Unit ID 0 should be used for single unit operation. If the Unit ID is set to zero, each command may be used without Ui. Use the command [SETU0], as explained in the MT100-100 User’s Guide.

Example: [VERC3]: For Unit ID Zero

[VERC3Ui]: For Unit ID other than Zero [VERC3]: Equivalent to [VERC3U0]

Example: Send the command [VERC2] to check the

version of the MT109-100 in slot 2. The system will return the following feedback:

MT109-100 690-0179-003 MT109-100 = card type

690-0179-003 = software version

2. [C] This command receives the status of the card. Command Format: [CnUi] Cn = card ID (n = # from 1 to max slots)

Ui = unit id (i = 0 to 9) Example: An MT109-100 card is in slot #4. Sending the

command [C4] to the Multi-Tasker™ will yield feedback similar to the following:

ON 1 C04 OUTVOL=32/32 INVOL1=32/32 INVOL2=32/32 INVOL3=32/32 INVOL4=32/32 INVOL5=32/32 INVOL6=32/32 INVOL7=32/32 INVOL8=32/32

If there is no card in slot #4, sending the [C4] command will not return any feedback.

1. [VER] This command displays the software version

and card type for the card. Command Format: [VERCnUi] Cn = Card ID (n = # from 1 to max slots)

Ui = Unit ID (i = # from 0 to 9)

3. [CnS] This command saves the status of the card's

current settings. This configuration will be restored after system is reset or powered off then on.

Cn = card number S = save configuration

Page 12

MULTI-TASKER™

Example: Save the card's current settings by sending the

command [C4S]. The feedback will indicate the card settings were saved and display the saved settings. In the example below, the output volume is set to 20, the active input is 5 and all the input volumes are set to 16.

ON 5 C04 Saved OUTVOL=20/32 INVOL1=16/32 INVOL2=16/32 INVOL3=16/32 INVOL4=16/32 INVOL5=16/32 INVOL6=16/32 INVOL7=16/32 INVOL8=16/32

4. [?] This command will return general information

about the card and the status. Command Format: [?CnUi] Cn = Card ID (n = # from 1 to max slots)

Ui = Unit ID (i = from 0 to 9) Example: Send the command [?C5] to receive the

feedback for the MT109-100 in slot #5. Each status field begins with a '+' and ends with the card slot number (ex: C05). The feedback will be similar to the following:

[+MT109-100C05+VR690-0179-003C05 +IN1C05+VO32C05+VI3232323232323232C05 +VM0C05]

5. [CLR] This command clears the card's settings and

returns them to the factory defaults. Command Format: [CLRCnUi] Cn = Card ID (n = # from 1 to max slots)

Ui = Unit ID (i = from 0 to 9) Example: Send the command [CLRC5] to reset the

MT109-100 in slot #5 to its factory defaults.

6. [STA] This command enables/disables automatic

feedback from the front panel. The command affects any card with auto -feedback capability, not just the MT109-100.

Command Format [STA1] = ON Command Format [STA0] = OFF

Feedback Prefix Definitions: +VR = Firmware Version +IN = Input Selected +VO = Output Volume +VI = Input Volume +VM = Mute Control

Example 1: Command = [ON1C5]

Feedback = [+IN1C05]

+IN = Input Select 1 = Selected Input C05 = Card slot number

Example 2: Command = [VOL1A22C5]

Feedback = [+VO16C05]

+VO = Output Volume 16 = Volume Level C05 = Card slot number

MT109-100 = Card Type VR690-0179-003 = Firmware version IN1 = Input 1 is the selected input VO32 = Output volume is at 32 VI3232323232323232 = Input 1-8 volume levels

in two digit format

Page 13

MULTI-TASKER™

7. [SEL] with [ + ] and [ - ] This command is the volume select command.

It sets the path to adjust the output volume or the volume level of a specified input and is used in conjunction with the [ + ] and [ - ] commands.

Command Format: [SELmCnUi] m = Input (m # from 0 to 8)

0 = Output volume 1 = Input 1 volume 2 = Input 2 volume …

8 = Input 8 volume Cn = Card Slot Number Ui = Unit ID (i = # from 0 to 9) [+] = Increment level by one [-] = Decrement level by one

Example: An MT109-100 is in slot #8. Adjust the volume

on Input 2. The current volume level is set to

10. After sending the following commands, a better volume level of 15 is obtained:

Example 1: Set the volume level for Input 2, of the card in

slot #8, to a level of 16 using the command [VOL2A16C8].

Example 2: Set the output volume level to 16 for the card in

slot #8 using the command [VOL0A16C8] or [VOLA16C8].

9. [RUP] This command ramps the output volume to its

maximum level at the rate defined using the [RAMP] command.

Command Format: [RUPCnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9) Example: Ramp the output volume from a starting level of

10 to the maximum level of 32 for the card in slot #8. Send the command [RUPC8] and the system will respond with the following feedback:

1. [SEL2C8] The current volume level is 10.

2. [ - ] [ - ] [ - ] The level is now 7 and is too quiet.

3. [ + ] [ + ] [ + ] [ + ] [ + ] [ + ] [ + ] [ + ] The level is now 15 and no further

adjustments are required.

8. [VOL] This command sets the absolute volume level

for the output volume or an input volume. Command Format: [VOLmAvCnUi] m = Input (m # from 0 to 8)

0 = output volume 1 = input 1 volume …

8 = Input 8 volume v = Volume Level (# from 01 to 32) Cn = Card Slot Number Ui = Unit ID (i = # from 0 to 9)

[11][12][13][14]…[32]

10. [RUP=xx] This command ramps the output volume to a

user defined level at a rate defined using the [RAMP] command.

Command Format: [RUP=xxCnUi] xx = Stop Level (xx = # from 01-32)

Cn = Card Slot Number Ui = Unit ID (i = # from 0 to 9)

Example: Ramp the output volume from a starting level of

1 to a level of 20 for the card in slot #8. Send the command [RUP=20C8] and the system will respond with the following feedback:

[02][03][04]…[20]

Page 14

MULTI-TASKER™

11. [RDN] This command ramps the output volume down

to a level of 1 at a rate defined using the [RAMP] command.

Command Format: [RDNCnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9) Example: Ramp the output volume from a starting level of

32 down to 1 for the card in slot #8. Send the command [RDNC8] and the system will respond with the following feedback:

[31][30][29]…[01]

12. [RDN=xx] This command ramps the output volume down

to a user defined level at a rate defined using the [RAMP] command.

Command Format: [RDN=xxCnUi] xx = Stop Level (xx = # from 01-32)

Cn = Card Slot Number Ui = Unit ID (i = # from 0 to 9)

Example: Ramp the output volume from a starting level of

32 down to 16 for the card in slot #8. Send the command [RDN=16C8] and the system will respond with the following feedback:

[31][30][29]…[16]

13. [RAMP] This command displays the ramping time for 32

steps. The time between each step is equal to the time in seconds divided by 32.

Command Format: [RAMPCnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9)

Example: Display the ramp rate setting for the card in slot

#8 by sending the command [RAMPC8]. The system will respond with feedback similar to the following:

RAMPTIME = 6 SECONDS

14. [RAMP=x] This command sets the ramp rate for 32 steps.

The settings range from 4 to 18 seconds, in two-second intervals.

Command Format: [RAMP=xCnUi] x = Rate in Seconds

4 = 0.13 seconds/step 6 = 0.19 seconds/step 8 = 0.25 seconds/step 10 = 0.31 seconds/step 12 = 0.38 seconds/step 14 = 0.44 seconds/step 16 = 0.50 seconds/step

18 = 0.56 seconds/step Cn = Card Slot Number Ui = Unit ID (i = # from 0 to 9)

Example: There is an MT109-100 in slot #5. Send the

command [RAMP=16C5] to set the ramp rate to 16 seconds. After this is set, any ramping will occur at a rate of 32 steps in 10 seconds, or

0.50 seconds per step. Confirm the setting by sending the command [RAMPC5] and receiving the feedback:

RAMPTIME = 10 SECONDS

15. [RST] This command stops ramping and maintains the

last volume setting. Command Format: [RSTCnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9)

Page 15

MULTI-TASKER™

Example: The card in slot #8 is ramping from 1 to 32 at a

rate of 32 steps in 18 seconds. Send the command [RSTC8] and the card will stop ramping the output volume. The last displayed volume setting will remain the current volume level.

16. [MUT0] This command turns ON the output volume

without changing the input port selected and without changing any volume settings.

Command Format: [MUT0CnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9) Example: Send the command [MUT0C5] to turn on the

output volume for the card in slot #5.

17. [MUT1] This command turns OFF the output volume

without changing the input port selected and without changing any volume settings.

Command Format: [MUT1CnUi] Cn = Card Slot Number

Ui = Unit ID (i = # from 0 to 9) Example: Send the command [MUT1C5] to turn off the

output volume for the card in slot #5.

18. [ON] This command will enable an input, or turn on

the output volume of the card. When used to turn on the output volume, it is equivalent to the [MUT0] command.

Command Format, Input Enable: [ONmCnUi] Command Format, Volume: [ONCnUi] m = Input number (m = # from 1 to 8)

n = Card ID (n = # from 1 to max slots) i = Unit ID (i = # from 0 to 9)

Example - Input Enable: There is an MT109-100 card in slot #5.

1) [ON1C5]: Turns ON only Input 1.

2) [ON3C5]: Turns ON only Input 3. Input 1 is now OFF.

Example - Output Volume Send the command [ONC5] to turn ON the

output volume for card #5. PATH OPERATION Command Format: [ONmCnUiP] This command will set the path for the output,

but it is not active until the switch command, [SW], is executed. Commands ending in "P" are not executed immediately. The path for outputs on multiple cards or the same card may be preloaded.

m = Input number (m = # from 1 to 8) n = Card ID (n = slot # from 1 to max slots) i = Unit ID (i = # from 0 to 9) P = Path

Example: There are two MT109-100 cards in slots 6 and

7. Enable Input 1 of card 6 and Input 3 of card

7 simultaneously. To do this, send the following commands:

[ON1C6P] [ON3C7P] [SW]

If "F" is included, use the [ONmCnUiPF] command or the [ONmCnUiFP] command.

FEEDBACK OPERATION Command Format: [ON…..F] After processing a command, an OK or ER will

be returned as feedback if "F" is included at the end of a command string.

Example: [ON1C2U3F]: if path is not set

[ON1C2U3PF]: if path is set

Page 16

MULTI-TASKER™

19. [OFF] This command turns off the output volume

without changing the input selection or any volume settings, and is equivalent to the [MUT1] command.

Command Format: [OFFmCnUi] m = Input number (m = # from 1 to 8)

n = Card ID (n = # from 1 to max slots) i = Unit ID (i = # from 0 to 9)

Example: Card 5 has Input 1 ON and a volume level of

16. Sending the command [OFFC5], turns OFF the output volume, but leaves the volume settings unchanged. When the output volume is turned back on, the original volume level of 16 will be retained.

PATH OPERATION Command Format: [OFFmCnUiP] This command will set the path for the output,

but it is not active until the switch command, [SW], is executed. Commands ending in "P" are not executed immediately. The path for outputs on multiple cards or the same card may be preloaded.

m = Input number (m = 1 to 8) n = Card ID (n = # from 1 to max slots) i = Unit ID (i = # from 0 to 9) P = Path

FEEDBACK OPERATION Command Format: [OFF…..F] After processing a command, an OK or ER will

be returned as feedback if "F" is included at the end of a command string.

Example: [OFFC2F]: if path is not set

[OFFC2PF]: if path is set

20. […S] – Save This command will save the configuration

command being sent in memory. When sending the command [VOL1A16C5S], after reset or power up, Input 1 on C5 will be restored with an input volume level of 16.

21. […F] – Feedback After processing a command, an OK or ER will

be returned as feedback if "F" is included at the end of a command string.

22. […P] – Path This command will set the path for the output,

but it is not active until the switch command, [SW], is executed. Commands ending in "P" are not executed immediately. The path for outputs on multiple cards or the same card can be preloaded. See examples in ON and OFF commands.

23. [SW] – Switch

Example: There are two MT109-100 cards in slots 6 and

7. Turn OFF the output volume on both cards simultaneously using the commands:

[OFFC6P] [OFFC7P] [SW]

If "F" is included, use the [OFFmCnUiPF] command or the [OFFmCnUiFP] command.

The switch command immediately connects inputs and outputs, which were previously set with the path command on this card and all other cards in the MT100-100.

Example: [ON1C6P]

[ON3C7P] [SW]

The system will return feedback as OK if the unit ID is zero.

Page 17

MULTI-TASKER™

24. [TEST] This command performs a series of internal

tests on the internal memory. Upon completion, the system will display

"MEMORY IS GOOD" if all tests pass. Otherwise, failures will be indicated.

25. [HELP] This command displays information available

for the Multi-Tasker interface commands. Command Format: [HELPCnUi] Cn = card ID (n = # from 1 to max slots)

Ui = Unit ID (i = # from 0 to 9) Example: In order to display the RS-232 commands

available for the MT109-100 card in slot 2, send the command [HELPC2]. The commands along with a brief description will be displayed in the Terminal Window.

26. [WR] This command groups multiple cards in the

Enclosure. Each unit contains a maximum of nine groups.

Example: To group cards 1, 2, and 3 as group 5 of

Unit ID 1, send the command [WRC1C2C3G5U1]. After executing this command, cards 1, 2 and 3 will be grouped together as group 5 of Unit ID 1.

27. [CLRG] This command clears the members for a single

group or for all nine groups. The clear command restores the cards to default settings.

Command Format: [CLRGkUi] Gk = Group number (k = # from 1-8)

Ui = Unit ID (i = # from 0-9) Example:

1) To clear group 1, send the [CLRG1U1]

command. This command clears the members for the specified group only.

2) To clear all groups of Unit ID 1, send the

[CLRG[U1] command.

28. [RD] This command displays the members in each

group.

In Multi-Tasker™ systems with audio and video cards, boards are typically grouped as follows:

Group 1 = Video Cards Group 2 = Audio Cards Group 3 = Video and Audio Cards

If assigning group commands to button functions, it is best to use the "Press and Hold on Power Up" to make group settings.

Command Format: [WRCn…GkUi] Cn = Card ID (n = slot # from 1 to max slots)

Gk = Group number (k = # from 1-8) Ui = Unit ID (i = # from 0-9)

Command Format: [RDGkUi] Gk = Group number (k = # from 1-8)

Ui = Unit ID (i = # from 0-9) Example: The cards in slots 1, 2 and 19 are part of

group 5 in Unit ID 1. Read the member data for group 5 of Unit ID 1, by sending the command [RDG5U1]. The system will return feedback as follows:

C1C2C19 G5U1 C1 = Card in Slot 1

C2 = Card in Slot 2 C19 = Card in slot 19 G5 = Group 5 U1 = Unit ID 1

Page 18

MULTI-TASKER™

29. [CLM] This command removes the members in a

group and leaves the group empty. Command Format: [CLMGkUi] Gk = Group number (k = # from 1-8)

Ui = Unit ID (i = # from 0-9) Example: Group 5 of Unit ID 1 contains the cards in slots

1, 2 and 19. Read the member data for group 5 of Unit ID 1. Send the command [RDG5U1] and receive the following feedback:

C1C2C19 G5U1 Now, clear group 5 by sending the command

[CLMG5U1]. Reread the member data as above and note the following feedback:

NONE G5U1

7.3. SUMMARY OF COMMANDS

Card Commands

1) [VER] Receives software version

2) [C] Receives status of the card

3) [CnS] Save card settings

4) [?] Show status/ general information

5) [CLR] Reset card to default values

6) [STA] Enable/disable auto feedback

7) [SEL] Select input volume to adjust [ + ][ - ] Adjust volume levels

8) [VOL] Set an absolute volume level

9) [RUP] Ramp volume UP to 32

10) [RUP=] Ramp volume UP to a value

11) [RDN] Ramp volume DOWN to 1

12) [RDN=] Ramp volume DOWN to a value

13) [RAMP] Return ramp rate

14) [RAMP=] Set ramp rate

16) [MUT0] Mute OFF

17) [MUT1] Mute ON

18) [ON] Output volume ON or select input

19) [OFF] Turn output volume ON/FF

20) […S] Save the command configuration

21) […F] Provides feedback upon sending

22) […P] Sets the path, preload for [SW]

23) [SW] Switch preloaded output buffer

24) [TEST] Perform board memory test

25) [HELP] Display available commands Group Commands

26) [WR] Groups multiple cards

27) [CLRG] Clears group members

28) [RD] Displays group members

29) [CLM] Removes members from group.

7.4 MENU MODE

MENU MODE commands are RS-232 commands that allow the same functionality as programming commands. Unlike the programming commands in the previous sections, 7.2 and 7.3, MENU commands prompt the user to select from a list of available commands. The system then responds based upon selections made by the user.

MENU commands may be issued in response to prompts from within MTSetup™ or other RS-232 communication software.

The MENU driven commands are only available with Multi-Tasker™ Front Panel systems that have the following firmware:

690-0122-015 = Version 015 or later. 690-0123-004 = Version 004 or later. 690-0124-015 = Version 018 or later.

NOTE: In MTSetup™, send the command [VER] from the Terminal Window. The system will respond with feedback similar to the following:

15) [RST] Stop ramping

[690-0122-015 690-0123-004 690-0124-018]

Page 19

MULTI-TASKER™

Check the last three digits against the numbers above to determine if the MENU MODE option is available.

7.4.1 MENU COMMAND DEFINITIONS

Refer to section 7.2 for details on card functions and examples. Following is a cross-reference of menu mode sections versus programming commands.

MENU COMMAND Control Switch [ON] Volume [VOL], [RUP], [RDN], [RST] Mute [MUT0], [MUT1], [OFF], [ON] Clear [CLR] Setup Input Volume [VOL] Ramp Time [RAMP] Group [WR], [CLM] Status [VER], [C] Help [HELP] Not Available [?], [CnS], [STA], […S], [...F],

[...P], [SW], [TEST], [CLRG], [RD], and [SEL] with [+], [-]

7.4.2 USING MENU MODE

SUGGESTION: Before using the menu mode, it is best to disable the automatic feedback feature. The values and current settings will be displayed in the menu mode, but the automatic feature will display after each setting change making the menus difficult to read.

1. In order to enter MENU mode, the system needs to be connected to a computer running MTSetup™ or other RS-232 control software.

2. Insert the card into an empty slot and push in all the way for a secure fit.

3. Reset the system or power the system OFF and then ON.

4. In MTSetup™, click the cursor in the Terminal Window and press the ENTER key.

5. The system will interrogate the enclosure and return a list cards installed and their slot locations.

Example: 8 (Slot 8): MT109-100 NOTE: Only cards supporting the MENU

feature will be displayed.

5. Find the alphanumeric character representing the card whose setup requires changing. It will be the first character in the line.

6. Press the number or letter associated with the card, and a menu with options available for that card will appear on the screen. In the example above, press "8".

WARNING: Do NOT enter any characters

except the one relating to the desired menu. Pressing ENTER or RETURN after "8" will force the system back to the original prompt.

7. After selecting the MT109-100 as described above, the system will prompt for selections specific to that card.

8. Read each menu carefully, and continue selecting keys as prompted for further functions. (Example prompt: "Key= ")

7.4.3 MENU TYPES

1. MAIN MENU

The first menu displayed after selecting the

card is the Main Menu. This menu provides access to the main functions related to the card. Press the key representing the menu item to access. A sub menu will appear next.

2. SUB MENUS

Each sub menu will display either another

menu (sub menu) or a list of available options or settings. Press the key corresponding to the menu choice to change a setting or select the next menu.

Page 20

MULTI-TASKER™

NOTE: Pressing the ESCAPE (ESC) key in

most menus will take you up to the previous menu without making changes in the current menu. In the some menus, the ESC key is used to confirm the card/group selection or new volume setting.

7.4.4 MT109-100 MENUS

Following are the menus available to the MT109-100. The first menu is the Main Menu only. The second listing is an expansion of all the menu items available.

The expanded menu contains values in parentheses that indicate the current setting or value of that parameter. In some areas, additional comments are provided for clarification.

System prompts requiring specific values for volume, card number etc… are not shown. See the examples following the menus for details.

CAUTION: Pay special attention to the top of the CONTROL menu. After selecting the CONTROL menu, THIS CARD or a group will be identified at the top of the sub menu. Since group functions may be modified from this menu, make sure the desired card or group is selected.

MT109-100 MAIN MENU

PRESS KEY TO SELECT

1: CONTROL 2: SETUP 3: STATUS 4: HELP ESC: GO BACK

KEY =

MT109-100 EXPANDED MENUS

1. CONTROL: THIS CARD

1: SWITCH (Input=3)

1: INPUT1 (InVol=10) 2: INPUT2 (InVol=32) 3: INPUT3 (InVol=32) 4: INPUT4 (InVol=32) 5: INPUT5 (InVol=32) 6: INPUT6 (InVol=32) 7: INPUT7 (InVol=32) 8: INPUT8 (InVol=32)

2: VOLUME (OutVol=05)

1: SET ABS VOL 2: RAMP UP 3: RAMP DOWN

3: MUTE (off)

1: MUTE ON 2: MUTE OFF

4: CLEAR

1: YES ESC: NO

5: SELECT (Card/Group)

0: SELECT THIS CARD 1: SELECT GROUP 1 2: SELECT GROUP 2 3: SELECT GROUP 3 4: SELECT GROUP 4 5: SELECT GROUP 5 6: SELECT GROUP 6 7: SELECT GROUP 7 8: SELECT GROUP 8 ESC: ACCEPT

Page 21

MULTI-TASKER™

2: SETUP

1: SET INPUT VOLUME

1: INVOL1 (00) 2: INVOL2 (32) 3: INVOL3 (32) 4: INVOL4 (32) 5: INVOL5 (32) 6: INVOL6 (32) 7: INVOL7 (32) 8: INVOL8 (32) ESC: ACCEPT

2: SET RAMP TIME

1: 04 Seconds 2: 06 Seconds 3: 08 Seconds 4: 10 Seconds 5: 12 Seconds 6: 14 Seconds 7: 16 Seconds 8: 18 Seconds

3: SET GROUP ID

1: ASSIGN GROUP ID Use this command to add the card to a group. If the groups is not defined yet, it will be created.

1: Group 1 2: Group 2 3: Group 3 4: Group 4 5: Group 5 6: Group 6 7: Group 7 8: Group 8

2: DELETE GROUP ID Use this command to remove all the members from a group.

1: Group 1 2: Group 2 3: Group 3 4: Group 4 5: Group 5 6: Group 6 7: Group 7 8: Group 8

3: STATUS

Equivalent to the [C] command. Returns the card status.

4: HELP

Equivalent to the [HELP] command. Displays a list of commands available for

the MT109-100 along with a brief description.

ESC

Returns to the parent menu.

7.4.5 MENU MODE EXAMPLES

All MENU MODE examples assume an MT109-100 is installed in slot #1. Start by clicking the mouse in the Terminal window. Press ENTER and a list of available cards will be displayed.

1. Select An Input

Follow the keystrokes below to select Input 3 as the source input.

Enter List available cards 1 Select MT109-100 in slot #1 1 Select CONTROL Menu 5 Select Card/Group Select 0 Select This Card (card #1) ESC Accept this selection 1 Select SWITCH sub menu 3 Select Input 3 ESC Return to CONTROL Menu ESC Return to the MAIN Menu

Page 22

MULTI-TASKER™

2. Set Input 3 Input Volume

Starting from the main menu, set Input 3 volume level to 16. Follow the keystrokes below.

2 Select SETUP Menu 1 Select Set Input Volume 3 Select Input 3 Volume 16 Enter 16

NOTE The system will echo the 1

and the 6 entries. ESC Accept Input 3 ESC Accept all Inputs/return to SETUP ESC Return to the MAIN Menu

3. Set Output Volume

Starting from the main menu, set the output volume level to 16. Follow the keystrokes below.

1 Select CONTROL Menu 2 Select VOLUME 1 Set ABS VOL (Absolute volume) 16 Enter 16

NOTE The system will echo the 1

and the 6 entries. ESC Return to Accept/return to VOLUME ESC Return to CONTROL menu ESC Return to the MAIN Menu

4. Set Ramp Time

Starting from the main menu, set the ramp time to 10 seconds. Follow the keystrokes below.

2 Select SETUP Menu 2 Select Set Ramp Time 4 Select Ramp Time = 10 seconds ESC Return to SETUP menu ESC Return to the MAIN Menu

5. Display Card Status

Starting from the Main Menu, follow the keystrokes below.

3 Displays card status NOTE: The status will be displayed, followed

by the Main Menu being redisplayed.

TROUBLESHOOTING GUIDE 8

We have carefully tested and have found no problems in the supplied MT109-100; however, we would like to offer suggestions for the following:

8.1 LED IS NOT LIT Cause 1: Card cage is not plugged in.

Solution: Plug card cage in. If the LED lights,

the problem is solved. If the LED is still not ON, see Cause 2.

Cause 2: Card is not plugged in all the way.

Solution: Push the card in all the way. If the

LED is still not ON, see Cause 3.

Cause 3: Card cage slot has a problem.

Solution 1: Test the card in other slots of the

card cage. If the slot was damaged, the card may work in other slots. If other slots work and the LED lights, the problem is the card cage slot. The card cage may require service. Call ALTINEX at (714) 990-2300. If the other slots do not work and the LED is still not lit, see Solution 2.

Solution 2: Take any other known good card

with an LED and verify that the slot used is good by seeing if the other card’s LED lights in that slot. If it lights, then the original card may be the source of the problem. Call ALTINEX at (714) 990-2300.

Page 23

MULTI-TASKER™

8.2 LED IS BLINKING RED Cause 1: The CPU on the card is not

working properly.

Solution 1: Look at the card and verify that

there is no damage. If there is no damage, see Solution 2.

Solution 2: Verify that all IC’s are seated in their

sockets. If the LED is still blinking red, see Cause 2.

Cause 2: The card and its serial device are

not communicating.

Solution: Turn the system OFF and then ON

again. If there is still an error, see Cause 3.

Cause 3: RS485 communication error

Solution 1: Make sure that the card is pushed

all the way into the slot. If there is still an error, see Solution 2.

Solution 2: Turn the system OFF and then ON

again. If there is still an error, see Solution 3.

Solution 3: Call ALTINEX at (714) 990-2300.

8.3 NO SOUND Cause 1: The source has a problem.

Solution: Check the source and make sure

that it is working at an appropriate volume level and all source connections are correct. If the source is working and there is still no sound, see Cause 2.

Cause 3: Cable connections to the

destination are incorrect.

Solution: Make sure that cables are

connected properly. Also, make sure that the continuity and wiring are good. If there is still no sound present, see Cause 4.

Cause 4: The destination amplifier has a

problem.

Solution 1: Make sure that the destination

amplifier is powered. If there is still no sound, see Solution 2

Solution 2: Set the volume of the destination

amplifier to a reasonable level. If there is still no sound, call ALTINEX at (714) 990-2300.

8.4 SOUND DISTORTION Cause 1: The source level is above 1V p-p.

Solution: Make sure that the source level is

below 1V p-p. If the sound is still distorted, see Cause 2.

Cause 2: The destination amplifier provides

excessive amplification.

Solution 1: Make sure that the source signal

level is high enough so that the destination amplifier does not have to provide excessive amplification and thereby distort the signal. If there is still sound distortion, see Solution 2.

Solution 2: Call ALTINEX at (714) 990-2300.

Cause 2: The proper card input may not be

selected.

Solution: Select the card input that is used,

by RS-232 accessible commands in section 7. If no sound is present, see Cause 3.

8.5 SOUND LEVEL IS LOW Cause 1 Input volume is low.

Solution 1: Turn up the source volume. If sound

level is still low, see Solution 2.

Solution 2: Turn up the destination amplifier

volume. If the sound level is still low, see Cause 2.

Page 24

MULTI-TASKER™

Cause 2 Poor signal transmission.

Solution: Check the cables for continuity and

make sure that connections are wired properly to verify that there is good signal transmission.

Note Test the system by removing the

MT109-100 card from between the

source and the destination amplifier. If problem persists, call ALTINEX at (714) 990-2300.

ALTINEX POLICY 9

9.1 LIMITED WARRANTY/RETURN POLICY

Please see the Altinex website at www.altinex.com for details on warranty and return policy.

9.2 CONTACT INFORMATION ALTINEX, INC

592 Apollo street Brea, CA 92821 USA

TEL: 714 990-2300 TOLL FREE: 1-800-ALTINEX WEB: www.altinex.com E-MAIL: [email protected]
