Multistore LSS 550 User Manual

9 Nevilles St, Underwood, Brisbane, QLD 4119
Ph: 07 3208 6799 Fax: [phone]
Int Ph: [phone] Int Fax: [phone]
Email: [e-mail]

www.multi-store.com.au

Multistor e

Industries (Aust) Pty Ltd

550mm H x 608mm W x 430mm D

550mm H x 426mm W x 16mm D

575mm H x 424mm W

2 x PANELS - 1 x LEFT HAND (A) , 1 x RIGHT HAND (E)

TOP AND BOTTOM FIXED SHELF 1 x TOP (D) 1 x BOTTOM (C)

1 x KICK (B) 575mm x 61mm

2 x Pullout Shelves (G & H)

1 x BACK PANEL (F) 488mm x 604mm

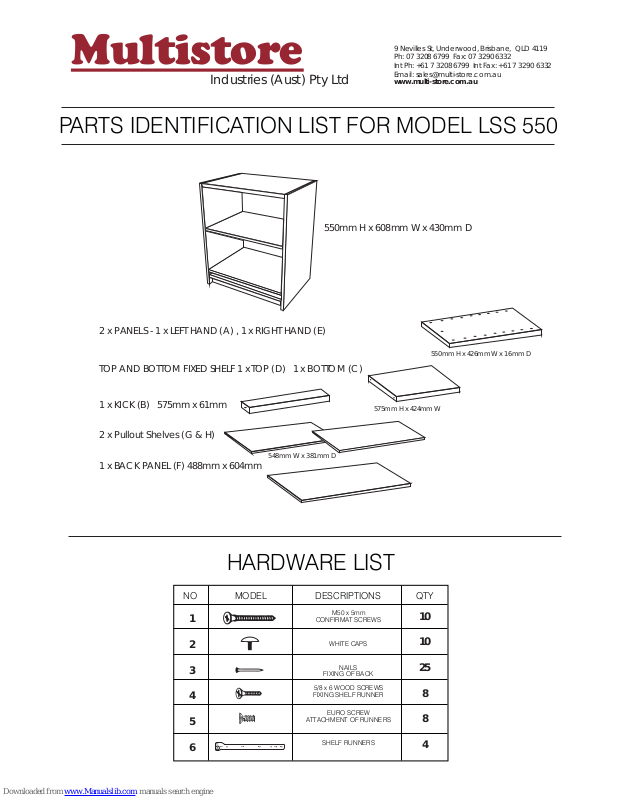

PARTS IDENTIFICATION LIST FOR MODEL LSS 550

NO MODEL DESCRIPTIONS QTY

M50 x 5mm

CONFIRMAT SCREWS

WHITE CAPS

NAILS

FIXING OF BACK

5/8 x 6 WOOD SCREWS
FIXING SHELF RUNNER

EURO SCREW

ATTACHMENT OF RUNNERS

SHELF RUNNERS

HARDWARE LIST

1

2

3

4

5

6

10

10

25

8

8

4

548mm W x 381mm D

ASSEMBLY INSTRUCTIONS FOR MODEL LSS 550

STEP 1

Lay Panels A & E on the floor with the front vinyl edge facing
you. Attach the metal cabinet runners to the 1st and 8th holes
above the fixed shelf holes shown in diagram 1

It is important that the runners are fixed to the correct panels.
Fix runners marked CL to the LEFT PANEL (A) and fix runners
marked CR to the RIGHT PANEL (E) using the 7.5mm euro
screws provided.

IMPORTANT: Please note diagram 2 shows the position of the
holes that the metal runners are fixed into.

TOP

BOTTOM

BACK OF PULLOUT SHELVES

COMPLETED

FRONT

Vinyl Edge

Vinyl Edge

FIXED SHELF

HOLES

FIXED SHELF

HOLES

KICK

Hole 8

Hole Positions

Hole 1

CABINET RUNNERS:

DIAGRAM 2

DIAGRAM 1

CL = Left Hand
CR = Right Hand

7.5mm Euro Screws to
attach RUNNERS to
Panels A & E

STEP 2

STEP 3

STEP 4

STEP 5

B

C

D

A

E

FIXED
SHELF

BACK VIEW

C

A

F

5/8 x 6 SCREWS TO

FIX RUNNER

5mm HOLES

TO TAKE

QUICK FIX

RUNNER

Align the fixed
shelves (D) &
(C) and Kick
Board (B) to Left
Panel (A) and
Right Panel (E).
Tighten using
M50 x 5mm
Confirmat
Screws. Cover
screws with
White Caps

Attach Runners
to Pullout
Shelves (G) &
(H) and slide
into unit.

With the unit
lying on its face,
attached the
Back Panel (F)
making sure to
keep it parallel
to the Top and
Sides of the unit.
Attach using
nails at regular
intervals.
