Page 1
9 Nevilles St, Underwood, Brisbane, QLD 4119
Ph: 07 3208 6799 Fax: 07 3290 6332
Int Ph: +61 7 3208 6799 Int Fax: +61 7 3290 6332
Email: [email protected]
www.multi-store.com.au
Multistor e
Industries (Aust) Pty Ltd
LSD 550mm H x 608mm W x 430mm D
550mm H x 426mm W x 16mm D
557mm H x 424mm W
2 x PANELS - 1 x LEFT HAND, 1 x RIGHT HAND
TOP AND BOTTOM FIXED SHELF 1 x TOP 1 x BOTTOM
1 x KICK 575mm x 61mm
2 x Drawers
1 x BACK PANEL 485mm x 604mm

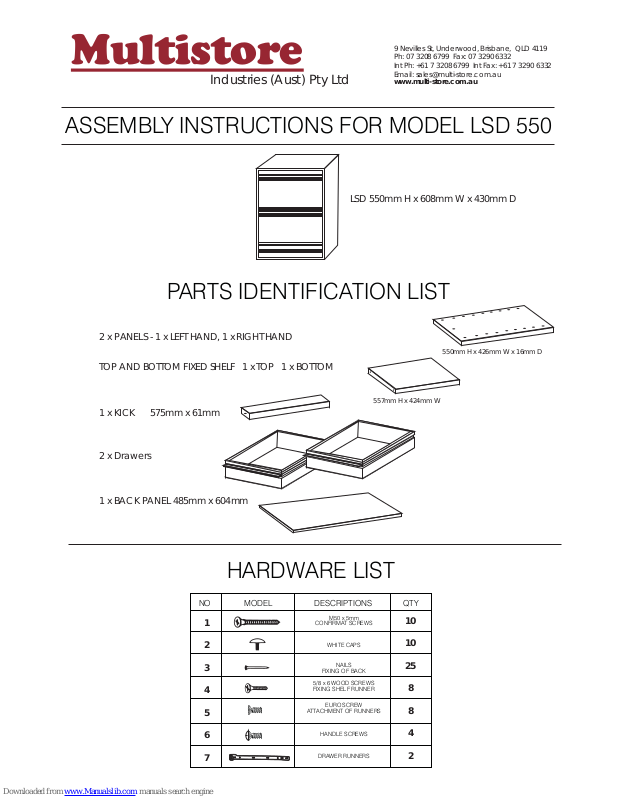

ASSEMBLY INSTRUCTIONS FOR MODEL LSD 550
NO MODEL DESCRIPTIONS QTY
M50 x 5mm
CONFIRMAT SCREWS
WHITE CAPS
NAILS
FIXING OF BACK
5/8 x 6 WOOD SCREWS
FIXING SHELF RUNNER
EURO SCREW
ATTACHMENT OF RUNNERS
DRAWER RUNNERS
HANDLE SCREWS
HARDWARE LIST
1
2
3
4
5
6
7
10
10
25
8
8
4
2

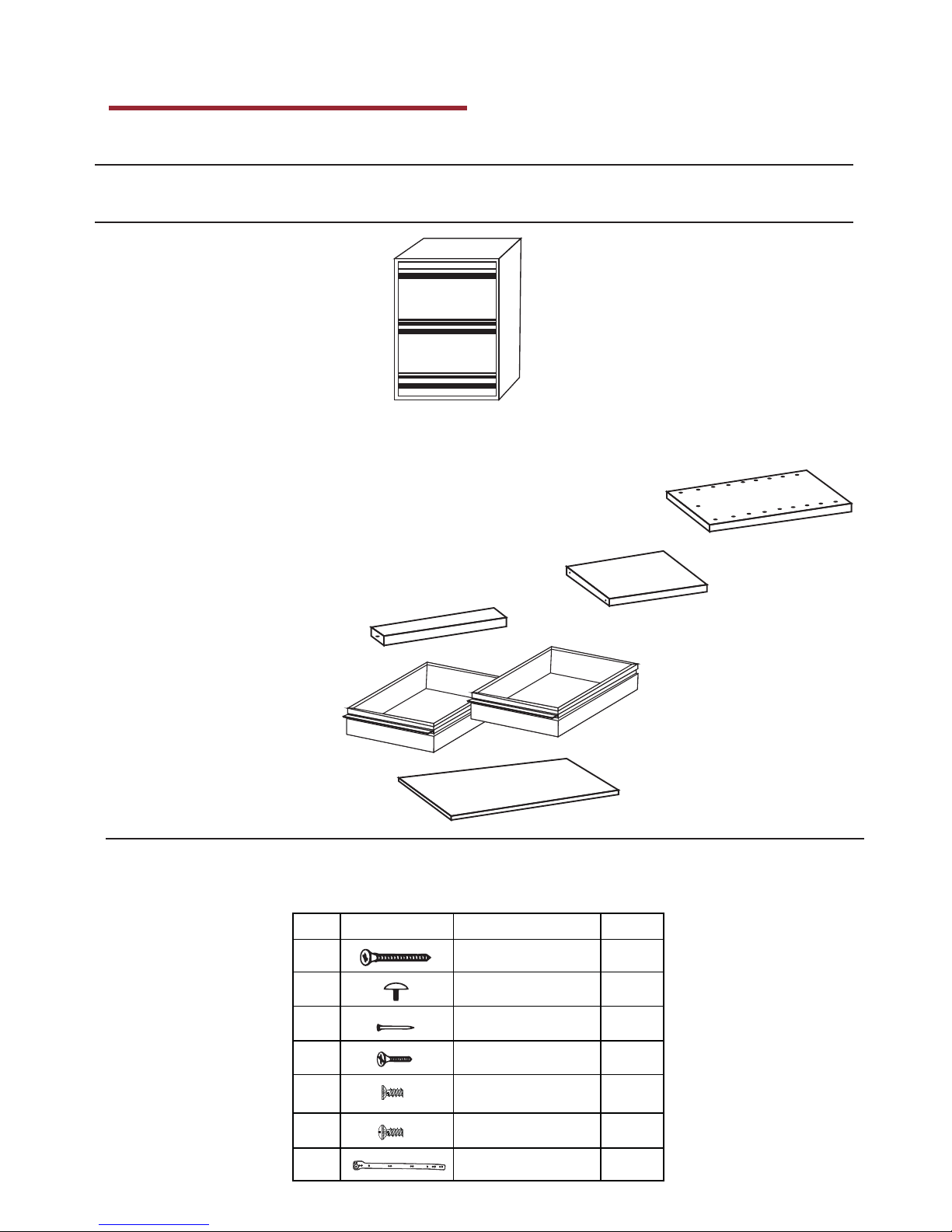

PARTS IDENTIFICATION LIST
Page 2

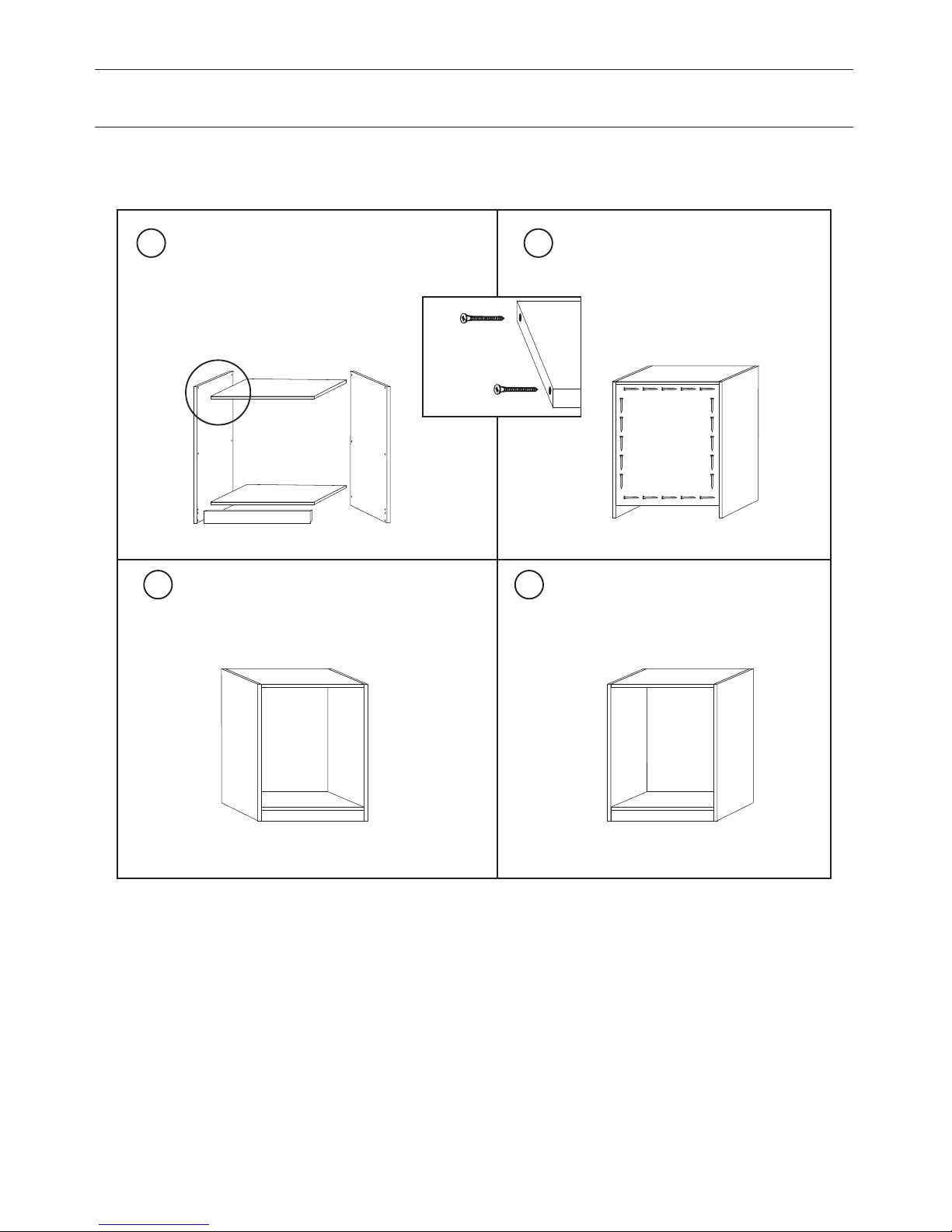

STEP 1: ALIGN FIXED SHELVES (D & C) AND KICK BOARD (B) TO LEFT PANEL (A) AND RIGHT
PANEL (E). TIGHTEN USING M50 x 5MM CONFIRMAT SCREWS. COVER SCREWS WITH WHITE CAPS
STEP 2: WITH THE UNIT LYING ON ITS FACE, ATTACH THE BACK PANEL (F) MAKING SURE TO
KEEP IT PARALLEL TO THE TOP AND SIDES OF THE UNIT. ATTACH USING THE NAILS.
STEPS 3 & 4: COMPLETED UNIT PRIOR TO INSTALLING DRAWERS.
PLEASE FOLLOW ASSEMBLY INSTRUCTION FOR DRAWER BOX AND METAL RUNNERS
ASSEMBLY INSTRUCTIONS FOR MODEL LSD 550
D
C
E
B
F
Back View
Completed
1 2
3 4
A
