OPERATION AND PARTS MANUAL
(ROBIN
SERIES
MODEL MTX80
MODEL MTX90
TAMPING RAMMER
EH122D46530
Revision #9 (1/14/11)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
GASOLINE ENGINE)
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
PROPOSITION 65 WARNING
PAGE 2 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
NOTES
NOTES
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 3
TABLE OF CONTENTS
MTX80/MTX90
Tamping Rammer
Proposition 65 Warning ........................................... 2
Table Of Contents ................................................... 4
Parts Ordering Procedures ..................................... 5
Safety Information ................................................ 6-9
General Information .............................................. 10
Specifications ........................................................ 11
Components.......................................................... 12
Basic Engine ......................................................... 13
Operation ......................................................... 14-16
Maintenance ......................................................... 17
Troubleshooting ............................................... 18-19
Explanation Of Codes In Remarks Column .......... 20
Suggested Spare Parts ......................................... 21
Name Plate and Decals ................................... 22-23
Crankcase and Engine Assembly .................... 24-27
Guide Cylinder and Spring Assembly .............. 28-29
Foot Assembly ................................................. 30-31
Tank and Handle Assembly ............................. 32-35
Combination Lever Assembly .......................... 36-37
Tools ................................................................. 38-39
ROBIN EH122D46530
ENGINE
Crankcase Assembly ......................................... 40-41
Cylinder Head Assembly .................................... 42-43
Crankshaft, Piston Assembly ............................. 44-45
Camshaft Assembly ...........................................46-47
Recoil Starter Assembly..................................... 48-49
Carburetor Assembly (MTX80: S/N T-4419 and Below;
MTX90: S/N T-1341 and Below) ......................... 50-51
Carburetor Assembly (MTX80: S/N T-4420 and Above;
MTX90: S/N T-1342 and Above) ........................ 52-53
Air Cleaner Assembly......................................... 54-55
Muffler Assembly ............................................... 56-57
Governor Assembly ........................................... 58-59

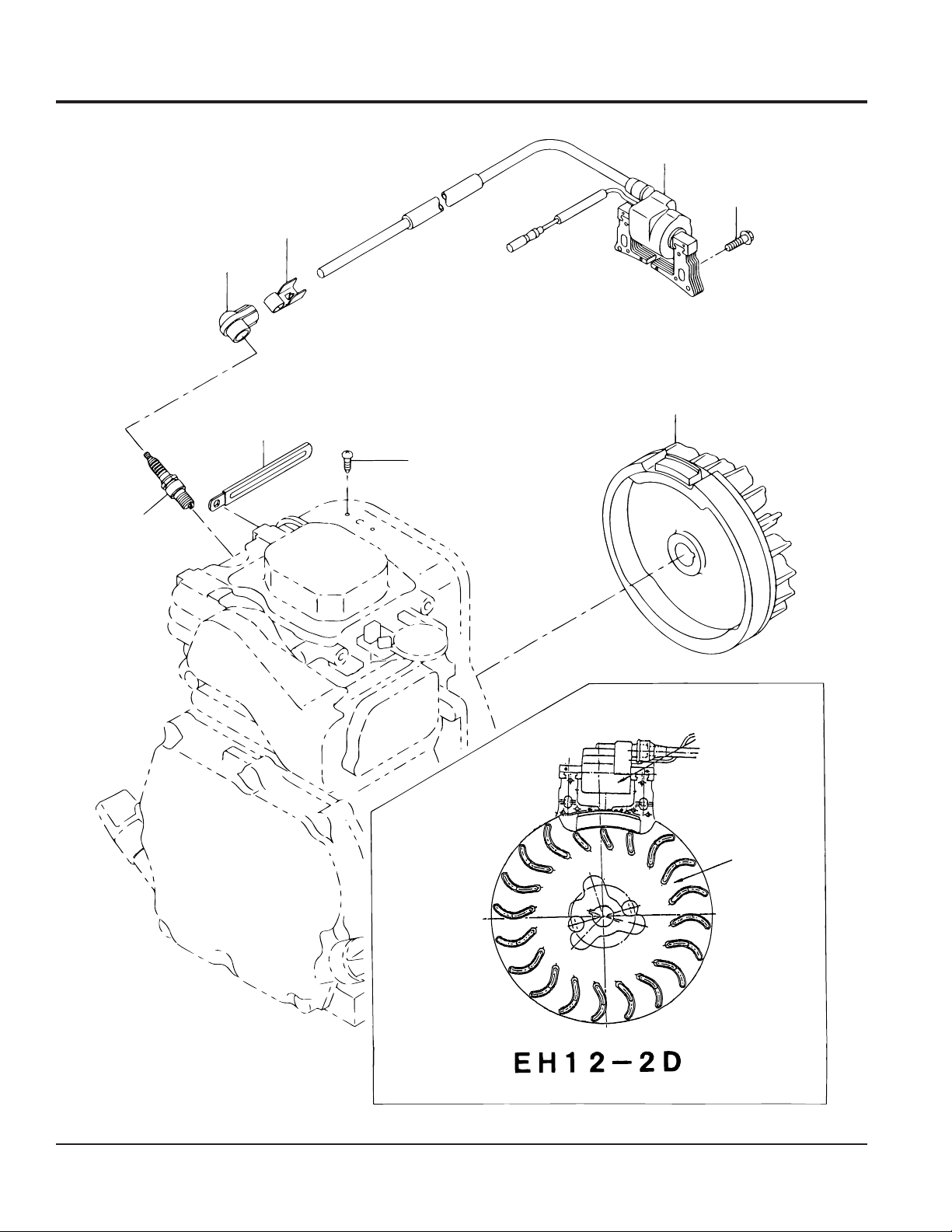

Flywheel Ignition Assembly ................................ 60-61
Labels and Accessories ..................................... 62-63
Terms and Condition Of Sale
NOTICE
— Parts .................... 64
Specification and part number are subject to
change without notice.
PAGE 4 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
r
PARTS ORDERING PROCEDURES
Ordering parts has never been easier!
Choose from three easy options:
January 1
Effective:
st
, 2006
Best Deal!
Order via Internet (Dealers Only):
Order parts on-line using Multiquip’s SmartEquip website!
■ View Parts Diagrams
■ Order Parts
■ Print Specification Information
Goto www.multiquip.com and click on
Order Parts
Order via Fax (Dealers Only):
All customers are welcome to order parts via Fax.
Domestic (US) Customers dial:
1-800-6-PARTS-7 (800-672-7877)
Non-Dealer Customers:
Contact your local Multiquip Dealer for
parts or call 800-427-1244 for help in
locating a dealer near you.
to log in and save!
Order via Phone:
If you have an MQ Account, to obtain a Username
and Password, E-mail us at: parts@multiquip.
com.
To obtain an MQ Account, contact you
District Sales Manager for more information.
Use the internet and qualify for a 5% Discount
on Standard orders for all orders which include
complete part numbers.*
Fax your order in and qualify for a 2% Discount
on Standard orders for all orders which include
complete part numbers.*
Domestic (US) Dealers Call:
1-800-427-1244
International Customers should contact
their local Multiquip Representatives for
Parts Ordering information.
Note: Discounts Are Subject To Change
Note: Discounts Are Subject To Change
When ordering parts, please supply:
❒ Dealer Account Number
❒ Dealer Name and Address
❒ Shipping Address (if different than billing address)
❒ Return Fax Number
❒ Applicable Model Number
❒ Quantity, Part Number and Description of Each Part
NOTICE
All orders are treated as Standard Orders and will
ship the same day if received prior to 3PM PST.
❒ Specify Preferred Method of Shipment:
✓ UPS/Fed Ex ✓ DHL
■ Priority One ✓ Tr uck
■ Ground
■ Next Day
■ Second/Third Day
www.multiquip.com
WE ACCEPT ALL MAJOR CREDIT CARDS!
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 5
SAFETY INFORMATION
Do not operate or service the equipment before reading
the entire manual. Safety precautions should be followed
at all times when operating this equipment.
Failure to read and understand the safety
messages and operating instructions could
result in injury to yourself and others.
SAFETY MESSAGES
The four safety messages shown below will inform you
about potential hazards that could injure you or others. The
safety messages specifically address the level of exposure
to the operator and are preceded by one of four words:
DANGER, WARNING, CAUTION or NOTICE.
SAFETY SYMBOLS
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in DEATH or SERIOUS INJURY.
WARNING
Potential hazards associated with the operation of this
equipment will be referenced with hazard symbols which
may appear throughout this manual in conjunction with
safety messages.
Indicates a hazardous situation which, if not avoided,
COULD result in DEATH or SERIOUS INJURY.
CAUTION
Indicates a hazardous situation which, if not avoided,
COULD result in MINOR or MODERATE INJURY.
NOTICE
Addresses practices not related to personal injury.
PAGE 6 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
.
SAFETY INFORMATION
GENERAL SAFETY
CAUTION
NEVER operate this equipment without proper protective
clothing, shatterproof glasses, respiratory protection,
hearing protection, steel-toed boots and other protective
devices required by the job or city and state regulations.
NEVER operate this equipment when not
feeling well due to fatigue, illness or when
under medication.
NEVER operate this equipment under the influence of
drugs or alcohol.
ALWAYS check the equipment for loosened threads or
bolts before starting.
DO NOT use the equipment for any purpose other than
its intended purposes or applications.
NOTICE
This equipment should only be operated by trained and
qualified personnel 18 years of age and older.
Whenever necessary, replace nameplate, operation and
safety decals when they become difficult read.
Manufacturer does not assume responsibility for any
accident due to equipment modifications. Unauthorized
equipment modification will void all warranties.
NEVER use accessories or attachments that are not
recommended by Multiquip for this equipment. Damage
to the equipment and/or injury to user may result.
ALWAYS know the location of the nearest phone or keep a
phone on the job site. Also, know the phone numbers of
the nearest ambulance, doctor and fire department. This
information will be invaluable in the case of an emergency.
RAMMER SAFETY
DANGER
NEVER operate the equipment in an explosive
atmosphere or near combustible materials. An
explosion or fire could result causing severe
bodily harm or even death.
WARNING
NEVER disconnect any emergency or safety devices.
These devices are intended for operator safety
Disconnection of these devices can cause severe injury,
bodily harm or even death. Disconnection of any of these
devices will void all warranties.
DO NOT use this machine on ground that is harder than
the machine can handle, or for driving pilings or tamping
rock beds. Furthermore, use of the machine on sloping
ground, such as the side of an embankment, may make
the machine unstable and can cause an accident. It can
also result in premature machine wear due to uneven
loads on the machine.
Use the machine with confidence for tamping earth and
sand, soil, gravel, and asphalt. DO NOT use the machine
for other types of jobs.
CAUTION
NEVER lubricate components or attempt service on a
running machine.
NOTICE
ALWAYS know the location of the nearest
fire extinguisher.
ALWAYS know the location of the nearest
first aid kit.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 7
ALWAYS keep the machine in proper running condition.
Fix damage to machine and replace any broken parts
immediately.
ALWAYS store equipment properly when it is not being
used. Equipment should be stored in a clean, dry location
out of the reach of children and unauthorized personnel.
k
SAFETY INFORMATION
ENGINE SAFETY
DANGER
The engine fuel exhaust gases contain poisonous carbon
monoxide. This gas is colorless and odorless, and can
cause death if inhaled.
The engine of this equipment
requires an adequate free flow
of cooling air. NEVER operate
this equipment in any enclosed
or narrow area where free flow
of the air is restricted. If the air
flow is restricted it will cause
injury to people and property
and serious damage to the
equipment or engine.
WARNING
DO NOT place hands or fingers inside engine
compartment when engine is running.
NEVER operate the engine with heat shields or
guards removed.
DO NOT remove the engine oil drain plug
while the engine is hot. Hot oil will gush
out of the oil tank and severely scald any
persons in the general area of the rammer.
CAUTION
FUEL SAFETY
DANGER
DO NOT add fuel to equipment if it is placed inside truc
bed with plastic liner. Possibility exists of explosion or
fire due to static electricity.
DO NOT
fluids. Fuel is extremely flammable and its vapors can
cause an explosion if ignited.
ALWAYS refuel in a well-ventilated area, away from
sparks and open flames.
ALWAYS use extreme caution when working with
flammable liquids.
start the engine near spilled fuel or combustible
NEVER touch the hot exhaust manifold,
muffler or cylinder. Allow these parts to cool
before servicing equipment.
NOTICE
NEVER run engine without an air filter or with a dirty air
filter. Severe engine damage may occur. Service air filter
frequently to prevent engine malfunction.
NEVER tamper with the factory settings
of the engine or engine governor. Damage
to the engine or equipment can result
if operating in speed ranges above the
maximum allowable.
PAGE 8 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
DO NOT fill the fuel tank while the engine is running
or hot.
DO NOT overfill tank, since spilled fuel could ignite if it
comes into contact with hot engine parts or sparks from
the ignition system.
Store fuel in appropriate containers, in well-ventilated
areas and away from sparks and flames.
NEVER use fuel as a cleaning agent.
DO NOT smoke around or near the
equipment. Fire or explosion could result
from fuel vapors or if fuel is spilled on a
hot engine.
TRANSPORTING SAFETY
CAUTION
NEVER allow any person or animal to stand underneath
the equipment while lifting.
NOTICE
Before lifting, make sure that the equipment parts (hook
and vibration insulator) are not damaged and screws are
not loose or missing.
Always make sure crane or lifting device has been
properly secured to the lifting bail (hook) of the
equipment.
ALWAYS shutdown engine before transporting.
NEVER lift the equipment while the engine is running.
Tighten fuel tank cap securely and close fuel cock to
prevent fuel from spilling.
SAFETY INFORMATION
Use adequate lifting cable (wire or rope) of sufficient
strength.
Use one point suspension hook and lift straight
upwards.
DO NOT lift machine to unnecessary heights.
ALWAYS tie down equipment during transport by
securing the equipment with rope.
Never allow any person or animal to stand underneath the
equipment while lifting.
ENVIRONMENTAL SAFETY
NOTICE
Dispose of hazardous waste properly.
Examples of potentially hazardous waste
are used motor oil, fuel and fuel filters.
DO NOT use food or plastic containers to dispose of
hazardous waste.
DO NOT pour waste, oil or fuel directly onto the ground,
down a drain or into any water source.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 9
GENERAL INFORMATION
Definition of Tamping Rammer
The Mikasa MTX80/MTX90 tamping rammer is a powerful
compacting tool capable of applying a tremendous force in
consecutive impacts to a soil surface. Its applications include
soil compacting for road, embankments and reservoirs as
well as backfilling for gas pipelines, water pipelines and cable
installation work.
The impact force of the MTX80/MTX90 levels and uniformly
compacts voids between soil particles to increase dry density.
Circular motion is converted to create impact force. The
MTX80/MTX90 tamping rammer develops a powerful
compacting force at the foot of the rammer. To maintain
optimum performance, proper operation and service are
essential.
Construction of Tamping Rammer
The Mikasa MTX80/MTX90 is equipped with an air cooled,
four- cycle gasoline engine. Transmission of the power takes
place by increasing the engine speed to engage the
centrifugal clutch.
Rammer Gearbox and Spring Cylinder
The Mikasa MTX80/MTX90 uses an oil bath lubrication
system. Always check the oil level through the oil level sight
glass at the rear of the tamper foot.
Handle Operation
CAUTION
1. Make sure that there is no damage on the bolts.
2. Make sure that there is no crack or breakage on handle.
3. Make sure that there is no fissure on the surface. If there
is any abnormality or damage, replace with new one.
For operation:
This handle is to be used to lift up the shoe part of the machine
with the body laid down on the ground or truck bed.
1. Use proper lifting techniques to avoid back injury. This
handle is for manual lifting only.
2. Do not use this handle as a rammer lift point. Use the
lifting point on the top of the machine.
3. Do not move the rammer with the lifting handle and the
front rollers more than 16 feet (5 meters).
Before starting operation check the lifting
handle to:
Controls
Before starting the MTX80/MTX90 Tamping Rammer identify
and understand the function of the controls.
PAGE 10 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
SPECIFICATIONS
Table 1. MTX80/MTX90 Rammer Specifications
Model MTX-80 MTX-90
Overall Height 39.37 in. (1000 mm) 39.37 in. (1000 mm)
Overall Width 14.37 in (365 mm) 14.37 in (365 mm)
Over Length 31.02 in (788 mm) 31.02 in (788 mm)
Shoe Size 13.4 x 11.2 in (340 x 285 mm) 13.4 x 11.2 in (340 x 285 mm)
Fuel Tank Capacity 3.2 qt. (3 liters) 3.2 qt. (3 liters)
Lubrication Oil Capacity 0.8 quart (0.75 liter) 0.8 quart (0.75 liter)
No. of Impacts Per Second 10.6 - 11.3 11.0 - 11.6
Impact Force 3,080 lb (13.7 kN) 3,530 lb (15.7 kN)
Impact Plate Stroke 2 - 3.15 in (50 - 80 mm) 2 - 3.15 in (50 - 80 mm)
Operating Weight 183 lbs. (83 kg) 196 lbs. (89 kg)
Speed Setting 3400-3600 rpm 3500-3700 rpm
Measured Sound Power Level 105 dB 105 dB
Guaranteed Sound Power
Level
Max. Sound Pressure Level 95 dB 97 dB
107 dB 107 dB
snoitacificepSenignE.2elbaT
ledoMenignE03564D221HEniboR
epyT
tnemecalpsiDnotsiP)cc1
tuptuO.xaM)WK6.2(mpr006,3/ph5.3
metsySgnilooCdelooC-riA
yticapaCliOenignE)retil4.0(.tq24.0
leuFe
enignEroftnacirbuL rehgihroESssalC;liOelibomotuA
21(.ni.uc4.7
nilosagdedaelnU
,VHO,ekortS4delooC-riA
enigneenilosagrednilycelgnis
metsySgnitratSretratSlioceR
epyTgulPkrapSS
E6RBKGN
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 11
COMPONENTS
3
2
10
5
6
4
1
9
11
7
8
Figure 1. MTX80/MTX90 Rammer
Figure 1 shows the location of the controls and components
for the MTX80/MTX90 Tamping Rammer. The functions of
each control is described below:
1. Combination (Throttle) Lever – Used to adjust engine
speed (rpm). Move lever forward
engine speed, move lever back toward operator
to increase speed. Always operate the rammer at full speed
(rpm).
2. Handle – To operate rammer,
firmly on both sides.
3. Fuel Tank Cap – Remove this cap to add unleaded
gasoline to the fuel tank. Make sure cap is tightened
securely. DO NOT over fill.
(SLOW)
GRIP
handle assembly
to reduce
(FAST
4. Hook – Used to lift rammer for transporting.
5. Air Cleaner Cover – Protects the air cleaner which
)
prevents dirt and other debris from entering the engine.
6. Roller – Used for loading the rammer in back end of a
truck. Rammer is brought to tail gate roller side toward
the truck bed and driver lifts roller with handle at base and
rolls the unit into truck bed.
7. Bellows – Reservoir for oil bath.
8. Foot – Laminated wood with tempered steel plate for
superior shock absorption.
12
13
WARNING
Add fuel to the tank only when the engine is
stopped and has cooled down. In the event
of a fuel spill, DO NOT attempt to start the
engine until the fuel residue has been
completely wiped up and the area
surrounding the engine is dry.
PAGE 12 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
9. Fuel Tank – Holds the fuel for the unit (up to 3.2 quarts)
10. Muffler – reduces the noise of the engine when running.
11. Engine – this unit uses a Robin EH122D46530 gasoline
engine.
12. Oil Gauge (Sight Glass) – Indicates the level of oil in the
oil bath reservoir.
13. Drain Valve – Open this valve to remove oil from the
bellows.
BASIC ENGINE
Figure 2. Engine Controls and Components
(Robin EH-12-2D)
The engine (Figure 2) must be checked for proper lubrication
and filled with fuel prior to operation. Refer to the manufacturer's
Engine manual for instructions & details of operation and
servicing.
1. Secondary Air Cleaner – Prevents dirt and other debris
from entering the fuel system. Remove wing-nut on top
of air filter cannister to gain access to filter element.
2. Choke Lever – Used when starting the engine. Normally
used in cold weather conditions. In cold weather turn
the choke lever to the fully closed position, in warm
weather set choke lever half way or completely open.
3. Spark Plug – Provides spark to the ignition system.
Set spark plug gap to 0.024 - 0.028 inch (0.6 - 0.7 mm).
Clean spark plug once a week.
4. Muffler – Used to reduce noise and emissions.
5. Recoil Starter (pull rope) – Manual-starting method.
Pull the starter grip until resistance is felt, then pull
briskly and smoothly.
6. Engine ON/OFF Switch – Controls the starting and
stopping of the engine. Switch must be in the "ON"
position when starting the engine.
WARNING
NOTICE
Operating the engine without an air filter, with a damaged air
filter, or a filter in need of replacement will allow dirt to enter
the engine, causing rapid engine wear.
Engine components can generate extreme
heat. To prevent burns, DO NOT touch these
areas while the engine is running or
immediately after operating. NEVER operate
the engine with the muffler removed.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 13
OPERATION
This section is intended to assist the operator with the initial
start-up of the MTX80/MTX90 Tamping Rammer. It extremely
important that this section be read carefully before attempting
to operate the rammer.
Engine
1. Fill the fuel tank (Figure 4) with unleaded gasoline. At the
same time, check the engine oil and make it a habit to
replenish it often (Figure 5).
DO NOT use your rammer until this section is thoroughly
understood.
CAUTION
Failure to understand the operation of the MTX80/MTX90
Tamping Rammer could result in severe damage to the
unit or personal injury.
Rammer Crankcase and Spring Cylinder Oil Bath
This unit uses an oil bath lubrication system. Perform the following:
1. Check the oil level through the oil level sight glass (Figure 3)
at the rear of the tamper foot.
OIL LEVEL
DIPSTICK
FUEL
TANK
Figure 4. Fuel Tank
OIL FILL PLUG
SIGHT GLASS
OIL DRAIN PLUG
2. Check the engine oil level and if the engine oil level is low,
Figure 3. Foot Housing Sight Glass
2. If oil is not visible, add 10W-30 SE, SF or higher grade motor
oil into the oil fill plug opening (Figure 3). The bath contains
approximately 1.7 pints (800 cc.)
it should be refilled. Low levels of oil may result in engine
seizure. Use the proper motor oil as suggested in the Table
3 below.
NOTICE
The oil level should be kept at the half way point of the sight
glass.
Figure 5. Engine Oil Dipstick
edarGliOrotoM3elbaT
erutarepmeTronosaeS
nmutuAroremmuS,gnirpS
F°51+otF°021+
liorotomfoedarG
)ssalcSMnahtrehgih(
03EAS
retniW
1+otF°04+
F°5
F°51+woleB03-W01EAS
03EAS
PAGE 14 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
STARTER
ROPE
OPERATION
Inspection
1 . Check all nuts, bolts fasteners for tightness. Retighten as
necessary.
2. Clean any dirt from the recoil starter and foot pedestal. Wipe
the entire unit clean before operating.
3. Replace any missing or damaged Safety Operation decals.
4. Adjust height of handle. Adjust handle by loosening nuts and
moving handle to suit operation. Retighten nuts.
Initial Start-up
When starting the MTX80/MTX90 Tamping Rammer perform
the following:
1. Slide the throttle lever from the stop to the idle position ( )
(Figure 6). This opens the fuel cock and the engine electrical
circuit is turned on automatically.
NOTICE
DO NOT press the primer pump bulb more than four
(4) times, as this will cause fuel to flood the carburetor.
3. Place the choke lever to the closed position (Figure 7). When
the weather is cold, close the choke all the way. When it is hot,
or if the engine is hot, open the choke a little or leave it fully
open.
THROTTLE LEVER
(IDLE POSITION)
4. Grip the starter rope handle (Figure 8) and pull it until you
feel a slight resistance. Then pull sharply and quickly. Return
the handle to the starter case before releasing.
CHOKE LEVER
(CLOSED POSITION)
Figure 7. Choke Lever
Figure 6-A. Throttle Lever (Idle {Position)
2. Units with Carburetor Primer System: Push the
primer pump bulb four (4) times to deliver fuel to the
carburetor (Figure 5-B).
Figure 6-B. Primer Pump
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 15
Figure 8. Recoil Starter
5. If engine fails to start, move the choke lever to the half open
position to avoid flooding.
6. Repeat steps 1 thru 5.
7. If the engine does not start after repeated attempts,
check the spark plug for excess fuel. Clean and replace
the spark plug as needed.
OPERATION
Operation
1. To start the rammer tamping action, move the throttle lever
(Figure 9)
DO NOT move the throttle lever slowly as this may cause
damage to the clutch or spring.
Figure 9. Throttle Lever (Start Position)
quickly
from IDLE to the START ( ) position.
THROTTLE LEVER
(START POSITION)
Stopping The Engine
Normal Shutdown
1. Move throttle lever quickly from the START to IDLE position
CAUTION
Make sure that the throttle lever is moved to the FULL START
position. Operating the rammer at less than full speeds can
result in damage to the clutch springs or foot.
2. If the engine does not stop due to a problem with the switch
(Figure 10) and run the engine for three minutes at low speed.
cools
After the engine
position (Figure 11). The engine will stop and the fuel cock
is automatically closed.
, move the throttle lever to the STOP
THROTTLE LEVER
(STOP POSITION)
Figure 11. Throttle Lever (Stop Position)
or the like, move the machine to a safe location and hold the
throttle lever in the stop position. Let the machine run on idle
and the machine will stop after a few minutes.
2. The MTX80/MTX90 tamping rammer is designed to run at
3,600/3700 rpm. At optimum rpm the foot hits at the rate
between 590 ~ 695 impacts per minute. Increasing throttle
speed past factory set rpm does not increase impacts and
may damage unit. The MTX80/MTX90 is designed to advance while tamping. For faster advance, pull back slightly
on the handle so that rear of foot contacts soil first.
3. To stop the tamping action, move throttle lever quickly from
START to IDLE position (Figure 10).
THROTTLE LEVER
(IDLE POSITION)
Figure 10. Throttle Lever (Idle Position)
PAGE 16 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
MAINTENANCE
Maintenance
Perform the scheduled maintenance procedures as indicated:
DAILY
■
Thoroughly remove dirt and oil from the engine and control
area.
■
Clean or replace the air cleaner elements as necessary.
Check and retighten all fasteners as necessary.
■
Check the spring box and bellows for oil leaks. Repair or
replace as needed.
EVERY 50 HOURS
■
Remove the fuel filter cap and clean the inside of the fuel
tank (Figure 12).
EVERY 200 HOURS
■
Remove the oil drain plug on foot housing (Figure 14) and
drain the oil. Refill with approximately 1.7 pt. (800 cc.) of
10W-30 SE, SF or higher grade motor oil. Oil should be
midway in sight glass. Break in oil should be changed after
first 50 hours.
OIL FILL PLUG
SIGHT GLASS
OIL DRAIN PLUG
EVERY 2 YEARS
■
Replace the fuel line every 250 hours or every 2 years even
if there is no visible damage.
Figure 14. Oil Drain Plug
FUEL FILTER
Figure 12. Fuel Filter
■
Remove and clean the spark plug, then adjust the spark gap
to 0.024~0.028 inch (0.6~0.7 mm).
EVERY 80 to 100 HOURS
■
Remove the air cleaner cover. Loosen and remove the 2
screws that hold the cover to the air cleaner assembly. If the
primary element (Figure 13) is dirty, wash it with gasoline or
kerosene. Then dip it in engine oil (SAE10W-30) and wring
the element so that 25 to 30 cc of engine oil remains on the
element.
Long Term Storage
■
Slide the throttle lever to the STOP position.
■
Drain any fuel including in the fuel hose.
■
Replace lubrication oil and apply grease to lubrication
points.
■
Cover the air intake on the air cleaner and the exhaust outlet
on the muffler.
■
Store unit indoors covered with plastic sheet in moisture
free and dust free location out of direct sunlight.
PRIMARY
ELEMENT
Figure 13. Air Cleaner Primary Element
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 17
GNITOOHSELBUORTENIGNE.4ELBAT
MOTPMYS MELBORPELBISSOP NOITULOS
tratsottluciffiD
?egdirbgniebgulpnoitingI .metsysnoitingikcehC
TROUBLESHOOTING
gulpkrapstubelbaliavasileuF
elbaliavarewoP(.etingitonlliw
.)elbacnoisnethgihta
gulpkrapstubelbaliavasileuF
rewoP(.etingitonlliw TON
.)elbacnoisnethgihtaelbaliava
gulpkrapsdnaelbaliavasileuF
noisserpmoc(setingi )lamron .
gulpkrapsdnaelbaliavasileuF
noisserpmoc(setingi wol .)
.noisserpmocwoL ?tnemtsujdaevlavtcerrocnI .sevlavtsujdadnakcehC
?srotalusni
?stisoped
?)tsud
?nrowrednilyC .rednilycecalpeR
?noitingitatisopednobraC .noitingiecalperronaelC
evitcefedoteudtiucrictrohS
?pagkrapsreporpmI .pagtcerrocehtotpaggulpkrapsteS
?hctiwspotstatiucrictrohS .evitcefedfihctiwspotsecalpeR.tiucrichctiwspotskcehC
?evitcefedliocnoitingI .liocnoitingiecalpeR
nobrachtiwdeggolcrelffuM
,retaw(etauqedaniesunileuF
?deggolcrenaelCriA .renaelcriaecalperronaelC
?teksagdaehrednilycevitcefeD .teksagdaehecalperrostlobdaehrednilycnethgiT
?esoolgulpkrapS .gulpkrapsnehgiT
.srotalusniecalpeR
.relffumecalperronaelC
.leufhserfhtiwecalperdnametysleufhsulF
yrotcafsitastonnoitarepO
?deggolcrenaelcriA .renaelcriaecalperronaelC
elbaliavarewophguonetoN
.)gnirif
-ssimon,lamronnoisserpmoc(
elbaliavarewophguonetoN
-ssim,lamronnoisserpmoc(
.)gnirif
.staehrevoenignE
.tcerrocnideepshgihenignE ?MPRenignetcerrocnI .MPR0063-0043otMPRenignetsujdadnakcehC
?enilleufniriA .enilleufmorf)riaevomer(deelB
?)tsud
.nobrac
?rednilycnistisopednobraC rednilycecalperronaelC
?evitcefedliocnoitingI .leufhserfhtiwecalperdnametysleufhsulF
?strohsnetfogulpnoitingI .noitinginaelc,seriwnoitingiecalpeR
,retaw(etauqedaniesunileuF
ninoitsopednobracevissecxE
?rebmahcnoitsubmoc
htiwdeggolcrelffumrotsuahxE
?tcerrocnieulavtaehgulpkrapS .gulpkrapsepyttcerrochtiwgulpkrapsecalpeR
.leufhserfhtiwecalperdnametysleufhsulF
.esacknarcecalperronaelC
.relffumecalperronaelC
PAGE 18 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
TROUBLESHOOTING
ENGINEENGINE
ENGINE
ENGINEENGINE
MOTPMYS MELBORPELBISSOP NOITULOS
yrotcafsitastonnoitarepO
?reporpmitnemtsujdaronrevoG .reveltcerrocotronrevogtsujdA
?evitcefedgnirpsronrevoG .noitingiecalperronaelC
.setautculfdeepslanoitatoR
?enil
gnikrowtonretratslioceR
.ylreporp
MOTPMYS MELBORPELBISSOP NOITULOS
?citarrewolfleuF .enilleufkcehC
noitcushguorhtninekatriA
?trapgnitatornitsuD .ylbmessaretratsliocernaelC
?eruliafgnirpsgnirpS .gnirpslairpsecalpeR
revelelttorhtfodeepsgnitarepO
?tesyltcerrocnisi
deunitnoc(GNITOOHSELBUORTENIGNE.4ELBAT )
.enilnoitcuskcehC
GNITOOHSELBUORTREMMAR.5ELBAT
.noitisoptcerrocotrevelelttorhtteS
?ssecxeniliO .leveltcerrocotgnirB.liossecxeniarD
spmujremmartubsnurenignE
..llatatonroyllacitarre
?spilshctulC .hctulctsujdaroecalpeR
?eruliaFgnirpS .gnirpslairpsecalpeR
?reporpmienignefodeepS .gnittesMPRgnitarepotcerrocotdeepsenignetsujdA
?detcapmoc-revolioS .liostsetdnaenihcamnwod-tuhS
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 19
EXPLANATION OF CODES IN REMARKS COLUMN
The following section explains the different symbols and
remarks used in the Parts section of this manual. Use the
help numbers found on the back page of the manual if there
are any questions.
NOTICE
The contents and part numbers listed in the parts
section are subject to change without notice. Multiquip
does not guarantee the availability of the parts listed.
SAMPLE PARTS LIST
NO. PART NO. PART NAME QTY. REMARKS
1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%
2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY
2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY
3 12348 HOSE ..................A/R ...MAKE LOCALLY
4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE
NO. Column
Unique Symbols — All items with same unique
symbol
QTY. Column
Numbers Used — Item quantity can be indicated by a
number, a blank entry, or A/R.
A/R (As Required) is generally used for hoses or other
parts that are sold in bulk and cut to length.
A blank entry generally indicates that the item is not sold
separately. Other entries will be clarified in the “Remarks”
Column.
REMARKS Column
Some of the most common notes found in the “Remarks”
Column are listed below. Other additional notes needed
to describe the item can also be shown.
Assembly/Kit — All items on the parts list with the
same unique symbol will be included when this item is
purchased.
Indicated by:
“INCLUDES ITEMS W/(unique symbol)”
(@, #, +, %, or >) in the number column belong to the
same assembly or kit, which is indicated by a note in the
“Remarks” column.
Duplicate Item Numbers — Duplicate numbers indicate
multiple part numbers, which are in effect for the same
general item, such as different size saw blade guards in
use or a part that has been updated on newer versions
of the same machine.
NOTICE
When ordering a part that has more than one item
number listed, check the remarks column for help in
determining the proper part to order.
PART NO. Column
Numbers Used — Part numbers can be indicated by a
number, a blank entry, or TBD.
TBD (To Be Determined) is generally used to show a
part that has not been assigned a formal part number
at the time of publication.
A blank entry generally indicates that the item is not sold
separately or is not sold by Multiquip. Other entries will
be clarified in the “Remarks” Column.
Serial Number Break — Used to list an effective serial
number range where a particular part is used.
Indicated by:
“S/N XXXXX AND BELOW”
“S/N XXXX AND ABOVE”
“S/N XXXX TO S/N XXX”
Specific Model Number Use — Indicates that the part
is used only with the specific model number or model
number variant listed. It can also be used to show a
part is NOT used on a specific model or model number
variant.
Indicated by:
“XXXXX ONLY”
“NOT USED ON XXXX”
“Make/Obtain Locally” — Indicates that the part can
be purchased at any hardware shop or made out of
available items. Examples include battery cables, shims,
and certain washers and nuts.
“Not Sold Separately” — Indicates that an item cannot
be purchased as a separate item and is either part of an
assembly/kit that can be purchased, or is not available
for sale through Multiquip.
PAGE 20 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
SUGGESTED SPARE PARTS
MTX80/MTX90 RAMMER 1 TO 3 UNITS
WITH ROBIN EH122D46530 ENGINE
Qty. P/N Description
1 ......... 956100063 ....... THROTTLE WIRE
3 ......... 366010070 ....... PRIMARY ELEMENT, AIR CLEANER
3 ......... 366010080 ....... SECONDARY ELEMENT, AIR CLEANER
1 ......... 366900020 ....... CAP, FUEL TANK W/ STRAP
2 ......... 26365012A3 .... FILTER, IN-LINE FUEL
3 ......... 0650140580 ..... SPARK PLUG
1 ......... 959300770 ....... STRAINER, FUEL TANK
1 ......... 2825011118 ..... ROPE, RECOIL STARTER
NOTICE
Part numbers on this Suggested Spare Parts List may
supersede/replace the P/N shown in the text pages of
this book.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 21
RAMMER
MTX
NAMEPLATE AND DECALS
1
4
7
NPA-0000
?
?
?
??
?
?
NPA-1245
2
3
5
STOP
NPA-0000
NPA-0000
8
quick manual
Engine Oil
Use SAE 10W/30,SE or higher grade motor oil
RAMMING CYLINDER OIL
Use SAE 10W/30,SF or higher grade moter oil
Fuel
Use normal quality gasoline
6
11
MODEL
SERIAL NO.
A (DECAL SET)
series
PAGE 22 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
NAMEPLATE AND DECALS
NO PART NO PART NAME QTY. REMARKS
A 920900040 DECAL SET ..................................... 1 .......... INCLUDES ITEMS W/ #
1# DECAL: OPERATION 1
2# DECAL: AIR CLEANER 1
3# DECAL: LEVER OPERATION 1
4# DECAL: MAX SPEED 1
5# DECAL: MACHINE STOP 1
6# DECAL: EC NOISE REQ 1
7# DECAL: ANTI-VIB HANDLE 1
8 920212540 QUICK MANUAL 1
11 DECAL: NAMEPLATE ...................... 1 .......... CONTACT MQ PARTS DEPT W/ SERIAL NO.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 23
35
44
35-1
35-7
35-9
47
35-4
35-3
35-2
46
44
CRANKCASE AND ENGINE ASSY.
43
47
75-1
75-2
75-3
70
74
73
55-1
106
55-2
55-2
55-1
20
54
53
11
39
12
19
59
52
45
9
49
14
10
101
18
A
35-8
35-5
31-1
31-2
48
49
30
28-1
13
28-2
15
8
56
61
80
111
82
6662
79
60
56
57
65
63
64
OLD
STYLE
CLUTCH
22
65
63
64
58
40-1
40-2
40-3
36
37
38
41-2
41-1
34
33
77
32
48
27
4
51
1
16
A
5
3
7
6
81
37
NEW
STYLE
CLUTCH
24-1
55-2
55-1
78
25
22
24-2
59
53
54
23
68
67
26
PAGE 24 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
CRANKCASE AND ENGINE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 366118940 CRANK CASE 1
3 041006007 BEARING 6007Z 1
4 367345180 PINION, DRUM 1
5 060404010 OIL SEAL TC-40528 1
6 080200350 STOP RING S-35 1
7 080100620 STOP RING R-62 1
8 040006207 BEARING 6207 1
9 040006305 BEARING 6305 1
10 080100720 STOP RING R-72 1
11 080200350 STOP RING S-35 1
12 080200250 STOP RING S-25 1
13 366345230 CONNECTING ROD 1
14 040006304 BEARING 6304 1
15 080100520 STOP RING R-52 1
16 080200200 STOP RING S-20 1
18 047940060 NEEDLE BEARING FJ-1816 1
19 050710080 O-RING AS568-267 1
20 001520825 SOCKET HEAD BOLT 8X25 T 8
22 366346210 CLUTCH ASSY ....................................... 1 ......... MTX80: S/N S-3939 AND BELOW
............................................................................. MTX90: S/N S-1298 AND BELOW
22 366348550 CLUTCH ASSY ....................................... 1 ......... MTX80: S/N S-3940 AND ABOVE
............................................................................. MTX90: S/N S-1299 AND ABOVE
23 952401450 WASHER 8.5X22X3 1
24-1 001220825 BOLT 8X25 T 1
24-2 030208200 WASHER, LOCK M8 1
25 367217260 FLANGE, ENGINE 1
26 001710830 FLANGE BOLT 8X30 4
27 022611010 FLANGE NUT M10 H 2
28-1 001221054 BOLT 10X70 T 2
28-2 030210250 WASHER, LOCK M10 2
30 366346280 BRACKET, SHOCK ABSORBER 1
31-1 001211030 BOLT 10X30 H 4
31-2 030210250 WASHER, LOCK M10 4
32 939010270 STOPPER RUBBER ( 70 ) 1
33 030208200 WASHER, LOCK M8 1
34 020308060 NUT M8 1
35 366900010 AIR CLEANER ASSY ............................... 1 ......... INCLUDES ITEMS W/ #
35-1# 366010010 AIR CLEANER COVER 1
35-2# 366010020 WASHER, FLAT M6 2
35-3# 366010030 WASHER, LOCK M6 2
35-4# 366010040 COIN BOLT M6 2
35-5# 366010050 BASE CP, AIR CLEANER 1
35-7# 366010070 PRIMARY ELEMENT CP 1
35-8# 366010080 SECONDARY ELEMENT 1
35-9# 362030040 GRIP BOLT CP, AIR CLEANER 1
36 367217460 PIPE, INTAKE 1
37 954407682 CYCLONE CLAMP (CY-1) 38 2
38 366460160 SEALING FORM, UNDER 1
39 366460150 SEALING FORM, SIDE 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 25
35
44
35-1
35-7
35-9
47
35-4
35-3
35-2
46
CRANKCASE AND ENGINE ASSY.
43
47
44
75-1
75-2
75-3
70
74
73
55-1
106
55-2
55-2
55-1
20
54
53
11
39
12
19
59
45
52
9
49
14
10
101
18
A
35-8
35-5
31-1
31-2
48
49
30
28-1
13
28-2
15
8
56
61
80
111
82
6662
79
60
56
57
65
63
64
OLD
STYLE
CLUTCH
22
65
63
64
58
40-1
40-2
40-3
36
37
38
41-2
41-1
34
33
77
32
48
27
4
51
1
16
A
5
3
7
6
81
37
NEW
STYLE
CLUTCH
24-1
55-2
55-1
78
22
24-2
25
23
68
67
26
59
53
54
PAGE 26 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
CRANKCASE AND ENGINE ASSY.
CONTINUED
NO. PART NO. PART NAME QTY. REMARKS
40-1 001220851 BOLT 8X55 T 2
40-2 030208200 WASHER, LOCK M8 2
40-3 031108160 WASHER, FLAT M8 2
41-1 001210815 BOLT 8X15 H 2
41-2 030208200 WASHER, LOCK M8 2
43 366217340 COVER, CLEANER ASSY (UPPER) 1
44 366460140 RUBBER BUSH (10X16X17) 2
45 366217350 COVER, CLEANER ASSY (UNDER) 1
46 366345980 KNOB, CLEANER COVER 2
47 050200060 O-RING P6 2
48 009110040 FLANGE BOLT 8X20 4
49 959407670 SQUARE NUT M8 4
51 367118990 GUARD, LINK 1
52 367119000 GUARD, MUFFLER 1
53 022910260 WELL NUT M8 2
54 366460170 FLANGE COLLAR 8 2
55-1 001520820 SOCKET HEAD BOLT 8X20 T 4
55-2 031108160 WASHER, FLAT M8 4
56 009110038 SOCKET HEAD BOLT 8X30 ZN 2
57 367217490 EX BAR 1
58 009110039 SOCKET HEAD BOLT 6X25 ZN 4
59 022910250 WELL NUT M6 4
60 367119010 GUARD, ENGINE 1
61 367346290 SUPPORT, ENGINE 1
62 009110042 S.H.BOLT8X45 WHOLE THREAD 2
63 030208200 WASHER, LOCK M8 4
64 031108160 WASHER, FLAT M8 4
65 020308060 NUT M8 4
66 009110043 SOCKET HEAD BOLT 8X40 ZN 2
67 001520820 SOCKET HEAD BOLT 8X20 T 2
68 030208200 WASHER, LOCK M8 2
70 366900042 COMBINATION LEVER ASSY W/ WIRE ........ 1 ......... INCLUDES ITEMS W/@
74@ 956100063 THROTTLE WIRE 1
75-1 001220620 BOLT 6X20 T 2
75-2 030206150 WASHER, LOCK M6 2
75-3 031106100 WASHER, FLAT M6 2
76 020306050 NUT M6 2
77 959006120 CLIP (TCP2-10509B) 1
78 367460120 WIRE HARNESS 1
79 2067550101 CLAMP COMPL 1
80 959021810 SPIRAL TUBE KEP6/L=500 1
81 454010020 CLAMP TC-100 5
82 954010280 CLIP AB-4N 1
101 367345200 CRANK GEAR 1
106 366010120 FRONT COVER ............................................. 1 ......... FOR MTX80, S/N S-3939 AND BELOW
106 366010121 FRONT COVER ............................................. 1 ......... FOR MTX80, S/N S-3940 AND ABOVE
106 366010130 FRONT COVER ............................................. 1 ......... FOR MTX90, S/N S-1298 AND BELOW
106 366010131 FRONT COVER ............................................. 1 ......... FOR MTX90, S/N S-1299 AND ABOVE
111 911211217 ENGINE ASSY, EH122D46530 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 27
GUIDE CYLINDER AND SPRING ASSY.
32
1
2
9
8
14
15 16
18
17
13
3
21
12
26
20
22
24
27
28
25
29
23
29
9
27
26
7
24
31
4
6
5-2
5-1
PAGE 28 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
51
52
53
28
25
30
GUIDE CYLINDER AND SPRING ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 366460100 PISTON PIN 1
2 366459910 PLUG, PISTON PIN 2
3 366346000 PISTON ROD 1
4 371459690 PISTON END 1
5-1 001221230 BOLT 12X30 T 1
5-2 030212300 WASHER, LOCK M12 1
6 952404790 WASHER 13306 1
7 355447260 STOPPER, LOWER 1
8 366459900 STOPPER, BOTTOM 1
9 366459730 MAIN SPRING 2
12 366345990 SPRING CYLINDER 1
13 366217210 FOOT PLATE 12 1
14 050100900 O-RING G-90 1
15 001521020 SOCKET HEAD BOLT 10X20 T 4
16 001521040 SOCKET HEAD BOLT 10X40 T 4
17 953405270 PLUG 1/4X14 13L 1
18 953405260 PACKING 1/4 (CU) 1
20 366217440 GUIDE CYLINDER ...................................... 1 .......... FOR MTX80
20 367217450 GUIDE CYLINDER ...................................... 1 .......... FOR MTX90
21 050710070 O-RING AS568-344 1
22 002211035 BOLT 10X35 H, SW .................................... 4 .......... FOR MTX80
22 002211045 BOLT 10X45 H, SW .................................... 4 .......... FOR MTX90
23 354010010 BELLOWS, ORANGE 1
24 050931500 O-RING JASO3150 2
25 354336352 BELLOWS CLAMP( 1.6T)171D 2
26 354442340 BAND GUIDE, BELLOWS 2
27 001220840 BOLT 8X40 T 2
28 020308060 NUT M8 2
29 354446170 PIN 6D-8.5L 2
30 953405270 PLUG 1/4X14 13L 1
31 953405260 PACKING 1/4 (CU) 1
32 050200950 O-RING P-95 1
51 366118590 PROTECTION SLEEVE 1
52 366460300 OIL GAUGE ASSY 1
53 953404670 COPPER PACKING 17X25.5X1 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 29
2
3
FOOT ASSY.
2
3
6
9
8
7
4
1
5
PAGE 30 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
NO. PART NO. PART NAME QTY. REMARKS
1 366910020 FOOT ASSY 285 1
2 022711214 NYLON NUT M12 4
3 030212300 WASHER, LOCK M12 4
4 009110034 BOLT, SQUARE NECK 12X65 2
5 009110035 BOLT, SQUARE NECK 12X95 2
6 363343390 GRIP HANDLEBAR 1
7 015110055 SUNK HEAD BOLT 10X55 H 7
8 030210250
9 021110120
WASHER SW M10 7
NYLON NUT M10 7
FOOT ASSY.
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 31
TANK AND HANDLE ASSY.
9
10
54
51
53
56
22
14
15
110
3
16
B
A
18
17
42
41
42
4-1
4-2
43
5
41
6
43
11-2
11-1
7
12
4-2
12
11-2
11-1
4-1
112
13
11-2
11-1
A
113
20
B
19
55
112
111
102
101
102
103
20
102
104
106
1
2-2
2-1
102
105
PAGE 32 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
TANK AND HANDLE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
1 366346270 SHOCK ABSORBER W/PIN 2
2-1 001521020 SOCKET HEAD BOLT 10X20 T 4
2-2 033121009 TOOTHED LOCK WASHER B M10 4
3 367119050 HANDLE 1
4-1 001211020 BOLT 10X20 H 4
4-2 030210250 WASHER, LOCK M10 4
5 939010270 STOPPER RUBBER (70) 1
6 030208200 WASHER, LOCK M8 1
7 020308060 NUT M8 1
9 366900020 CAP ASSY, FUEL TANK 1
10 366118700 FUEL TANK 1
11-1 001210815 BOLT 8X15 H 3
11-2 030208200 WASHER, LOCK M8 3
12 952401450 WASHER 8.5X22X3 2
13 031108160 WASHER, FLAT M8 1
14 959300770 STRAINER #508 1
15 366459790 PACKING, FUEL TANK 1
16 366345280 HOLDER, FILTER ................................... 1 ......... MTX80 S/N T-4419 AND BELOW
............................................................................. MTX90 S/N T-1341 AND BELOW
16% 366345280 HOLDER, FILTER ................................... 1 ......... MTX80 S/N T-4420 AND ABOVE
............................................................................. MTX90 S/N T-1342 AND ABOVE
17 020305040 NUT M5 3
18 030205130 WASHER, LOCK M5 3
19 959026122 FUEL HOSE L=70 ................................... 1 ......... MTX80 S/N T-4164 AND BELOW
............................................................................. MTX90 S/N T-1331 AND BELOW
19 0851041780 FUEL HOSE FOR EVP L=70 .................. 1 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
20 954406420 HOSE BAND 10.5 ................................... 2 ......... MTX80 S/N T-4164 AND BELOW
............................................................................. MTX90 S/N T-1331 AND BELOW
20 0561080020 HOSE CLAMP ........................................ 2 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
22 009110037 TAPPING SCREW 5X20 2
41 366217170 ROLLER 2
42 091005020 SCREW 5X20 4
43 022610505 FLANGE NUT M5 H 4
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 33
TANK AND HANDLE ASSY.
9
10
54
51
53
56
22
14
15
110
3
16
B
A
18
17
55
42
41
42
4-1
4-2
43
12
11-2
4-2
11-1
4-1
112
13
11-2
11-1
A
113
20
19
112
B
111
102
20
101
102
103
102
104
106
5
41
6
43
12
11-2
11-1
7
1
2-2
2-1
102
105
PAGE 34 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
TANK AND HANDLE ASSY.
CONTINUED
NO. PART NO. PART NAME QTY. REMARKS
51 955010311 TP22 TACHO/HOUR METER 1
53 955010305 CURL CORD TP22 1
54 366345620 FINISHER, METER 1
55 454010020 CLAMP, TC100 5
56 954010270 CLIP AB-3N 1
101 959026121 FUEL HOSE L=170 ................................. 1 ......... MTX80 S/N T-4164 AND BELOW
............................................................................. MTX90 S/N T-1331 AND BELOW
101 0851041800 FUEL HOSE FOR EVP L=170 ................ 1 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
102 954406420 HOSE BAND 10.5 ................................... 4 ......... MTX80 S/N T-4164 AND BELOW
............................................................................. MTX90 S/N T-1331 AND BELOW
102 0561080020 HOSE CLAMP ........................................ 4 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
103 26365012A3 FILTER, FUEL CP 1
104 959021722 FUEL HOSE L=250 1 MTX80 S/N T-4164 AND BELOW
............................................................................. MTX90 S/N T-1331 AND BELOW
104 0851041760 FUEL HOSE FOR EVP L=260 ................ 1 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
105 959021824 SPIRAL TUBE D=6, L=110 ..................... 1 ......... MTX80 S/N T-4165 AND ABOVE
............................................................................. MTX90 S/N T-1332 AND ABOVE
106 959407720 TUBE, V 11X13X180 1
110 366900060 PRIMER PUMP KIT/NO CARB .............. 1 ......... INCLUDES ITEMS W/ %
............................................................................. MTX80 S/N T-4420 AND ABOVE
............................................................................. MTX90 S/N T-1342 AND ABOVE
111% 959028301 RETURN HOSE 3X6X600 ....................... 1 ......... MTX80 S/N T-4420 AND ABOVE
............................................................................. MTX90 S/N T-1342 AND ABOVE
112% 954408170 HOSE CLIP 5 .......................................... 2 ......... MTX80 S/N T-4420 AND ABOVE
............................................................................. MTX90 S/N T-1342 AND ABOVE
113% 959021814 SPIRAL TUBE 6D-200L .......................... 1 ......... MTX80 S/N T-4420 AND ABOVE
............................................................................. MTX90 S/N T-1342 AND ABOVE
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 35
COMBINATION LEVER ASSY.
10
A
4
7
8
7
3
11
1
13
2
BODY
5
OLD
STYLE
LEVER
14
NEW
STYLE
LEVER
11
12
6
9
NOTES
OLD STYLE LEVER BODY NO LONGER
AVAILABLE. NEW STYLE ITEMS 1, 2, AND 9
ARE NOT COMPATIBLE WITH OLD STYLE
BODY. IF REPLACEMENT OF ITEMS 1, 2
OR 9 IS REQUIRED, ORDER KIT “A”.
TO DETERMINE IF COMBINATION LEVER
ASSY IS OLD STYLE OR NEW STYLE, SEE
ITEM 2, LEVER. NEW STYLE LEVER HAS
MOLDED TAB AT BOTTOM.
MOLDED
TAB
PAGE 36 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
COMBINATION LEVER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
A 366900042 COMB. LEVER ASSY W/ THROTTLE WIRE ..... 1 ......... INCLUDES ITEMS W/ #
....................................................................................... REPLACES 366900041
A 956200110 COMB. LEVER ASSY ....................................... 1 ......... INCLUDES ITEMS W/@
1 366346260 FUEL COCK ...................................................... 1 ......... SEE NOTE ON DRAWING
1#@ 366349430 FUEL COCK ...................................................... 1 ......... NEW STYLE, SEE NOTE ON DRAWING
2 366010180 LEVER ............................................................... 1 ......... SEE NOTE ON DRAWING
2#@ 366010310 LEVER ............................................................... 1 ......... NEW STYLE, SEE NOTE ON DRAWING
3#@ 366010190 SLIDER 1
4#@ 366010200 END CAP 1
5#@ 366010210 WIRE CAP 1
6#@ 366010220 BOLT AND WASHER SET 1
7#@ 020408050 NUT M8, H=5 2
8#@ 959407650 SOCKET HEAD SCREW/TH.WIRE 1
9 366010260 STOP SWITCH .................................................. 1 ......... SEE NOTE ON DRAWING
9#@ 366010320 STOP SWITCH .................................................. 1 ......... NEW STYLE, SEE NOTE ON DRAWING
10# 956100063 THROTTLE WIRE 1
11#@ 094010051 TAPPING SCREW B1 4X12 4
12#@ 094010052 TAPPING SCREW B1 4X30 1
13#@ 050200150 O-RING, P15 1
14#@ 050200110 O-RING, P11 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 37
TOOLS
PAGE 38 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
NO. PART NO. PART NAME QTY. REMARKS
1 981010400 CLUTCH PULLER A 1
2 983010060 CLUTCH MOUNTER 1
3 983910090 PISTON ROD HOLDER 1
4 009110044 SOCKET HEAD BOLT 8X50 (FULL THREAD)
CRANK GEAR REMOVER 2
5 983910020 CLUTCH PULLER B 1
6 983010040 SPRING CYLINDER REMOVER 1
7 983910010 PISTON END REMOVER 1
TOOLS
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 39
ROBIN EH122D46530 — CRANKCASE ASSY.
10
298
270
280
265
295
210
230
40
50
30
700
830
294
860
297
75
90
80
260
250
220
300
NOTE
USE LIQUID GASKET FOR CYLINDER AND INSULATOR GASKET.
PAGE 40 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CRANKCASE ASSY.
CRANKCASE ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2521030141 CRANKCASE CP ...............................................1................INCLUDES ITEMS W/ #
30# 0440250150 OIL SEAL 1
40# 0600250100 BALL BEARING 1
50# 0310060020 DOWEL PIN 2
75# 0440080010 OIL SEAL VC 8X14X4 1
80 0401140030 PLUG 2
90 0211140020 GASKET 2
210 2521110301 MAIN BEARING COVER CP .............................1................INCLUDES ITEMS W/ $
220$ 0440250160 OIL SEAL 1
230$ 0600250010 BALL BEARING 6205C3 1
250 2274500301 GOVERNOR GEAR CP 1
260 2054190103 GOVERNOR SLEEVE 1
265$ 0108100030 STUD 2
270 2686360301 OIL GAUGE CP 1
280 X213160020 GASKET 1
294 2521700201 BRACKET CP (M.B.C) 1
295 2521700101 SUPPORT (M.B.C) 1
297 0011308160 BOLT AND WASHER ASSY 1
298 0011308160 BOLT AND WASHER ASSY 2
300 0130060200 BOLT AND WASHER ASSY 8
700 0310060020 DOWEL PIN 2
830 2681620103 GASKET, BREATHER COVER 1
860 0011306160 BOLT AND WASHER ASSY 2
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 41
ROBIN EH122D46530 — CYLINDER HEAD ASSY.
710
680
850
MTX80/MTX90 — EH12-2D ROBIN ENGINE— CRANKSHAFT AND PISTON
690
910
726
723
722
720
220
95
73
72
230
220
95
73
72
230
240
260
630
20
725
26
20
721
724
690
610
70
60
60
CRANKCASE
REFERENCE
ONLY
620
900
901
71
CYLINDER HEAD
REFERENCE
ONLY
240
90
210
80
PAGE 42 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CYLINDER HEAD ASSY.
CYLINDER HEAD ASSY.
NO. PART NO. PART NAME QTY. REMARKS
20# 2371420203 VALVE GUIDE O/S 2
26 2771601001 STEM SEAL 1
60# 0105080480 STUD 2
70# 0105060131 STUD 1
71# 0013906600 STUD 1
72 2533360103 VALVE SPRING 2
73 2693370103 SPRING RETAINER 2
80 2683340103 INTAKE VALVE 1
90 2683350103 EXHAUST VALVE 1
95 13210KA031 COLLET VALVE 4
210 2683530103 PUSH ROD 2
220 2693600103 ROCKER ARM 2
230 2693580103 BOLT, PIVOT 2
240 0170060090 NUT 2
260 2693650103 GUIDE PLATE 1
610 2681310121 CYLINDER HEAD CP ........................................1................INCLUDES ITEMS W/ #
620 2531500133 GASKET, HEAD 1
630 0110080100 FLANGE BOLT 4
680 2521550203 ROCKER COVER 1
690 2691600403 GASKET, ROCKER, COVER 2
710 0110060170 FLANGE BOLT 4
720 2521560120 SPACER ASSY, BREATHER ..............................1................INCLUDES ITEMS W/ $
721$ 2521560113 SPACER, BREATHER 1
722$ 2521600103 LEAF VALVE 1
723$ 2521610103 RETAINER PLATE 1
724$ 2521440123 PLATE 1
725$ 0110060150 FLANGE BOLT 2
726$ 0043506120 SCREW AND WASHER 1
850 2681800503 RUBBER PIPE 1
900 0566000250 CLAMP 1
901 0110060020 FLANGE BOLT 1
910 0561120040 HOSE CLAMP 1
— E— CRANKSHAFT AND PISTON
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 43
ROBIN EH122D46530 — CRANKSHAFT, PISTON ASSY.
370
CRANKCASE
REFERENCE
ONLY
360
380
380
350
310
50
60
70
10
40
320
PAGE 44 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CRANKSHAFT, PISTON ASSY.
CRANKSHAFT, PISTON ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2682190501 CRANK SHAFT CP 1
40 0230250110 SPACER T=0.6 1
40 0230250120 SPACER T=0.8 1
40 0230250130 SPACER T=1.0 1
50 0021814000 NUT 1
60 0032014000 SPRING WASHER 1
70 0323030010 WOODRUFF KEY 1
310 2522250120 CONNECTING ROD ASSY ...............................1................INCLUDES ITEM W/ #
320# 2362300103 CONNECTING ROD BOLT 2
350 2682330103 PISTON PIN 1
360 26823401H3 PISTON STD 1
360 26823402H3 PISTON O.S. 0.25 1
360 26823403H3 PISTON O.S. 0.5 1
370 2522350117 PISTON RING SET, STD 1
370 2522350217 PISTON RING SET 0.25 O.S. 1
370 2522350317 PISTON RING SET 0.50 O.S. 1
380 2152500403 CLIP 2
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 45
ROBIN EH122D46530 — CAMSHAFT ASSY.
CRANKCASE
REFERENCE
ONLY
10
36
3834
50
PAGE 46 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CAMSHAFT ASSY.
CAMSHAFT ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2533170111 CAMSHAFT CP .................................................1................INCLUDES ITEMS W/ #
34# 2273860123 PIN (SPRING) 1
35# 2273640113 RELEASE LEVER 1
36# 0051904100 SPRING PIN 1
37# 0031522000 SNAP RING 1
38# 2273870103 RETURN SPRING 1
50 2393330113 TAPPET 2
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 47
95
ROBIN EH122D46530 — RECOIL STARTER ASSY.
10
40
90
249
206
211
207
205
208
205
202
200
220
20
201
203
204
PAGE 48 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — RECOIL STARTER ASSY.
RECOIL STARTER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2525165221 BLOWER HOUSING CP 1
20 920100240 DECAL, (M-MARK) 1
40 0011406550 BOLT AND WASHER ASSY 6X55 4
90 2685270303 HEAD COVER 1
95 0110060140 FLANGE BOLT 2
200 2685020130 RECOIL STARTER ASSY ..................................1................INCLUDES ITEMS W/ #
201# 2705011508 SPIRAL SPRING 1
202# 2695012008 REEL 1
203# 2825011118 STARTER ROPE 1
204# 2615010008 STARTER KNOB 1
205# 2705012508 RATCHET 2
206# 2275013108 FRICTION SPRING 1
207# 2275013508 RETURN SPRING 2
208# 2705026108 RATCHET GUIDE 1
211# 2685014518 STARTER PULLEY 1
220 0110060010 FLANGE BOLT 4
249# 2275015208 SET SCREW 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 49
ROBIN EH122D46530 — CARBURETOR ASSY.
210
918
947
946
945
NOT SOLD SEPARATELY
948
949
905
903
904
917
929
919
927
917
907
921
909
902
910
912
943
900
906
916
908
920
926
925
915
911
914
901
916
PAGE 50 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CARBURETOR ASSY.
CARBURETOR ASSY.
MTX80: S/N T-4419 AND BELOW
MTX90: S/N T-1341 AND BELOW
NO. PART NO. PART NAME QTY. REMARKS
210 2526257100 CARBURETOR ASSY ...................................... 1 ...............INCLUDES ITEMS W/ #
900# 5016004010 SCREEN INLET 1
901# 2526260508 COVER, METALING DIAPHRAGM 1
902# 2526260408 COVER PUMP 1
903# 2526261208 THROTTLE SHAFT 1
904# 1616233508 VALVE THROTTLE 1
905# 2846260308 SHAFT ASSY CHOKE 1
906# 5106045040 CLIP 1
907# 2846260408 VALVE, CHOKE 1
908# 1616255208 VALVE, INLET NEEDLE 1
909# 1476258408 BALL 1
910# 1616238008 GASKET PLUG 1
911# 1616238108 GASKET, METALING DIAPHRAGM 1
912# 2526261008 DIAPHRAGM PUMP 1
914# 1616238308 DIAPHRAGM ASSY, METALING 1
915# 1066257508 SCREW 1
916# 1066257608 SCREW ASSY 5
917# 1476257308 SCREW 2
918# 2846260008 SCREW 1
919# 1616245408 SPRING, IDLE ADJUST 1
920# 1616245108 SPRING, METALING LEVER 1
921# 1476258308 SPRING, CHOKE 1
925# 1616236808 PIN, METALING LEVER 1
926# 1616236908 LEVER, METALING 1
927# 1476257508 PLUG 1
929# 1616238508 SCREW, IDLE ADJUST 1
943# 2526261108 SPRING PUMP 1
945# 1616255108 STOPPER, THROTTLE 1
946# 2526260308 LEVER, THROTTLE 1
947# 1616255308 SCREW VALVE 2
948# 2526260208 SPACER, THROTTLE LEVER 1
949# 2526260108 WASHER 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 51
ROBIN EH122D46530 — CARBURETOR ASSY.
PAGE 52 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — CARBURETOR ASSY.
CARBURETOR ASSY.
MTX80: S/N T-4420 AND ABOVE
MTX90: S/N T-1342 AND ABOVE
NO. PART NO. PART NAME QTY. REMARKS
210 2526257300 CARBURETOR ASSY 1 INCLUDES ITEMS W/ #
900# 5016004010 SCREEN INLET 1
901# 2526261608 COVER, PRIMER PUMP 1
902# 2526261308 COVER PUMP 1
903# 2526261208 THROTTLE SHAFT 1
904# 1616233508 VALVE THROTTLE 1
905# 2846260308 SHAFT ASSY CHOKE 1
906# 5106045040 CLIP 1
907# 2846260408 VALVE, CHOKE 1
908# 1616255208 VALVE, INLET NEEDLE 1
909# 1476258408 BALL 1
910# 1616238008 GASKET PLUG 1
911# 2526261808 GASKET, METALING DIAPHRAGM 1
912# 2526261008 DIAPHRAGM PUMP 1
914# 2526261708 DIAPHRAGM ASSY, METALING 1
915# 2526261908 SCREW 1
916# 2526262008 SCREW ASSY 5
917# 1476257308 SCREW 2
918# 2846260008 SCREW 1
919# 1616245408 SPRING, IDLE ADJUST 1
920# 1616245108 SPRING, METALING LEVER 1
921# 1476258308 SPRING, CHOKE 1
925# 1616236808 PIN, METALING LEVER 1
926# 1616236908 LEVER, METALING 1
927# 1476257508 PLUG 1
929# 1616238508 SCREW, IDLE ADJUST 1
943# 2526261108 SPRING PUMP 1
945# 1616255108 STOPPER, THROTTLE 1
946# 2526260308 LEVER, THROTTLE 1
947# 1616255308 SCREW VALVE 2
948# 2526260208 SPACER, THROTTLE LEVER 1
949# 1476258600 SEAL, DUST 2
950# 1066257608 SCREW ASSY 1
961# 2526261408 BODY ASSY, AIR PURGE 1
962# 2526261508 PUMP, PRIMER 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 53
ROBIN EH122D46530 — AIR CLEANER ASSY.
555
CYLINDER HEAD
REFERENCE
ONLY
590
500
550
528
556
552
567
565
563
560
570
530
PAGE 54 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — AIR CLEANER ASSY.
AIR CLEANER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
500 2683300413 INTAKE PIPE 1
528 2683660103 PLATE 1
530 2843810103 INTAKE PIPE 1
550 1573500103 GASKET, INSULATOR 1
552 2843650103 GASKET (INTAKE) 1
555 2823590103 GASKET, INSULATOR 1
556 0011406400 BOLT AND WASHER ASSY 1
560 1066500203 GASKET (CARB.) 2
563 0119060090 BOLT (SOCKET HEAD) 2
565 2843310103 INTAKE FLANGE CP 1
567 0100050110 BOLT M5X0.8X70L 2
570 0176050010 SELF LOCK NUT 2
590 0023806000 FLANGE NUT 2
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 55
310
ROBIN EH122D46530 — MUFFLER ASSY.
366
340
345
340
CYLINDER HEAD
REFERENCE
ONLY
350
365
330
CRANKCASE
REFERENCE
ONLY
PAGE 56 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — MUFFLER ASSY.
MUFFLER ASSY.
NO. PART NO. PART NAME QTY. REMARKS
310 2523040111 MUFFLER CP 1
330 2523700111 BRACKET CP 1
340 2533520103 GASKET, MUFFLER 2
345 2523650123 SPACER, EXHAUST 1
350 0176080020 SELF LOCK NUT 2
365 0011308160 BOLT AND WASHER ASSY 2
366 0011408160 BOLT AND WASHER 8X16 2
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 57
20
ROBIN EH122D46530 — GOVERNOR ASSY.
40
30
80
50
60
26
290
70
10
293
200
240
235
231
210
710
280
230
716
715
PAGE 58 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — GOVERNOR ASSY.
GOVERNOR ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2524230303 GOVERNOR LEVER CP 1
20 2274220103 GOVERNOR SHAFT 1
26 0031108000 WASHER 1
30 2544270101 GOVERNOR ROD CP 1
40 2544280103 ROD SPRING 1
50 0031306000 CLIP 2
60 0011406300 BOLT AND WASHER ASSY 1
70 0186060020 NUT 1
80 2524250323 GOVERNOR SPRING 1
200 2524340230 SPEED CONTROL ASSY 1
210 0116040030 BOLT 1
230 0043105250 SCREW, PANHEAD 1
231 0043104250 SCREW 1
235 2684500113 CONTROL SPRING 1
240 0021705000 NUT 1
280 2264310101 LINK PIVOT CP 1
290 2684420201 WIRE BRACKET 1
293 0110060030 FLANGE BOLT 1
710 2524280111 PROTECTOR CP, GOVERNOR 1
715 0011308160 BOLT AND WASHER ASSY 1
716 0110060030 FLANGE BOLT 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 59
100
ROBIN EH122D46530 — FLYWHEEL IGNITION ASSY.
11
30
95
11 0
10
90
70
11
10
PAGE 60 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — FLYWHEEL IGNITION ASSY.
FLYWHEEL IGNITION ASSY.
NO. PART NO. PART NAME QTY. REMARKS
10 2687933201 FLYWHEEL CP 1
11 2697943011 IGNITION COIL CP 1
30 0011406250 BOLT AND WASHER ASSY 2
70 0150040090 TAPPING SCREW 2
90 0566000250 CLAMP 1
95 0659000010 PLUG TERMINAL 1
100 0650140580 SPARK PLUG BR6ES 1
110 2307510113 SPARK PLUG CAP 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 61
ROBIN EH122D46530 — LABELS AND ACCESSORIES
LABELS
100
101
102
ACCESSORIES
103
201
202
PAGE 62 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
ROBIN EH122D46530 — LABELS AND ACCESSORIES
LABELS AND ACCESSORIES
NO. PART NO. PART NAME QTY. REMARKS
100 0732004450 LABEL, CAUTION 1
101 0732004520 LABEL, OIL CAUTION 1
102 0732003900 LABEL, WARNING 1
103 0732005020 LABEL CHOKE 1
201 0830000010 COIL SPRING 1
202 2267510103 CLAMP 1
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 63
TERMS AND CONDITIONS OF SALE — PARTS
PAYMENT TERMS
Terms of payment for parts are net 30 days.
FREIGHT POLICY
All parts orders will be shipped collect or
prepaid with the charges added to the invoice.
All shipments are F.O.B. point of origin.
Multiquip’s responsibility ceases when a
signed manifest has been obtained from the
carrier, and any claim for shortage or damage
must be settled between the consignee and
the carrier.
MINIMUM ORDER
The minimum charge for orders from Multiquip
is $15.00 net. Customers will be asked for
instructions regarding handling of orders not
meeting this requirement.
RETURNED GOODS POLICY
Return shipments will be accepted and
credit will be allowed, subject to the following
provisions:
A Returned Material Authorization 1.
must be approved by Multiquip prior to
shipment.
To obtain a Return Material Authorization, 2.
a list must be provided to Multiquip
Parts Sales that defines item numbers,
quantities, and descriptions of the items
to be returned.
The parts numbers and descriptions a.
must match the current parts price
list.
The list must be typed or computer b.
generated.
The list must state the reason(s) c.
for the return.
The list must reference the sales d.
order(s) or invoice(s) under
which the items were originally
purchased.
The list must include the name e.
and phone number of the person
requesting the RMA.
A copy of the Return Material Authorization 3.
must accompany the return shipment.
Freight is at the sender’s expense. All 4.
parts must be returned freight prepaid to
Multiquip’s designated receiving point.
Parts must be in new and resalable 5.
condition, in the original Multiquip
package (if any), and with Multiquip part
numbers clearly marked.
The following items are not returnable:6.
Obsolete parts. (If an item is in the a.
price book and shows as being
replaced by another item, it is
obsolete.)
Any parts with a limited shelf life b.
(such as gaskets, seals, “O” rings,
and other rubber parts) that were
purchased more than six months
prior to the return date.
Any line item with an extended c.
dealer net price of less than
$5.00.
Special order items.d.
Electrical components.e.
Paint, chemicals, and lubricants.f.
Decals and paper products.g.
Items purchased in kits.h.
The sender will be notified of any material 7.
received that is not acceptable.
Such material will be held for five 8.
working days from notification, pending
instructions. If a reply is not received
within five days, the material will be
returned to the sender at his expense.
Credit on returned parts will be issued 9.
at dealer net price at time of the original
purchase, less a 15% restocking
charge.
In cases where an item is accepted, for 10.
which the original purchase document
can not be determined, the price will be
based on the list price that was effective
twelve months prior to the RMA date.
Credit issued will be applied to future 11.
purchases only.
PRICING AND REBATES
Prices are subject to change without prior
notice. Price changes are effective on a
specific date and all orders received on or
after that date will be billed at the revised price.
Rebates for price declines and added charges
for price increases will not be made for stock
on hand at the time of any price change.
Multiquip reserves the right to quote and
sell direct to Government agencies, and to
Original Equipment Manufacturer accounts
who use our products as integral parts of their
own products.
SPECIAL EXPEDITING SERVICE
A $35.00 surcharge will be added to the
invoice for special handling including bus
shipments, insured parcel post or in cases
where Multiquip must personally deliver the
parts to the carrier.
LIMITATIONS OF SELLER’S LIABILITY
Multiquip shall not be liable hereunder for
damages in excess of the purchase price of
the item with respect to which damages are
claimed, and in no event shall Multiquip be
liable for loss of profit or good will or for any
other special, consequential or incidental
damages.
LIMITATION OF WARRANTIES
No warranties, express or implied, are
made in connection with the sale of parts or
trade accessories nor as to any engine not
manufactured by Multiquip. Such warranties
made in connection with the sale of new,
complete units are made exclusively by a
statement of warranty packaged with such
units, and Multiquip neither assumes nor
authorizes any person to assume for it
any other obligation or liability whatever in
connection with the sale of its products. Apart
from such written statement of warranty,
there are no warranties, express, implied or
statutory, which extend beyond the description
of the products on the face hereof.
Effective: February 22, 2006
PAGE 64 — MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11)
NOTES
NOTES
MTX80/90 RAMMER — OPERATION AND PARTS MANUAL — REV. #9 (1/14/11) — PAGE 65
OPERATION AND PARTS MANUAL
©
HERE’S HOW TO GET HELP
PLEASE HAVE THE MODEL AND SERIAL
NUMBER ON-HAND WHEN CALLING
UNITED STATES
Multiquip Corporate Office MQ Parts Department
18910 Wilmington Ave.
Carson, CA 90746
Contact: mq@multiquip.com
Service Department Warranty Department
Tel. (800) 421-1244
Fax (800) 537-3927
800-427-1244
310-537-3700
Fax: 800-672-7877
Fax: 310-637-3284
800-421-1244
310-537-3700
Technical Assistance
800-478-1244 Fax: 310-943-2238
Fax: 310-537-4259 800-421-1244
310-537-3700
Fax: 310-943-2249
MEXICO UNITED KINGDOM
MQ Cipsa Multiquip (UK) Limited Head Office
Carr. Fed. Mexico-Puebla KM 126.5
Momoxpan, Cholula, Puebla 72760 Mexico
Contact: pmastretta@cipsa.com.mx
Tel: (52) 222-225-9900
Fax: (52) 222-285-0420
Unit 2, Northpoint Industrial Estate,
Globe Lane,
Dukinfield, Cheshire SK16 4UJ
Contact: sales@multiquip.co.uk
Tel: 0161 339 2223
Fax: 0161 339 3226
CANADA
Multiquip
4110 Industriel Boul.
Laval, Quebec, Canada H7L 6V3
Contact: jmartin@multiquip.com
COPYRIGHT 2011, MULTIQUIP INC.
Multiquip Inc
are the property of their respective owners and used with permission.
This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.
The information and specifications included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in
this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published
in this publication at any time without notice and without incurring any obligations.
, the MQ logo and the Mikasa logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks
Tel: (450) 625-2244
Tel: (877) 963-4411
Fax: (450) 625-8664
Your Local Dealer is:
Loading...
