Multiquip GX270UT2QA2, GX340UT2QAP2 User Manual

PARTS MANUAL

WSHE/A SERIES

VIBRATORY TRUSS SCREED

HONDA GASOLINE ENGINES:

GX270UT2QA2 9HP

GX340UT2QAP2 11HP

Revision #0 (05/04/11)

To ﬁnd the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

PN: 36864

WSHE/A Vibratory Truss Screed

Table Of Contents .................................................... 2

Parts Ordering Procedures ...................................... 3

Explanation Of Code In Remarks Column .............. 4

Suggested Spare Parts ........................................... 5

Nameplate And Decals ......................................... 6-7

WSHE20 Section Assembly ................................. 8-9

WSHE25 Section Assembly ............................. 10-11

WSHE50 Section Assembly ............................. 12-13

WSHE75 Section Assembly ............................. 14-15

WSHE100 Section Assembly ........................... 16-17

WSHEIC Invert/Crown Kit Assembly ................ 18-19

WSHEKITUJ Assembly .................................... 20-21

WSHEH End Handle Kit ................................... 22-23

WSHEEXT6/12/18 End Handle Extension Kit .. 24-25

WSHEKIT8H/9H/11H Engine Kit Assembly ..... 26-27

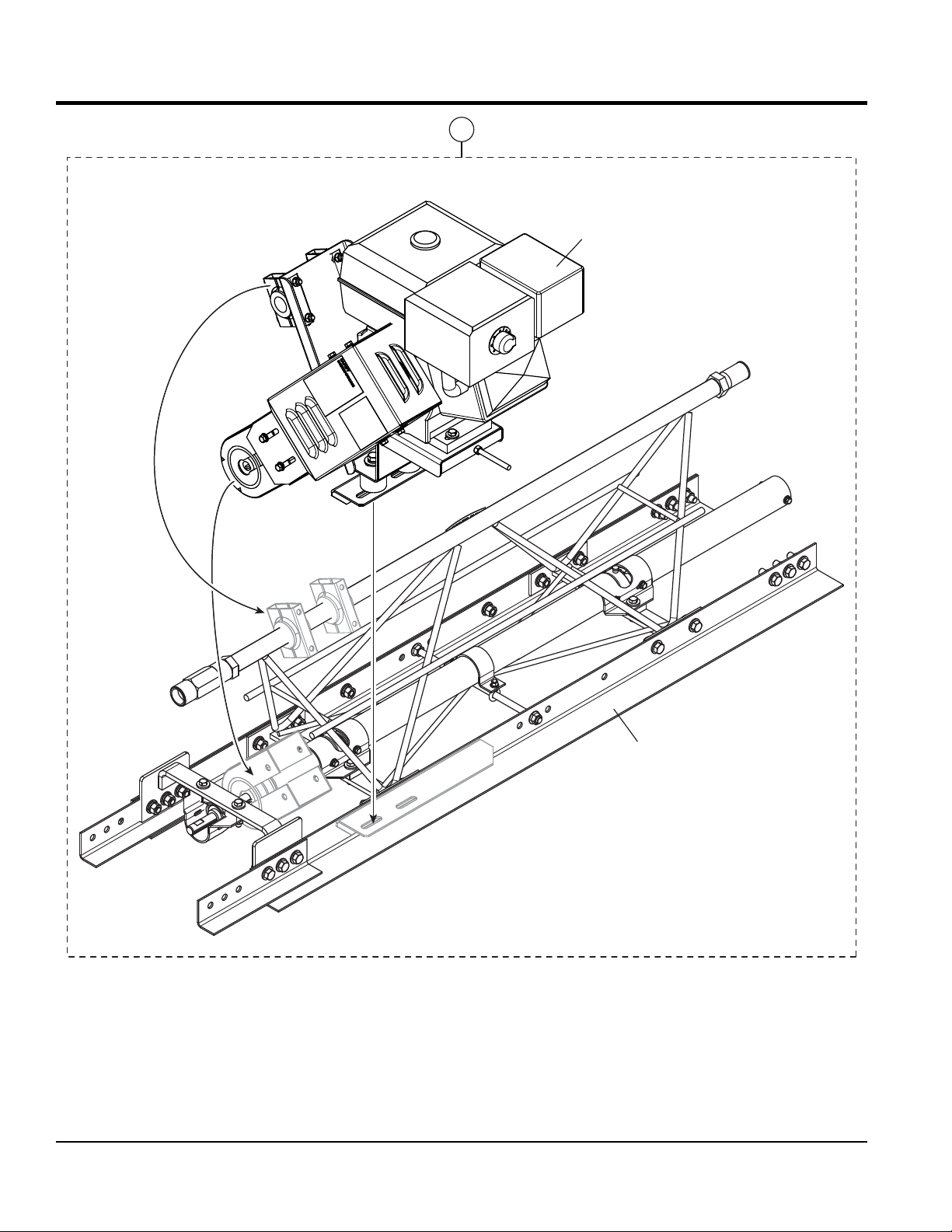

WSHE50KIT8H/9H/11H Engine &

Section Assembly ............................................. 28-29

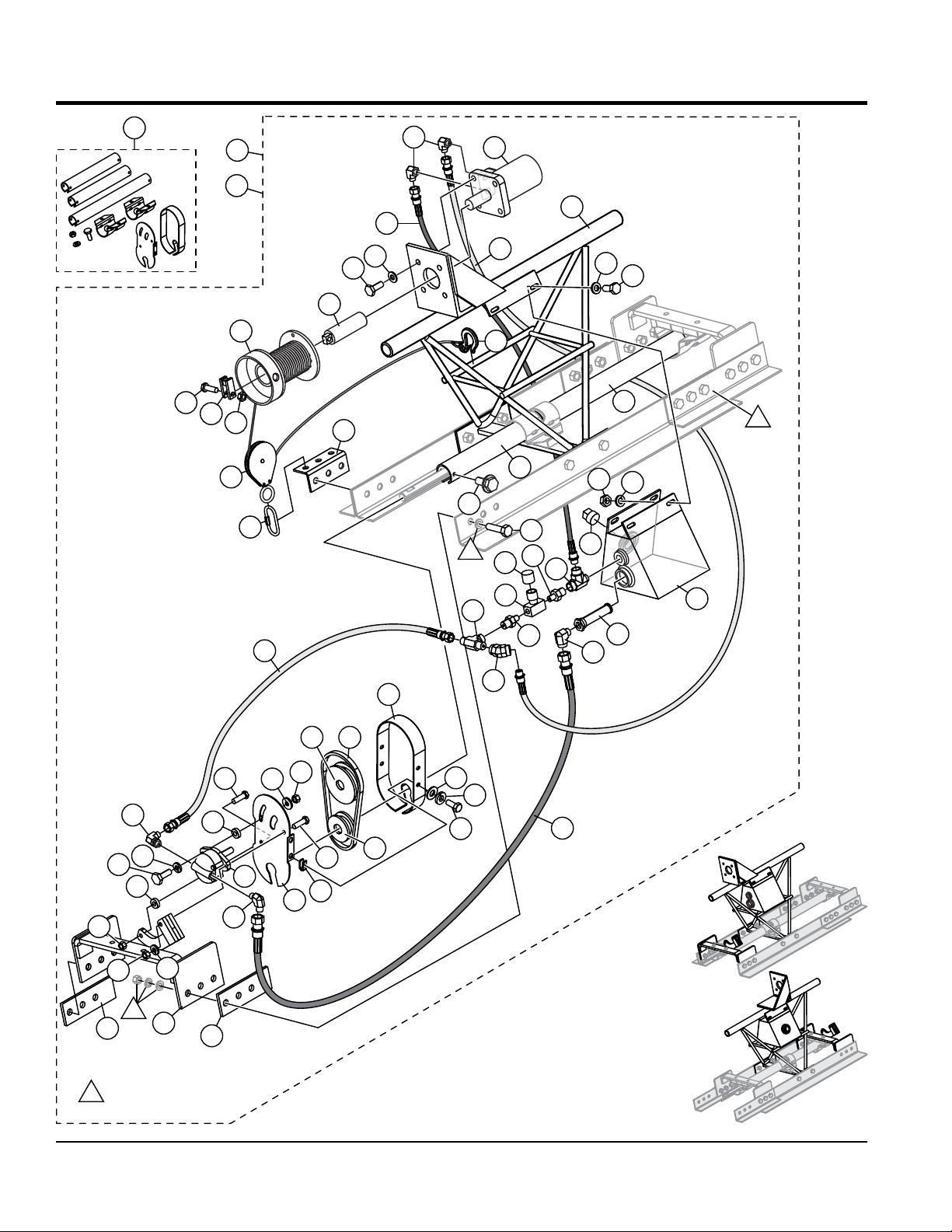

WSHESPW(L)/(R) Kit Assembly .....................30--33

WSHW Hand Winch Assembly ......................... 34-35

WSHA20 Section Assembly ............................. 36-37

WSHA25 Section Assembly ............................. 38-39

WSHA50 Section Assembly ............................. 40-41

WSHA75 Section Assembly ............................. 42-43

WSHA100 Section Assembly ........................... 44-45

WSHAIC Invert/Crown Kit Assembly ................ 46-47

WSHAH End Handle Kit Assembly ................... 48-49

WSHAEXT6/12/18 End Handle

Extension Assembly ......................................... 50-51

WSKITAEB-R Adjustable End

Bracket Assembly ............................................. 52-53

WSHRBE Kit Assembly .................................... 54-55

EZ Mover Assembly .......................................... 56-57

Terms And Conditions Of Sale — Parts ................ 58

TABLE OF CONTENTS

NOTICE

Part numbers are subject to change without notice.

PAGE 2 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

PARTS ORDERING PROCEDURES

Ordering parts has never been easier!

If you have an MQ Account, to obtain a Username

Effective:

Choose from three easy options:

January 1st, 2006

Best Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip’s SmartEquip website!

■ View Parts Diagrams

■ Order Parts

■ Print Speciﬁ cation Information

Goto www.multiquip.com and click on

Order Parts

to log in and save!

Order via Fax (Dealers Only):

All customers are welcome to order parts via Fax. Domestic (US) Customers dial: 1-800-6-PARTS-7 (800-672-7877)

Order via Phone:

Non-Dealer Customers:

Contact your local Multiquip Dealer for parts or call 800-427-1244 for help in locating a dealer near you.

and Password, E-mail us at: parts@multiquip.

com.

To ob ta i n a n MQ Acco unt , co nt a ct yo ur District Sales Manager for more information.

Use the internet and qualify for a 5% Discount on Standard orders for all orders which include complete part numbers.*

Fax your order in and qualify for a 2% Discount on Standard orders for all orders which include complete part numbers.*

Domestic (US) Dealers Call:

1-800-427-1244

International Customers should contact their local Multiquip Representatives for Parts Ordering information.

Note: Discounts Are Subject To Change

When ordering parts, please supply:

❒ Dealer Account Number ❒ Dealer Name and Address ❒ Shipping Address (if different than billing address) ❒ Return Fax Number ❒ Applicable Model Number ❒ Quantity, Part Number and Description of Each Part

NOTICE

All orders are treated as Standard Orders and will

ship the same day if received prior to 3PM PST.

❒ Specify Preferred Method of Shipment: ✓ UPS/Fed Ex ✓ DHL

■ Priority One ✓ Truck

■ Ground

■ Next Day

■ Second/Third Day

www.multiquip.com

WE ACCEPT ALL MAJOR CREDIT CARDS!

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 3

EXPLANATION OF CODE IN REMARKS COLUMN

The following section explains the different symbols and

PART NO. Column

QTY. Column

— Item quantity can be indicated by a

A/R (As Required) is generally used for hoses or other

A blank entry generally indicates that the item is not sold separately. Other entries will be clariﬁ ed in the “Remarks”

Some of the most common notes found in the “Remarks” Column are listed below. Other additional notes needed

same unique symbol will be included when this item is

— Used to list an effective serial

— Indicates that the part

part is NOT used on a speciﬁ c model or model number

available items. Examples include battery cables, shims,

— Indicates that an item cannot be purchased as a separate item and is either part of an assembly/kit that can be purchased, or is not available

remarks used in the Parts section of this manual. Use the help numbers found on the back page of the manual if there are any questions.

Numbers Used

number, a blank entry, or A/R.

NOTICE

The contents and part numbers listed in the parts section are subject to change without notice. Multiquip does not guarantee the availability of the parts listed.

SAMPLE PARTS LIST

NO. PART NO. PART NAME QTY. REMARKS

1 12345 BOLT ......................1 .....INCLUDES ITEMS W/%

2% WASHER, 1/4 IN. ...........NOT SOLD SEPARATELY

2% 12347 WASHER, 3/8 IN. ...1 .....MQ-45T ONLY

3 12348 HOSE ..................A/R ...MAKE LOCALLY

4 12349 BEARING ..............1 .....S/N 2345B AND ABOVE

NO. Column

Unique Symbols — All items with same unique

symbol

(@, #, +, %, or >) in the number column belong to the same assembly or kit, which is indicated by a note in the “Remarks” column.

Duplicate Item Numbers — Duplicate numbers indicate multiple part numbers, which are in effect for the same general item, such as different size saw blade guards in use or a part that has been updated on newer versions of the same machine.

NOTICE

When ordering a part that has more than one item number listed, check the remarks column for help in determining the proper part to order.

parts that are sold in bulk and cut to length.

Column.

REMARKS Column

to describe the item can also be shown.

Assembly/Kit — All items on the parts list with the

purchased.

Indicated by:

“INCLUDES ITEMS W/(unique symbol)”

Serial Number Break

number range where a particular part is used.

Indicated by:

“S/N XXXXX AND BELOW” “S/N XXXX AND ABOVE” “S/N XXXX TO S/N XXX”

Speciﬁ c Model Number Use

is used only with the speciﬁ c model number or model number variant listed. It can also be used to show a

variant.

Indicated by:

Numbers Used — Part numbers can be indicated by a number, a blank entry, or TBD.

TBD (To Be Determined) is generally used to show a part that has not been assigned a formal part number at the time of publication.

A blank entry generally indicates that the item is not sold separately or is not sold by Multiquip. Other entries will be clariﬁ ed in the “Remarks” Column.

“XXXXX ONLY” “NOT USED ON XXXX”

“Make/Obtain Locally” — Indicates that the part can be purchased at any hardware shop or made out of

and certain washers and nuts.

“Not Sold Separately”

for sale through Multiquip.

PAGE 4 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

SUGGESTED SPARE PARTS

WSHE VIBRATORY TRUSS SCREED

1 to 3 units

Qty. P/N Description

3........1162 A .............. CAP, GREASE ZERK #2

2........16749 ................ ZERK, GREASE 90 1/4-28

3........2621 .................. ZERK, GREASE

2........1477 .................. LOCTITE #242 BLUE .5CC BOTTLE

4........2422 .................. BELT, B41

1........W60137 ............ OIL, 30WT SAE SPECIAL

.................................... MOTOR (GAL)

2........26265 ................ HOSE, HYD 4-4MPX6FJ SWIVELX16"

1........26266 ................ HOSE, HYD 8-8MPX8FJ SWIVELX18"

2........26269 ................ BELT, 4L-210 NAPA

WSHESPW(L)/(R) KIT

1 to 3 units

Qty. P/N Description

2........26265 ................ HOSE, HYD 4-4MPX6FJ SWIVELX16"

1........26266 ................ HOSE, HYD 8-8MPX8FJ SWIVELX18"

2........26269 ................ BELT, 4L-210 NAPA

WSHE VIBRATORY TRUSS SCREED WITH HONDA GX240U1QA2 8 HP GASOLINE ENGINE

WSHE VIBRATORY TRUSS SCREED WITH HONDA GX340UT2QAP2 11 HP GASOLINE ENGINE

1 to 3 units

Qty. P/N Description

2........17210ZE3505 ... ELEMENT, AIR CLEANER

2........9807956846 ...... SPARK PLUG

1........17620Z4H020 ... FUEL CAP

1........15600Z1C000 ... OIL GAUGE (DIPSTICK)

1........28462ZV7003 ... ROPE, RECOIL STARTER

WSHA VIBRATORY TRUSS SCREED

1 to 3 units

Qty. P/N Description

2........16073 ................ VIBRATOR ASSY, AIR

2........26131 ................ HOSE, AIR ASSY 1/4 X 24

1........36428 ................ HOSE, 200PSI 1" X 60" RED HORIZON

1........26142 ................ OILER, 1" SCH-B MB3-08L54BCSB

WSHAIC INVERT/CROWN KIT

1 to 3 units

Qty. P/N Description

1........26904 ................ HOSE, 100R4 1

1 to 3 units

Qty. P/N Description

2........17210ZE2515 ... ELEMENT, AIR CLEANER

2........9807955846 ...... SPARK PLUG

1........17620Z4J020 .... FUEL CAP

1........15600Z1C000 ... OIL GAUGE (DIPSTICK)

1........28462ZE2W11 .. ROPE, RECOIL STARTER

WSHE VIBRATORY TRUSS SCREED WITH HONDA GX270UT2QA2 9 HP GASOLINE ENGINE 1 to 3 units

Qty. P/N Description

2........17210ZE2515 ... ELEMENT, AIR CLEANER

2........9807956846 ...... SPARK PLUG

1........17620Z4H020 ... FUEL CAP

1........15600Z1C000 ... OIL GAUGE (DIPSTICK)

1........28462ZE2W11 .. ROPE, RECOIL STARTER

WSHAEXT6/12/18 END HANDLE EXTENSION KIT

1 to 3 units

Qty. P/N Description

2........26399 ................ HOSE, AIR ASSY 1/4 X 36

NOTICE

Part numbers on this Suggested Spare Parts list may supersede/replace the part numbers shown in the following parts lists.

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 5

NAMEPLATE AND DECALS

3

KEEP HANDS, FEET AND LOOSE

CLOTHI NG AWAY FR OM ALL

1

2

3

WARNING

KEEP HANDS, FEET AND LOOSE

CLOTHI NG AWAY FR OM ALL

MOVING PARTS

WARNING

MOVING PARTS

P.N. 26339

3

WARNING

KEEP HANDS, FEET AND LOOSE

CLOTHI NG AWAY FR OM ALL

5

MOVING PARTS

P.N. 26339

6

4

7

HYDRAULIC WINCH

SPEED CONTROL

USE SAE GRADE

VALVE

10W-40 OIL

P.N. 26481

6

LUBRICATION

REQUIRED

P.N. 26338

13

6

5

8

P/N 36099

9

10

3

WARNING

KEEP HANDS, FEET AND LOOSE

CLOTHI NG AWAY FR OM ALL

MOVING PARTS

P.N. 26339

11

12

PAGE 6 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

NAMEPLATE AND DECALS

NO. PART NO. PART NAME QTY. REMARKS

1 36184 DECAL, "MULTIQUIP" 2 2 26395 DECAL, PINCH POINTS 4 3 26339 DECAL, MOVING PARTS A/R 4 26396 DECAL, DO NOT CROWN A/R 5 20816 DECAL, GUARD RING, MQ MULTIQUIP, .75 X 6 A/R

6 36671 DECAL, ENTANGLEMENT DANGER ....................... A/R ............WSHE UNITS ONLY

7 26481 DECAL, WINCH SPEED CONTROL ..........................1 ..............WSHE UNITS ONLY

8 36099 DECAL, PROTECTIVE CLOTHING 1 9 11092 DECAL, CE A/R

10 924801 DECAL, SAFETY INSTRUCTION ............................... 1 ..............WSHE UNITS ONLY

11 20525 DECAL, WARNING "PROP 65" ..................................1 ..............WSHE UNITS ONLY

12 35137 DECAL, READ MANUAL ASK FR TRAINING 1

13 26338 DECAL, LUBRICATION REQUIRED ........................A/R ............WSHA UNITS ONLY

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 7

WSHE20 SECTION ASSY.

24

15

1

31

17

1

30

17

25

1

31

14

17

16

13

10

22

21

8

22

20

12

17

3

33

4

17

3

33

32

2

33

3

4

17

11

1

2

23

26

27

2

32

4

26

11

27

6

NOTES

1 TORQUE TO 70 FT-LBS

2

6

7

TORQUE TO 30 FT-LBS

PAGE 8 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

5

9

17

3

33

18

2

13

7

4

1

17

31

1

WSHE20 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 10133 NUT, NYLOC 3/8-16 4 2 1162 A CAP, GREASE ZERK #2 2 3 12220 WASHER, LOCK 1/2 HIGH STRENGTH 16 4 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 8 5 26058 BLADE, 2' X 3W 1 6 26059 BLADE, 2' X 2W 2 7 16126 ANGLE, BLADE CONNECTOR 2 8 16141 COUPLER, DRIVE SHAFT 1 9 16170 BRACKET, BEARING MOUNT 1 10 26076 SHAFT, DRIVE 2' 1 11 16179 WEIGHT, SHAFT VIBRATION 2 12 16185 FITTING, PLUG 1/4 MP SQ HEAD 2 13 16194 BEARING, PILLOW BLOCK 2 14 16514 TURNBUCKLE 1-5/16-16 1 15 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 16 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 17 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 32 18 16749 ZERK, GREASE 90 1/4-28 1

20 FRAME, STEEL 2' .............................................1................NO LONGER AVAILABLE

21 26093 KEY, .1875 SQ X 3.5 304 SS 1 22 26091 SCREW, SHS 1/4-28 X 1/4 4

23 2621 ZERK, GREASE ................................................2................INCLUDED WITH ITEM 13

24 26199 CAP, PIPE CAPLUGS RCL-16 1 25 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 26 26251 SCREW, HHC 1/4-20 X 1-1/2 GRD8 2 27 26252 NUT, NYLOC 1/4-20 GRD 8 2 30 3214 SCREW, HHC 1/2-13 X 1-1/4 4 31 5218 SCREW, HHC 1/2-13 X 1-1/2 12

32 1665 SCREW, HHC 3/8-16 X 2...................................4................REPLACES P/N 9154

33 968011 NUT, HEX FINISH 1/2-13 16

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 9

WSHE25 SECTION ASSY.

42

41

24

15

3

2

22

8

BLUE

LOCTITE

20

32

4

36

14

16

12

2

23

21

13

37

22

3

25

26

27

26

11

10

35

17

3

33

4

1

11

3

33

27

1

31

17

1

30

1

17

31

17

6

7

NOTES

1 TORQUE TO 70 FT-LBS

TORQUE TO 30 FT-LBS

2

APPLY LOCTITE #242 BLUE

3

PAGE 10 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

32

2

33

3

17

34

4

5

9

17

3

33

18

2

13

17

31

7

1

40

BLUE

LOCTITE

36

4

1

37

WSHE25 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@% 10133 NUT, NYLOC 3/8-16 4 2@ 1162 A CAP, GREASE ZERK #2 2 3@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 16 4@% 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 8 5@ 16106 BLADE, 2-1/2' X 3W 1 6@ 16110 BLADE, 2-1/2' X 2W 2 7@ 16126 ANGLE, BLADE CONNECTOR 2 8@ 16141 COUPLER, DRIVE SHAFT 1 9@ 16170 BRACKET, BEARING MOUNT 1 10@ 16175 SHAFT, DRIVE 2.5' 1 11@ 16179 WEIGHT, SHAFT VIBRATION 2 12@ 16185 FITTING, PLUG 1/4 MP SQ HEAD 2 13@ 16194 BEARING, PILLOW BLOCK 2 14@ 16514 TURNBUCKLE 1-5/16-16 1 15@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 16@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 17@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 32 18@ 16749 ZERK, GREASE 90 1/4-28 1 20@ 26045 FRAME, STEEL 2-1/2' 1 21@ 26093 KEY, .1875 SQ X 3.5 304 SS 1 22@% 26091 SCREW, SHS 1/4-28 X 1/4 4

23@ 2621 ZERK, GREASE ................................................2................INCLUDED WITH ITEM 13

24@ 26199 CAP, PIPE CAPLUGS RCL-16 1 25@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 26@ 26251 SCREW, HHC 1/4-20 X 1-1/2 GRD8 2 27@ 26252 NUT, NYLOC 1/4-20 GRD 8 2 30@ 3214 SCREW, HHC 1/2-13 X 1-1/4 4 31@ 5218 SCREW, HHC 1/2-13 X 1-1/2 12

32@% 1665 SCREW, HHC 3/8-16 X 2...................................4................REPLACES P/N 9154

33@ 968011 NUT, HEX FINISH 1/2-13 16 34@% 36602 TUBE ASSY, 10.5" 1 35@% 36604 TUBE ASSY, 16.5" 1 36@% 36589 MOUNT, TUBE 2 37@% 49048 SCREW, HHFS 1/4-20 X .75 8 40@% 1477 LOCTITE #242 BLUE .5CC BOTTLE 1

41 WSHE25 SCREED, ENGINE 2.5' SECTION ASSY. ..........1................INCLUDES ITEMS W/@

42 36580 WSHE25 CE KIT ................................................1................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 11

BLUE

LOCTITE

20

48

12

WSHE50 SECTION ASSY.

47

24

15

2

32

37

2

4

23

13

22

3

8

22

21

3

25

1

31

17

NOTES

12

4

1

17

3

33

19

1

3

33

17

44

41

42

45

11

40

26

36

11

27

10

35

26

2

42

32

4

9

43

11

27

34

42

43

42

14

16

30

17

1

17

5

6

7

17

3

33

18

2

37

13

17

31

7

1

4

1

38

46

BLUE

LOCTITE

TORQUE TO 70 FT-LBS

1

TORQUE TO 30 FT-LBS

2

APPLY LOCTITE #242 BLUE

3

PAGE 12 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHE50 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@% 10133 NUT, NYLOC 3/8-16 6 2@ 1162 A CAP, GREASE ZERK #2 3 3@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 22 4@% 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 12 5@ 16107 BLADE, 5' X 3W 1 6@ 16111 BLADE, 5' X 2W 2 7@ 16126 ANGLE, BLADE CONNECTOR 2 8@ 16141 COUPLER, DRIVE SHAFT 1 9@ 16170 BRACKET, BEARING MOUNT 1 10@ 16176 SHAFT, DRIVE 59-3/4" 1 11@ 16179 WEIGHT, SHAFT VIBRATION 4 12@ 16185 FITTING, PLUG 1/4 MP SQ HEAD 3 13@ 16194 BEARING, PILLOW BLOCK 3 14@ 16514 TURNBUCKLE 1-5/16-16 1 15@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 16@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 17@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 44 18@ 16749 ZERK, GREASE 90 1/4-28 1 19@ 2691 SCREW, HHC 1/2-13 X 1 2 20@ 26047 FRAME, STEEL 5' 1 21@ 26093 KEY, .1875 SQ X 3.5 304 SS 1 22@% 26091 SCREW, SHS 1/4-28 X 1/4 4

23@ 2621 ZERK, GREASE ................................................3................INCLUDED WITH ITEM 13

24@ 26199 CAP, PIPE CAPLUGS RCL-16 1 25@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 26@ 26251 SCREW, HHC 1/4-20 X 1-1/2 GRD8 4 27@ 26252 NUT, NYLOC 1/4-20 GRD 8 4 30@ 3214 SCREW, HHC 1/2-13 X 1-1/4 8 31@ 5218 SCREW, HHC 1/2-13 X 1-1/2 12

32@% 1665 SCREW, HHC 3/8-16 X 2...................................6................REPLACES P/N 9154

33@ 968011 NUT, HEX FINISH 1/2-13 22 34@% 36602 TUBE ASSY, 10.5" 1 35@% 36604 TUBE ASSY, 16.5" 1 36@% 36606 TUBE ASSY, 28.5" 1 37@% 36589 MOUNT, TUBE 3 38@% 49048 SCREW, HHFS 1/4-20 X .75 12 41@ 26073 STUD, 1/2-NC X 14 LG 1 42@ 26328 NUT, FLANGED .5 4 43@% 36597 BOLT, EYE 1/4 X 2.0" 2 44@% 36595 STRAP, TUBE 1 45@% 10024 NUT, NYLOC 1/4-20 2 46@% 1477 LOCTITE #242 BLUE .5CC BOTTLE 1

47 WSHE50 SCREED, ENGINE 5' SECTION ASSY. .............1................INCLUDES ITEMS W/@

48 36581 WSHE50 CE KIT ................................................1................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 13

31

6

WSHE75 SECTION ASSY.

4748

24

15

BLUE

LOCTITE

37

32

4

42

17

19

1

17

3

33

42

20

12

23

2

12

4

26

1

26

11

6

12

7

12

11

27

35

25

14

16

26

11

45

40

3

17

44

26

11

27

36

3

2

22

8

22

21

13

3

17

11

27

41

43

32

10

27

2

34

4

9

17

3

33

2

18

37

13

7

38

4

17

42

30

31

36

1

5

46

BLUE

LOCTITE

42

NOTES

1

TORQUE TO 70 FT-LBS

1

TORQUE TO 30 FT-LBS

2

APPLY LOCTITE #242 BLUE

3

1

PAGE 14 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHE75 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@% 10133 NUT, NYLOC 3/8-16 8 2@ 1162 A CAP, GREASE ZERK #2 4 3@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 28 4@% 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 16 5@ 16107 BLADE, 7.5' X 3W 1 6@ 16111 BLADE, 7.5' X 2W 2 7@ 16126 ANGLE, BLADE CONNECTOR 2 8@ 16141 COUPLER, DRIVE SHAFT 1 9@ 16170 BRACKET, BEARING MOUNT 1 10@ 16177 SHAFT, DRIVE 7.5' 1 11@ 16179 WEIGHT, SHAFT VIBRATION 6 12@ 16185 FITTING, PLUG 1/4 MP SQ HEAD 5 13@ 16194 BEARING, PILLOW BLOCK 4 14@ 16514 TURNBUCKLE 1-5/16-16 1 15@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 16@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 17@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 56 18@ 16749 ZERK, GREASE 90 1/4-28 1 19@ 2691 SCREW, HHC 1/2-13 X 1 4 20@ 26049 FRAME, STEEL 7.5' 1 21@ 26093 KEY, .1875 SQ X 3.5 304 SS 1 22@% 26091 SCREW, SHS 1/4-28 X 1/4 4

23@ 2621 ZERK, GREASE ................................................4................INCLUDED WITH ITEM 13

24@ 26199 CAP, PIPE CAPLUGS RCL-16 1 25@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 26@ 26251 SCREW, HHC 1/4-20 X 1-1/2 GRD8 6 27@ 26252 NUT, NYLOC 1/4-20 GRD 8 4 30@ 3214 SCREW, HHC 1/2-13 X 1-1/4 12 31@ 5218 SCREW, HHC 1/2-13 X 1-1/2 12

32@% 1665 SCREW, HHC 3/8-16 X 2...................................8................REPLACES P/N 9154

33@ 968011 NUT, HEX FINISH 1/2-13 28 34@% 36602 TUBE ASSY, 10.5" 1 35@% 36604 TUBE ASSY, 16.5" 1 36@% 36606 TUBE ASSY, 28.5" 2 37@% 36589 MOUNT, TUBE 4 38@% 49048 SCREW, HHFS 1/4-20 X .75 16 41@ 26073 STUD, 1/2-NC X 14 LG 2 42@ 26328 NUT, FLANGED .5 8 43@% 36597 BOLT, EYE 1/4 X 2.0" 4 44@% 36595 STRAP, TUBE 2 45@% 10024 NUT, NYLOC 1/4-20 4 46@% 1477 LOCTITE #242 BLUE .5CC BOTTLE 1

47 WSHE75 SCREED, ENGINE 7.5' SECTION ASSY ..........1................INCLUDES ITEMS W/@

48 36582 WSHE75 CE KIT ................................................1................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 15

WSHE100 SECTION ASSY.

4849

24

17

19

1

15

1

31

17

7

25

1

30

14

16

33

17

3

42

17

BLUE

LOCTITE

17

26

3

17

6

33

12

2

23

20

21

3

22

8

22

3

16

42

14

15

11

26

11

27

32

3

33

20

12

13

2

4

37

22

11

8

34

21

11

10

27

45

40

4

11

44

26

1

36

11

29

27

28

2

13

18

43

38

27

41

43

36

33

42

46

5

3

17

30

47

BLUE

LOCTITE

42

17

30

1

17

7

31

1

NOTES

TORQUE TO 70 FT-LBS

1

TORQUE TO 30 FT-LBS

2

APPLY LOCTITE #242 BLUE

3

17

10

35

32

9

3

33

4

2

37

4

1

PAGE 16 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHE100 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@% 10133 NUT, NYLOC 3/8-16 12 2@ 1162 A CAP, GREASE ZERK #2 6 3@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 38 4@% 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 24 5@ 16109 BLADE, 10' X 3W 1 6@ 16113 BLADE, 10' X 2W 2 7@ 16126 ANGLE, BLADE CONNECTOR 2 8@ 16141 COUPLER, DRIVE SHAFT 2 9@ 16170 BRACKET, BEARING MOUNT 1 10@ 16176 SHAFT, DRIVE 59-3/4" 2 11@ 16179 WEIGHT, SHAFT VIBRATION 8 12@ 16185 FITTING, PLUG 1/4 MP SQ HEAD 6 13@ 16194 BEARING, PILLOW BLOCK 6 14@ 16514 TURNBUCKLE 1-5/16-16 2 15@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 2 16@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 2 17@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 76 18@ 16749 ZERK, GREASE 90 1/4-28 1 19@ 2691 SCREW, HHC 1/2-13 X 1 6 20@ 26047 FRAME, STEEL 5' 2 21@ 26093 KEY, .1875 SQ X 3.5 304 SS 2 22@% 26091 SCREW, SHS 1/4-28 X 1/4 8

23@ 2621 ZERK, GREASE ................................................5................INCLUDED WITH ITEM 13

24@ 26199 CAP, PIPE CAPLUGS RCL-16 1 25@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 26@ 26251 SCREW, HHC 1/4-20 X 1-1/2 GRD8 8 27@ 26252 NUT, NYLOC 1/4-20 GRD 8 8 28@ 36605 TUBE ASSY, 18.0" 1 29@ 36601 TUBE ASSY, 9.0" 1 30@ 3214 SCREW, HHC 1/2-13 X 1-1/4 20 31@ 5218 SCREW, HHC 1/2-13 X 1-1/2 12

32@% 1665 SCREW, HHC 3/8-16 X 2 .....................................12 ...............REPLACES P/N 9154

33@ 968011 NUT, HEX FINISH 1/2-13 38 34@% 36602 TUBE ASSY, 10.5" 1 35@% 36604 TUBE ASSY, 16.5" 1 36@% 36606 TUBE ASSY, 28.5" 2 37@% 36589 MOUNT, TUBE 6 38@% 49048 SCREW, HHFS 1/4-20 X .75 24 41@ 26073 STUD, 1/2-NC X 14 LG 2 42@ 26328 NUT, FLANGED .5 8 43@% 36597 BOLT, EYE 1/4 X 2.0" 4 44@% 36595 STRAP, TUBE 2 45@% 10024 NUT, NYLOC 1/4-20 4 46@ 26075 MOUNT, BEARING 10' SECTION 1 47@% 1477 LOCTITE #242 BLUE .5CC BOTTLE 1

48 WSHE100 SCREED, ENGINE 10' SECTION ASSY. ..............1 ................INCLUDES ITEMS W/@

49 36583 WSHE100 CE KIT .................................................1 ................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 17

WSHEIC INVERT/CROWN KIT ASSY.

35

BLUE

LOCTITE

13

9

26

17

21

23

25

48

22

24

15

29

12

4950

18

6

19

6

17

18

21

6

19

6

3

27

40

5

13

9

13

38

NOTES

TORQUE TO 30 FT-LBS

1

APPLY LOCTITE #242 BLUE

2

30

11

2

20

13

43

14

5

40

4

7

8

7

36

33

36

32

28

34

33

2

7

31

37

1

4

7

2

41

8

10

11

30

41

2

16

45

47

BLUE

LOCTITE

39

7

1

42

7

44

43

1

PAGE 18 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHEIC INVERT/CROWN KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 0122 C SCREW, SHS 3/8-16 X 1/2 4 2@ 0166 A WASHER, LOCK 3/8 MED 4 3@ 10024 NUT, NYLOC 1/4-20 8 4@# 10133 NUT, NYLOC 3/8-16 4 5@ 12220 WASHER, LOCK, 1/2 HIGH STRENGTH 18 6@% 3264 WASHER, FLAT SAE 1.00 2 7@# 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 12 8@ 1456 NUT, HEX FINISH 3/8-16 4 9@ 16126 ANGLE, BLADE CONNECTOR 4 10@ 16141 COUPLER, DRIVE SHAFT 1 11@ 16194 BEARING, PILLOW BLOCK 2 12@ 16629 NUT, NYLOC 1/2-13 4 13@ 16630 WASHER, FLAT 1/2 SAE HARDENED 36 14@ 16749 ZERK, GREASE 1/4-28, 90 DEGREE 2 15@ 16781 SCREW, HHC 1/2-13 X 2-1/4 4 16@ 26093 KEY, 3/16 SQ. X 3-1/2 1 17@ 26098 ADAPTER, STABILIZER END R/H 1 18@% 26099 ADAPTER, STABILIZER END L/H 1 19@% 26100 BOLT, 1.0-14 X 1.25 UNS-2A THREAD 2

20@ 2621 ZERK, GREASE ...................................................2 ................INCLUDED WITH ITEM 11

21@ 26347 INVERT, CROWN TOWER 2 22@ 26350 TURNBUCKLE, INVERT/CROWN 2 23@ 26352 ROD, RH TURNBUCKLE 2 24@ 26353 NUT, JAM LH 1-14 2 25@ 26354 NUT, JAM RH 1-14 2 26@ 26355 BLADE, SECTION-FRONT 4 27@ 26356 BLADE, SECTION-BACK 2 28@ 26361 HINGE, INVERT/CROWN 1 29@ 26364 ROD, LH TURNBUCKLE 2 30@ 26380 MOUNT, INVERT/CROWN BEARING 2 31@ 26382 SHAFT, STUB-INVERT/CROWN 1 32@ 26383 JOINT, UNIVERSAL 3/4 DIA 1 33@ 26384 KEY, 3/16 SQ. X 1 2 34@ 26385 SCREW, HHC 1/4-20 X 2-1/4 GRD 8 8 35@ 3242 SCREW, HHC 1/2-13 X 1-3/4 10 36@ 36257 GUARD, SHAFT, WSHEIC 2 37@ 36632 SHAFT, STUB 2 KEYWAY 1 38@ 6159 A SCREW, HHC 1/2-13 X 2 8 39@# 8156 SCREW, HHC 3/8-16 X 2-1/2 4 40@ 968011 NUT, HEX FINISH 1/2-13 18 41@# 26091 SCREW, SHS 1/4-28 X 1/4 4 42@# 36604 TUBE ASSY, 16.5" 1 43@# 36591 MOUNT, HALF TUBE 2 44@# 49048 SCREW, HHFS 1/4-20 X .75 6 45@ 1162 A CAP, GREASE ZERK #2 2 47@# 1477 LOCTITE #242 BLUE .5CC BOTTLE 1

48 WSHEIC INVERT/CROWN KIT, WSHEIC ............................ 1 ................INCLUDES ITEMS W/@

49 26435 KIT, HARDWARE ENGINE ....................................1 ................INCLUDES ITEMS W/%

50 36585 WSHEIC CE KIT ...................................................1 ................INCLUDES ITEMS W/#

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 19

24

WSHEKITUJ ASSY.

25

11

10

5

9

20

13

20

1

6

21

16

17

18

8

2

17

19

17

18

7

16

1

17

15

21

17

13

8

2

14

3

22

23

4

22

PAGE 20 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

23

4

NOTES

USE LONG COUPLER

1

WHEN UNIVERSAL JOINT AT DRIVE SHAFT IS REMOVED

12

1

WSHEKITUJ ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1% 0122 C SCREW, SHS 3/8-16 X 1/2 4 2% 16194 BEARING, PILLOW BLOCK 2 3% 16749 ZERK, GREASE 1/4-28, 90 DEGREE 2 4% 26091 SCREW, SHS 1/4-28 X 1/4 4 5% 2621 ZERK, GREASE STR 1/4-28 1 6% 26383 JOINT, UNIVERSAL 3/4 DIA 1 7% 26384 KEY, 3/16 SQ. X 1 2 8% 26417 BRACKET, UNIVERSAL JOINT 2 9% 26422 JOINT, UNIVERSAL 1 10% 26441 HEX KEY, 3/16 LONG HANDLE 1 11% 26442 HEX KEY, 1/8, LONG HANDLE 1 12% 36673 COUPLER, DRIVE SHAFT, LONG 1 13%@ 0166 A WASHER, LOCK 3/8 MED 4

14% 2621 ZERK, GREASE ................................................2................INCLUDED WITH ITEM 2

15% 1162 A CAP, GREASE ZERK #2 2 16%@ 10133 NUT, NYLOC 3/8-16 4 17%@ 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 20 18%@ 1456 NUT, HEX FINISH 3/8-16 4 19%@ 49048 SCREW, HHFS 1/4-20 X .75 4 20%@ 36257 GUARD, SHAFT, WSHEIC 2 21%@ 36591 MOUNT, HALF TUBE 2 22%@ 36601 TUBE ASSY, 9.0" 2 23%@ 8156 SCREW, HHC 3/8-16 X 2-1/2 4

24% 36657 WSHEKITUJ CE KIT ..........................................1................INCLUDES ITEMS W/@

25 WSHEKITUJ UNIVERSAL JOINT KIT ASSY. ..........................1................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 21

WSHEH END HANDLE KIT

37

PART OF

FRAME

34

33

2

7

26

5

27

16

15

25

18

31

20

32

28

4

13

21

3

36

35

31

30

26

27

29

25

21

9

8

6

22

6

19

1

15

14

2

11

PAGE 22 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHEH END HANDLE KIT

NO. PART NO. PART NAME QTY. REMARKS

1@# 0189 GRIP, HANDLE 4 2@# 10133 NUT, NYLOC 3/8-16 4 3@# 12220 WASHER, LOCK 1/2 HIGH STRENGTH 12 4@# 16159 FRAME, END ADAPTOR 2 5@# 16195 HANDLE, SCREED 4 6@# 16630 WASHER, FLAT 1/2 SAE HARDENED 24 7@# 1665 SCREW, HHC 3/8-16 X 2 4

8@# 2621 ZERK, GREASE ................................................1................INCLUDED WITH ITEM 18

9@# 1162 A CAP, GREASE ZERK #2 1 11@# 3242 SCREW, HHC 1/2-13 X 1-3/4 12 13@# 968011 NUT, HEX FINISH 1/2-13 12 14@# 16154 MOUNT, END SECTION BEARING 1 15@# 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 8 16@# 1665 SCREW, HHC 3/8-16 X 2 2 18@# 16194 BEARING, PILLOW BLOCK 1 19@# 26250 SCREW, HHC 1/4-20 X 1-3/4 8 20@# 10024 NUT, NYLOC 1/4-20 8 21@% 36646 TUBE ASSY, 12.63" 2 22@% 49048 SCREW, HHFS 1/4-20 X .75 8 25@% 36591 MOUNT, HALF TUBE 2 26@ 26100 BOLT, 1.0-14 X 1.25 UNS-2A THREAD 2 27@ 3264 WASHER, FLAT SAE 1.00 2 28@ 26099 ADAPTER, STABILIZER END L/H 1 29@ 26098 ADAPTER, STABILIZER END R/H 1

30@ 26102 END HANDLE ASSY. .........................................1................INCLUDES ITEMS W/#

31@ 26085 HANGER, SCREED LIFTING 2 32@ 4370 SCREW, HHC 3/8-16 X 2-1/4 2 33@ 0166 A WASHER, LOCK 3/8 MED 2 34@ 1456 NUT, HEX FINISH 3/8-16 2 35@ 26135 SHACKLE, HANGER 2

36 WSHEH END HANDLE KIT .............................................1................INCLUDES ITEMS W/@

37 36647 WSHEH CE KIT .................................................1................INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 23

WSHEEXT6/12/18 END HANDLE EXTENSION KIT

31

30

26

27

29

28

25

2

7

27

18

14

16

15

25

20

15

2

26

5

19

1

13

4

21

3

21

9

8

6

11

22

6 IN. HANDLE

EXTENSION

PAGE 24 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

12 IN. HANDLE

EXTENSION

18 IN. HANDLE

EXTENSION

WSHEEXT6/12/18 END HANDLE EXTENSION KIT

NO. PART NO. PART NAME QTY. REMARKS

1@#$%+= 0189 GRIP, HANDLE 4 2@#$%+= 10133 NUT, NYLOC 3/8-16 4 3@#$%+= 12220 WASHER, LOCK 1/2 HIGH STRENGTH 12 4@% 26375 6 IN. HANDLE EXT, ENG END 2 4#+ 26374 12 IN. HANDLE EXT, ENG END 2 4$= 26376 18 IN. HANDLE EXT, ENG END 2 5@#$%+= 16195 HANDLE, SCREED 4 6@#$%+= 16630 WASHER, FLAT 1/2 SAE HARDENED 24 7@#$%+= 1665 SCREW, HHC 3/8-16 X 2 4

8@#$%+= 2621 ZERK, GREASE ................................................... 1 ........... INCLUDED WITH ITEM 18

9@#$%+= 1162 A CAP, GREASE ZERK #2 1 11@#$%+= 3242 SCREW, HHC 1/2-13 X 1-3/4 12 13@#$%+= 968011 NUT, HEX FINISH 1/2-13 12 14@#$%+= 16154 MOUNT, END SECTION BEARING 1 15@#$%+= 13351 WASHER, FLAT 3/8 PLTD USS HEAVY 8 16@#$%+= 1665 SCREW, HHC 3/8-16 X 2 2 18@#$%+= 16194 BEARING, PILLOW BLOCK 1 19@#$%+= 26250 SCREW, HHC 1/4-20 X 1-3/4 8 20@#$%+= 10024 NUT, NYLOC 1/4-20 8 21@#$ 36646 TUBE ASSY, 12.63" 2 22@#$ 49048 SCREW, HHFS 1/4-20 X .75 8 25@#$ 36591 MOUNT, HALF TUBE 2 26@#$ 26100 BOLT, 1.0-14 X 1.25 UNS-2A THREAD 2 27@#$ 3264 WASHER, FLAT SAE 1.00 2 28@#$ 26099 ADAPTER, STABILIZER END L/H 1 29@#$ 26098 ADAPTER, STABILIZER END R/H 1

30@ 26389 6 IN. HANDLE EXT ASSY, ENG END .................. 2 ........... INCLUDES ITEMS W/%

30# 26390 12 IN. HANDLE EXT ASSY, ENG END ................ 2 ........... INCLUDES ITEMS W/+

30$ 26391 18 IN. HANDLE EXT ASSY, ENG END ................ 2 ........... INCLUDES ITEMS W/=

31 WSHEEXT6 SCREED, ENGINE, 6 IN. EXTENSION KIT ......... 1 ........... INCLUDES ITEMS W/@

31 WSHEEXT12 SCREED, ENGINE, 12 IN. EXTENSION KIT ....... 1 ........... INCLUDES ITEMS W/#

31 WSHEEXT18 SCREED, ENGINE, 18 IN. EXTENSION KIT ....... 1 ........... INCLUDES ITEMS W/$

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 25

WSHEKIT8H/9H/11H ENGINE KIT ASSY.

42

40

13

7

27

2

22

6

23

32

27

34

35

7

4

23

38

11

28

5

14

10

39

36

19

2

36

33

3

9

3

9

1

31

3

37

25

24

16

5

1

17

15

20

21

8

20

21

8

1

12

41

18

30

5

14

23

28

PAGE 26 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

26

29

WSHEKIT8H/9H/11H ENGINE KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@% 0161 C WASHER, LOCK 5/16 MED 12 2@% 0166 A WASHER, LOCK 3/8 MED 4 3@% 0300 B WASHER, FLAT 5/16 SAE 12 4@% 10133 NUT, NYLOC 3/8-16 4 5@% 13211 WASHER, FLAT 1/2 USS PLTD 5

6@ ENGINE, HONDA GX240 8HP .................................1................. NO LONGER AVAILABLE

6@ 21980 ENGINE, HONDA GX270 9HP .................................1................. FOR STOCKING ITEMS, SEE

..................................................................................................... SUGGESTED SPARE PARTS

6% 1388 ENGINE, HONDA GX340 11HP ...............................1................. FOR STOCKING ITEMS, SEE

..................................................................................................... SUGGESTED SPARE PARTS

7@% 1456 NUT, HEX FINISH 3/8-16 5 8@% 1570 SCREW, HHC 3/8-16 X 3-3/4 4 9@% 10229 SCREW, HHC 5/16-24 X 1 12 10@% 16116 ANGLE, ENGINE SUPPORT 1 11@% 36551 GUARD, ENGINE REAR 1 12@% 36555 GUARD, ENGINE FRONT 1 13@% 16197 MOUNT, ENGINE 1 14@% 2230 SCREW, HHC 1/2-13 X 3/4 4 15@% 2422 BELT, B41 2 16@% 26079 PULLEY, 2BK30 X 3/4 1 17@% 26110 CLUTCH, 1"BORE - 4"DIA 1 18@% 26113 KEY, 3/16 SQ. X 2-1/4 1 19@% 26114 MOUNT, VIBRATION 2 20@% 26115 CLAMP HOUSING ASSY 2 21@% 26125 SPACER, 3/8 X 2-11/16 4 22@% 12220 WASHER, LOCK 1/2 HIGH STRENGTH 3 23@% 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 6 24@% 2955 WASHER, LOCK 7/16 MED 1 25@ 2956 SCREW, HHC 7/16-20 X 1-1/2 1 25% 16721 SCREW, HHC 3/8-24 X 1-3/4 1 26@% 3214 SCREW, HHC 1/2-13 X 1-1/4 1 27@% 13351 WASHER, FLAT 3/8 EXT THICK HI STRGTH 8 28@% 5054 A WASHER, LOCK 1/2 MED 4 29@% 5218 SCREW, HHC 1/2-13 X 1-1/2 2 30@% W60137 OIL, 30WT SAE SPECIAL MOTOR (GAL) 1 31@% 36554 GUARD, ENGINE BOTTOM 1 32@ 9154 SCREW, HHC 3/8-16 X 1-3/4 4 32% 1665 SCREW, HHC 3/8-16 X 2 4 33@% 968011 NUT, HEX FINISH 1/2-13 3 34@% 36838 ADJUSTER, ENGINE 1 35@% 1007 NUT, HEAVY JAM 3/8-16 GR2, NO PLT 1 36@% 4001 WASHER, FLAT USS 3/8 PLD 4 37@% 36644 SPACER, .875 OD X .095W X .44L 1 38@% 26442 HEX KEY, 1/8 LONG HANDLE 1 39% 6059 B KEY, 1/4 SQ X 2 1 40@% 36591 MOUNT, HALF TUBE 1 41@% 36598 TUBE ASSY, 6.25" 1

42 WSHEKIT9H ENGINE KIT HONDA GX270 ...................................1................. INCLUDES ITEMS W/@

..................................................................................................... REPLACES WSHEKIT8H

42 WSHEKIT11H ENGINE KIT HONDA GX340 ...................................1................. INCLUDES ITEMS W/%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 27

WSHE50KIT8H/9H/11H ENGINE & SECTION ASSY.

1

ENGINE KIT ASSY.

WSHE50

SECTION ASSY.

PAGE 28 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHE50KIT8H/9H/11H ENGINE & SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1 WSHE50KIT9H 5' SECTION/ENGINE KIT ASSY, 9HP ...............1................REPLACES WSHE50KIT8H

1 WSHE50KIT11H 5'SECTION/ENGINE KIT ASSY, 11HP 1

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 29

WSHESPW(L)/(R) KIT ASSY.

65

40

39

63

64

10

36

37

35

4

3

1

5

51

6

5

9

8

38

42

62

34

57

10

9

1

56

61

1

19

17

18

16

17

5

58

20

11

12

13

21

54

52

53

55

60

NOTES

SEE WSHE25 ASSY.

1

FOR PARTS BREAKDOWN

54

1

2

53

60

52

22

23

51

44

55

32

48

49

31

33

43

45

47

15

46

14

LEFT SIDE ASSEMBLY SHOWN ABOVE. NOTE DIFFERENCE IN ORIENTATION BETWEEN LEFT AND RIGHT SIDE ASSEMBLIES.

LEFT

RIGHT

PAGE 30 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHESPW(L)/(R) KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1% 26160 FRAME, STEEL .....................................................1 .......... LEFT

1@ 26159 FRAME, STEEL .....................................................1 .......... RIGHT

2@% 16148 BRACKET, PUMP MOUNT 1 3@% 36719 MOTOR, HYDRAULIC 1 4@% 26791 FITTING, 90 6MJ - 10 MO WMS DA 2 5@% 26265 HOSE, HYD 4-4MPX6FJ SWIVELX16" 3 6@% 0205 SCREW, HHC 3/8-16 X 1 5

8@% 36720 SCREW .................................................................4 .......... REPLACES P/N 0202

9@% 19470 WASHER, FLAT USS 5/16 ....................................8 .......... OCTOBER 2007 AND BELOW

10@% 5283 NUT, NYLOC 5/16-18 ............................................5 .......... OCTOBER 2007 AND BELOW

10@% 5283 NUT, NYLOC 5/16-18 ............................................1 .......... NOVEMBER 2007 AND ABOVE

11@% 26196 TANK, HYDRAULIC 1 12@% 26262 FILTER, HYD FLO-EZ S5-100 1 13@% 26496 FITTING, 90 1/2MP-1/2FP 1 14@% 26266 HOSE, HYD 8-8MPX8FJ SWIVELX18" 1 15@% 26547 FITTING, 45 1/4 MP X 1/4 FP 1 16@% 26128 FITTING, TEE 1/4FP - 1/4FP - 1/4FP 1 17@% 26261 FITTING, STR 1/8MP - 1/4MP 2 18@% 26263 VALVE, NEEDLE 1/8 PARKER N200S 1 19@% 36235 CAP, VALVE .73 X 1/5 MSC 730-1.50 1 20@% 26260 FITTING, TEE 1/4FP - 1/4FP - 1/4MP RUN 1 21@% 11723 FITTING, 90 6MJ-8MO 1 22@% 16580 FITTING, 45 8MJ-10MO 1 23@% 26162 PUMP, HYDRAUIC PARKER D05 AA2A 1 31@% 26269 BELT, 4L-210 NAPA 1

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 31

WSHESPW(L)/(R) KIT ASSY.

65

40

39

63

64

10

36

37

35

4

3

1

5

51

6

5

9

8

38

42

62

34

57

10

9

1

56

61

1

19

17

18

16

17

5

58

20

11

12

13

21

54

52

53

55

60

NOTES

SEE WSHE25 ASSY.

1

FOR PARTS BREAKDOWN

54

1

2

53

60

52

22

23

51

44

55

32

48

49

31

33

43

45

47

15

46

14

LEFT SIDE ASSEMBLY SHOWN ABOVE. NOTE DIFFERENCE IN ORIENTATION BETWEEN LEFT AND RIGHT SIDE ASSEMBLIES.

LEFT

RIGHT

PAGE 32 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHESPW(L)/(R) KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

32@% 26610 PULLEY, UPPER, AK34 X 1/2 1 33@% 26611 PULLEY, LOWER, AK25 X 3/4 1 34@% 16125 PULLEY, MOUNT 1 35@% 13359 LINK, 5/16 QUICK, PLATED 1 36@% 26096 BLOCK, SWIVEL EYE 3" PULLEY 1/4 CABLE 1 37@% 26410 DRUM, CABLE 1 38@% W16133 DRIVE SHAFT, WINCH 1 39@% 16136 WINCH, LOCKOUT 1 40@% 26426 SCREW, HHC 5/16-18 X 1-3/4 GRD8 1 42@% 36490 CABLE ASSY, HOOK 1 43@%# 36561 GUARD, BELT 1 44@%# 36563 PLATE, GUARD MOUNT 1 47@%# 0131 A SCREW, HHC 1/4-20 X 3/4 4 48@%# 11534 NUT, "U" TYPE, 1/4-20 4 49@% 9154 SCREW, HHC 3/8-16 X 1-3/4 2 51@% 13351 WASHER, FLAT 3/8 EXT THICK HIGH STRGTH 6 52@%# 1284 SCREW, HHC 3/8-16 X 1-1/2 2 53@%# 36654 SPACER, 1.0" OD X .50 ID X .25L 2 54@%# 0166 A WASHER, LOCK, 3/8 MEDIUM 2 55@% 1456 NUT, HEX FINISH 3/8-16 3 56@%# 49048 SCREW, HHFS 1/4-20 X .75 8 57@%# 36601 TUBE ASSY, 9.0" 1 58@% 11793 FITTING, PLUG 3/4MP SQ HD 1 60@% 16153 FEET, END SECTION 2 61@% 3242 SCREW, HHC 1/2-13 X 1-3/4 6

62@%# 36604 TUBE ASSY, 16.50" ...............................................1 .......... LEFT, REPLACES 10.5" TUBE

62@%# 36602 TUBE ASSY, 10.50" ...............................................1 .......... RIGHT

63 WSHESPW(L) SCREED, STEEL LH .............................................1 .......... INCLUDES ITEMS W/%

64 WSHESPW(R) SCREED, STEEL RH ............................................1 .......... INCLUDES ITEMS W/@

65 36665 WSHESPW(L) CE KIT ...........................................1 .......... INCLUDES ITEMS W/#

65 36666 WSHESPW(R) CE KIT ..........................................1 .......... INCLUDES ITEMS W/#

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 33

WSHW HAND WINCH ASSY.

12

10 11

5

4

3

2

6

1

9

7

8

PAGE 34 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHW HAND WINCH ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@# 26081 WINCH, HAND RACHET, LH 1 1%# 26084 WINCH, HAND RACHET, RH 1 2@%# 1665 SCREW, HHC 3/8-16X2 2 3@%# 4001 WASHER, FLAT USS 3/8 PLD 4 4@%# 0166 A WASHER, LOCK 3/8 MED 2 5@%# 1456 NUT, HEX FINISH 3/8-16 2 6@%# 36490 CABLE ASSY, HOOK 1 7@%# 26096 BLOCK, SWIVEL EYE 3" PULLEY 1/4 CABLE 1 8@%# 13359 LINK, 5/16 QUICK, PLATED 1 9@%# 16125 PULLEY, CABLE PULLEY 1

10# 26083 WINCH, HAND ASSY, LH ........................................ 1 .............INCLUDES ITEMS W/@

11# 26082 WINCH, HAND ASSY, RH ....................................... 1 .............INCLUDES ITEMS W/%

12 WSHW SCREED, HAND WINCHES .................................... 1 .............INCLUDES ITEMS W/#

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 35

26

WSHA20 SECTION ASSY.

6

18

7

5

19

17

8

2

25

1

10

8

1

23

22

1

8

16

11

17

3

15

25

8

1

24

8

13

4

NOTES

TORQUE TO 70 FT-LBS

1

PAGE 36 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

1

14

25

3

8

2

8

2

25

16

15

4

8

2

25

12

8

24

10

1

WSHA20 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 10176 NUT, NYLOC 1/2-13 2 2@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 14 3@ 16073 VIBRATOR ASSY, AIR 2 4@ 16126 ANGLE, BLADE CONNECT 2 5@ 16514 TURNBUCKLE, 1-5/16-16 1 6@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 7@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 8@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 32 10@ 2549 SCREW, HHC 1/2-13 X 3 2

11@ 36705 FRAME, STEEL 2' AIR ......................................1................REPLACES P/N 26043

12@ 26058 BLADE, SCREED 2' X 3W 1 13@ 26059 BLADE, SCREED 2' X 2W 2 14@ 26107 BRACE, SECTION CONNECTING 1 15@ 26124 BRACKET, VIBRATOR MOUNTING 2 16@ 26127 FITTING, 90 4MJ-1/8MP 2 17@ 26131 HOSE, AIR ASSY 1/4 X 24 2 18@ 26199 CAP, PIPE CAP PLUGS RCL-16 1 19@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 22@ 3214 SCREW, HHC 1/2-13 X 1-1/4 4 23@ 3242 SCREW, HHC 1/2-13 X 1-3/4 2 24@ 5218 SCREW, HHC 1/2-13 X 1-1/2 8 25@ 968011 NUT, HEX FINISH 1/2-13 16

26 WSHA20 SCREED, AIR 2' SECTION ASSY. .....................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 37

19

WSHA25 SECTION ASSY.

26

6

18

11

7

5

17

1

22

1

24

8

13

NOTES

TORQUE TO 70 FT-LBS

1

8

4

10

8

23

1

8

1

14

25

8

2

8

2

25

3

15

16

3

8

2

25

16

15

4

17

25

8

1

8

2

25

12

8

23

10

1

PAGE 38 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHA25 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 10176 NUT, NYLOC 1/2-13 2 2@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 14 3@ 16073 VIBRATOR ASSY, AIR 2 4@ 16126 ANGLE, BLADE CONNECT 2 5@ 16514 TURNBUCKLE, 1-5/16-16 1 6@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 7@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 8@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 32 10@ 2549 SCREW, HHC 1/2-13 X 3 2

11@ 36706 FRAME, STEEL 2-1/2' AIR ................................1................REPLACES P/N 26045

12@ 16106 BLADE, SCREED 2-1/2 X 3W 1 13@ 16110 BLADE, SCREED 2-1/2 X 2W 2 14@ 26107 BRACE, SECTION CONNECTING 1 15@ 26124 BRACKET, VIBRATOR MOUNTING 2 16@ 26127 FITTING, 90 4MJ-1/8MP 2 17@ 26131 HOSE, AIR ASSY 1/4 X 24 2 18@ 26199 CAP, PIPE CAP PLUGS RCL-16 1 19@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 22@ 3214 SCREW, HHC 1/2-13 X 1-1/4 4 23@ 3242 SCREW, HHC 1/2-13 X 1-3/4 4 24@ 5218 SCREW, HHC 1/2-13 X 1-1/2 6 25@ 968011 NUT, HEX FINISH 1/2-13 16

26 WSHA25 SCREED, AIR 2.5' SECTION ASSY. ..................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 39

WSHA50 SECTION ASSY.

31

6

18

29

11

30

7

5

17

19

1

24

8

13

NOTES

22

1

13

27

16

28

17

27

15

3

15

25

8

1

8

25

2

3

16

12

27

17

1

10

8

23

1

26

8

25

2

17

27

8

16

1

8

3

15

8

25

15

16

2

1

3

2

8

25

8

4

8

23

10

1

8

2

25

14

4

TORQUE TO 70 FT-LBS

1

PAGE 40 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHA50 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 10176 NUT, NYLOC 1/2-13 4 2@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 22 3@ 16073 VIBRATOR ASSY, AIR 4 4@ 16126 ANGLE, BLADE CONNECT 2 5@ 16514 TURNBUCKLE, 1-5/16-16 1 6@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 7@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 8@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 52 10@ 2549 SCREW, HHC 1/2-13 X 3 4

11@ 36707 FRAME, STEEL 5' AIR ......................................1................REPLACES P/N 26047

12@ 16107 BLADE, SCREED 5' X 3W 1 13@ 16111 BLADE, SCREED 5' X 2W 2 14@ 26107 BRACE, SECTION CONNECTING 1 15@ 26124 BRACKET, VIBRATOR MOUNTING 4 16@ 26127 FITTING, 90 4MJ-1/8MP 4 17@ 26131 HOSE, AIR ASSY 1/4 X 24 4 18@ 26199 CAP, PIPE CAP PLUGS RCL-16 1 19@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 22@ 3214 SCREW, HHC 1/2-13 X 1-1/4 10 23@ 3242 SCREW, HHC 1/2-13 X 1-3/4 4 24@ 5218 SCREW, HHC 1/2-13 X 1-1/2 6 25@ 968011 NUT, HEX FINISH 1/2-13 26 26@ 2691 SCREW, HHC 1/2-13 X 1 2 27@ 26328 NUT, FLANGED .5 4 28@ 26073 STUD, 1/2-NC X 14 LG 1 29@ 26132 FITTING, NIPPLE 1/4MP-1 1 30@ 26128 FITTING, TEE 1/4 FP 1

31 WSHA50 SCREED, AIR 5' SECTION ASSY. .....................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 41

32

WSHA75 SECTION ASSY.

10

8

23

1

15

3

8

1

2

24

1

8

13

19

17

25

8

27

3

15

27

11

16

17

29

30

17

27

1

26

4

5

8

7

16

3

15

8

2

25

17

29

30

31

17

27

16

18

6

25

17

1

8

15

25

2

8

2

25

14

8

2

16

3

27

28

27

15

12

27

NOTES

TORQUE TO 70 FT-LBS

1

28

16

3

15

16

3

27

8

22

10

1

8

23

4

1

PAGE 42 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHA75 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 10176 NUT, NYLOC 1/2-13 6 2@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 30 3@ 16073 VIBRATOR ASSY, AIR 6 4@ 16126 ANGLE, BLADE CONNECT 2 5@ 16514 TURNBUCKLE, 1-5/16-16 1 6@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 7@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 8@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 72 10@ 2549 SCREW, HHC 1/2-13 X 3 6

11@ 36708 FRAME, STEEL 7-1/2' AIR ................................1................REPLACES P/N 26049

12@ 16108 BLADE, SCREED 7-1/2' X 3W 1 13@ 16112 BLADE, SCREED 7-1/2' X 2W 2 14@ 26107 BRACE, SECTION CONNECTING 1 15@ 26124 BRACKET, VIBRATOR MOUNTING 6 16@ 26127 FITTING, 90 4MJ-1/8MP 6 17@ 26131 HOSE, AIR ASSY 1/4 X 24 6 18@ 26199 CAP, PIPE CAP PLUGS RCL-16 1 19@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 22@ 3214 SCREW, HHC 1/2-13 X 1-1/4 16 23@ 3242 SCREW, HHC 1/2-13 X 1-3/4 4 24@ 5218 SCREW, HHC 1/2-13 X 1-1/2 6 25@ 968011 NUT, HEX FINISH 1/2-13 36 26@ 2691 SCREW, HHC 1/2-13 X 1 4 27@ 26328 NUT, FLANGED .5 8 28@ 26073 STUD, 1/2-NC X 14 LG 2 29@ 26132 FITTING, NIPPLE 1/4MP-1 2 30@ 26128 FITTING, TEE 1/4 FP 2 31@ 16185 FITTING, PLUG 1/4 MP SQ HEAD 1

32 WSHA75 SCREED, AIR 7.5' SECTION ASSY ..................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 43

31

WSHA100 SECTION ASSY.

18

6

29

11

24

19

1

22

7

5

6

29

10

27

15

17

8

16

1

23

3

15

16

28

15

11

7

5

8

1

26

8

25

27

8

17

2

8

3

25

17

16

30

17

3

27

16

15

27

28

1

17

27

3

27

17

30

17

27

3

16

3

15

1

8

27

25

2

8

16

13

10

1

16

27

1

15

12

27

NOTES

TORQUE TO 70 FT-LBS

1

4

28

1

25

8

15

2

14

2

25

16

3

4

27

15

3

8

23

PAGE 44 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHA100 SECTION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 10176 NUT, NYLOC 1/2-13 8 2@ 12220 WASHER, LOCK 1/2 HIGH STRENGTH 38 3@ 16073 VIBRATOR ASSY, AIR 8 4@ 16126 ANGLE, BLADE CONNECT 2 5@ 16514 TURNBUCKLE, 1-5/16-16 2 6@ 16515 NUT, JAM 1-5/16-16 RIGHT HAND 1 7@ 16516 NUT, JAM 1-5/16-16 LEFT HAND 1 8@ 16630 WASHER, FLAT SAE 1/2 HIGH STRENGTH 92 10@ 2549 SCREW, HHC 1/2-13 X 3 8

11@ 36707 FRAME, STEEL 5' AIR ......................................2................REPLACES P/N 26047

12@ 16109 BLADE, SCREED 10' X 3W 1 13@ 16113 BLADE, SCREED 10' X 2W 2 14@ 26107 BRACE, SECTION CONNECTING 1 15@ 26124 BRACKET, VIBRATOR MOUNTING 8 16@ 26127 FITTING, 90 4MJ-1/8MP 8 17@ 26131 HOSE, AIR ASSY 1/4 X 24 8 18@ 26199 CAP, PIPE CAP PLUGS RCL-16 1 19@ 26205 CAP, TURNBUCKLE CAP PLUGS 14-X 1 22@ 3214 SCREW, HHC 1/2-13 X 1-1/4 22 23@ 3242 SCREW, HHC 1/2-13 X 1-3/4 4 24@ 5218 SCREW, HHC 1/2-13 X 1-1/2 6 25@ 968011 NUT, HEX FINISH 1/2-13 46 26@ 2691 SCREW, HHC 1/2-13 X 1 6 27@ 26328 NUT, FLANGED .5 12 28@ 26073 STUD, 1/2-NC X 14 LG 3 29@ 26132 FITTING, NIPPLE 1/4MP-1 2 30@ 26128 FITTING, TEE 1/4 FP 2

31 WSHA100 SCREED, AIR 10' SECTION ASSY ...................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 45

WSHAIC INVERT/CROWN KIT ASSY.

28

2

8

21

30

28

7

2

18

21

4

6

2

15

5

3

19

8

9

29

17

12

10

13

11

28

21

7

2

5

3

14

9

20

22

23

26

1

5

25

27

28

22

23

26

24

5

1

20

16

PAGE 46 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHAIC INVERT/CROWN KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 12220 WASHER, LOCK, 1/2 HIGH STRENGTH 18 2@% 13108 WASHER, FLAT 1-1/8 USS 2 3@ 16126 ANGLE, BLADE CONNECTOR 4 4@ 16629 NUT, NYLOC 1/2-13 4 5@ 16630 WASHER, FLAT 1/2 SAE HARDENED 36 6@ 16781 SCREW, HHC 1/2-13 X 2-1/4 4 7@% 26259 ADAPTER, STABILIZER END R/H 1 8@% 26258 ADAPTER, STABILIZER END L/H 1 9@ 26347 INVERT, CROWN TOWER 2 10@ 26350 TURNBUCKLE, INVERT/CROWN 2 11@ 26352 ROD, RH TURNBUCKLE 2 12@ 26353 NUT, JAM LH 1-14 2 13@ 26354 NUT, JAM RH 1-14 2 14@ 26355 BLADE, SECTION-FRONT 4 15@ 26356 BLADE, SECTION-BACK 2 16@ 26361 HINGE, INVERT/CROWN 1 17@ 26364 ROD, LH TURNBUCKLE 2 18@ 3242 SCREW, HHC 1/2-13 X 1-3/4 10 19@ 6159 A SCREW, HHC 1/2-13 X 2 8 20@ 968011 NUT, HEX FINISH 1/2-13 18 21@% 26153 FITTING, CROWSFOOT 3/4" MP 2 22@% 26146 FITTING, CROWSFOOT 1" MP 2 23@ 26405 CLAMP, 1-3/4 HOSE 2 24@ 26904 HOSE, 100R4 1 1 25@ 5081 FITTING, 90 IFP - IFP 2 26@ 26150 FITTING, STR -16 BARB - 1MP 2 27% 26416 FITTING, CROWSFOOT BLANK END 1 28@% 26147 SAFETY CLIP, CROWS FOOT 2

29 WSHAIC INVERT/CROWN KIT, WSHAIC .........................1................INCLUDES ITEMS W/@

30 26434 KIT, HARDWARE AIR ........................................1................INCLUDES ITEMS W%

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 47

WSHAH END HANDLE KIT ASSY.

38

39

37

35

36

35

43

38

PART OF

FRAME

37

35

36

27

41

28

42

25

24

30

23

29

32

31

34

39

33

35

19

21

22

26

40

19

18

15

7

5

1

23

20

41

22

18

22

16

2

4

15

13

3

17

6

11

22

PAGE 48 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHAH END HANDLE KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@# 0189 GRIP, HANDLE 4 2@# 10133 NUT, NYLOC 3/8-16 4 3@# 12220 WASHER, LOCK 1/2 HIGH STRENGTH 12 4@# 16159 FRAME, END ADAPTOR 2 5@# 16195 HANDLE, SCREED 4 6@# 16630 WASHER, FLAT 1/2 SAE HARDENED 24 7@# 1665 SCREW, HHC 3/8-16 X 2 4 11@# 5218 SCREW, HHC 1/2-13 X 1-1/2 12 13@# 968011 NUT, HEX FINISH 1/2-13 12 15@ 13108 WASHER, FLAT USS 1-1/8 2 16@ 26258 ADAPTER, STABILIZER END L/H 1 17@ 26259 ADAPTER, STABILIZER END R/H 1

18@

19@+ 26416 FITTING, CROWSFOOT-BLANK END 2 20@+ 26149 FITTING, CROWSFOOT 1" BARB PLTD 1 21@+ 26146 FITTING, CROWSFOOT 1 MP 1 22@+ 26147 SAFETY CLIP, CROWS FOOT 4 23@+ 26405 CLAMP, HOSE WORM #20 13/16 - 1-3/4 2 24@+ 36428 HOSE, 200PSI 1" X 60" RED HORIZON 1 25@+ 26150 FITTING, STR-16 BARB - 1MP 1 26@+ 26141 U-BOLT, 5/16-18 X 1 PIPE 2 27@+ 26136 BRACKET, OILER & GAUGE HANGER 1 28@+ 5283 NUT, NYLOC 5/16-18 4 29@+ 26142 OILER, 1"SCH-B MB3-08L54BCSB 1 30@+ 0300 B WASHER, FLAT 5/16 SAE 4 31@+ 16185 FITTING, PLUG 1/4 MP SQ HEAD 1 32@+ 26144 GAUGE, 1/4, 200 PSI 1 33@+ 26145 VALVE, BALL 1.0 NPT BRASS 1 34@+ 26143 ADAPTER, GAUGE 1 35@% 26085 HANGER, SCREED LIFTING 2 36@% 4370 SCREW, HHC 3/8-16 X 2-1/4 2 37@% 0166 A WASHER, LOCK 3/8 MED 2 38@% 1456 NUT, HEX FINISH 3/8-16 2 39@% 26135 SHACKLE, HANGER 2

40 26108 END HANDLE ASSY. .........................................1................INCLUDES ITEMS W/#

41 26412 AIR CONTROL SYSTEM ASSY ........................1................INCLUDES ITEMS W/+

42 WSHAH END HANDLE KIT, AIR ......................................1................INCLUDES ITEMS W/@

43 26436 KIT, HARDWARE, HANGER ..............................1................INCLUDES ITEMS W/%

26153 FITTING, CROWSFOOT 3/4" MP 2

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 49

WSHAEXT6/12/18 END HANDLE EXTENSION ASSY.

27

23

22

21

4

7

18

25

17

26

24

14

21

2

15

6

19

13

15

16

3

6

13

6

11

16

20

14

22

5

1

24

6 IN. HANDLE

EXTENSION

PAGE 50 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

12 IN. HANDLE

EXTENSION

18 IN. HANDLE

EXTENSION

WSHAEXT6/12/18 END HANDLE EXTENSION ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1+$= 0189 GRIP, HANDLE 4 2+$= 10133 NUT, NYLOC 3/8-16 4 3+$= 12220 WASHER, LOCK 1/2 HIGH STRENGTH 12 4+ 26375 6IN HANDLE EXT, AIR END 2 4$ 26378 12IN HANDLE EXT, AIR END 2 4= 26379 18IN HANDLE EXT, AIR END 2 5+$= 16195 HANDLE, SCREED 4 6+ 16630 WASHER, FLAT 1/2 SAE HARDENED 24 6$= 16630 WASHER, FLAT 1/2 SAE HARDENED 30 7+$= 1665 SCREW, HHC 3/8-16 X 2 4 11+$= 5218 SCREW, HHC 1/2-13 X 1-1/2 12 13+ 968011 NUT, HEX FINISH 1/2-13 12 13$= 968011 NUT, HEX FINISH 1/2-13 16 14$= 16073 VIBRATOR ASSY 4 15$= 26127 FITTING, 90 4MJ-2MP 4 16$= 26399 HOSE, AIR ASSY 1/4 X 36 4 17$= 26128 FITTING, TEE 1/4 FP 2 18$= 26132 FITTING, NIPPLE 1/4MP-1 2 19$= 2549 SCREW, HHC 1/2-13 X 3 4 20$= 10176 NUT, NYLOC 1/2-13 4 21 13108 WASHER, FLAT USS 1-1/8 2 22 26153 FITTING, CROWSFOOT 3/4 MP MP 2 23 26416 FITTING, CROWSFOOT-BLANK END 1 24 26147 SAFETY CLIP, CROWSFOOT 2 25 26258 ADAPTOR, STABILIZER END, LH-AIR 1 26 26259 ADAPTOR, STABILIZER END, RH-AIR 1

27 26415 6" HANDLE ASSY .......................................... 1 ................. INCLUDES ITEMS W/+

27 26392 12" HANDLE EXT ASSY ................................ 1 ................. INCLUDES ITEMS W/$

27 26393 18" HANDLE EXT ASSY ................................ 1 ................. INCLUDES ITEMS W/=

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 51

WSKITAEB-R ADJUSTABLE END BRACKET ASSY.

19

18

10

2

1

9

5

3

20

2

1

7

11

21

10

11

4

8

6

12

14

13

5

3

7

11

15

8

6

4

16

15

17

PAGE 52 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSKITAEB-R ADJUSTABLE END BRACKET ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1#$%= 0161 C WASHER, LOCK, 5/16 MED 8 2#$%= 0161 D NUT, HEX FINISH 5/16-18 8 3#$%= 0166 A WASHER, LOCK 3/8 MED. 4

4#$%= 0300 A SCREW, HHC 5/16-18 X 2 ..........................................8 .......... REPLACES P/N 1207

5#$%= 1456 NUT, HEX FINISH 3/8-16 4 6#$%= 1665 SCREW, HHC 3/8 X 16 X 2 4 7#$%= 26497 PLATE, BOLT 4 8#$%= 26504 PLATE, OUTER 4 9#$ 26505 ARM, SLIDE 1 10#$%= 26507 BRACKET, ARM HOLDER 1 11 #$%= 2691 SCREW, HHC 1/2-13 X 1 8 12%= 26508 ARM, ROLLER 1 13%= 10176 NUT, NYLOC 1/2-13 2 14%= 26501 SCREW, HHC 1/2-13 X 8 2 15@%= 26502 BEARING, ROLLER 4 16@%= 26500 ROLLER, END BRACKET 2

17%= 26545 ROLLER ASSY. ............................................................2 .......... INCLUDES ITEMS W/@

18$ 26514 ADJUSTABLE END BRACKET ASSY. .........................2 .......... INCLUDES ITEMS W/#

19 WSKITAEB ADJUSTABLE END BRACKET KIT .............................1 .......... INCLUDES ITEMS W/$

20= 26509 ADJUSTABLE END BRACKET W/ROLLERS ..............2 ..........INCLUDES ITEMS W/%

21 WSKITAEBR ADJUSTABLE END BRACKET W/ROLLERS KIT .......1 .......... INCLUDES ITEMS W/=

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 53

WSHRBE KIT ASSY.

6

4

5

3

2

3

1

PAGE 54 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

WSHRBE KIT ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 5218 SCREW, HHC 1/2-13 X 1-1/2 12 2@ 12220 WASHER, LOCK, 1/2 HIGH STRENGTH 12 3@ 16630 WASHER, FLAT 1/2 SAE HARDENED 24 4@ 36203 BRACKET, REINFORCEMENT 1 5@ 968011 NUT, HEX FINISH 1/2-13 12

6 WSHRBE REINFORCEMENT BRACKET ASSY. ...............1................INCLUDES ITEMS W.@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 55

EZ MOVER ASSY.

12

11

10

8

7

9

7

10

2

1

6

4

5

3

10

PAGE 56 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

EZ MOVER ASSY.

NO. PART NO. PART NAME QTY. REMARKS

1@ 0730 SCREW, HHC 1/4-20 X 1 2 2@ 0948 WASHER, FLAT SAE 1/4 4 3@ 10024 NUT, NYLOC 1/4-20 2 4@ 12285 SPACER, WHEEL EZ MOVER 2 5@ 12333 TIRE, EZ MOVER 2 6@ 3264 WASHER, FLAT SAE 1.00 2 7@ 36237 JACK 2 8@ 36241 MOUNT, TOP PIPE 1 9@ 36245 LATCH, JACK 2 10@ 7170 PIN, HITCH CLIP 5/32 X 3-5/16 4 11@ 8081 PIN, CLEVIS 1/2 X 2 3/4 2

12 36243 EZ MOVER, SCREED JACK ASSY. ...................1................INCLUDES ITEMS W/@

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 57

TERMS AND CONDITIONS OF SALE — PARTS

PAYMENT TERMS

5. Par ts must be in new and resalable

Multiquip reser ves the right to quote and

who use our products as integral parts of their

LIMITATIONS OF SELLER’S LIABILITY

liable for loss of proﬁ t or good will or for any

connection with the sale of its products. Apart

statutory, which extend beyond the description

Terms of payment for parts are net 30 days.

FREIGHT POLICY

All parts orders will be shipped collect or prepaid with the charges added to the invoice. All shipments are F.O.B. point of orig in. Multiquip’s responsibilit y ceases when a signed manifest has been obtained from the carrier, and any claim for shortage or damage must be settled between the consignee and the carrier.

MINIMUM ORDER

The minimum charge for orders from Multiquip is $15.00 net. Customers will be asked for instructions regarding handling of orders not meeting this requirement.

RETURNED GOODS POLICY

Return shipments will be acc epted and credit will be allowed, subject to the following provisions:

1. A Return ed Materi al Author izat ion must be approved by Multiquip prior to shipment.

2. To obtain a Return Material Authorization, a list must be provided to Multiquip Parts Sales that deﬁ nes item numbers, quantities, and descriptions of the items to be returned.

a. The parts numbers and descriptions

b. The list must be typed or computer

c. The list must state the reason(s)

d. The list must reference the sales

e. The list must include the name

3. A copy of the Return Material Authorization must accompany the return shipment.

4. Freight is at the sender’s expense. All parts must be returned freight prepaid to Multiquip’s designated receiving point.

must match the current parts price list.

generated.

for the return.

order ( s ) o r i n v o i c e( s ) u n de r which the items were originally purchased.

and phone number of the person requesting the RMA.

co ndition , in the orig inal Mul tiquip package (if any), and with Multiquip part numbers clearly marked.

6. The following items are not returnable:

a. Obsolete parts. (If an item is in the

price book and shows as being repl ace d by ano ther item, it is obsolete.)

b. Any parts with a limited shelf life

(such as gaskets, seals, “O” rings, and other rubber parts) that were purchased more than six months prior to the return date.

c. Any line item with an extended

dea l e r ne t pric e of less th a n $5.00.

d. Special order items.

e. Electrical components.

f. Paint, chemicals, and lubricants.

g. Decals and paper products.

h. Items purchased in kits.

7. The sender will be notiﬁ ed of any material received that is not acceptable.

8. Suc h mater ial will be held for five working days from notiﬁ cation, pending instructions. If a reply is not received within five days, the material will be returned to the sender at his expense.

9. Credit on returned parts will be issued at dealer net price at time of the original pur c h a s e , le s s a 15% re s t o c k i ng charge.

10. In cases where an item is accepted, for which the original purchase document can not be determined, the price will be based on the list price that was effective twelve months prior to the RMA date.

11. Credit issued will be applied to future purchases only.

PRICING AND REBATES

Prices are subject to change without prior notice. Price changes are effec tive on a speciﬁ c date and all orders received on or after that date will be billed at the revised price. Rebates for price declines and added charges for price increases will not be made for stock on hand at the time of any price change.

sell direct to Government agencies, and to Original Equipment Manufacturer accounts

own products.

SPECIAL EXPEDITING SERVICE

A $35.00 surcharge will be added to the invoice for special handling including bus shipments, insured parcel post or in cases where Multiquip must personally deliver the parts to the carrier.

Multiquip shall not be liable hereunder for damages in excess of the purchase price of the item with respect to which damages are claimed, and in no event shall Multiquip be

other special, consequential or incidental damages.

LIMITATION OF WARRANTIES

No warranties, expres s or impl ied , are made in connection with the sale of parts or trade accessories nor as to any engine not manufactured by Multiquip. Such warranties made in connection with the sale of new, complete units are made exclusively by a statement of warranty packaged with such units, and Multiquip neither assumes nor auth orizes any person to assum e for it any other obligation or liability whatever in

from such written statement of warranty, there are no warranties, express, implied or

of the products on the face hereof.

Effective: February 22, 2006

PAGE 58 — WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11)

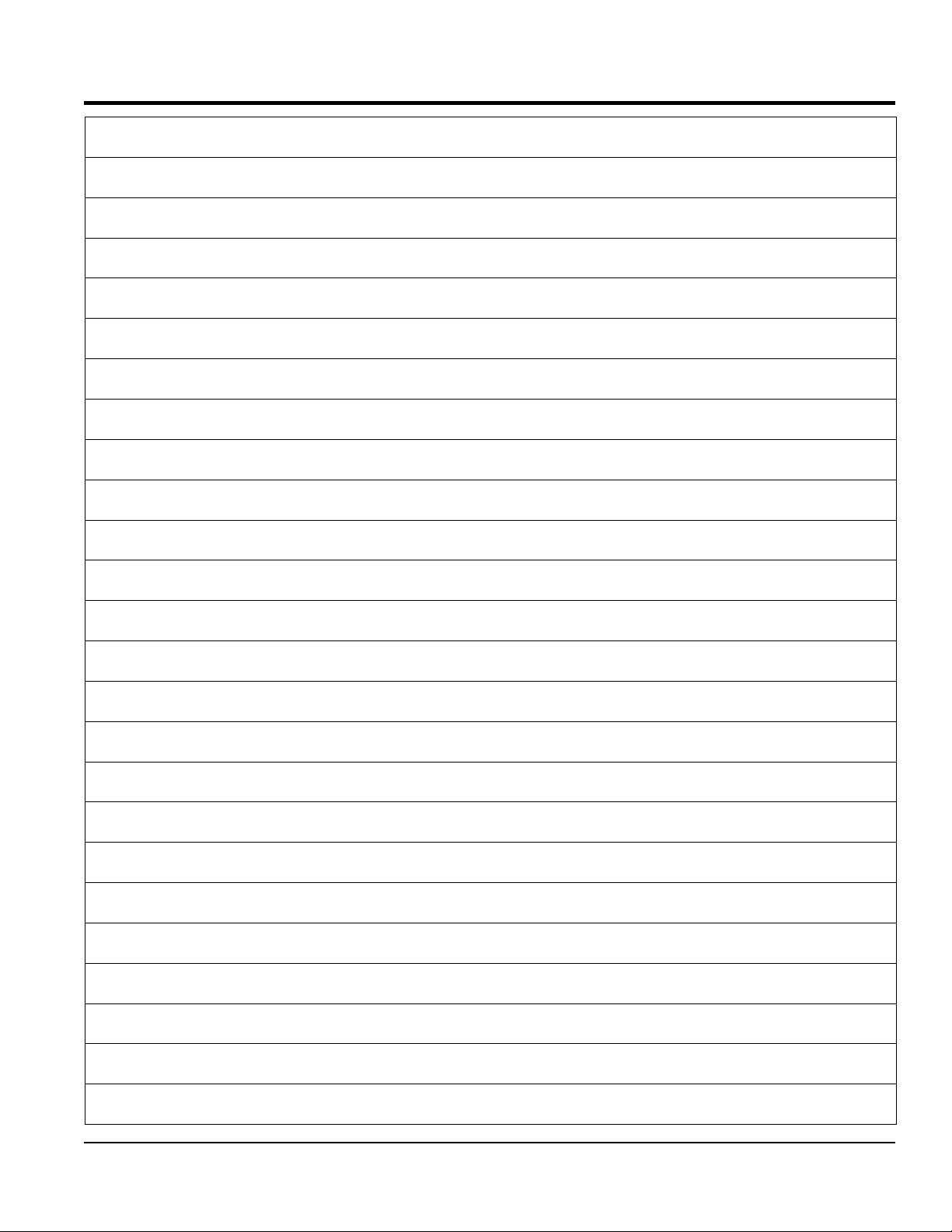

NOTES

WSHE/A VIBRATORY TRUSS SCREED • PARTS MANUAL — REV. #0 (05/04/11) — PAGE 59

PARTS MANUAL

HERE’S HOW TO GET HELP

Multiquip Inc

the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the proper ty

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published in this publication at any time without notice and without incurring any obligations.

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

United StateS

Multiquip Corporate Ofﬁce MQ Parts Department

18910 Wilmington Ave. Carson, CA 90746 Contact: mq@multiquip.com

Service Department Warranty Department

800-421-1244 310-537-3700

Technical Assistance

800-478-1244 Fax: 310-943-2238

Tel. (800) 421-1244 Fax (800) 537-3927

Fax: 310-537-4259 800-421-1244

800-427-1244 310-537-3700

310-537-3700

Fax: 800-672-7877 Fax: 310-637-3284

Fax: 310-943-2249

mexico United Kingdom

MQ Cipsa Multiquip (UK) Limited Head Ofﬁce

Carr. Fed. Mexico-Puebla KM 126.5 Momoxpan, Cholula, Puebla 72760 Mexico Contact: pmastretta@cipsa.com.mx

Tel: (52) 222-225-9900 Fax: (52) 222-285-0420

Unit 2, Northpoint Industrial Estate, Globe Lane, Dukinﬁeld, Cheshire SK16 4UJ Contact: sales@multiquip.co.uk

Canada

Multiquip

4110 Industriel Boul. Laval, Quebec, Canada H7L 6V3 Contact: jmartin@multiquip.com

Tel: (450) 625-2244 Tel: (877) 963-4411 Fax: (450) 625-8664

Tel: 0161 339 2223 Fax: 0161 339 3226

of their respective owners and used with permission.

This manual MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

and

Your Local Dealer is:

Multiquip GX270UT2QA2, GX340UT2QAP2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
