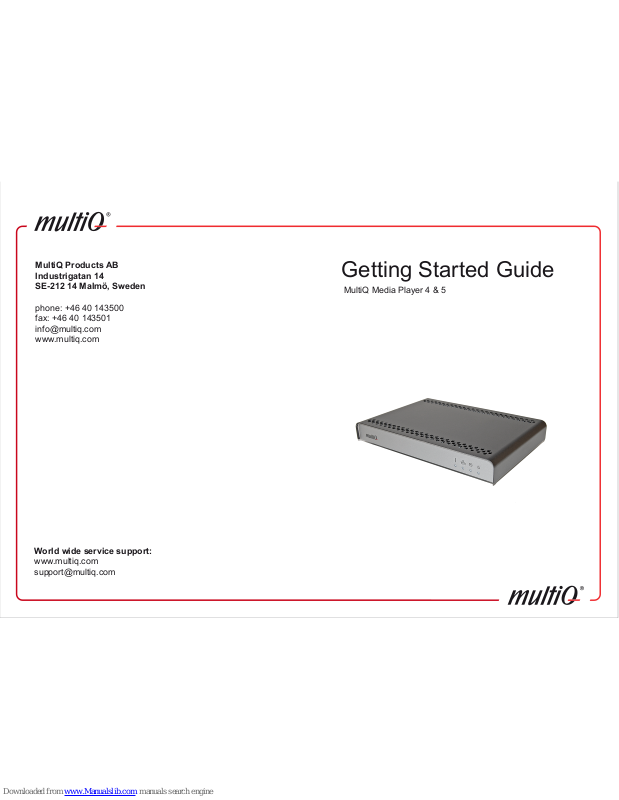

Getting Started Guide
MultiQ Media Player 4 & 5
MultiQ Products AB
Industrigatan 14
SE-212 14 Malmö, Sweden
phone: +46 40 143500
fax: +46 40 143501
info@multiq.com
www.multiq.com
World wide service support:
www.multiq.com
support@multiq.com
Notices
This user’s guide is intended for administrators and users of the MultiQ Media Players 4
& 5 and is applicable for firmware release 2.2 or later. It includes instructions for
installing and the basic use of your MultiQ product. Previous experience of networking
will be of use when using this product. For more detailed information please visit
www.multiq.com where users manual and more documentation is available for
download. Later versions of this document will be posted to the MultiQ Website, as
required.
Liability
Every care has been taken in the preparation of this manual. Please inform your local
MutliQ office of any inaccuracies. MultiQ International AB or any of its subsidiaries
cannot be held responsible for any technical or typographical errors and reserves the
right to make changes to the product and manuals without prior notice. MultiQ
International AB and its subsidiaries makes no warranty of any kind with regard to the
material contained within this document, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose.
MultiQ International AB or any of its subsidiaries shall not be liable nor responsible for
incidental or consequential damages in connection with the furnishing, performance or
use of this material.
Equipment Modifications
This equipment must be installed and used in strict accordance with the instructions
given in the user documentation. This equipment contains no user-serviceable
components. Unauthorized equipment changes or modifications will invalidate all
applicable regulatory certifications and approvals.
Trademark Acknowledgments
Apache, Apple, Bonjour, Ethernet, Flash, GLibC ,Intel, Intel Atom ,Internet Explorer,
Linux, Microsoft, Mozilla, Netscape Navigator, Real, QuickTime, SQLite, Symbol, UNIX,
Windows, WWW are registered trademarks of the respective holders.
Adobe” and Acrobat® Reader® are trademarks of Adobe Systems Incorporated in the
United States and/or other countries. Sun, Sun Microsystems, Java, all Java-based
trademarks and the Sun Logo Java™ are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and other countries.
MultiQ International AB and its subsidiaries are independent of Sun Microsystems Inc.
Support
Should you require any technical assistance, please contact your MultiQ reseller. If your
questions cannot be answered immediately, your reseller will forward your queries
through the appropriate channels to ensure a rapid response.
From www.multiq.com
you can:
Download user documentation and software updates
Find answers to resolved problems in the FAQ database.
Report problems to MultiQ support.
Visit MultiQ Support at www.multiq.com
3 YEAR LIMITED HARDWARE WARRANTY
Warranty Coverage
MultiQ Products AB (“MultiQ”) warranty obligations are limited to the terms set forth
below:
MultiQ warrants to the original end-user purchaser (the “Purchaser”) that the MultiQ
Product (the “Product”) enclosed with this limited hardware warranty will in respect of the
hardware be free from defects in design, workmanship and materials under normal use
for a period of three (3) years from the date of the Purchaser’s original purchase
(“Warranty Period”).
The Purchaser shall without undue delay notify MultiQ of any defect which appears in
the Product according to MultiQ’s RMA Handling, failure to which shall mean that the
Purchaser loses its right to have the Product defect remedied. Valid warranty time left for
the Product will be found on MultiQ’s website under Service & Support, deviations will be
handled by a valid form of a bill of sale or receipt from an authorized retailer/distributor
with the date of the original purchase for the Product. Such bill of sale or receipt must be
presented to obtain warranty service.
If a valid claim is received on MultiQ’s website in form of a created case, within the
Warranty Period, the sole remedy of the Purchaser and MultiQ’s sole and exclusive
liability shall be limited to, at MultiQ sole discretion, either repair of the hardware defect
using new or refurbished replacement parts, or replacement of the Product. Repaired or
replacement hardware will be warranted for the remainder of the original Warranty
Period or ninety (90) days, whichever is longest.
When a Product or part is exchanged the replacement hardware becomes the property
of the Purchaser and all hardware or part thereof that is replaced shall become the
property of MultiQ.
This Limited Warranty is applicable in all European and North American countries and
may be utilised by the Purchaser through entering a warranty claim on MultiQ’s website
www.multiQ.com
.
This warranty does not apply to defects in the Products due to (a) faulty and improper
installation, maintenance service, repair performed by non authorized service partner
and/or alteration of the Product, in any way that is not contemplated in the
documentation for the Product or carried out with MultiQ’s consent in writing, operational
adjustments covered in the operating manual for the Product or carried out in connection
with normal maintenance, (b) cosmetic damages like scratches or marks on the Product,
(c) exhaustion of the touch-glass due to abnormal usage for the type of glass , (d)
modification or tampering with the Product , (e) damage to the Product by acts of God,
misuse, abuse, negligence, accident, normal wear and tear and deterioration, improper
environmental conditions, exposure to aggressive chemicals (including, but not limited
to, electrical surges, water damage and heat exposure) or lack of responsible care, (f) if
the Product has had the model or serial number altered, defaced or removed, (g)
consumables (such as batteries) (h) image retention (i) decreasing luminous intensity
from CCFL, (j) Products that have been purchased “as is” and/or MultiQ or the seller
otherwise expressly disclaim their warranty obligation pertaining to the Product, (k) any
non MultiQ hardware product (irrespective of packaged or sold with an MultiQ hardware
product), (l) any software (irrespective of packaged or sold with an MultiQ hardware
product) (m) Products purchased from an unauthorized distributor/reseller, (n) damage
that occurs in shipment or (o) damages by any other causes not related to defective
design, workmanship and/or materials.
NOTES: If the product is to be used outdoors or in dusty, humid, or other hostile
environments, it must be suitably protected.
MultiQ apply the ISO standard for panels, ISO 13406-2 class ll.
Products with touch glass, of all types, need to be cleaned with none aggressive liquid,
and the touch surface should not by any circumstances be exposed of higher hardness
level (according to Mohs scale), than as stipulated in the touch-glass manufactures
specification.
Additional hardware embedded in MultiQ’s Products, such as Touch functions, Card
readers and similar features present today and available in the future are often used with
driver software not developed by MultiQ. If other drivers than those approved by MultiQ
as per the purchase date are used in or together with the Products, this will render the
warranty invalid for the Product, unless MultiQ has approved in writing the drivers for
use together with the Product.
Failure to comply with any of the aforementioned requirements will invalidate this
Limited Hardware Warranty.
THE WARRANTY AND REMEDIES PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
CERTAIN JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF
LAWS UNDER SUCH JURISDICTIONS APPLY, THEN ALL EXPRESS AND IMPLIED
WARRANTIES ARE LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS
PROVIDED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER
PERSON OR FIRM OTHER THAN MULTIQ ARE VOID.
EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY AND TO THE EXTENT PERMITTED BY
LAW, NEITHER MULTIQ NOR ANY AFFILIATES SHALL BE LIABLE FOR ANY LOSS,
(INCLUDING LOSS OF DATA AND INFORMATION), INCONVENIENCE, OR DAMAGE,
INCLUDING, BUT NOT LIMITED TO, DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE MULTIQ PRODUCT,
WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY OTHER LEGAL THEORY.
NOTWITHSTANDING THE FOREGOING, MULTIQ’s TOTAL LIABILITY FOR ALL CLAIMS
UNDER THIS WARRANTY SHALL NOT EXCEED THE PRICE PAID FOR THE PRODUCT.
THESE LIMITATIONS ON POTENTIAL LIABILITIES HAVE BEEN AN ESSENTIAL CONDITION IN
SETTING THE PRODUCT PRICE.
Applicable Law
This Limited Warranty is governed by and construed under the laws of Sweden.
This Limited Hardware Warranty may be subject to MultiQ’s change at any time without
prior notice.
1 - English
Table of Contents
1. Product Safety Precautions ................................................ 2
2. Hardware Installation .......................................................... 3
2-1. Unpacking ..................................................................... 3
2-2. Mounting ....................................................................... 3
2-3. Connections .................................................................. 3
2-4. Front panel LEDs .......................................................... 4
3. Configuration and connection check ................................. 5
3-1. Configuration ................................................................. 5
3-2. Connection check ......................................................... 7
3-3. Additional software installation ...................................... 8
3-4. Image retention ............................................................. 8
4. Troubleshooting .................................................................. 9
5. Specification ...................................................................... 10
5-1. Key features ................................................................ 10
5-2. Media player software ................................................. 11
5-3. Media player hardware ............................................... 12
5-4. Customization ............................................................. 13
6. Appendix ............................................................................ 14
6-1. Touch Calibration ........................................................ 14
6-2. Configuration menu parameters .................................. 14
6-3. Safety .......................................................................... 16
7. WEEE Declaration .............................................................. 18
7-1. CE Conformity ............................................................. 19
2 - English
1. Product Safety Precautions
Follow all warnings and instructions marked on the product.
Do not use this product near water – e.g. near a bathtub, washbasin, swimming pool,
kitchen, laundry tub or in a wet basement.
When cleaning, use only a neutral detergent cleaner with a soft damp cloth. Do not
spray with liquid or aerosol cleaners.
Do not expose this media player to direct sunlight or heat. Hot air may cause
damage to the cabinet and other parts.
Adequate ventilation must be maintained to ensure reliable and continued operation
and to protect the media player from overheating. Do not block ventilation slots and
openings with objects or install the media player in a place where ventilation may be
hindered.
This media player should be operated from the type of power source indicated on the
AC/DC adapter.
Do not allow metal pieces or objects of any kind to fall into the media player through
ventilation holes.
Do not attempt to service this unit yourself. Refer all servicing to qualified service
personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel
in the event that:
Liquid is spilled into the product or the product is exposed to rain or water.
The product does not operate normally when the operating instructions are followed.
The product has been dropped or the cabinet has been damaged.
The product exhibits a distinct change in performance, indicating a need for service.
Power cord or plug is damaged or frayed
.
3 - English
2. Hardware Installation
This Quick Guide will guide you through the correct installation and configuration
procedure of your media player. The media player is to be used together with the MultiQ
digital signage management system. Further information is available in the MultiQ Digital
Signage Management System manual and in technical notes that can be found on the
MultiQ website.
2-1. Unpacking
Please make sure that the following items are included in the package and in good
condition. If you find that any items damaged or missing, please contact your retailer
immediately.
One media player
AC/DC adapter with 12V DC output
AC power cord
This user manual
2-2. Mounting
Mounting and attachment hardware is not included. Please contact your MultiQ reseller
if you wish to mount your media player on the wall or on the back of a MultiQ monitor
with VESA interface. There are several options. Mounting instructions are provided with
each separate mounting bracket.
2-3. Connections
The media player has connections for DVI-D (digital only), Audio (digital and analogue),
LAN and USB I/O.
Figure 1. Back panel connections.
4 - English
2. Hardware Installation
Connect the DVI-D output to the monitor to be used. If the monitor has an HDMI input a
conversion cable should be used. A monitor must be used when configuring the media
player.
The audio outputs may be connected to analogue or digital inputs on external audio
systems. The LAN port must be connected to a LAN with Internet access.
If a touch panel monitor is to be used, one of the USB ports should be connected to the
touch panel interface of the monitor.
During setup a USB keyboard should be connected to one of the USB ports (see section
3-1.). Do all connections before powering up by connecting the external power supply.
2-4. Front panel LEDs
On the front of the media player there are 4 LEDs.
Figure 2. Front panel with indication LEDs.
Power – This led will be lit when the media player is on (Blue).
Status – This led indicates activities and result of activities
Flashing between red and green: ongoing activity as starting up, shutting down or
download in progress.
Green: download succeeded
Red: communication with the digital signage management server failed or download
failed
HDD – Hard drive activity (Yellow).
LAN – Flashes when there is activity on the LAN port.
Not lit: no network access
Constantly lit in green: Link up at 100 Mb/s or 1000 Mb/s
Flashing in green: Network activity at 100 Mb/s or 1000 Mb/s
Constantly lit in red: Link up at 10 Mb/s
Flashing in red: Network activity at 10 Mb/s
5 - English
3. Configuration and connection check
3-1. Configuration
To configure your media player connect a USB keyboard to one of the USB ports.
At first start up the media player will automatically present the configuration menu. If you
wish to enter the configuration menu again, press “Ctrl + Alt + c”. This will trigger a
player reboot after which the configuration menu will appear. Check that the keyboard is
not in “Num Lock” or “Scroll Lock” position before starting input data. If needed, press “r”
to rotate the menu for convenient operation.
At first start up the media player is configured to be used with an English keyboard. If
you do not use an English keyboard you must use the conversion table (Table 1) to be
able to print certain characters and special signs. As soon as the media player has
contacted the digital signage management server for the first time the language settings
will be changed to settings defined in the digital signage management system. If the
media player is set to work with the character set of your keyboard, you will not have to
use the conversion table any more.
Table 1. Conversion table to be used at first start up depending on what keyboard is used.
6 - English
3. Configuration and connection check
The media player’s hardware is configured at factory. Only user specific data are
needed to finalize the configuration. These data include Unit ID (the unique number of
identity for each media player), ScriptURL (web address for the digital signage
management server), ScriptUser and ScriptPW (password). These parameters (left
empty in the configuration menu at first start up) are defined in the digital signage
management system. Navigate using the arrow-keys and press “Enter” to select
parameter for editing. To exit the editing mode, press “Enter” once more.
As default, the media player is set for DHCP operation and will be assigned an IP
address from a DHCP server in the network. However, if necessary, the media player
may be assigned fixed IP addresses. In such case you must obtain IP addressing
parameters from your network administrator.
A detailed description of configuration parameters is to be found in the Appendix, section
6-2.
Figure 3. The configuration menu. (Please note that the name and number of parameters may vary
with different software versions.)
7 - English
3. Configuration and connection check
3-2. Connection check
When all parameters have been set, a connection test should be made. Press the letter
“u”. If you are successful you will get a sign on the screen telling you that the unit has
received a script file and that the connection is up. It also confirms that the media player
Unit ID is defined in the digital signage management system.
Figure 4. The connection test showing that the media player is in contact with the digital signage
management server.
If the connection test fails, start by checking the parameters once more to see that
everything is correctly set. Also check the LAN cabling.
8 - English
3. Configuration and connection check
When everything is working correctly, press “w” (write) to save the settings. If you do not
wish to save the changes press “q” to quit without saving. As soon as you leave the
configuration menu, the media player will reboot.
After the reboot the media player will automatically start downloading the files decided
by the digital signage management system. While downloading files the “Status” LED
will flash between red and green (see section 2-4.).
If the media player is connected to a touch monitor, the touch panel should be calibrated
according to Appendix section 6-1. before use.
3-3. Additional software installation
Additional software can be installed using the installation menu. The installation menu is
accessed by pressing the letter “i” on the USB keyboard while inside the configuration
menu. The installation menu provides further instructions on what software can be
installed and how this is done.
3-4. Image retention
All monitors you connect to your media player are more or less sensitive to image
retention. Temporary or permanent image retention (visible tracks of previously shown
images) is caused by long-time display of static images. Especially static images
containing hard contrast transitions may cause image retention. Therefore it is
recommended not to display the configuration menu or other static content during a long
period of time. In applications where static images are inevitable as in kiosk applications
with buttons, hard contrast transitions should be avoided and screen saver videos are
recommended.
9 - English
4. Troubleshooting
The media player doesn’t power up
Check the LED on the power supply. If not lit, make sure it’s properly connected to a
wall socket.
If the power supply LED is lit, but the media player still doesn’t power up. Check the
cable between the power supply and the media player.
The media player shows an “IDLE” message
Check the status LED, if flashing between red and green, the media player is
downloading content. Wait for download to complete.
Check the settings in the configuration menu and make a connection test.
Check the Ethernet connection. Make sure that the outbound ports 21, 80 and NTP
123 are left open in the firewall.
Check with the digital signage management system operator if any content is
assigned to the media player.
The media player displays the wrong content
Check the Unit ID in the configuration menu
Interactivity between media players or other devices do not work
Check the IP addresses for each device and see to that they are set according to the
instructions provided by the digital signage management system operator.
Additional information is to be found in the support section of the MultiQ website.
10 - English
5. Specification
5-1. Key features
Full HD support
The media player supports a wide range of video formats including 720p, 1080i and
1080p.
Combined local play and live web content retrieval
The media player can play locally stored media that is automatically updated from the
central digital signage management system as well as from external sources available
on the Internet. This way high quality video playback may be combined with up to the
minute news, weather and other kinds of updates. The split screen capabilities allows for
mixing local play content with live web content retrieval on the same screen. Local play
saves bandwidth.
Web kiosk feature with virtual keyboards
The media players may (if combined with touch panel monitors) be used in web kiosks
that allows for full interactivity and transactional capabilities. This feature makes it
possible to interface with e-commerce and other transactional systems. Standard fully
featured virtual keyboards are available in UK English, French, German, Norwegian, and
Danish and in Swedish. The keyboards are available in two designs. The split screen
capability allows for web kiosk content to be mixed with local play content (such as high
performance video clips) on the same screen.
Local storage website feature
Websites may be stored locally on the media players for rapid access and to save
broadband capacity. The media player has a web server including data base and PHP
support.
Open Client API – Media player interactivity and interconnectivity
The built-in web server and open client API allows for interactive applications to be set
up in a simple way using common web development tools. Interactivity may be realized
as internal requests for playlists and spots as well as external requests to other media
players to play specific content.
The client API also allows for interconnectivity with other systems such as surveillance
cameras, queue handling systems and cash register systems. The open client API
opens for cutting edge digital customer information and interaction systems.
More details on the features described above are to be found on the MultiQ website.
11 - English
5. Specification
5-2. Media player software
Operating system
Linux kernel ver. 2.6.X, GLibC ver. 2.7 optimized for digital signage applications.
Digital signage application
MultiQ Client Control software including screen region control, scheduling and device
management such as embedded software upgrades.
Video format support (Hardware accelerated using internal player)
The media player can play the following video file formats with or without audio:
MPEG-1
MPEG-2
MPEG-4 part 10 (h.264)
MPEG-4 part 2
Video format support (Using the web browser)
SWF (requires software module installation)
Motion JPEG
Audio format support
The client can play the following audio file formats:
OGG
MP3 (MP3 requires MultiQ MP3 license)
Images playback
The client can display images of the following format (up to max 1.2 M pixels):
JPEG
GIF
BMP
PNG
Browser
Mozilla Gecko 1.9 (same as used for Firefox 3.0.10) supporting Java script, Ajax and
other w3c standards.
12 - English
5. Specification
Browser add-ons
Multilingual virtual keyboard (UK, FR, DE, NO, DK, SV)
Flash 10 is available as user loadable module.
Adobe Reader 9.1.2 (PDF file support)
Sun Java Runtime environment 1.6.0
Client side network functionality verification tools – verifies web-source availability
and initiates alternative handling in case of network problems.
URL access limitations – enables administrator to lock web browser access from and
to specific URLs.
A soft transition between URLs.
Loader indication – clearly notifies end user that downloads of new content to
browser is in progress.
Web server
Apache 2.2.11
Web server scripting language
PHP 5.2.10 or higher
Database
SQLite 2.8.17 or higher
Player API
MultiQ open API (MAPIDS) for device control
Logging
Logs in standard Apache log file format (note: Expected availability Q1 2010)
Peripheral support
Scanner, Symbol 3207 (more peripherals to be added)
5-3. Media player hardware
System
Media Player 4: CPU Intel Atom 1,1 GHz, 512 kB RAM, 2 GB Flash (1 GB available
for user files)
Media Player 5: CPU Intel Atom 1,6 GHz, 1 MB RAM, 4 GB Flash (3 GB available for
user files)
13 - English
5. Specification
Video output*
DVI-D (Digital only) output in VGA/SVGA/XGA/SXGA/1360x768/HD 1080
resolutions. Frame rate is always 60 Hz
*) Conversion from previously mentioned supported video formats to the above output
formats takes place in the media player.
Audio output
3,5 mm analogue stereo line output
S/PDIF digital electrical interface
Network
RJ-45 10BASE-T/100BASE-TX/1000BASE-T
USB
2 USB 2.0 ports
Dimensions
215(W) x 144(D) x 35(H) mm
Weight
0,75 kg, shipping weight total 1,4 kg
External power supply
Input AC 100-240 V, 50-60 Hz
Output 12 V DC, 5.0A
Power usage
6-7 W (typical), 10 W (max excl. USB devices), 15 W (max inc. USB load)
Operating temperature
0-40°C
Approvals
Power supply: CE, UL, TUV/GS, FCC
Media player: CE
Environmental: RoHS, WEEE
5-4. Customization
Many customers need a custom project to be set up for other specifications or special
features. Please contact your local MultiQ representative for more information.
14 - English
6. Appendix
6-1. Touch Calibration
To calibrate the touch interface, reboot the unit. While booting up, the media player will
show the picture below. Tap anywhere on the screen to start the calibration process.
Figure 5. The touch calibration procedure.
Follow the instructions on the screen and press the red marking in one of the corners.
When pressed, the red marking will move to another corner. Press the red marking until
all four corners have been calibrated. The calibration is now completed and the media
player will continue to boot.
6-2. Configuration menu parameters
The following list will describe each item in the configuration menu. This is for
information only. In most cases the settings described in section 3 are sufficient.
Please note that the number of parameters and their ID’s may change depending on
software version.
ID Player ID, which uniquely identifies this unit in
the digital signage management system.
ScriptURL Address of the digital signage management
server from which the player downloads its
scripts.
ScriptUser Username used to gain access to the scripts
from the digital signage management server.
ScriptPWD Password used to gain access to the scripts from
the digital signage management server.
15 - English
6. Appendix
Encrypted Set to 1 to use encryption. The media player will
use HTTP-S and FTP-S protocol. Default is 0.
OnlyFTP If set to 1 the media player will only communicate
over FTP. Default is 0 (to become obsolete)
UseMACAsID If set to 1 the media player will override the
player ID setting and only use it’s MAC address
as ID. Default 0.
GPRS Not used (Should be set to 0)
GPRSPin Not used
ETH0 Set to 0 if you want to disable Ethernet. If WLAN
is set to 1 this should be set to 0. Default is 1.
ETH1 Not used (Should be set to 0)
WLAN Not used (Should be set to 0)
WLAN_SSID Not used (Should be set to 0)
WLAN_KEY Not used
DHCP Set to 0 to disable DHCP. Default is 1. See
technical note on the MultiQ website on how to
handle fixed IP settings using a DHCP table (we
recommend using a DHCP server DHCP table
for setting fixed IP addresses.)
ObtainDNSFromDHCP If set to 1 the media player will obtain DNS
address from a DHCP server. Default is 1
ObtainHostNameFromDHCP If set to 1 the media player will obtain host name
from a DHCP server. Default is 1
StaticIP IP address if DHCP is set to 0 or if DHCP fails.
Default 192.168.10.247
StaticNetMask Net mask if DHCP is set to 0 or if DHCP fails.
Default is 255.255.255.0
DefaultGW Default gateway if DHCP is set to 0 or if DHCP
fails. Default is 192.168.10.1
StaticDNS1 Primary DNS if DHCP is set to 0 or if DHCP fails.
StaticDNS2 Secondary DNS if DHCP is set to 0 or if DHCP
fails.
DomainName Domain name. Default bokks.net
HostName Host name. Default ddsbokks
TouchCords Cordinates for manual touch calibration. In most
cases you don’t have to change these.
TouchInterface (Not used in Media player 4 or 5)
Configured (Not used in Media player 4 or 5)
16 - English
6. Appendix
6-3. Safety
WARNING: This device must be operated with the original power supply:
CAUTION: The socket-outlet should be installed near the equipment and should be
easily accessible.
CAUTION: Use a power cable that is properly grounded. Always use the appro-
priate AC cord that is certified for the individual country. Some examples
are listed below:
USA………...UL Switzerland…….SEV
Britain……....BASE/BS Germany…….…VDE
IMPORTANT NOTICE CONCERNING POWER CORD SELECTION:
The power cord set for this unit has been enclosed and been selected according to the
country of destination and must be used to prevent electric shock. The female
receptacle of the cord set must meet IEC-60320 requirements.
FOR EUROPEAN COUNTRIES
In Europe you must use a cord set which is appropriate for the receptacles in your
country. The cord set is HAR-Certified, and a special mark that will appear on the outer
sheath, or on the insulation of one of the inner conductors.
AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM
For your safety please read the following text carefully.
If the fitted moulded plug is unsuitable for the socket outlet then the plug should be
cut off and disposed of safely.
There is a danger of severe electrical shock if the cut off plug is inserted into an
appropriate socket.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following
code:
Green-and-Yellow: Earth Blue: Neutral Brown: Live
17 - English
6. Appendix
If the coloured wires of the mains lead of this appliance do not correspond to the
coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in
the plug which is marked by the letter E or by the Earth symbol or coloured GREEN or
GREEN-AND-YELLOW. The wire which is coloured BLUE must be connected to the
terminal in the plug which is marked with the letter N or coloured BLACK. The wire which
is coloured BROWN must be connected to the terminal in the plug which is marked with
the letter L or coloured RED.
18 - English
7. WEEE Declaration
Important Information for Recycling
This warning sign of trash bin indicates that the objects are not allowed to be disposed
as general refuse. Please follow the local Act and carry out further disposal with refuse
recycling and collecting system in your Country or District. For more information on
recycling, please contact locally authorized recycling centre or place of purchase. Your
recycling behaviour will bring better future for the Earth and create living environment
with excellent quality for the descendant.
Informations importantes relatives au recyclage
Cet avertissement sur un récipient à ordures indique qu'il est interdit d'y déverser des
ordures ménagères. Veuillez à l'avenir respecter les réglementations locales et rester en
conformité avec le système de collecte et de recyclage des ordures de votre
circonscription ou district. Pour plus d'informations sur le recyclage, veuillez contacter
votre centre de recyclage agréé local ou le lieu d'achat. Votre attitude quant au
recyclage améliorera l'avenir de la planète et créera un environnement de vie de qualité
pour les générations futures.
Wichtige Hinweise zum Recycling
Dieses Mülleimer-Warnsymbol gibt an, dass die Objekte nicht mit dem regulären
Hausmüll entsorgt werden dürfen. Bitte halten Sie sich an die örtlichen Bestimmungen
und entsorgen Sie die Objekte über Recycling- und Sammelstellen in Ihrer Nähe.
Detaillierte Informationen zum Recycling erhalten Sie von Ihrer örtlichen, offiziellen
Recycling-Sammelstelle oder beim Händler, bei dem Sie die Objekte erworben haben.
Ihre Mitarbeit trägt dazu bei, unsere Umwelt zu schützen und sorgt dafür, dass unsere
Erde auch für nachfolgende Generationen ein Ort bleibt, an dem es sich zu leben lohnt.
Información importante de reciclado
Este letrero de aviso de cubo de basura indica que los objetos no pueden desecharse
como residuos generales. Cumpla la normativa local y realice la eliminación según el
sistema de reciclado y recogida de su país o región. Para obtener más información
sobre el reciclado, póngase en contacto con su centro de reciclado autorizado local o su
lugar de compra. Su conducta de reciclado supondrá un mejor futuro para la Tierra y
crea un entorno de vida de calidad para las futuras generaciones.
Informazioni importanti sul riciclaggio
Questo simbolo del bidone dell’immondizia sta ad indicare che è vietato smaltire il
prodotto insieme ai rifiuti domestici generici. Attenersi alle normative ed alle procedure di
19 - English
7. WEEE Declaration
raccolta e riciclaggio dei rifiuti speciali in vigore nella propria città o regione. Per altre
informazioni sul riciclaggio, mettersi in contatto con i centri autorizzati di raccolta e
riciclaggio, oppure con negozio dove è stato fatto l’acquisto. Le vostre azioni
garantiranno il miglioramento futuro della Terra e creeranno un ambiente ed una qualità
di vita che tutti preferiscono sia per sé sia per le generazioni future.
Důležité informace pro recyklaci
Tato značka na kontejneru znamená, že do něj není dovoleno vhazovat určité předměty.
Dodržujte prosím místní předpisy a likvidujte odpad podle systému recyklace a sběru
odpadu ve vaší zemi nebo okresu. Pro další informace o recyklaci kontaktujte místní
recyklační středisko nebo místo nákupu výrobku. Svým postojem k recyklaci přispějete k
lepší budoucnosti na Zemi a ke kvalitnějším životním podmínkám pro budoucí generace.
Ważna informacja dotycząca recyklingu
Symbol przedstawiający pojemnik na odpadki informuje, że oznaczone nim obiekty nie
mogą być usuwane razem z ogólnymi odpadami. Należy stosować się do lokalnego
prawa i wykonywać zalecenia dotyczące dalszego przetwarzania takich odpadów
poprzez umieszczanie ich punktach gromadzenia odpadów w danym kraju lub okręgu.
Dalsze informacje dotyczące recyklingu można uzyskać, po skontaktowaniu się z
punktem przetwarzania odpadów autoryzowanym przez władze lokalne lub w miejscu
zakupu. Stosowanie się do zaleceń w sprawie przetwarzania odpadów, przyczyni się do
zmniejszenia zanieczyszczenia Ziemi i zachowania czystości środowiska dla przyszłych
pokoleń.
Важная информация
о переработке отходов
Такое изображение мусорного ящика обозначает, что данный предмет не
разрешается выбрасывать вместе с общими отходами. Пожалуйста,
придерживайтесь местных законов и выбрасывайте данный предмет в
соответствии с системой переработки отходов вашей страны или области. Для
более детальной информацией о переработке отходов обращайтесь к местным
авторизированным центрам переработки отходов или
к продавцу данного изделия.
Ваши действия по утилизации мусора повлияют на лучшее будущее Земли и
повысят чистоту окружающей среды для будущих поколений.11. WEEE Declaration
7-1. CE Conformity
CE Conformity for Europe
The device complies with the requirements of the ECC directive 89/336/EEC
as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to
"Electromagnetic compatibility", and 73/23/EEC as amended by 93/68/EEC
Art.13 with regard to "Safety".
