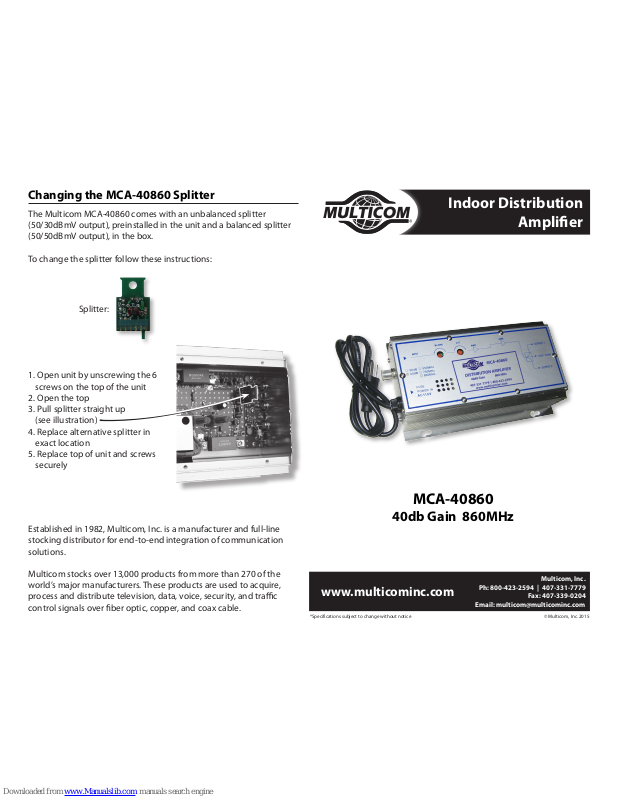

MULTICOM MCA-40860 User Manual

Multicom, Inc.

Ph: 800-423-2594 | 407-331-7779

Fax: [phone]

Email: [e-mail]

www.multicominc.com

© Multicom, Inc. 2015*Specifications subject to change without notice

Indoor Distribution

Amplier

MCA-40860

40db Gain 860MHz

Changing the MCA-40860 Splitter

®

The Multicom MCA-40860 comes with an unbalanced splitter
(50/30dBmV output), preinstalled in the unit and a balanced splitter
(50/50dBmV output), in the box.

To change the splitter follow these instructions:

Established in 1982, Multicom, Inc. is a manufacturer and full-line
stocking distributor for end-to-end integration of communication
solutions.

Multicom stocks over 13,000 products from more than 270 of the
world’s major manufacturers. These products are used to acquire,
process and distribute television, data, voice, security, and trac
control signals over ber optic, copper, and coax cable.

1. Open unit by unscrewing the 6
screws on the top of the unit

2. Open the top

3. Pull splitter straight up
(see illustration)

4. Replace alternative splitter in
exact location

5. Replace top of unit and screws
securely

Splitter:

MCA-40860 Specications

Description

Key Features of the MCA-40860

* See back cover for instructions on how to change the splitter

The dual output MCA-40860 is a superior quality push-pull wall­mounted distribution amplifier producing signals with low-noise
and harmonic distortion. The The MCA-40860 serves as an ideal
distribution system amplifier for heavily loaded MDU (multi­dwelling units, i.e. apartment complexes), commercial areas,
educational institutions, hotels, and broadband CATV or SMATV
systems. The distribution amplifier is capable of broadband
135-channel operation over the 40-860 MHz range.

The MCA-40860 is housed in compact, aluminum chassis that
provides excellent heat dissipation and allows the amplifier to be
operated at high ambient temperatures with no degradation of
performance or reliability.

• Broadband 40-860 MHz frequency range 40 dB gain for optimal
carrier-to-noise ratio and superior picture quality

• Dual output ports featuring both balanced and unbalanced
capabilities

• +1.0 dB flatness across band provides low distortion and excellent
frequency response

• Employs hybrid push-pull module design for distortion-free
audio-video quality

• Built in adjustable slope and gain controls for easy system
balancing

• Easy-access controls and low loss (-20dB) test point enable
simplified setup and performance monitoring

• Shielded enclosure provides RFI shielding performance to reduce
leakage and ingress

• Aluminum chassis provides maximum heat dissipation for
improved reliability and corrosion resistance

Specication: Value:

Bandwidth: 40-860 MHz

Forward Gain: 40dB

Maximum
Output @
134 Channel
Loading:

Unbalanced Splitter
(Installed)

1 Output @50dBmV
1 Output @30dBmV

Balanced Splitter
(Included in box)

2 Outputs @50dBmV

Gain Adjust Range: 0-20dB

Slope Adjust Range: 0-20dB

Flatness: + 1dB

Noise Figure: 6dB

Connectors: F-Type Female

CSO (Composite Second Order): 56dB

CTB (Composite Triple Beat): 56dB

Return Loss In: <12dB

Return Loss Out: <12dB

Test Points: -20dB

Power Input: 110 V AC, 60 Hz, 8 W

Operating Temperature: 14° F to 122° F

(-10° C to +50° C)

Dimensions: 9” x 5” x 3”

(23 x 12 x 7 cm)

Weight: 2.5 Lbs. (1.1 Kg)
