MULTICOM 5 PLUS INSTALLER MANUAL



Document Version 1.9

MULTICOM 5 PLUS INSTALLER MANUAL

Page 2

MULTICOM 5 PLUS INSTALLER MANUAL

Table of Contents

Table of Contents ................................................................................................................................ 2

Features ............................................................................................................................................... 3

Product Features ............................................................................................................................ 3

ComWatch Feature (Patent Pending) ........................................................................................ 3

Technical Features ......................................................................................................................... 4

Quick Start Guide ............................................................................................................................... 5

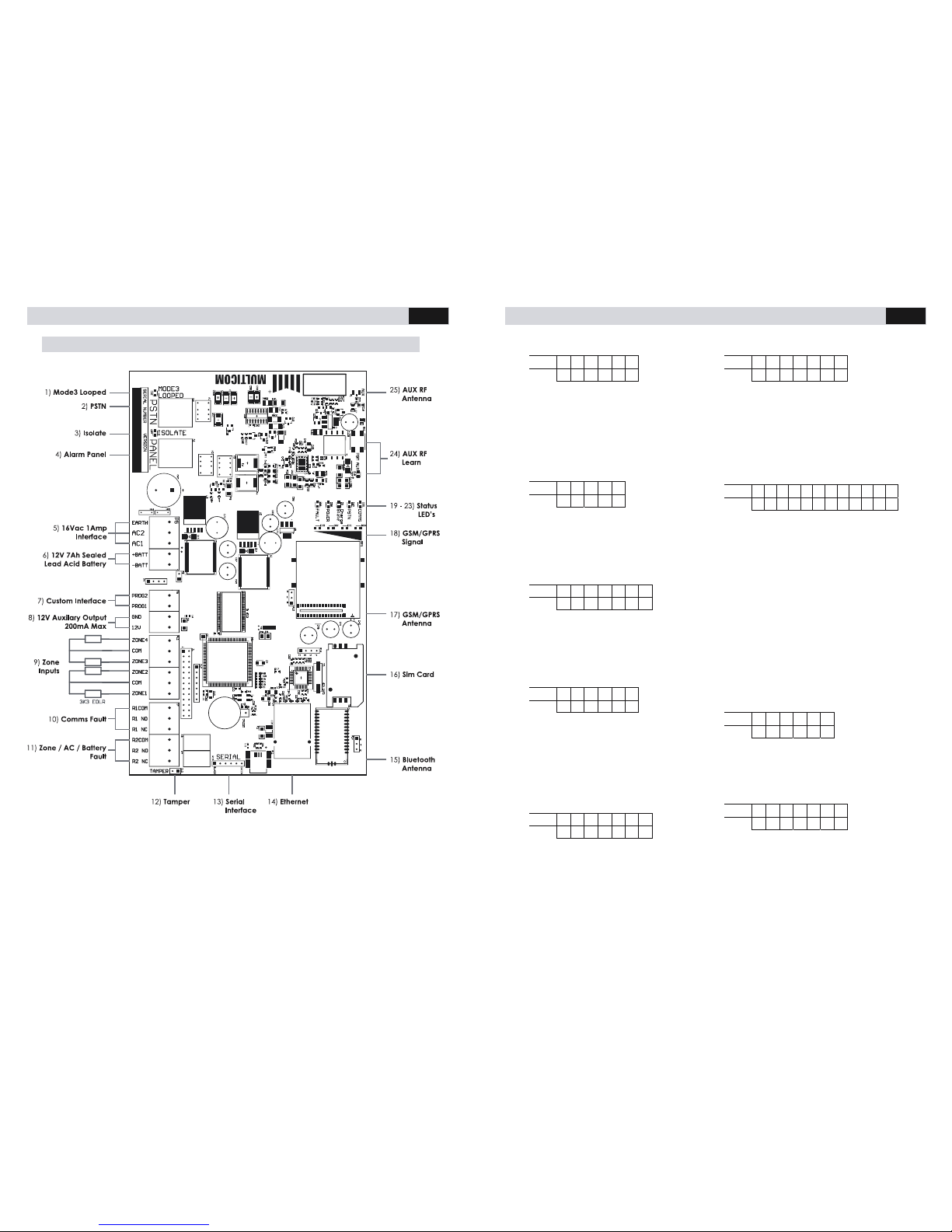

Hardware Diagram ............................................................................................................................. 8

Hardware Descriptions ....................................................................................................................... 9

Pairing the Multicom Inteliswitch* .... ....... ...... ....... ....... ....... ...... ....... ....... ...... ....... ....... ...... ....... ....... . 11

Panel Programming Methods .......................................................................................................... 12

Multicom TechTools App ............................................................................................................. 12

Download & Register ............................................................................................................ 12

Log On to the Device ............................................................................................................ 12

Programming the Device ..................................................................................................... 13

Commissioning the Device ................................................................................................... 13

DTMF using a Phone Handset/Butt ............................................................................................ 14

SMS using a GSM mobile device ............................................................................................... 14

Programming Options ...................................................................................................................... 15

Event Description .............................................................................................................................. 19

Defaults ......................................................................................................................................... 19

Fault outputs ................................................................................................................................. 19

CID Event Map .................................................................................................................................. 20

Appendix A ....................................................................................................................................... 21

Limited Warranty Statement ............................................................................................................ 22

MULTICOM 5 PLUS INSTALLER MANUAL

Multicom does not install or connect the products, which may be used in conjunction with other products not manufactured by Multicom; therefore Multicom cannot guarantee or warrant the performance of the security system. Multicom will not be responsible for circumstances resulting from the product’s inability to operate. Your security system should be considered as one of many tools available to reduce risk and/or damage caused by burglary, fire or other emergencies. Other tools include, but are not limited to, access controls, lock products, insurance coverage, fire prevention, fire extinguishing devices and sprinkler systems. We strongly recommend that your security alarm system be tested and maintained on a regular basis, and that you stay aware of new and improv ed Multicom products and developments. BEWARE: Dealers, installers and/or others selling, distributing or advertising Mu lticom product(s) are not authorised to modify this warranty or make any additional warranties that are binding on Multicom or distributors and its affiliates without the written approval from Multicom.

Multicom may change the terms of its limited warranty, without notice, at its discretion.

WARNING: Due to limitations of Alarm Systems, Multicom canno t guarantee the performance of the security system and shall not be responsible for circumstanc es resulting from the product's inability to operate. It must be understood that while your Multicom product is highly advanced and secure, it only forms part of your total security installation and it does not offer any guaranteed protection against burglary, fire or other emergency. This is due to a number of reasons, including, but not limited to, inadequate or improper installation /positioning, sensor limitations, battery performance, wireless signal interruption, inadequate maintenance, or the potential for communication mediums to be compromised or circumvented. As a result, Multicom does not represent that the alarm system will prevent personal injury or property damage, or in all cases provide adequate warning or protection. Your security system should therefore be considered as one of many tools available to reduce risk and/or damage of burglary, fire or other emergencies; such other tools include, but are not limited to insurance coverage, fire prevention and extinguisher devices, and sprinkler systems. We also strongly recommend you to regularly maintain your security systems an d stay aware of new and improved Multicom products and developments. For those customers who are using a security system connected to a non-traditional telephone system, such as "Voice Over Internet Protocol" (VoIP) that converts the voice signal from your telephone to a digital signal travelling over the Internet, you should be aware that your alarm system may not function as effectively as with traditional telephone systems. For example, if your VoIP equipment has no battery back-up, during a power failure your system's ability to transmit signals to the central station may be compromised. Or, if your VoIP connection becomes disabled, your telephone line monitoring feature may also be compromised. Other concerns would include, without limitation, Internet co nnection failures, which may be more frequent than regular telephone line outages. We therefore strongly recommend that you discuss these and other limitations involved with operating an alarm s ystem on a VoIP or other non-traditional telephone system with yo ur installation company. They shoul d be able to offer or recommend measures to reduce the risks involved and give you a better understanding. The Multicom range of communication products are designed to detect all communication failures within the network and are designed to work effectively around traditional telephone systems in addition to Non-Traditional Telephony such as VoIP, GPRS, 3G and new communication mediums including the (NBN) National Broadband Network.

Page 3

MULTICOM 5 PLUS INSTALLER MANUAL

Limited Warranty Statement

Multicom Systems (henceforth known as Multicom) warrants its products to be free from defects in material and workmanship, under normal use, for a period of twelve (12) months, or twenty four (24) months if the Multicom product is installed by a ‘Certified Multicom Installer’, from the date of purchase. If the warranted products are returned to Multicom during this period of coverage, Multicom will repair or replace (at its discretion) without charge, those items found to be defective. Any replacement or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is longer. The original purchaser must promptly notify their Multicom distributor, in writing during the warranty period, that there is a defect in material or workmanship. All Multicom distributors and dealers have a warranty program and you are expected to return your product with proof of purchase in accordance with such a program. Prior authorisation is required before returning the product, as Multicom will not accept any shipment for which p rior authorisation was not first obtained. Multicom will, at its option, repair or replace without charge, those authorised returned items it finds defective.

Please note that this warranty does not cover any software products, which are licensed under terms of a separate software license agreement included with the product purchased. This warranty only applies to defects in parts relating to Multicom products identified with a Multicom product label and shall not cover transformers, metal boxes, access cards & tags, bat teries, tamper kits, spare parts, cables & connectors, temperature sensors, promotional items & displays freight, and labour.

This warranty does not cover damage incurred in shipping or handling, problems that result from external causes such as accident, abuse, and misuse, or problems with electrical power failures, or other damage caused by:

5. peripherals or unauthorised alterations or modifications;

6. servicing not authorised by a Multicom Certified Pro fessional;

7. usage that is not in accordance with product instructions;

8. using accessories, parts or components not supplied or recommended by Multicom;

9. failure to provide a suitable installation environment for the products;

10. failure to change passwords, settings and/or pin codes from factory default and;

11. improper maintenance or failure to p erform regular preventative maintenance

Multicom’s responsibility for defects in material is limited to repair and replacement of the product. Multicom does not accept liability beyond the remedies provided for in this limited warranty or for any special, indirect, consequential or incidental damages, including without limitation, any liability for third party claims against you for damages. Multicom’s maximum liability will be no more than the amount paid for the product that is the subject of the claim. The laws of some jurisdictions do not allow the disclaimer of consequential damages. Under such circumstances, the limitations and disclaimers herein shall be to the greatest extent permitted by law.

This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether express or implied, including without limitation, implied warranties and conditions of merchantability and fitness for a particular purpose, statutory or otherwise. This disclaimer of warranties and limited warranty is governed by the laws of the New South Wales, Australia.

Multicom will not be responsible for any custom fees, or taxes that may be due. For those jurisdictions where the legal minimum warranty exceeds the Multicom warranty period, this warranty will be equally extended to meet such legal minimum requirement.

MULTICOM 5 PLUS INSTALLER MANUAL

Features

Product Features

• 5 paths of communications

o GPRS o Contact ID via GSM o Contact ID via PSTN o Ethernet o PFP (Poll fail protocol via

the GSM network)

• 6 Paths for programming options

o SMS o PSTN (Attach standard

hand set and program via DTMF tones)

o Serial converter (to

terminal or Multicom Configuration Tool)

o Bluetooth* o GPRS via Surepoll

Network

o Ethernet via Surepoll

Network

• PSTN Line failure detection based on time and line voltage threshold (both programmable)

• ComWatch allows the Multicom to monitor, detect and report failure to communicate alarm messages via PSTN/GSM even if voltage is present Ref Option 5, 12 and 37.

• PSTN switch over time programmable (300mS default)

• AC failure detection

• Battery under/over voltage

detection

• Programmable alarm path priority.

• Four Zone inputs (EOLR), each zone can be disabled or enabled.

• The alarm panel attached can be routed either via MC5P as priority (GPRS Priority), or, Direct to PSTN (If PSTN line voltage is available, the alarm can communicate directly).

• Dedicated local tamper input

• Fault reports for GSM, PSTN, ETH,

GPRS, AC fail, Batt Fail, Zones and Tamper. Each group of alarm events can be mapped to either/or Relay and Contact ID

• Optional AES Encryption for all polling and alarm data sent via GPRS or Ethernet (required for class 4/5)

• Programmable Test report time

• Programmable Contact ID client

code, Primary monitoring station number and optional PBX prefix for PSTN dialling.

• Programmable Relay outputs (Timed and latched functions via SMS, GPRS, Ethernet or Serial interface)

• Full RSU (Remote Software Update) via GPRS, Ethernet or local Serial Port.

• 12V Auxiliary output (200mA)

• Backup battery with 3 stage

microprocessor controlled charger

ComWatch Feature (Patent Pending)

The Multicom does more than just monitor the PSTN line voltage or GSM network connection to detect and report a fault. The Multicom mo nitors the actual alarm delivery and CMS Receiver kiss off to ensure the communication was successful and the PSTN path is validating alarm messages correctly. ComWatch has the advantage of detecting the following faults that cause Contact ID alarm delivery failures and delivers them via:

• Line voltage being present but not connecting to the monitoring centre

• Dialling the CMS number(s) but getting engaged / congestion

• Phone bill on premise not paid: voltage and dial tone is present but outbound calls

blocked

• Network interconnection faults or terminating number errors

• 13XX call baring

• CMS Receiver Failures

Page 4

MULTICOM 5 PLUS INSTALLER MANUAL

Technical Features

• Freescale 80Mips 32 bit processor

• Multithreaded Real Time

Operating system for seamless real time path recovery and system resource management

• Telit GC864 Quad band GPRS modem

• 2 RJ11 connections for phone line in / out with Mode 3 and Isolation relays built in

• 10/100MB FEC (Fast Ethernet Controller) with DHCP, Static IP, UDP control.

• Tri-state SLA battery charger for ideal battery charge cont rol (Float charge, trickle charge and fast charge)

• Customizable I/O for interfacing to various external interfaces

• Expander options for custom peripheral interfacing

• Terminal interface for debugging, programming, monitoring, configuring system options

• System powered by standard 16Vac, 50Hz, 1.5Amp plug pack

• Serial Shell interface for simple local programming using a standard USB-to-serial cable and

• All alarm communication paths have priority assignment for alarm event communication

• Bluetooth module on board for local connections*

MULTICOM 5 PLUS INSTALLER MANUAL

Appendix A

Quick Trouble shooting guide

Question Answer

The "COMM" led flash's slowly indefinitely and stops occasionally

This would generally indicate that GSM has not been able to connect to the network, check the antenna connections and a valid SIM card is installed

The GSM Signal LED's flash on and off GPRS has not been able to establish a

connection on the private WAN, ensure a

valid SIM is installed. The GSM Signal LED's are on solid but the "COMM" LED flash's slowly

Ethernet has not been able to connect to

the server. Check you option settings in

55/59, ensure that the ports 5000-5010 are

allows on the local firewall, ensure the Green

and Orange LED's are on where you connect

the Ethernet cable (RJ45 socket). "COMM" led is on, GSM signal LED's are ok, the fault LED is always on

Check all zones that are enabled (Option 30)

are sealed with the correct end of line

resistors, the tamper is closed, the battery is

connected, AC is connected and a PSTN line

is connected (is enabled )

Page 5

MULTICOM 5 PLUS INSTALLER MANUAL

CID Event Map

You will need to have your monitoring station map the following events for the account (Fax this list) if Multicom is not already in their Conta ct ID list. IMPORTANT NOTE: The MC5P will se nd 'pending alarms' (Event type 6) with test reports, you may n eed to include pending alarm notifications to come to the operator. X = Event, Restore or Previous Alarm (E,R or P)

Event Description CID Offset (Zone)

Tamper External Tamper Triggered 18X95099900

Zone 1 Zone 1 Triggered 18X95099901

Zone 2 Zone 2 Triggered 18X95099902

Zone 3 Zone 3 Triggered 18X95099903

Zone 4 Zone 4 Triggered 18X95099904

PSTN Fault Alarm

PSTN voltage has been lower than the programmed voltage for the programmed time

18X95099905

Battery Fault Alarm

The battery voltage has been outside 'normal operating limits' for the programmed period of time

18X95099906

GSM Fault Alarm

GSM has not been connected to the network for the programmed period of time

18X95099907

GPRS Fault Alarm

GPRS has been unable to communicate with the servers for the programmed period of time

18X95099908

Eth Fault alarm Ethernet has been unable to communicate with

the servers for the programmed period of time

18X95099909

AC power Fault AC has not been detected for the programmed

period of time

18X95099910

Test Report Test report occurs at the programmed interval 18X95099911

Poll Alarm Unable to poll for the programmed period of time 18X95099912

PGM Update Remote software update 18X95099913

Alarm buffer Overflow

The MC5P has previously had to many contact ID alarms in its buffer, some alarms have been lost

18X95099914

COMM's Failure Multicom was previously unable to communicate

some alarm events

18X95099915

Service Required

Contact your supplier for servicing requirements. 18X95099916

Zone Lock out One or more zones has repeatedly been triggering

in a short period of time, this will lock out the e vent until the zone stops repeatedly triggering.

18X95099917

Multicom Power Point Notification

This notification report occurs when the MC5P starts power cycling the Multicom Power Point. It will restore once Ethernet is restored.

18X95099918

ComWatch Fail Alarm panel has been unable to deliever contact

ID alarms via the standard PSTN/G SM path directly, the Multicom is now the priority path (R ef Opt 5, 12 and 37).

18X95099920

MULTICOM 5 PLUS INSTALLER MANUAL

Quick Start Guide

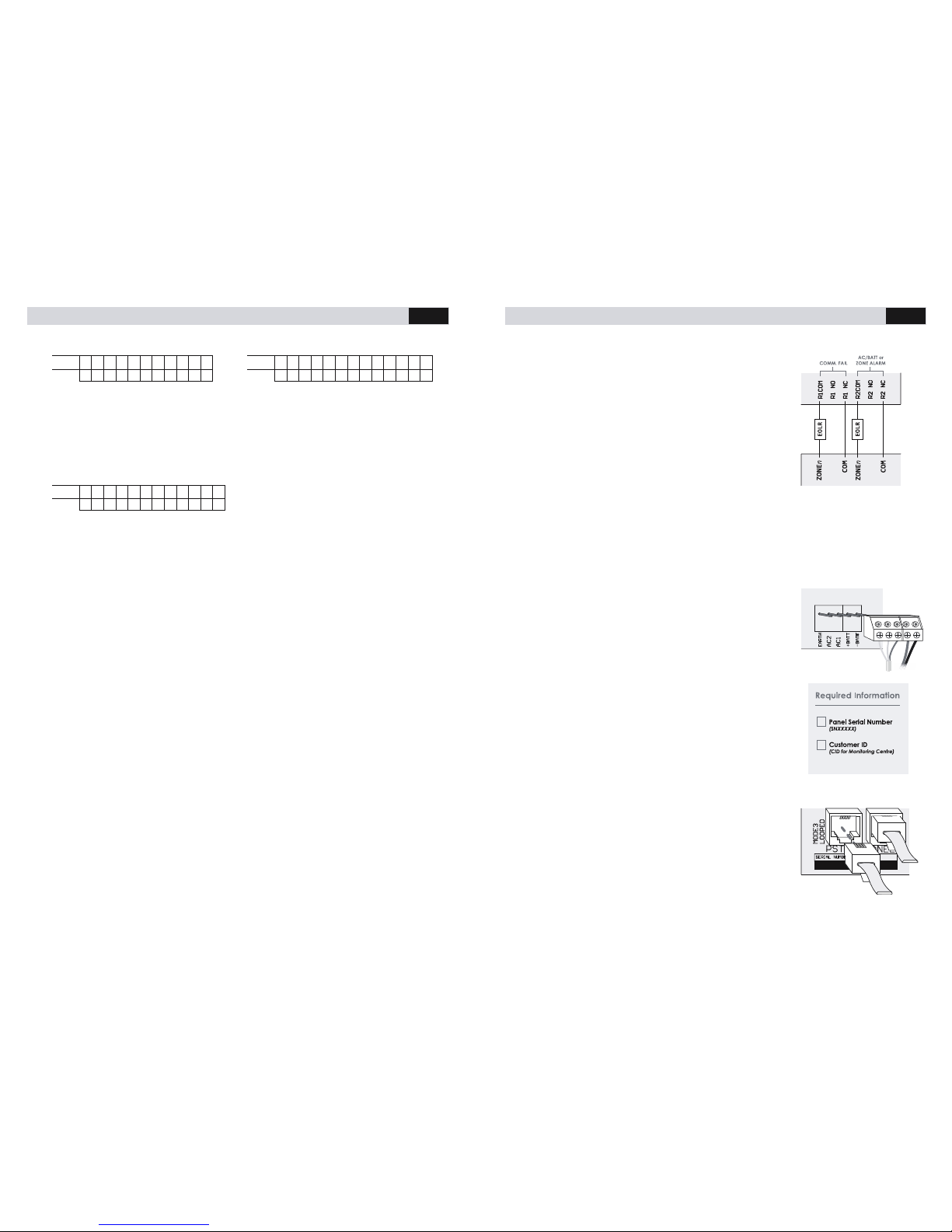

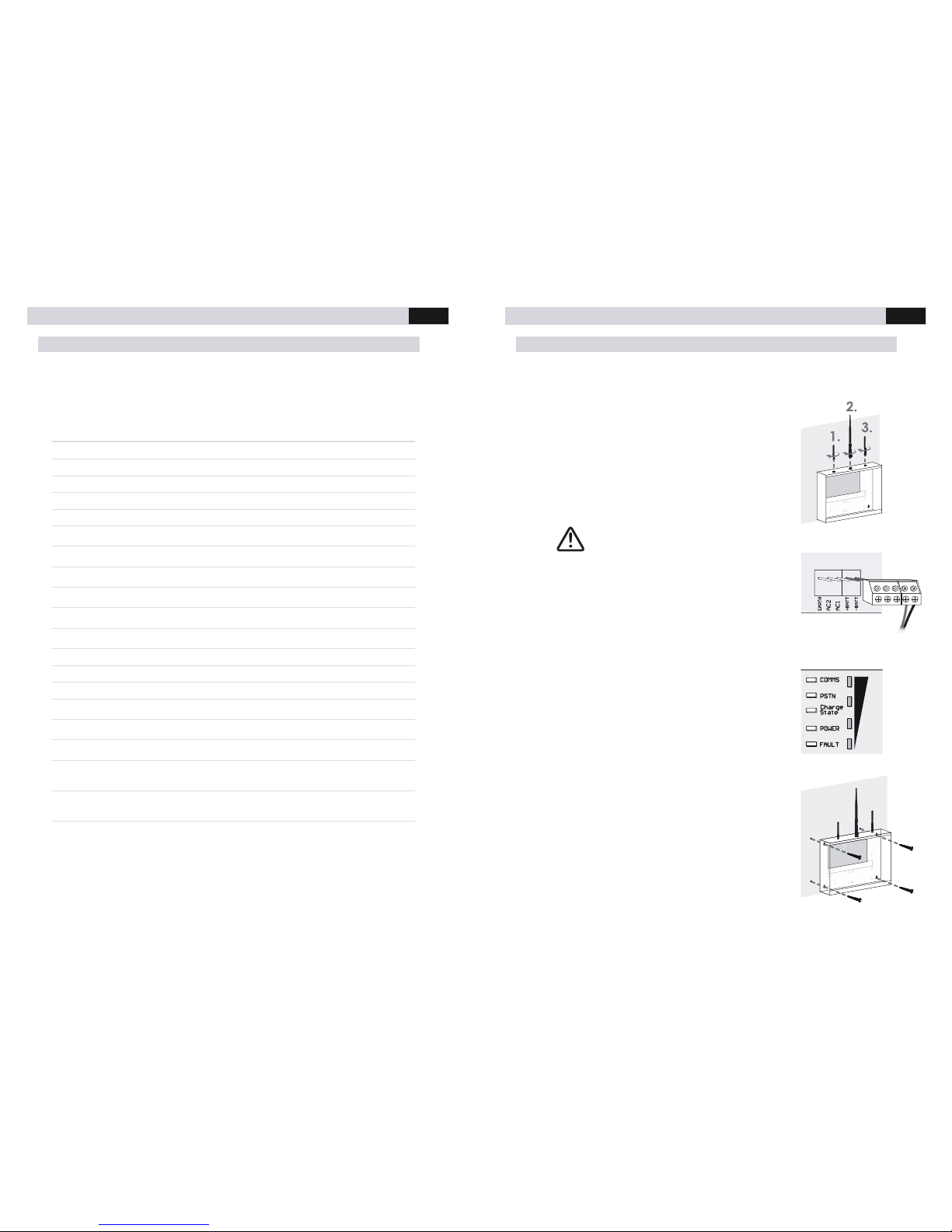

The following gives an overview of the basic installation steps. Further details on programming options and methods can be found in the proceeding sections of the manual.

1. Connect the three antennas to the panel.

1. RF Automation Transmitter – Smallest Antenna

2. GSM – Largest Antenna

3. Bluetooth - Medium Antenna

STEP 2 & 3 IMPORTANT FOR PANEL PLACEMENT

2. Connect the battery terminal block to the corresponding pins on the PCB. Place the battery on the floor of the panel and connect the positive (red) and negative (black) battery leads to the corresponding terminals on the battery.

3. Test the GSM signal in the desired mounting location by holding it against the wall and observing the signal strength. The signal must be 2 bars or greater for operation. Once test is complete remove the battery terminal block and leave disconnecte d for the following steps.

4. Mount the panel to the desired location. Use the provided mounting template to locate screw holes and establish antenna clearance.

Page 6

MULTICOM 5 PLUS INSTALLER MANUAL

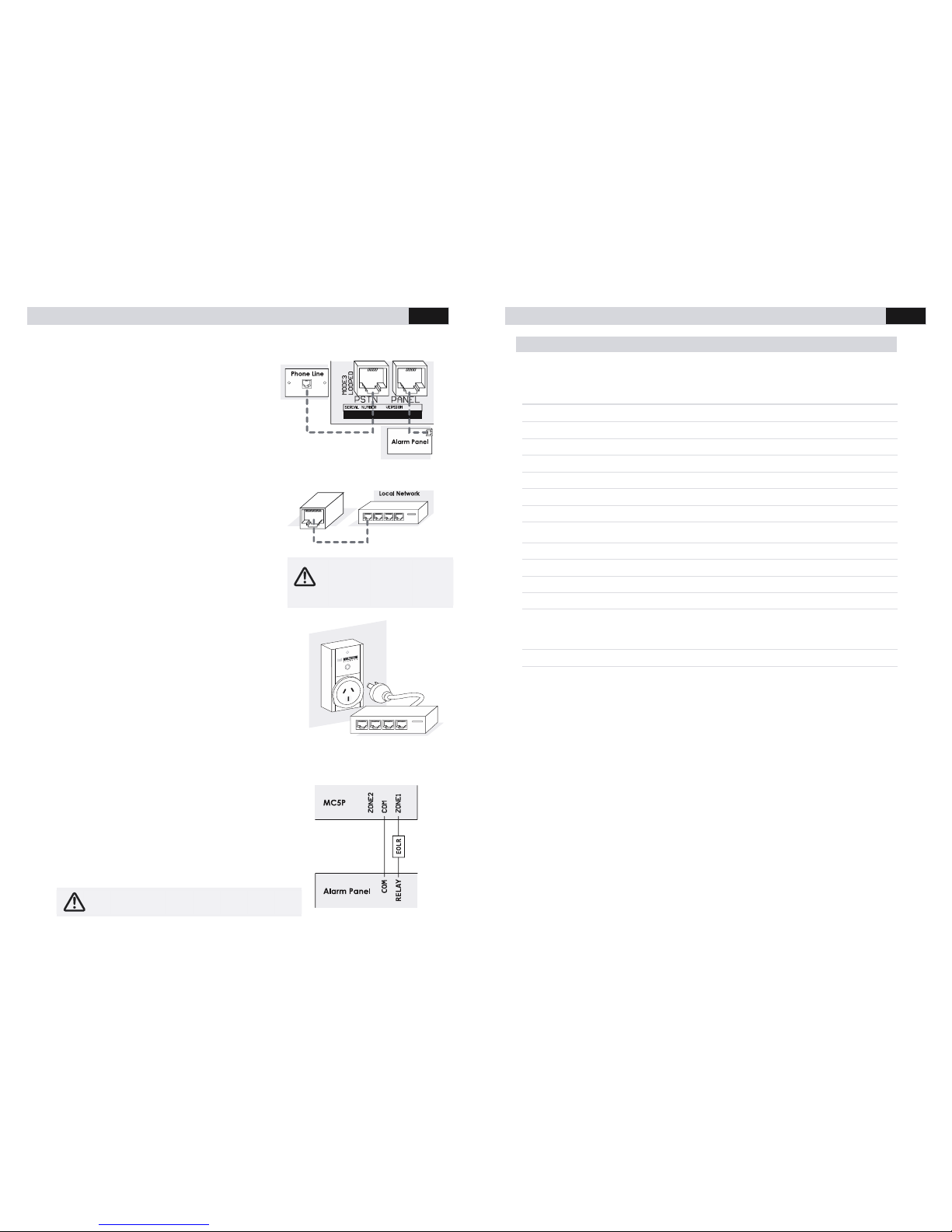

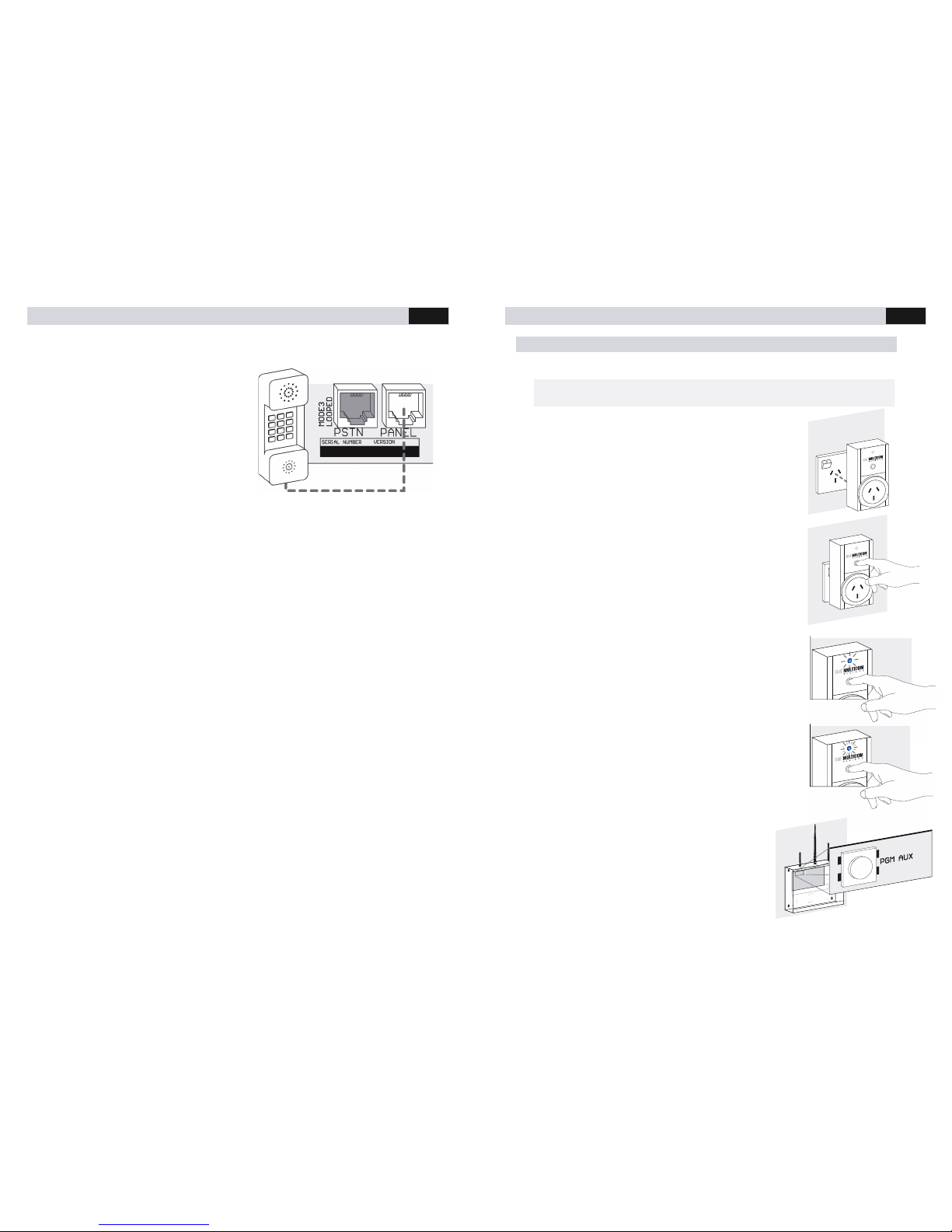

5. Connect the PANEL socket directly to the alarm panel’s dialler output using an RJ12 cable. If PSTN will be used as a communication path, connect the PSTN socket to a standard PSTN phone outlet.

Note: If you are NOT using PSTN, you must disable the PSTN fault detection (option 39 =

00110000).

6. Connect the Ethernet to the local network, if Ethernet will be used as a communication path, using a patch cable. If the local network does not use a DHCP server, you will need to organise the static IP settings (IP address for Multicom, Subnet Mask and Gateway). Consult the site IT Administrator for further details.

See programming options (page 15) 55 to 59 to enable and configure the Multicom to suit your network.

7. Connect the local Internet modem/router into the provided Multicom Inteliswitch*, if Ethernet will be

used as a communication path. This allows the Multicom to remotely reset network devices during prolonged network outages in an attempt to recover network connectivity. To confirm operation press the AUX button on the MC5P and ensure the Inteliswitch power cycles.

The Inteliswitch will come pre-learnt to your panel but if you have issues or wan t to control more Inteliswitch device s from your panel please consult Pairing the Multicom Inteliswitch (Page 11).

8. Interconnect Alarm Panel Relay O utput Relay/COM: To allow immediate notification of

communication failure to the control room, program one of the alarm panel’s relay outputs to trigger immediately on PSTN/CO MM fail. Connect the ala rm panel’s relay output to one of the Multicom’s Zone Inputs then ensure that the zone is enabled. See Option 30.

If the Mu lticom is b ehind a firewall, it is impor tant to ensure inbound/ou tbound UDP ports 5000 to 5010 are open.

Note: Steps 8 & 9 are required to meet Class 4 and up of the Australian Sta ndard.

MULTICOM 5 PLUS INSTALLER MANUAL

Event Description

Defaults

Event Fault LED

Fault Relay Default

Contact ID Reporting

Fault relay and Contact ID delay

AC Instant Relay 1 Enabled 15 minutes

Battery Instant Relay 1 Enabled 10 minutes

Tamper Instant Relay 1 Enabled Instant

Zone 1 Disabled Relay 1 Disabled

Zone 2 Disabled Relay 1 Disabled

Zone 3 Disabled Relay 1 Disabled

Zone 4 Disabled Relay 1 Disabled

Zone Lockout

NA Not Mapped Enabled

GSM Instant Relay 2 Disabled

GPRS Ins tant Relay 2 D isabled

Ethernet Instant (Disabled by Default) Relay 2 Disabled

PSTN Instant Relay 2 Enabled 30 seconds

Multicom Power Cycle Notification

NA RF

Transmitter

Enabled 10 minutes

Poll Fail NA Relay 2 Disabled 90 seconds

ComWatch Instant Relay 2 Enabled Option 5

Fault outputs

There are four mapping options for the 2 on board relays:

1. Not Mapped - The relays are able to be remotely controlled via SMS, Etherne t, GPRS, Serial, or Bluetooth.

2. Communications – Communications has not worked for the programmed period of time. e.g. If the Multicom is configured to report a PSTN line failure after 60 seconds,

the relay will activate 60 seconds after the PSTN is removed, the Multicom will also generate an alarm message for PSTN failure. The options for this path are GPRS, Ethernet and PSTN.

3. External Zone / Tamper - The output will trigger while the Tam per is open, or, any of the on board zones are not sealed with the appropriate EOLR.

4. Power Fault (AC or battery failure) - The output will trigger if after the p rogrammed AC / Battery fault time.

Note: Each of the above can be individually d isabled in the configuration.

Page 7

MULTICOM 5 PLUS INSTALLER MANUAL

Ethernet Static IP

/ Default: Blank

SMS

E I P : A . B . C . D

DTMF

* 5 7 A * B * C * D #

Allows you to configure a static IP for the Multicom on your local Ethernet network. Where A.B.C.D is the IP address. Example, to assign the Multicom to 10.1.1.2 send EIP:10.1.1.2 or *5710*1*1*2#

Ethernet Subnet Mask

/ Default: Blank

SMS

E S U B : A . B . C . D

DTMF

* 5 8 A * B * C * D #

Allows you to configure the Ethernet Subnet mask for the Multicom. Where A.B.C.D is the subnet mask. E.g. send ESUB:255.255.255.0 or *59255*255*255*0#

Ethernet Gateway

/ Default: Blank

SMS

E G A T E : A . B . C . D

DTMF

* 5 9 A * B * C * D #

Allows you to configure the Ethernet gateway for the Multicom.Where A.B.C.D is the Ethernet internet gate way. E.g, to assign the Multicom gateway address to

10.1.1.1 send EGATE:10.1.1.1 or = *5910*1*1*1#

MULTICOM 5 PLUS INSTALLER MANUAL

9. Interconnect Multicom Relay Outpu t Input/COM: To notify the alarm pane l of MC5P

communication failure, ensure that one of the MC5P relays is programmed to “COMM’s fail event” (Rela y 1 is programmed to this by default). Connect the Multicom’s relay output to one of the Alarm Panel’s Zone Inputs. It is recommended that the zone on the a larm panel be a 24 hour audible input. See Option 38.

Defaults; Relay 1 is triggered by communication failures, Relay 2 is triggered when AC/Batt or Zone alarms occur and remains active until the fault condition is cleared.

10. Panel Arm/Disarm or Output Control (Recommended Option) Relays 2 to 4 can be configured to arm/disarm the alarm panel or control other devices such as gates (open & close) etc. This may be used to arm/disarm from Multicom smartphone apps. See Option 38.

11. Re-connect the AC power pack to the AC terminal block as shown. Connect the AC and battery terminal block to the corresponding pins on the PCB. Connect the AC plug pack to a power outlet and confirm that the Multicom powers up and LEDs light up.

YOUR MULTICOM MUST HAVE A PERMANENT EARTH CONNECTION!

12. Commission the panel by completing the commissioning screen in the TechTools App or calling the Activations Centre on 1300 603 704. For commissioning via phone please have the required information ready and notify the operator that the Multicom panel (MC5P) is connected and ready for commissioning.

13. Test the installation for correct communications as required.

Example: If GPRS is the primary path, activate the alarm panel and ensure the alarm events are received at the monitoring station. If PSTN is primary, remove the PSTN connection, activate the alarm and ensure the event is received at the monitoring station.

14. For configuration issues please consult the Trouble shooting guide in Appendix A

Page 8

MULTICOM 5 PLUS INSTALLER MANUAL

Hardware Diagram

MULTICOM 5 PLUS INSTALLER MANUAL

Test report time

/ Default: 24

SMS

3 1 2 4

DTMF

* 3 1 2 4 #

The time between test reports for the Multicom (in hours), default 24 hours. Independent of the alarm pan el & Multicom system polling. Test reports are sent via the primary path.

Contact ID Retry Attempts

/ Default: 5

SMS

3 2 5

DTMF

* 3 2 5 #

How many times to attempt sending a contact ID message before considering that path to have failed

GSM Fault Detection

Delay / Default: 240

SMS

3 3 2 4 0

DTMF

* 3 3 2 4 0 #

How long to wait before detecting GSM Fault (Seconds). See options 39 for enabling CID notification.

PSTN Fault Detection Delay / Default: 60

SMS

3 4 6 0

DTMF

* 3 4 6 0 #

How long to wait before detecting PSTN Communication Fault (60 Seconds default). This also trips the FAULT Relay (See 39 for relay map). See options 39 for enabling CID notification.

Ethernet Fault Detection

Delay / Default: 240

SMS

3 5 2 4 0

DTMF

* 3 5 2 4 0 #

How long to wait before detecting Ethernet Fault (Seconds). See options 39 for enabling CID notification.

Relay mapping

/ Default: 122

SMS

3 8 A B C

DTMF

* 3 8 A B C #

ABC, where A = COMM's fail event, B = Aux alarm event (Batt + AC), C = External alarm (Zone1-4 and tamper). Each event can be mapped to 0 = Not Mapped,

1 = Relay 1, 2 = Relay 2.

Contact ID Event enable/disable

/ Default:1

SMS

3 9 A B C D E F G H

DTMF

* 3 9 A B C D E F G H #

To disable Event set to 0, to enable set to

1. Default is all zones enabled. Zones are all 24 hour zones.

Where:

A = Multicom Power Point Power C ycle Notification

B = Poll Fail C = AC Fault D = Batt Fault E = PSTN Fault F = Ethernet fault G = GPRS Fault H = GSM Fault Ethernet Enable / Disable

/ Default: 0

SMS

E T H : O N

DTMF

* 5 5 0 #

Allows you to enable / disable Ethernet as a polling path. 1 to enable, 0 to disable.

Ethernet DHCP Enable / Disable

/ Default: 1

SMS

D H C P : O N

DTMF

* 5 6 1 #

Allows you to configure the Ethernet as either Static or DHCP. When DHCP is disabled, you must configure a static IP. 1 to enable DHCP, or 0 to disable via PSTN.

Page 9

MULTICOM 5 PLUS INSTALLER MANUAL

User Password

/ Default: user

SMS

1 6 u s e r

This is the access password for serial and Bluetooth interfaces. This can not be programmed via PSTN.

PSTN Fault Threshold (Volts)

/ Default: 3

SMS

1 7 0 3

DTMF

* 1 7 0 3 #

Voltage to detect line failure at (3V default)

Contact ID Retry Delay

/ Default: 15

SMS

1 8 1 5

DTMF

* 1 8 1 5 #

Time delay between Contact ID retries (in seconds), time is based on the start of dialling, default 15 seconds.

CID Base message

/ Default: 18095099900

SMS

2 0 X X X X X X X X X X

DTMF

* 2 0 X X X X X X X X X X #

This is the default base Contact ID message, refer to the format template table for individual alarms.

Line Fault Switch Delay

/ Default: 300

SMS

2 5 3 0 0

DTMF

* 2 5 3 0 0 #

Switching delay for the Mode3 Relays on failure restore (in milliseconds), Default 300mS. This must be very quick, as the MC5P will connect directly to the attached panel to take control of the communications.

Poll Fail Detection Delay

/ Default: 150

SMS

2 6 1 5 0

DTMF

* 2 6 1 5 0 #

This monitors all paths for polling within the programmed time; this is mapped to the relays. Default 150 seconds. See option 38 for relay map. See option 39 for enabling CID notification.

Battery Fault Detection Delay

/ Default: 10

SMS

2 8 1 0

DTMF

* 2 8 1 0 #

Delay before reporting backup battery fault (minutes). This is also used as AUX trip for fault relays, see option 38 for relay map. See options 39 for enabling CID notification.

AC Fault Detection Delay

/ Default: 15

SMS

2 9 1 5

DTMF

* 2 9 1 5 #

Delay before reporting AC failure (in minutes) Default 15 minutes. This is mapped to the fault relays, see 38. See options 39 for enabling CID notification.

Zone enable / Disable

/ Default: 0000

ZONE

4 3 2 1

SMS

3 0 0 0 0 0

DTMF

* 3 0 0 0 0 0 #

To disable zones set to zero, to enable set to one. Default is all zones disabled. Zone s are all 24 hour zones. These are mapped to fault relays by option 38.

MULTICOM 5 PLUS INSTALLER MANUAL

Hardware Descriptions

1) MODE3 LOOPED When this LED is active, the PSTN connects the Mode 3 connections. When this LED is inactive, the Mode 3 connections are passed from PSTN to PANEL.

2) PSTN Connects to standard PSTN.

3) ISOLATE When this LED is active, the Alarm Panel is not connected to PSTN, it is connected to the Multicom only.

When this LED is inactive, the Alarm Panel is connected to PSTN.

4) PANEL Connects to the Alarm Pan el or other communications device.

5) AC1 and AC2 The Multicom is powered by 16Vac 1 Amp power supply.

6) +BATT and –BATT Connect a standard 12V Sealed Lead Acid type battery. The Multicom has a tri-state charger designed to help optimize battery life and performance.

7) PROG1 & PROG2 Custom interfaces may be incorporated to the Multicom using these pins. Please contact your supplier for specialist interface requirements. There are several thermal sensors, data interfaces which can be interface d with for local / remote monitoring.

8) 12V & GND Auxiliary 12V power can be taken from these pins. The load must not exceed 200mA. This output has a resettable fuse, which will automatica lly reset once any overload condition is removed.

9) ZONE1, ZONE2, ZONE3 & ZONE4 Each zone requires a 3K3 End Of Line resistor to be 'sealed'. All zones operate as 24hour alarm inputs & are not enabled by default.

10) R1COM, R1 NC, R1 NO Relay 1 is programmed as a communications fault relay. If there is no communication path available for longer than the pre

programmed time this will active until communications are restored.

11) R2COM, R2 NC, R2 NO Relay 2 is programmed as an alarm output. This will activate when an alarm condition is active on the MC5P (Zone, AC Fail, Batt Fail, Tamper active)

Note: Either relay can be programmed to be remotely activated for remote arm/disarm or other access control functions. Each relay can also have specific events trigger the relay

12) TAMPER Connect to the case tamper, this circuit requires a normally closed tamper (no EOLR required)

13) SERIAL Allows for configuration and analysis of the Multicom. This requires a MPC-cable and the PC Multicom Analysis Tool Software.

14) ETHERNET Connect the Multicom's Ethernet socket to any spare Ethernet port on the site's network, which will allow access to the Internet. Some networks (firewalls/gateways) may require port 5000 to 5010 (TCP & UDP) be opened on the internet gateway device. B y default, you will require DHCP to be enabled on the network, contact the sites IT support staff for configuration requirements.

15) BLUETOOTH Allows for wireless configuration and analysis of the Multicom. The Bluetooth interface can be used with the Multicom Analysis Tool software on a PC with an inbuilt or USB dongle Bluetooth device.

16) SIM CARD A Surepoll enabled sim card must be installed for GPRS/GSM operation.

17) GSM/GPRS The GSM / GPRS Antenna must be installed. For reliable operation there must be at least 2 bars of signal at the time of commissioning. The system may work on one bar however this is not an acceptable level.

Page 10

MULTICOM 5 PLUS INSTALLER MANUAL

18) GSM/GPRS SIGNAL LED

SOLID - When GPRS is connected

to the server via the private WAN, the signal LED's will statically show the signal strength, the signal must be 2 or greater for reliable operation.

OFF - The Signal LED's are off during network connection or rebooting.

FLASHING SLOW - When registered on the GSM network only, the signal strength LED's will turn on and off periodically to indicate GSM is connected, and GPRS is not connected.

19) COMMS LED

SOLID - All programmed communication paths are 'connected' to the server as normal

FLASHING FAST - Path is communicating (GSM/GPRS/ETHERNET)

FLASHING SLOW - Path is establishing or re-establishing communications

OFF - ERROR (with GSM/GPRS or Ethernet)

ONE QUICK FLASH PER SECOND Remote software update in progress

20) PSTN LED

SOLID - PSTN line voltage detected

FLASHING FAST - Communicating with attached alarm panel (or sending alarms via GSM)

FLASHING SLOW - Path is initializing the line interfaces, flashing for longer than 1 second indicates an error.

OFF - PSTN Line voltage not detected

21) CHARGE STATE LED

SOLID - Trickle Charge

FLASHING FAST - Fast charge

FLASHING SLOW - Slow charge

OFF - No battery currently detected or establishing charge requirements

22) FAULT LED

SOLID - Fault (GPRS poll timeout, ETH poll timeout, AC Fail, Batt Fail, Zone open, PSTN Fail, Tamper)

OFF - No fault detected, everything is 'ok'

23) POWER LED

SOLID – Indicates power is detected

OFF – No power detected

24) AUX RF LEARN

PGM Pressing PGM button for 5 seconds activates learn mode.

Pressing PGM button momentarily toggles the Inteliswitch on and off.

AUX LED Flashes during communication to the wireless devices.

25) AUX RF TRANSMITTER

AUX Transmitter is a 433Mhz antenna for communicating to the wireless devices. The Multicom has a built in 433.925Mh z transmitter to allow wireless control of other 433.925Mhz devices. A Multicom Inteliswitch (433.925 Mhz device) is provided to allow wireless power cycling of your modem/router during prolonged Internet outages. Please contact your supplier for further details regarding supported devices.

MULTICOM 5 PLUS INSTALLER MANUAL

Programming Options

Account Code / Default: Auto Detect

SMS

0 1 9 9 9 8

DTMF

* 0 1 9 9 9 8 #

Contact ID account code used by the 5 Plus Note: Panels that report multiple account codes may be changed from the code that was initially taken from the alarm panel. This option can be changed during the commissioning procedure with the Suretek Activations Centre.

Primary CMS Number

/ Default: Blank

SMS

0 2 1 3 4 5 X X X X

DTMF

* 0 2 1 3 4 5 X X X X #

Central Monitoring Station Phone number for when the Multicom communicates via GSM or PSTN (Max 19 digits) eg. 13451111 or 1300111222

PBX Prefix

/ Default: Blank

SMS

1 9 X X X X X

DTMF

* 1 9 X X X X X #

Optional number for getting an external line out via PSTN (not GSM) (Max digits is 5)

Secondary CMS Number

/ Default: Blank

SMS

3 7 1 3 4 5 X X X X

DTMF

* 3 7 1 3 4 5 X X X X #

Program this to the same backup phone number in the attached panel. This is only used to allow ComWatch to detect if the panel is attempting to dial the backup number, the Multicom will not dial this number.

ComWatch Mode Count

/ Default: 3

SMS

0 5 3

DTMF

* 0 5 3 #

How many attempts the attached panel has to correctly deliver a Contact ID message to the monitoring station before the Multicom takes priority. Program to 0 to disable. E.g the panel dials 3 times and no

handshake or kiss off tones are heard, the Multicom will take control of the alarm delivery path.

ComWatch Mode Bypass Time

/ Default: 24

SMS

1 2 2 4

DTMF

* 1 2 2 4 #

This is the time in hours that the Multicom will hold priority after ComWatch detects that alarms could not be delivered via PSTN/GSM.

Multicom/PSTN Priority

/ Default: 1

SMS

1 1 1

DTMF

* 1 1 1 #

0 = Multicom is the priority line for the

attached panel, 1 = PSTN is the primary line for the attached alarm pa nel.

External Panel Programming Timer /

Default: Blank

SMS

1 3 X X

DTMF

* 1 3 X X #

Program this in minutes. This feature allows bypassing of the Multicom for a programmed period, so that you can program an attached panel.

Page 11

MULTICOM 5 PLUS INSTALLER MANUAL

DTMF using a Phone Handset/Butt

1. Connect the Phone butt to the “Panel” socket. You will hear a dial tone.

2. To enter Program Mode press the * key. You will hear a busy tone. Enter the default Program Access Code (1345) followed by #. When a successful code is entered you will hear a dial tone. You are now in the program mode. eg. *1345#.

See Option 40 to change the Program Access Code.

3. To send a command, follow the Programming Options table, using the DTMF row as a guide. Commands with PSTN/DTMF are sent using the template:

*ADDRESSSETTING# eg. *01ABCD#

ii. Refer to Programming Options table on page 15

4. The Multicom will reply with a dial tone if your option was updated successfully. The Multicom will reply with a congested/busy tone if an error was encountered.

5. To exit program mode press ##. Your 5 Plus will also automatically exit pro gram mode after five (5) minutes of inactivity.

SMS using a GSM mobile device

1. To retrieve the Multicom GSM phone number, contact the 24/7 Activations Centre (1300 603 704 or +61 2 8787 9872) to confirm your identity. After confirmation, the operator will give you the number, which you can then send SMS commands to.

2. Send an SMS to the device using the template:

ADDRESSSETTING eg. 01ABCD

Refer to Programming Options table on page 15

Sending an SMS containing only +P will result in a SMS response with all programming options & their current setting.

3. A successful update will result in a SMS response with all pro gramming options and their current setting.

4. An unsuccessful update will likely not respond.

5. You may also send multiple programming options in one SMS. To do so please separate each option with a comma(,):

ADDRESSSETTING,ADDRESSSETTING eg. 01ABCD,02ABCD,19ABCD

MULTICOM 5 PLUS INSTALLER MANUAL

Pairing the Multicom Inteliswitch*

The following describes how to pair your panel to an Inteliswitch.

1. Plug the Multicom Inteliswitch into a wall outlet and turn on the power.

2. Press the button on the Multicom Inteliswitch so the blue LED turns OFF

3. Press the button on the Multicom Inteliswitch until the blue LED flashes slowly (5 seconds)

4. Press the button on the Multicom Inteliswitch again until the blue LED flashes quickly (5 seconds)

5. Press the AUX button on the MC5P to learn the Inteliswitch to the MC5P

6. Test the power point by a quick press on the AUX button, this will cycle the power (2 seconds off)

NOTE: The Intelis witch included w ith your MC5P purchase is paired with you r MC5P device out of the box. This guide is only necessary for ad ding Inteliswitch devices to your MC5P.

Page 12

MULTICOM 5 PLUS INSTALLER MANUAL

Panel Programming Methods

The following section gives an overview of the 3 programming methods.

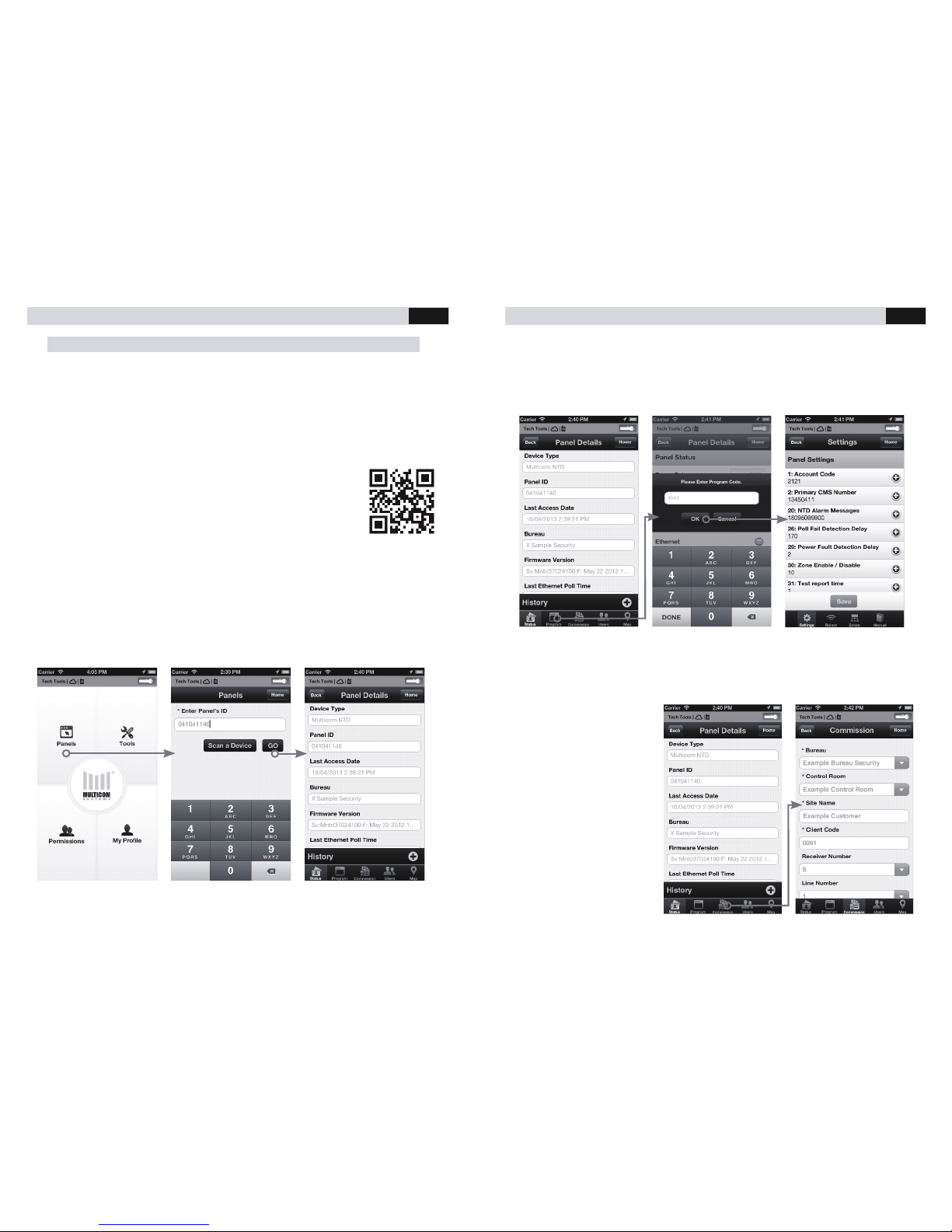

Multicom TechTools App

TechTools is a free smartphone app that configures and commissions Multicom alarm communicators. TechTools uses a “TechCode” to identify who has access to which devices.

Download & Register

1. Download the app from iTunes or Google Play Store Visit http://bit.ly/multicom

2. As an installer you should complete the registration, take note of your TechCode and give it to your employer(s) who will in turn give you permission to work on their panels. (Employers may need to call 1300 65 44 33 to confirm their identity and tie their TechCode to their Multicom account)

Log On to the Device

1. Click ‘Panels’ on the main screen

2. Enter the ‘Panel ID’ or scan the device barcode (Printed on top o f Device & Packaging) and press ‘Go’.

MULTICOM 5 PLUS INSTALLER MANUAL

Programming the Device

1. Once logged on to the device click the ‘Program’ tab.

2. Enter the ‘Program Code’ (Default: 1345) and click OK.

3. You can now edit any available Settings and click ‘Save’ to upload your changes.

Commissioning the Device

1. Once logged on to the device click the ‘Commission’ tab.

2. Enter the ‘Bureau’, ‘Control Room’ and other required reporting details for the device and press the ‘Activate’ button.

3. Upon successful commisioning you will receive the alert ‘Panel has been activated successfully’.
