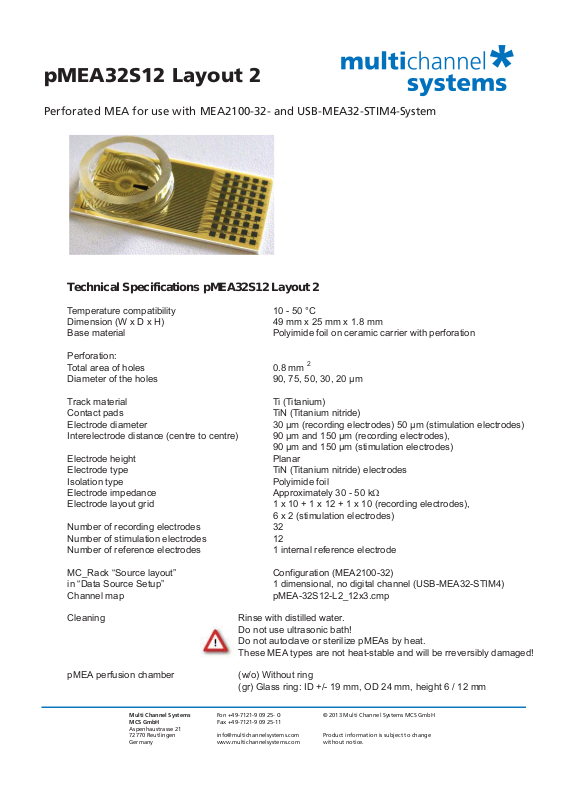

Multichannel Systems pMEA32S12 User Manual
pMEA32S12 Layout 2
Perforated MEA for use with MEA2100-32- and USB-MEA32-STIM4-System
Technical Specifications pMEA32S12 Layout 2
Temperature compatibility 10 - 50 °C
Dimension (W x D x H) 49 mm x 25 mm x 1.8 mm
Base material Polyimide foil on ceramic carrier with perforation
Perforation:
Total area of holes 0.8 mm
2
Diameter of the holes 90, 75, 50, 30, 20 m
Track material Ti (Titanium)
Contact pads TiN (Titanium nitride)
Electrode diameter 30 m (recording electrodes) 50 m (stimulation electrodes)
Interelectrode distance (centre to centre) 90 m and 150 m (recording electrodes),
90 m and 150 m (stimulation electrodes)
Electrode height Planar
Electrode type TiN (Titanium nitride) electrodes
Isolation type Polyimide foil
Electrode impedance Approximately 30 - 50 k
Electrode layout grid 1 x 10 + 1 x 12 + 1 x 10 (recording electrodes),
6 x 2 (stimulation electrodes)
Number of recording electrodes 32
Number of stimulation electrodes 12
Number of reference electrodes 1 internal reference electrode
MC_Rack “Source layout” Configuration (MEA2100-32)
in “Data Source Setup” 1 dimensional, no digital channel (USB-MEA32-STIM4)
Channel map pMEA-32S12-L2_12x3.cmp
Cleaning Rinse with distilled water.
Do not use ultrasonic bath!
Do not autoclave or sterilize pMEAs by heat.
These MEA types are not heat-stable and will be rreversibly damaged!
pMEA perfusion chamber (w/o) Without ring
(gr) Glass ring: ID +/- 19 mm, OD 24 mm, height 6 / 12 mm
