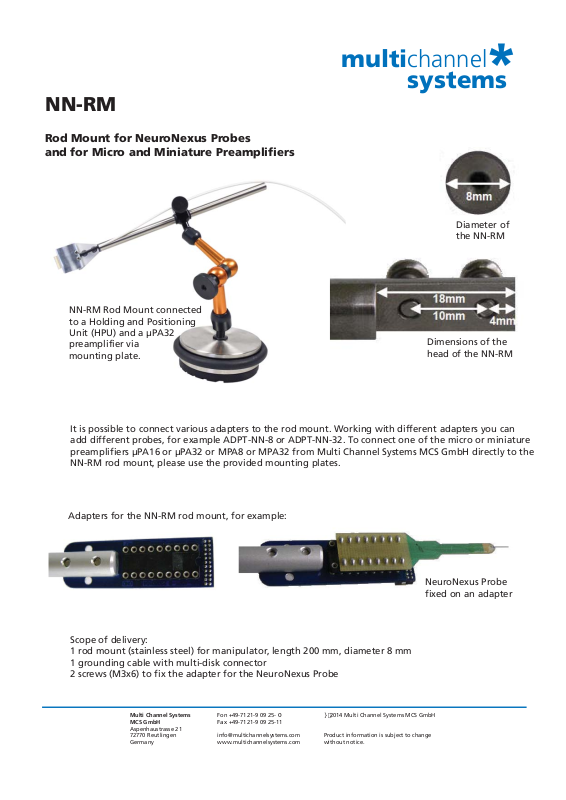

Multichannel Systems NN-RM User Manual

NN-RM

Rod Mount for NeuroNexus Probes
and for Micro and Miniature Preamplifiers

NN-RM Rod Mount connected
to a Holding and Positioning
Unit (HPU) and a μPA32
preamplifier via
mounting plate.

multichannel

systems

Diameter of
the NN-RM

Dimensions of the
head of the NN-RM

*

It is possible to connect various adapters to the rod mount. Working with different adapters you can
add different probes, for example ADPT-NN-8 or ADPT-NN-32. To connect one of the micro or miniature
preamplifiers μPA16 or μPA32 or MPA8 or MPA32 from Multi Channel Systems MCS GmbH directly to the
NN-RM rod mount, please use the provided mounting plates.

Adapters for the NN-RM rod mount, for example:

NeuroNexus Probe
fixed on an adapter

Scope of delivery:
1 rod mount (stainless steel) for manipulator, length 200 mm, diameter 8 mm
1 grounding cable with multi-disk connector
2 screws (M3x6) to fix the adapter for the NeuroNexus Probe

Multi Channel Systems
MCS GmbH

Aspenhaustrasse 21
72770 Reutlingen
Germany

Fon [phone]­Fax

[phone]

[e-mail]
www.multichannelsystems.com

0

}2014 Multi Channel Systems MCS GmbH

Product information is subject to change
without notice.

multichannel

NN-RM

Rod Mount for NeuroNexus Probes
and for Micro and Miniature Preamplifiers

Mounting Plates for Micro and Miniature Preamplifiers

Miniature Preamplifier MPA8

systems

*

Mounting plate for MPA8

Miniature Preamplifier MPA32

Mounting plate for MPA32

Micro Preamplifier μPA16 or Micro Preamplifier μPA32

Mounting plate for
μPA16 or for μPA32

5.5 mm

6.4 mm

6.0 mm

Scope of delivery:
1 mounting plate

Multi Channel Systems
MCS GmbH

Aspenhaustrasse 21
72770 Reutlingen
Germany

Fon [phone]­Fax

[phone]

[e-mail]
www.multichannelsystems.com

0

© 2014 Multi Channel Systems MCS GmbH

Product information is subject to change
