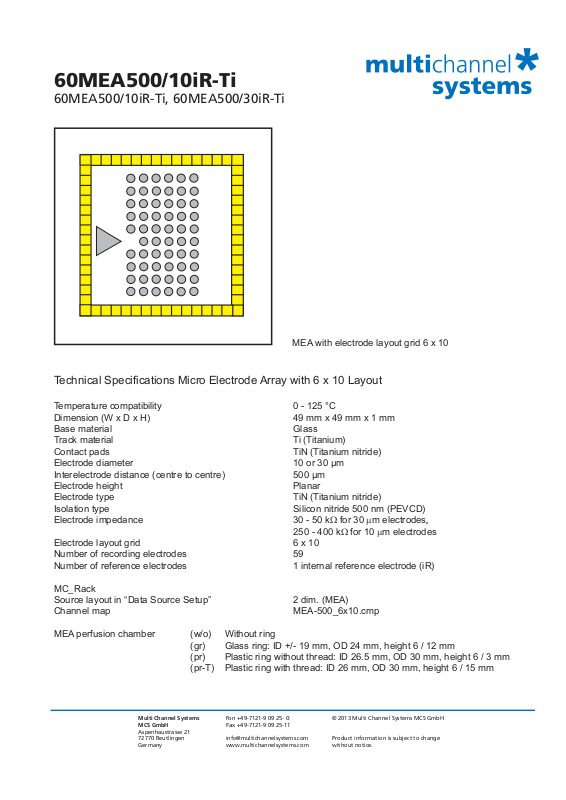

60MEA500/10iR-Ti

60MEA500/10iR-Ti, 60MEA500/30iR-Ti

MEA with electrode layout grid 6 x 10

Technical Specifications Micro Electrode Array with 6 x 10 Layout

Temperature compatibility 0 - 125 °C Dimension (W x D x H) 49 mm x 49 mm x 1 mm Base material Glass Track material Ti (Titanium) Contact pads TiN (Titanium nitride) Electrode diameter 10 or 30 μm Interelectrode distance (centre to centre) 500 μm Electrode height Planar Electrode type TiN (Titanium nitride) Isolation type Silicon nitride 500 nm (PEVCD) Electrode impedance 30 - 50 kfor 30m electrodes, 250 - 400 kfor 10m electrodes Electrode layout grid 6 x 10 Number of recording electrodes 59 Number of reference electrodes 1 internal reference electrode (iR)

MC_Rack Source layout in “Data Source Setup” 2 dim. (MEA) Channel map MEA-500_6x10.cmp

MEA perfusion chamber (w/o) Without ring (gr) Glass ring: ID +/- 19 mm, OD 24 mm, height 6 / 12 mm (pr) Plastic ring without thread: ID 26.5 mm, OD 30 mm, height 6 / 3 mm (pr-T) Plastic ring with thread: ID 26 mm, OD 30 mm, height 6 / 15 mm

Multi Channel Systems MCS GmbH

Aspenhaustrasse 21 72770 Reutlingen Germany

Fon +49-7121-9 09 25Fax

+49-7121-9 09 25-11

info@multichannelsystems.com www.multichannelsystems.com

Product information is subject to change without notice.

60MEA500/10iR-Ti

Electrode layout grid 6 x 10

MEA pins

Electrode #

REF

Electrode #

MEA pins

REF

500 μm

10 or 30 μm

637162615453515242414344313221

K6 I6H5K5I5I4K4H4H3K3I3I2K2H2K1I1

B6A1 A6C5A5B5B4A4C4C3A3B3B2A2C2B1

66786768555658574748464538372836

The letter of the electrode number code refers to the row number, and the digit is the column number. The specified MEA amplifier pin numbers are the MEA-System channel numbers that are used in the data acquisition program. The substrate-integrated reference electrode (REF) is connected to pin 15 of the MEA amplifier.
