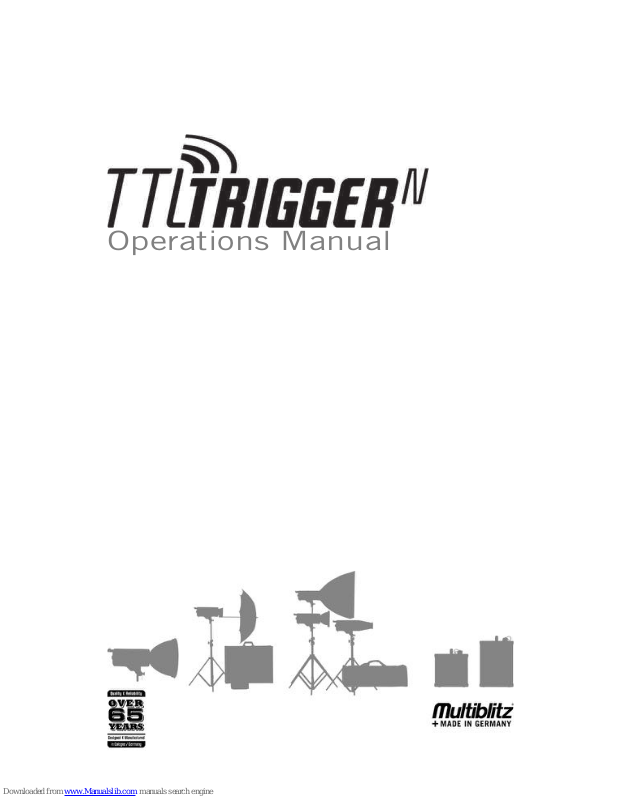

Multiblitz TTL-Trigger N Operation Manual

Operations Manual
!
2!
Content
General safety instructions 4
TTL-Trigger N 8
Operating modes 11
- TTL (I-TTL) mode 11
- Manual (M) mode 14
- FP Mode / High-Speed-Synchronisation 16
- Sequence mode (SEQ) via radio 19
Miscellaneous 22
- Standby 22
- Firmware-Update 22
- Specifications 25
- Warranty 26
!
3!
Our name stands for technical revolution
Thank you for choosing MULTIBLITZ, we hope you enjoy working with this premium quality product.
Physicist Dr. Ing. Dieter Mannesmann, who founded Multiblitz in 1948, is considered one of the pioneers of studio flash technology. Through the development of the first electronic flash units under the name „Multiblitz“ he revolutionized professional photography. With the help of this new light source, it was possible for photographers to trigger multiple flashes without changing the flash bulb after each image. This groundbreaking invention was followed by many more ideas and innovations. Among other things, Dr. Ing. Mannesmann derived today’s common definition of the Guide Number, which is used by photographers throughout the world. To date, we are continuing the legacy of Dieter Mannesmann with new groundbreaking concepts and reliable premium lighting solutions.
We are one of the most innovative studio lighting equipment manufacturers in the world, and have been for over 65 years. Our goal is to set new standards and to achieve the best outcome for all those for whom light shaping is a key part of their profession and art.
!
4!
CAUTION!
General safety instructions
Please read the instruction manual carefully before using this product!
Do not open the unit by yourself! Service should only be executed by an authorized MULTIBLITZ service location. Opening the product by yourself voids the warranty.
Do not expose the unit to water, nor spray-/or dripping water.
This product is only to be operated with AA, 1,5V Mignon­Batteries.
The crossed out wheeled bin label that can be found on your product indicates that this product should not be disposed of via the normal household waste stream. To prevent possible harm
to the environment or human health please separate this product from other waste streams to ensure that it can be recycled in an environmentally sound manner.
For more details on available collection facilities please contact your local government office or the retailer where you purchased this product.
WEEE registration no.: DE 64253330
Technical data subject to change without notice.
!
5!
Initial start-up
1. Open the battery compartment on the underside of the TTL-
TRIGGER and insert the (AA) batteries supplied. Make sure
that the polarity is correct. Then close the battery
compartment again.
2. Guide the TTL-TRIGGER into the camera shoe of your Nikon camera and tighten the TTL-TRIGGER using the black knurled screw on your camera.
Fig.: Knurled screw
3. Operate the ON/OFF button (13) for about a second to switch on the TTL-Trigger. The LED (14) now comes on red. (Keep
the button pressed down for about three seconds to switch the
TTL-TRIGGER off again).
4. Now switch on your camera; the LED (14) is now green,
showing the active connection between your Nikon camera and
!
6!
the TTL-TRIGGER.
5. After switching your camera on, as soon as you operate the trigger, the green LED of the TTL-TRIGGER comes on to show that the connection between your Nikon camera and the TTL-
TRIGGER is active. If your camera's trigger is not operated for
a few seconds, the LED turns red, indicating that it is on
standby.
6. Select the required channel (CH) by operating the button 10.
Using the buttons 10 and 11, you can now set the required
channel. You can leave the menu again by operating the
button 12.
7. Select the required ID by pressing button 12. Using the
buttons 10 (tens) and 11 (units), you can now set the required
ID. You can leave the menu again by operating the button 12.
8. Switch on the M6-TTL flash unit(s) which is/are to be controlled by the TTL-TRIGGER and operate the synchronisation button.
!
7!
Fig.: Synchronisation button
9. You can now control your M6-TTL completely wireless-free.
Important note: All M6-TTL units within your flash set-up must be set to the same channel (CH) so that the units flash synchronously, as required, when triggered by the TTL­TRIGGER.
By selecting the ID, you are giving each flash unit in your flash set-up a "name" (ID no.) so that each unit can be controlled individual via the TTL-TRIGGER (power, setting light, etc.).
Accordingly, the CH and ID on the TTL-TRIGGER and the controlled M6-TTL flash unit(s) must match.
!
8!
TTL-Trigger N
For Nikon cameras
!
9!
Button layout:
1. Mode selection Group A
TTL (I-TTL mode)
M (Manual mode)
FP (High speed synchronisation)
Group A OFF (---)
2. Mode selection Group B
TTL (I-TTL mode)
M (Manual mode)
FP (High speed synchronisation)
Group B OFF (---)
3. Mode selection Group C
TTL (I-TTL mode)
M (Manual mode)
FP (High speed synchronisation)
Group C OFF (---)
4. Setting light ON/OFF (Global)
5. Power regulation (TTL, M), Flash duration (FP) & Group A ON/OFF (set values with buttons 10, 11).
6. Power regulation (TTL, M), Flash duration (FP) & Group B ON/OFF (set values with buttons 10, 11).
7. Power regulation (TTL, M), Flash duration (FP) & Group C
!
10!
ON/OFF (set values with buttons 10, 11).
8. Power regulation setting light ON/OFF (set values with buttons 10, 11).
9. Acoustic charging check ON/OFF
10. Flash power"–", Setting light "–", Channel selection ON, Channel selection "–", ID selection (tens)
11. Flash power"+", Setting light "+", Channel selection "+", AF auxiliary light ON/OFF, ID selection (units)
12. Channel selection OFF, ID selection ON/OFF, & Sequence mode (SEQ) ON/OFF (set values with buttons 10, 11).
13. Trigger ON/OFF, TEST
14. Operating display, display wireless connection active
!
11!
Operating modes
TTL (Thru the lens) mode
In TTL mode, the M6-TTL automatically adjusts to the flash measurement mode of the camera. In coordination with the flash control of the camera, the M6-TTL automatically regulates the flash power. If required, an exposure adjustment can be carried out, which can be set in steps of a third up to ±3 f-stops.
1. Within the required Group (A, B, C), select "TTL" mode by operating the corresponding buttons (1, 2, 3).
2. If Group (Gr. A, B, C), Channel (CH) and ID (ID) have been selected at the M6-TTL according to the settings on the TTL­TRIGGER, the M6-TTL can now be controlled remotely.
3. Operate, depending on Group (A, B, C), button 5, 6 or 7 to
activate the exposure adjustment. The value of the exposure
adjustment is now marked in the display of the TTL-TRIGGER
and the arrow symbols that appear above buttons 10, 11 can
now be used to set the exposure adjustment on the M6-TTL in
steps of a third up to ±3 steps.
4. Use button 12 to leave the exposure adjustment menu again. (After seven seconds the menu is left automatically).
!
12!
Fig.: TTL-TRIGGER N in TTL mode
Fig.: M6-TTL Display in TTL mode (Nikon I-TTL)
!
13!
Note for Nikon cameras: If the "FP" function is activated in the camera menu, the high speed synchronisation is also automatically active in TTL mode and all the specified shutter speeds of the camera can be used.
If the "FP" function in the camera menu is activated, the M6­TTL automatically switches to "FP" mode as from an exposure value of 1/250 or 1/320 sec..
!
14!
M (Manual) mode
In manual mode, the M6-TTL can be used like a classic flash unit, e.g. for studio operation. The power is regulated with the power regulator via eight apertures in 1/3 f-stops (1/128 – 1/1).
1. Within the required Group (A, B, C), select "M" mode by operating the corresponding buttons (1, 2, 3).
2. If Group (Gr. A, B, C), Channel (CH) and ID (ID) are selected at the M6-TTL according to the settings on the TTL-TRIGGER, the M6-TTL can now be controlled remotely.
3. Operate, depending on Group (A, B, C), button 5, 6 or 7 to
activate power regulation. The power value is now marked in
the display of the TTL-TRIGGER, and the arrow symbols that
appear above the buttons 10 ,11 can now be used to set the
flash power on the M6-TTL via eight apertures in steps of a
third.
4. Use button 12 to leave the power regulation menu again. (After seven seconds the menu is left automatically).
!
15!
Fig.: TTL-TRIGGER N in M mode
Fig.: M6-TTL Display in M mode
!
16!
FP (Focal Plane) mode / High speed synchronisation
For high speed synchronisation, you can use the M6-TTL in "FP" at all shutter speeds that are specified by the camera you are using *. In addition, defined flash times of 1/8000, 1/11000, 1/13000, 1/14000 sec** can be set at the M6-TTL for high speed synchronisation.
1. Within the required Group (A, B, C), select "FP" mode by operating the corresponding buttons (1, 2, 3).
2. If Group (Gr. A, B, C), Channel (CH) and ID (ID) are selected at the M6-TTL according to the settings on the TTL-TRIGGER, the M6-TTL can now be controlled remotely.
3. Operate, depending on Group (A, B, C), button 5, 6 or 7 to
activate high speed synchronisation. The flash duration (FP =
shutter speeds/flash duration is specified by the camera your
are using) is now marked in the display of the TTL-TRIGGER,
and the arrow symbols that appear above buttons 10 ,11 can
now be used to set the required flash duration at the M6-TTL.
4. Use button 12 to leave the FP menu again. (After seven seconds the menu is left automatically).
!
17!
Fig.: TTL-TRIGGER N in FP mode
Fig.: M6-TTL Display in FP mode
!
18!
Note for Nikon cameras: If the "FP" function is activated in the camera menu, then high speed synchronisation is also automatically activated in TTL mode and all the specified shutter speeds of the camera can be used.
!
19!
Sequence mode (SEQ) via radio
SEQ (sequence) mode allows you to flash several times within a bulb exposure in order, for example, to show the movements of an athletic or similar as a motion sequence in a photo *.
To activate SEQ mode, keep button 12 pressed down for three seconds. The display of the TTL-TRIGGER then switches over to the sequence menu. (Keep button 12 pressed down for around three seconds to leave the sequence menu again).
Fig.: TTL-TRIGGER N in SEQ mode
!
20!
Fig.: M6-TTL Display in SEQ mode via radio
Button layout:
1. Sequence mode Group A, ON/OFF
2. Sequence mode Group B, ON/OFF
3. Sequence mode Group C, ON/OFF
4. Setting light ON/OFF (Global)
5. Select number of flashes (1-40)
6. Select frequency Hz (1-100)
7. Select flash power (1/128 1/1)
8. Power regulation setting light ON/OFF
9. Acoustic charging check ON/OFF
10. Number of flashes "–", Frequency "–", Flash power"–", Setting
!
21!
light "–", Channel selection AN, Channel selection "–", ID
selection (tens)
11. Number of flashes "–", Frequency "+",Flash power"+", Setting
light "+", Channel selection "+", AF auxiliary light ON/OFF, ID
selection (units)
12. Channel selection OFF, ID selection ON/OFF, Sequence mode (SEQ) ON/OFF
13. Trigger ON/OFF, TEST
14. Operating display, display wireless connection active
Important note: To be able to use sequence mode correctly, it is recommended that the camera's shutter speed is set to long exposure ("Bulb" mode).
!
22!
Miscellaneous
Standby
To extend the life of the batteries, the TTL-TRIGGER switches automatically to "Standby" after five minutes' inactivity. The corresponding "STBY" symbol then appears in the display. Operating any button will reactivate the TTL-TRIGGER.
Firmware Update
Using the USB cable supplied, the latest firmware can be transferred to the TTL-TRIGGER N.
1. Go to www.multiblitz.com/downloads (tab: "M6-TTL
Firmware”) load the firmware onto your computer. Click
on the icon " TTL-TRIGGER N Version ...”, and the
download starts automatically.
2. Using the USB cable supplied, connect the TTL-
TRIGGER N to your computer (MAC/PC).
Fig.: USB-Port
!
23!
3. The TTL-TRIGGER N is shown as a drive on your desktop.
4. The following appears on the triggers´ screen:
5. Select "YES”. The download icon appears on the display.
6. Now drag the downloaded file onto the drive that is displayed on your desktop.
7. The update starts automatically, progress is shown in %.
!
24!
8. As soon as the update is completed, the following appears on the display:
9. Follow the instruction "Remove” on the display and remove the USB cable from the unit.
10. The TTL-TRIGGER N restarts automatically.
11. The firmware update is completed.
!
25!
Specifications
Frequency band
2.4 GHz
Frequency channels
15
Groups per channel
3 (A, B, C)
Operation modes
TTL, FP, Manual, Multi
TTL compatibility
I-TTL
Sync modes
Auto, FP
Focus assist
Yes
Mount & Connections
Shoe for Nikon,
USB-mini for firmware updates
Wireless range, m
100
Battery type
2 x AA, 1,5V
Sync voltage
< 3,5V
Battery lifetime, hrs
30
Antenna type
Integrated
Standby
Yes, after 5 min of inactivity
Sync/Trigger/Remote/TTL-Control
Multiblitz M6-TTL
Dimensions, mm
75,5 x 75 x 49,6
Weight (incl. batteries), g
149,5
Tolerances of the technical data for measured values and components according to the standard DIN IEC // Specifications subject to change without notice.
!
26!
3-year limited warranty
Multiblitz warrants products bearing the Multiblitz mark against defects in materials and manufacture for three years from the date of purchase by a Multiblitz distributor/the original end-user. If a defect occurs and a valid claim is made under the warranty within the warranty period, Multiblitz will choose to either repair the defect using new or reconditioned parts at no cost, replace the product with a new product or one produced using new or reconditioned parts, and resulting in at least the same performance level as the original. Illuminants (flash tubes and modeling lamps), sync cables, mains cables, pyrex domes, batteries (lead-acid, Li-Io, mignon-batteries) as well as consumable materials are
excluded from warranty.
Learn more about our warranty, go to: www.multiblitz.com
!
27!
Multiblitz Mannesmann GmbH – Ferdinand-Porsche-Str. 19 – 51149 Cologne,
Germany
Tel: 02203/9396-35 – www.multiblitz.com- info@multiblitz.de
