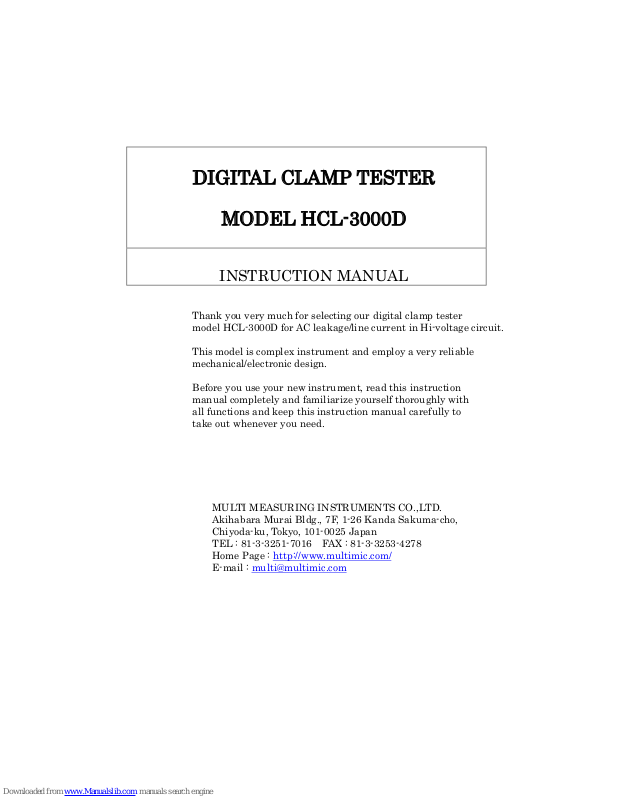

DIGITAL CLAMP TESTER
MODEL HCL-3000D
INSTRUCTION MANUAL
Thank you very much for selecting our digital clamp tester
model HCL-3000D for AC leakage/line current in Hi-voltage circuit.
This model is complex instrument and employ a very reliable
mechanical/electronic design.
Before you use your new instrument, read this instruction
manual completely and familiarize yourself thoroughly with
all functions and keep this instruction manual carefully to
take out whenever you need.
MULTI MEASURING INSTRUMENTS CO.,LTD.
Akihabara Murai Bldg., 7F, 1-26 Kanda Sakuma-cho,
Chiyoda-ku, Tokyo, 101-0025 Japan
TEL : 81-3-3251-7016 FAX : 81-3-3253-4278
Home Page : http://www.multimic.com/
E-mail : [email protected]
Page 2
1. SAFETY SUMMARY observe by all means
● To use this instrument safely, read this “SAFETY SUMMARY” carefully and
apply the instrument correctly.
● The CAUTIONs and WARNINGs which appear on the following pages are
stated to prevent the operator & other people from the dangers and their
properties from the damages beforehand.
△！ WARNING : This symbol indicates the contents "Possibilities of the death or
the serious wound can be supposed" caused from mis-operations.
△！ CAUTION : This symbol indicates the contents "Possibilities of the injury or
only the material damage can be supposed" caused from mis-
operations.
△！ WARNING
POSSIBLE ELECTRICAL SHOCK
● When using this instrument in the circuit more than AC 1000V, operate very
carefully (always wear the rubber gloves).
● Apply only the coated cables and do not clamp the bare cables.
● Do not handle the instrument in the rain, at humid place, with a drop of water
and or with wet hands.
● Do not use the instrument if the CT case, instrument body and or rubber handle
cover are damaged. Replace the rubber handle cover to new one, if it is damaged.
● Do not disassemble this instrument
● High voltage circuit is very dangerous and people without expertise should not
operate the instrument.
Page 3
2. SPECIFICATIONS
Measuring Method
:Dual integration mode
Measuring Function
:AC Current by clamping CT
Display
:3.5 digit LCD, max. 1999 count
Measuring Range
: 0-2000mA/20A (50/60Hz), two range manual
Accuracy
:23oC±5 oC , 80%RH or less
Range
Resolution
Accuracy
2000mA
1mA
±2% rdg±8dgt
20A
0.01A
Jaw Opening Capability:
:φ35mm
Overload Indication:
:Blanking of all digits except MSD 1
Data Hold
:“DH” mark on the display for holding measured data
Low Battery Indication
:“B” mark on LCD readout
Sampling
Auto Power Off
:2 times/second
:approx. 5 minutes after power on
Operation Circuit Voltage
:AC 80V – 7000V
Insulation Resistance
:100M ohm or more (between handle and CT core)
Withstanding Voltage
:AC 15KV, 1 minute (between handle and CT core)
Power Supply
:UM-3 (1.5V) x 2 pcs.
Operating Temperature
Storage Temperature
:0~40℃ less than 80%RH without condensation
:-10℃~60℃ less than 80%RH without condensation
Dimension
Weight
:70(W)x356(H)x32(D)mm
:Approx. 370 g (including batteries)
Accessories
Carrying case………….1
Instruction Manual…...1
Batteries………….…….2
Page 4

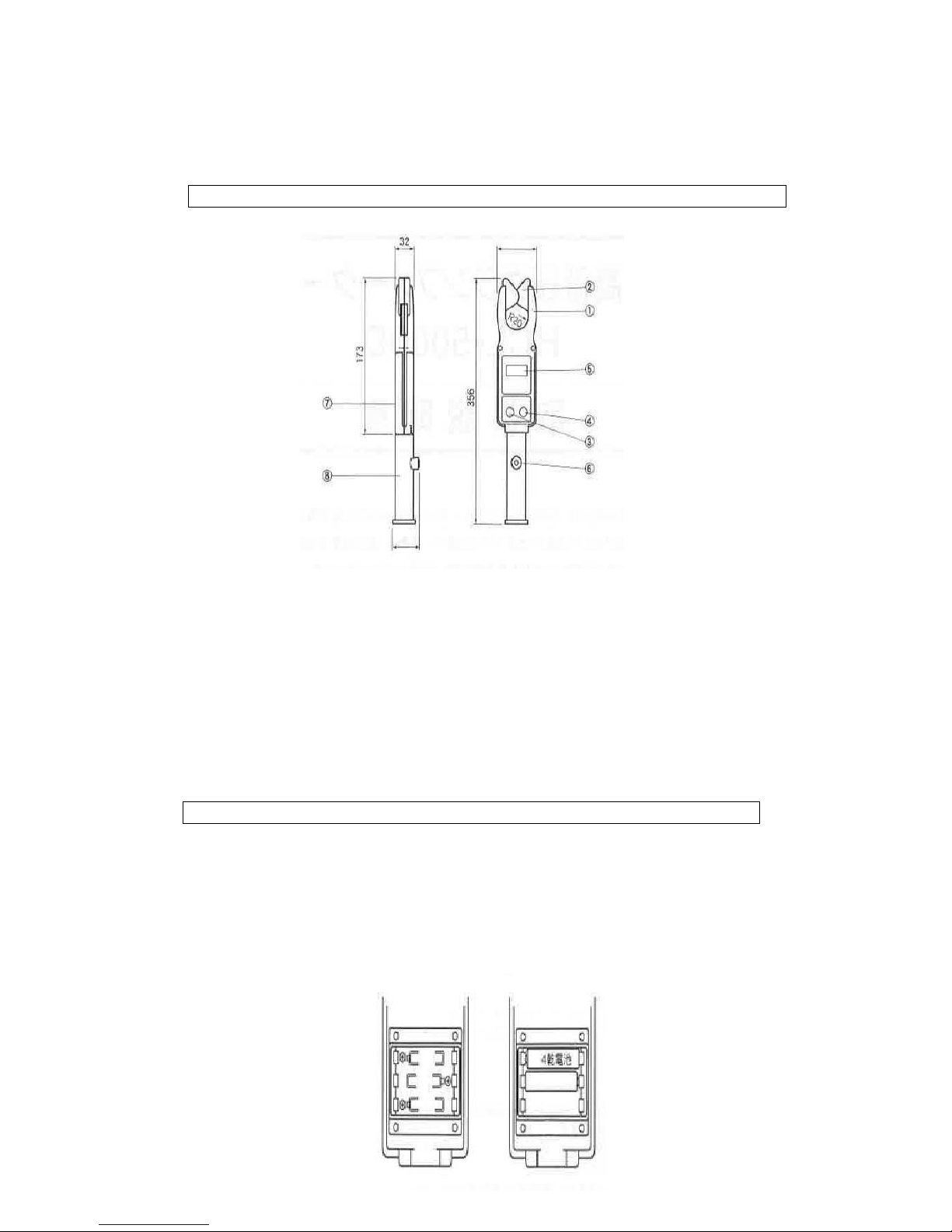

3. DIMENSION & PANEL
70
51.5
① Clamp CT : CT sensor detecting the current by clamping method.
② Open/Close Guide for CT : Clamping/releasing CT to or from the conductor by
pushing /drawing this part.
③ Power Switch : Switch for power on and off.
④ Range Switch : Switch for range selection of 2000mA/20A
⑤ Display : LCD readout the measurement value, “B” battery sign and
“DH” data hold mark.
⑥ Data Hold Switch : Push once this switch to hold the data and “DH” mark will
appear on the display. Push once again to release.
⑦ Battery Cover : Remove this cover to install or replace batteries.
⑧ Grip : Grip part for handheld.
4. OPERATION
4-1 PREPARATION BEFORE MEASUREMENT
Battery Installment:
① Confirm the power switch OFF.
② The battery cover is fixed by screw and turn it to the left for removing cover.
③ Install the batteries according to the indication of battery case (do not mistake
to place “+” and “－” polarity).
④ After the replacement, put the battery cover to the original position firmly.
Page 5
● 「B」sign will appear on the display when batteries are exhausted and get less
than operation voltage. Replace to new batteries immediately.
● Do not use the batteries mixed new one and once used and or different kind ones.
△！ WARNING
POSSIBLE ELECTRICAL SHOCK OR ACCIDENT
● Do not replace the batteries under the conditions of measuring current or
voltage
● Do not operate the instrument with battery cover off.
△！ CAUTION
When not using the instrument for a long period, remove the batteries and keep
separately. The batteries may leak and may cause damage to the instrument.

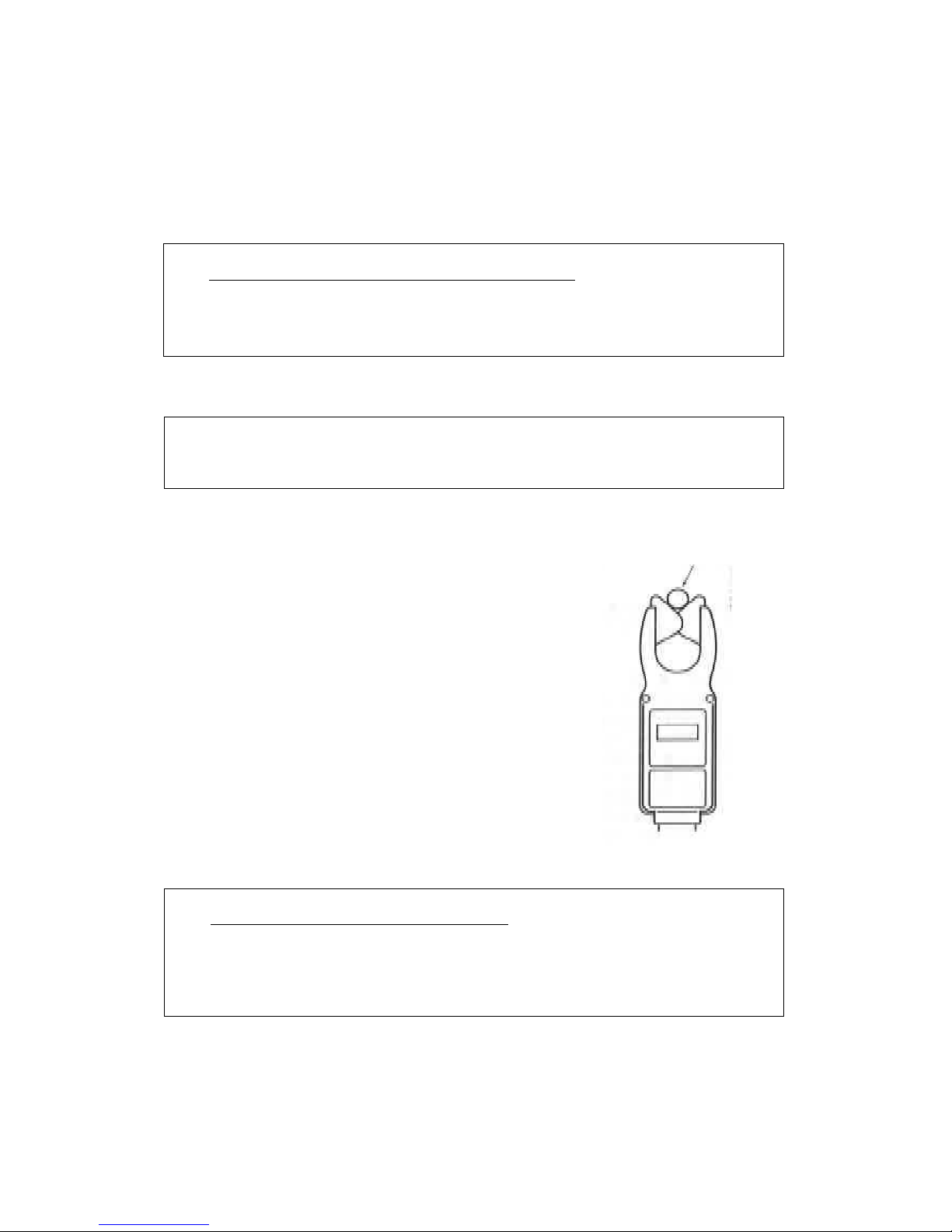

4-2 OPERATION METHOD
① Power switch on and select the appropriate Cable to be
range to be measured by range select switch. measured
② Push up CT guide to the conductor to be measured
for clamping CT.
③ Push Data Hold switch to hold measured value.
④ After measurement, pull out CT from the conductor
and read the measured value.
⑤ Set power switch off after finished operation.
When “B” mark appears on LCD during measurement,
replace the batteries immediately, as the batteries are
consumed and get lower than operation voltage.
△！ CAUTION
POSSIBLE DAMAGE OF INSTRUMENT
● Do not apply the current more than 20A to the instrument, as it may cause
damage and heating by giving excess big current to CT.
● This model is high precision measuring instrument. It may cause defect, if CT
part receives heavy load.
Page 6
REPAIR SERVICE
When requesting for repair service, please bring the instrument directly to the
dealer where you bought.
When mailing the instrument, always pack it in its original or equivalent packing
materials to avoid any damage during the transportation and also put together with
documents showing your name, address, phone number and defect point.
WARRANTY
This instrument is sent out from our factory after the sufficient internal inspections
but if you find any defect due to the fault in our workmanship or the original parts,
Please contact the dealer where you bought the instrument.
The warranty period is 12 months from the date of purchase and the instrument
shall be repaired at free of charge, provided that we judge the cause of defect is
obviously resulted from our responsibility.
GURANTEE REGULATIONS
1. This instrument is warranted for the operation under normal use for 12 months from
the date of purchase.
2. This warranty does not cover the following defects:
a. Defect caused from the improper use and operation.
b. Defect caused from the use, operation and storage beyond the original
specifications, designs and conditions.
c. Defect caused from the renovations or repairs done by someone else than us or our
representatives.
d. Defect not caused from our responsibilities.
