Multenet GPRS / EDGE, UMTS HSDPA / HSUPA, PROD0301, PROD0302 User Manual

1

Manual

Wireless Routers

Wireless Routers

MULTeNET Wireless Routers

User Manual

English

Version 1.0

March 2008

Mobile Router

GPRS / EDGE

Broadband Router

UMTS HSDPA / HSUPA

Wireless Routers

2

Manual

Document Scope

This manual describes how to install, configure and operate the Multenet Wireless Routers.
For updated product features, refer to our website at www.multenet.com

Revision History

Revision No Changes

1.0 First release

Data, Illustrations, Alterations

The data and illustrations found in this document are not binding. We reserve the right to
modify our products in line with our policy of continuous product development. The information
in this document is subject to change without notice and should not be construed as a
commitment by Multenet.

Multenet assumes no responsibility for any errors that may appear in this document. If you
have any suggestions for improvement or amendment, or have found errors in this publication,
please notify us through your distributor or email [email protected]

Trademarks

EtherPAD and PocketPAD are registered Trademarks of Multenet. Internet Explorer, Windows
95/98/2000/NT/XP are registered trademarks of Microsoft Corporation. Ethernet is a trademark
of XEROX Corporation. Modbus is a trademark of Schneider Electric, Inc.

Copyright 2008 Multenet All rights reserved.

Contact details:

Multenet Technologies (Pty) Ltd.
P O Box 7155, Stellenbosch, 7599
The Vineyard Centre, Adam Tas Road,
Stellenbosch, 7600

Sales Email : [email protected]
Technical Support Email : [email protected]
Website : http://www.multenet.com

Manual

3

Manual

Wireless Routers

Contents

INTRODUCTION
6

Introduction to the Wireless Routers 7

Wireless Connectivity 7

GPRS 7
EDGE 7
UMTS HSDPA 7
HSUPA 7

Wireless Routers 7

Mobile Router 7
Broadband Router 7

Product Features 8

Security 9
Firmware Updates 9

GETTING STARTED
10

Inserting SIM cards 11
Attaching the Antenna 11
10/100 Base-T Ethernet Network Connection 12
Serial Port Connection 12

Configuration of the Wireless Router 12

Discovering Multenet Devices 12

CONFIGURATION
15

Configuration Overview 16
Web Browser Configuration 17

Requirements 17
Check your web browser proxy settings 17
Open Web configuration 17
Log into Web Configuration 17

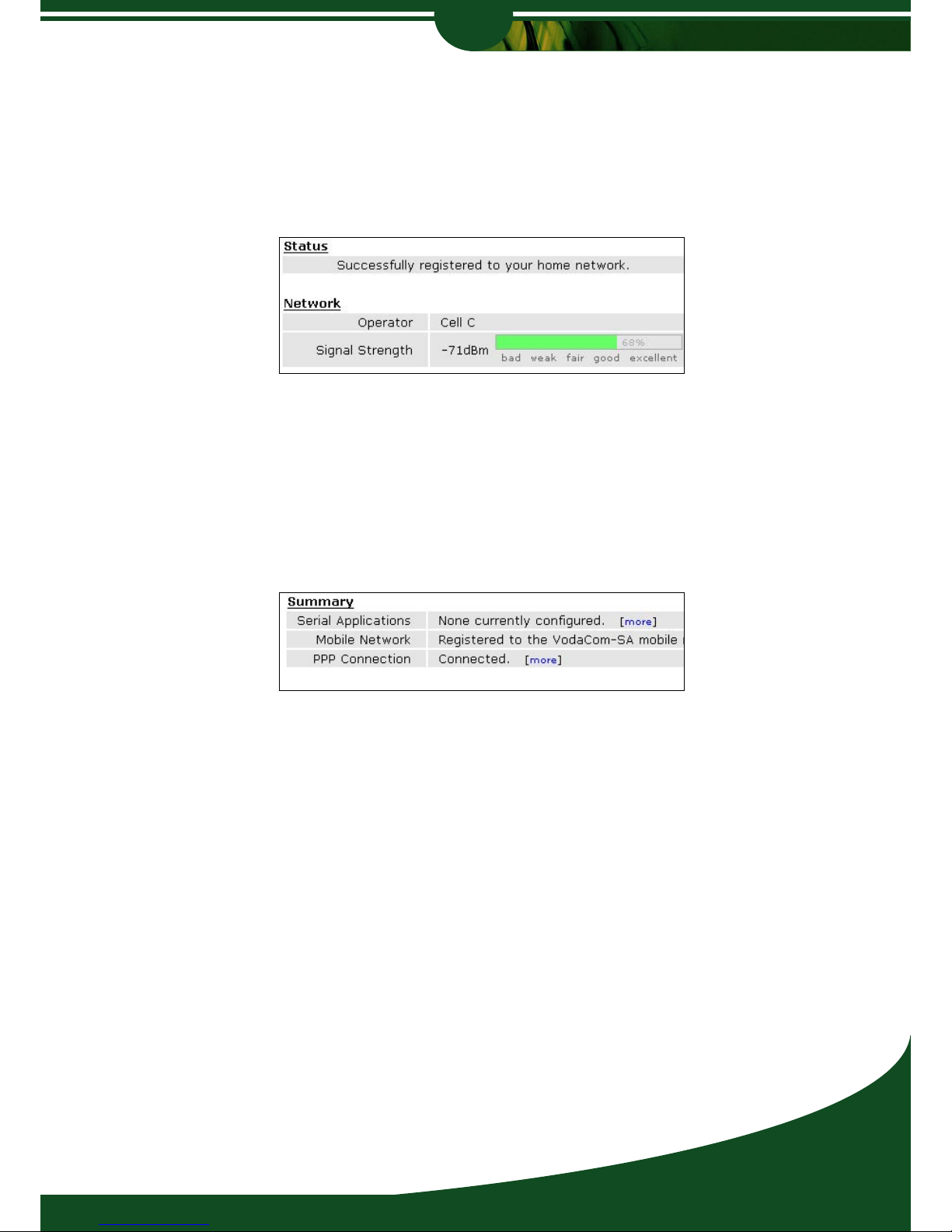

Home 18
Management 19

Security 19
System Information 19
Date and Time 19
Mobile 21

Networking 22

Ethernet Parameters 22

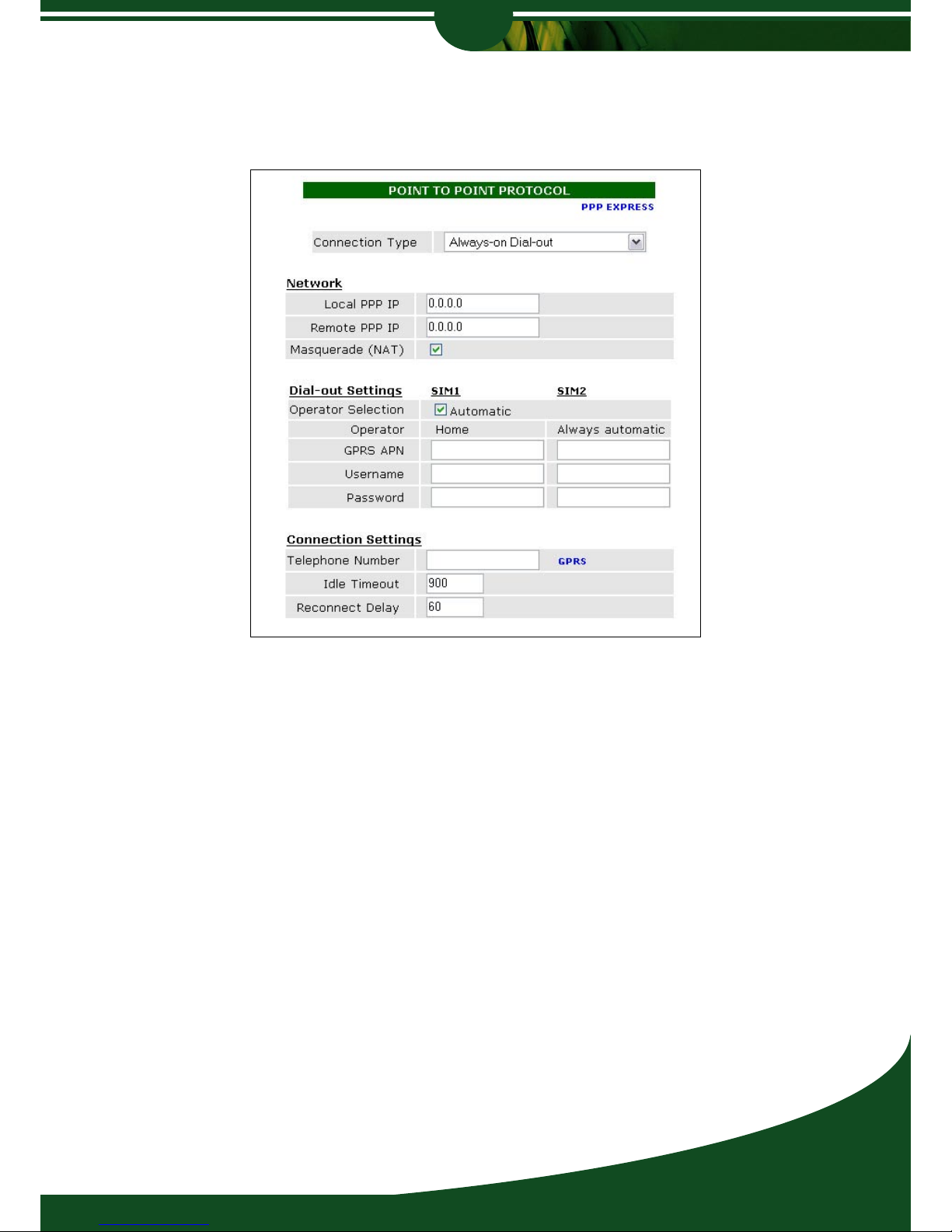

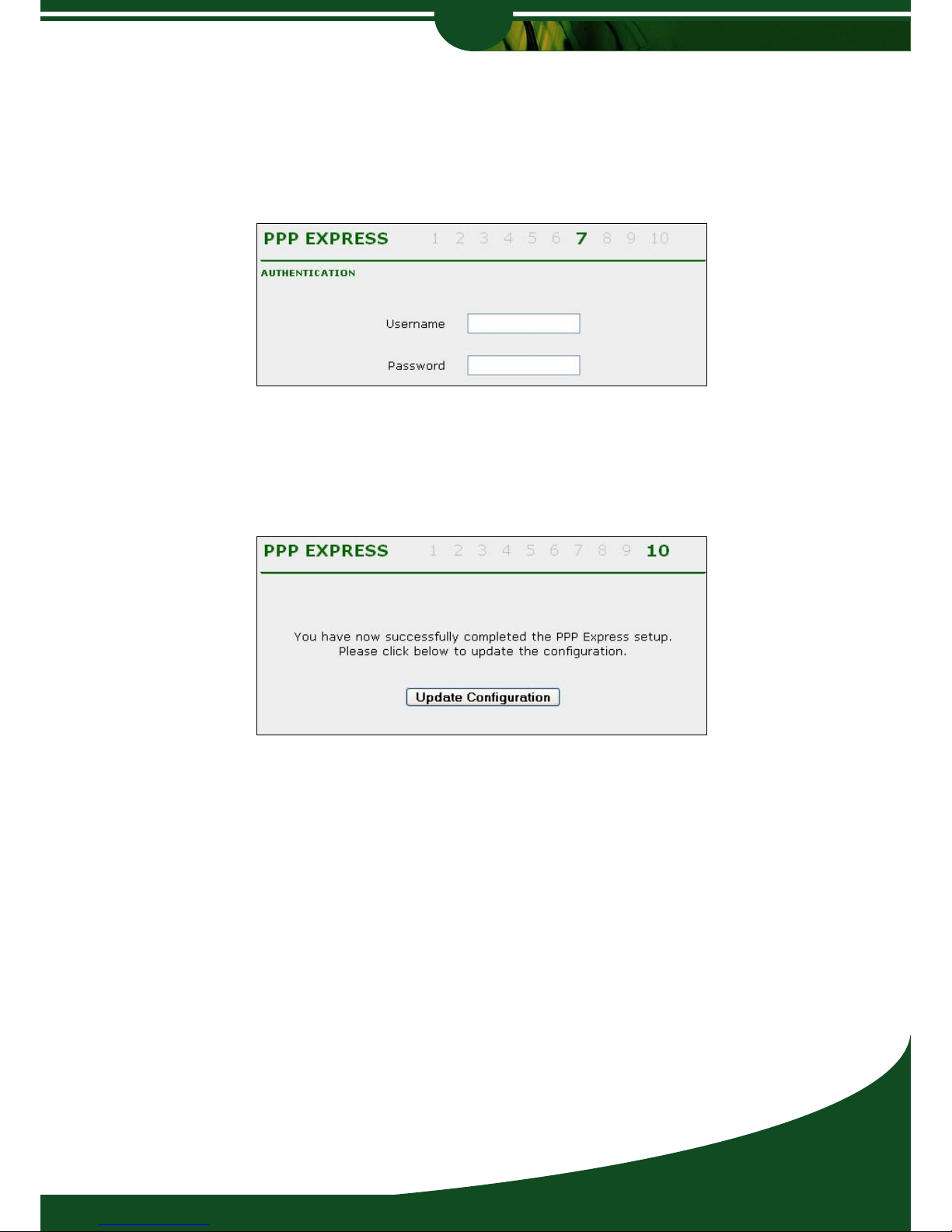

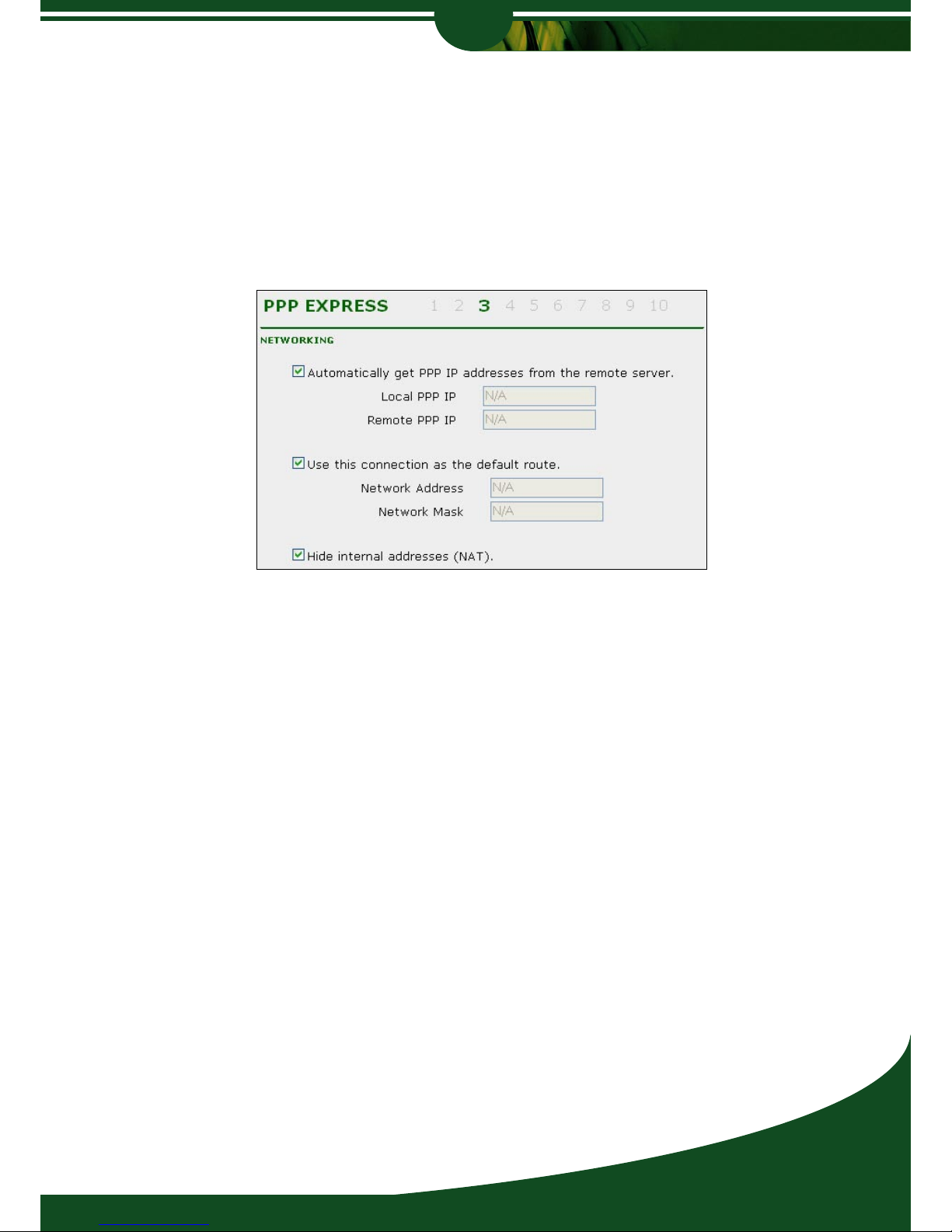

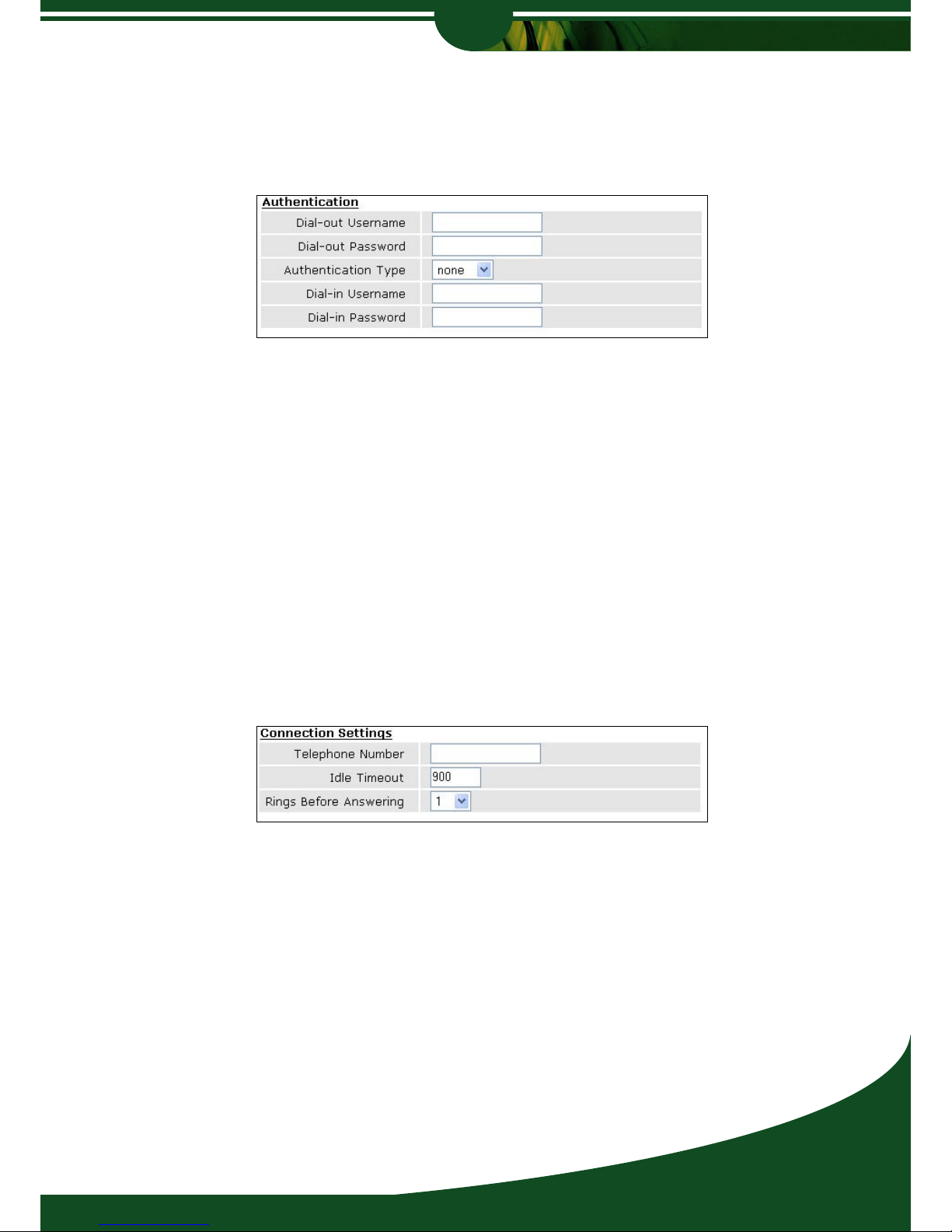

PPP (Point-to-Point Tunnelling Protocol) 23
Routing 31

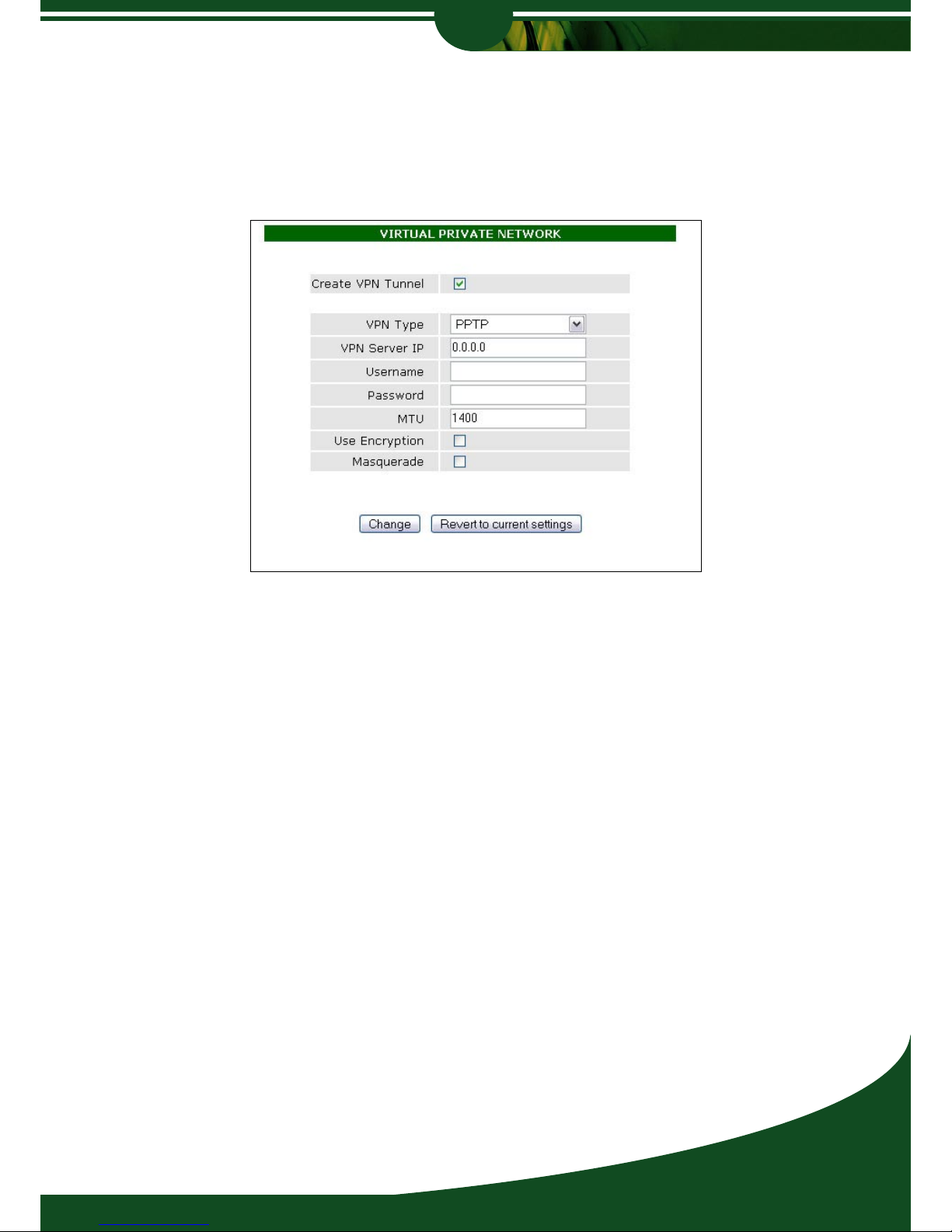

VPN 32
DNS (Domain Name Server) 34
SNMP (Simple Network Management Protocol) 34
Port Forwarding 35
DHCP 36

Wireless Routers

4

Manual

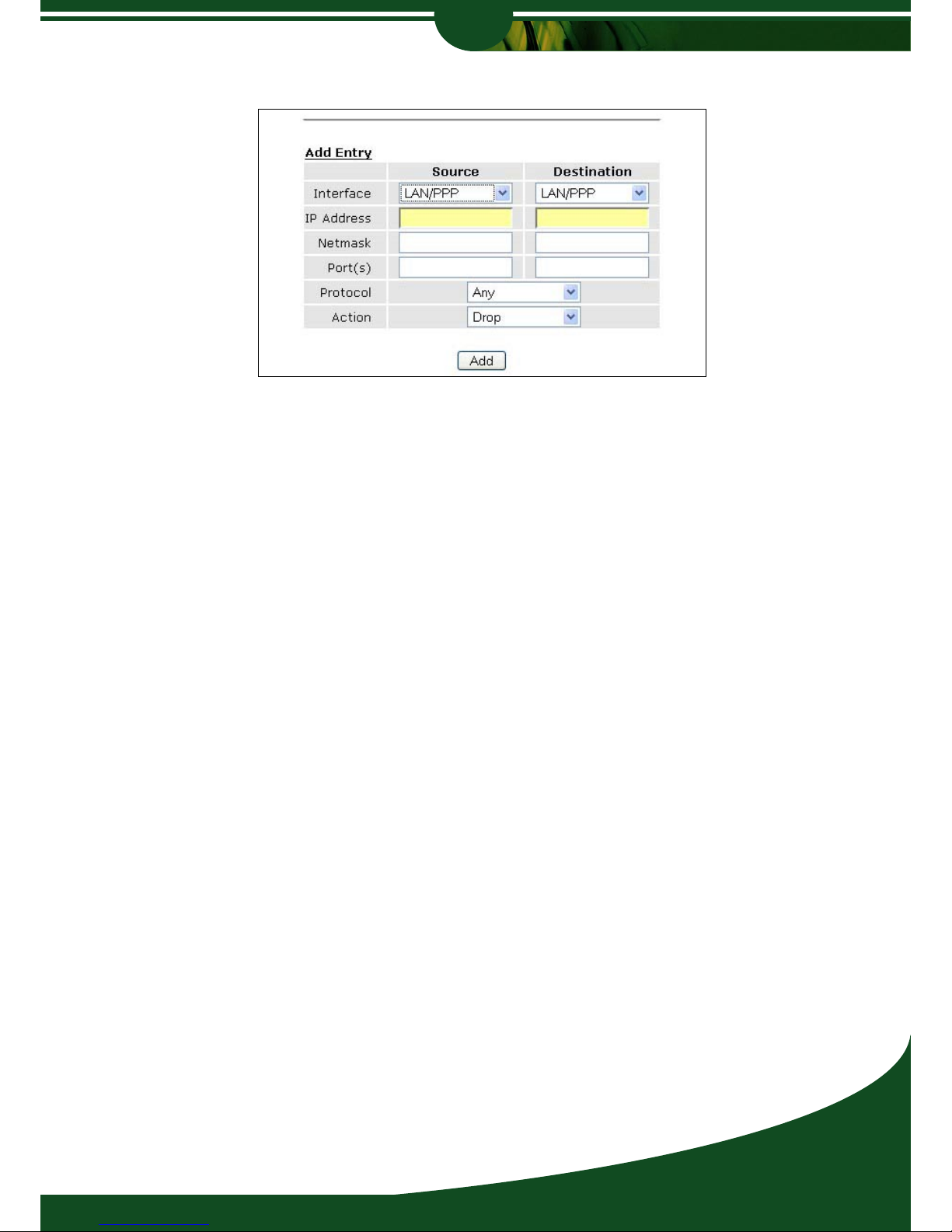

Firewalling 36

Serial 38

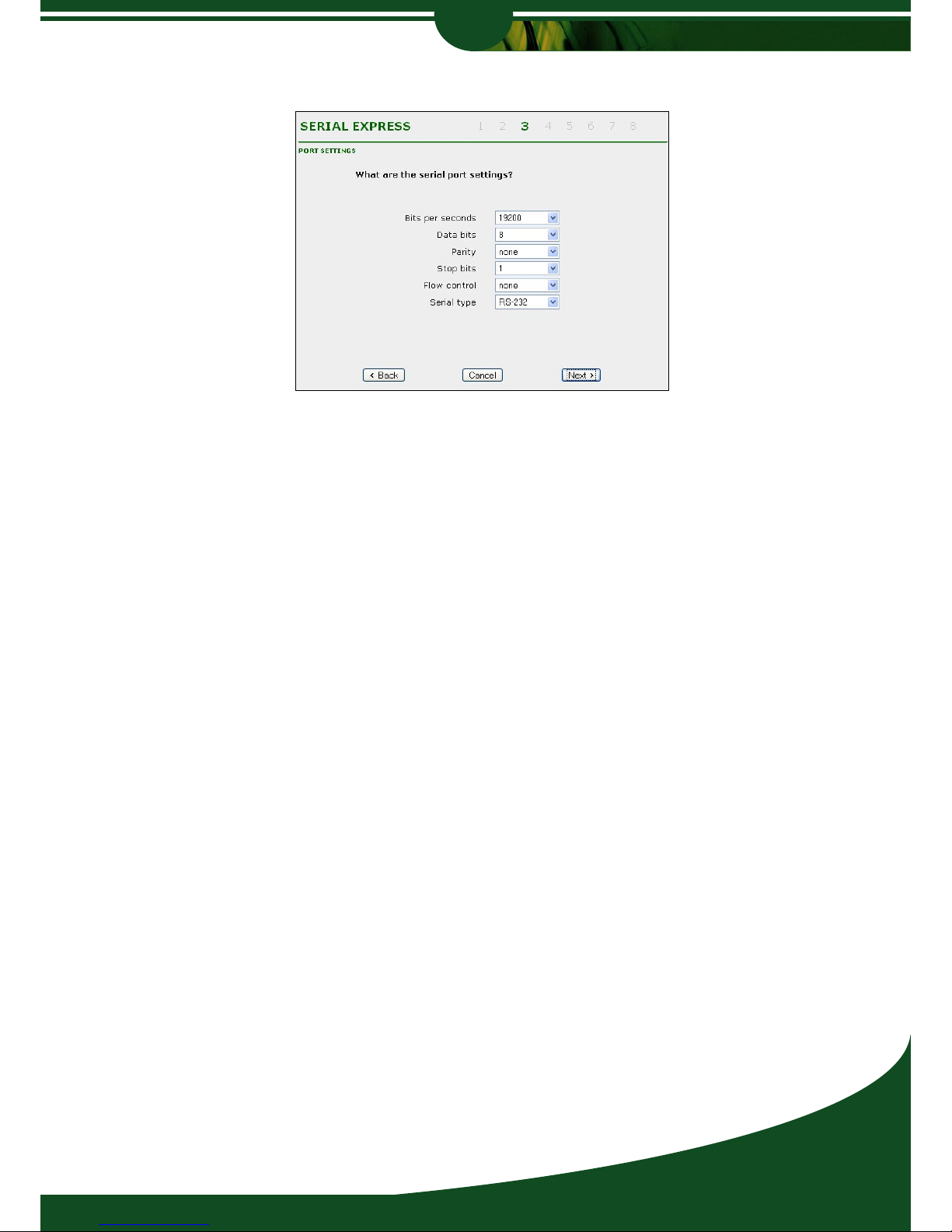

Port Settings 38

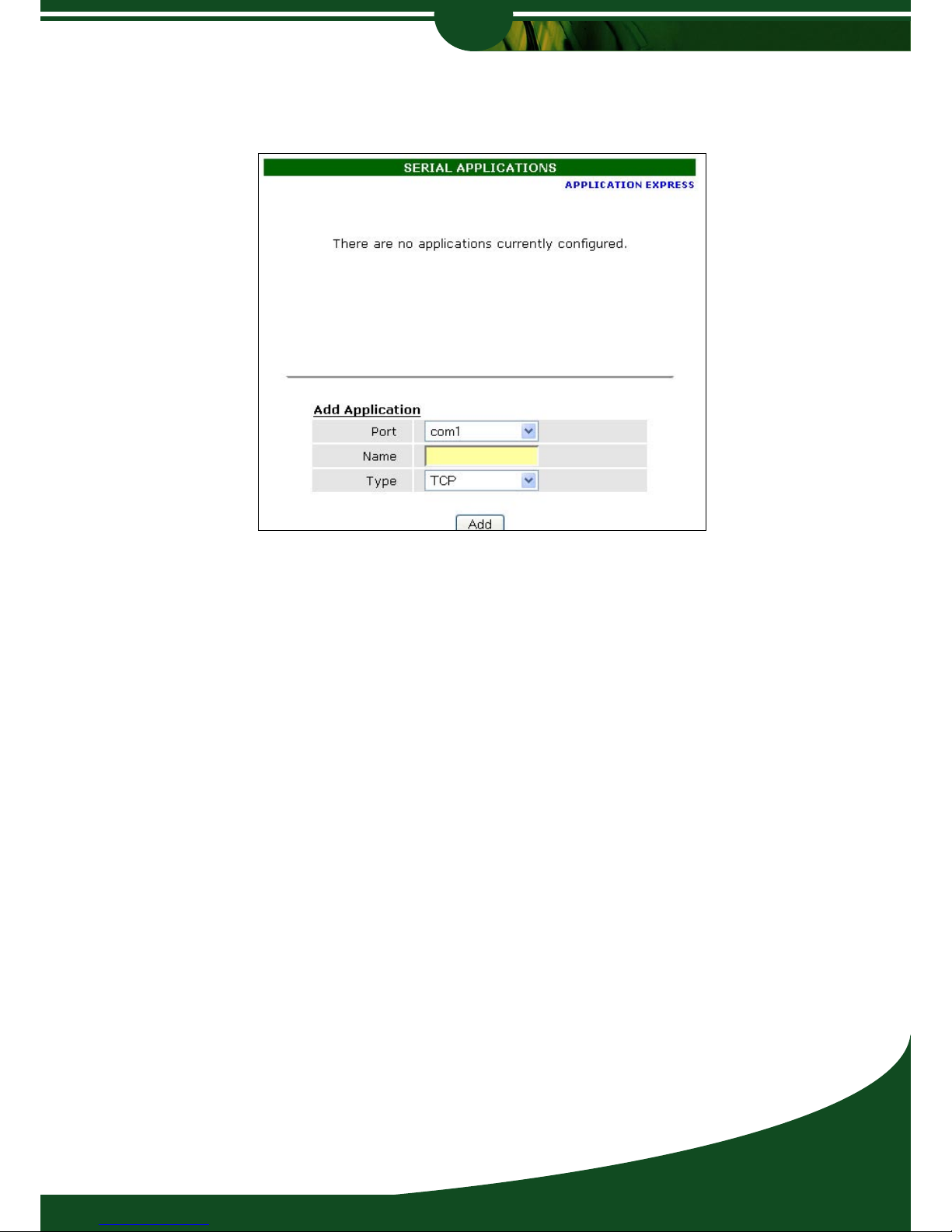

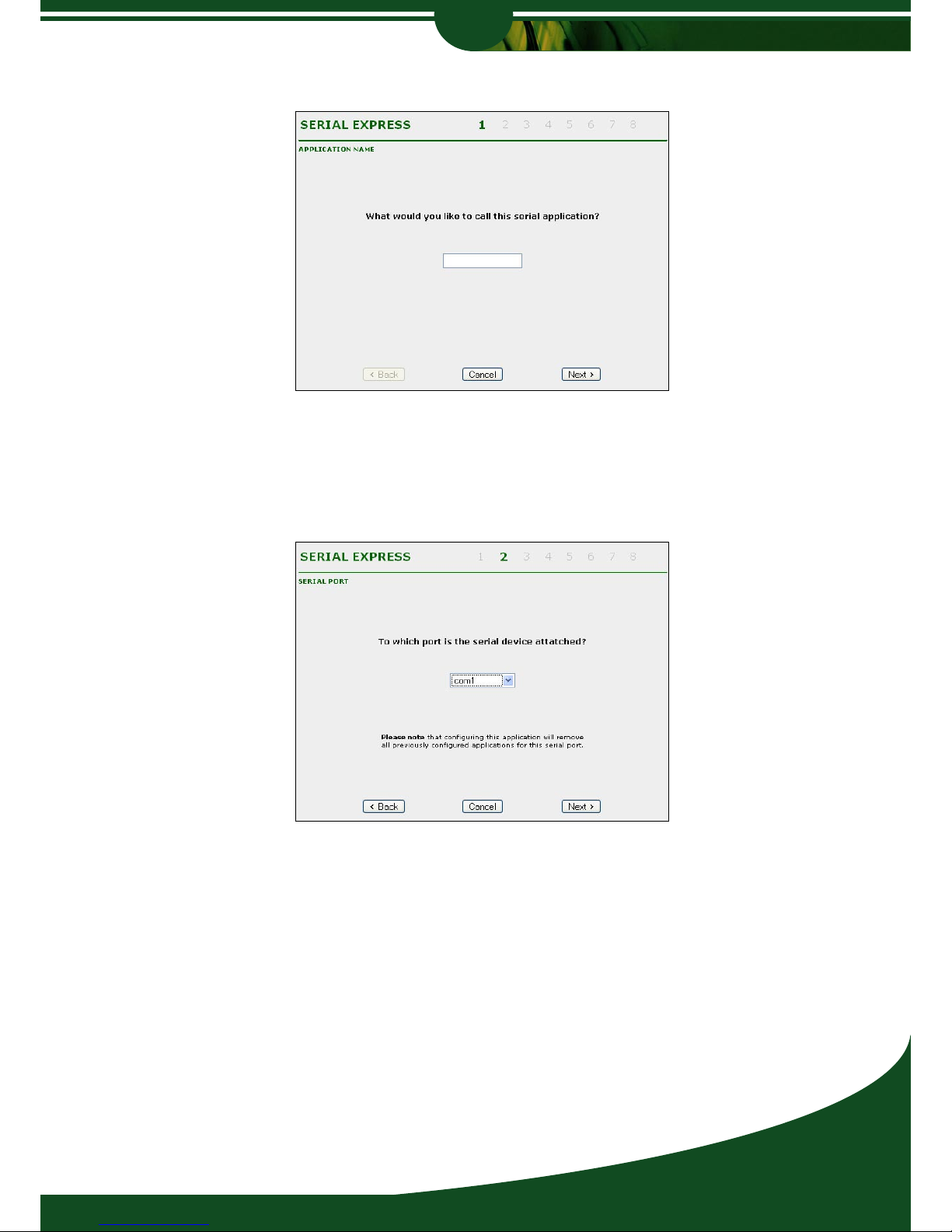

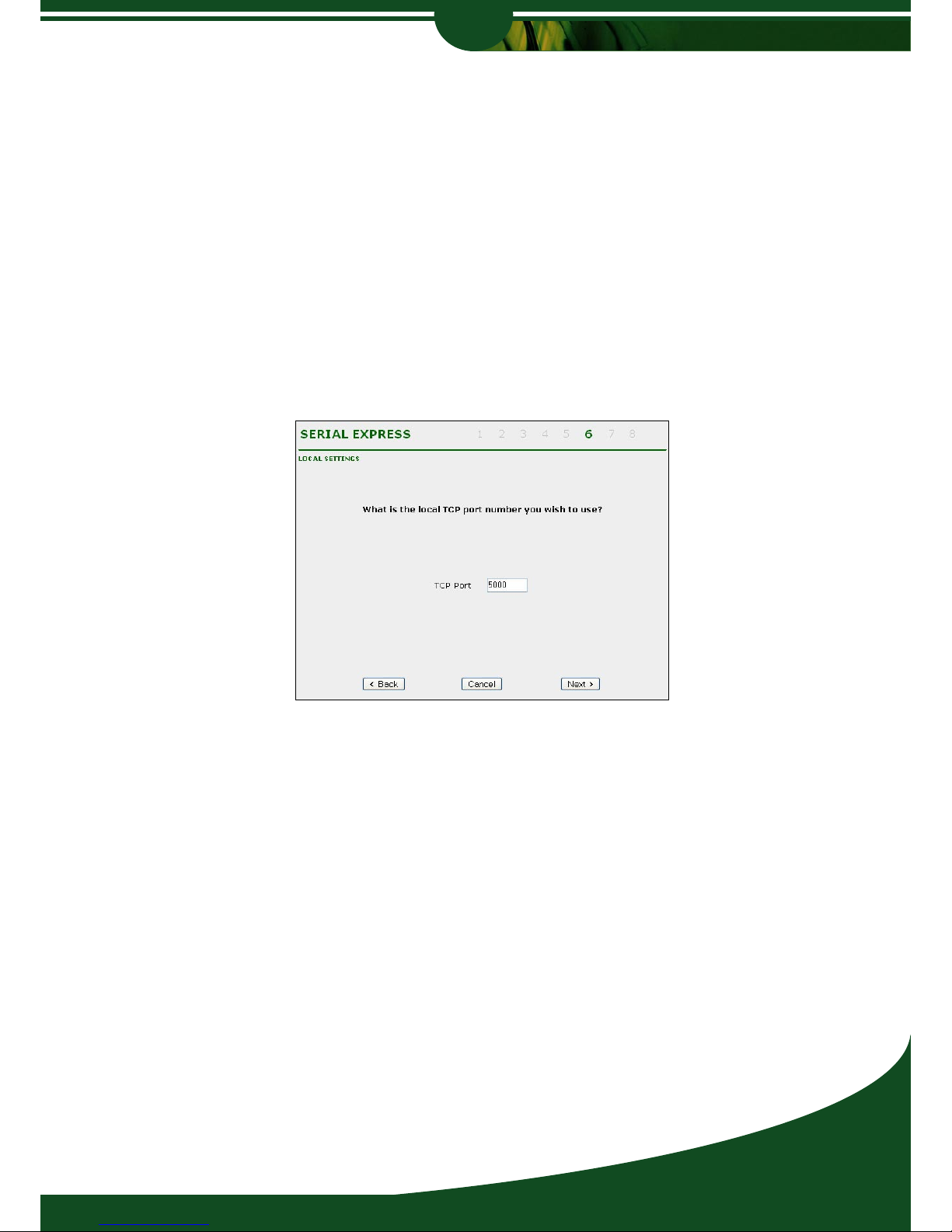

Applications 40

Configuration File Upload 46

Monitoring and Support
47

Monitoring 48

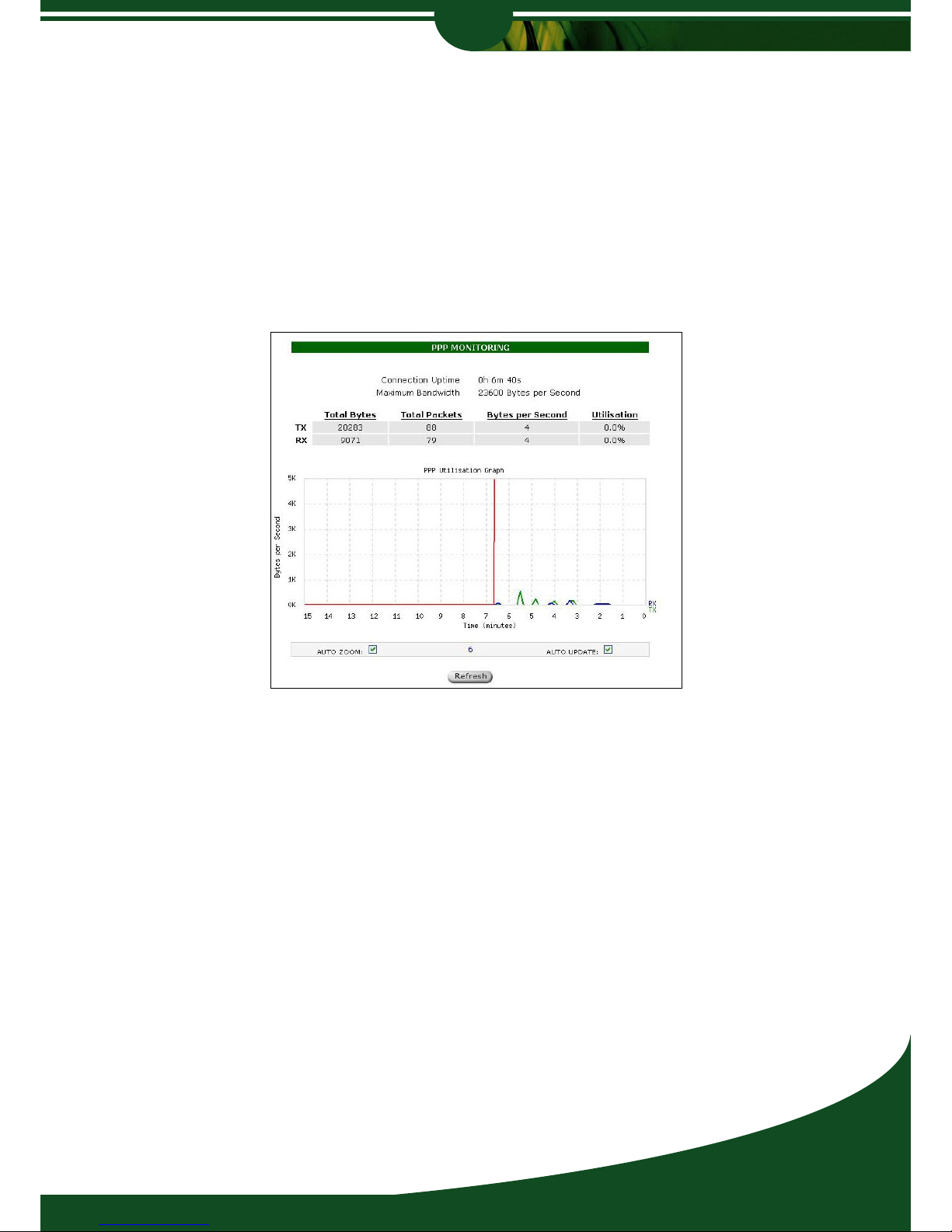

PPP Connection 48
Routing Table 50
Firewall Log 51

Example of Firewall Log 51

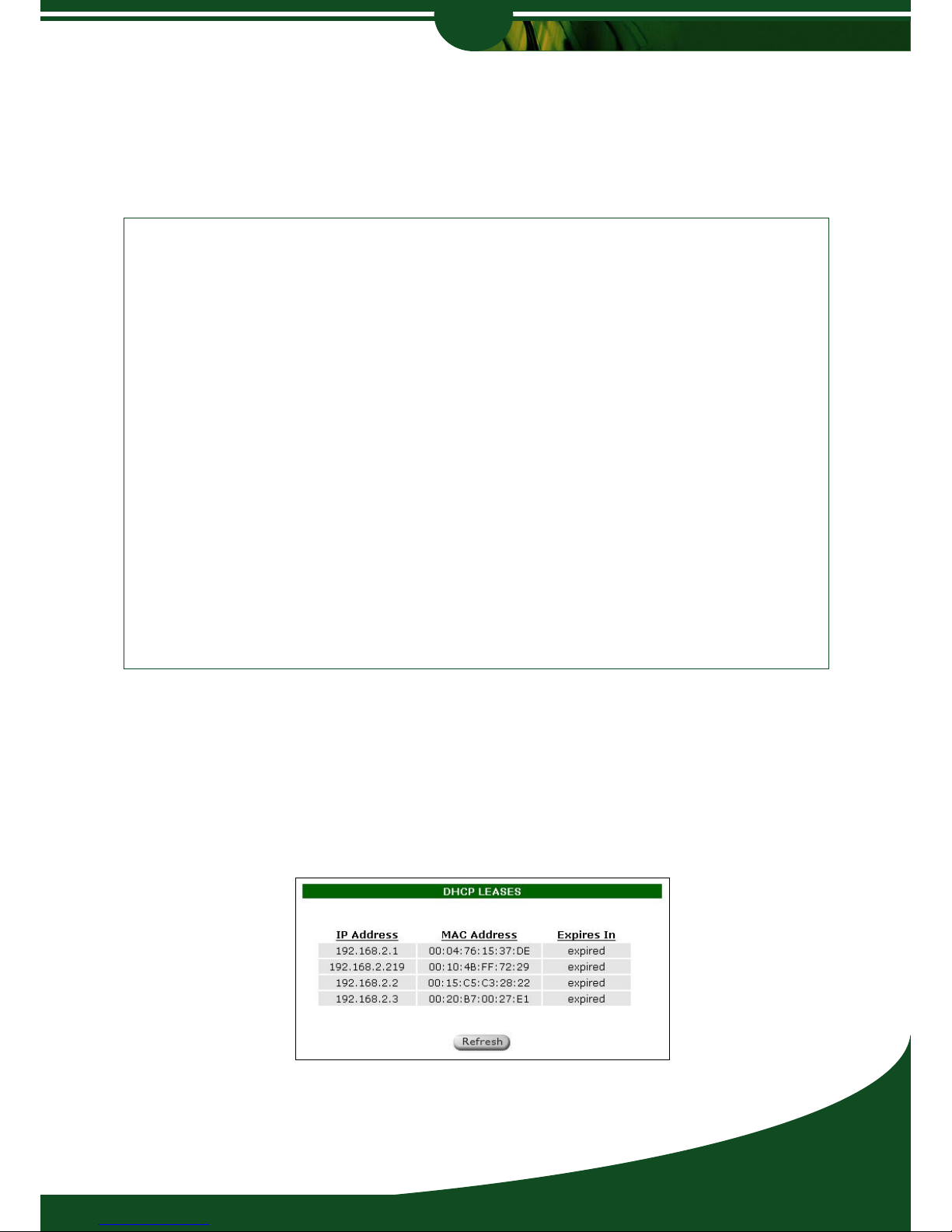

DHCP Server Log 51
Connection List 52
Mobile Network 52
Support 54

Config Info 54

Config File 55

System Log 56

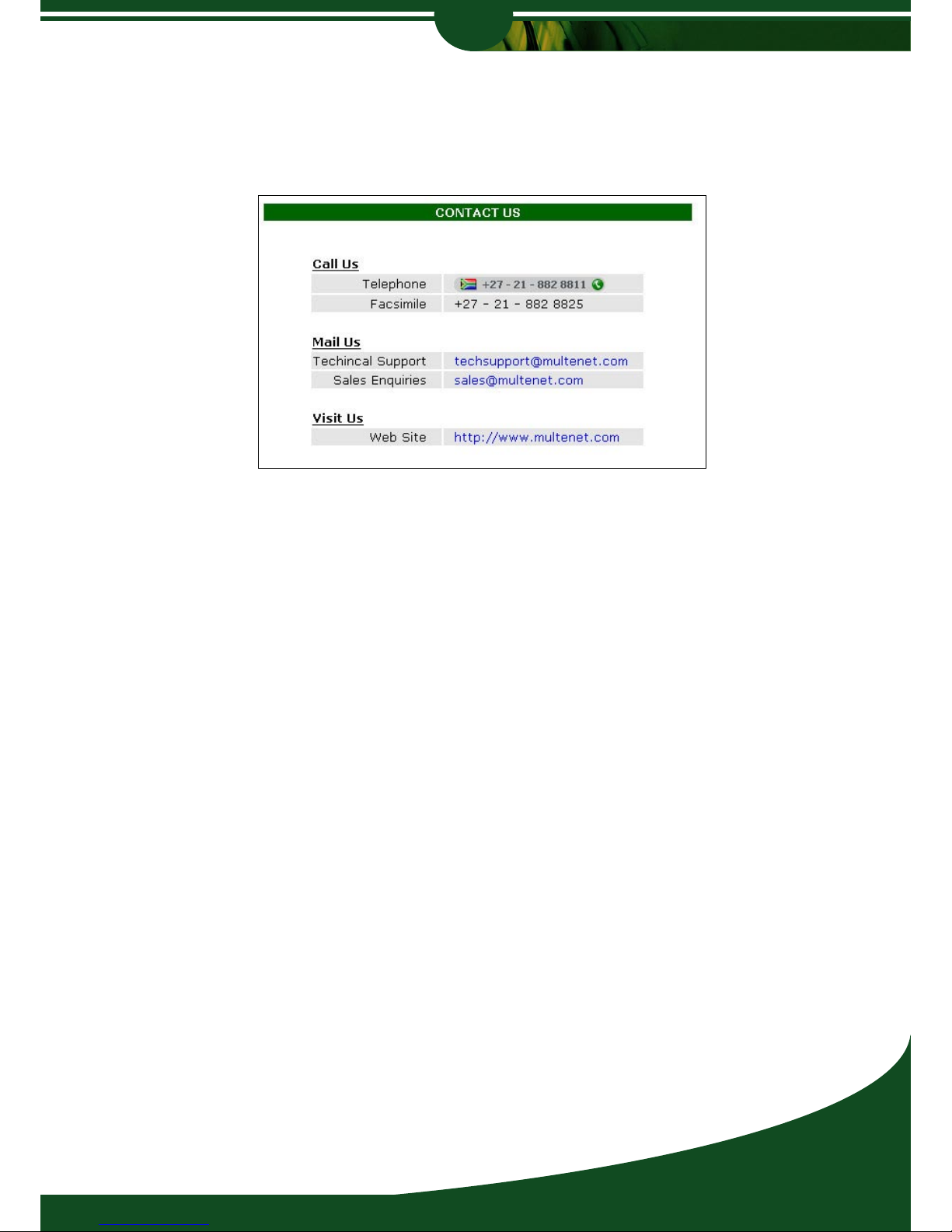

Contact Us 57
Tools 58

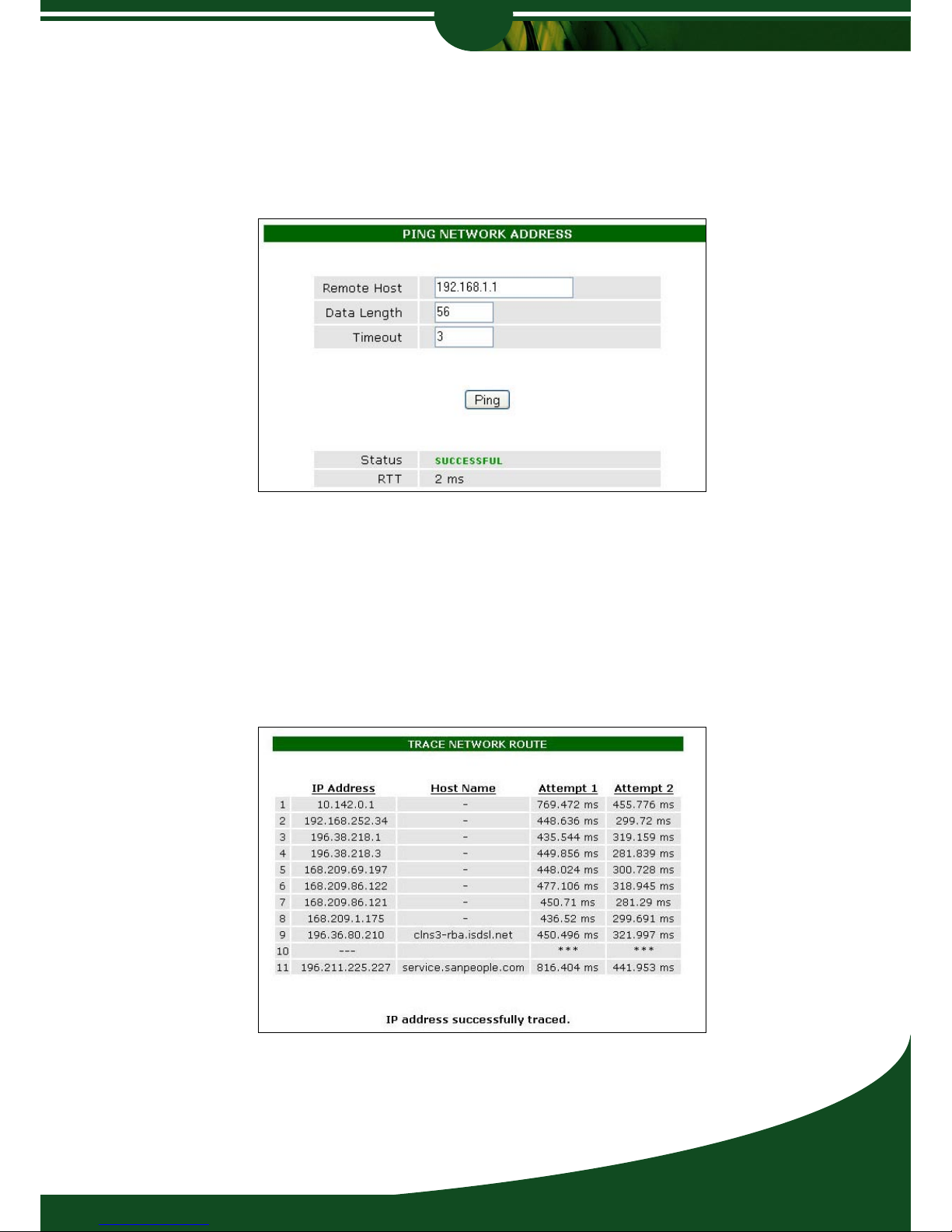

Ping 58

Traceroute 58

SMS Services 59

UPGRADING

Firmware upgrade 61

TROUBLESHOOTING
62

Verifying MAC Addresses 62
Ping 63
ARP 63
Traceroute 63
Telnet 64

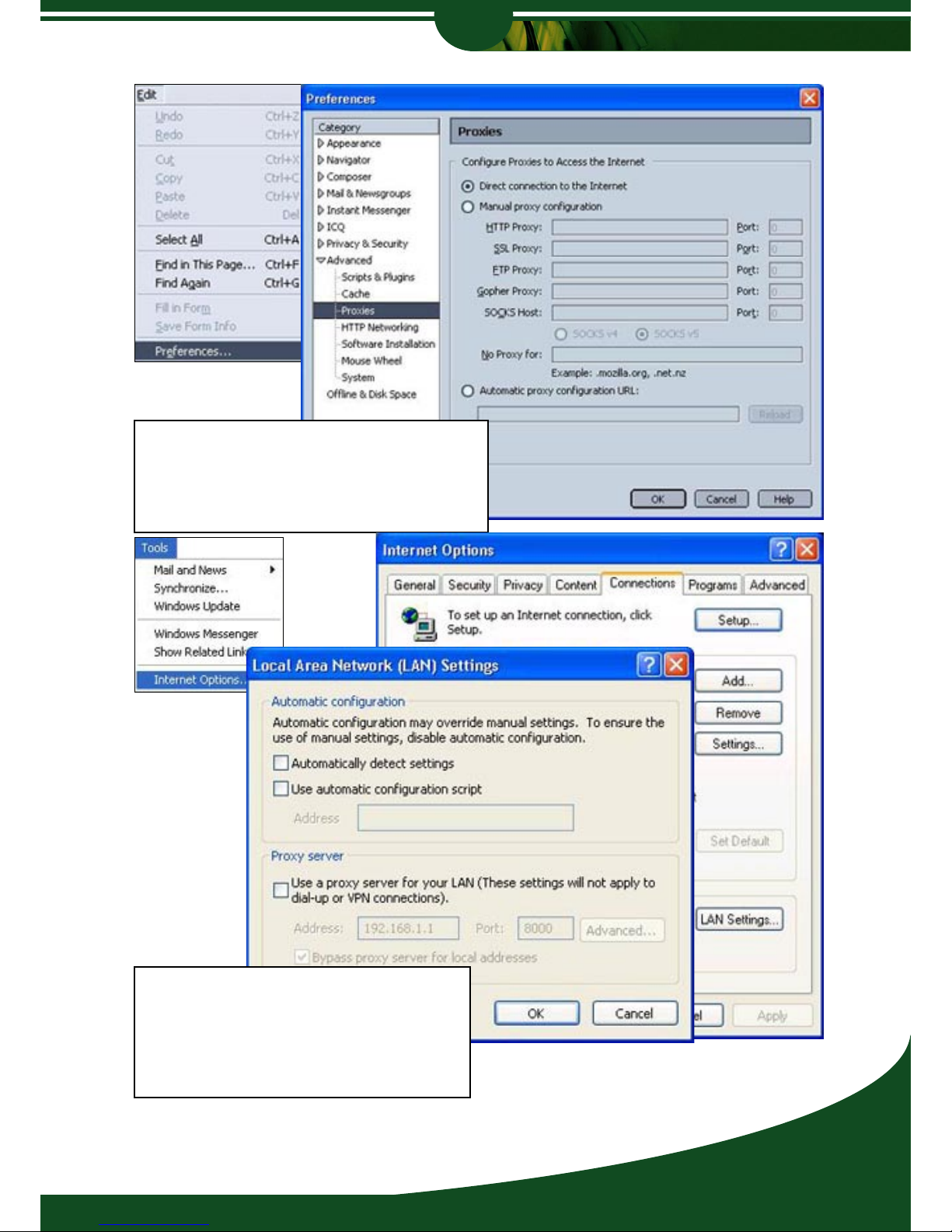

Web Browser Proxy Settings 64
Recovering from a Lost Password 66
System 67
Serial Interface 67
Network Interface - 10/100 Base-T 67
GSM 67
Mobile Network 68

Manual

5

Manual

Wireless Routers

APPENDIX
69

Interface Pin-outs 71

Network Interface 71
Serial Interface 71

RS-422 Serial Interface Pin-out 72
Cables 73

Crossed Serial Cable 73
Full Crossed Serial Cable 73
Null-Modem Crossed Serial Cable 74
Straight Serial Cable 74

NOTES 75

Wireless Routers

6

Introduction

INTRODUCTION

The chapter provides information on functionality and provides an overview of wireless
communication technologies.

Introduction

7

Introduction

Wireless Routers

Introduction to the Wireless Routers

Wireless Connectivity

To determine which wireless technology is best suited for your application, the following
guideline will give you some indication of the differences in these technologies.

GPRS

GPRS is a basic low speed GSM data service offered by most GSM operators. It has a
basic upload speed of 11kb/s and a download speed of around 44kb/s. Although GPRS is
very reliable and almost universally available where GSM exists, it has a major drawback of
relatively long latency times with an average latency of around 700 – 900mS. GPRS is ideal
for telemetry applications (meter reading, remote monitoring of devices etc.) or low speed
transaction based systems such as ATM’s but it is unsuitable for video links.

EDGE

EDGE is an enhancement to GPRS which is effectively four times the speed in both the
upload and download directions (i.e. 176Kb/s down and 44kb/s up). It is however not as widely
available as GPRS, but is capable of providing low to medium grade streaming video due to
the higher bandwidth and lower latency.

UMTS HSDPA

HSDPA is an advanced technology which provides very high speed wireless mobile data.
Current speeds are 7.2Mb/s in the download direction depending on the network’s capabilities.
Because of the above, HSDPA is ideal for almost all applications which need reliable, high
speed networking. Applications include remote signage high quality CCTV and provision of
internet access to areas with no access to wired services.

HSUPA

HSUPA is the latest release of high speed wireless network which offers significantly improved
uplink speeds as denoted by the ‘U’ in the name. Uplink intensive applications such as CCTV
will benefit considerably from this technology.

Wireless Routers

Mobile Router

The Mobile Router is capable of connecting to GSM/GPRS/EDGE networks. Typical applica­tions are where reliability is important, but high speed is not a priority such as ATM machines,
credit cards authorizations and telemetry.

Broadband Router

The Broadband Router is capable of connecting to UMTS HSDPA / HSUPA networks. Typical
applications include remote office connectivity and CCTV video streaming.

Wireless Routers

8

Introduction

Product Features

The Wireless Routers have one RS-232/422/485 Serial interfaces, a integrated EDGE or
HSDPA modem depending on model, dual SIM slots and a single 10/100 Base-T Ethernet
interface.

A Wireless Router is capable of connecting a number of Ethernet devices via GSM/GPRS/
EDGE networks on the Mobile Router, or UMTS/HSDPA networks on the Broadband Router.
With always–on and DUAL SIM card technology they provide easy to deploy access to central
servers and the Internet via GSM networks. The Wireless Routers are capable of maintaining a
permanent PPP connection or alternatively making a connection on demand (dial-on-demand)
to the distant network. It also allows you to dial into an Ethernet network to access devices on
that network or dial out of an Ethernet network to connect to a remote RAS server.

Some of the features supported by the Wireless Routers are:

IP Masquerading, which allows one or more computers in a network without assigned IP
addresses to communicate with the Internet.

Port Forwarding, (sometimes referred to as tunnelling) which is the act of forwarding a network
port from one network node to another, can also be enabled.

The Firewall feature on the Wireless Routers allow you to implement security by setting up
Access Control rules. The Firewall feature allows you to control your connection denying any
unwanted traffic or simply viewing what traffic is passing through the Wireless Routers.

Another feature on the Wireless Routers is a DHCP server to dynamically allocate IP
Addresses to hosts connected to the Ethernet network.

VPN functionality is standard on the Wireless Routers, providing reliable and secure communi­cation between the Router and your corporate network.

Introduction

9

Introduction

Wireless Routers

Security

Securing your Wireless Router is done on various levels. Authentication is required for
configuring the Wireless Routers. The administrator username is ‘root’ with the default
password being ‘xxx’. It is recommended that you change this password to protect against
unwanted configuration changes on the Router.

NOTE: DO NOT lose your password. If both the Bootloader and System passwords

are lost, you will need to send your Wireless Router back to Multenet to be
reprogrammed. There is a cost associated with this recovery procedure. You are
able to recover from a lost System password by erasing the Dataflash using the
Bootloader login. The firmware will then need to be uploaded via serial.

Firmware Updates

Multenet continues to develop its products extensively, with new firmware releases available
regularly. New releases may contain new protocols, new features, bug fixes, performance
improvements, etc.

These firmware updates can be downloaded from the Multenet website:

http://www.multenet.com/support/downloads.html

Alternatively, contact your local distributor or email Technical Support.

Firmware can be uploaded to the Wireless Routers via EtherPAD Explorer V1.5.2 and above
(included on CD).

Wireless Routers

10

Getting Started

GETTING STARTED

This chapter provides information on connecting your Wireless Router to the network. The
Wireless Routers operate on the GSM network and it is important to take signal strenth and
quality into account when installing these devices.

Getting Started

11

Getting Started

Wireless Routers

Inserting SIM cards

The Wireless Routers support Dual-SIM so that a second service provider can be used as a
backup should your primary service provider become unavailable.

On the front of the Wireless Routers, there are two SIM slots in which the SIM cards are
inserted. SIM slot 1 should be used for your primary service provider, and SIM 2 for the
secondary or backup operator. To insert the SIM cards, insert the SIM into the drawer which is
ejected by depressing the release button next to the SIM drawer. Ensure that the trays are fully
inserted before starting up the router. For a single SIM configuration the SIM1 slot should be
used.

Note: Your Subscriber Identity Module (SIM) card
is not included and must be obtained from your local
Cellular Service Provider.

A data enabled SIM card is required for

operation of

the Multenet Wireless Routers.

Attaching the Antenna

Antennas are supplied with Multenet’s range of wireless routers.

Attach the antenna to the connector on the front of the Wireless Router and fasten by turning.

In some cases, a combination of factors can mean that a suitable signal can only be obtained
by the use of additional optional antennas.

These issues include:
a. If the unit is inside a metal enclosure such as a DIN rail cabinet
b. Proximity to interference generating equipment such as large machinery
c. Distance from the nearest cell site
d. Shielding by concrete reinforcement (e.g. within a large shopping mall)

In these cases, contact Multenet to obtain information on installing aditional antennas.

Wireless Routers

12

Getting Started

10/100 Base-T Ethernet Network Connection

Connect to your router via the Ethernet Network through a 10/100 Base-T switch/hub or
directly via straight or crossover Ethernet cable.

Serial Port Connection

The Router is a DTE (Data Terminal Equipment) device. You need to choose the serial
cable best suited to your serial device. A number of cable options are available:

• Crossed Serial Cable (most commonly used).

• Full Crossed Serial Cable.

• Null-Modem Crossed Serial Cable. Connect to another DTE (Data Terminal Equipment)
device, such as a PC.

• Straight Serial Cable. Connect to a DCE (Data Communications Equipment) device such
as a Modem.

Configuration of the Wireless Router

There are a number of methods to configure the Router:

• Web Browser Configuration

• Configuration File Upload

• Telnet or Serial configuration

• BootP/DHCP

These configuration methods will be explained in the next chapter.

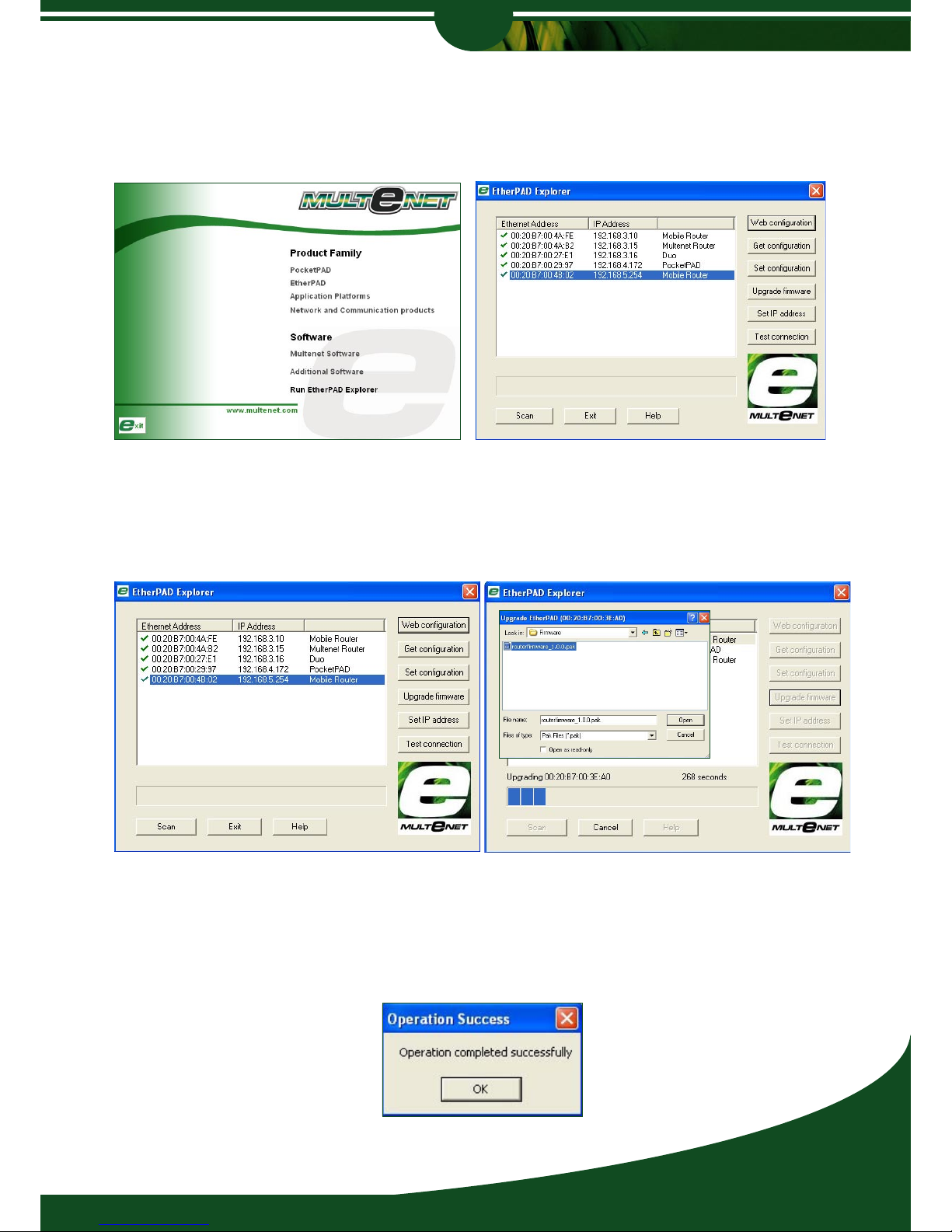

Discovering Multenet Devices

Please ensure that your system firewall is disabled, launch EtherPAD Explorer and click on
‘Scan’ to discover any Multenet devices on your local subnet.
or
Select [Run EtherPAD Explorer now] from the Autorun Menu to launch the executable from
the CD, then click on scan to start discovery.

Note: EtherPAD Explorer executable is available on
the Multenet Product CD, along with the installation for
MS Windows PCs

Getting Started

13

Getting Started

Wireless Routers

Click [Scan] in EtherPAD Explorer to find Wireless Routers and other Multenet products on
the local Ethernet segment. A broadcast is sent out to which Multenet products respond to. A
new device will have no IP Address set, unless a DHCP server is setup and has issued the
Router an IP Address. Identify the MAC Address on the Router to verify that the unit is online.
Multenet devices on remote segments and networks will not be seen by EtherPAD Explorer as
routers will block the broadcast.

You will need to [Set IP Address] to configure the Router via TCP/IP. Make sure the IP
Address falls in your local subnet. Ask your Network Administrator should you have issues
getting these details.

The default Root password is ‘xxx’. If an IP Address has already been set, it may be that the
DHCP server has assigned the network parameters. The Router, by default, is set to obtain an
IP Address from a DHCP server.

Wireless Routers

14

Getting Started

You can [Test connection] to check if the Router is reachable via TCP/IP. If the test fails,
check your IP Address and Subnet Mask settings.

Check that the IP Address you enter is not used by another host on the network. Duplicate IP
Addresses may cause unwanted network disruptions. Check the Troubleshooting Guide for
more fault-finding tips.

15

Configuration

Wireless Routers

CONFIGURATION

This chapter provides information on configuring your Wireless Router.

Wireless Routers

16

Configuration

Configuration Overview

There are a number of methods to configure the Router:

• Web Browser Configuration via network using a Web Browser.

• Configuration File Upload via network using EtherPAD Explorer.

• Telnet or Serial configuration via network using a terminal application.

• DHCP/BootP with TFTP automatically via network servers.

Three steps are required to configure the Router for operation:

1. Configure the Router’s IP Address, Network Mask and Gateway IP Address.

2. Configure PPP to connect to your service provider.

3. Configure the Serial communication parameters. (Optional)

Configuration

17

Configuration

Wireless Routers

Web Browser Configuration

Requirements

- Ethernet connection. A computer with an Ethernet port or a Local Area Network (LAN).

- A web browser such as the Internet Explorer or FireFox installed on your PC.

Check your web browser proxy settings

If your web browser is configured to use a proxy server, you may have problems connecting to
the configuration pages on your Router. In this case, disable the proxy server in your browser.

Open Web configuration

Select your Wireless Router in EtherPAD Explorer and click [Web configuration] to launch
your Web Browser.

Log into Web Configuration

Log into the Router (‘root’ with default password ‘xxx’) by clicking [Enter Configuration].

Wireless Routers

18

Configuration

Home

Logging in displays the home page.

Home Page Menu

SUMMARY

Summary displays useful information, and allows quick access to options such as configured
Serial Applications, Mobile Network status and PPP connection status and configuration.

QUICK START

The quickstart tabs are designed as a guideline to enable fast configuration of the Wireless
Router, using a structured approach and by utilizing configuration wizards for the setup of
the network configuration, SIM PIN, PPP and serial applications.
This is the recommended approach for setting up the Wireless Router.

NAVIGATION

Use the Navigation Bar on the left hand side of the page to navigate through the configuration
options of the Wireless Router. This manual will describe the different configuration options to
you by order of the navigation menu.

APPLY CHANGES AND SAVE/REBOOT

Once you have made configuration changes, you will need to click on ‘Apply Changes’ on the
navigation bar which will take you to the ‘Save and Reboot’ screen.

Reboot with new settings - Your changes will be saved and implemented

after reboot.

Reboot with old settings - Cancel your changes and reboot with the old

configuration.

Reboot with factory default settings - Remove all changes made (old & new).

The Router boots with the original default
settings.

Configuration

19

Configuration

Wireless Routers

Management

Management Settings provides options to change the Root password, and various device
specific parameters.

Security

The administrator username is ‘root’ with a default password being ‘xxx’. It is recommended to
change the password before deployment.

DO NOT lose your password. If you have lost a password, check ‘Recovering from a lost

password’ in the Troubleshooting chapter.

System Information

System Name - Identify your Router with this label. Handy if you have many devices
on the local network.
System Location - Set a Location name label for your device.
System Contact - Enter a contact for this Router (e-mail, name, telephone number)

Date and Time

Date and Time provides options to change the date and time, and to configure the Router’s
NTP server settings. For this device to be used as a NTP time server, you need to first
configure a NTP server for this device to synchronise with.

Wireless Routers

20

Configuration

Local Date and Time

Date - Date should be entered in the format dd/mm/yyyy.

Time - 24h mode time.

Timezone - Select your Coordinated Universal Time (UTC).

Synchronisation

NTP Server - Enter the address of the NTP server you would like to synchronize

with. Network Time Protocol (NTP) provides a solution for the need
to synchronize network devices to an accurate time in a networking
environment. An NTP client synchronizes the time and date with an
NTP server. The NTP server should be a reliable source, such as
a time server on the Internet. A number of free public Internet time
servers are available.

Interval - Select the interval at which you would like the Wireless Router to

synchronise with the NTP time server.

NTP Time Server

Enable Server - Check this box to set up the Wireless Router to act as a NTP server.

This would enable local time synchronisation for your devices with
the Wireless Router.

Note:

For a list of public NTP servers go to www.ntp.org.
You should select the server closest to your location.

Configuration

21

Configuration

Wireless Routers

Mobile

Mobile settings allow the configuration of SIM security and network fail-over options.

Security

SIM PIN - If configured, enter SIM PIN(s) here.

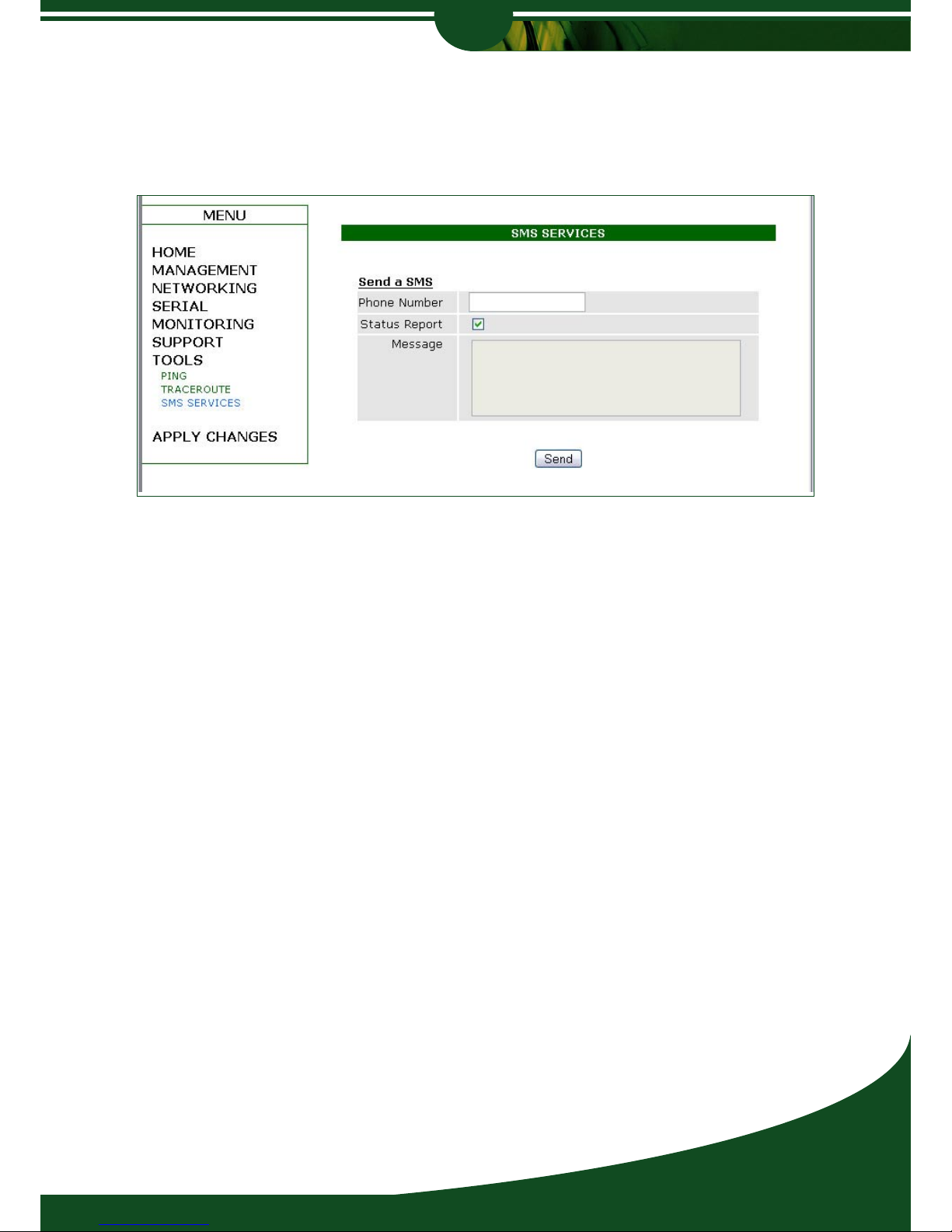

SMS Service Provider

SIM SC Number - Enter the Message Centre Number(s) of you service provider. This is

needed to send SMS messages and SMS Status reports in the ‘Tools’
Menu.

Backup Recovery

The Wireless Router allows you to configure network failover from SIM1 to SIM2. If configured,
the Wireless Router will connect to a secondary or backup service provider should the service
on SIM1 become unavailable. A retry-delay can be set for when the service on SIM1 becomes
available.

Swap SIMS - To activate the Network Fail-over option, check this box.

Retry delay - The amount of time in minutes the Router should wait before trying

to switch to the primary (SIM1) network. A value of zero will result in
the Router only switching back to the alternate SIM when the current
network connection fails.

Wireless Routers

22

Configuration

Networking

Network Settings provides for configuring the Ethernet parameters of the Wireless Router.

Ethernet Parameters

Clicking on ‘Ethernet’ or by selecting ‘Configure Network’ from the quickstart will open the
Ethernet configuration. The Ethernet Parameters allows you to set the IP Address, Subnet
Mask and Default Gateway. Once a static IP address is configured, the ‘Automatically
configure DHCP’ checkbox will be un-checked. Check the box to re-enable DHCP configu­ration. The Gateway can also be set here (all traffic not recognised for the local subnet will be
forwarded to the Gateway IP Address).

Note:

If a Default Gateway is configured, a Default Route
will automatically be created which can be viewed and
modified from the Routing section later in this chapter.

Configuration

23

Configuration

Wireless Routers

PPP (Point-to-Point Tunnelling Protocol)

There are two methods available for setting up PPP on the Wireless Router.

PPP Express - Wizard based setup to help you set up the PPP connection.

(Recommended)

Manual - Manual configuration for setting up a PPP connection.

PPP EXPRESS

Launch the PPP Express Setup Wizard, by clicking on the ‘PPP Express’ link. This will launch
the wizard in a separate browser window as indicated below. The wizard will guide you through
setting up a connection. Depending on your environment, you will have the option of clicking
through and in most cases use the default assigned values. The following steps below show
how to set up a Always-On wireless connection.

1. Connection Type

You have the option for selecting either GPRS/EDGE, also used for HSDPA (Packet Switched),
or GSM (Circuit Switched) for connecting to the remote network.

2.Dial-out Properties

Wireless Routers

24

Configuration

Three options are available to choose from: ‘It should start automatically’ for dial-on demand,
‘Always stay connected’ for a connection that will be permanently connected or ‘I will start
it manually’ in the case you want to manually control your connection. Select ‘Always stay
connected’ and click ‘Next’

3.Networking

PPP IP Addresses
To automatically get PPP IP addresses from the remote server, leave this option checked.
(Recommended). The PPP IP addresses are the IP Addresses used by the Router and the
remote server to associate with the PPP connection. Usually the remote dial-in server will
provide the IP Addresses to use.

Default Route
To use this connection as the default route, leave this option checked. (Recommended)
Enabling the default route option means that all packets not intended for the LAN will be
forwarded over the PPP connection. If the PPP connection is to the Internet then you should
enable this option. Otherwise change the network address and netmask mask fields to
configure exactly which network is on the other side of the PPP connection.

NAT
To hide the internal addresses, leave this option checked. (Recommended)
This is also known as Masquerading. All packets going through the Router over the PPP
connection will seem as if they originated from the Router itself. Masquerading is also used for
added security between the LAN and the PPP connection.

Configuration

25

Configuration

Wireless Routers

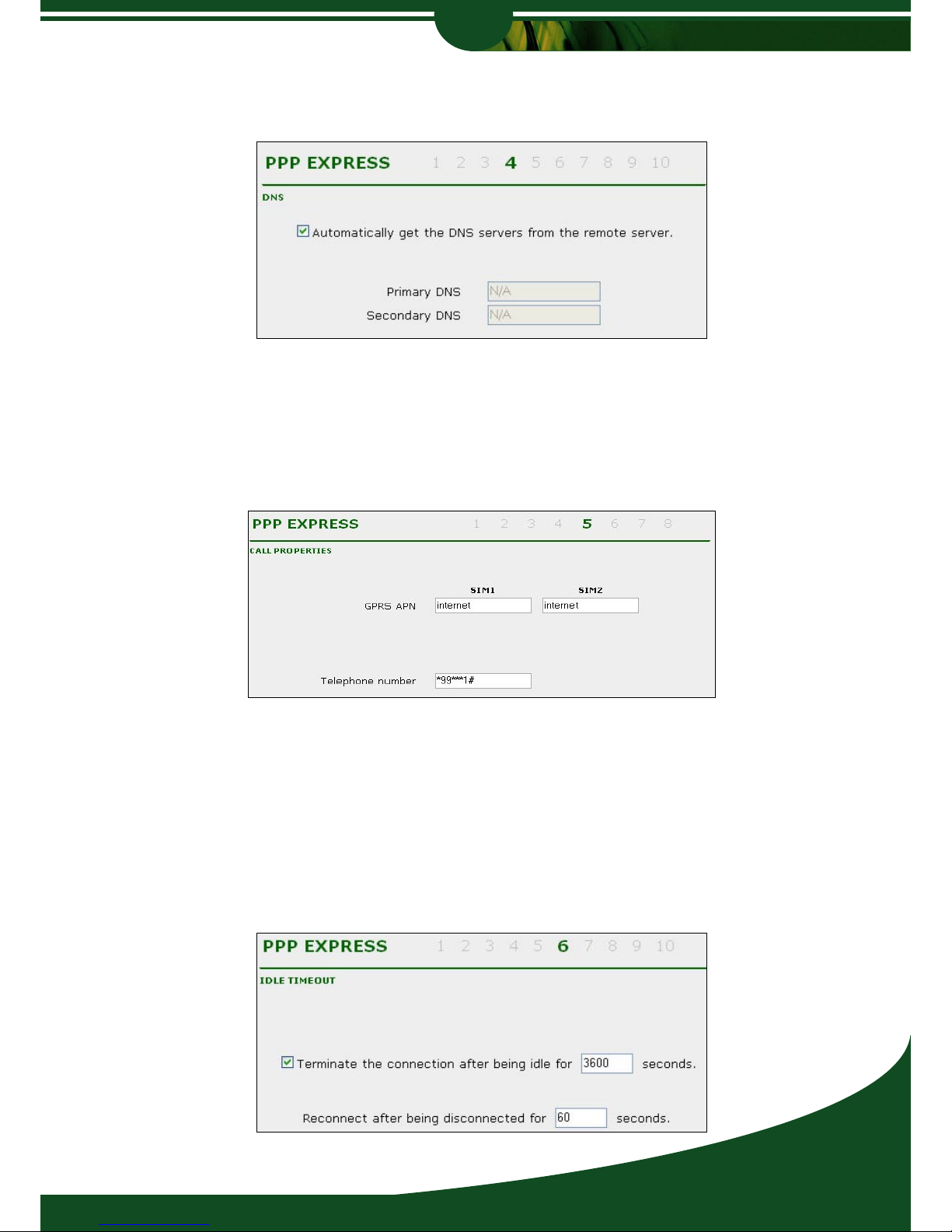

4.DNS

To automatically get the DNS servers from the remote server, leave this option checked.
Domain name servers are used to translate domain names (e.g.. multenet.com) to IP
addresses. Either use the DNS servers supplied by the remote server (recommended) or
manually configure them.

5. Call Properties

The APN (Access Point Node) is the name of the server you will authenticate with via the
wireless connection. This option is only required for GPRS/EDGE/HSDPA connections. For
most mobile networks the APN of “internet” can be used to connect to the Internet. Based on
your selection in step one, default values will be loaded in the fields for the calling properties.
For GPRS/EDGE/HSDPA, no changes need to be made.

6. Idle Timeout

Wireless Routers

26

Configuration

This option will terminate the PPP connection after it has been idle for the configured number
of seconds (recommended). If it is an always-on connection, the connection will re-establish
itself automatically. Valid timeouts are between 1 and 86400 seconds inclusive.

7. Authentication

The username and password is for authenticating (PAP or CHAP) on the node server and
should have been provided by your cellular service provider.

10. Update Configuration

To complete the setup of your PPP connection, click on ‘Update Configuration’. Take note of
the colour change of the ‘Apply Changes’ option in your navigation menu. Your new settings
will only become active once you click ‘Apply Changes’ and then ‘Save and Reboot with new
Settings’

Configuration

27

Configuration

Wireless Routers

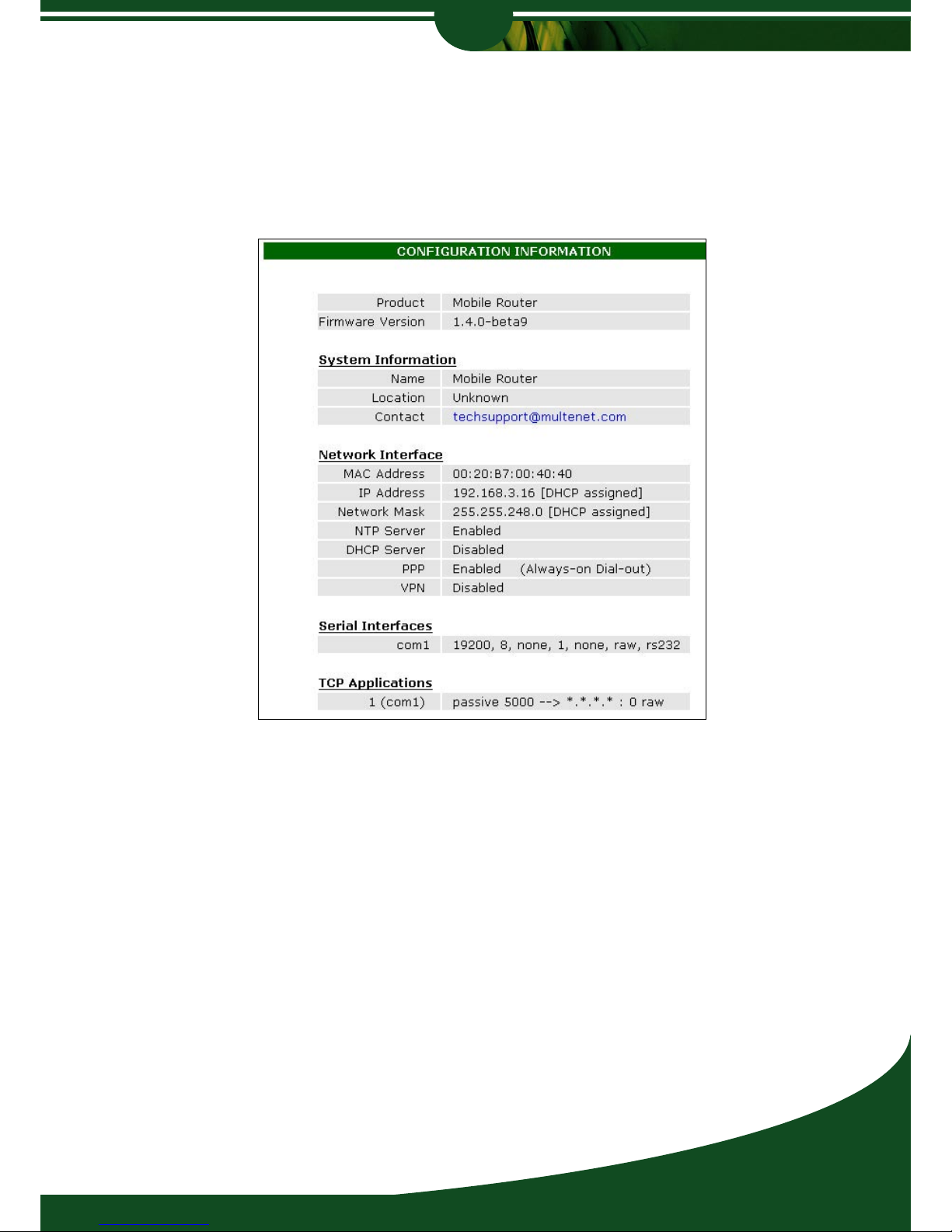

View configuration.

To view the configuration changes you have made. Click on (Networking -> PPP) in the
navigation bar.

Summary of configuration.

Summary as displayed on the Mobile Network page below Monitoring.

At this point, should the SIM be installed correctly, the PIN configured and the PPP settings
configured correctly, a connection could be established. You could view the status of mobile
network and the PPP connection in the Monitoring section or by viewing the ‘Summary’ on the
Home Page. Monitoring will be discussed in depth later in this manual.

Summary as displayed on Home Page.

The next section provides information on how to manually configure PPP account parameters,
or to edit PPP parameters that was set up using the PPP Expres wizard.

Wireless Routers

28

Configuration

PPP MANUAL CONFIGURATION

PPP Account Parameters overview:

Connection Type

Set the type of connection. Depending on your connection type will determine which fields are
available in the PPP configuration.

Offline - The modem will be seen as offline. It will not be used.

Always-on dial-out- Stay connected to a remote PPP device. A Reconnect Delay value is
available to offer a pause between dial-up attempts.

On-demand dial-out- Connect to a remote PPP device when necessary.

Dial-in - Allow remote devices to initiate a connection.

Dial-in and dial-out- Dial-out if data is available to send, otherwise wait for an incoming
connection.

Manual - Manually control connection state.

Configuration

29

Configuration

Wireless Routers

Network

Configure PPP networking.

Local PPP IP - Assign a local IP Address to serial interface if remote unit requests
this. Usually used when configured as an access server (RAS, dial-in).
Default is 0.0.0.0. This default setting indicates that the remote side
should assign this value.

Remote PPP IP - Assign a remote IP Address to serial interface if remote unit requests
this. Usually used when configured as an access server (RAS, dial-in).
Default is 0.0.0.0. This default setting indicates that the remote side
should assign this value.

Masquerade - On an outgoing packet, change the source IP Address to that of the
Router (SNAT - Source Network Address Translation). Any received
packets will have their destination IP Address changed back to the IP
Address of the host which originated the connection. This is
also used for sharing a single IP Address among a whole network
(usually a LAN connected to the Internet with only one IP Address).

Dial out Settings

Set up your dial-out settings for connecting to the GSM network.

Operator Selection- By default, the router automatically negotiates which network operator
to select based on information provided by your service
provider. To manually select your operator when more than one
operator is available, uncheck the Operator Selection checkbox.

Operator - In the case you have opted to select a diffrent operator than the one
assigend as your home operator, a drop down list of the available
operators will be displayed. ‘Home’ indicates that only a single
operator exists.
APN - Enter the name of the APN as per your service provider.

Username - Enter your username as per your service provider.

Password - Enter your password as per your service provider.

Wireless Routers

30

Configuration

Authentication

Set the dial-out/dial-in username, password and authentication type. For dial-out accounts,
only the ‘Username’ and ‘Password’ field is available.

Dial-Out Username- The username of the dial-out account.
Dial-Out Password- The password of the dial-out account.

Authentication- For Dial-In accounts only. Two authentication methods are available.

Type If you are setting up a dial-in account, select your authentication
protocol.

PAP - Password Authentication Protocol.
CHAP - Challenge-Handshake Authentication Protocol

Connection Settings

Specify the telephone number, Idle Timeout, Reconnect Delay and Rings before answer.

Telephone- For GSM dial-out accounts, specify the telephone number of the PPP
number Access Server. For GPRS/EDGE/HSDPA dial-out accounts, enter the value
*99***1# in this field.

Idle - Disconnect after idling for this length of time. Default is 600 seconds. This
Timeout parameter is only applicable with dial-in and manual connections configured.
Acceptable values are between (and including) 0 and 86400 seconds (24
hours). A zero (0) setting will disable the timeout feature.

Reconnect- Redial if the connection has been disconnected for this length of time. Only
delay applicable to Always-on connections.

Rings - Answer incoming calls after this amount of rings on dial-in accounts
(GSM only).

Configuration

31

Configuration

Wireless Routers

Routing

Routing provides a tool to create static routes to different networks. If a Ethernet default
gateway is set, the following default route is seen.

Default Route - To create a default route over Ethernet, PPP or VPN this box must
be checked

Network Address - Specify the remote network’s address. This will create an IP route to
the remote network.

Network Mask - Specify the remote network’s mask. This parameter is only used for
non-default routes.

Interface - Select the interface for which this route applies in the drop-down list.

Gateway address - Specify the IP address of the gateway for this route.

Wireless Routers

32

Configuration

VPN

A Virtual Private Network (or VPN) allows you join two private networks that are separated by the
Internet or other publicly accessible network. The two end points of this “network” are private net­works that are seamlessly connected across a public network creating a “Virtual Private Network”
between them.

To set up a VPN to a remote network, check the ‘Create VPN Tunnel’ checkbox.

Configuration

33

Configuration

Wireless Routers

VPN Type

The Wireless Routers supports two types of VPN Tunnelling:

PPTP Point-to-Point Tunnelling Protocol (PPTP) is a protocol that allows for
extending networks through private “tunnels” over the public Internet.
L2TP Layer Two Tunnelling Protocol (L2TP) is a protocol that allows for extending
networks through unsecured “tunnels” over the public internet.

VPN Server IP Enter the public IP Address of your remote VPN server.

Username Enter your VPN account’s username.

Password Enter your VPN account’s password.

MTU You may need to in some cases change the Maximum Transmission Unit
(MTU) size for the VPN connection. In most cases, this can be left at default.

Use Encryption In the case that you are setting up a PPTP connection, check this box to
enable encryption. The Wireless Router supports 40bit and 128bit
encryption. If you are connecting over L2TP, encryption is currently
not supported.

Note: VPN Routing

Once you have completed the configuration for your
VPN server, you will need to set up a route to the
network of the VPN server in the ‘Routing’ configu­ration page. If you wish to configure the Router to use
the VPN as a Default Route, you will also be able to
set this up on the Routing page.

Note:

When terminating a L2TP VPN on a Microsoft server,
IPSec will need to be disabled. Please read the
Microsoft Knowledge base article for instructions on
disabling IPSec.
http://support.microsoft.com/kb/310109

Wireless Routers

34

Configuration

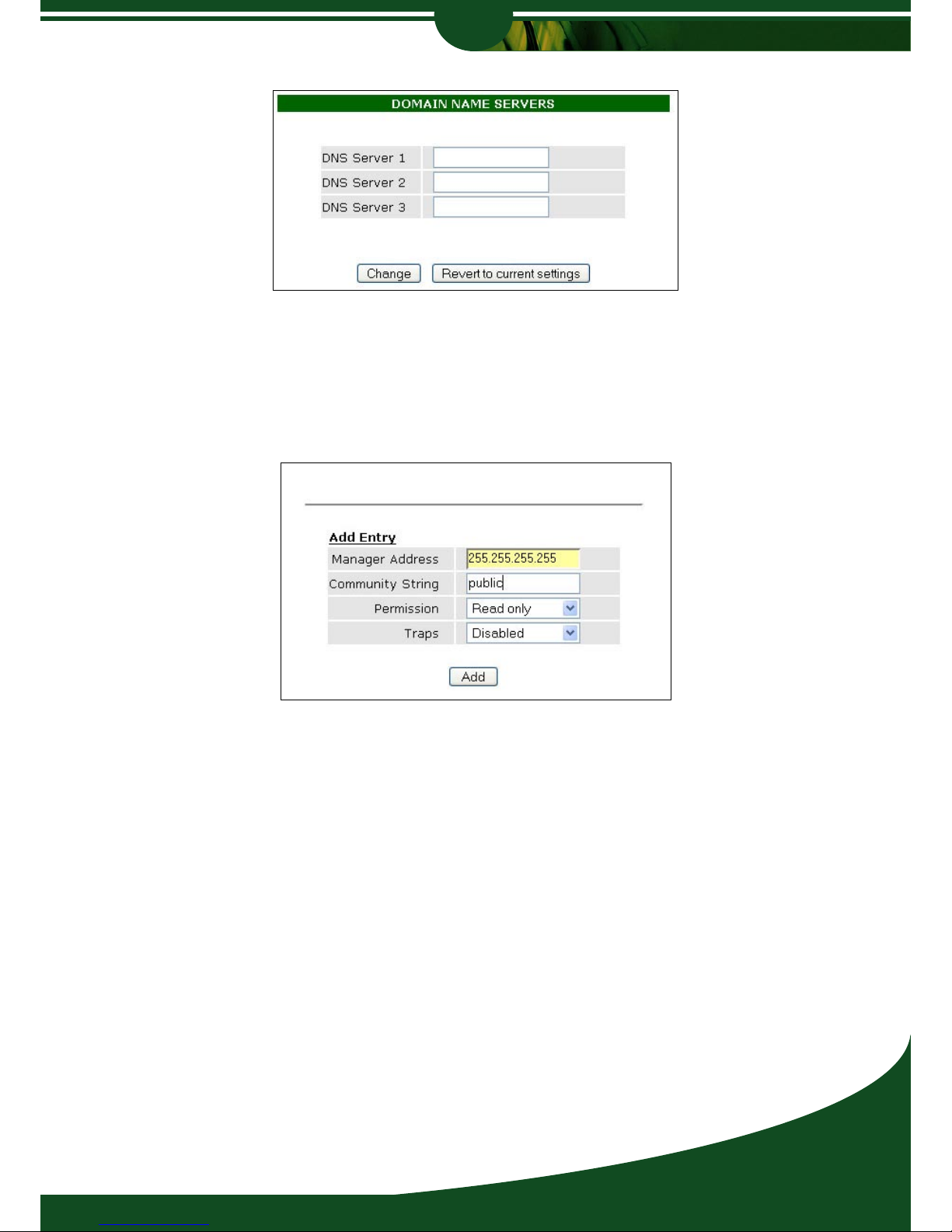

DNS (Domain Name Server)

Domain Name Server IP Addresses can be configured here if you wish to use hostnames
instead of IP Addresses, you can use Hostnames (i.e. demo.multenet.com). The DNS must be
reachable for this feature to work successfully. The Gateway IP Address needs to be set if the
Domain Name Servers are located outside the local subnet.

SNMP (Simple Network Management Protocol)

SNMP allows you to monitor the Wireless Router from a SNMP manager. By default, the
SNMP MIB can be read by any manager on the Ethernet network.

You can configure the passwords for SNMP access. Default password for Read-Only access
is ‘public’.

Manager Address - IP Address of the SNMP Manager. To allow connection, from any

SNMP Manager, specify 255.255.255.255.

Community String - password to access the SNMP MIB.

Permission - read only Managers can only read values

read/write Managers can also write to MIB variables.

Traps - disabled No traps to be sent to SNMP Managers

snmp v1 v1 type SNMP traps to be sent to configured Manager
snmp v2c v2c type SNMP traps to be sent to configured Manager

Configuration

35

Configuration

Wireless Routers

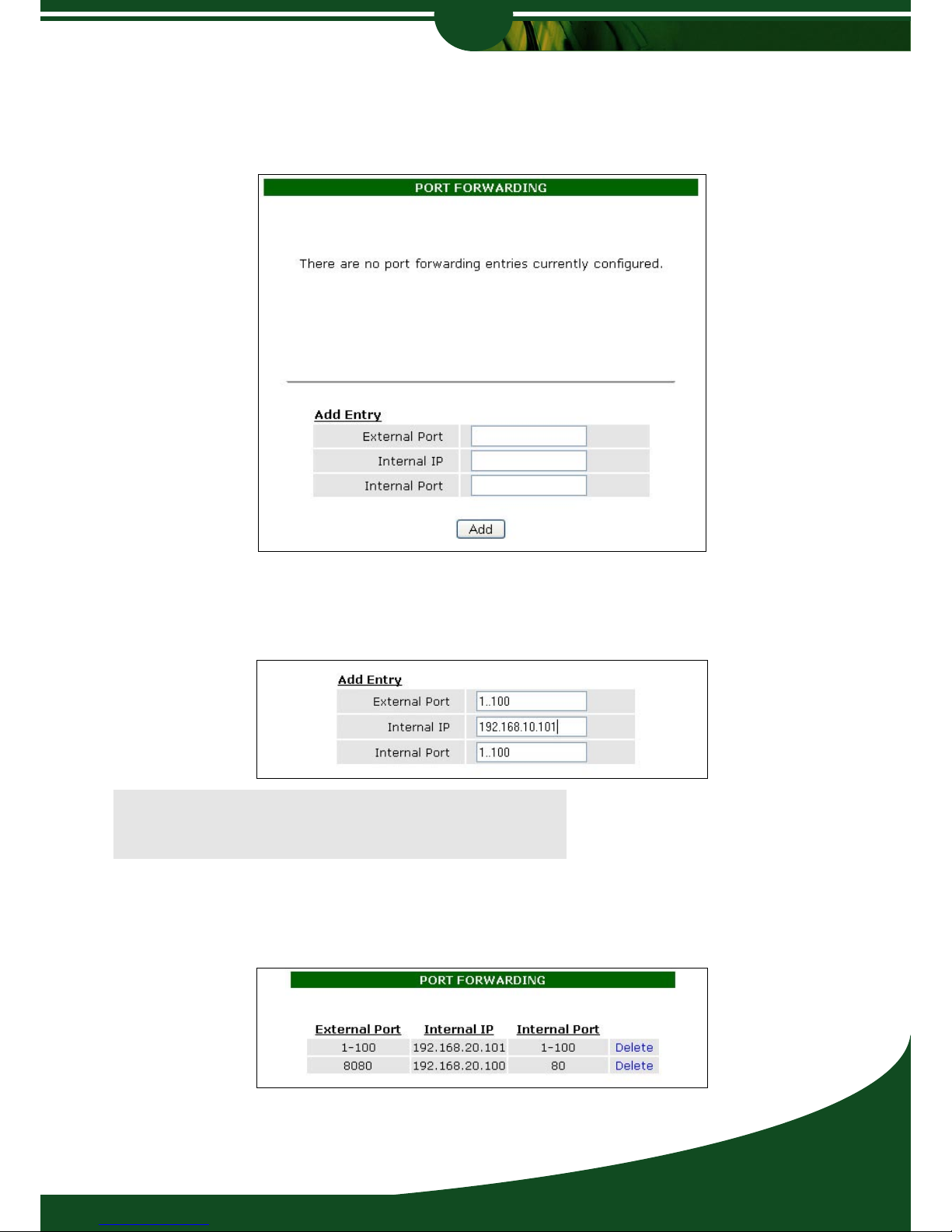

Port Forwarding

Port Fowarding is used to implement Port Address Translation (PAT). An incoming connection
to the Wireless Router’s PPP IP Address and a specific port will be forwarded to an internal
host and port.

Port Forwarding is usually used in conjunction with Masquerading.

Note:

A range of ports can be specified using two dots “..”.

The example below shows that port 1 to 100 are redirected to port 1 to 100 on IP address

192.168.20.101, while port 8080 is redirected to IP address 192.168.20.100 port 80 (HTTP)

Wireless Routers

36

Configuration

DHCP

DHCP allows you to assign IP Addresses to hosts connecting to your LAN, which don’t have IP
Addresses and have a DHCP client enabled.

To set up the Wireless Router as a DHCP server, check the ‘Enable DHCP Server’ box. Once
enabled, you will have the option of configuring the range and the lease time. You will only be
able to specify a range within your current network. Valid lease time is between 5 and 1440
minutes (1 day) inclusively.

Firewalling

Firewalling allows you to restrict traffic entering or leaving your network. Rules are applied to
incoming and outgoing packets and the packet will be forwarded if is satisfies all the rules.

You can enter a maximum 25 Firewall rules on the Wireless Router.

In the example below, the first line states that TCP packets received on any PPP Interface with
a destination on the LAN on port 5000 will be allowed through.
The second line states that all other traffic is denied.
If the first line applies, the rest of the rules are skipped. If the rule is for logging, the following
rules in the list will be evaluated.

The default rule is to accept all packets through the Router, allowing all packets unrestricted
access through the Router. Should a VPN be configured, any firewall rules attaining to the PPP
interface will apply also to the VPN interface.

Configuration

37

Configuration

Wireless Routers

Rules can match packets based on any combination of:

- Source interface

- Source IP (and Network mask)

- Source port

- Destination interface

- Destination IP (and Network mask)

- Destination port

- Protocol

For each rule you have the option of any one of the following actions.

(i) Drop Packets matching this rule are discarded and will not continue through the

Router.

(ii) Deny If the rule matches the packet, discard the packet and send an ICMP error

(iii) Accept Packets matching Accept rules are accepted and are passed through the

router.

(iv) Log Record this packet in the Firewall Log. The next rule is evaluated.

Firewall Rule Order

The order in which rules are compared against the packets entering the firewall are rule 1 first,
then rule 2, then rule 3, and so forth (up to a maximum of 25 rules). If a packet does not match
any rule in the list, the packet will be accepted and allowed through. The packet will also be
allowed through if it matches an ‘Accept’ rule.

New rules that are configured are added to the end of the list. It will be checked last in the rule
order.

Use the “move” link to change the position of the rule. Enter the new position you would like
the rule to be placed at.

Wireless Routers

38

Configuration

Serial

There are two methods available for setting up Serial on the Wireless Routers.

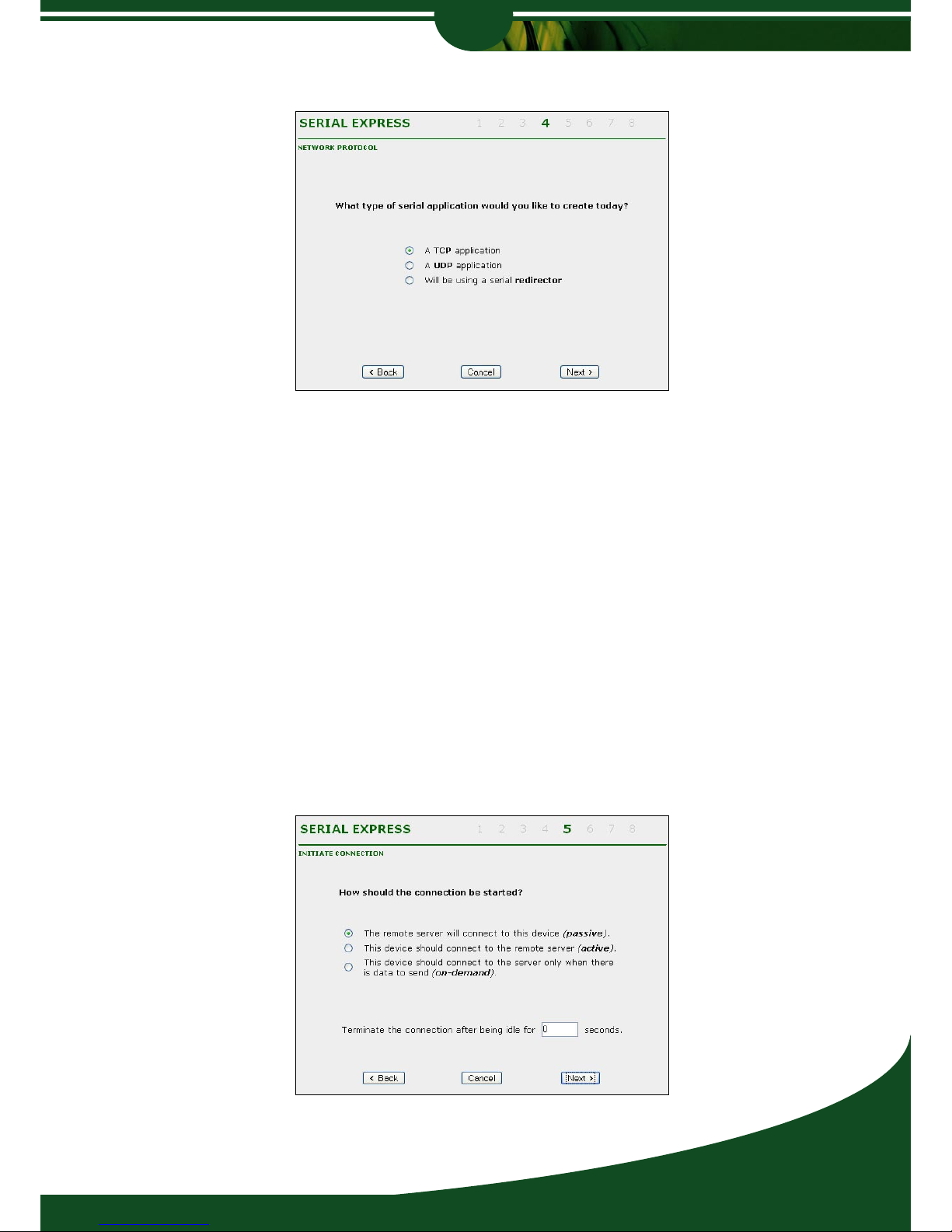

Serial Express - Wizard based setup to help you set up Serial.
Manual - Manual configuration.

See the next section for setting up a serial application. If you wish to edit your existing Serial
Port Settings, opening ‘Port Settings’ will display the information below.

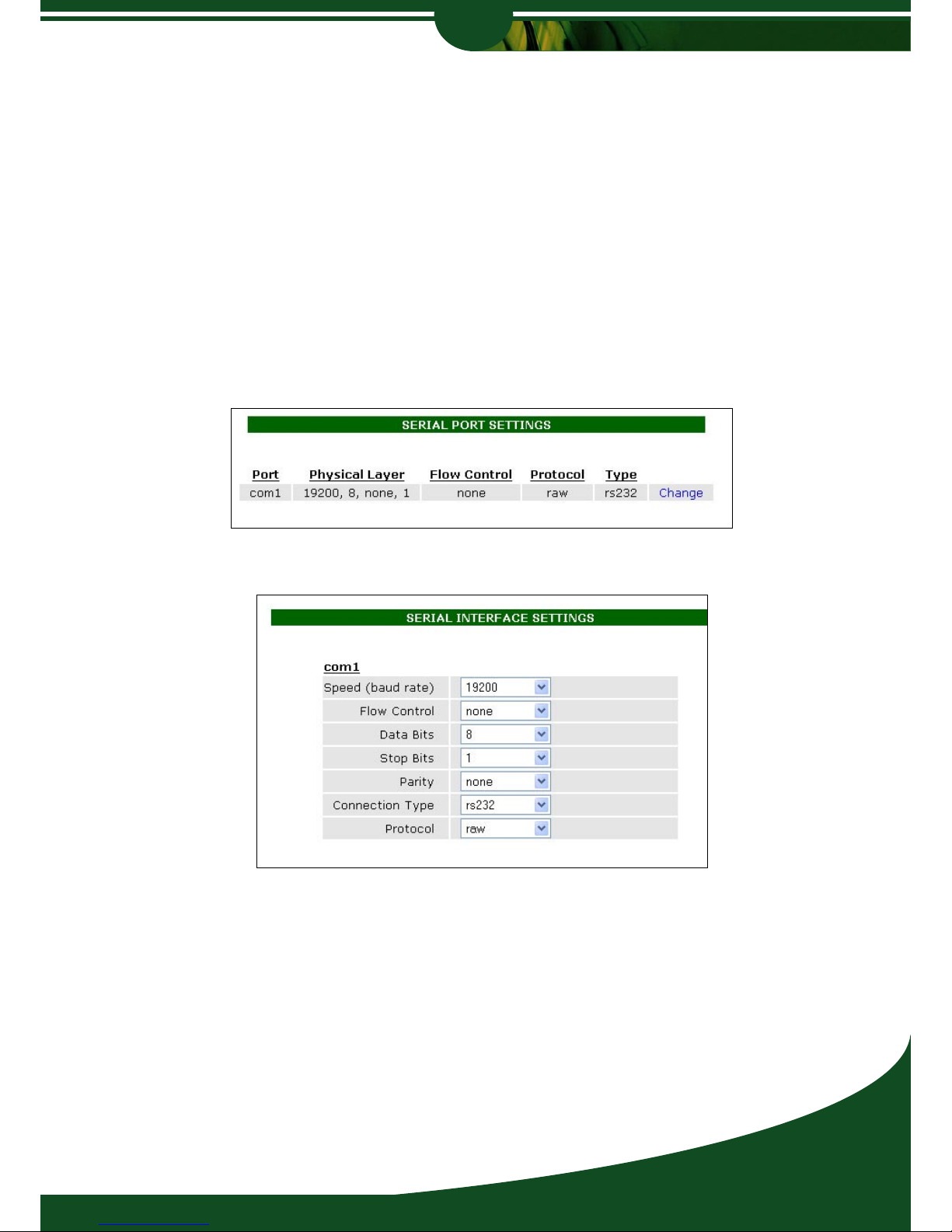

Port Settings

Configuring the Serial Interface Settings according to the specifications of the manufacturer of
your serial device.

To change any of the currently configured serial interface settings, click on ‘Change’

Configuration

39

Configuration

Wireless Routers

Speed - Baud rate. Default is 19200 bits per second. Maximum is 230400.

Flow Control - Type of handshaking. Default is None. Other supported types are

Hardware (RTS/CTS) and Software (Xon/Xoff).

Data Bits - Number of Data Bits. Default is 8.

Stop Bits - Number of Stop Bits. Default is 1.

Parity - Data Integrity method. Default is None. Other supported types are

Odd, Even, Mark, and Space.

Connection Type - Default is RS-232.

RS-232 - connect a RS-232 cable to the Serial interface.
RS-422 - connect a RS-422 cable to the Serial interface.
RS-485 - connect a RS-485 cable to the Serial interface.

Protocol - Default is Raw.

Raw - no protocol is used. Data is streamed transpar-

ently through the PocketPAD.

TC500 - Burroughs TC500 Poll-Select.

Note:

If Flow Control is set to None, a simple 3-wire
Crossed Serial cable can be used instead of a Full
Crossed Serial cable.

Wireless Routers

40

Configuration

Applications

Setting up a Serial Application using ‘Application Express’

Opening ‘Serial, Applications’ in the menu bar will show you a list of currently configured
applications. From here, click on the link labelled “Application Express” This will launch the
wizard in a separate browser window as indicated below. The wizard will guide you through
setting up a serial application. Depending on your environment, you will have the option of
clicking through and in most cases use the default assigned values. The following steps below
show how to set up a Passive serial application configured for port 5000 on COM1.

Configuration

41

Configuration

Wireless Routers

1.Application Name

Enter a descriptive name which will be used to uniquely identify this serial application.

2.Serial Port

Select the serial port to which the serial device is connected.

Wireless Routers

42

Configuration

3.Port Settings

Enter the serial port settings.

Speed - Baud rate. Default is 19200 bits per second. Maximum is 230400.

Data Bits - Number of Data Bits. Default is 8.

Parity - Data Integrity method. Default is None. Other supported types are

Odd, Even, Mark, and Space.

Stop Bits - Number of Stop Bits. Default is 1.

Flow Control - Type of handshaking. Default is None. Other supported types are

Hardware (RTS/CTS) and Software (Xon/Xoff).

Serial Type - RS-232 - connect a RS-232 cable to the Serial interface.

RS-422 - connect a RS-422 cable to the Serial interface.
RS-485 - connect a RS-485 cable to the Serial interface.

Configuration

43

Configuration

Wireless Routers

4.Network Protocol

Select one of the following type of serial application would you like to create.

TCP Application - Communication between this device and the remote server will be

done over TCP/IP. TCP guarantees reliable and in-order delivery of
data.

UDP Application - Communication between this device and the remote server will be

done over UDP/IP. UDP does not provide the reliability and ordering
guarantees that TCP does, but is faster and more efficient for many
lightweight or time-sensitive purposes.

Redirector - If you will be using a serial redirector (like Serial Anywhere) on the

remote server choose this option. All communication will also be
done over TCP/IP.

5.Initiate connection

Wireless Routers

44

Configuration

Choose from one of the following methods for starting a connection.

Passive - The application will wait for a connection from a server before data

communication will start.

Active - An application will connect to the remote server at startup and will

automatically reconnect should the connection be closed.

On-Demand - This device should connect to the server only when there is data to

send.

6.Local Settings

Enter your local TCP port number. This is the local network port to be used for the application.
For active/fixed applications this field is not compulsory, but can be used to fix the local port to
be used; otherwise the application will automatically choose a port number.

Configuration

45

Configuration

Wireless Routers

7.Remote settings (Active applications)

The following settings could be set as a security feature to only allow connections from certain
hosts and host ports. If you should wish to set this up, enter the remote server name and port
number.

Server - This is the hostname or IP address of the remote server to connect

to. For active/fixed applications this field is compulsory. For added
security on passive/follow applications, if configured, it will only
accept connections from the configured address.

TCP Port - This is the network port number on the remote server to connect

to. For active/fixed applications this field is compulsory. For added
security on passive/follow applications, if configured, it will only
accept connections from the configured network port.

8.Update Configuration

To complete the setup of your Serial application, click on ‘Update Configuration’. Take note of
the colour change of the ‘Apply Changes’ option in your navigation menu. Your new settings
will only become active once you click ‘Apply Changes’ and then ‘Save and Reboot with new
Settings’

Wireless Routers

46

Configuration

Configuration File Upload

To configure your Wireless Router using a configuration file, select your Router once you have
scanned for devices using EtherPAD Explorer. Click [Get configuration] to obtain a copy of
the Router’s configuration file. This file can be modified and uploaded to give the Router new
parameters using [Set configuration]. Rebooting the Router will make the changes active.

47

Monitoring

Wireless Routers

Monitoring and Support

This chapter provides information on the options available to monitor and support the Wireless
Router.

Wireless Routers

48

Monitoring

Monitoring

PPP Connection

To monitor or control your PPP connection, opening ‘Monitoring, PPP Connection’ in the navigation
bar will open one of two screens. For ‘Always-on’ dial-out connections, your active PPP connection
will be displayed. If you chose ‘Manual Dial-out’ you will have the option from here to make your
PPP link active.

An active PPP connection will display the following screen.

Connection Uptime - The time the current session has been alive for.

Maximum Bandwidth - The maximum available bandwidth in Bytes per second. Take

note that this is not bits as usually rated on modems.

Transmit (TX) and Receive (RX) details are shown.

Bytes - shows the total data throughput in Bytes for the current

session.
Total Packets - shows the total packet throughput during the current session.
Bytes/second - Rate of data flow at a given point in time. The value is an

average of the last 10 seconds of actual data throughput.
Utilisation - Percentage of available bandwidth currently used as an

average of the last 10 seconds.

A graph indicates the traffic passing the PPP interface in the past 15 minutes.

Monitoring

49

Monitoring

Wireless Routers

Note:

To update the graph, click on ‘Refresh’ - or select the
‘Auto Update’ checkbox to refresh automatically every
10 seconds.

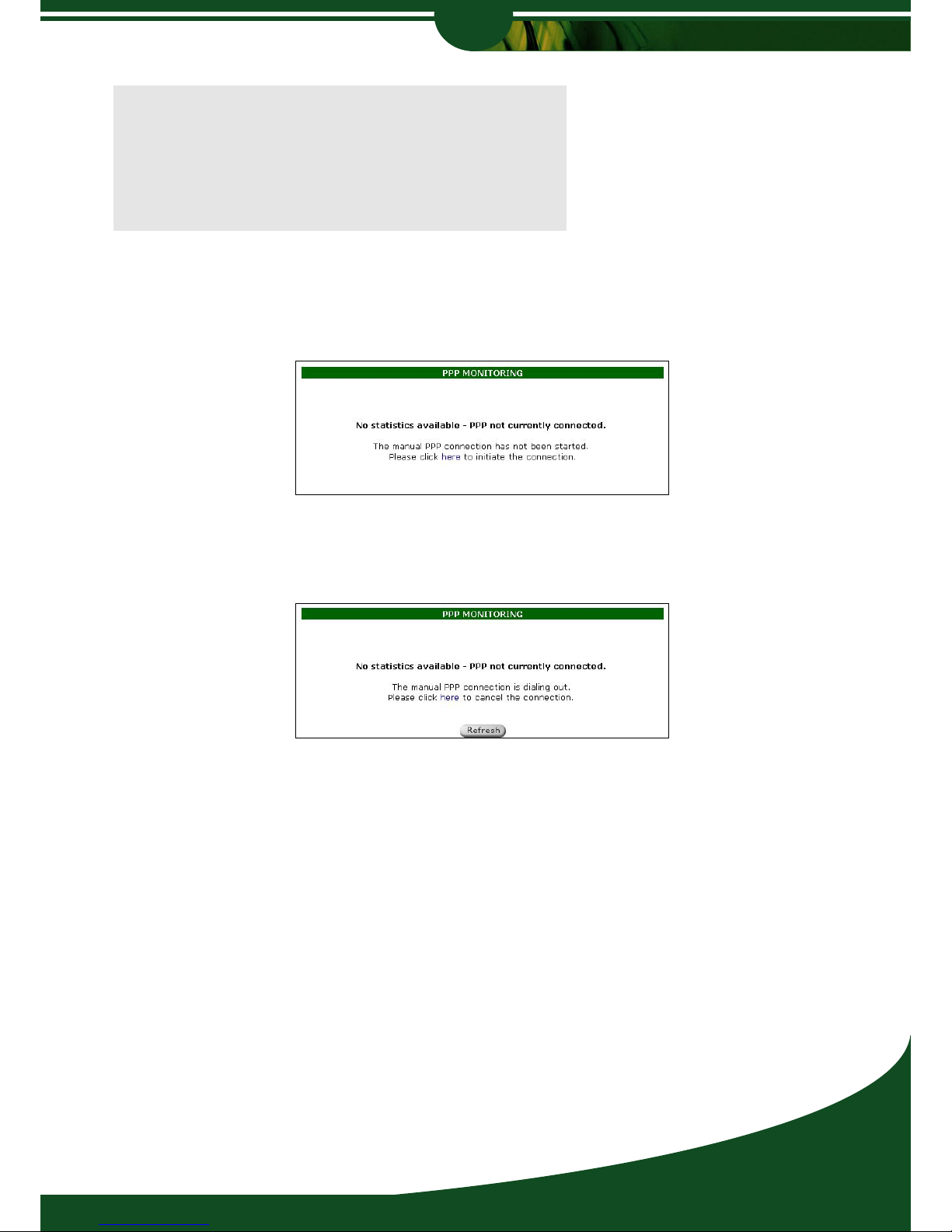

When connecting through the “Manual Dial-out’ option, or should you have made configuration
errors when configuring PPP, opening ‘PPP Connection’ will display the following screen.

To initiate your PPP connections, click on the ‘click here’ link.

The Router will start the PPP connection and dial-out. Click on refresh to view your active PPP
connection. You should see the screen as indicated on the previous page.

Wireless Routers

50

Monitoring

Routing Table

The Routing Table page displays a list of currently configured interfaces and associated IP
adresses together with their status. This page also shows you an overview of your Routing
configuration.

Interfaces

Interface - Displays the name of the interface.

Local IP - Displays the local IP of this interface.

Status - Indicates interface status. Up or Down.

Routes

Network Address - Indicates remote network’s address for this route.

Network Mask - Indicates the remote network’s network mask.

Gateway address - Indicates the IP address of the default gateway for this route.

Monitoring

51

Monitoring

Wireless Routers

Firewall Log

The Firewall will log activity as configured in your Firewall settings.

All packets matching any LOG rules configured in the Firewall will be displayed here.

Jan 1 00:00:08 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1054 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 7 times
Jan 1 00:00:09 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1055 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 5 times
Jan 1 00:00:09 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1056 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 5 times
Jan 1 01:02:15 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1414 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 5 times
Jan 1 01:02:15 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1415 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 17 times
Jan 1 01:08:03 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1449 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 5 times
Jan 1 01:08:03 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1450 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 17 times
Jan 1 01:08:04 Rule 1: SRC=192.168.2.225:80 -> DST=eth0:192.168.2.224:1451 PROTO=TCP
LEN=48 TOS=0x00
Previous messages repeated 6 times

Example of Firewall Log

DHCP Server Log

The DHCP Server will log the DHCP activity and display current leases.

Wireless Routers

52

Monitoring

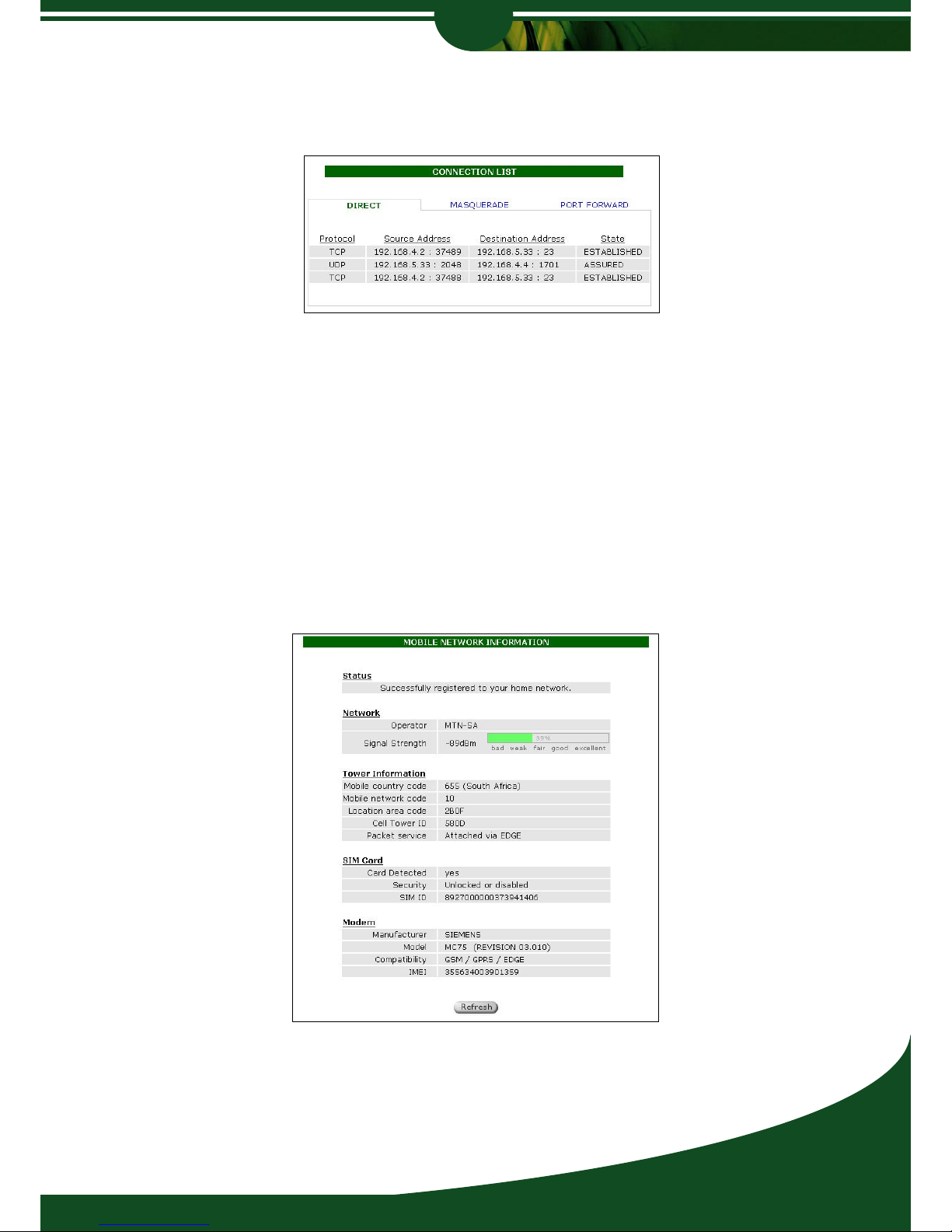

Connection List

The connection list displays all current connections to the Wireless Router.

Direct - Displays a list of connections where no address translation is

required.

Masquerade - Displays a list active PPP connections for which address translation

has been implemented.

Port forward - Displays incoming connections for which port address translation is

configured.

Mobile Network

The Mobile Network monitoring tool supplies you with various information about your GSM
connection.

Monitoring

53

Monitoring

Wireless Routers

Status

Status will display the current status of your GSM connection. Please refer to the
Troubleshooting chapter for more information and error codes.

Network

Operator - Displays the name of your GSM service provider.
Signal Strength - Displays signal strength at your current location.

Tower Information

Displays information about the GSM tower you are connected to.

SIM Card

Displays information about your SIM card.

Modem

Displays information about your integrated GSM module.

Wireless Routers

54

Monitoring

Support

Config Info

To view information about current settings on the Router, opening ‘Support, Config Info” in the
Navigation Bar will display the following configuration information.

Product - Product Name
Firmware version - Current Firmware Version

System Information

Name - Assigned name
Location - Assigned Location
Contact - Assigned Technical Contact
MAC Address - Product MAC Address
IP Address - Current Assigned IP Address
Network Mask - Assigned Network Mask
NTP - Displays the state of the NTP service
DHCP Server - DHCP Server Status
PPP - PPP Status and connection type
VPN - VPN Status

Serial Interfaces

COM1 - COM1 Parameters

Monitoring

55

Monitoring

Wireless Routers

Config File

To view the current configuration file, opening ‘Support, Config File’ in the Navigation Bar will dis­play the configuration file for your Wireless Router.

VERSION 1
‘|mngt|password’ = ‘xxx’
‘|mngt|sysname’ = ‘Wireless Router’
‘|mngt|location’ = ‘Unknown’
‘|mngt|contact’ = ‘[email protected]’
‘|net|ether|eth0|ip’ = ‘0.0.0.0’
‘|net|ether|eth0|netmask’ = ‘0.0.0.0’
‘|net|ether|eth0|netlink’ = ‘autoselect’
‘|net|dns|dns1’ = ‘0.0.0.0’
‘|net|dns|dns2’ = ‘0.0.0.0’
‘|net|dns|dns3’ = ‘0.0.0.0’
CREATE ‘|net|snmp’ ‘1’
‘|net|snmp|1|mngr’ = ‘255.255.255.255’
‘|net|snmp|1|community’ = ‘public’
‘|net|snmp|1|access’ = ‘read only’
‘|net|snmp|1|trap’ = ‘disabled’
‘|net|ppp|type’ = ‘Always-on Dial-out’
‘|net|ppp|netip’ = ‘0.0.0.0’
‘|net|ppp|netmask’ = ‘0.0.0.0’
‘|net|ppp|localip’ = ‘0.0.0.0’
‘|net|ppp|remoteip’ = ‘0.0.0.0’
‘|net|ppp|apn’ = ‘internet’
‘|net|ppp|masq’ = ‘yes’
‘|net|ppp|authtype’ = ‘none’
‘|net|ppp|ousername’ = ‘’
‘|net|ppp|opassword’ = ‘’
‘|net|ppp|iusername’ = ‘’
‘|net|ppp|ipassword’ = ‘’
‘|net|ppp|telno’ = ‘*99***1#’
‘|net|ppp|idle’ = ‘3600’
‘|net|ppp|delay’ = ‘60’
‘|net|dhcp|eth0|enable’ = ‘no’
‘|net|dhcp|eth0|ipstart’ = ‘1’
‘|net|dhcp|eth0|ipstop’ = ‘254’
‘|net|dhcp|eth0|expire’ = ‘60’
‘|net|vpn|mode’ = ‘no’
‘|net|vpn|type’ = ‘PPTP’
‘|net|vpn|server’ = ‘0.0.0.0’
‘|net|vpn|tnet’ = ‘0.0.0.0’
‘|net|vpn|mask’ = ‘0.0.0.0’

Example of Configuration File

Wireless Routers

56

Monitoring

System Log

To view the Wireless Router’s running System Log, open ‘Support, System Log” in the
Navigation Bar.

Apr 11 12:59:15 debug pppd[423]: Script /tmp/ppp/ppp0/ip-up finished (pid 432),
Apr 11 13:04:46 debug udhcpc[47]: Sending renew...
Apr 11 13:04:46 info udhcpc[47]: Lease of 192.168.3.16 obtained, lease time 3600
Apr 11 13:04:46 info configsvr: DHCP update occurred.
Apr 11 13:21:57 warn cellinfo: There are some problem registering to the mobile network.
Apr 11 13:21:57 info pppd[423]: Terminating on signal 15.
Apr 11 13:21:57 debug pppd[423]: Script /tmp/ppp/ppp0/ip-down started (pid 523)
Apr 11 13:21:57 debug pppd[423]: sent [LCP TermReq id=0x2 “User request”]
Apr 11 13:21:57 debug pppd[423]: rcvd [LCP TermAck id=0x2]
Apr 11 13:21:57 notice pppd[423]: Connection terminated.
Apr 11 13:21:57 info pppd[423]: Connect time 22.8 minutes.
Apr 11 13:21:57 info pppd[423]: Sent 54 bytes, received 54 bytes.
Apr 11 13:21:57 debug pppd[423]: Waiting for 1 child processes...
Apr 11 13:21:57 debug pppd[423]: script /tmp/ppp/ppp0/ip-down, pid 523
Apr 11 13:21:57 debug pppd[423]: Script /tmp/ppp/ppp0/ip-down finished (pid 523), status =
Apr 11 13:21:57 info pppd[423]: Connect time 22.8 minutes.
Apr 11 13:21:57 info pppd[423]: Sent 54 bytes, received 54 bytes.
Apr 11 13:21:57 info pppd[423]: Exit.
Apr 11 13:21:57 info netmap: pppd exit: died because of failure [5]
Apr 11 13:22:03 warn cellinfo: Unable to detect the SIM card. Please insert or re-insert it.
Apr 11 13:34:47 debug udhcpc[47]: Sending renew...
Apr 11 13:34:47 info udhcpc[47]: Lease of 192.168.3.16 obtained, lease time 3600
Apr 11 13:34:47 info configsvr: DHCP update occurred.
Apr 11 14:04:49 debug udhcpc[47]: Sending renew...
Apr 11 14:38:21 info cellinfo: Successfully registered to your home network.
Apr 11 14:38:22 info dnsmasq[61]: using nameserver 192.168.1.1#53

Example of Running System Log

Monitoring

57

Monitoring

Wireless Routers

Contact Us

Should you need to contact Multenet with any queries, opening ‘Support, Contact Us’ in the
navigation bar will display the following contact information.

Multenet Contact Information

Wireless Routers

58

Monitoring

Tools

Ping

Ping a program used to test whether a particular network destination is online by sending
an Internet control message protocol (ICMP) echo request and waiting for a response. (Also
called packet internet gopher).

The Wireless Router’s built in Ping utility allows you to ping network devices directly from the
Wireless Router. To send a Ping, enter a address for the remote host and click on Ping.

Traceroute

Traceroute is A TCP/IP protocol used to identify the components of the path between two
machines and to identify the contribution of each component to the overall Round-Trip Time.

To start a trace, enter the address of the host you would like to do a traceroute to and click on
Trace.

Monitoring

59

Monitoring

Wireless Routers

SMS Services

SMS Services allows you to send a current Status Report of the unit to a cell phone. This
report allows for easy identification of the Wireless Router. The report includes information on
which Service Provider the Router is currently connected to, the IMSI number of the SIM card
in use as well as signal strength.

To send a Status Report, enter the intended recipient’s telephone number in the field provided,
ensure the ‘Status Report’ option is checked and then click on ‘Send’.

To send a SMS text message, enter the recipients number in the box provided, uncheck
‘Status Report’ and type your message in the ‘Message’ field.

Wireless Routers

60

Upgrading

UPGRADING

This chapter provides information on upgrading the firmware on your Wireless Router.

Upgrading

61

Upgrading

Wireless Routers

Firmware upgrade

To upgrade the Wireless Router Firmware, launch EtherPAD Explorer from the Multenet
Product CD and select ‘Scan’ to search for attached Multenet devices.

Highlight the device you would like to upgrade firmware for and select ‘Upgrade Firmware’.
EtherPAD Explorer will then prompt you for the file, which should be a ‘.pak’ file, for preforming
the upgrade.

Browse to the directory in which you have stored your firmware and open the file to start the
upgrade. EtherPAD Explorer will show a status bar informing you of the upgrade process. A
pop up box will inform you whether the upgrade was successful once the operation completes.

Wireless Routers

62

Troubleshooting

TROUBLESHOOTING

This chapter briefly explains some troubleshooting methods to help diagnose problems
connecting to your Wireless Router.

Verifying MAC Addresses

When the Router leaves the factory, the only address associated with it will be its universally
unique Ethernet address. This is also referred to as the MAC (Media Access Control) address.
The MAC address is programmed at the factory and cannot be modified. It is a 12-digit
hexadecimal number and is printed on a bar-coded label on the side of the unit. Wireless
Router MAC addresses currently begin with ‘0020B7’. In the unlikely event of the Router not
having a MAC address programmed, the unit must be returned to Multenet for re-configuration.

Troubleshooting

63

Troubleshooting

Wireless Routers

Ping

Ping the Router to quickly verify that the device is reachable. Type the following from the
Command Prompt.

A Reply reveals that the Router is reachable.

If you observe a Timeout, there may be numerous reasons to this error. It could be a network
disruption or a Router failure (e.g.. Power Outage). Take note of ‘time’. If latency is high,
timeouts may occur during remote configuration or even ‘expected’ data throughput during
normal operation.

For example: Your office network is flooded with data transactions during daylight hours
(or your ISP peering links are congested at certain Peak hours). This results in links being
very latent (slow). Protocol standards dictate timeout parameters which cause packets to be
dropped if data acknowledgement doesn’t happen in a set time.

ARP

Use the ARP command to check that the IP Address you set the Router to belongs to the
Router. You may have configured the Router to the same IP Address as another device on the
network. Ping the Router’s IP Address as shown above.

From the Command Prompt, use the ARP command.

Contact your Network Administrator to investigate should there be any issues with duplicate IP
Address assignments.

Traceroute

Perform a Traceroute towards your Router to obtain a snapshot of network routing. This is
applicable to your PC being more than one hop away from the Router (i.e. not on the local
segment or subnet).

Wireless Routers

64

Troubleshooting

There may be a number of reasons why you may find the Traceroute failing at certain points
( from the ISP blocking ICMP packets, to incorrect routing, to physical line disruptions). An
email to the ISP of the network which contains the problem or even an email to your Network
Administrator will get some answers.

If the Traceroute results indicate the subnet in which your Router is in (or its Gateway IP),
then it is possible that your Router is powered off/malfunctioned or there is a cable/switch/hub
problem.

NOTE: MS Windows uses ‘tracert’. Other OS’ usually use ‘traceroute’.

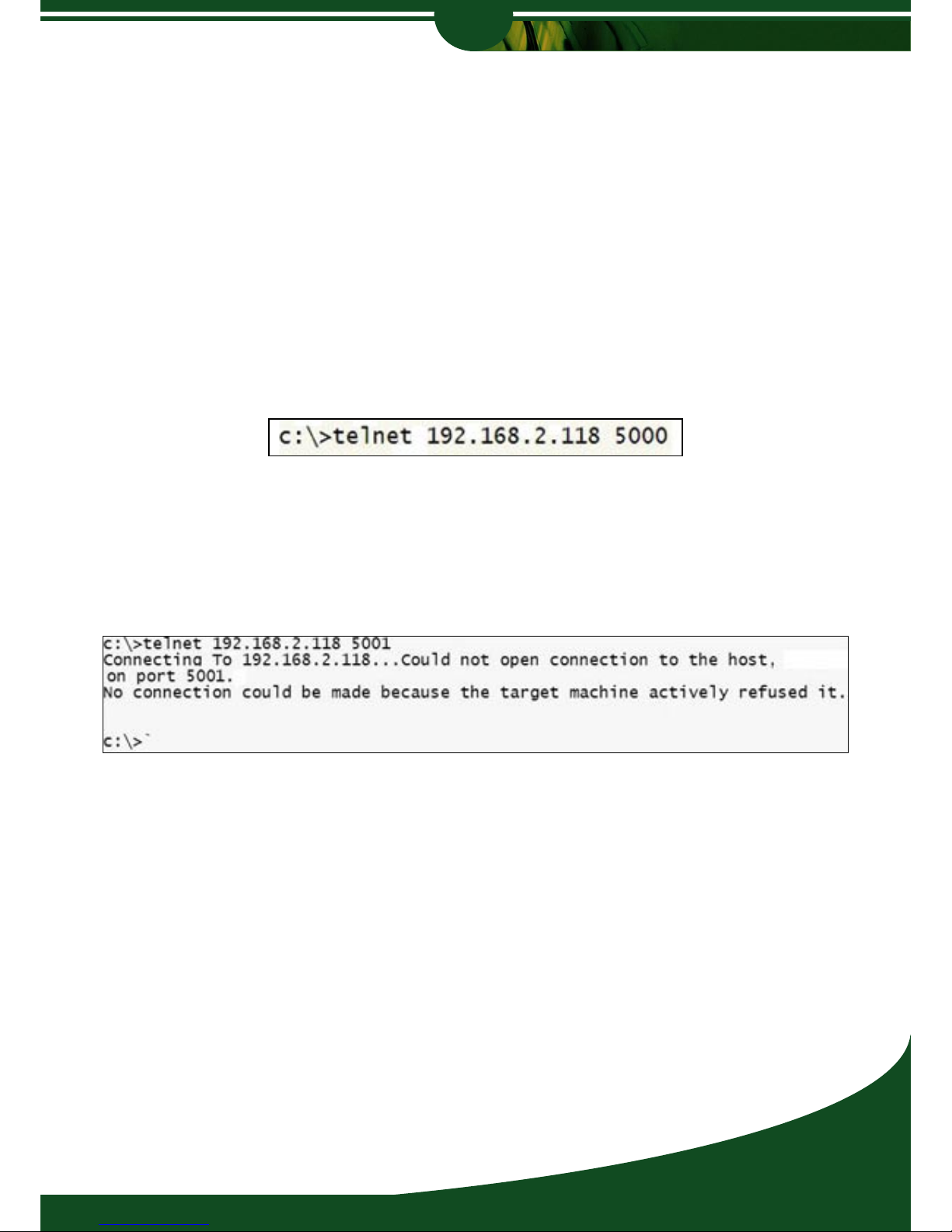

Telnet

Use the Telnet command to connect to the TCP port of your PocketPAD. You will observe data
received from the connected serial device. You can send data to the serial device as well.

If you are unable to connect to the configured port, check your Router settings. If you have
made changes, you need to reboot the Router for it to take effect.

Check the Network Application settings. If ‘Remote Host/IP Address’ (and/or ‘Remote Port’)
is configured, you will need to connect from that specific host (:port). If the ‘Application Type’
is active, you won’t be able to telnet to the port (set it to Passive to test). Try ‘telnetting’ to the
Remote Host’s port to check if it opens a socket.

Error connecting to TCP port

How many hosts are connecting to each Network Application?
A maximum of 5 TCP and/or UDP network applications can be configured on the Router. Each
application can handle 5 socket connections (Total of 25 concurrent socket connections at any
one time with all applications configured as Passive).

Web Browser Proxy Settings

Check your Browser Proxy settings should you be able to successfully Ping the Router, but are
unable to connect to the Router’s Web Configuration.

If the Proxy is enabled, traffic is directed outside the LAN to the internet via a gateway. If you
cannot alter these Proxy settings, try using Telnet Configuration to alter the Router parameters.

Troubleshooting

65

Troubleshooting

Wireless Routers

Netscape 7 (Mozilla):

Select Edit, Preferences, Advanced,
Proxies;
Select “Direct connection to the Internet”.

Internet Explorer:

Select Tools, Internet Options,
Connections, LAN Settings: Uncheck
the “Use a proxy server for your LAN”
option.

Wireless Routers

66

Troubleshooting

Recovering from a Lost Password

Should you lose your Root password (default is ‘xxx’), you can recover from the fault by
erasing the Dataflash. You will need to know the Bootloader password (default is ‘user’).

If both passwords are lost, you can send the unit back to Multenet for recovery (there is a cost
associated with this recovery procedure).

Log into the Bootloader

Power recycle the Router. The LEDs will flash for a set time as configured by the Bootdelay
variable (default is 20 seconds).

Connect a terminal session (e.g. Hyperterminal) to COM 1 of the Router. Serial parameters
are 19200 baud rate, 8 data bits, 1 stop bit, no parity, no flow control.

While the LEDs are flashing, type the Bootloader password into the terminal session (default
is ‘user’). Simply recycle power again if the LEDs have stopped flashing and no Menu has
appeared after typing in the password.

Type ‘2’ (Upgrade Menu).

Type ‘5’ (Erase Dataflash). ‘y’ to confirm deletion.
The process will take a few minutes to complete and return to the Upgrade Menu.

Type ‘1’ (Change Upgrade Serial Speed) to match your serial line baud rate. The highest baud
rate of (230400) is recommended for a faster upload of data.

Change your terminal session speed to the configured Upgrade Serial Speed setting.
‘Enter’ to continue once you have reconnected.

Transfer the Router firmware via ‘Kermit’. You can find the latest firmware on the Multenet
website. Current or older firmware can be found on the CD shipped with the Router.

After the file upload, you will be prompted to set the baud rate back to 19200. The data will be
checked and verified.

Troubleshooting

67

Troubleshooting

Wireless Routers

System

Heartbeat (HBT) - If this LED is permanently ON or OFF, the PocketPAD has failed

and needs to be returned. The LED will be ON for some time (20
seconds) during its boot-up cycle.

Power (PWR) - Lights up when there is power to the Router. If this LED is OFF,

check the Power Supply and its connections.

Serial Interface

Transmit (TX) - Lights up as data is sent to the serial interface. If you send data

to a configured TCP/UDP port and do not see the TX LED flash,
check your Router configuration.

Receive (RX) - Lights up as data is received from the serial interface. If data is

received from the serial device, but does not get to your remote
site, check your Router configuration. There may also be a
problem with the network. Connect to the TCP/UDP port to
check if data is received.

Network Interface - 10/100 Base-T

10/100 Base-T (10/100) - Lights up if network is 100Mbps. OFF is network is 10Mbps.

Check if Autodetect is selected in the Router configuration.

Link/Activity (LNK/ACT) - This LED flashes as data is transmitted/received over the

Ethernet interface (if your configured serial device sends/
receives data). It will also light up if any packets are sent to the
interface, but are not destined for the serial device. If this LED
is OFF, check the Ethernet cable and the switch/hub or PC that
it is connected to. Remember: PC -> Crossed Ethernet cable;
Switch/Hub -> Straight Ethernet cable.

GSM

Link (LNK) - Lights up when you have sucessfully registered to the mobile

network.

Activity (ACT) - This LED flashes as data is transmitted/received over the GSM

interface.

Wireless Routers

68

Troubleshooting

Mobile Network

There are a number of messages relating to the initiation of the GSM module, the SIM card
and registration to your mobile network service provider. Below is a list of the messages for the
various states, their cause and the resolutions to error messages.

Unable to communicate with the integrated GSM/GPRS modem.
Cycle the power to your Wireless Router. Should this problem persist, please contact

Multenet Technical Support. [email protected]

Unable to detect the SIM card. Please insert or re-insert it.
Insert or re-insert your SIM card into the device.

SIM security issue, a PIN is required to unlock the SIM card, please configure one.
The SIM card inserted requires a PIN to be unlocked. You need to configure a PIN as

described in the Configuration chapter.

SIM security issue, a PUK is required to unblock the SIM card. Please replace the SIM

Remove the SIM card and unlock it with the correct PUK code.

Unable to detect the mobile network signal.

This indicates low or no reception. Try a different location for better reception.
This could also indicate that the cellular service is down.

Unable to attain current registration state
This should only be temporary while the Wireless Router is initializing. Please wait for a

short while and try again.

There is a problem registering to the mobile network.

Wireless Router is between network searching states.

Searching for your mobile network.
The Wireless Router is still searching for the Network Provider as configured by your SIM

card.

Registration was denied. This is a permanent error. Please try another SIM card.

This is usually seen with SIM cards that have been unregistered by the network provider.

69

Appendix

Wireless Routers

APPENDIX

Reference pages for specifications and cable diagrams.

Wireless Routers

70

Appendix

Wireless Routers

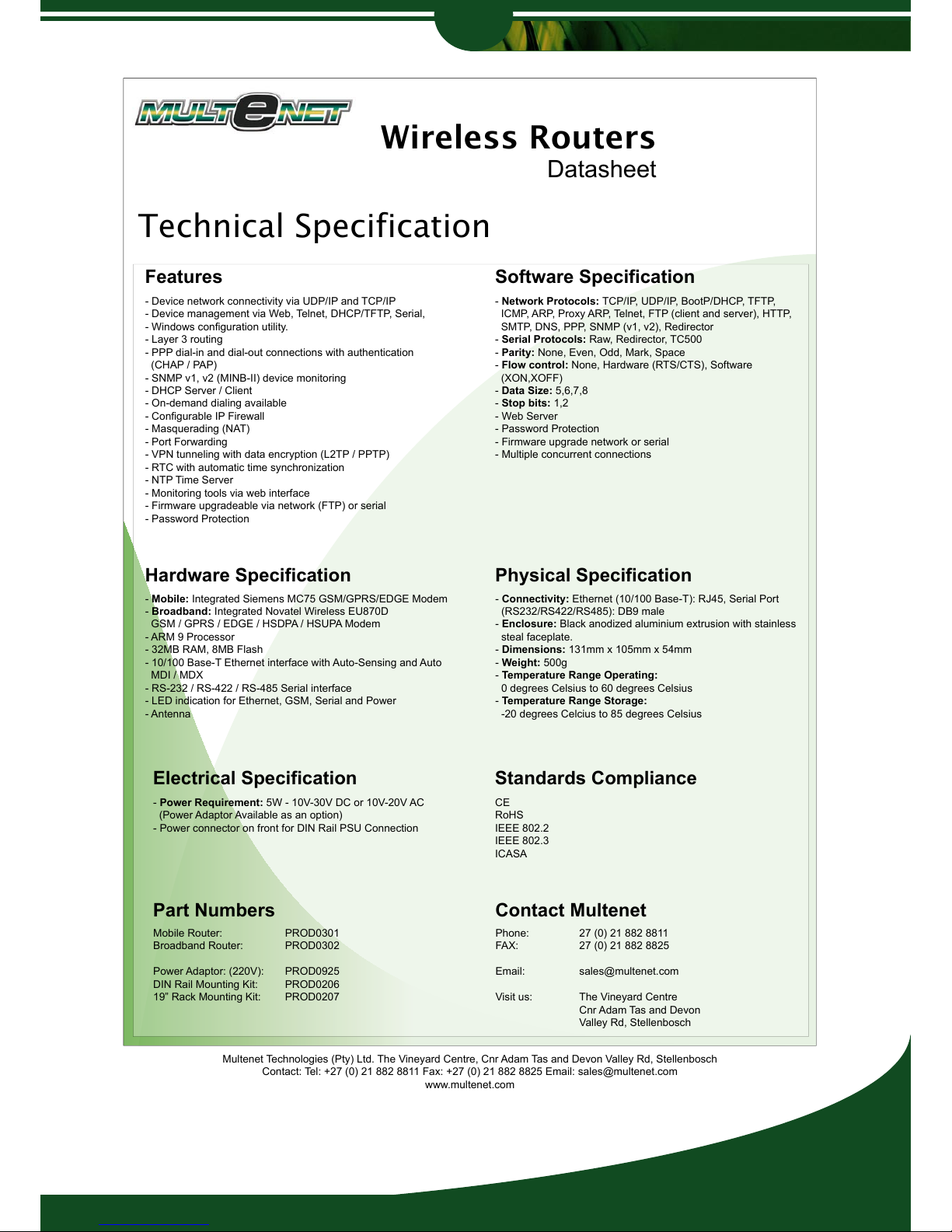

Datasheet

Multenet Technologies (Pty) Ltd. The Vineyard Centre, Cnr Adam Tas and Devon Valley Rd, Stellenbosch

Contact: Tel: [phone] Fax: [phone] Email: [email protected]

www.multenet.com

Technical Specification

- Mobile: Integrated Siemens MC75 GSM/GPRS/EDGE Modem

- Broadband: Integrated Novatel Wireless EU870D
GSM / GPRS / EDGE / HSDPA / HSUPA Modem

- ARM 9 Processor

- 32MB RAM, 8MB Flash

- 10/100 Base-T Ethernet interface with Auto-Sensing and Auto
MDI / MDX

- RS-232 / RS-422 / RS-485 Serial interface

- LED indication for Ethernet, GSM, Serial and Power

- Antenna

Hardware Specification

- Device network connectivity via UDP/IP and TCP/IP

- Device management via Web, Telnet, DHCP/TFTP, Serial,

- Windows configuration utility.

- Layer 3 routing

- PPP dial-in and dial-out connections with authentication
(CHAP / PAP)

- SNMP v1, v2 (MINB-II) device monitoring

- DHCP Server / Client

- On-demand dialing available

- Configurable IP Firewall

- Masquerading (NAT)

- Port Forwarding

- VPN tunneling with data encryption (L2TP / PPTP)

- RTC with automatic time synchronization

- NTP Time Server

- Monitoring tools via web interface

- Firmware upgradeable via network (FTP) or serial

- Password Protection

Features

- Network Protocols: TCP/IP, UDP/IP, BootP/DHCP, TFTP,
ICMP, ARP, Proxy ARP, Telnet, FTP (client and server), HTTP,
SMTP, DNS, PPP, SNMP (v1, v2), Redirector

- Serial Protocols: Raw, Redirector, TC500

- Parity: None, Even, Odd, Mark, Space

- Flow control: None, Hardware (RTS/CTS), Software
(XON,XOFF)

- Data Size: 5,6,7,8

- Stop bits: 1,2

- Web Server

- Password Protection

- Firmware upgrade network or serial

- Multiple concurrent connections

Software Specification

- Connectivity: Ethernet (10/100 Base-T): RJ45, Serial Port
(RS232/RS422/RS485): DB9 male

- Enclosure: Black anodized aluminium extrusion with stainless
steal faceplate.

- Dimensions: 131mm x 105mm x 54mm

- Weight: 500g

- Temperature Range Operating:
0 degrees Celsius to 60 degrees Celsius

- Temperature Range Storage:

-20 degrees Celcius to 85 degrees Celsius

Physical Specification

- Power Requirement: 5W - 10V-30V DC or 10V-20V AC
(Power Adaptor Available as an option)

- Power connector on front for DIN Rail PSU Connection

Electrical Specification

CE
RoHS
IEEE 802.2
IEEE 802.3
ICASA

Standards Compliance

Mobile Router: PROD0301
Broadband Router: PROD0302

Power Adaptor: (220V): PROD0925
DIN Rail Mounting Kit: PROD0206
19” Rack Mounting Kit: PROD0207

Part Numbers

Phone: [phone]
FAX: [phone]

Email:

[email protected]

Visit us: The Vineyard Centre
Cnr Adam Tas and Devon
Valley Rd, Stellenbosch

Contact Multenet

Appendix

71

Appendix

Wireless Routers

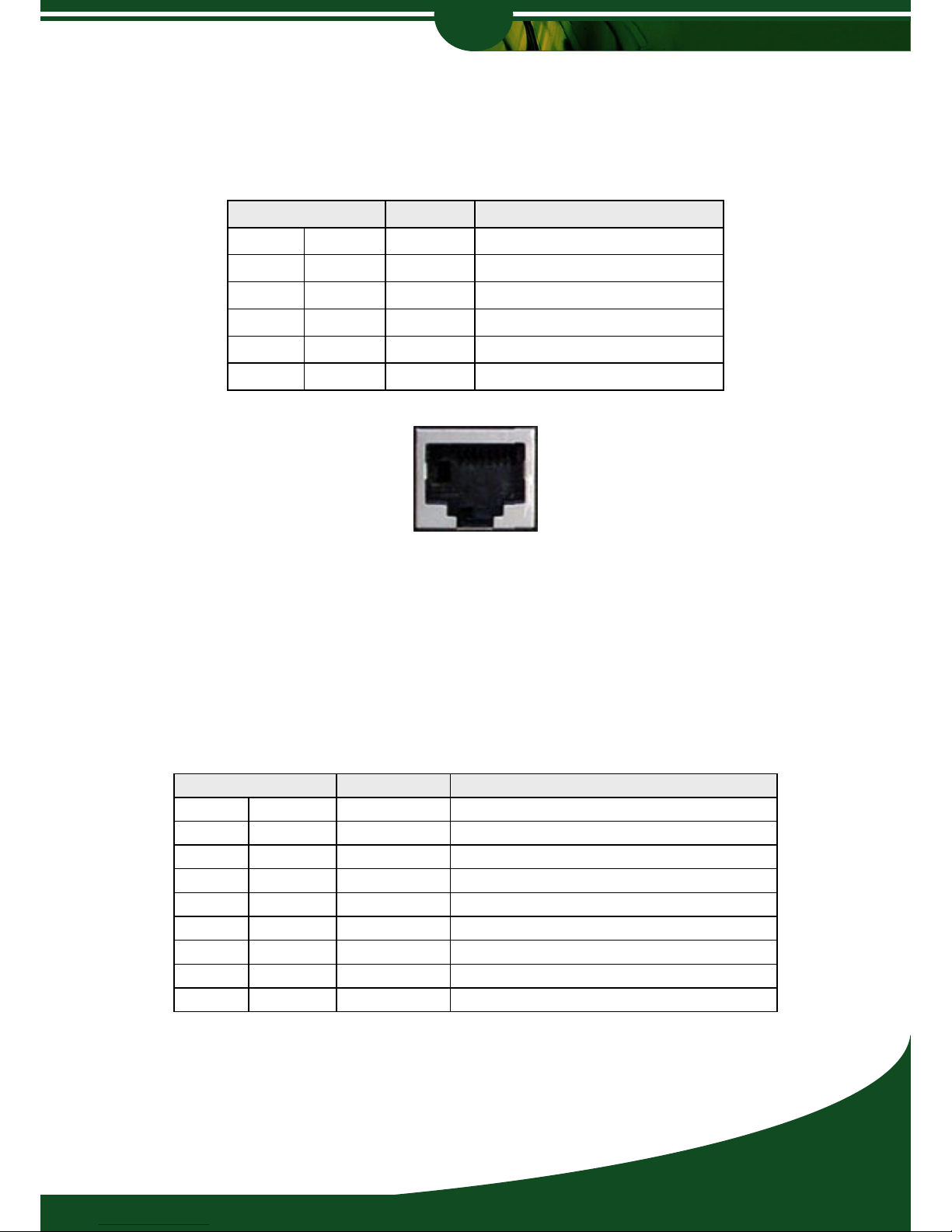

Interface Pin-outs

Network Interface

The 10/100 Base-T interface is wired to a RJ-45 connector as follows:

Pin Signal Description
1 TX- Out Transmit Data –
2 TX+ Out Transmit Data +
3 RX+ In Receive Data +
4, 5 POE+ - Power-Over-Ethernet +
6 RX- In Receive Data –
7, 8 POE- - Power-Over-Ethernet -

Wireless Router Network Interface Pin-out

RJ-45

Serial Interface

The Router’s RS-232-C serial interface is wired to a 9-pin male D-shell connector as a DTE
class device as follows:

Pin Signal Description

1 DCD In Data Carrier Detect
2 RxD In Receive Data
3 TxD- Out Transmit Data
4 DTR Out Data Terminal Ready
5 GND - Ground
6 DSR In Data Set Ready
7 RTS Out Request to Send
8 CTS In Clear to Send
9/9’ RI / POS In / Out Ring Indicator / Power Over Serial

Wireless Router RS-232 Serial Interface Pin-out

Wireless Routers

72

Appendix

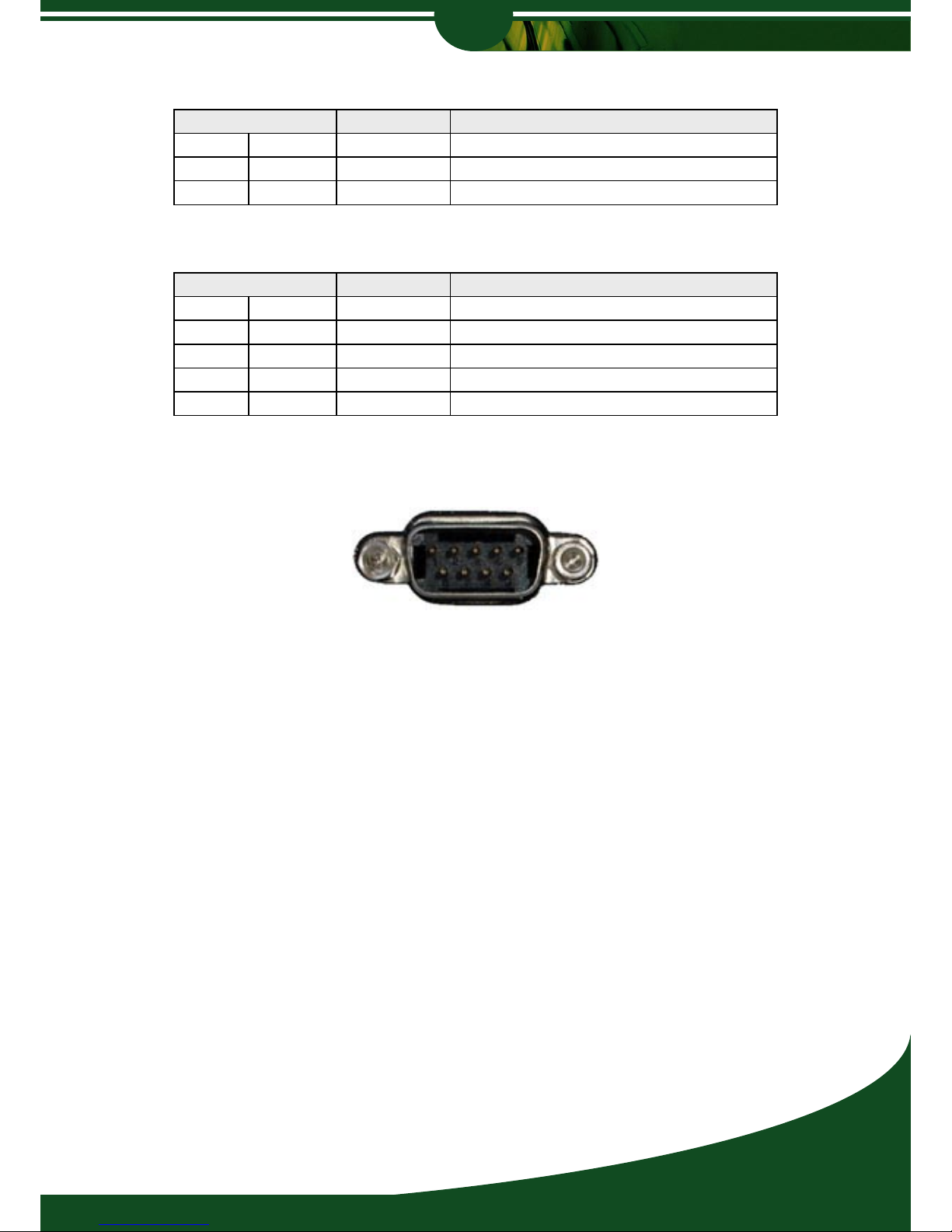

Pin Signal Description

3 Tx-/Rx- Out Data Negative
5 GND - Ground
7 Tx+/Rx+ Out Data Positive

RS-485 Serial Interface Pin-out

Pin Signal Description

2 Rx- In Receive Data Negative
3 Tx- Out Transmit Data Negative
5 GND - Ground
7 Tx+ Out Transmit Data Positive
8 Rx+ In Receive Data Positive

RS-422 Serial Interface Pin-out

DB-9 Male

NOTE: Pin 9 can be used for Power-Over-Serial when selected via a jumper setting.

Appendix

73

Appendix

Wireless Routers

Cables

Crossed Serial Cable

In order for a computer (or other device) to communicate with the Router’s RS232 serial port,
a simple 3-wire crossed cable is usually sufficient. (If hardware-based handshaking is required
then see Full Crossed Serial Cable.) The three wires should be connected as follows, using
either a 9-pin or 25-pin connector for the computer’s serial port.

PC
9-pin DB-F

PC
25-pin DB-F

Wireless Router
9-pin DB-M

2 RD 3 RD 3 TD

3 TD 2 TD 2 RD

5 GND 7 GND 5 GND

Crossed Serial cable

Full Crossed Serial Cable

In order to connect the Router’s RS232 serial port to another DTE class device (such as a
computer) a simple Crossed Serial Cable is often sufficient. However, some applications may
require the use of hardware-based flow control. Handshaking allows for higher data rates. In
this case, a seven-wire cable should be connected as follows, using either a 9-pin or a 25-pin
connector for the computer’s serial port.

PC
9-pin DB-F

PC
25-pin DB-F

Wireless Router
9-pin DB-M

2 RD 3 RD 3 TD

3 TD 2 TD 2 RD

4 DTR 20 DTR 6 DSR

5 GND 7 GND 5 GND

6 DSR 6 DSR 4 DTR

7 RTS 4 RTS 8 CTS

8 CTS 5 CTS 7 RTS

Full Crossed Serial cable

Wireless Routers

74

Appendix

Null-Modem Crossed Serial Cable

When attempting to use a simple Crossed Serial Cable to connect a DTE class device (such
as a computer) to the Router’s RS232 serial port, some devices will not transmit any data
unless their DSR and CTS signals are asserted. An easy way to fix this is to simply drive
these signals using the device’s own DTR signal. In this the three wires should be connected
as follows, using either a 9-pin or 25-pin connector for the computer’s serial port, and the
indicated loops should be added.

PC
9-pin DB-F

PC
25-pin DB-F

PocketPAD
9-pin DB-M

2 RD 3 RD 3 TD

3 TD 2 TD 2 RD

5 GND 7 GND 5 GND

4 DTR 20 DTR

┐

6 DSR 6 DSR ┤: short
8 CTS 5 CTS ┤
1 CD 8 CD ┘

Null-Modem Crossed Serial cable

Straight Serial Cable

In order to connect the Router’s RS232 serial port to a DCE class device (such as a modem)
a straight serial cable should normally be used. In this case, a nine-wire cable should be
connected as follows, using either a 9-pin or a 25-pin male connector for the DCE class
device.

DCE
9-pin DB-M

DCE
25-pin DB-M

Wireless Router
9-pin DB-M

1 CD 22 CD 1 CD

2 RD 3 RD 2 RD

3 TD 2 TD 3 TD

4 DTR 20 DTR 4 DTR

5 GND 7 GND 5 GND

6 DSR 6 DSR 6 DSR

7 RTS 4 RTS 7 RTS

8 CTS 5 CTS 8 CTS

9 RI 8 RI 9 RI

Straight Serial cable

75

Wireless Routers

NOTES

Wireless Routers

76

This device is developed and manufactured by MULTeNET.

Copyright © 2008 MULTeNET

All rights reserved.

This manual and any associated artwork, software, and product designs are copyrighted with all

rights reserved. Under the copyright laws this manual, artwork, software, and product designs

may not be copied, in whole or part, without the written consent of MULTeNET. Under the law,

copying includes translation to another language or format.

MULTeNET

The Vineyard Centre, Adam Tas Road,

Stellenbosch, 7600

www.multenet.com
