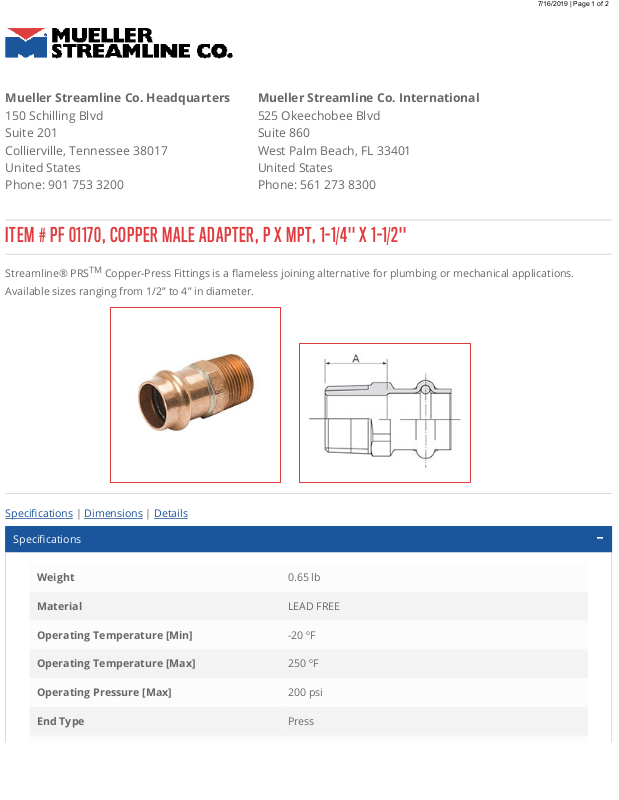

ITEM # PF 01170, COPPER MALE ADAPTER, P X MPT, 1-1/4'' X 1-1/2''
Streamline® PRSTM Copper-Press Fittings is a ameless joining alternative for plumbing or mechanical applications.
Available sizes ranging from 1/2” to 4” in diameter.
Weight 0.65 lb
Material LEAD FREE
Operating Temperature [Min] -20 ºF
Operating Temperature [Max] 250 ºF
Operating Pressure [Max] 200 psi
End Type Press
Specications | Dimensions | Details
Mueller Streamline Co. Headquarters
150 Schilling Blvd
Suite 201
Collierville, Tennessee 38017
United States
Phone: 901 753 3200
Mueller Streamline Co. International
525 Okeechobee Blvd
Suite 860
West Palm Beach, FL 33401
United States
Phone: 561 273 8300
Specications
7/16/2019 | Page 1 of 2
End Size 1 1/4 in
Second End Type MNPT
Second End Size 1 1/2 in
Standards
ASME B16.51
IAPMO PS-117
NSF/ANSI 61
NSF/ANSI 372
CSA TIL-MSE-13
Overall Length 2.46 in
Overall Height 1.93 in
Overall Width 1.93 in
A 1.30 in
Qty Pcs / Bag 1
Master Qty Pcs / Box 20
Mueller Description 1-1/4 P X 1-1/2 M ADAPT
Dimensions
Details
7/16/2019 | Page 2 of 2
