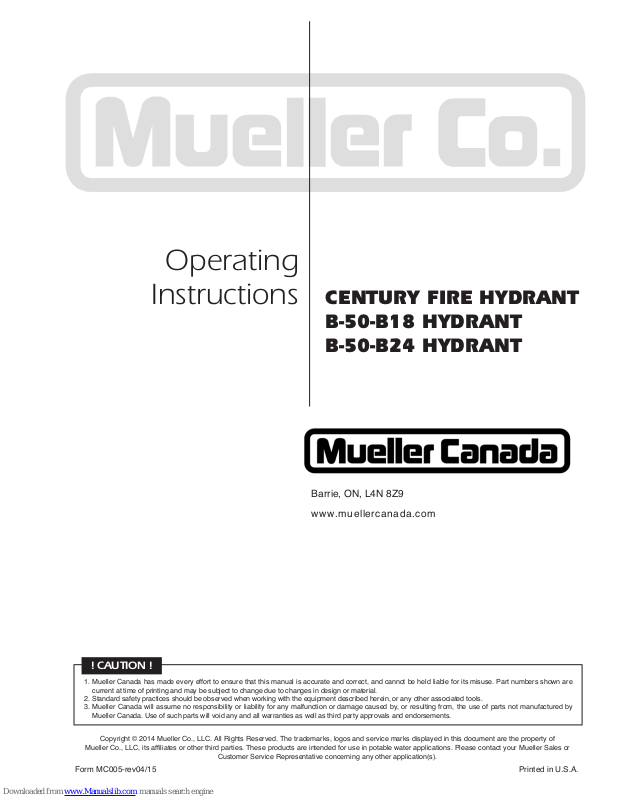

Operating
Instructions
CENTURY FIRE HYDRANT
B-50-B18 HYDRANT
B-50-B24 HYDRANT
Barrie, ON, L4N 8Z9
www.muellercanada.com
! CAUTION !
1. Mueller Canada has made every effort to ensure that this manual is accurate and correct, and cannot be held liable for its misuse. Part numbers shown are
current at time of printing and may be subject to change due to changes in design or material.
2. Standard safety practices should be observed when working with the equipment described herein, or any other associated tools.
3. Mueller Canada will assume no responsibility or liability for any malfunction or damage caused by, or resulting from, the use of parts not manufactured by
Mueller Canada. Use of such parts will void any and all warranties as well as third party approvals and endorsements.
Copyright © 2014 Mueller Co., LLC. All Rights Reserved. The trademarks, logos and service marks displayed in this document are the property of
Mueller Co., LLC, its affiliates or other third parties. These products are intended for use in potable water applications. Please contact your Mueller Sales or
Form MC005-rev04/15 Printed in U.S.A.
Customer Service Representative concerning any other application(s).
INDEX
CENTURY FIRE HYDRANT,
B-50-B18 HYDRANT,
B-50-B24 HYDRANT
Page
Installation, Operation, Inspection
and Maintenance .............................................3-4
Internal Parts Removal and
Hydrant Valve Rubber Replacement.....................5
Hydrostatic Test, 100mm Storz Adapter and
Storz Nozzle Installation .......................................6
Notes....................................................................7
2
www.muellercanada.com
CENTURY, B-50-B18 AND B-50-B24 FIRE HYDRANTS
Installation, Operation, Inspection and Maintenance
INSTALLATION
OTE: The following information is supplemental
N
to the AWWA M-17 manual.
When hydrants are received, they should be handled
carefully to avoid damage to the flanges or operating
mechanism. Hydrant valve should be kept closed and
nozzle caps should be in place to prevent entry of
foreign matter prior to installation. Hydrants to be stored
should be protected from the elements if possible.
Hydrant should be located to give minimum hazard to
or from traffic. Place hydrant back from the curb line to
prevent damage to or from overhanging vehicles. On
main thoroughfares place hydrants far enough from
intersections to avoid damage from accidents. Place
hydrants so they are readily visible and accessible.
It is recommended practice to install an auxiliary or
secondary gate valve in the lateral between the hydrant
and the main to permit inspection and repair of hydrant
without shutting down mains.
Before installation of hydrant, clean piping, hydrant
base, and drain ring of hydrant of any foreign material.
It is recommended that a firm footing be used in setting
the hydrant such as stone slabs on undisturbed soil. The
hydrant should also be anchored to oppose the force
due to pressure tending to force the hydrant off the end
of the lateral. Several methods such as strapping,
blocking or restraining type of joint may be used.
Nozzle caps should be sufficiently tight to prevent
removal by hand.
OPERATION
Hydrants are designed to be opened and closed
without the use of "cheaters". Excessive leverage may
damage the hydrant, therefore:
• Check directio n of opening as marked on the
hydrant cover.
• To open, remove a cap and turn the operating nut
unt il the v alv e h its t he sto p in the o pen ing
direction. Do not force the hydrant in the
open i ng d irect i on b eyond full open as
indicated by sudden resistance to turning. If
water does not flow when the hydrant is open, it is
probably due to a closed valve up stream from the
hydrant.
• To close, slowly turn the operating nut until the
valve closes off the flow. It is not necessary to
close this style of hydrant with great force.
Once the flow has stopped, loosen the operating
nut in the opening direction to take the strain off
the operating parts of the hydrant and to make it
easier to open the hydrant when needed again.
• Fire hydrants are not a throttling device and
therefore should be operated in the fully-open
or fully-closed position.
If a draining type of hydrant is to be installed, provision
should be made to carry off drainage. An acceptable
method is to excavate around the hydrant to allow
placement of approximately ½ cubic yard of crushed
stone to level about five inches above the drain ring. The
stone should be covered with roofing or tar paper before
backfilling to prevent plugging of the drainage pit.
Both drainage stone and earth fill above the stone
should be tamped to give firm support to the hydrant
barrel.
When first installed, the hydrant should be operated from
the fully-closed to fully-open position and back to make
sure no obstructions are present.
After the hydrant is installed and the line has been
hydrostatically tested, the hydrant should be flushed.
Proper drainage can be verified by placing palm of hand
over nozzle after hydrant has been closed. Drainage rate
should be sufficiently rapid to create a suction.
INSPECTION
To assure proper operation of the hydrant, regular
inspections should be carried out. All hydrants should
be inspected twice yearly, in the spring and fall.
When hydrants have been used during freezing
weather, they should be inspected after each use.
Inspection should cover the following items:
External Condition – Note condition of operating
nuts, caps, flanges, chains and paint.
Valve Leakage – Use aquaphone to verify that there
is no leakage past hydrant valve.
Barrel or Drain Leakage – Remove a cap and open
hydrant so barrel fills with water. Replace cap. Open
hydrant fully with nozzle caps in place. Note, if there
is leaka ge at the no zzles, ca p gaskets or barr el
gaskets. Use aqua phone to check leakage through
drains.
3
CENTURY, B-50-B18 AND B-50-B24 FIRE HYDRANTS
Installation, Operation, Inspection and Maintenance
Non-Draining Hydrants – Non-draining (plugged)
hydrants should be clearly identified. Unauthorized
se of non-draining hydrants can result in damage or
u
may render the hydrant inoperable – additional
supervision of these hy dr ants is r eq ui red duri ng
freezing conditions.
Slight valve leakage on non-draining hydrants can
result in damage and/or inoperable hydrants.
It is advisable to check non-draining hydrants for
water i n the barrel several hours after the initial
inspection and pump-out has been completed.
Proper Drainage – Close hydrant and remove a
nozzle cap. Drainage rate should be sufficiently rapid
that a suction can be felt when palm is placed over
nozzle opening.
Check for presence of water in the hydrant barrel by
using a plumb line or other suitable method.
NOTE: Water in the barrel of a non-draining
hydrant is an indication of leakage in the area of
the main valve and complete servicing of hydrant
will be required.
Water in the barrel of a drain type hydrant is an
indication of obstructed drain passage or a high
water table condition. Note condition and proceed
with inspection – if drains are verified to be
functioning properly, consideration should be
given to converting hydrant to non-draining type.
MAINTENANCE
If needed, add grease by removing the lubricating screw
in the top of the operating nut (do not use excessive
greasing pressure).
Replace any damaged caps, chains, etc., as noted on
inspection of external condition. If hydrant requires
painting, this should be done after all maintenance
has been completed.
If valve leakage has been noted, valve rubber and seat
gasket should be inspected and replaced if damaged.
(See directions for removal of internal parts.) Replace
any defective cap gaskets.
With "Leaded-In" type nozzles, a heavy blow on a
nozzle cap may cause loosening of the nozzle. If
leakage has been noted at the leaded joint, remove
cap and re-caulk nozzle. If nozzle has been damaged,
"Leaded-In" type can be replaced by melting out lead
joint of existing nozzle and re-pouring and caulking
joint for new nozzle. Resilient sealed nozzle may be
eplaced using kit available from Mueller Canada.
r
If leakage through drains has been noted with hydrant
in open posi ti on, drain lever wa sh ers should be
replaced. (See directions for removal of internal parts.)
If hydrant does not drain or drains very slowly, the
drains should be flushed. Remove a cap and open
hydrant so barrel fills with water. Replace cap. Open
th e hydr ant va lv e appr oximately two turns. Th is
unseats the hydrant valve and allows the hydrant
barrel to be pressurized while still holding the drain
open. Check for proper drainage.
Lubricate nozzle cap threads with No.1 multi-purpose
grease. Since the bearing housing is sealed with Ori ngs, i t is not normall y nece ssary to gre ase th e
operating head.
Century Hydrants – Drive cover pins through cover
into bearing housing and lift cover over operating nut.
Cover pins can be easily removed from clearance hole
in bearing housing and re-used.
REMOVAL OF INTERNAL PARTS
IF REMOVAL OF INTERNAL parts is required, the fol low ing sequence must be followed:
• Shut off water in line leading to hydrant.
• Open hydrant valve.
• Remove cover.
• Cover is held in place by bonnet pins. Remove pins and
lift cover over operating nut.
• Remove housing bolts.
• Remove complete housing (operating nut, housing
cover, thrust bearing and housing) as a unit by
continuing to turn operating nut in opening direction
until hydrant rod threads are disengaged. Carefully lift
complete housing from hydrant to prevent damage
to O-rings.
• Place seat wrench over the rod. Turn to left (counter-
clockwise) to unscrew hydrant seat from drain ring.
• Remove seat wrench from hydrant rod.
• Lift out hydrant rod with completely assembled work ing parts attached.
• Before threading hydrant seat into drain ring, lubri cate threads and face of seat gasket lightly.
• To re-assemble, reverse above procedure.
4
CENTURY, B-50-B18 AND B-50-B24 FIRE HYDRANTS
Internal Parts Removal and Hydrant Valve Rubber Replacement
HYDRANT VALVE RUBBER REPLACEMENT
Figure 1 (illustrated below) is current production
method.
igure 2 was supplied prior to August, 1984.
F
NOTE: Valve ball top (P/N 450) as currently sup plied on hydrant assemblies (Figure 1) can also be
used for Figure 2. Valve ball bot.tom (P/N 485) as
currently supplied is not inter changeable, how ever, valve ball bottoms supplied on replace ment
part orders will be suitable for either Figure 1 or 2.
PROCEDURE
• Place valve rubber (P/N 515) on valve top (P/N
450) and position on hydrant rod end.
• Lubricate O-ring (P/N 41301) and slide carefully
over rod threads.
FIGURE 1 FIGURE 2
450
• Slide plastic sleeve (P/N 294403) over rod end and
use sleeve to position O-ring in recess in valve top.
• Position valve bottom on rod and run rod nut out
(P/N 46140) into position.
• Using wrench, "snug" assembly together – DO
NOT OVER TIGHTEN rod nut. Tightening of the
rod nut should not cause noticeable bulging or
distortion of the valve rubber.
• Tighten second rod nut into first for locking.
NOTE: When replacing valve rubber on Figure 2,
care must be exercised to prevent rotation of
valve assembly when tightening rod nut. Proper
compression of gasket and effective sealing is
not obtained if valve is allowed to rotate with
the rod nut.
41301
294403
485
362818
515
1988
46140
5
CENTURY, B-50-B18 AND B-50-B24 FIRE HYDRANTS
Hydrostatic Test, Storz Adapter and Storz Nozzle Installation
HYDROSTATIC TEST
• Remove a cap and open hydrant so barrel fills with
water. Replace cap and open hydrant fully.
• NOTE any leakage at:
1. ground line (traffic connection);
2. bearing housing connection;
3. nozzle to barrel connections;
4. cap gaskets.
• Use aquaphone or other leak detection device to
verify that there is no leakage below ground.
100 MM STORZ ADAPTER – INSTALLATION
Storz adapter is supplied with the following items:
• 100 mm Storz x female nozzle thread adapter;
• set screws;
• 2 adapter gaskets (1/8” thick and 1/16” thick).
Orientation of Storz lugs should be approximately
vertical (Figure 3) to permit proper drainage (to avoid
build-up of ice in "pockets”). The following assembly
procedure is recommended:
• Inspect end face of pumper nozzle. Remove any
burrs etc. that could damage adapter gasket.
• Insert 1/16” thick gasket only in Storz adapter and
thread adapter onto pumper nozzle.
FIGURE 3
• "Snug'' into position (using bar as illustrated in
Figure 3), but do not over tighten.
• Note orientation of lugs. If acceptable, complete
tightening of Storz adapter. If not acceptable,
repeat using 1/8” gasket or 1/8” + 1/16” if necessary.
• Tighten set screws sufficiently to permit assembly of
cap to outlet.
• Pressurize hydrant to verify adapter to pumper
nozzle joint – retighten adapter if required.
• Remove set screws and run drill point into nozzle
(use 5/16” drill). Replace set screws.
STORZ NOZZLE INSTALLATION –
CENTURY/B-50B TYPE HYDRANT
This procedure applies to hydrants with model desig nation Century, B-50-B18, B-50-B24 and B-50-BM.
NOTE: Replacement, as described in this pro cedure, can only be performed on resilient seated
pumper nozzles. Leaded-in type nozzles can be
converted by utilizing a Storz adapter that threads
onto the existing pumper nozzle.
PROCEDURE
• Remove pumper cap.
• Insert hydrant pumper nozzle wrench through
pumper nozzle. Wrench is inserted completely
through nozzle and pulled back to engage pocket
on wrench with lugs on nozzle retainer.
• Turn wrench handle in a clockwise direction (facing
nozzle). Continue turning while pulling lightly on
wrench (to maintain engagement} until nozzle
disengages retainer.
• Slide nozzle toward handle, reach into pumper port
with one hand to hold retainer in position and
remove wrench.
• Drop pumper nozzle from wrench, pick up Storz
connector with wrench and re-engage wrench with
lugs on nozzle retainer.
20° 20°
6
Position Storz connector in recess in upper barrel-lugs
on Storz engage pockets in upper barrel recess.
Turn wrench in co unter-clockwise direction to
tighten Storz connector into position. Threading can
be started by turning wrench with one hand on
wrench shaft while positioning Storz connector with
other hand. After thread has started, tighten firmly.
CENTURY, B-50-B18 AND B-50-B24 FIRE HYDRANTS
Notes
7
Loading...
