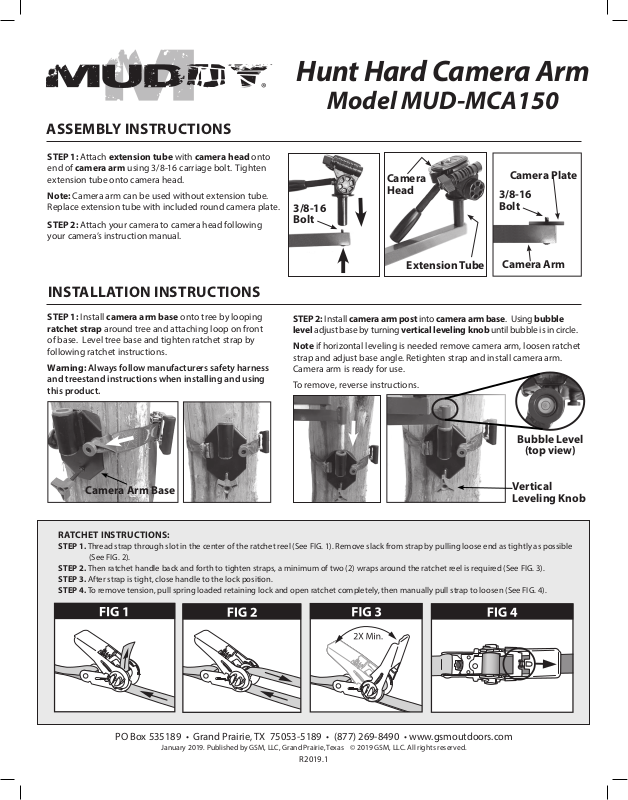

ASSEMBLY INSTRUCTIONS
STEP 1: Attach extension tube with camera head onto
end of camera arm using 3/8-16 carriage bolt. Tighten
extension tube onto camera head.
Note: Camera arm can be used without extension tube.
Replace extension tube with included round camera plate.
STEP 2: Attach your camera to camera head following
your camera’s instruction manual.
Hunt Hard Camera Arm
Model MUD-MCA150
Camera
Head
3/8-16
Bolt
Camera Plate
3/8-16
Bolt
Extension Tube
Camera Arm
INSTALLATION INSTRUCTIONS
STEP 1: Install camera arm base onto tree by looping
ratchet strap around tree and attaching loop on front
of base. Level tree base and tighten ratchet strap by
following ratchet instructions.
Warning: Always follow manufacturers safety harness
and treestand instructions when installing and using
this product.
Camera Arm Base
RATCHET INSTRUCTIONS:
STEP 1. Thread strap through slot in the center of the ratchet reel (See FIG. 1). Remove slack from strap by pulling loose end as tightly as possible
(See FIG. 2).
STEP 2. Then ratchet handle back and forth to tighten straps, a minimum of two (2) wraps around the ratchet reel is required (See FIG. 3).
STEP 3. After strap is tight, close handle to the lock position.
STEP 4. To remove tension, pull spring loaded retaining lock and open ratchet completely, then manually pull strap to loosen (See FIG. 4).
STEP 2: Install camera arm post into camera arm base. Using bubble
level adjust base by turning vertical leveling knob until bubble is in circle.
Note if horizontal leveling is needed remove camera arm, loosen ratchet
strap and adjust base angle. Retighten strap and install camera arm.
Camera arm is ready for use.
To remove, reverse instructions.
Bubble Level
(top view)
Vertical
Leveling Knob
PO Box 535189 • Grand Prairie, TX 75053-5189 • (877) 269-8490
January 2019. Published by GSM, LLC, Grand Prairie, Texas © 2019 GSM, LLC. All rights reserved.
R2019.1
• www.gsmoutdoors.com
