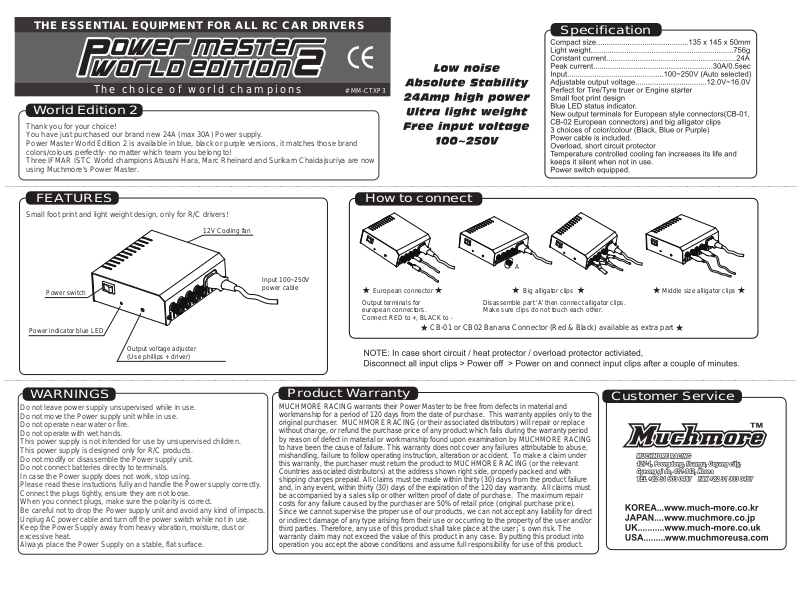

Muchmore MM-CTXP3 User Manual

THE ESSENTIAL EQUIPMENT FOR ALL RC CAR DRIVERS

Specification

The choice of world champions

# MM-CTXP3

World Edition 2

Thank you for your choice!
You have just purchased our brand new 24A (max 30A) Power supply.
Power Master World Edition 2 is available in blue, black or purple versions, it matches those brand
colors/colours perfectly- no matter which team you belong to!
Three IFMAR ISTC World champions Atsushi Hara, Marc Rheinard and Surikarn Chaidajsuriya are now
using Muchmore's Power Master.

....................................................................................................................................................................................................................................................................................................................................................................................................................................

FEATURES

Small foot print and light weight design, only for R/C drivers!

12V Cooling fan

Power switch

Power indicator blue LED

Output voltage adjuster
(Use phillips + driver)

Input 100~250V
power cable

How to connect

Output terminals for
european connectors.
Connect RED to +, BLACK to -

CB-01 or CB02 Banana Connector (Red & Black) available as extra part

A

Big alligator clipsEuropean connector

Disassemble part 'A' then connect alligator clips.
Make sure clips do not touch each other

.

Middle size alligator clips

....................................................................................................................................................................................................................................................................................................................................................................................................................................

WARNINGS

Do not leave power supply unsupervised while in use.
Do not move the Power supply unit while in use.
Do not operate near water or fire.
Do not operate with wet hands.
This power supply is not intended for use by unsupervised children.
This power supply is designed only for R/C products.
Do not modify or disassemble the Power supply unit.
Do not connect batteries directly to terminals.
In case the Power supply does not work, stop using.
Please read these instuctions fully and handle the Power supply correctly
Connect the plugs tightly, ensure they are not loose.
When you connect plugs, make sure the polarity is correct.
Be careful not to drop the Power supply unit and avoid any kind of impacts.
Unplug AC power cable and turn off the power switch while not in use.
Keep the Power Supply away from heavy vibration, moisture, dust or
excessive heat.
Always place the Power Supply on a stable, flat surface.

Product Warranty

MUCHMORE RACING warrants their Power Master to be free from defects in material and
workmanship for a period of 120 days from the date of purchase. This warranty applies only to the
original purchaser. MUCHMORE RACING (or their associated distributors) will repair or replace
without charge, or refund the purchase price of any product which fails during the warranty period
by reason of defect in material or workmanship found upon examination by MUCHMORE RACING
to have been the cause of failure. This warranty does not cover any failures attributable to abuse,
mishandling, failure to follow operating instruction, alteration or accident. To make a claim under
this warranty, the purchaser must return the product to MUCHMORE RACING (or the relevant
Countries associated distributors) at the address shown right side, properly packed and with
shipping charges prepaid. All claims must be made within thirty (30) days from the product failure

.

and, in any event, within thirty (30) days of the expiration of the 120 day warranty. All claims must
be accompanied by a sales slip or other written proof of date of purchase. The maximum repair
costs for any failure caused by the purchaser are 50% of retail price (original purchase price).
Since we cannot supervise the proper use of our products, we can not accept any liability for direct
or indirect damage of any type arising from their use or occurring to the property of the user and/or
third parties. Therefore, any use of this product shall take place at the user¡¯s own risk. The
warranty claim may not exceed the value of this product in any case. By putting this product into
operation you accept the above conditions and assume full responsibility for use of this product.
