Muchmore CTX-W User Manual

Download

Features

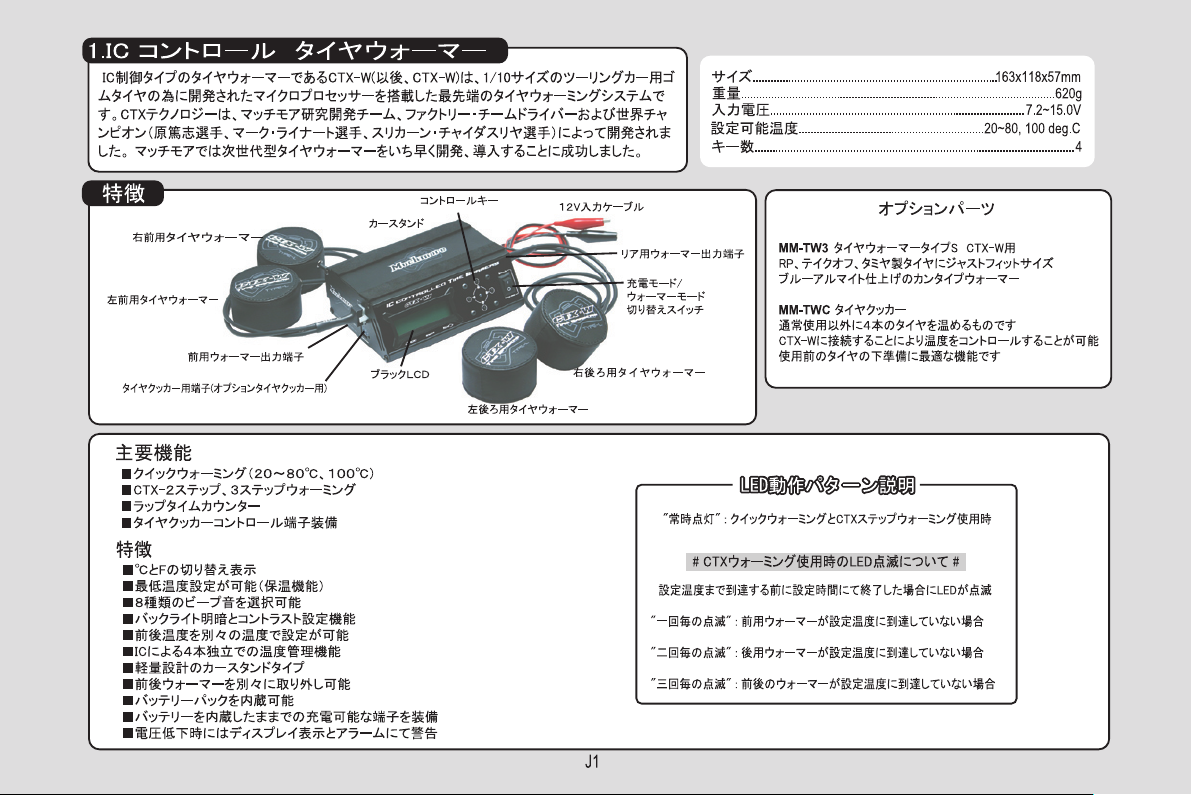

1.IC CONTROLLED TIRE WARMERS

E 1

Dimensions.................

Weight...........................................................................................

Input.....................................................................................

Temp range..............................................................

Keys....................................................................................................

163x118x57mm(control stand without warmers)

620g

7.2~15.0V

20~80, 100 deg.C

SPECIFICaTIONs

Optional parts

LED INDICaTOR

The IC Controlled Tire Warmers(referred to as CTX-W) are a state of the art microprocessor based Tire warmer system for 1/10 size touring car's rubber tires. With CTX technology developed by our team of R&D, factory team drivers and world champion Atsushi Hara, Marc Rheinard and Surikarn Chaidajsuriya, Muchmore introduces the next generation of Tire warmers for serious R/C drivers.

MM-TW3 TIRE WAMRERS TYPE-S for CTX-W

Smaller diameter, Perfect fit for RP, Take off, Tamiya tires! Stunning blue anodized aluminum cans.

MM-TWC TIRE COOKER

Additional Tire warmers for serious drivers! Can be connected CTX-W, temperature controlled.

"Always ON" : Quick warming or CTX-step warming.

"Blinking once a second(LED turned on longer time)" : Delaying or Warming done.

"Blinking once a second" during delaying in CTX-warm (LED turned on shorter time)

: Front temperature did not get to target temperature.

"Blinking twice" during delaying in CTX-warm

: Rear temperature did not get to target temperature.

MAIN FEATURES

MAIN FUNCTIONS

Front-Left tire warmer

Front-warmers output

Rear-warmers output

Tire cooker input(Tire cooker-optional)

Front-Right tire warmer

Control keys

Rear-Right tire warmer

Battery charge switch

Rear-Left tire warmer

12V input cable

LCD display

Car stand

"Blinking three times" during delaying in CTX-warm

: Front and Rear temperatures did not get to target temperature.

3.Main menu

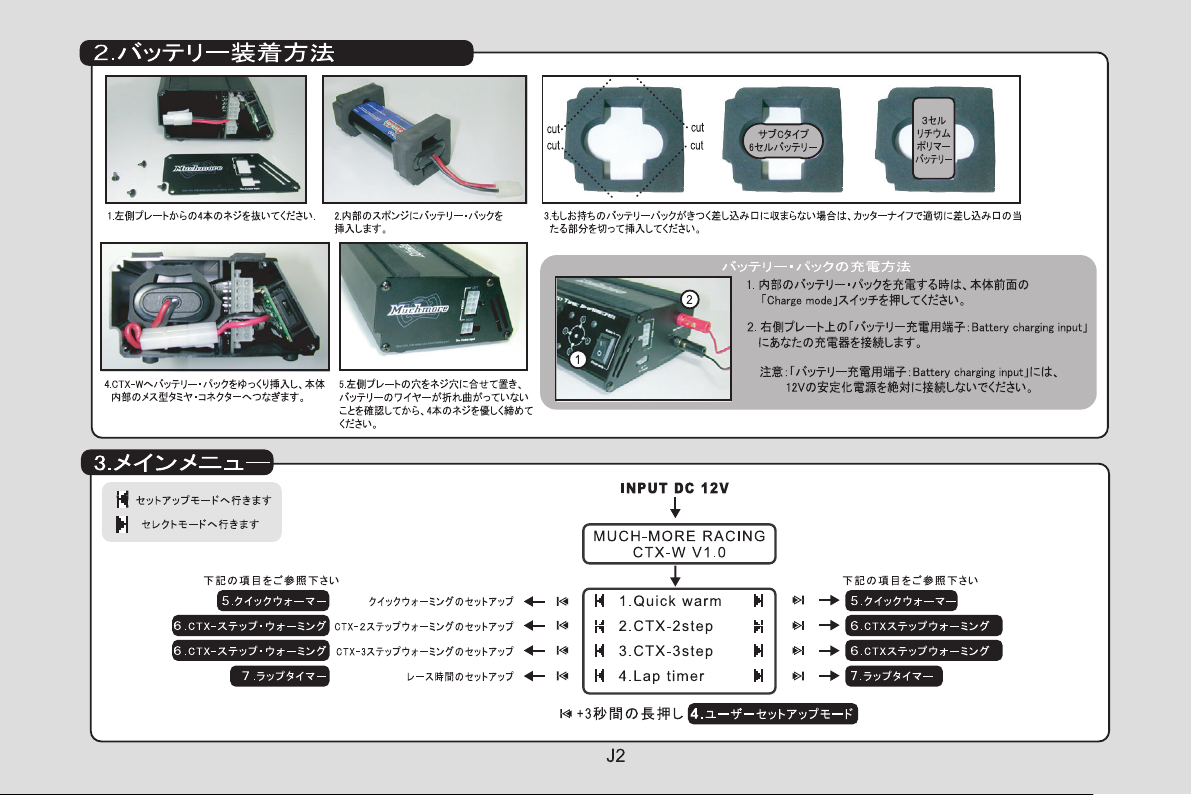

2.How to insert battery pack

MUCH-MORE RACING

CTX-W V1.0

1.Quick warm

2.CTX-2step

3.CTX-3step

4.Lap timer

Quick warming set up

CTX-2 step warming set up

CTX-3 step warming set up

Race time set up

+3seconds goes to 4.User set up mode

Please see

5.Quck warm

6.CTX-step warming

7.Lap timer

Please see

5.Quck warm

6.CTX-step warming

7.Lap timer

1. Unscrew 4screws from left side plate.

5. Place left side plate properly, then tighten 4 screws gently. Make sure battery wires do not bend.

2. Place your battery pack into foam inserts.

4. Insert your battery pack into the CTX-D carefully and connect battery connector to female Tamiya connector inside.

3. If your battery pack fits into foam inserts too tight, cut four corners of foam insert properly with a cutter knife.

1. When you charge battery pack inside, turn the switch on the front panel to "Charge mode"

2. Connect your charger to "Battery charging input" on the right side plate.

DO NOT CONNECT 12V POWER SUPPLY TO

"Battery charging input"

HOW TO CHARGE YOUR BATTERY PACK

Sub-C size

6cell

3cell litheum polimer

5.Quick warming

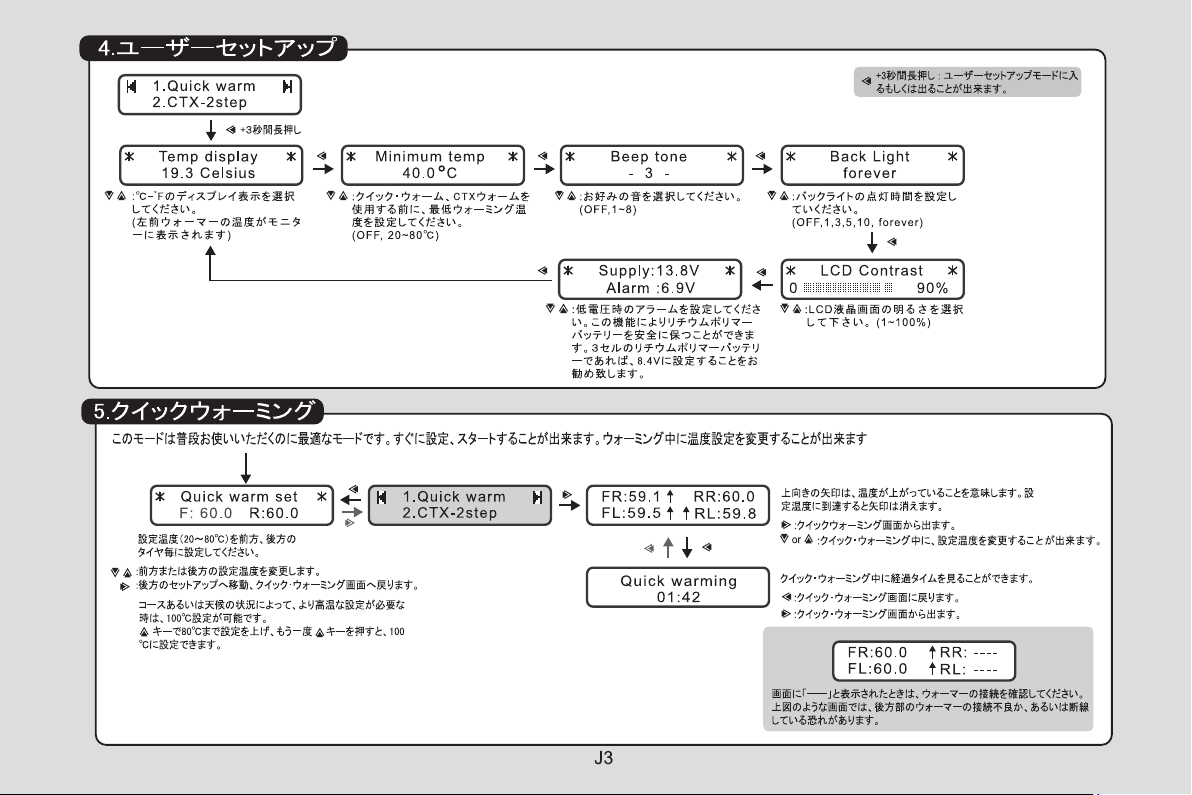

4.User set up mode

1.Quick warm

2.CTX-2step

1.Quick warm

2.CTX-2step

This mode is easy to set and start, good for standard use. You can change temperature during warming.

Set front and rear tires target temperature 20~80deg.C

FR:59.1 RR:60.0Quick warm set

F: 60.0 R:60.0

TEMP display

19.3 Celsius

:Select Temperature display Celsius-Fahrenheit (Front-Left temperature is monitored on this display.)

If you need extra hot warming for certain track or weather conditions, You can set 100deg.C by hit key once more when you reach to 80deg.C

Upward arrow means the temperature is going up. It dissapears when the temperature is reached to target temperature.

:You can change temperature during Quick warming.

:change front or rear temperature. :move to rear set up, return to quick warming display.

You can see elapsed time during Quick warming.

+3seconds

+3seconds : Enter or Quit from User set up.

:Back to quick warming display

:Quit out of Quick warming.

If you see " ---- " on the display, check warmers connection.

On above display, rear warmers have bad connection or disconnected.

FL:59.5

RL:59.8

FR:60.0 RR: ---FL:60.0

RL: ----

Quick warming

01:42

Minimum TEMP

40.0 C

:Set minimum warming temperature while not using Quick warm and CTX warm. (OFF, 20~80deg.C)

:Select your favourate beep tone.(OFF,1~8)

:Select your favourate back light running time. (OFF,1,3,5,10, forever)

:Select your favourate LCD contrast(1~100%)

:Set Low voltage alarm. You can save your expensive Li-po battery with this function. We recommend to set at 8.4V for 3cell Li-po battery.

Beep tone

- 3 -

Back Light

forever

LCD Contrast

0 90%

Supply:13.8V

Alarm :6.9V

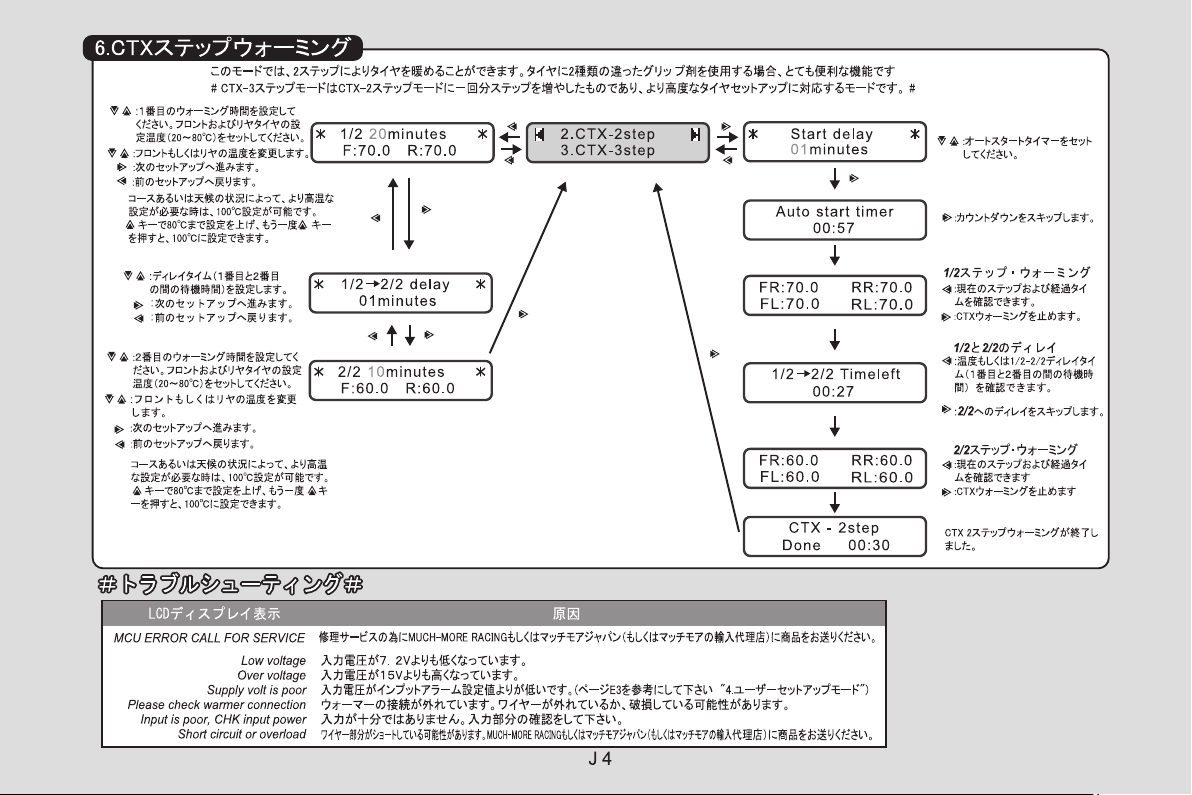

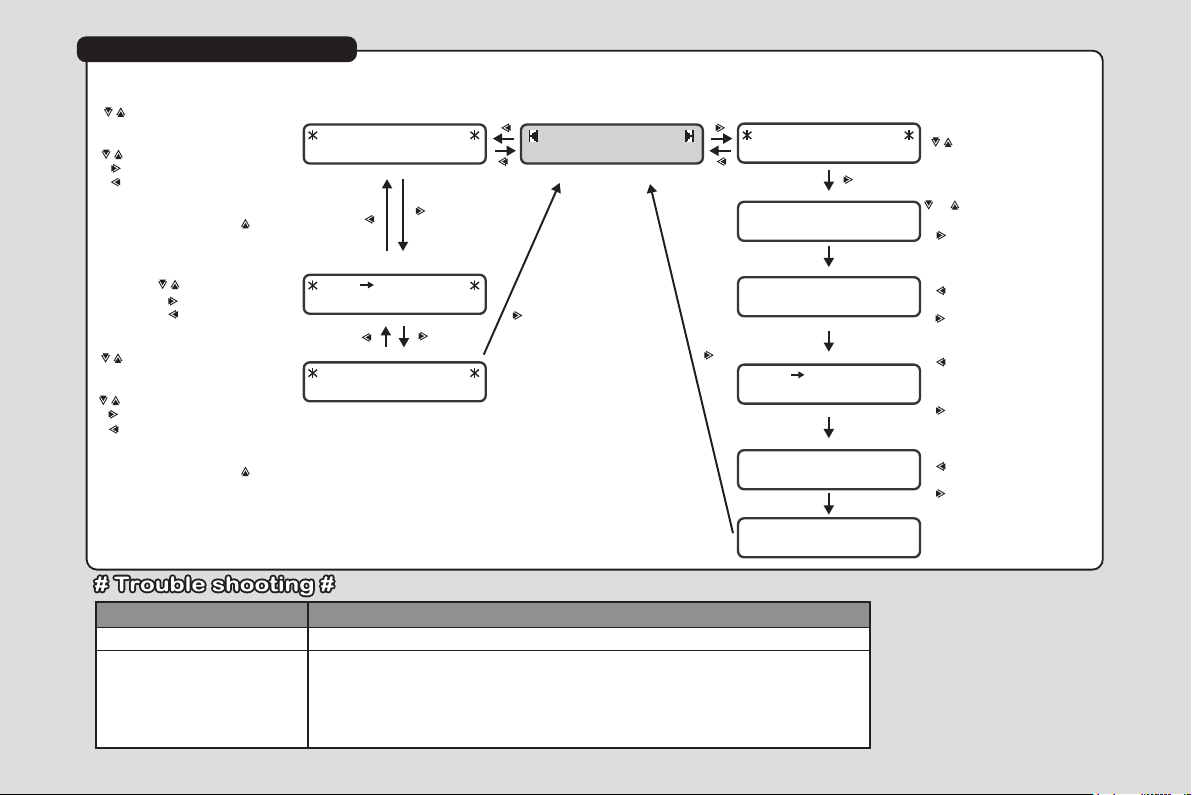

6.CTX-step warming

2.CTX-2step

3.CTX-3step

You can warm your tires by 2 step in this mode. It is convenient when you apply two different kinds of tire additives on your tires.

# CTX-3step has one more warming step, all other functions are exactly the same as CTX-2step warming #

Set front and rear tires target temperature 20~80deg.C

:Determine first step warming time.

1/2 20minutes

F:70.0 R:70.0

Start delay

Auto start timer

00:57

01minutes

1/2 2/2 delay

1/2 2/2 Timeleft

00:27

01minutes

:Determine delay time

:change front or rear temperature.

2/2 10minutes

F:60.0 R:60.0

:move to next set up

Set front and rear tires target temperature 20~80deg.C

:Determine second step warming time.

:change front or rear temperature. :move to next set up

:move to next set up :back to former set up

:back to former set up

1/2 step warming

2/2 step warming

CTX 2step warming done

1/2 - 2/2 Delaying

:You can check current step and elapsed time.

:Count down alarm sound can be eliminated.

:skip count down.

:Set auto start timer

:You can check current step and elapsed time.

:You can check temperature or 1/2-2/2 delay time.

:Quit from CTX warming.

:Skip delaying, move to 2/2 step warming

FR:70.0 RR:70.0 FL:70.0

RL:70.0

FR:60.0 RR:60.0 FL:60.0

RL:60.0

CTX - 2step

Done 00:30

:Quit from CTX warming.

If you need extra hot warming for certain track or weather conditions, You can set 100deg.C by hit key once more when you reach to 80deg.C

Low voltage

Over voltage

Supply volt is poor

Please check warmer connection

Input is poor, CHK input power

Short circuit or overload

Input voltage is lower than 7.2V Input voltage is higher than 15V Input volt is lower than Input alarm(Please see E3 "4.User set up mode") Warmer connection is not properly connected or a wire disconnected or damaged. Input power is not sufficient. Short circuit may have occurred to your warmer's heating wire. Please send the product to MUCHMORE.

Messages on LCD display CAUSE

Please send

the product to MUCHMORE RACING (or their associated distributors) for repair service.

MCU ERROR CALL FOR SERVICE

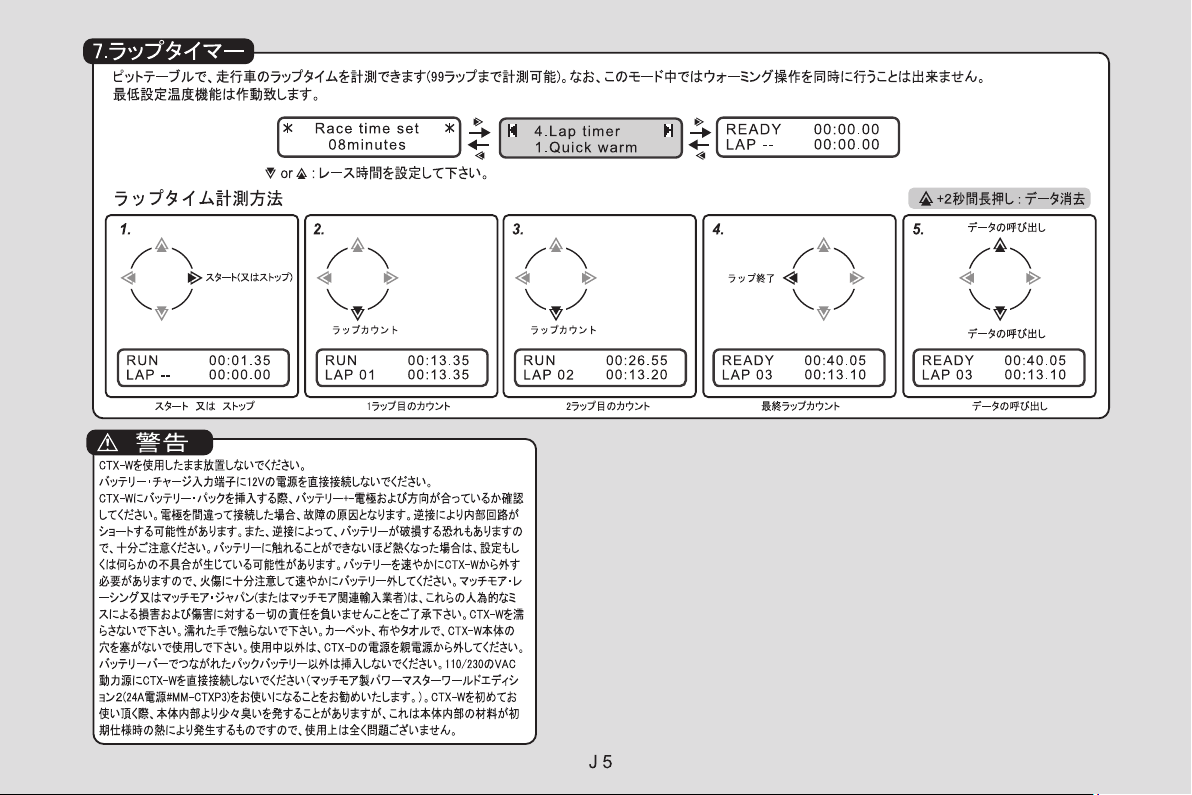

7.Lap timer

4.Lap timer

1.Quick warm

Check your competitor's lap time at the table! (up to 99Laps), Quick warming or CTX warming can not be operated simultaneously in this mode. Only Minimum temp function will act.

Determine race minutesor :

How to check lap times

READY 00:00.00 LAP --

START(or STOP)

00:00.00

Race time set

08minutes

RUN 00:01.35 LAP --

00:00.00

RUN 00:13.35 LAP 01

00:13.35

FINISH LAP

LAP COUNT

Time goes up 1lap counted 2lap counted Final lap counted. Recall data

RECORD CALL

+2seconds : Data clear

RECORD CALL

1. 2.

RUN 00:26.55 LAP 02

00:13.20

LAP COUNT

READY 00:40.05 LAP 03

00:13.10

READY 00:40.05 LAP 03

00:13.10

WARNING

Do not leave the CTX-W unattended. Do not connect 12V power supply directly to the battery charge input.When you insert your battery pack into the CTX-W, make sure the batteries polarity and direction are correct. Wrong connection may cause unit to fail. The remote possibility of a failure could cause a short circuit by improper connection. This could cause the battery to rupture. If cells are too hot to touch there is something wrong and the pack must be disconnected from the CTX-W. Muchmore Racing(or their associated distributors) shall not be liable for any property damage or personal injury which may result from the failure to follow these instructions or other improper use of this product. Avoid any contact of your CTX-W with water or other liquids. Never operate on carpets, cloths, pit towel or other materials. Disconnect the CTX-W from power supply when not in use. Only insert serially switched battery packs. Never connect the CTX-W directly to a 110/230 VAC power source. For best performance, we recommend the Power Master(24A power supply #MM-CTXP3). New warmers may produce a slight odour in the first few hours of service due to materials curing inside the device.

Product Warranty

MUCHMORE RACING warrants their CTX-W to be free from defects in material and workmanship for a period of 120 days from the date of purchase. This warranty applies only to the original purchaser. MUCHMORE RACING (or their associated distributors) will repair or replace without charge, or refund the purchase price of any product which fails during the warranty period by reason of defect in material or workmanship found upon examination by MUCHMORE RACING to have been the cause of failure. This warranty does not cover any failures attributable to abuse, mishandling, failure to follow operating instruction, alteration or accident. To make a claim under this warranty, the purchaser must return the product to MUCHMORE RACING (or the relevant Countries associated distributors) at the address shown E6(last page), properly packed and with shipping charges prepaid. All claims must be made within thirty (30) days from the product failure and, in any event, within thirty (30) days of the expiration of the 120 day warranty. All claims must be accompanied by a sales slip or other written proof of date of purchase. The maximum repair costs for any failure caused by the purchaser are 50% of retail price (original purchase price). Since we cannot supervise the proper use of our products, we can not accept any liability for direct or indirect damage of any type arising from their use or occurring to the property of the user and/or third parties. Therefore, any use of this product shall take place at the user's own risk. The warranty claim may not exceed the value of this product in any case. By putting this product into operation you accept the above conditions and assume full responsibility for use of this product.

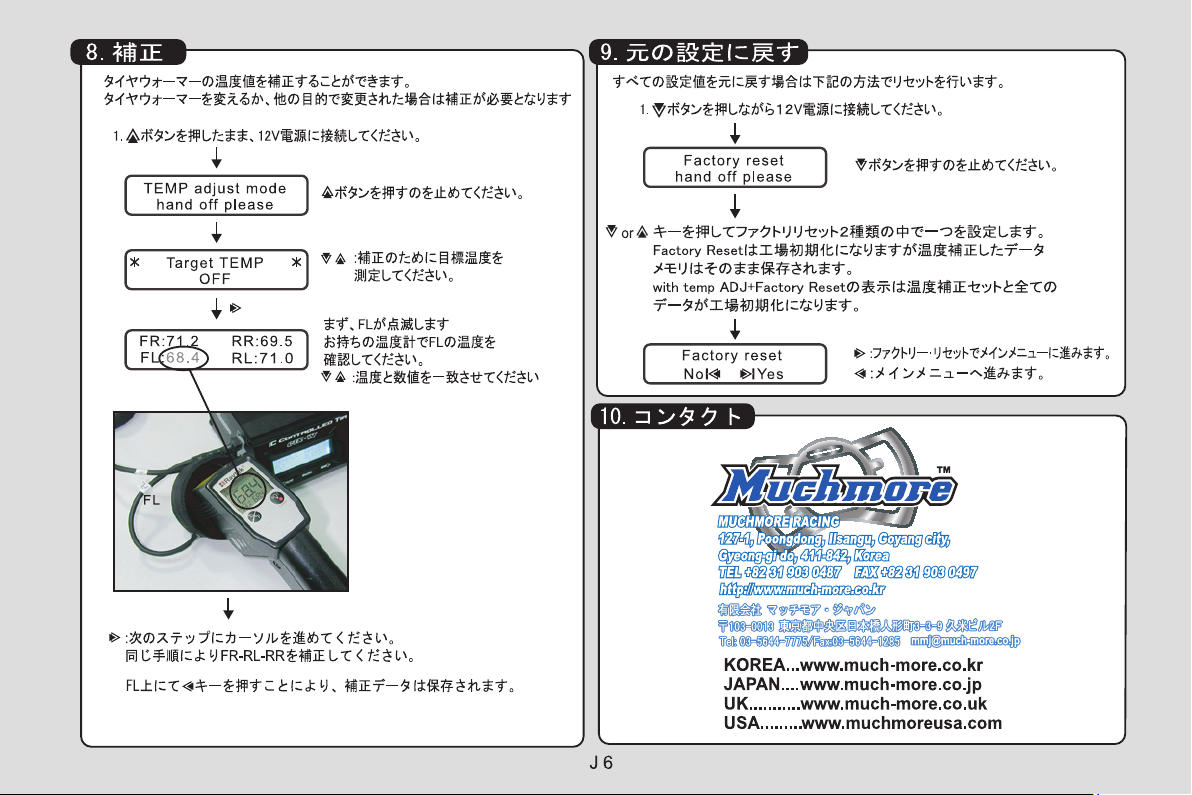

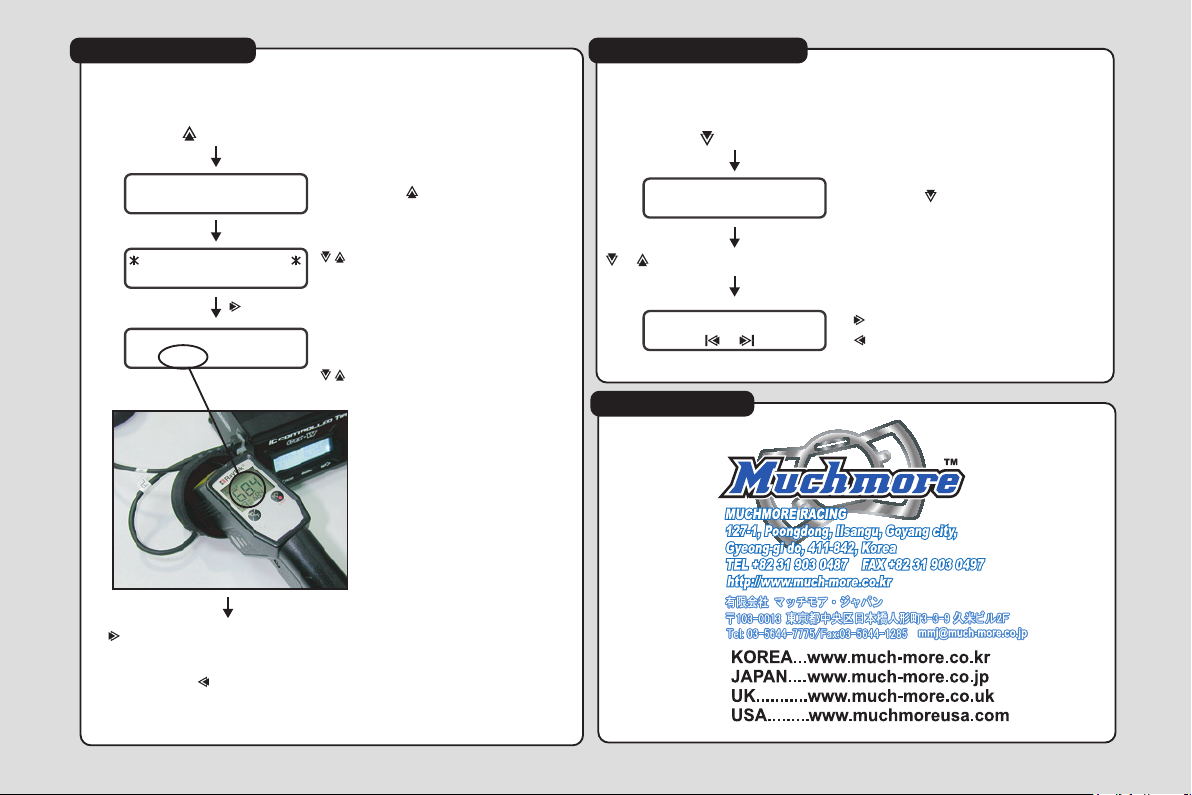

8.Calibration

1.With push key and hold, input 12V power.

You can calibrate your tire warmers with your thermometer. Calibration is required when tire warmers are changed or other purpose.

Stop pushing button.

FL will blink first. Check the temperature of FL with your thermometer. :Match the temperature to the value.

:Move cursor to next step. Calibrate FR-RL-RR warmers as same way.

If you push key on FL, CTX-W will save all calibration data and will restart itself.

TEMP adjust mode

hand off please

:Determine target temperature for calibration.

Target TEMP

OFF

FR:71.2 RR:69.5

FL:68.4

RL:71.0

9.Factory reset

1.With push key and hold, input 12V power.

You can reset the CTX-W when you want to return all values to the original values.

Stop pushing button.

or :will ask you if temperature calibration reset.

Factory reset

hand off please

Factory reset

No Yes

:Factory reset then goes to Main menu. :Goes to Main menu.

10.Contact

仕様

.........................................................................................................................................................................................................................

..........................................................................

修理依頼につきましてはこの保証書とご購入日が確認できる領収書（レシート、店舗での保証書等）を添えてご依頼ください。

(★印欄に記入の無い場合は無効となります）

製品番号

本保証書は日本国内においてのみ有効です。

★お客様名

★ご住所

★電話番号

お客さま記入欄

販売店記入欄

★販売店名

★担当者名

保証書

本製品には、マッチモア正規販売店よりご購入された場合に対し保証サービスがあります。説明書に明記されている正常な使用状態で故障した場合は、この保証内容に記載された期間、条件のもとにおいて修理、もしくはその他の対応とさせていただきます。本製品を最初に購入されてから１２０日間は保証サービスの対象となります。また、マッチモアレーシングの製造工程に対した製品保証にたいしては、初回使用時に初期不良と契約店にて判断された場合は新品交換（購入より１０日以内）、また、最初に購入してから１２０日以内では保証サービス修理を受けることが可能です。（中古品、正規販売店以外からの購入に関しては、通常修理のみの取り扱いとなります）１２０日以内の保障サービスでは、最初に購入した日が証明できるもの（領収書、保証書等）を添付の上、マッチモアジャパン修理受付窓口、もしくは購入された正規販売店へお問い合わせ下さい。また、使用者の不注意による破損（水没・粉砕・落下等）に対しても、１２０日以内であれば本製品の定価の５０％以下で修理を受けることが可能です。本保証サービスは、マッチモアジャパン修理受付窓口、もしくは正規販売店からのご依頼に対してのみとなります。修理受付や製品に対してのご質問は、マッチモアジャパン修理受付窓口、もしくは正規販売店へお問い合わせいただきますようお願い致します。海外からの正規ルート以外で購入された商品に関しましては、一切の保障対象外となります。本保障は日本国内正規販売店よりマッチモア・ジャパンにおいて、販売された正規品を購入された場合にのみ有効となります。
