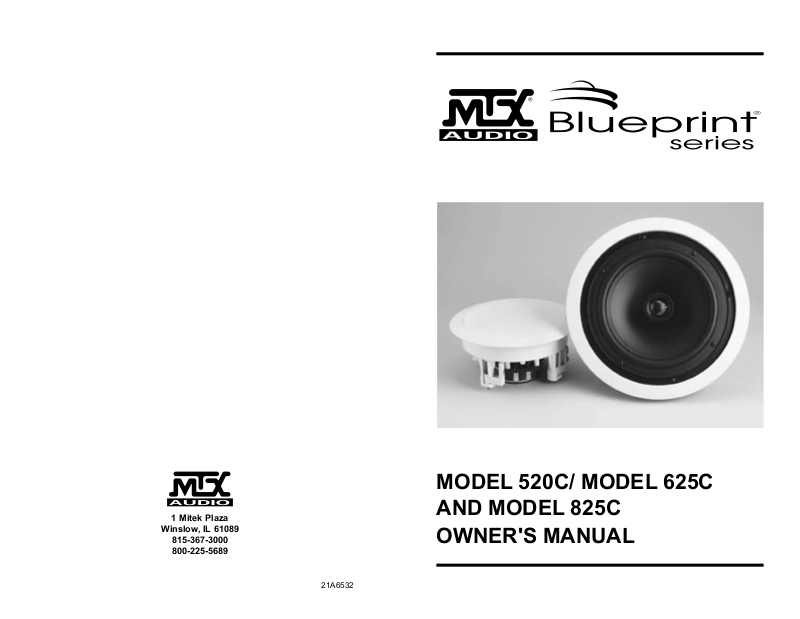

MODEL 520C/ MODEL 625C
1 Mitek Plaza
Winslow, IL 61089
815-367-3000
800-225-5689
AND MODEL 825C
OWNER'S MANUAL
21A6532
CONGRATULATIONS
We appreciate your choice of MTX In-Ceiling Speakers. Properly installed and
operated, MTX In-Ceiling Speakers should provide years of worry-free listening
pleasure. It’s important that you follow each step in this guide carefully to insure
proper installation.
SPECIFICATIONS MODEL 520C MODEL 625C MODEL 825C
Frequency Response 60Hz-20kHz 50Hz-20kHz 40Hz-20kHz
±3dB ±3dB ±3dB
Impedance 8 ohms nominal 8 ohms nominal 8 ohms nominal
Power Handling 50 Watts RMS 55 Watts RMS 60 Watts RMS
100 Watts Peak 110 Watts Peak 120 Watts Peak
Music Music Music
Sensitivity (1W/1m) 85dB 85dB 85dB
Woofer Diameter 5-1/4” 6-1/2” 8”
Tweeter 20mm 25mm 25mm
Soft Dome Soft Dome Soft Dome
MTX WARRANTY INFORMATION
All MTX In-Ceiling Speakers purchased in the United States from an authorized
MTX dealer are guaranteed against defects in material and workmanship for a period
ten years from the date purchased by the end user, and limited to the original retail
purchaser of the product.
MTX disclaims any liability for other incurred damages resulting from product defects.
Any expenses incurred in the removal and reinstallation of product is not covered by
this warranty. MTX's total liability will not exceed the purchase price of the product.
This warranty is valid in the United States only.
Proof of purchase is required when requesting service, so please retain your sales
receipt and take a moment to register your warranty on line at www.mtx.com.
Mounting Depth 3-1/2” 2-15/16” 3-3/8”
Baffle Diameter 7-3/4” 9” 10-3/4”
PAINTING YOUR MTX IN-CEILING SPEAKERS
MTX In-Ceiling Speakers are designed to accept all types of interior and exterior
paints. Spray or roller application should provide excellent results. A paint shield
is included with all MTX In-Ceiling Speakers speakers to protect the speakers
during the painting process.
OTHER PRODUCTS FROM MTX
LOUDSPEAKER PLACEMENT
In-Wall Loudspeakers
MODEL 625W
6-1/2” Two-Way In-Wall Speaker
25mm Soft Dome Swivel Tweeter
Impedance: 8 ohms nominal
Sensitivity:85dB
55W RMS/110W Peak Music
Frequency Response: 48Hz-20kHz
12”H x 8 5/8”W x 3 1/4”D
Home Loudspeakers
MONITOR6
6-1/2” Two-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 89dB
100W RMS/200W Peak Music
Frequency Response: 55Hz-20kHz
12 3/4”H x 7 1/2”W x 8 1/2”D
MONITOR10
10” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
200W RMS/400W Peak Music
Frequency Response: 30Hz-20kHz
31 7/16”H x 11 1/8”W x 14 5/16”D
MODEL 825W
8” Two-Way In-Wall Speaker
25mm Soft Dome Swivel Tweeter
Impedance: 8 ohms nominal
Sensitivity: 86dB
60W RMS/120W Peak Music
Frequency Response: 36Hz-20kHz
14”H x 10”W x 3-1/2”D
MONITOR6C
6-1/2” Center Channel Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 92dB
100W RMS/150W Peak Music
Frequency Response: 60Hz-20kHz
7 1/2”H x 17 5/8”W x 8”D
MONITOR12
12” Three-Way Home Loudspeaker
19mm Dome Tweeter
Impedance: 8 ohms nominal
Sensitivity: 94dB
250W RMS/500W Peak Music
Frequency Response: 25Hz-20kHz
35”H x 13 1/8”W x 16 1/16”D
MTX In-Ceiling Speakers are designed to work within any interior decorating
scheme. They can be installed in virtually any location where flush mounting is
possible. To maximize their sound performance however certain guidelines should
be followed. For the best stereo reproduction the two loudspeakers should be
placed an equal distance from your listening position and separated so that the
angle between them, at the listening position, is between 40 and 60 degrees.
TECHNICAL ASSISTANCE
For additional technical assistance you can visit our website at www.mtx.com.
Otherwise, our technical service representatives can be reached by phone: 1-800CALL-MTX or by email: technical@mtx.com.
TWEETER LEVEL ADJUSTMENT
The output of the tweeter can be adjusted to compensate for speaker placement/
listening positions that are less than ideal. The 0dB position is designed to provide the smoothest frequency response on axis. If the high frequency response is
considered to be too strong or too weak, the tweeter level can be increased (+3dB
position) or decreased (-3dB position) to suit the listeners preference.
STEP 1
Using a stud finder (available at low cost at most hardware stores) or other accurate method, locate center point between two joists and mark. Using template
provided, trace hole pattern on surface of ceiling
STEP 2
Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in wall, following traced pattern.
STEP 4
Attach loudspeaker wires to speaker terminals, observing correct polarity, and
position speaker frame up into cutout. Be careful not to pinch wires in the process.
STEP 5
Carefully tighten the four mounting screws. This will cause the mounting wings to
rotate out behind the mounting surface and secure the speaker in place.
STEP 3
Run loudspeaker wires to sound source location. There are several methods you
can use to accomplish wiring, depending on the construction characteristics of the
room or house. You can add a professional touch to your installation by using a
speaker terminal plate at the source location. Leave sufficient amount of wire at
speaker location (8 to 10 inches) to complete connection.
STEP 6
After the speaker panel is secured tightly, test for sound. When you are satisfied
the speaker is operational, affix grill. As grill is designed for a snug fit, you’ll need
to position one edge into slot first, and press or squeeze around perimeter of grill,
while pushing leading edges into grill slot.
