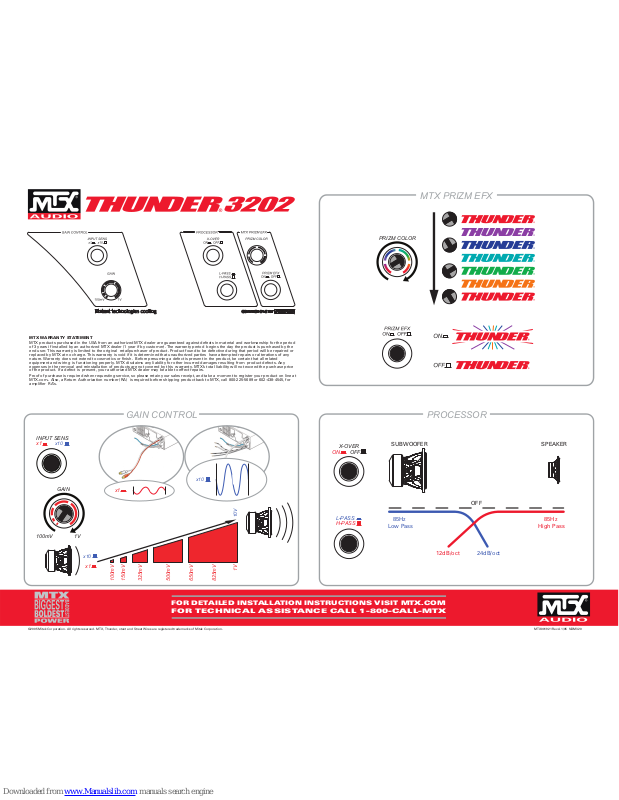

Page 1
©2005 Mitek Corporation. All rights reserved. MTX, Thunder, xtant and StreetWires are registered trademarks of Mitek Corporation. MTX001921 RevA 1/05 NDM320
GAIN
100mV 1V
PRIZM COLOR
150mV
325mV
500mV
825mV
1V
650mV
100mV
INPUT SENS
x1
x10
x1
x10
GAIN CONTROL
MTX PRIZM EFX
x1
x10
10V
MTX WARRANTY STATEMENT
MTX products purchased in the USA from an authorized MTX dealer are guaranteed against defects in material and workmanship for the period
of 3 years if installed by an authorized MTX dealer (1 year if by customer). The warranty period begins the day the product is purchased by the
end user. This warranty is limited to the original retailpurchaser of product. Product found to be defective during that period will be repaired or
replaced by MTX at no charge. This warranty is void if it is determined that unauthorized parties have attempted repairs or alterations of any
nature. Warranty does not extend to cosmetics or finish. Before presuming a defect is present in the product, be certain that all related
equipment and wiring is functioning properly. MTX disclaims any liability for other incurred damages resulting from product defects. Any
expenses in the removal and reinstallation of products are not covered by this warranty. MTX’s total liability will not exceed the purchase price
of the product. If a defect is present, your authorized MTX dealer may be able to effect repairs.
Proof of purchase is required when requesting service, so please retain your sales receipt, and take a moment to register your product on line at
MTX.com.. Also, a Return Authorization number (RA) is required before shipping product back to MTX, call 800-225-5689 or 602-438-4545, for
amplifier RA’s.
PROCESSOR
FOR DETAILED INSTALLATION INSTRUCTIONS VISIT MTX.COM
FOR TECHNICAL ASSISTANCE CALL 1-800-CALL-MTX
24dB/oct
12dB/oct
SUBWOOFER
SPEAKER
X-OVER
ON OFF
L-PASS
H-PASS
OFF
85Hz
Low Pass
85Hz
High Pass
Page 2
OR
CONNECT SIGNAL
2
12-8 AWG
12-8 AWG
+BATT
REM
-GND
8-4 AWG
8-4 AWG
16 AWG
Disconnect Battery Negative (–) Cable
Prior to Installing Amplifier
Connect to Source Unit
Remote Turn-on
/Power Antenna Wire
Remove Paint
Remove Paint
From Metal
From Metal
Remove Paint
From Metal
Ground To Metal of Vehicle
Ground To Metal of Vehicle
Ground To Metal of Vehicle
CONNECT SPEAKERS
CONNECT POWER
1
3
≥2ohm
≥2ohm
≥4ohm
+
–
+
–
+
–
OR
12-8 AWG
12-8 AWG
≥2ohm
≥2ohm
+
–
+
–
+
–
≥4ohm
Remote Turn-on
/Power Antenna Wire
(Do not use with Smart-Engage
RCA to Line Level Adapters)
StreetWires
Firewall Bushing
