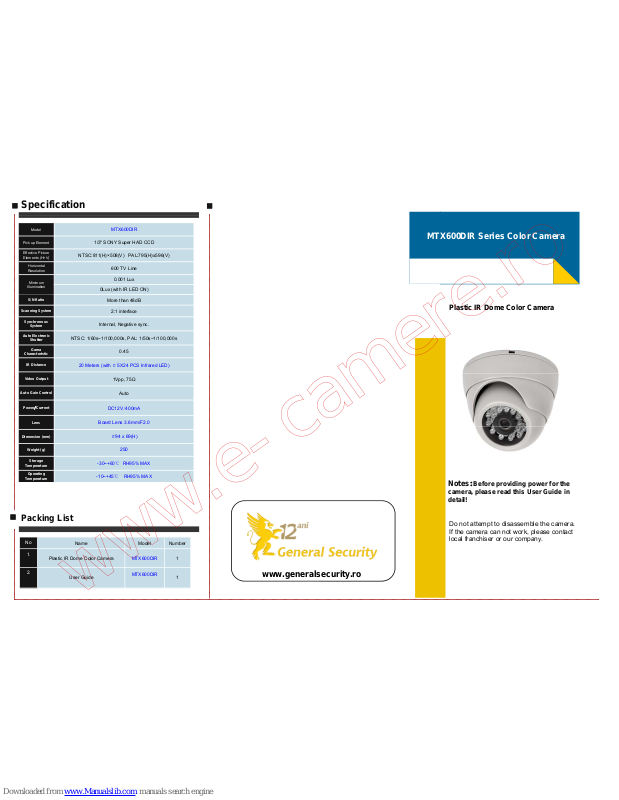

MTX MTX600DIR User Manual
MTX600DIR Series Color Camera
Plastic IR Dome Color Camera
Specification
Packing List
No
Name Model Number
2.
User Guide
MTX600DIR
1
1.
Plastic IR Dome Color Camera MTX600DIR 1
Notes:Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model
MTX600DIR
Pick up Element
1/3" SONY Super HAD CCD
Effective Picture
Elements (H×V)
NTSC:811(H)×508(V) PAL:795(H)x596(V)
Horizontal
Resolution
600 TV Line
0.001 Lux
0Lux (with IR LED ON)
S/N Ratio
More than 48dB
Scanning System
2:1 interface
Synchronous
System
Internal, Negative sync.
Auto Electronic
Shutter
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Gama
Characteristic
0.45
Video Output
1Vpp, 75Ω
Auto Gain Control
Auto
Power/Current
DC12V/400mA
Lens
Board Lens 3.6mm/F2.0
Dimension (mm)
￠94 x 69(H)
Weight (g)
250
Storage
Temperature
-30~+60℃ RH95% MAX
Operating
Temperature
-10~+45℃ RH95% MAX
Minimum
Illumination
IR Distance
20 Meters (with ￠5X24 PCS Infrared LED)
www.generalsecurity.ro
www.e-camere.ro
INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits MTX600DIR series product. We
adopt the latest SONY technical of sensor and driver. The
most attractive characteristics are small and easy hidden,
suits the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong antijamming, rich and real color. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to
ensure proper use of the product.
CONNECTING
BRIEF OF PRODUCT
* Sensor (CCD) Adopt SONY 1/3" CCD Sensor.
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode: NTSC or PAL mode.
* On Screen Display(OSD)
Gives you an overview of the selection of controls available for
easy setting
* Digital Wide Dynamic Range(DWDR) Captures a clean, high
resolution image, even with strong back light.
* OSD SETTING
DC12V Power Supply
Monitor
MTX600DIR
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
Note:
● Please note the camera’s operating temperature and its using
environment
requirement. Avoid using the camera at too high or
too low temperatures. The operating temperature is –10~+45℃.
(Recommendatory operating temperature is –5~+40℃.)
● Never make the camera face the sun or bright object.
Otherwise, it will damage the CCD.
● Do not mount the camera near by the radiator or heater.
1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect corr ectly or have high impedance.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
to rain or moisture.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous volta ge’ within the product’s
enclosure that may be of sufficient Magnitude to constitute
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
OSD SET
LENS
MANUAL/DC/VIDEO
EXPOSURE
SHUTTER
AUTO,1/50,1/250,1/500,1/2000,1/5000,1/10000,
1/100000,×2,×4,×8,×16,×32,×64,×128,×256
BRIGHTNESS
0－100
AGC
LOW/MIDDLE/HIGH/OFF
SENSE UP
2X to 128X
BLC
OFF/BLC/HSBLC
D-WDR
OFF/INDOOR/OUTDOOR
RETURN
WHITE BAR
ATW/AWB/AWC/MANUAL/INDOOR/OUTDOOR
DAY NIGHT
AUTO/COLOR/B/W
3DNR
ON/OFF
SPECIAL
CAM TITLE
ON/OFF
D-EFFECT
FREEZE ON/OFF
MIRROR
D-ZOOM
GAMMA
NEG.IMAGE
RETURN
RS485
CAM ID
ID DISPLAY
BAUDRATE
MOTION
ON/OFF
PRIVACY
OFF
AREA SELECT
AREA DISPLAY
LEFT/RIGHT
WIDTH
Top/Bottom
Height
Color
SYNC
INT
LANGUAGE
CHINESE/ENGLISH/
JAPANESE
RETURN
AD JUST
SHARPNESS
0-31
BLUE
0-100
RED
0-100
RETURN
RESET
FACTORY RESET
RETURN
EXIT
Notes：
●The power supply must through safe attestation. Its output voltage,
current, voltage polarity and operating temperature must match the
camera’s requirement.
●When using the camera in the thunderbolt condition,please note to
mount Anti-thunder device or put off the power supply plug and cable.
●In order to capture high quality pictures, the power supply’s cable and
video output cable should not be too long.
MENU
UP
DOWN
RIGHT
LEFT
